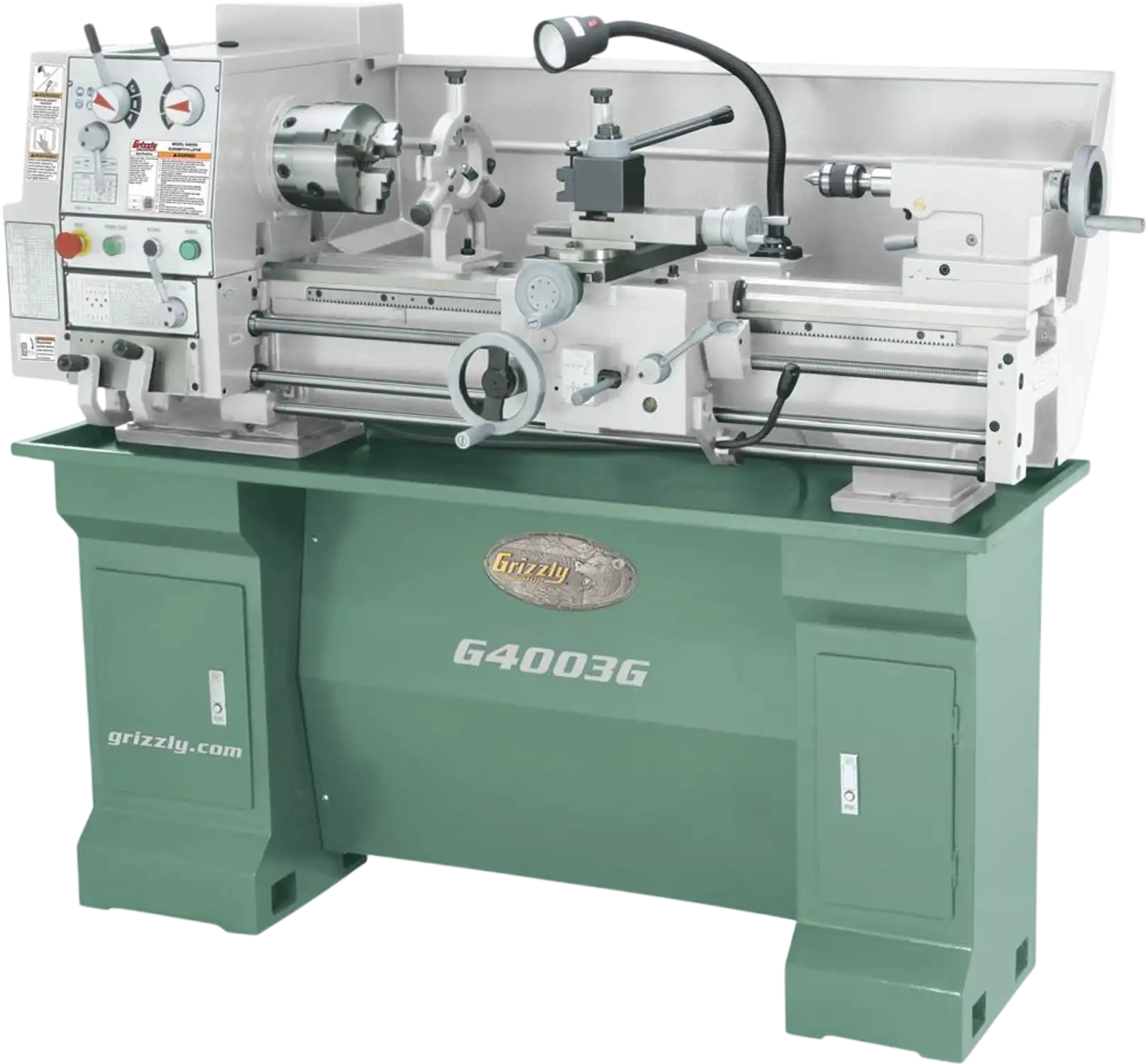

Grizzly G4003G Metal Lathe 12" x 36" Gunsmithing w/ Stand New
Product Overview
The Grizzly G4003G is a 12" x 36" metal lathe built for gunsmithing and precision turning work. Its large 1-9/16" spindle bore, high-precision spindle bearings, and spider mount system make it especially well suited for supporting and machining long barrels and other extended workpieces.
Powered by a 2 HP motor, this 9-speed gearhead lathe offers spindle speeds from 70 to 1400 RPM for a wide range of metalworking tasks. It also cuts both standard and metric threads, including left-hand threads, giving users the flexibility needed for detailed shop and firearm-related projects.
This machine is a strong fit for professional gunsmiths, serious hobbyists, and small shops that need a compact but capable lathe. A heavy-duty stand, tailstock locking system, full-length splash guard, and included workholding accessories help make it a practical choice for precision metalworking right out of the crate.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

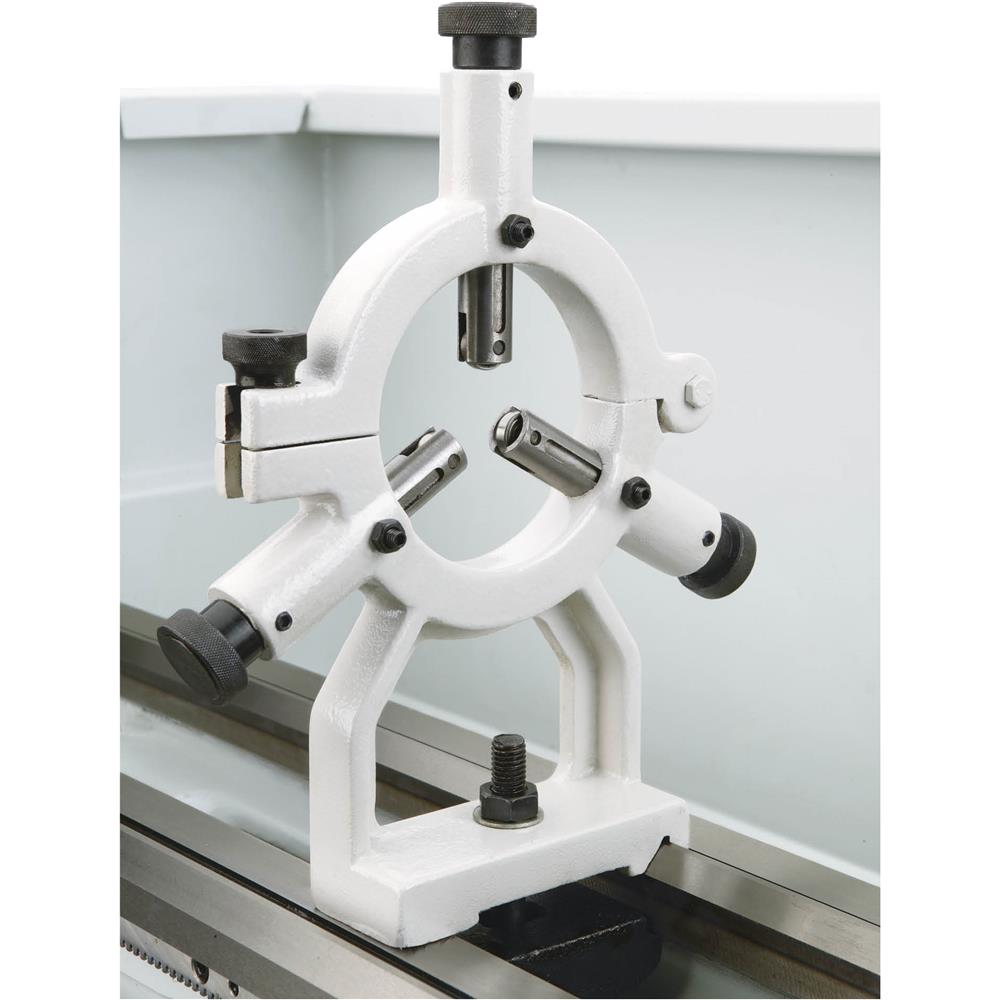

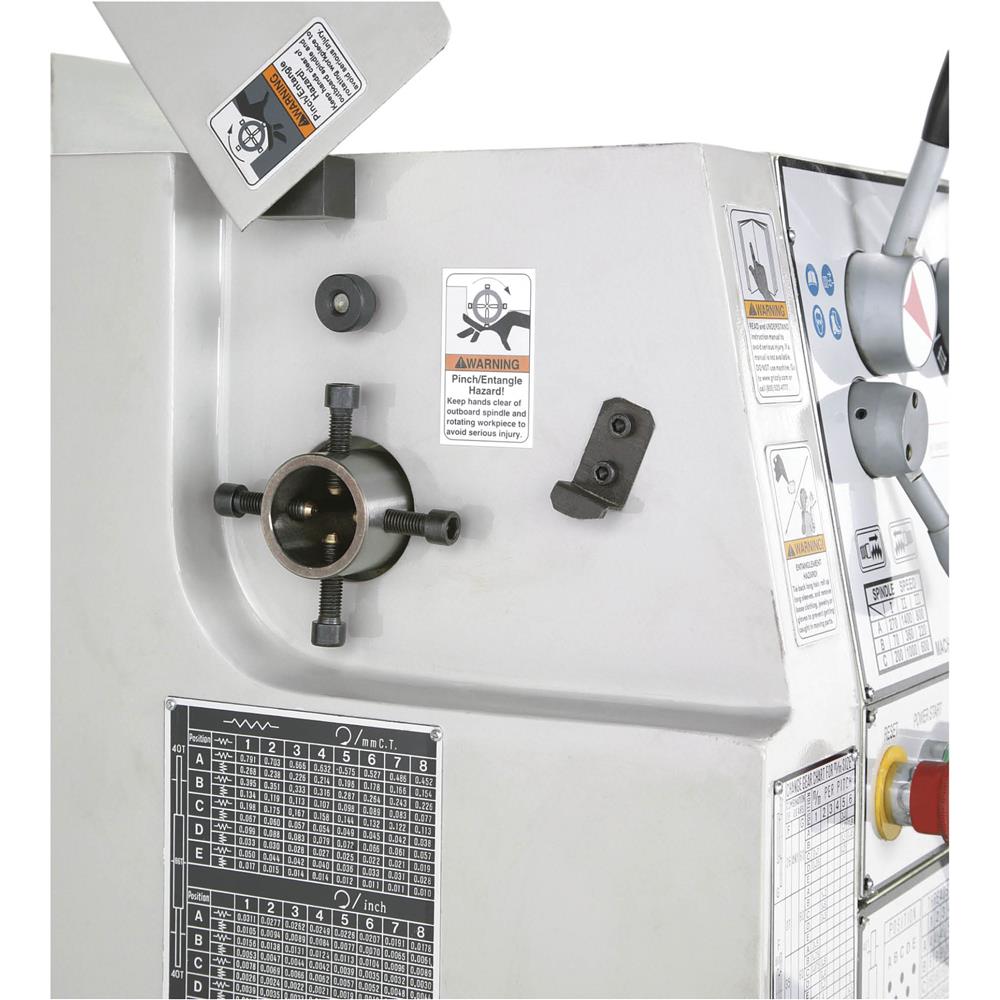

- Spider mount system for stability
- High-quality NSK spindle bearings
- Cuts 4-112 Standard TPI and 0.2-4.5 Metric
- Cuts LH threads
- Full-length splash guard

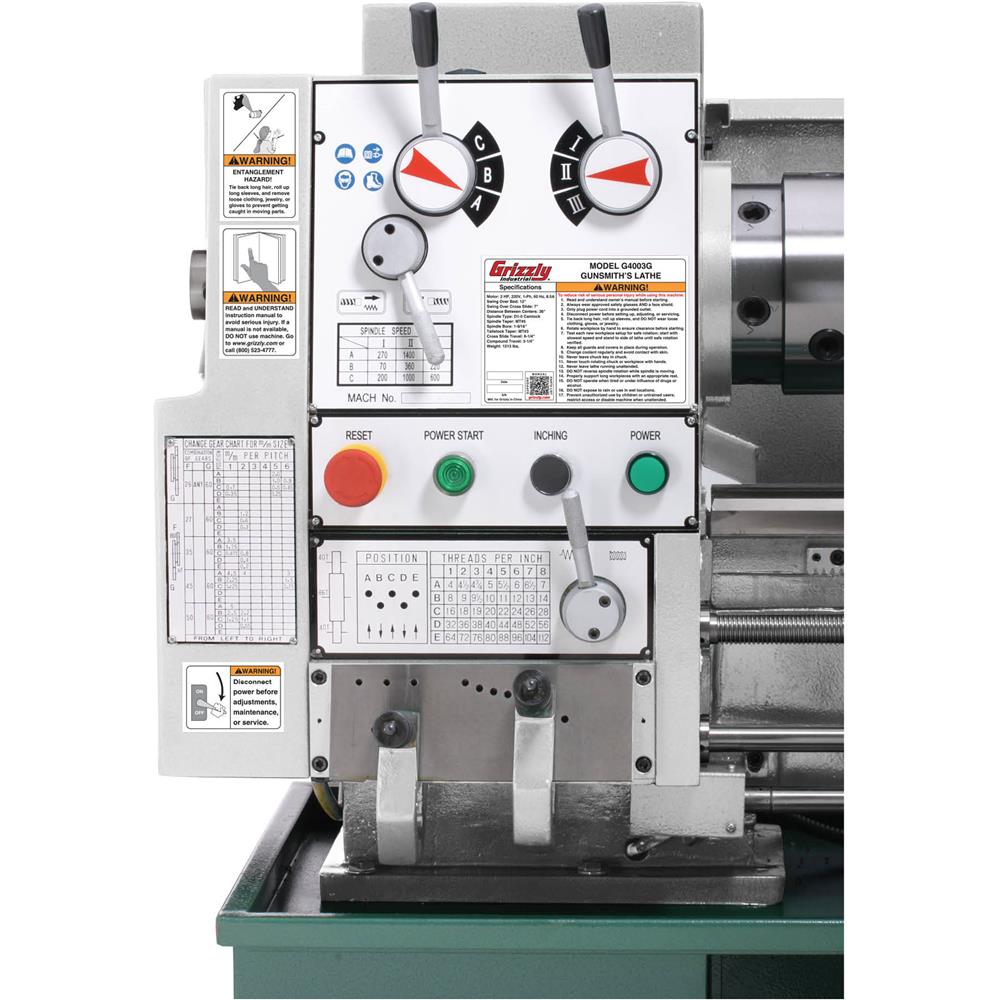

- Spindle on/off reverse switch on carriage
- LED work light

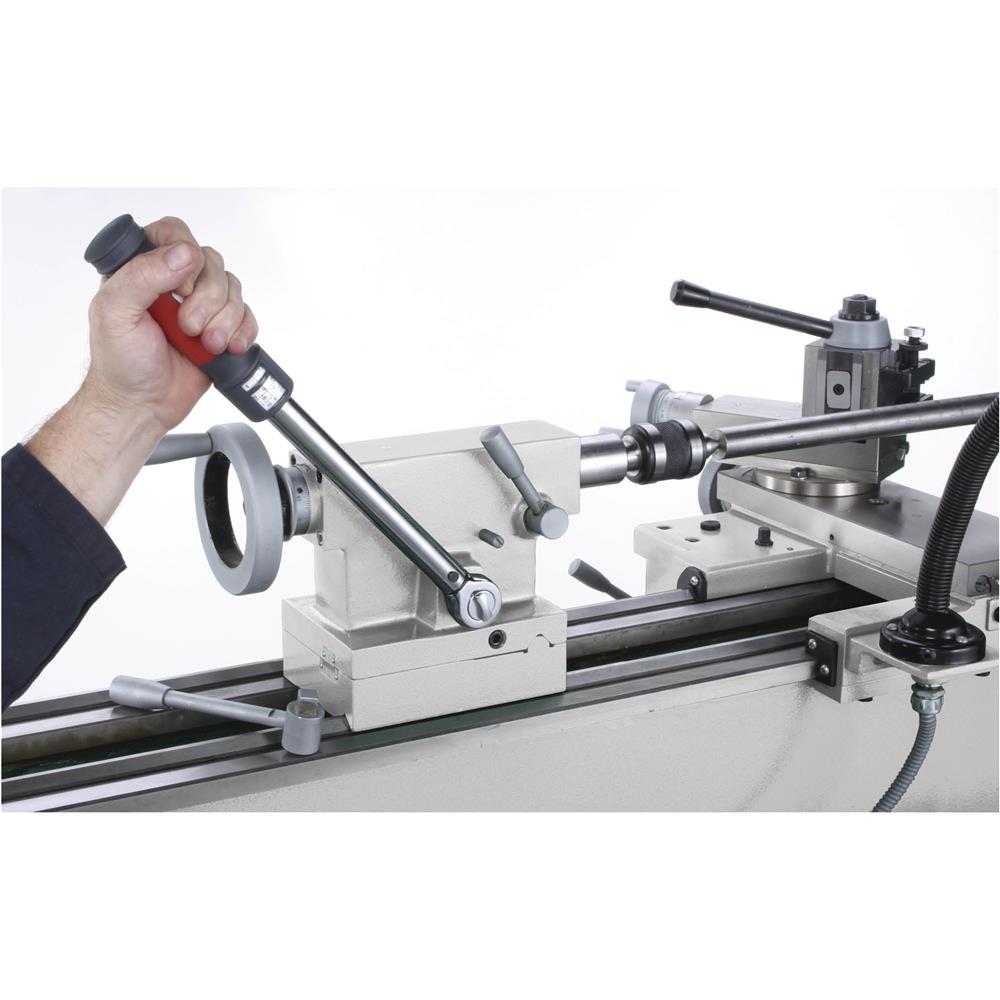

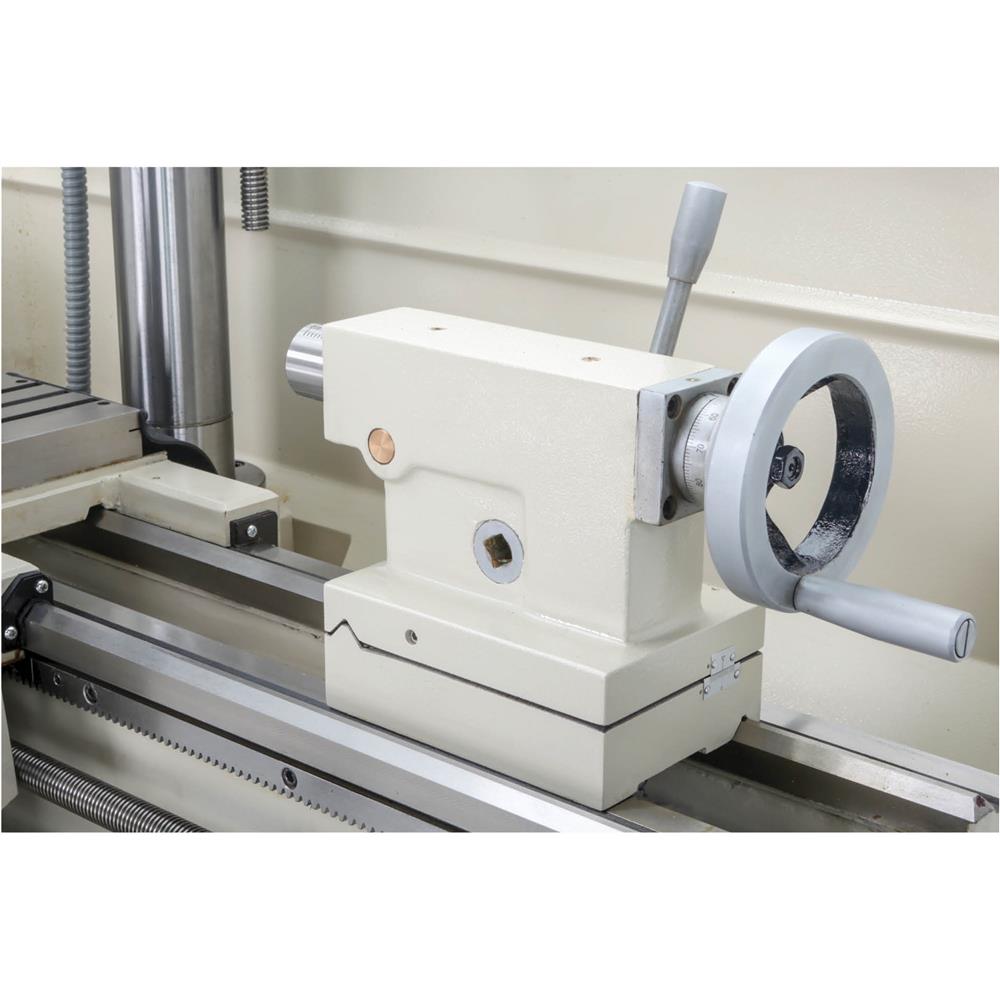

- Tailstock locking system
- Heavy-duty steel stand
- Cast-aluminum gear cover
Specifications
| Motor | 2 HP, 220V, single-phase, 8.5A |
| Swing over bed | 12" |
| Distance between centers | 36" |
| Swing over saddle | 11-11/32" |
| Swing over cross slide | 7" |
| Spindle bore | 1-9/16" (40mm) |
| Spindle nose taper | MT#5 |
| Spindle nose | D1-5 Camlock |
| Spindle speeds | 9, 70–1400 RPM |
| Compound travel | 3-1/4" |
| Carriage travel | 30-1/2" |
| Cross slide travel | 6-1/4" |
| Tailstock barrel taper | MT#3 |
| Tailstock barrel travel | 4" |
| Footprint | 57-1/2" x 14-1/2" |
| Overall dimensions | 67-1/2" W x 26" D x 54-1/2" H |
| Approximate shipping weight | 1330 lbs. |
Warranty
This item comes with a 1 year factory warranty.
