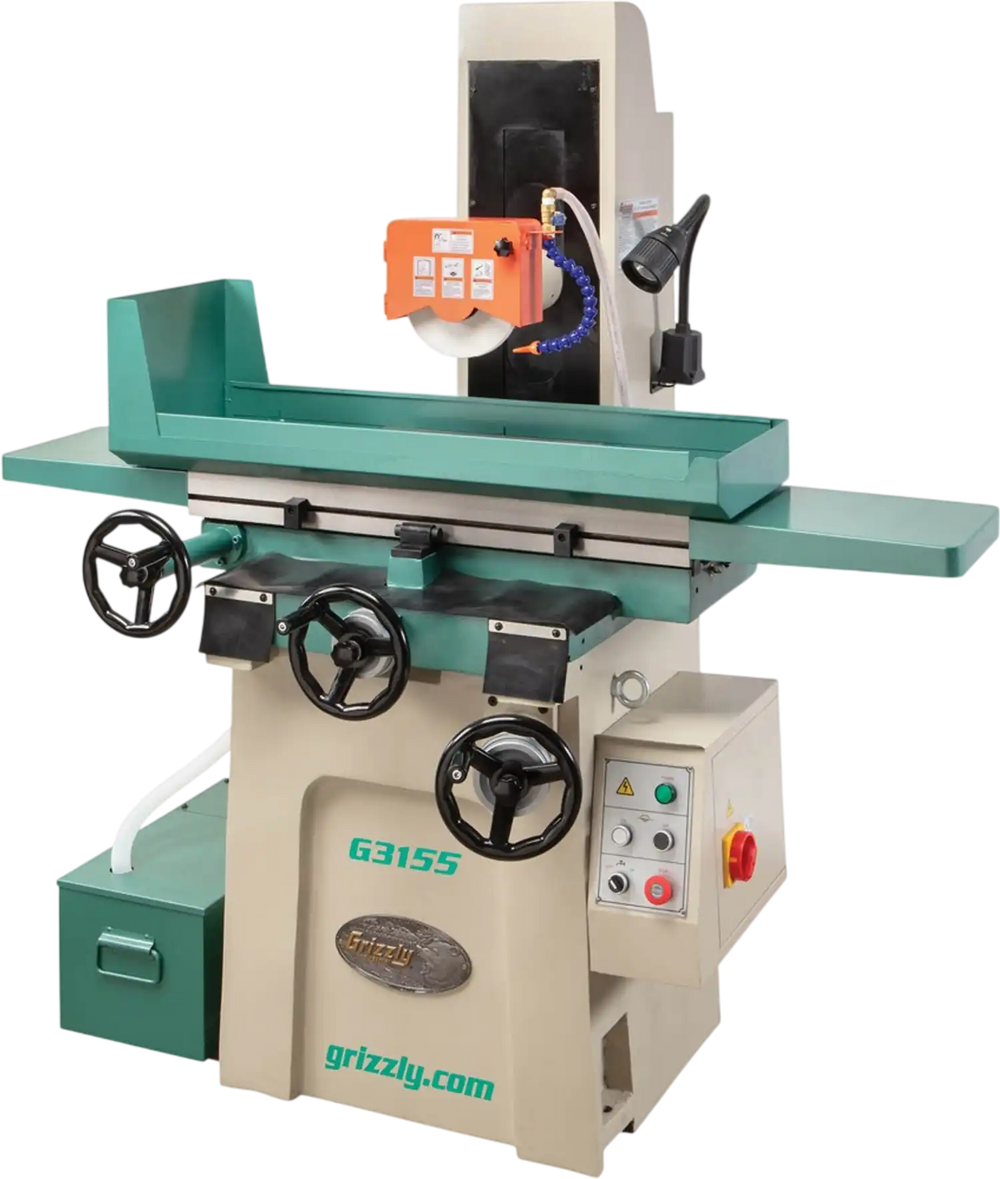

Grizzly G3155 Surface Grinder 8 x 20" New
Product Overview

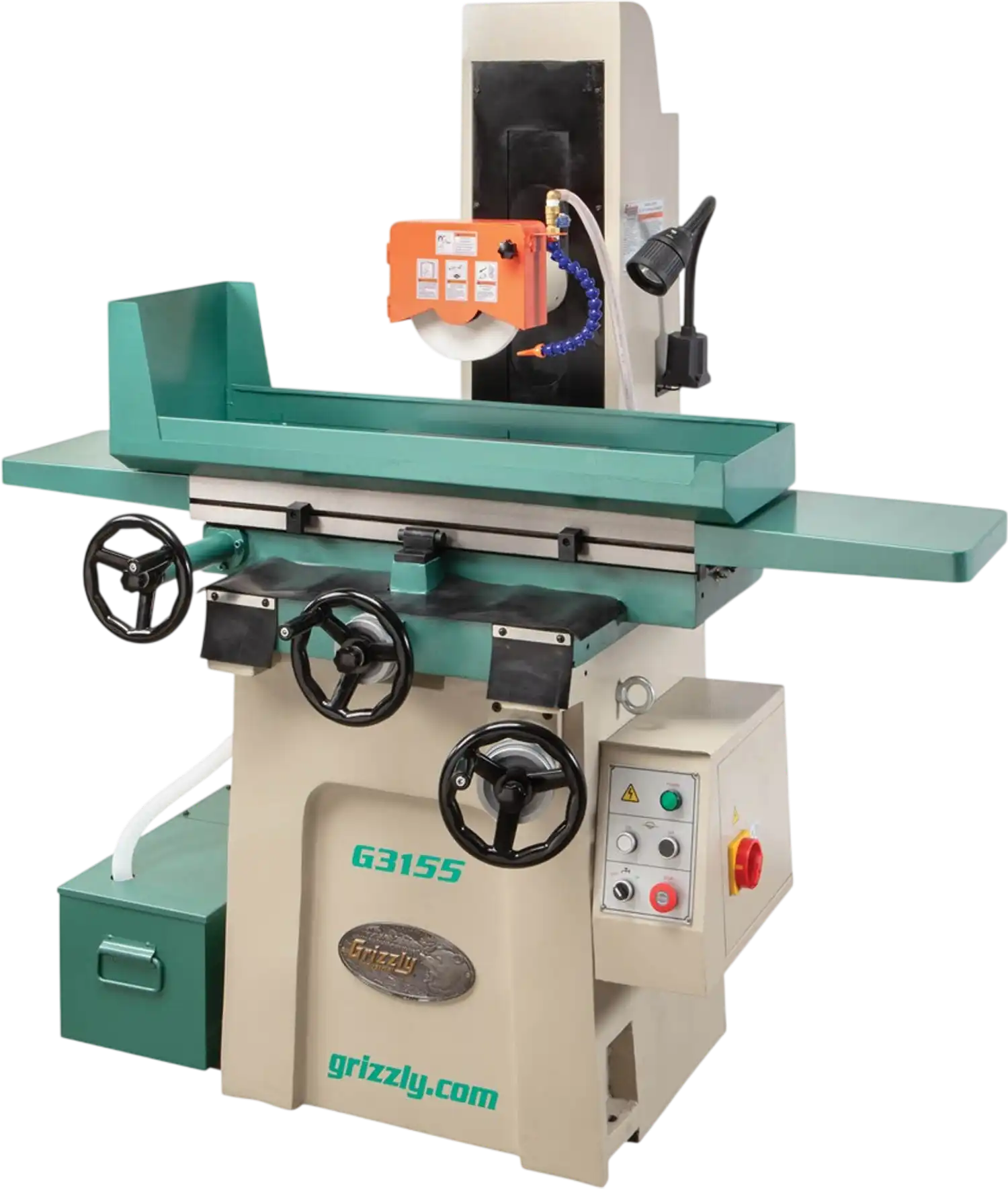

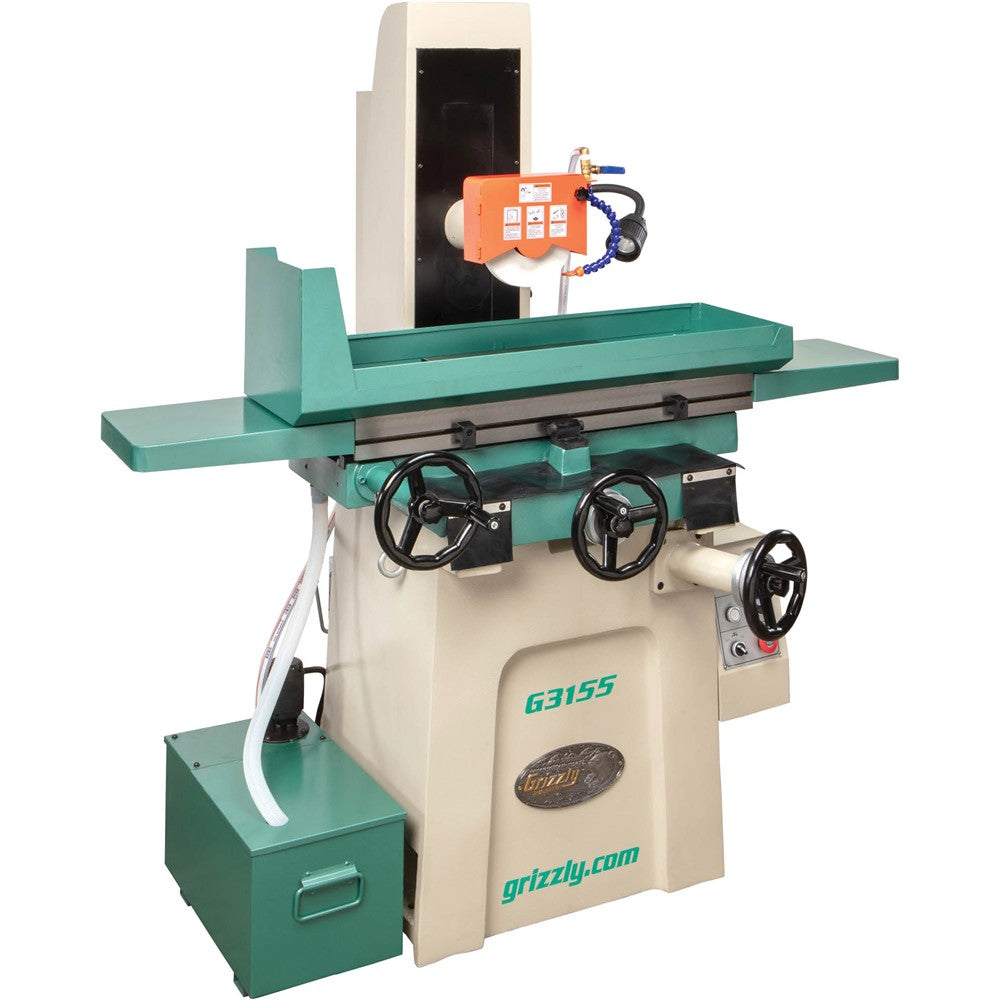

The Grizzly G3155 is an 8" x 20" surface grinder built for high-precision grinding and resurfacing of metal workpieces. It is designed to produce flat, high-tolerance surfaces on larger parts, making it a strong fit for industrial shops, toolrooms, and serious fabrication environments.
Its cast-iron construction helps reduce vibration for more accurate results, while the precision dials and fine-thread screws allow controlled table and cross-feed movement. A 2 HP, 3-phase motor drives the 8" grinding wheel at 3450 RPM, and the included magnetic chuck helps hold workpieces securely during operation.

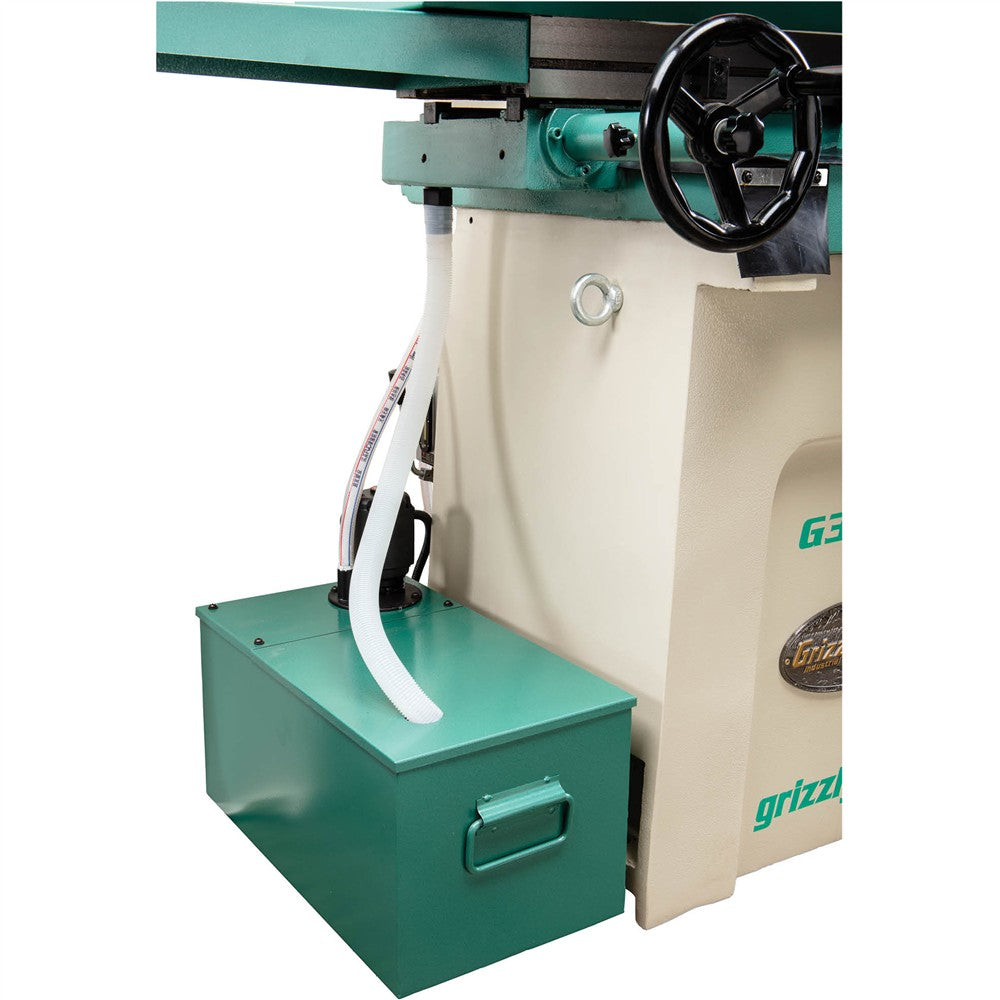

The integrated coolant system helps control heat, reduce wheel loading, and support cleaner grinding conditions for longer runs. With generous travel capacity, one-shot lubrication, a work light, and included wheel balancing and dressing accessories, this machine is well suited for machinists who need consistent, repeatable surface finishing on demanding metalworking jobs.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- 24-Grit grinding wheel

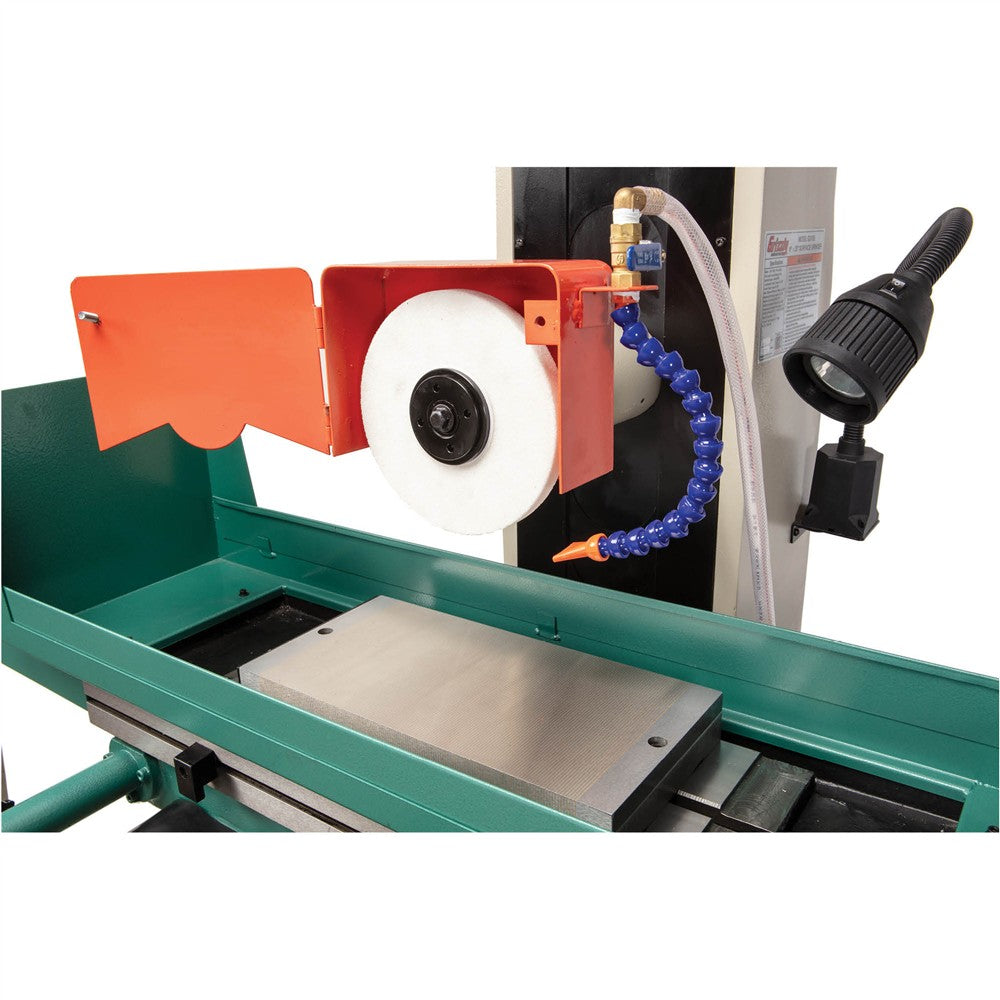

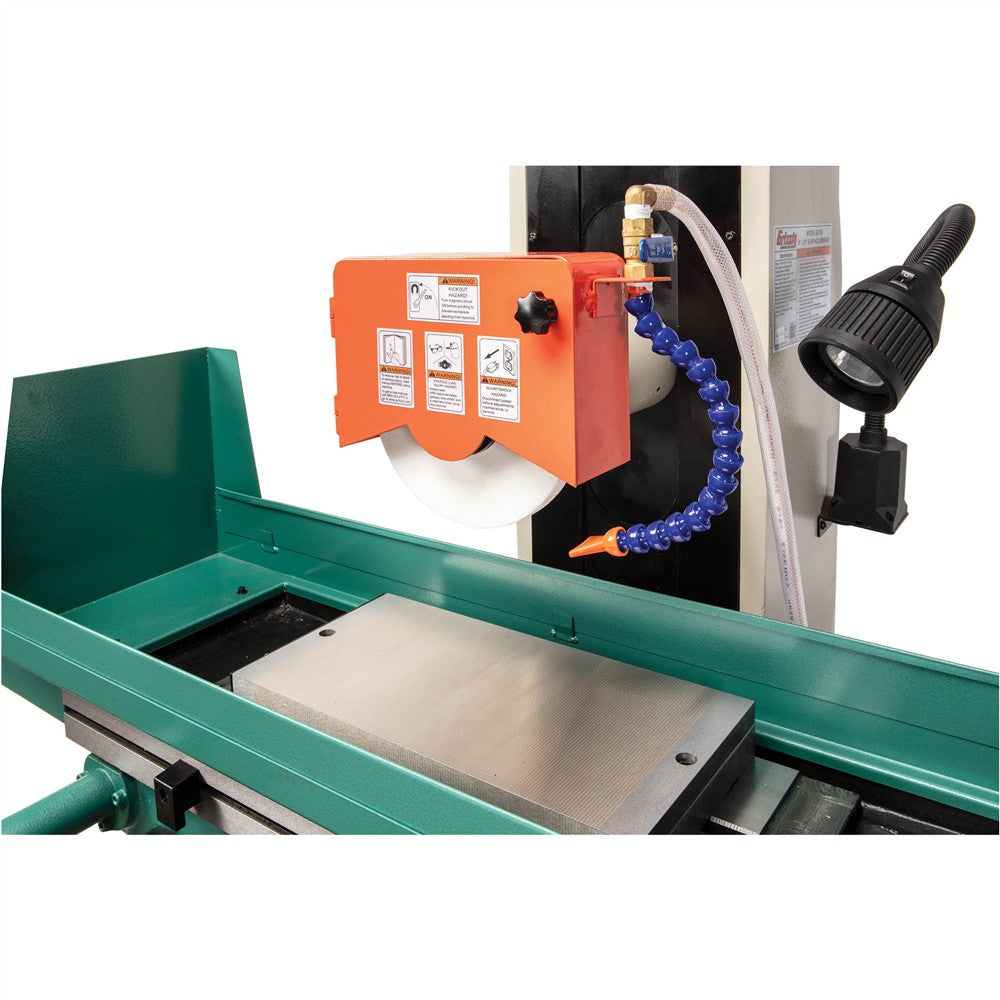

- 7-7/8" x 15-3/4" magnetic chuck

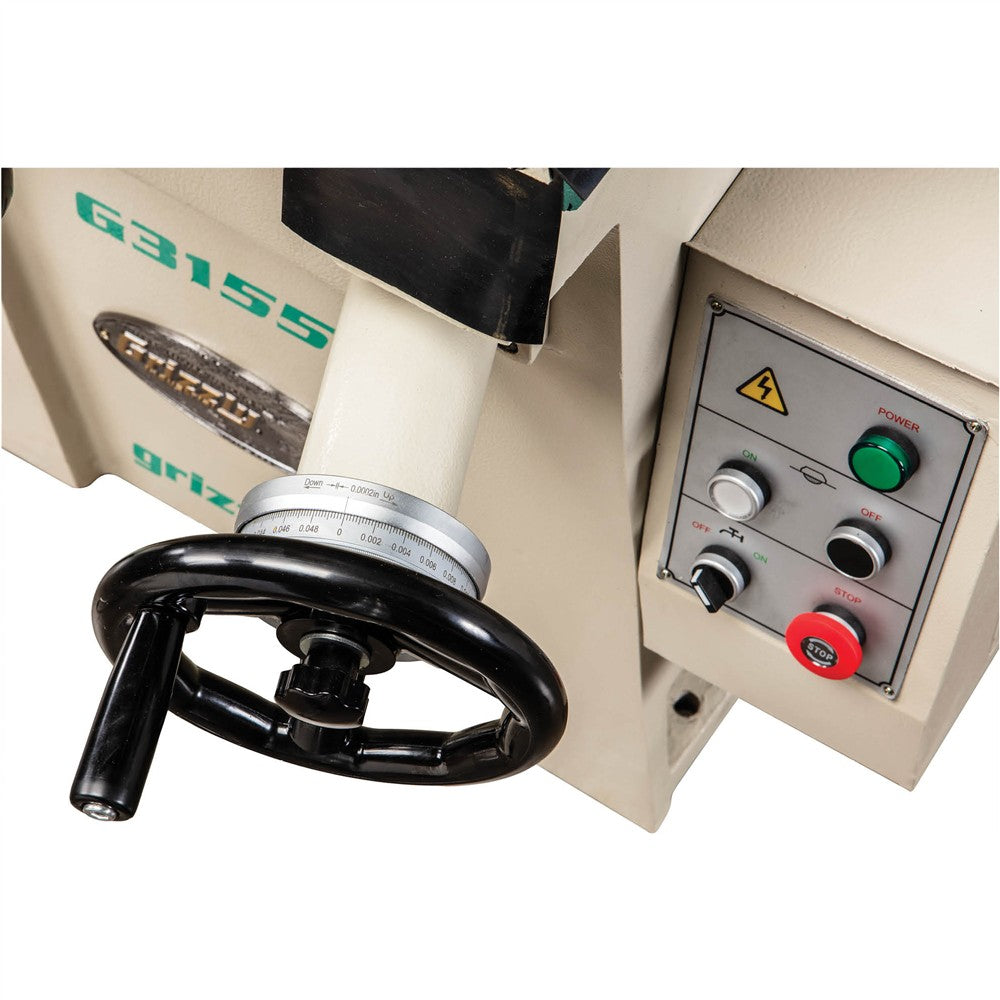

- Column dial
- Cross feed dial
- Cast-iron base

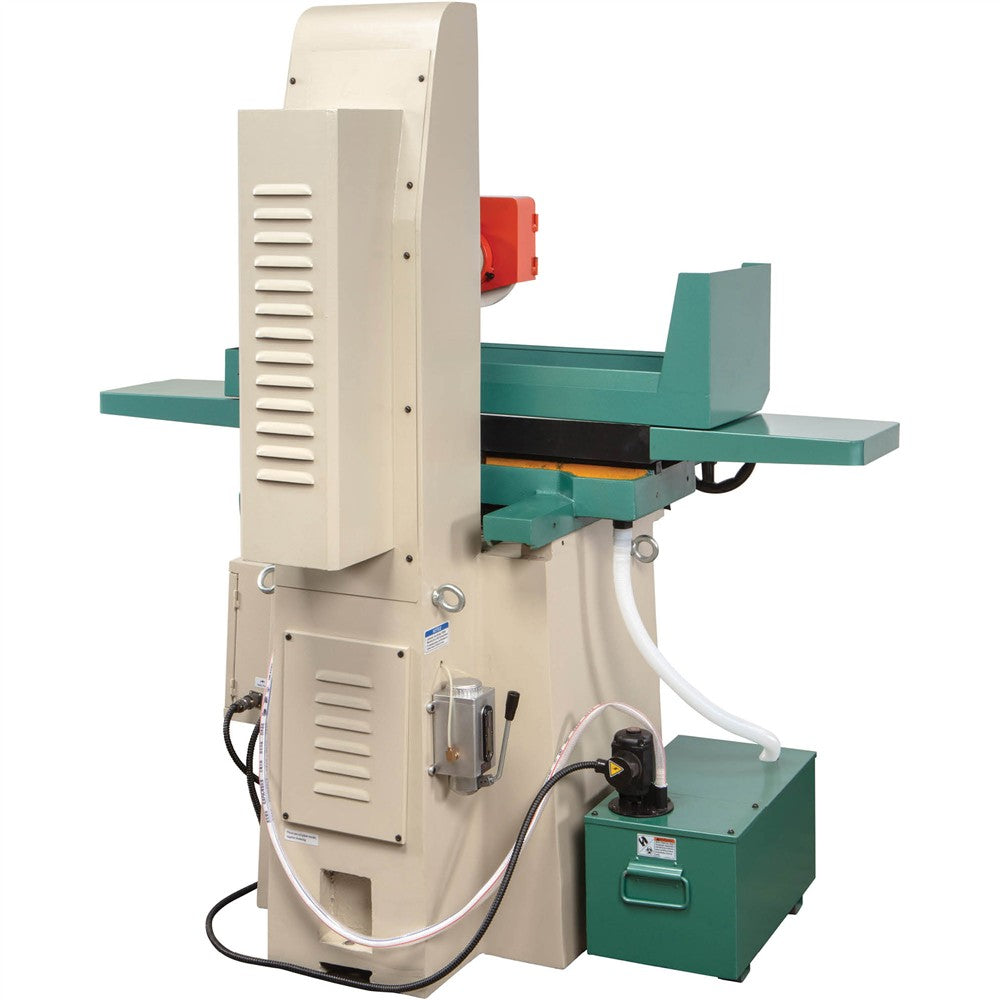

- 9-Gallon coolant system

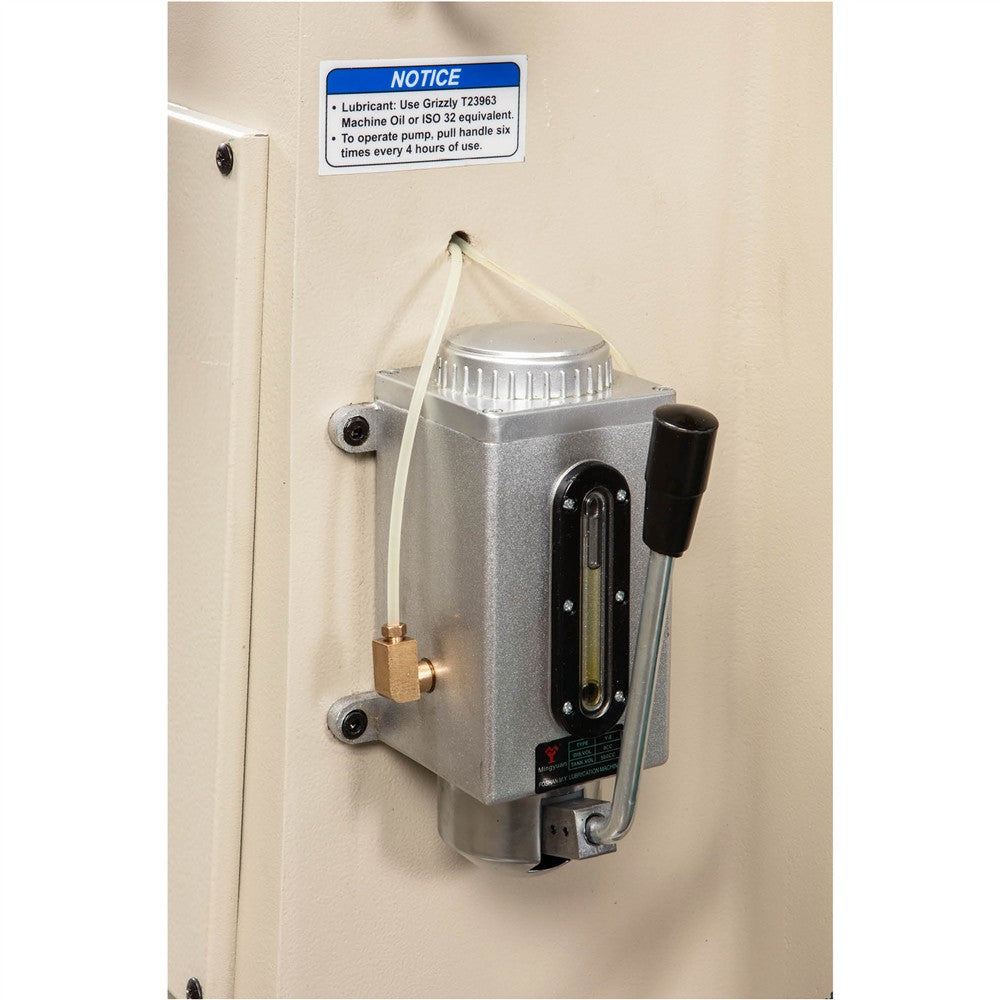

- One-shot lubrication

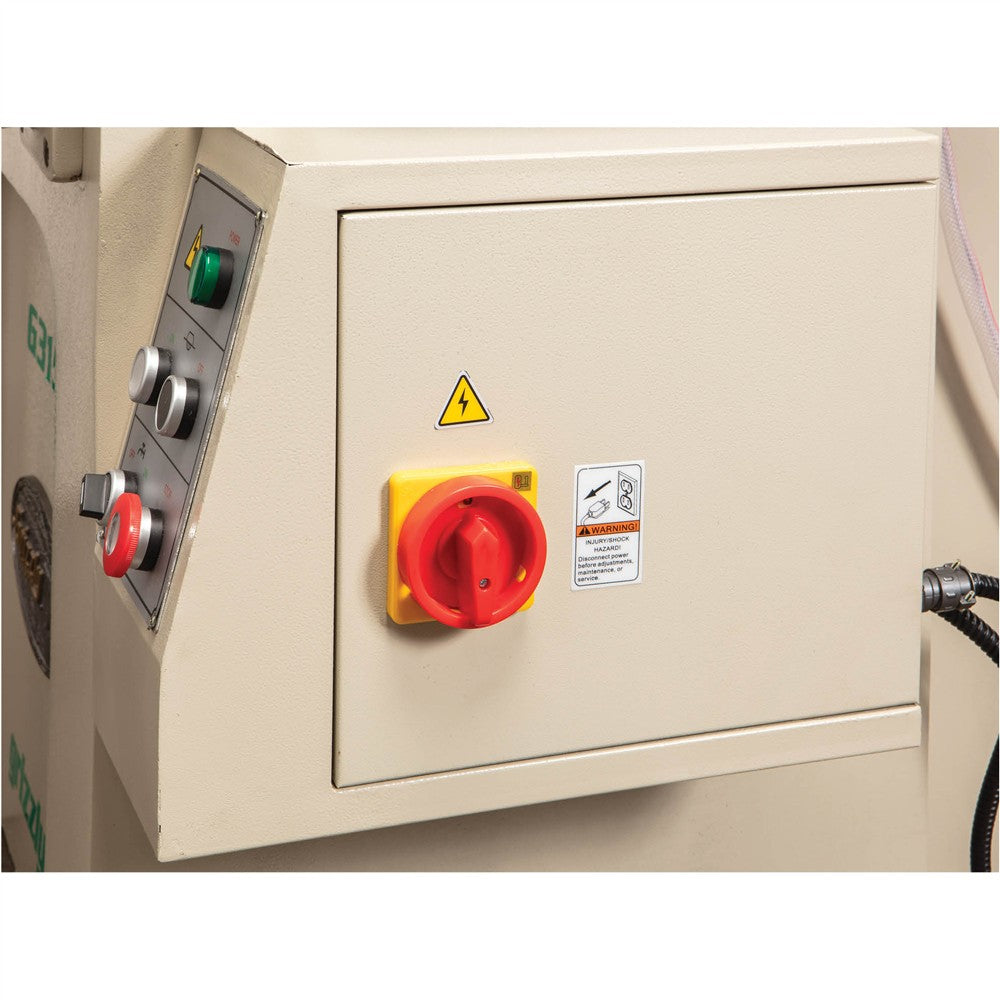

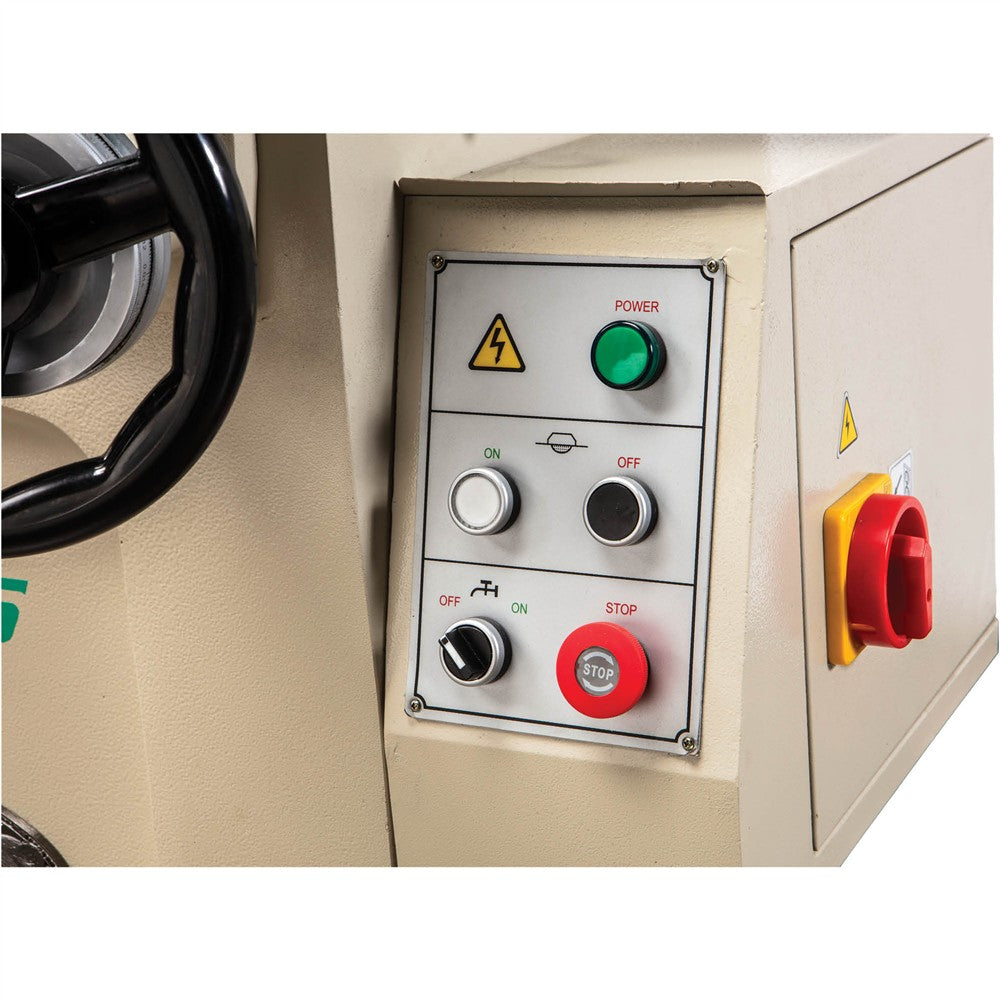

- Power indicator lights
- Work light
- Grinding wheel balancing kit
- Dressing diamond with mount
Specifications
| Motor | 2 HP, 220V, 3-phase, 6.8A |
| Table surface | 8" x 19-3/4" |
| Longitudinal travel | 23-1/8" |
| Cross travel | 9-1/8" |
| Maximum distance table to wheel | 13-7/8" |
| Column size | 9-1/4" x 12-3/4" |
| T-slot and size | 1/2" stud, 7/8" head |
| Grinding wheel | 1-1/4" B x 3/4" W x 8" D |
| Maximum grinding area | 10" x 21-1/2" |
| Spindle diameter | 1-1/4" |
| Spindle speed | 3450 RPM |
| Footprint | 26-1/2" x 27" |
| Overall dimensions | 66" W x 43" D x 64" H |
| Approximate shipping weight | 1898 lbs. |
Warranty
This item comes with a 1 year factory warranty.
