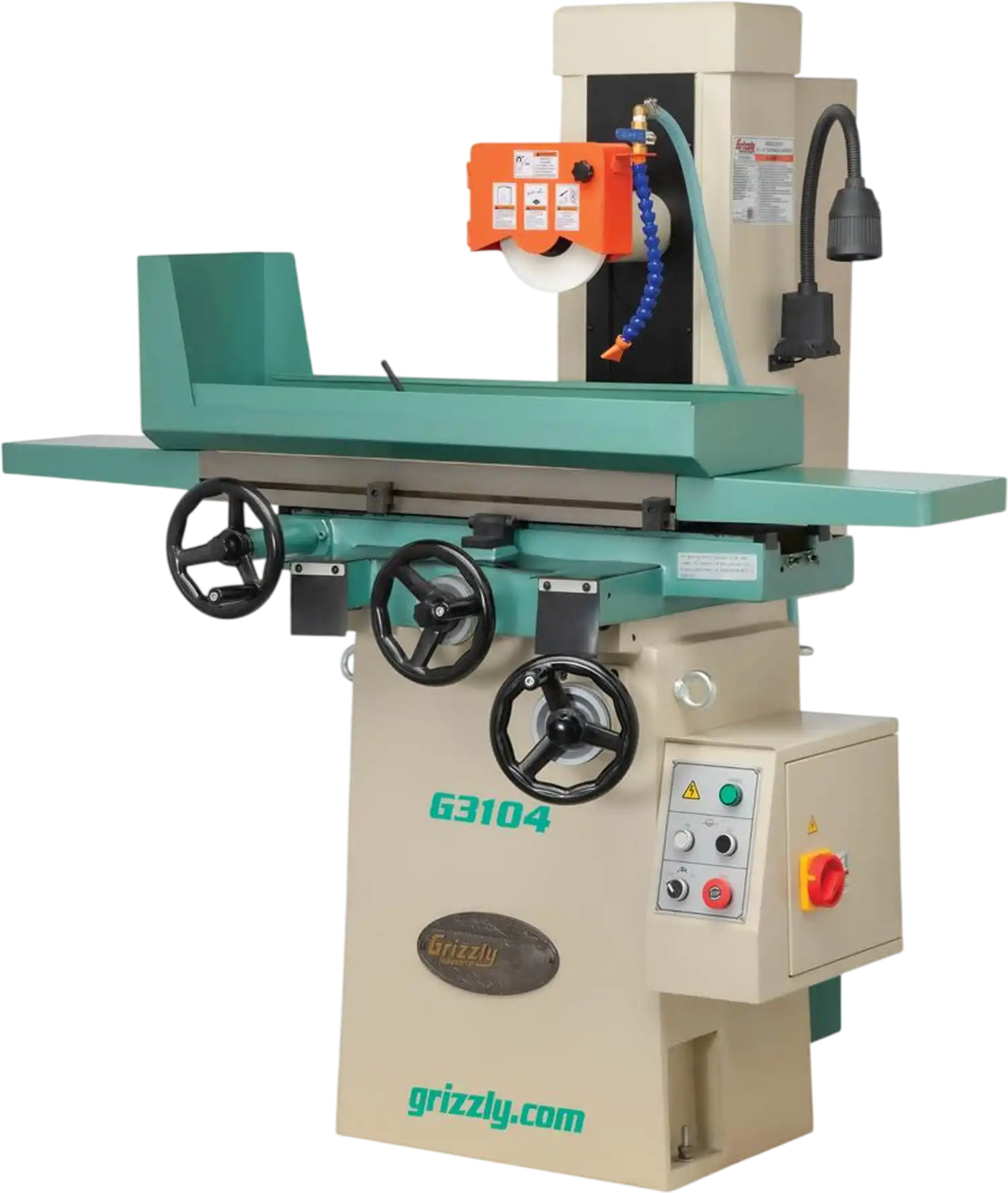

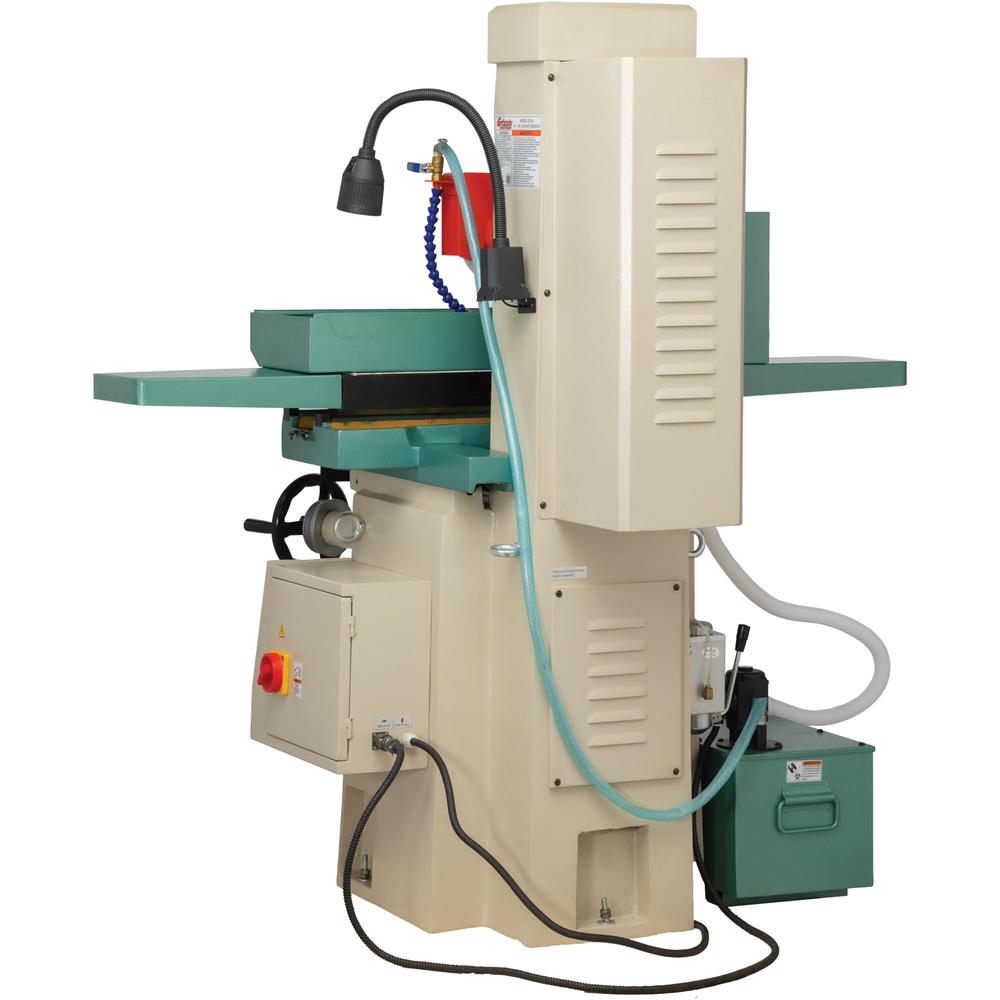

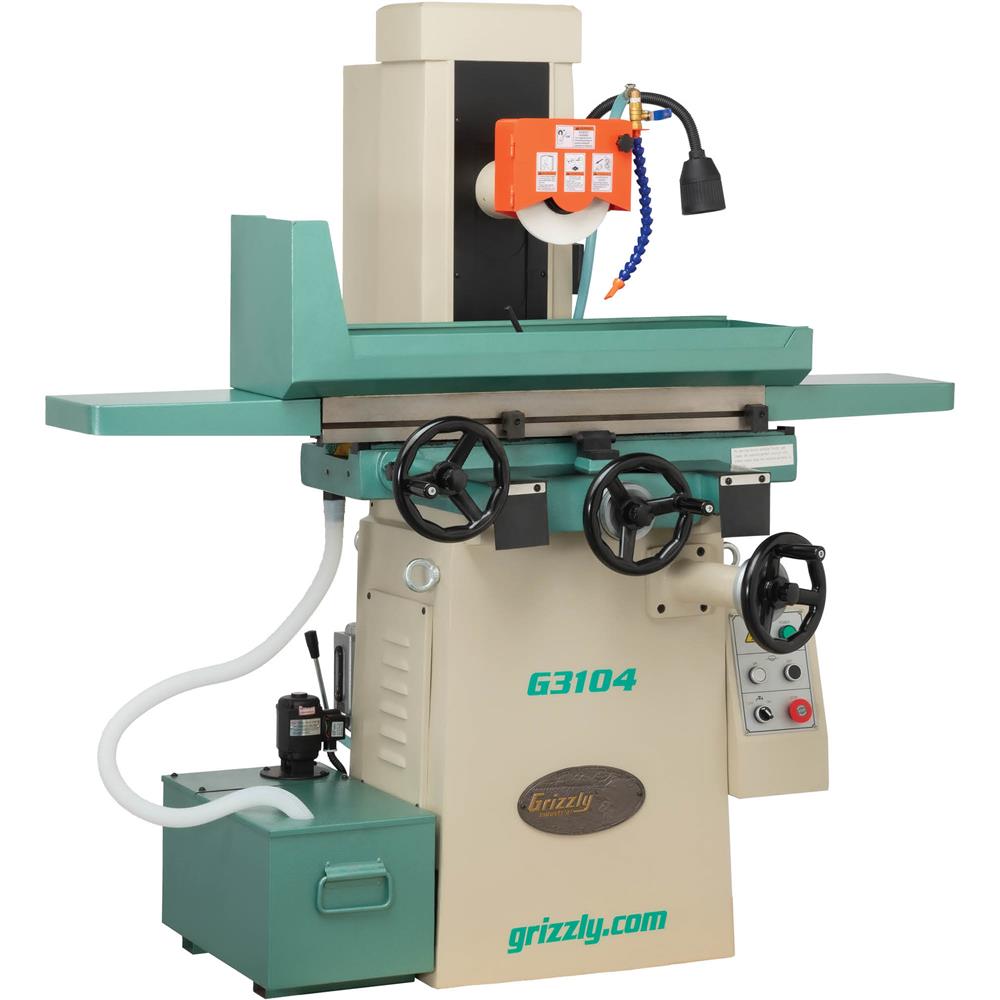

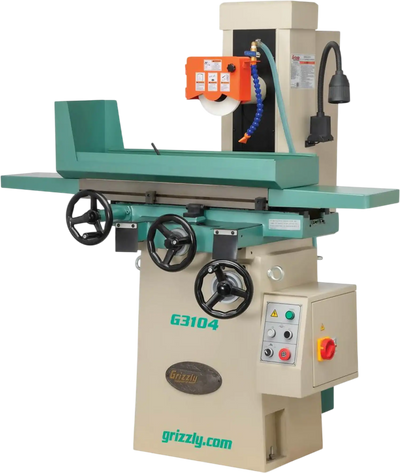

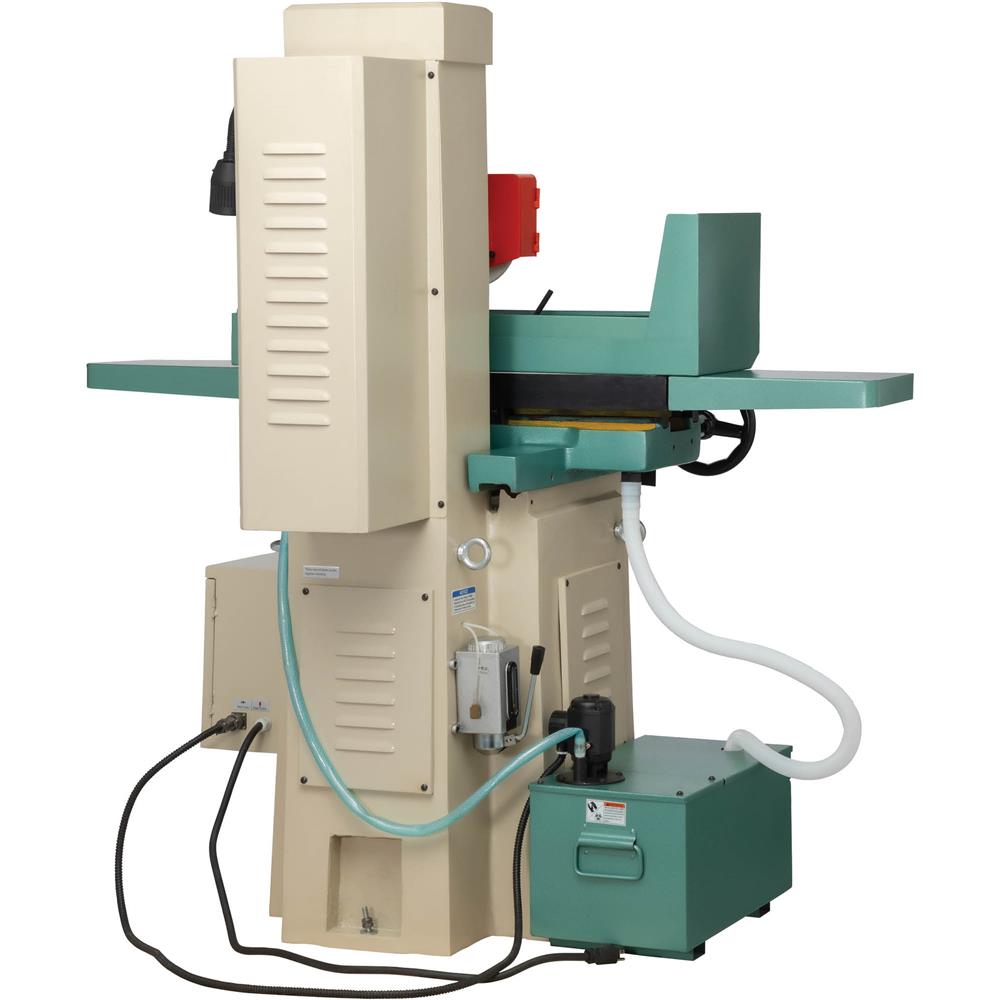

Grizzly G3104 Surface Grinder 6" x 18" New
Product Overview
The Grizzly G3104 is a 6" x 18" surface grinder built for precision grinding of hardened or annealed ferrous metal parts. Designed for close-tolerance work, it combines a heavy cast-iron build with a quiet-running precision spindle for stable, accurate performance in the shop.

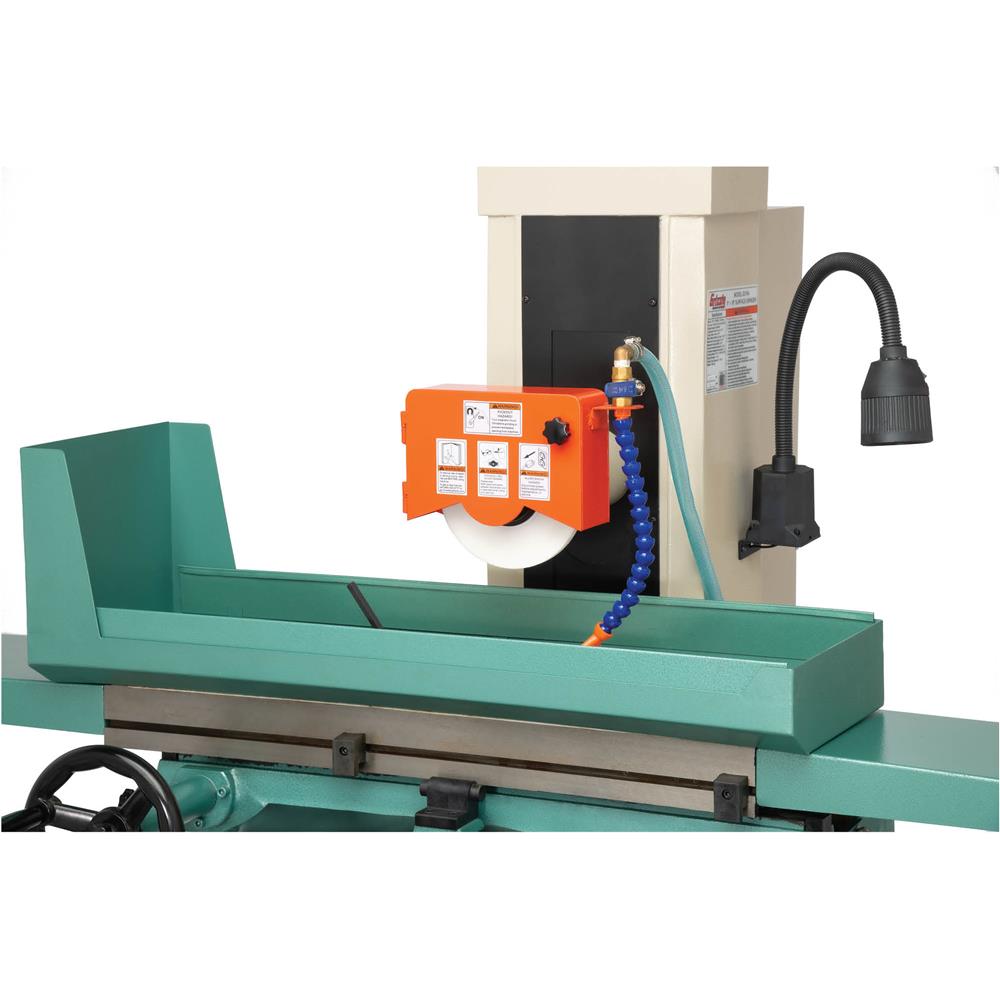

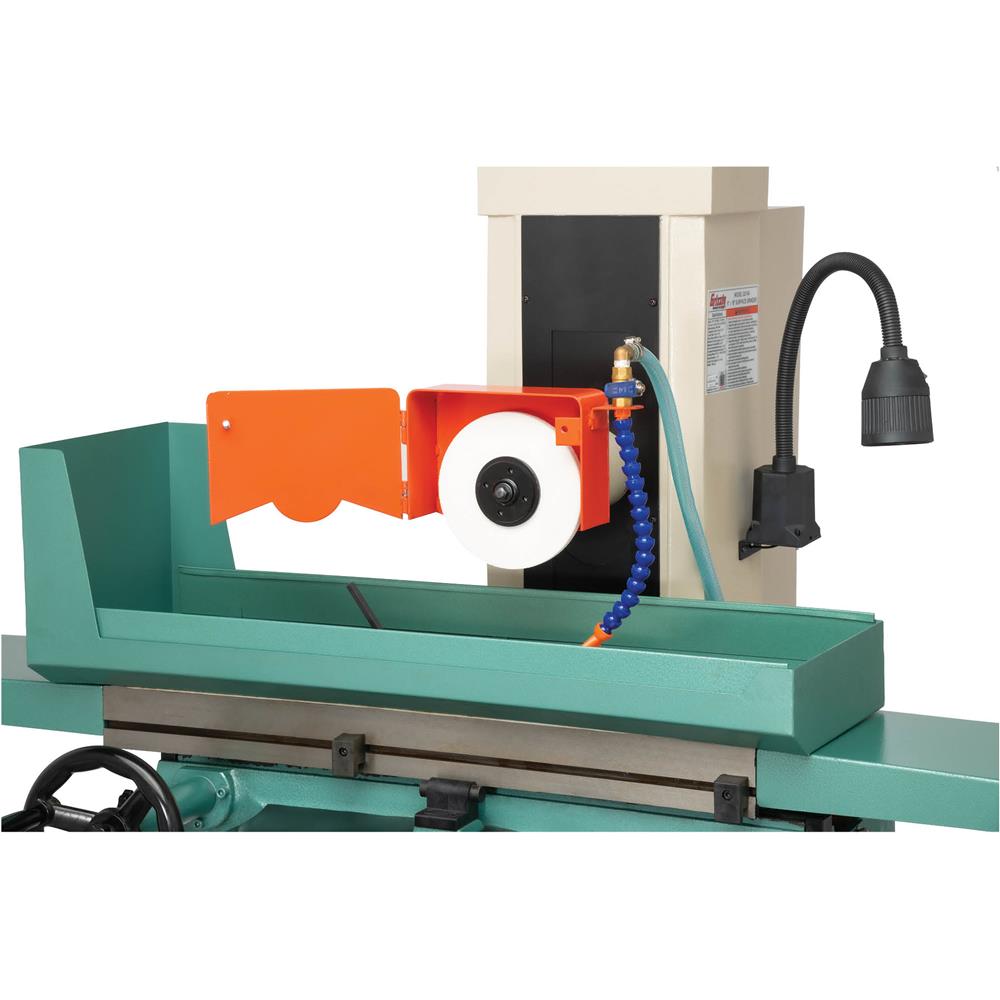

This machine features a 5-7/8" x 15-3/4" magnetic chuck, ball bearing longitudinal slide, flood coolant system, one-shot lubrication, and clear feed dials to support smooth, controlled operation. It also includes a 24-grit grinding wheel and balancing kit to help maintain accurate wheel setup and consistent results.
With a 2 HP single-phase motor, 20-1/2" longitudinal travel, and 6-7/8" cross travel, this grinder is well suited for machinists, toolrooms, maintenance departments, and fabrication shops that need dependable surface finishing on precision metal components.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- 24-Grit grinding wheel
- Grinding wheel balancing kit
- Flood coolant system
- Column dial
- Cross feed dial
- Cast-iron cabinet
- One-shot lubrication
- Work light
- 5-7/8" x 15-3/4" magnetic chuck
- Cast-iron construction
- Splash guard
Specifications
| Motor | 2 HP, 110V/220V (prewired 110V), single-phase, 18.8A/9.4A |
| Table surface | 6" x 18" |
| Longitudinal travel | 20-1/2" |
| Cross travel | 6-7/8" |
| Maximum distance table to wheel | 10-3/4" |
| T-slot and size | 1/2" stud, 7/8" head |
| Grinding wheel | 7" Dia. x 1-1/4" Bore x 3/4" Wide |
| Column size | 7-1/2" x 12" |
| Spindle diameter | 1-1/4" |
| Spindle speed | 3450 RPM |
| Overall dimensions | 61" W x 42-3/4" D x 63" H |
| Approximate shipping weight | 1429 lbs. |
Warranty
This item comes with a 1 year factory warranty.
