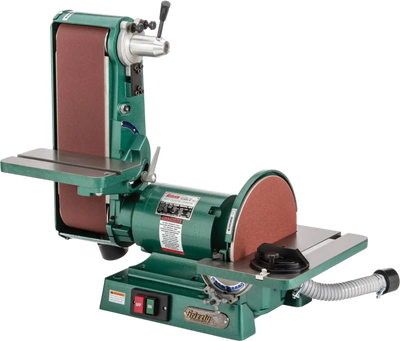

Grizzly G1183 Belt-Disc Sander 6" x 48" Belt 12" Disc Combo 3450 RPM New
Manufacturer: Grizzly
SKU: G1183
QTY
or
(888) 999-1522
C
$1,629.00
Exceptional Customer Service
Authorized Dealer

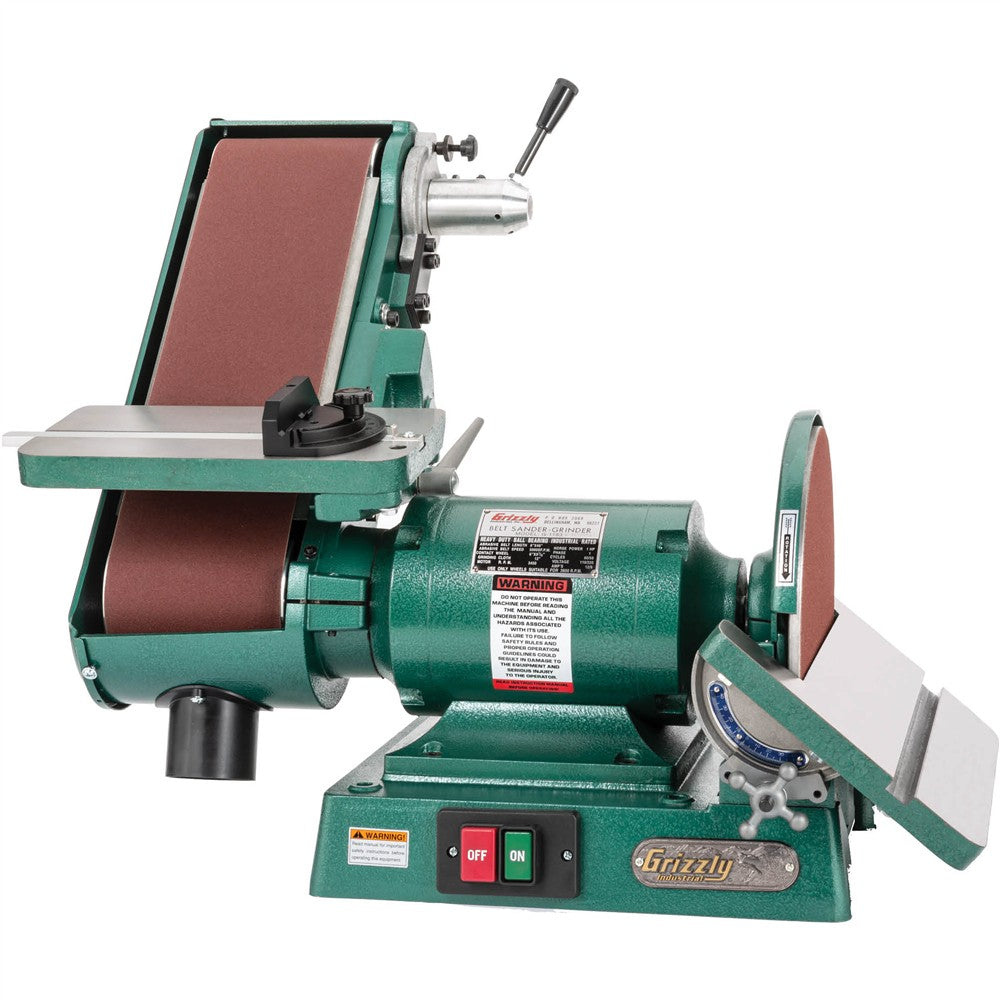

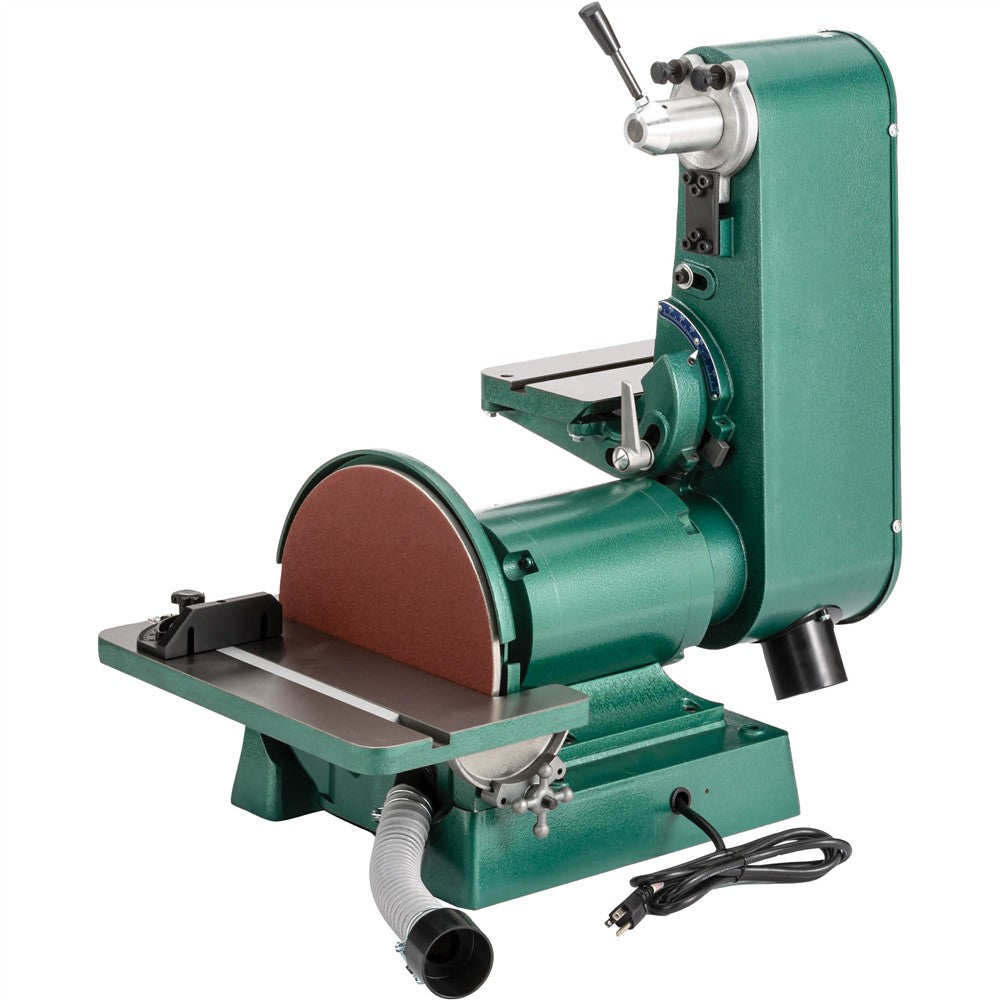

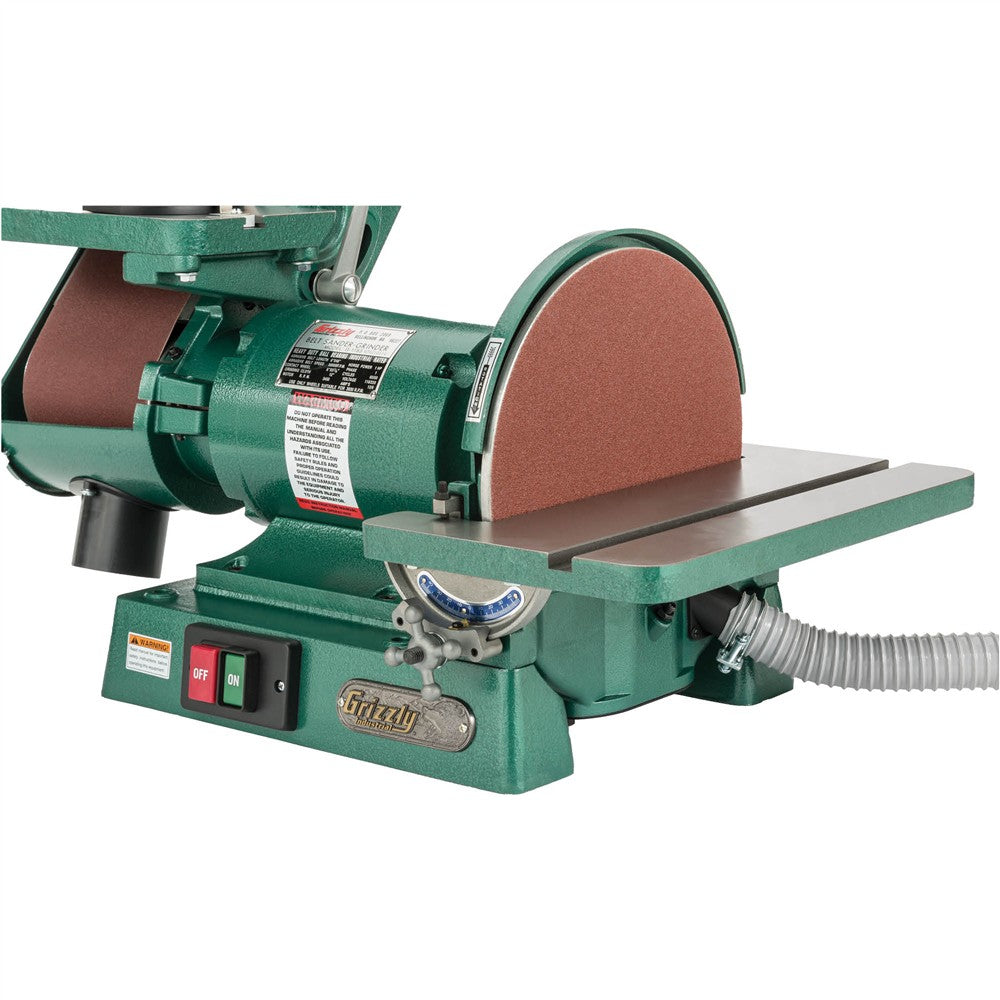

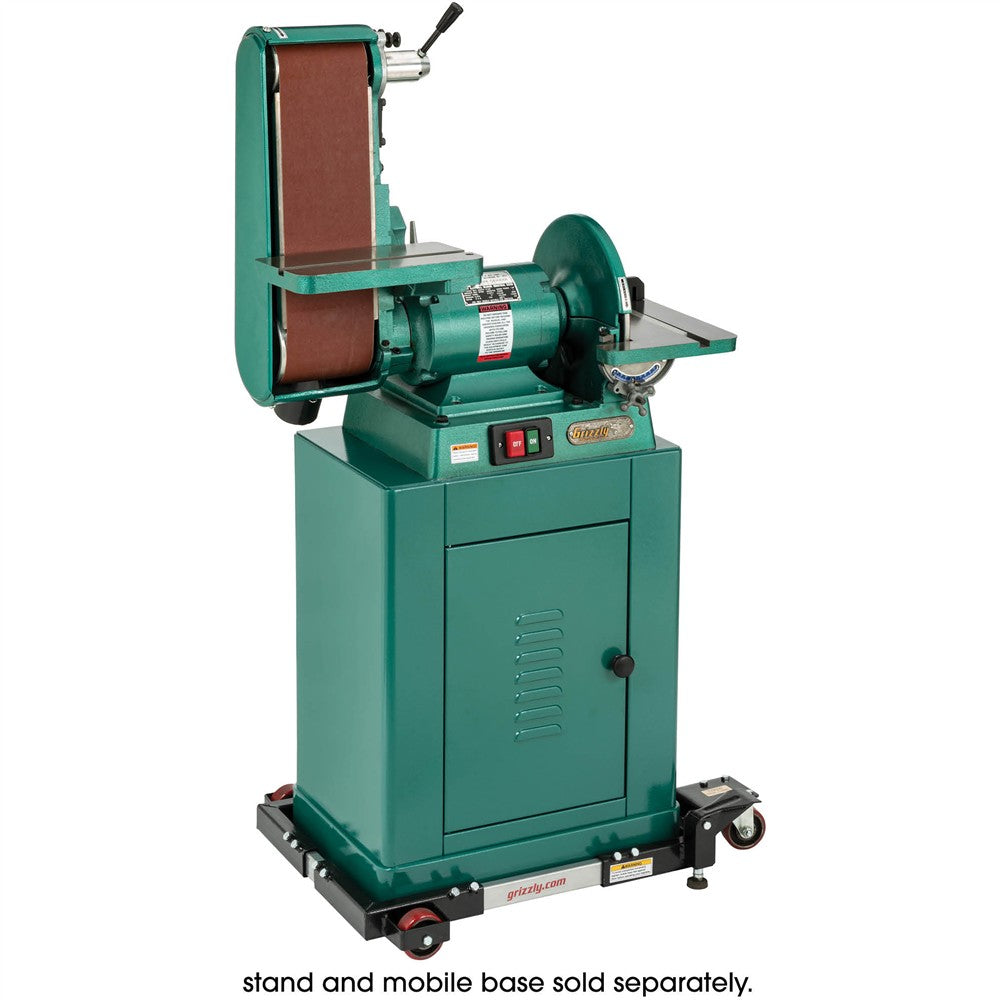

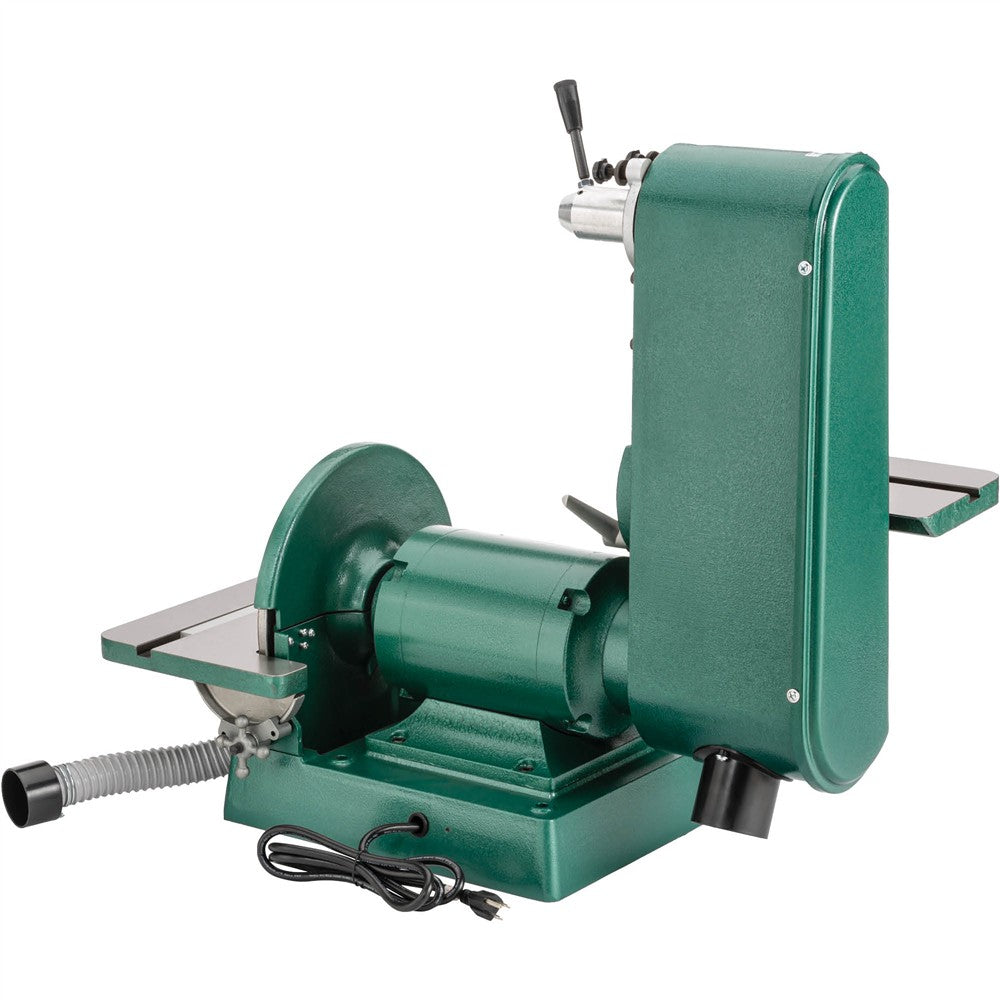

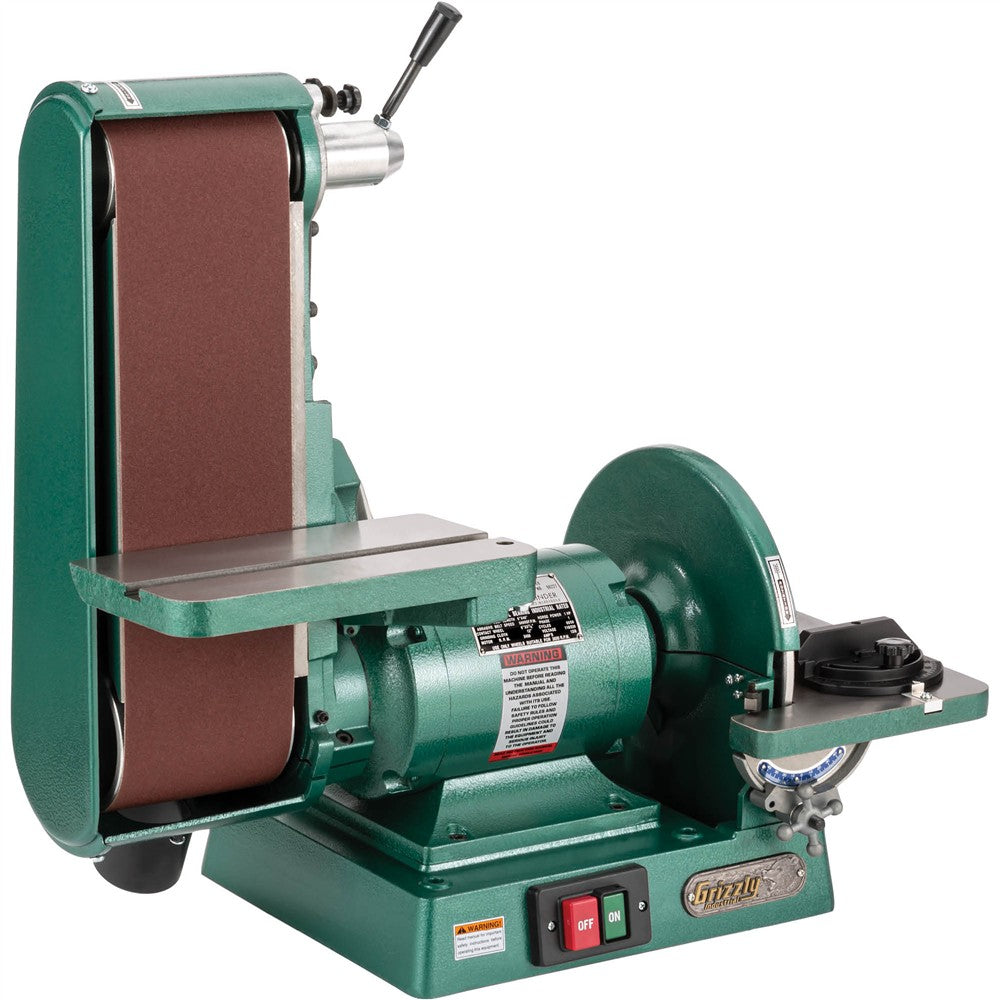

Grizzly G1183 Belt-Disc Sander 6" x 48" Belt 12" Disc Combo 3450 RPM New
Product Overview
The Grizzly G1183 is a heavy-duty combo sander that pairs a 6" x 48" belt with a 12" disc for fast, accurate material removal and finishing. Built for woodworking and metalworking, it gives shops a versatile machine for shaping edges, smoothing surfaces, and refining parts.

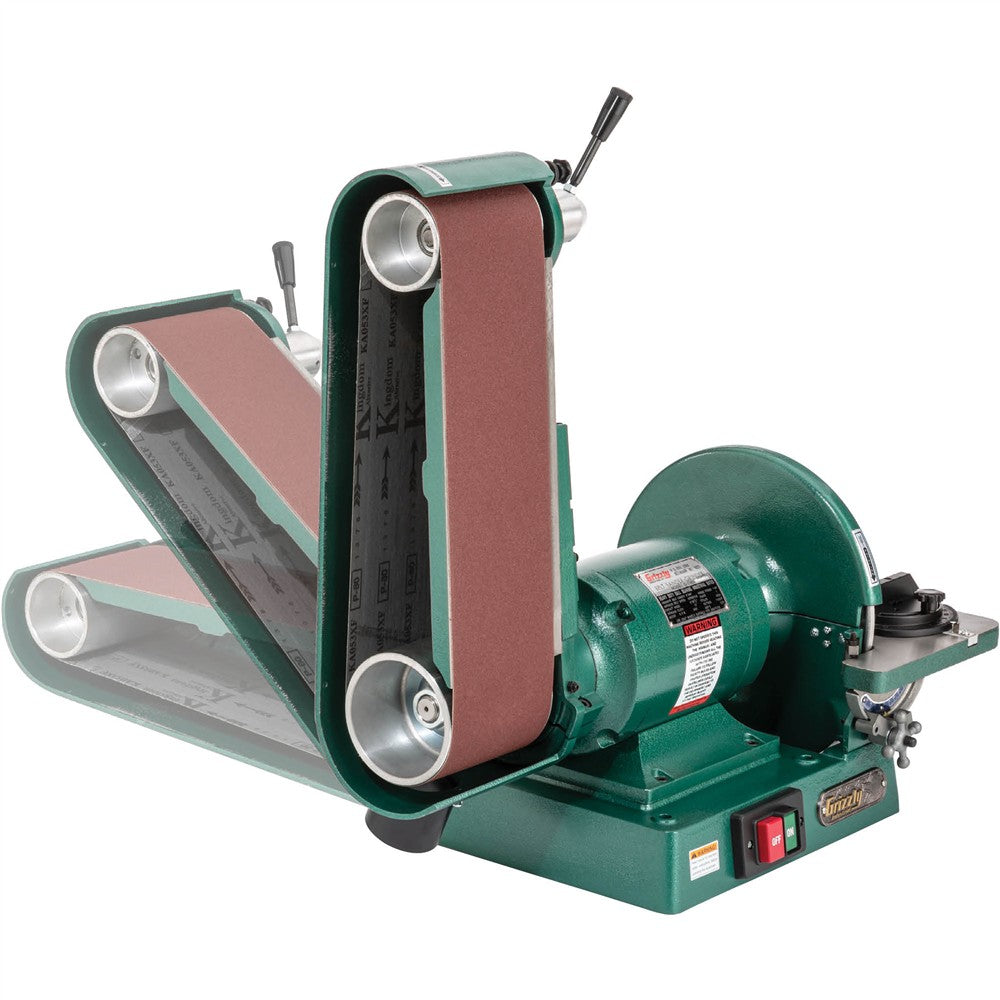

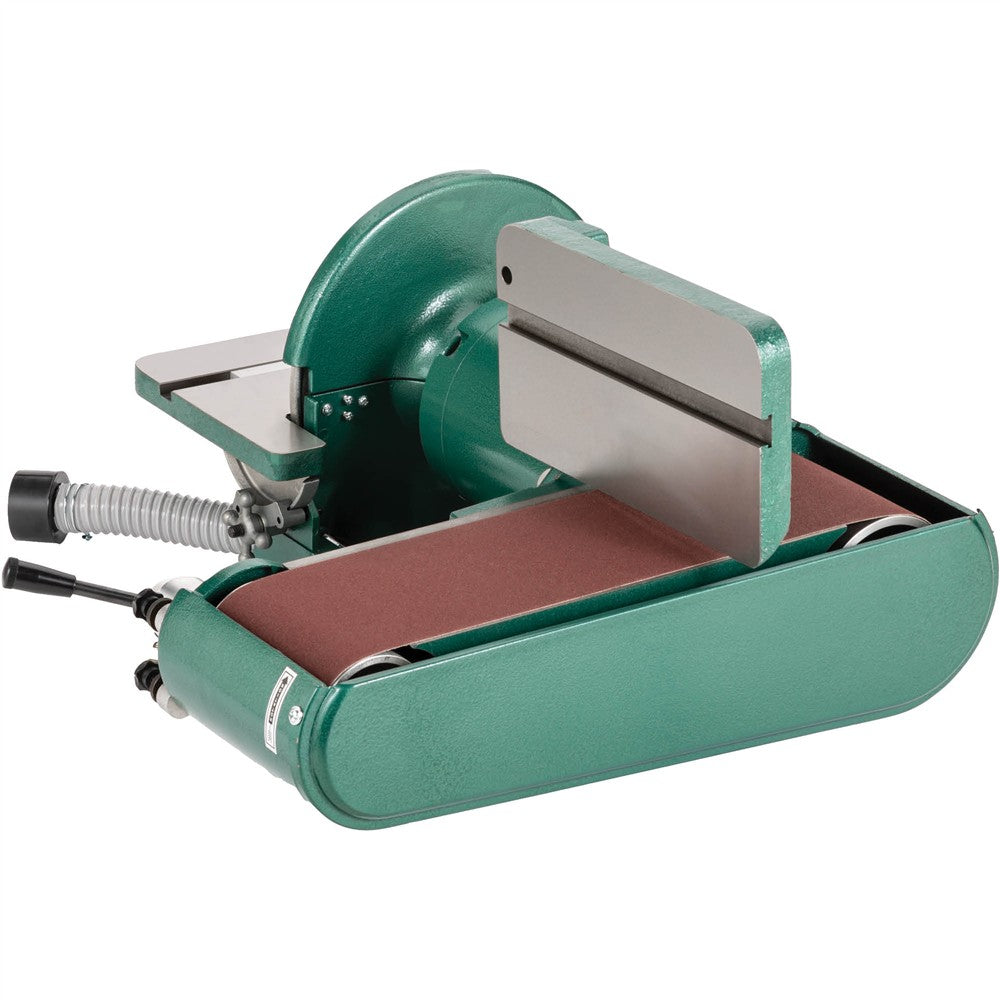

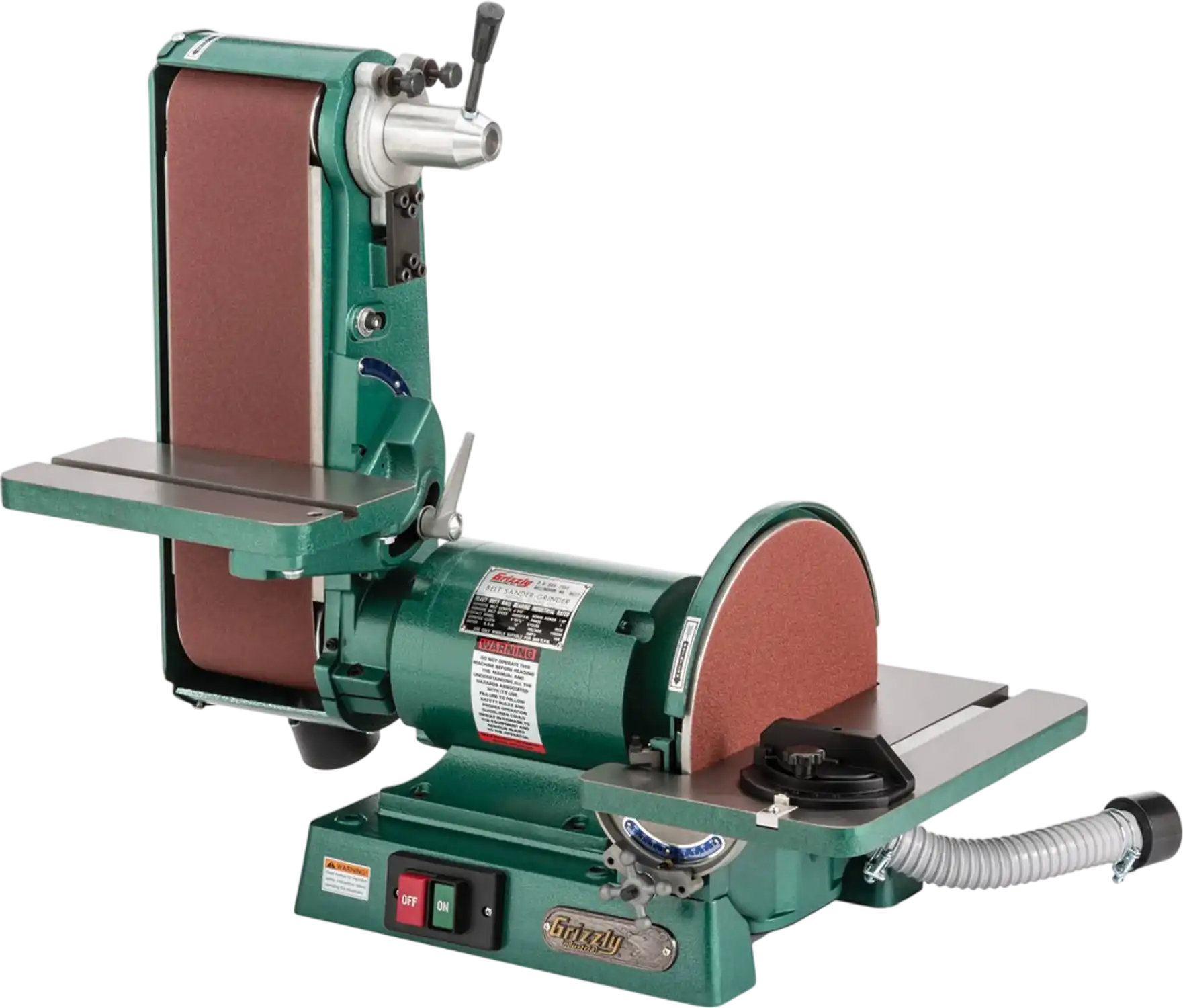

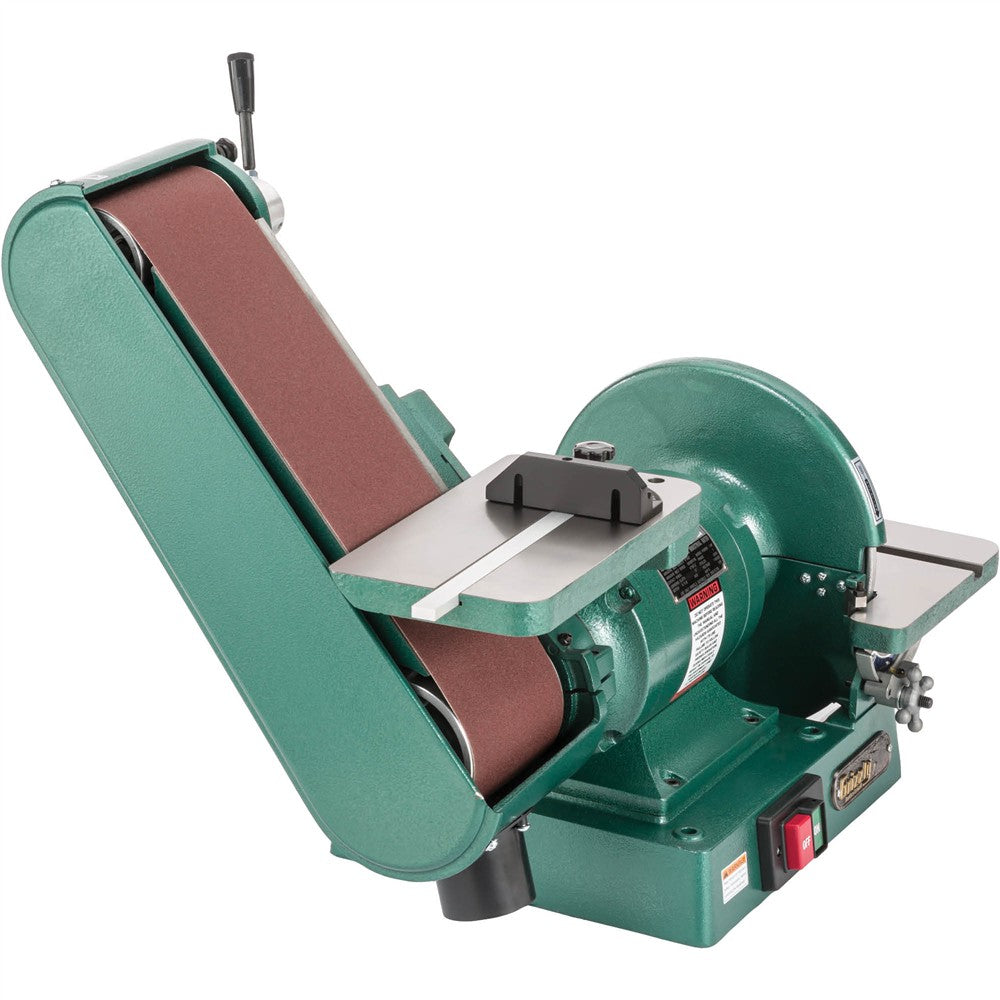

The belt can run horizontally, vertically, or at angles in between, making it easier to handle a wide range of sanding tasks. With a 5000 FPM belt speed, 3450 RPM disc speed, tilting cast-iron tables, and a miter gauge, it is well suited for both aggressive stock removal and controlled detail work.
A quick-release belt lever and fine tracking adjustment help simplify setup, while the sturdy bench-mountable base supports stable operation. This machine is a strong choice for professional woodworkers, serious hobbyists, and fabrication shops that need a durable, multi-purpose sanding station.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- For woodworking and metalworking
- Quick belt release
- Disc table positive stops at 90°
- Belt table positive stops at 45° and 90°
- Two cast-iron tables
- Top roller has fine tracking knob
- Miter gauge
Specifications
| Motor | 1 HP, 110V/220V (prewired for 110V), single-phase, 12A/6A |
|---|---|
| Sanding belt size | 6" x 48" |
| Sanding belt speed | 5000 FPM |
| Belt platen size | 6" x 14-1/2" |
| Belt table size | 7" x 12-1/2" |
| Disc diameter | 12" |
| Disc backing type | PSA |
| Disc speed | 3450 RPM |
| Disc table size | 7" x 16-1/2" |
| Table tilt 30° L, 45° R | |
|---|---|
| Number of dust ports | 2 |
| Dust port sizes | 2-1/2", 3" |
| Footprint | 17" x 14" |
| Overall dimensions | 32-1/2" W x 16-1/2" D x 29-1/2" H |
| Approximate shipping weight | 148 lbs. |
Warranty
This item comes with a 1 year factory warranty.
