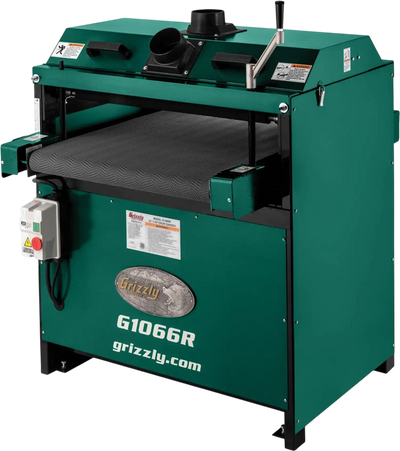

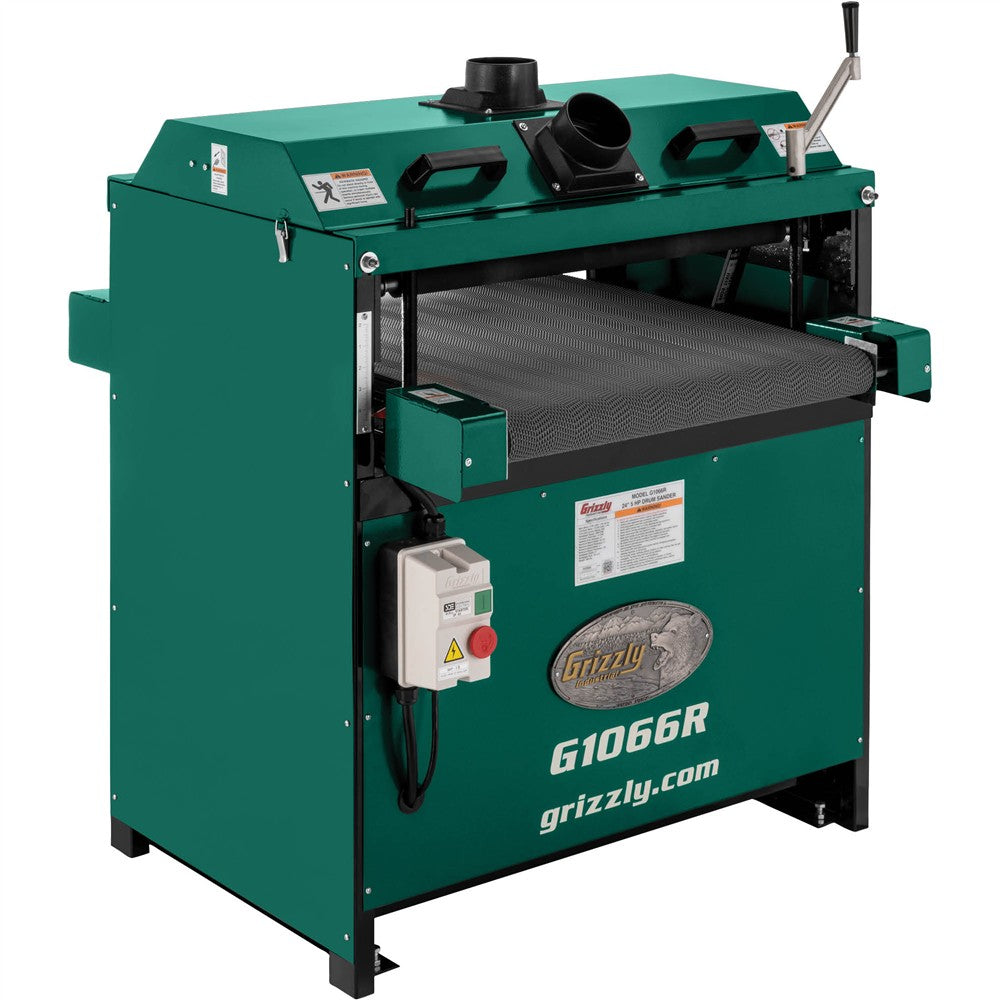

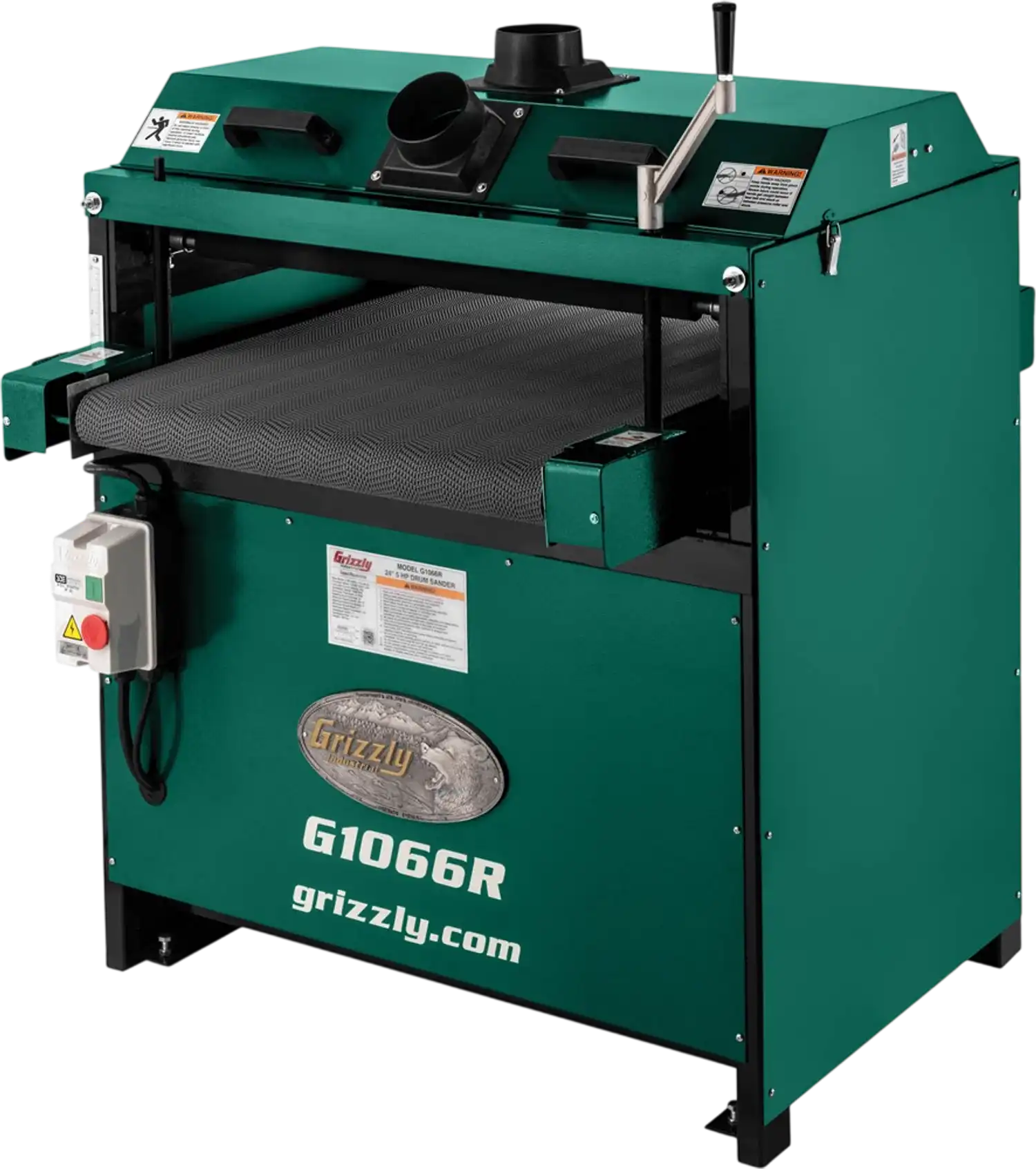

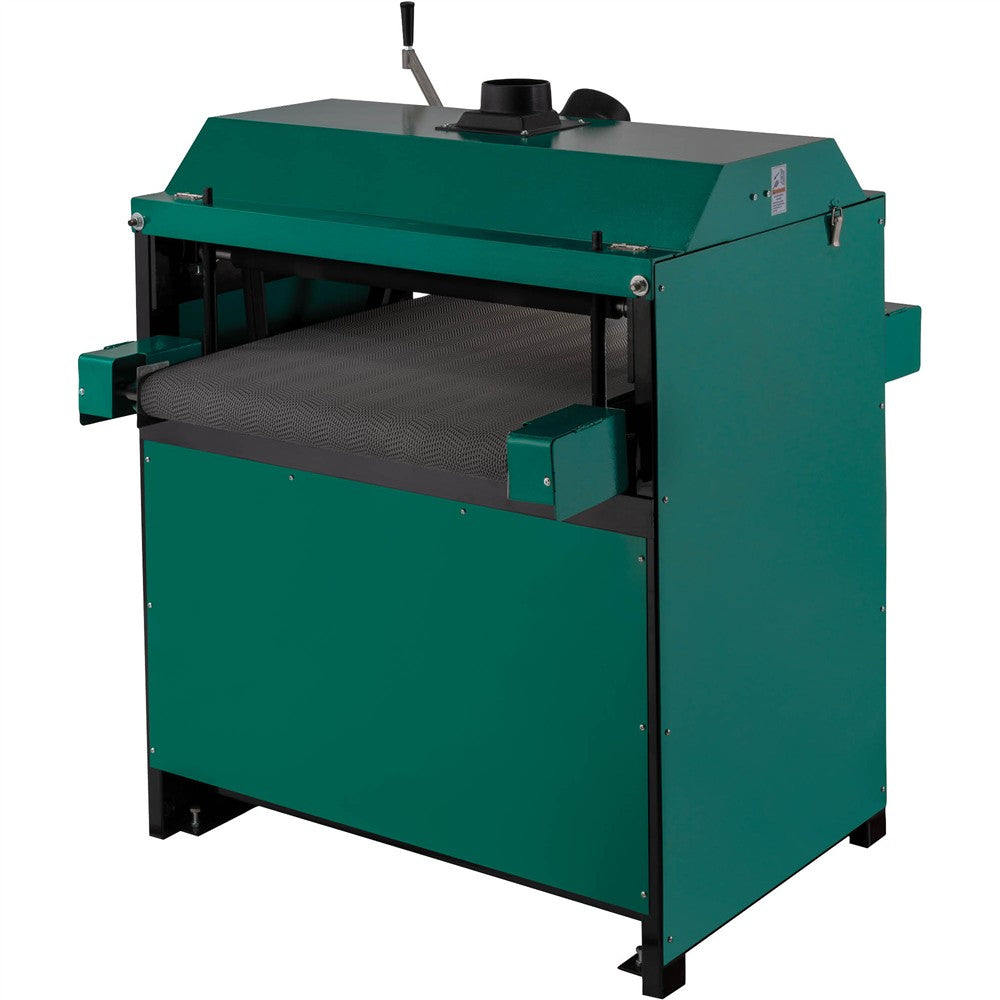

Grizzly G1066R Drum Sander 24" 5 HP New
Product Overview
The Grizzly G1066R is a 24-inch class drum sander built for fast, consistent thickness sanding on panels, boards, and glued-up workpieces. Its dual 6-inch drums let you run coarse and fine grits in sequence, helping remove planer marks and glue lines in a single pass while improving surface finish.
Powered by a 5 HP single-phase motor, this machine handles stock up to 23-1/2 inches wide and 4 inches thick, with an 11 FPM feed rate to keep work moving efficiently. Computer-balanced aluminum drums, a four-post table adjustment system, and an industrial rubber conveyor help deliver smooth, even sanding results.
This sander is a strong fit for serious woodworking shops, furniture makers, cabinet builders, and other users who need higher throughput and more uniform results than handheld or single-drum sanding can provide. Hook-and-loop abrasive rolls and top-cover access also make grit changes simple when moving between stock removal and finish sanding.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Hook-and-loop sanding belt tension/sandpaper

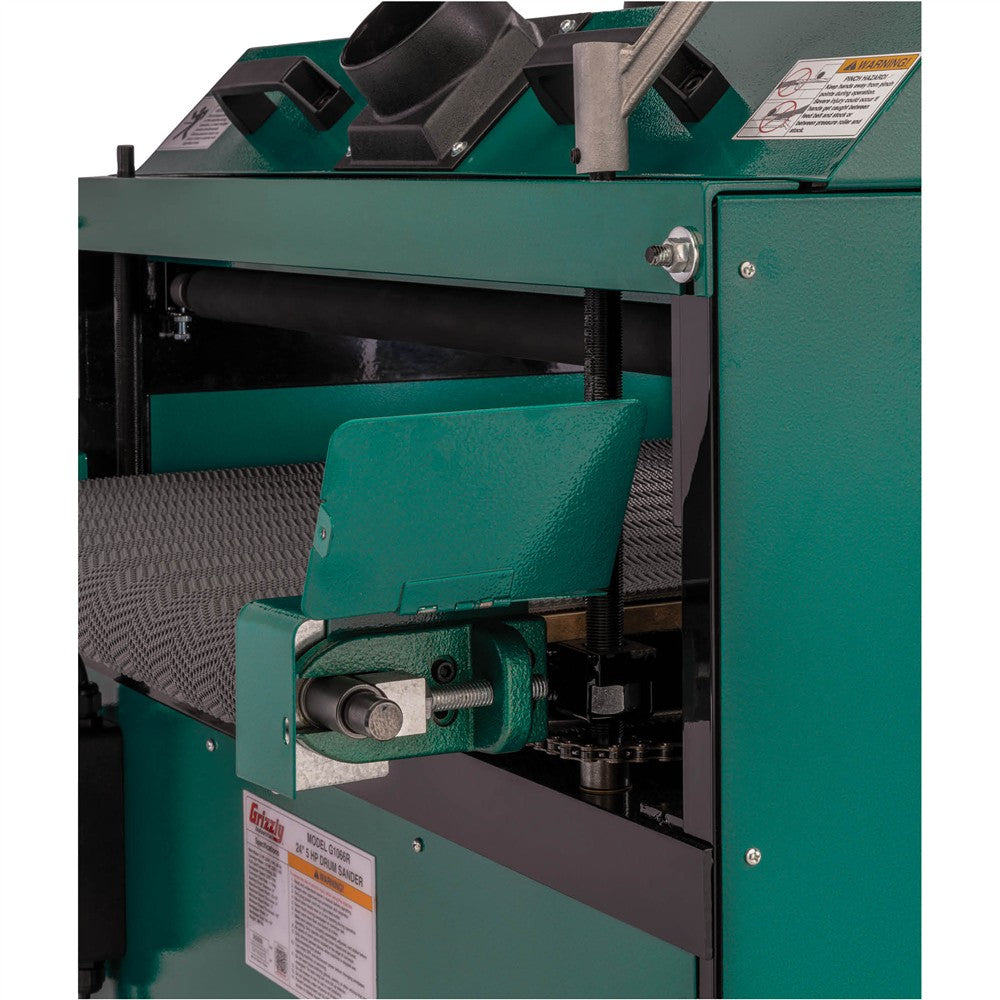

- Industrial-duty rubber conveyor belt
- Two 4" dust ports
- 11 FPM conveyor speed

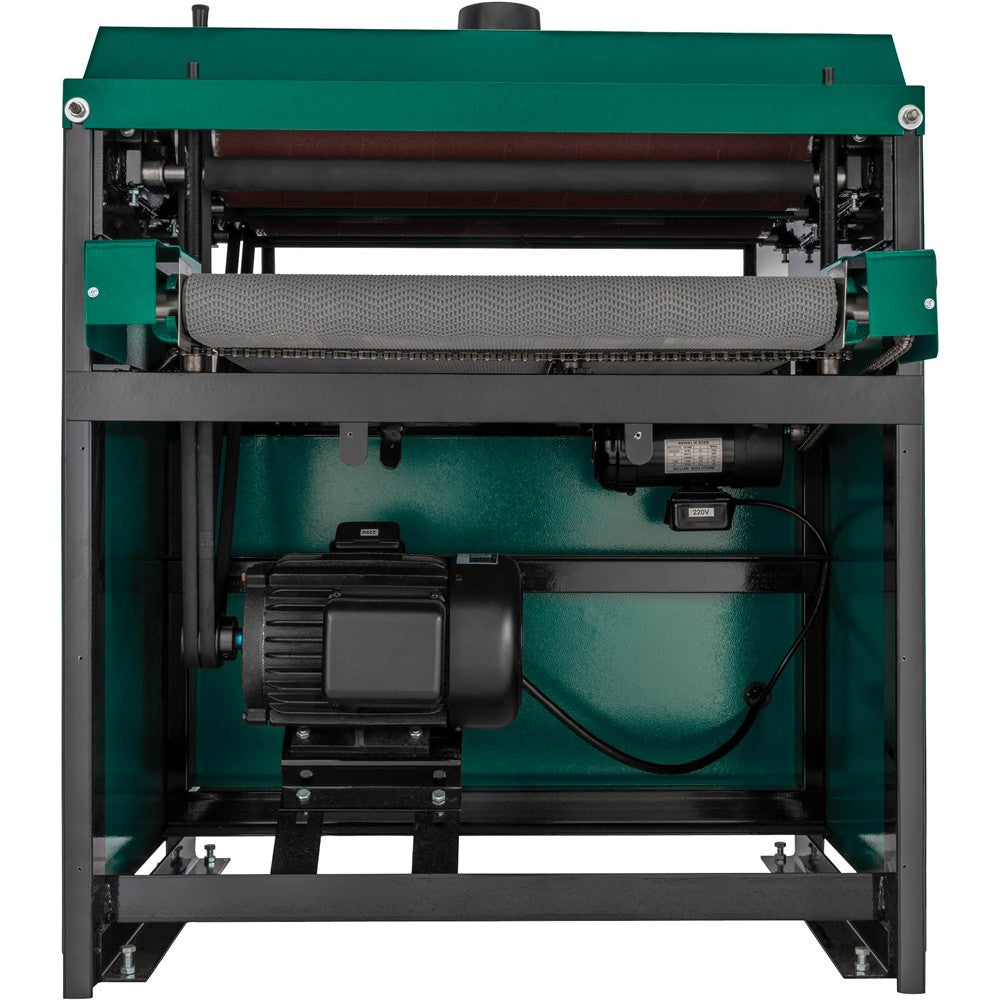

- V-belt main motor; chain drive feed motor

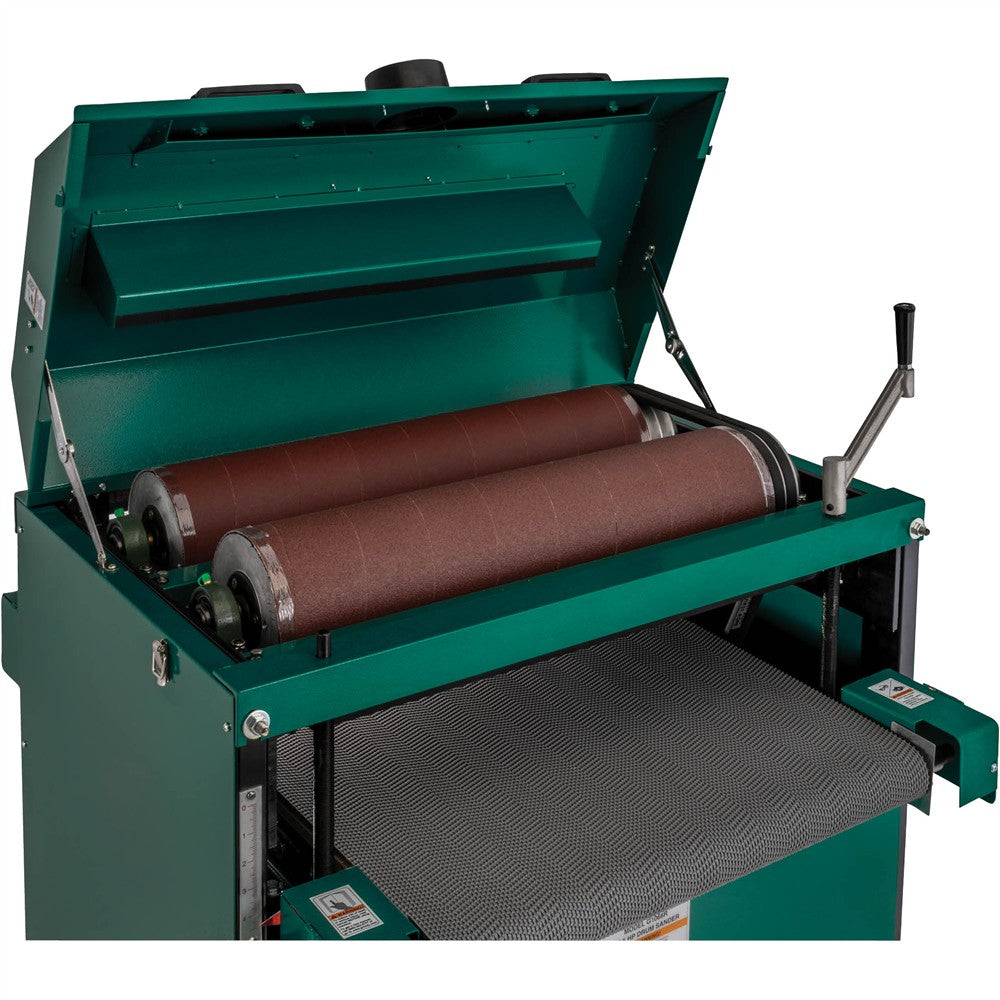

- Dual 6" aluminum sanding drums
- Computer-balanced drums
- Four leadscrew table lifting and lowering system
Specifications
| Sanding motor | 5 HP, 220V, single-phase drum, 25A |
| Feed motor | 1/4 HP, 1A |
| Maximum sanding width | 23-1/2" |
| Maximum workpiece thickness | 4" |
| Minimum workpiece thickness | 1/8" |
| Minimum workpiece length | 9" |
| Feed speed | 11 FPM |
| Drum speed | 2300 FPM |
| Sanding drum size | 6" |
| Sandpaper type | 3" x 181-1/2" Hook-and-loop roll |
| Footprint | 34-1/2" W x 24" |
| Overall dimensions | 37" W x 34-1/2" D x 43" H |
| Approximate shipping weight | 442 lbs. |
Warranty
This item comes with a 1 year factory warranty.
