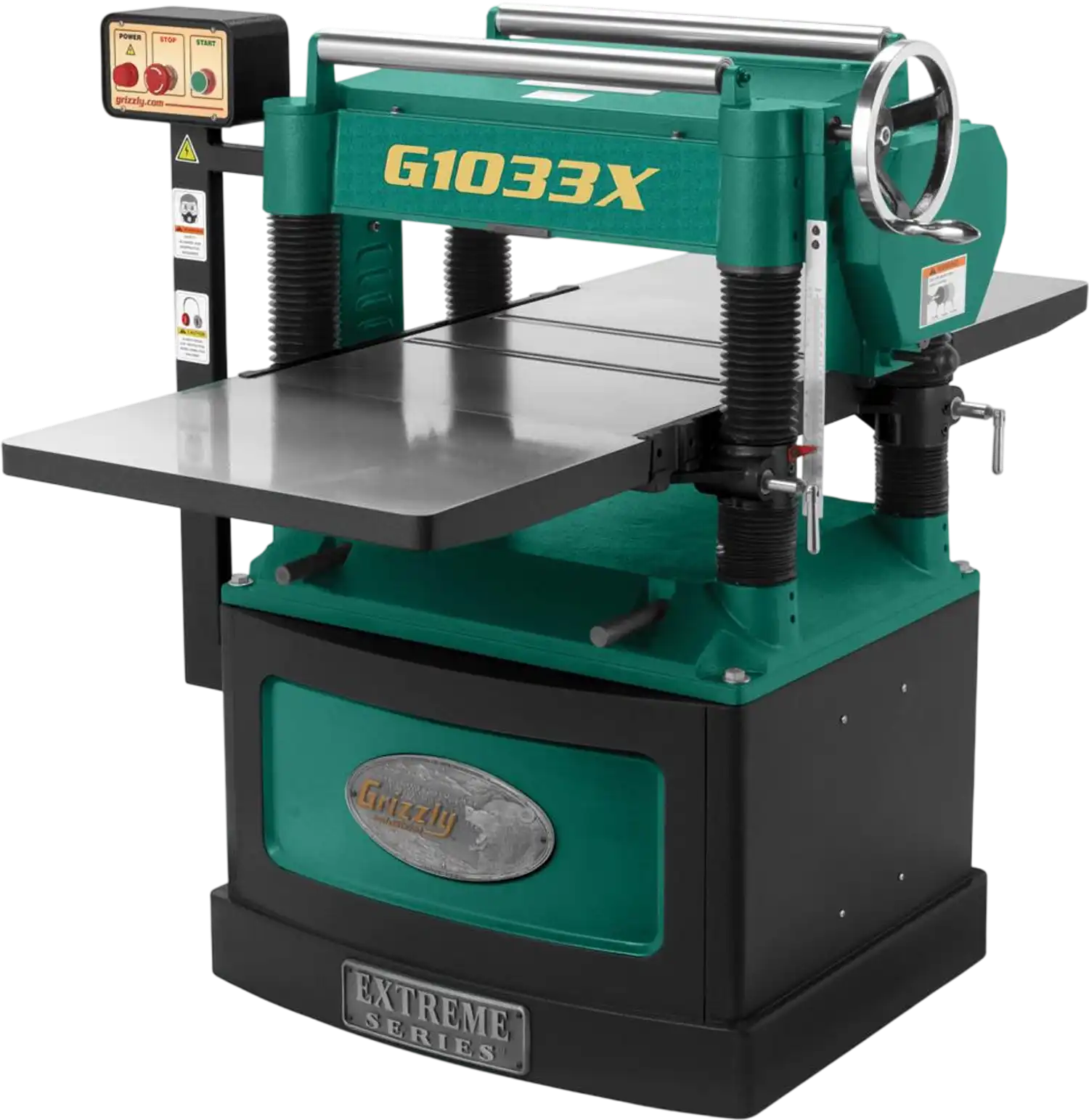

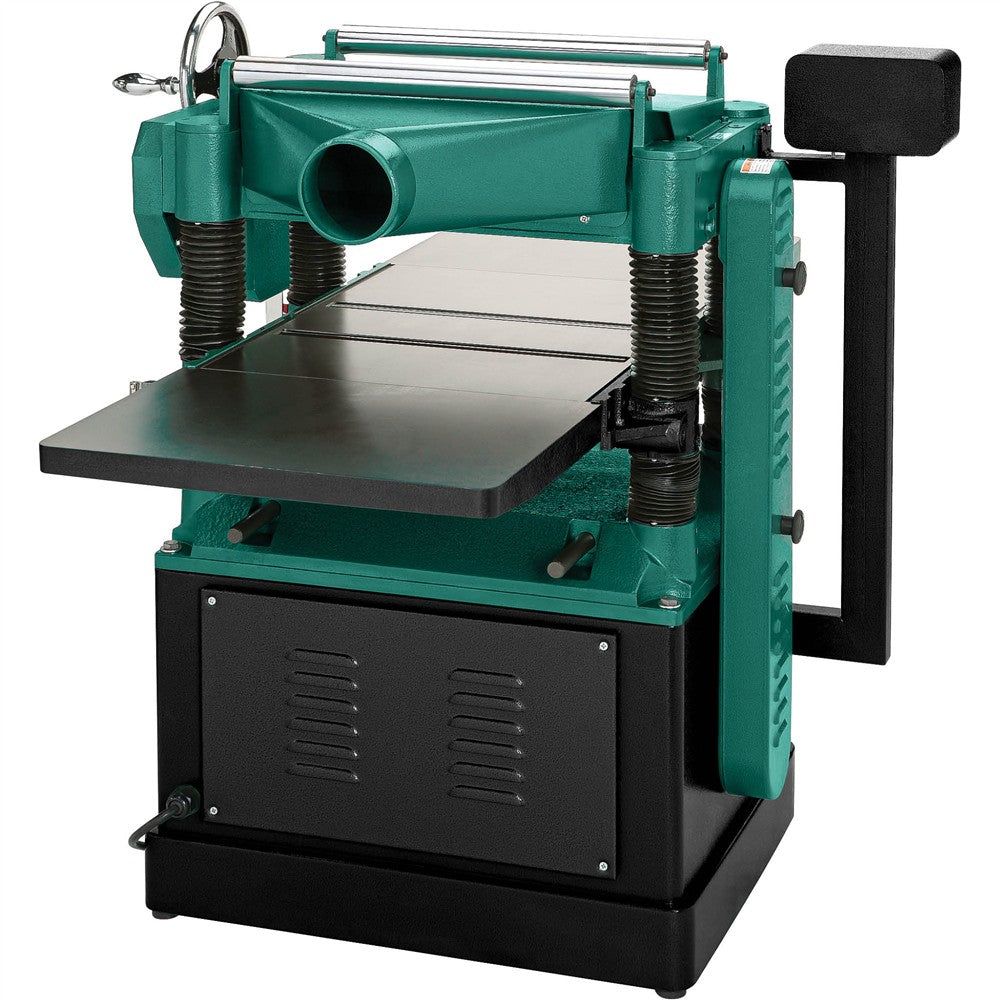

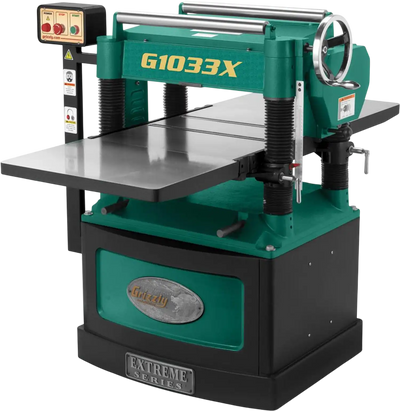

Grizzly G1033X Planer 20" 5 HP Helical Cutterhead New
Product Overview
The Grizzly G1033X is a heavy-duty 20-inch planer built for production-level woodworking and demanding everyday shop use. Powered by a 5 HP motor, it handles large volumes of lumber quickly and accurately, making it a strong fit for professional woodworkers, cabinet shops, millwork operations, and serious enthusiasts who need dependable capacity.

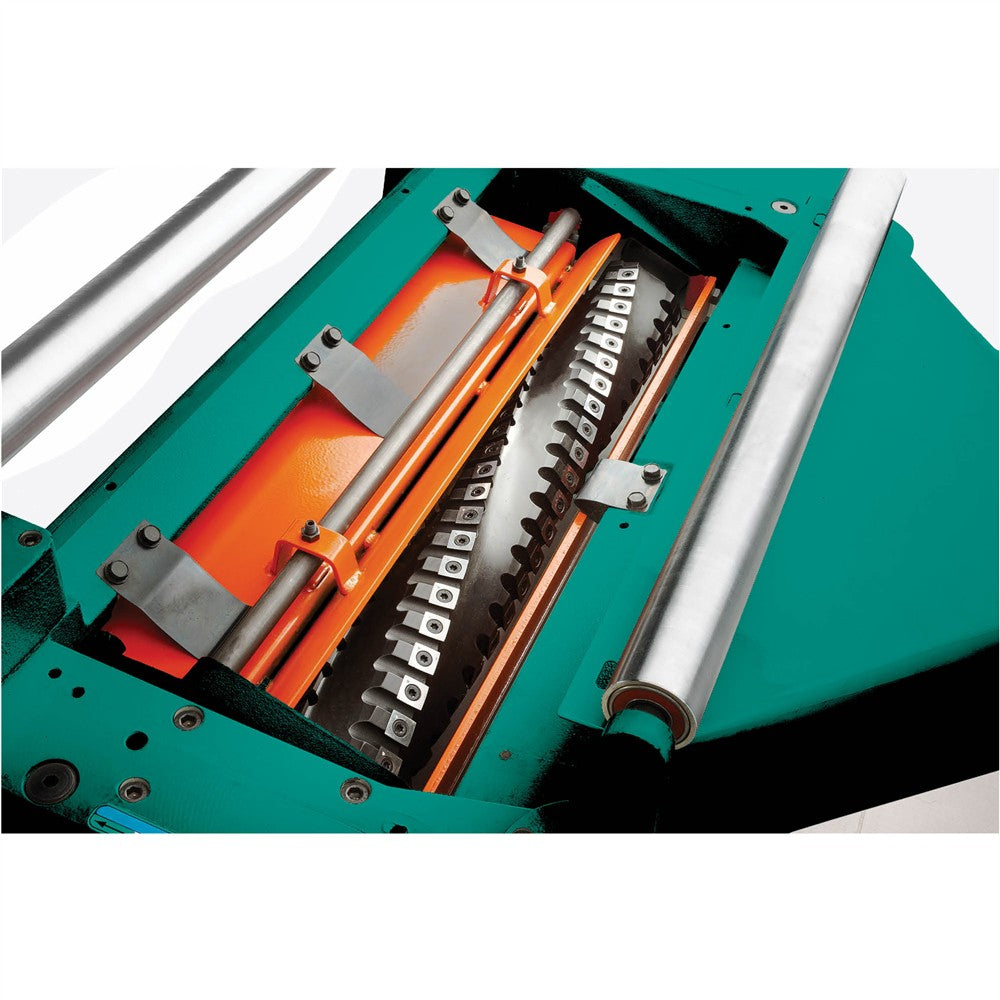

Its 4-row helical cutterhead uses 92 indexable carbide inserts set at a slight angle for smooth shearing cuts, reduced tearout, a cleaner surface, and quieter operation. With a maximum planing width of 20 inches, a maximum stock thickness of 8 inches, and two feed speeds of 16 or 28 feet per minute, it is designed to balance finish quality with efficient material throughput.
A long precision-ground cast-iron bed, adjustable bed rollers, and ball-bearing return rollers help stock feed smoothly and consistently. The 4-column design with table locks, anti-kickback fingers, and pedestal-mounted controls make this machine well suited for high-volume planing where stability, control, and repeatable results matter.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Heavy-duty, ball bearing board return rollers

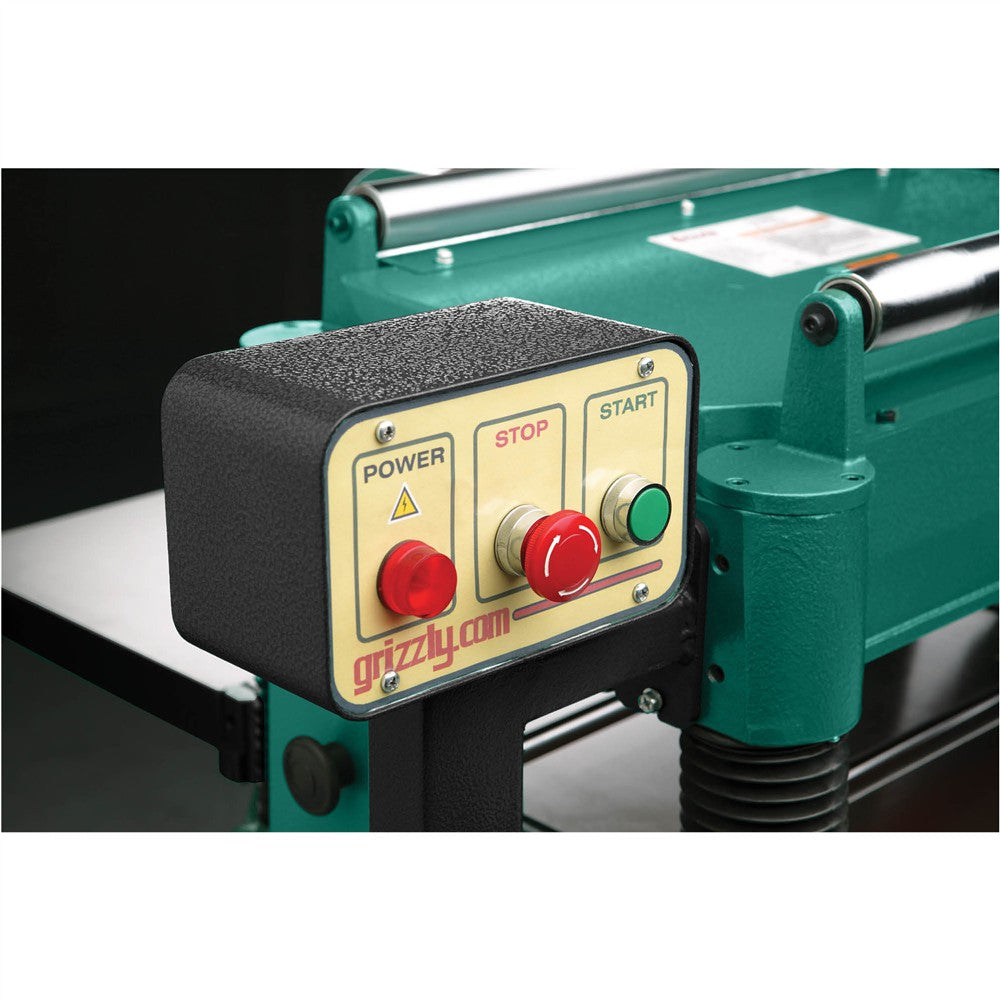

- Pedestal-mounted control panel
- Adjustable bed rollers

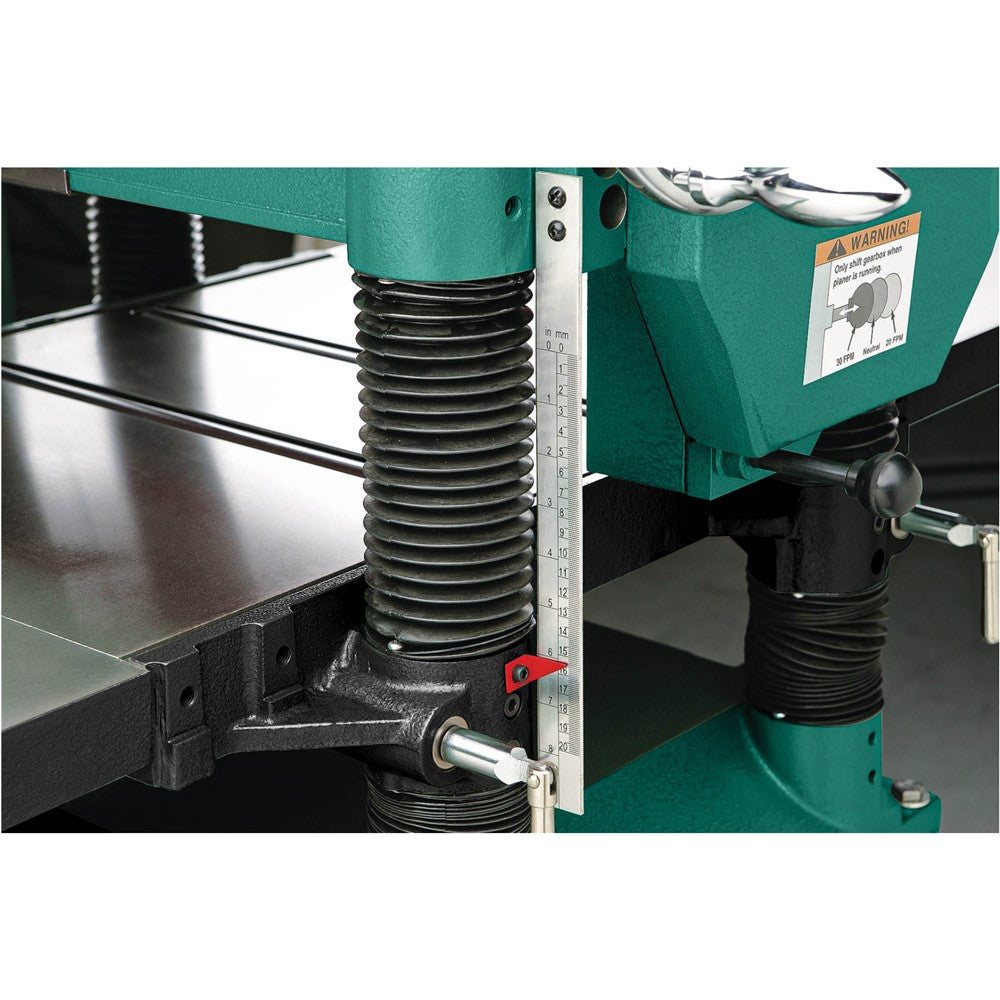

- 4-column support with table locks
- Precision-ground, cast-iron table, and extension wings
- Anti-kickback fingers
Specifications

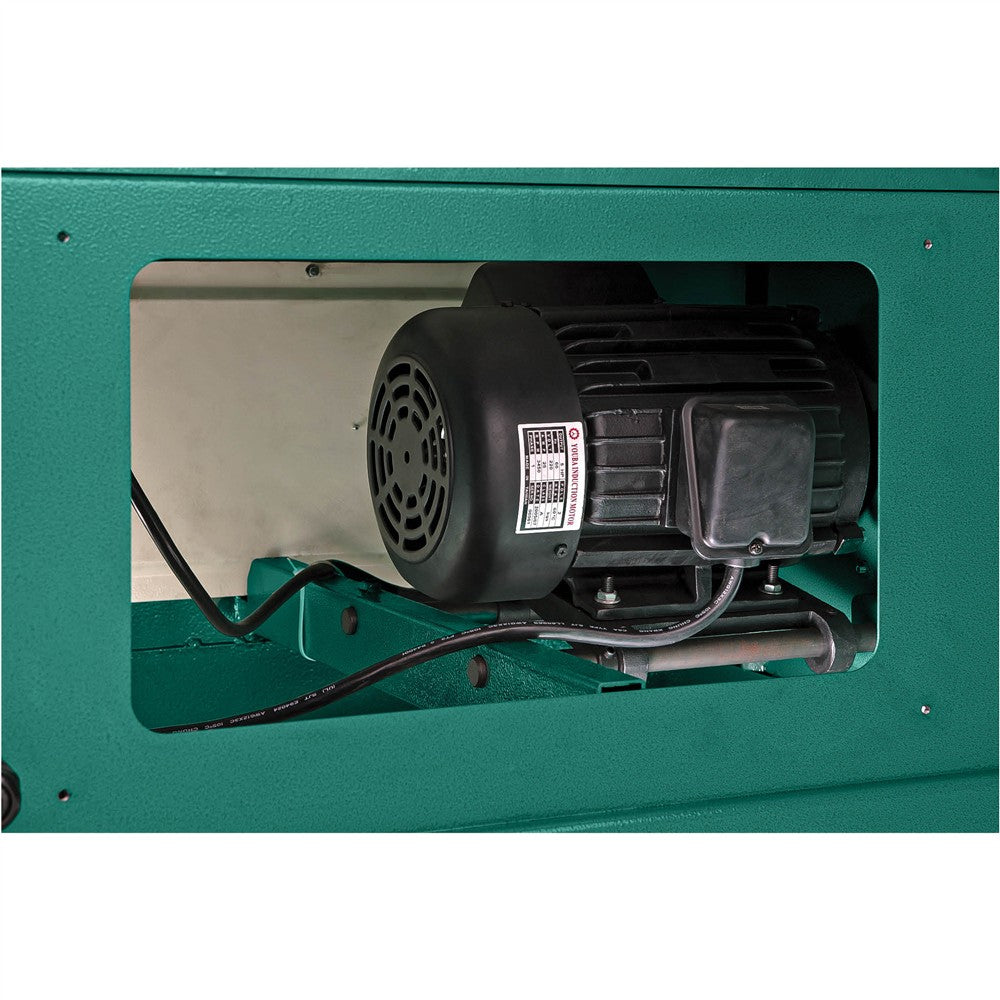

| Motor | 5 HP, 220V, single-phase, 23A |
| Maximum stock width | 20" |
| Maximum stock thickness | 8" |
| Minimum stock thickness | 1/4" |
| Minimum stock length | 7" |
| Maximum cutting depth full width | 5/64" |
| Cutterhead diameter | 3-1/4" |
| Cutterhead type | 4-Row helical, 92 inserts |
| Insert size, type | 15mm x 15mm x 2.5mm, 30° indexable carbide |
| Cutterhead speed | 5000 RPM |
| Feed rate | 16, 28 FPM |
| Table size | 20" x 56" |
| Dust port size | 5" |
| Footprint | 22" x 28" |
| Overall dimensions | 39" W x 56" D x 41" H |
| Approximate shipping weight | 811 lbs. |
Warranty
This item comes with a 1 year factory warranty.
