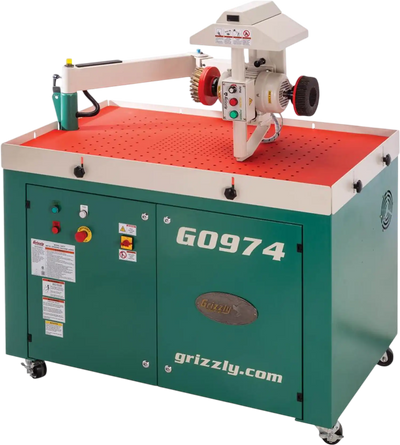

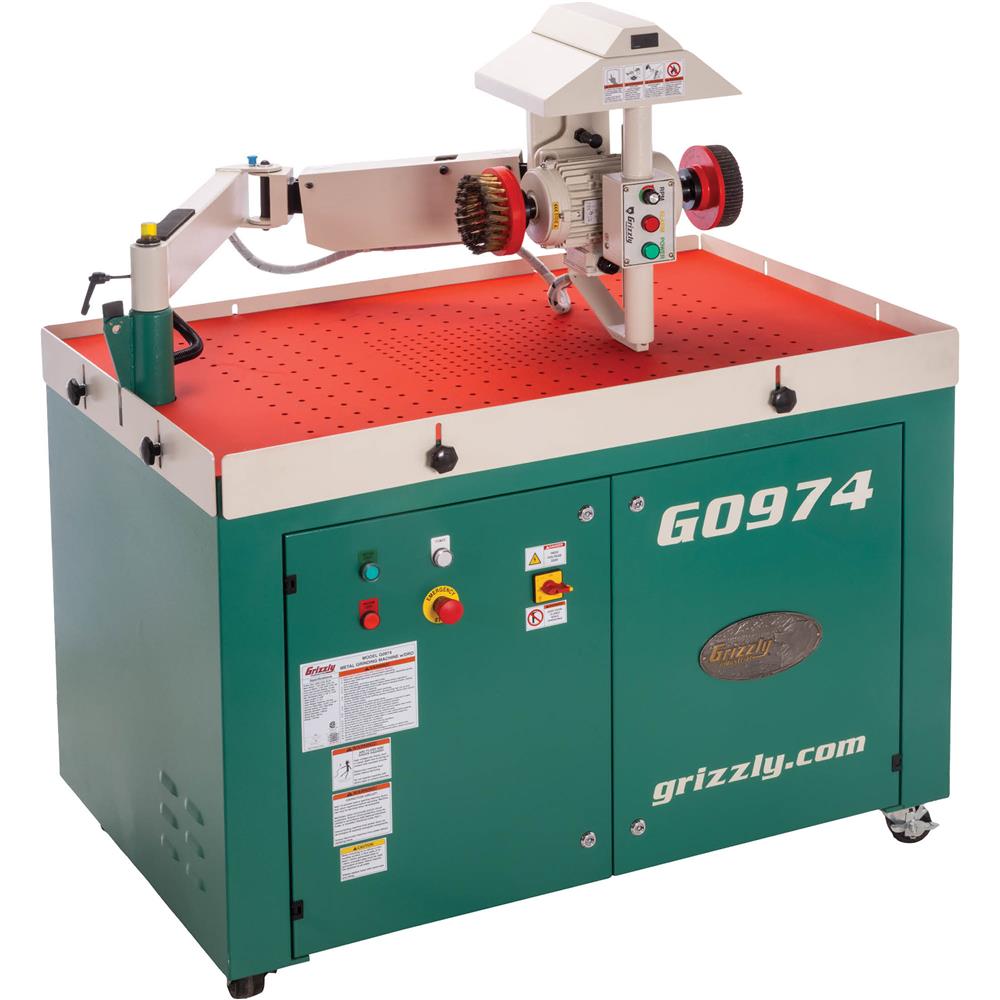

Grizzly G0974 Deburring Machine New
Product Overview

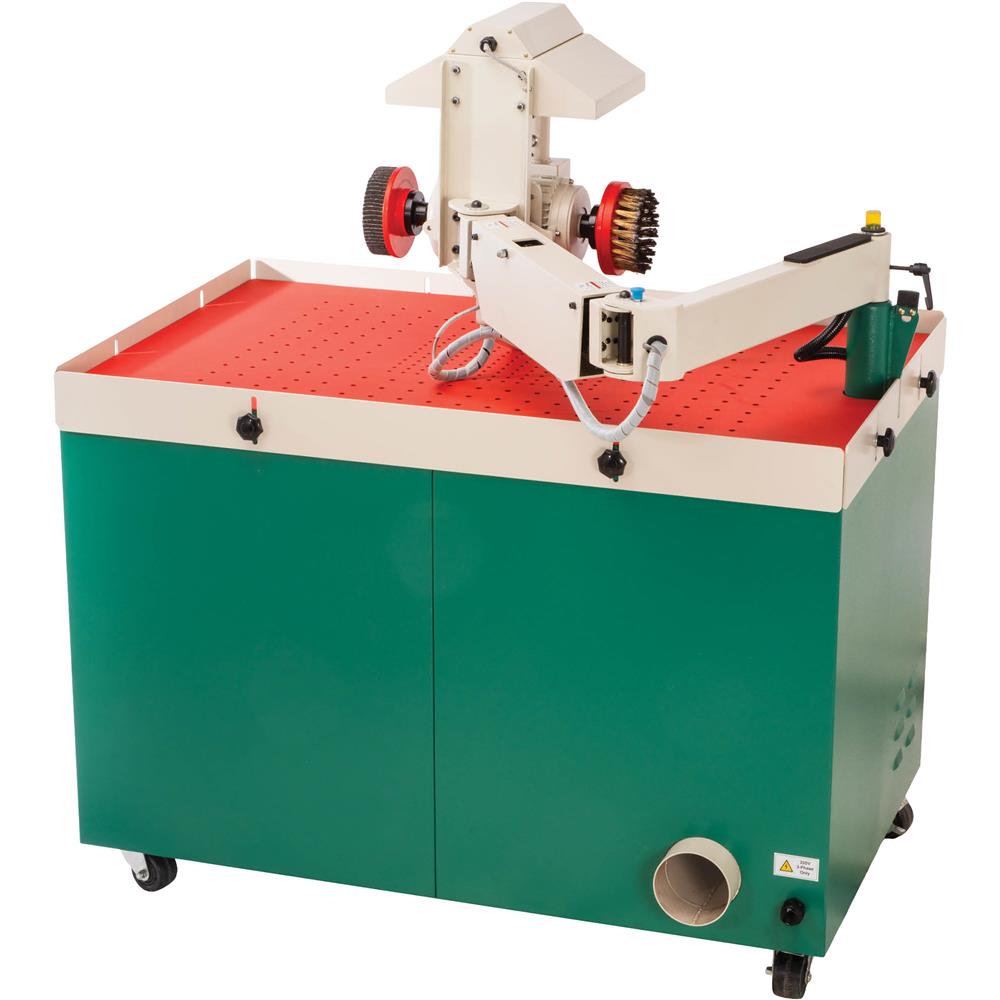

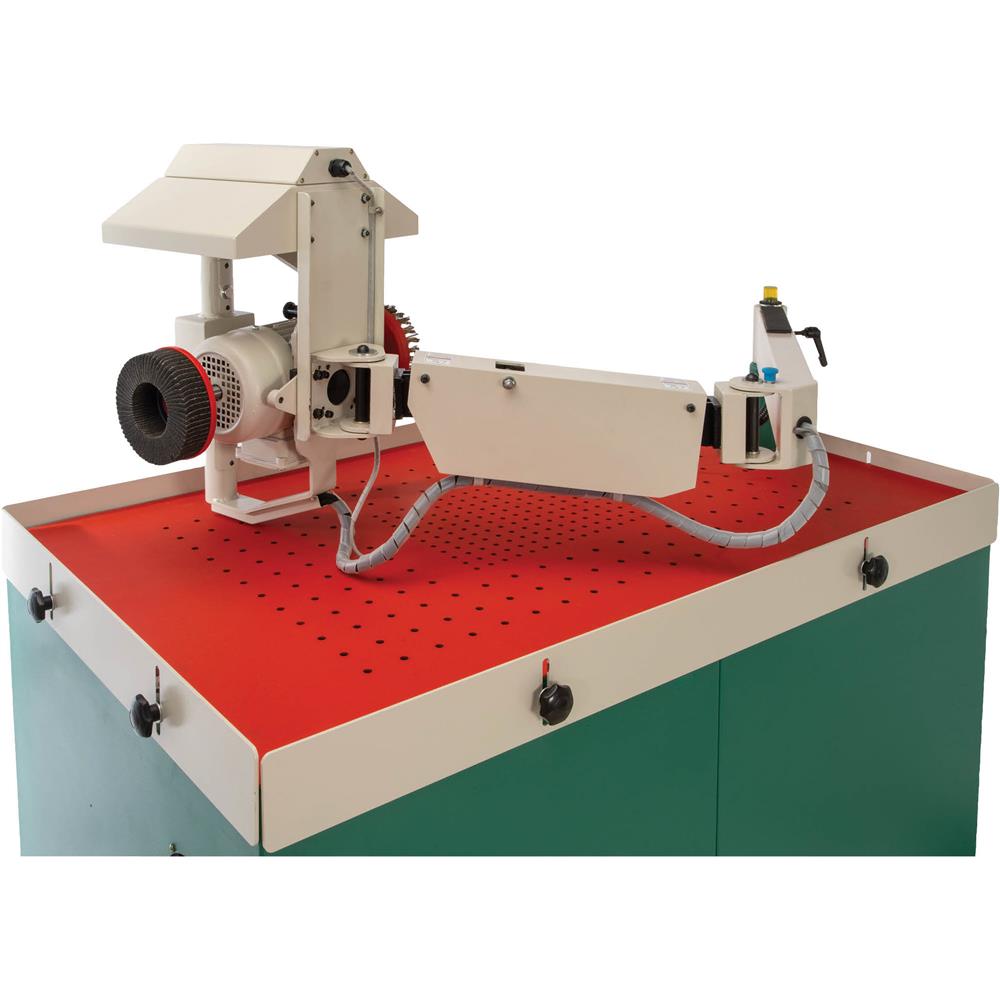

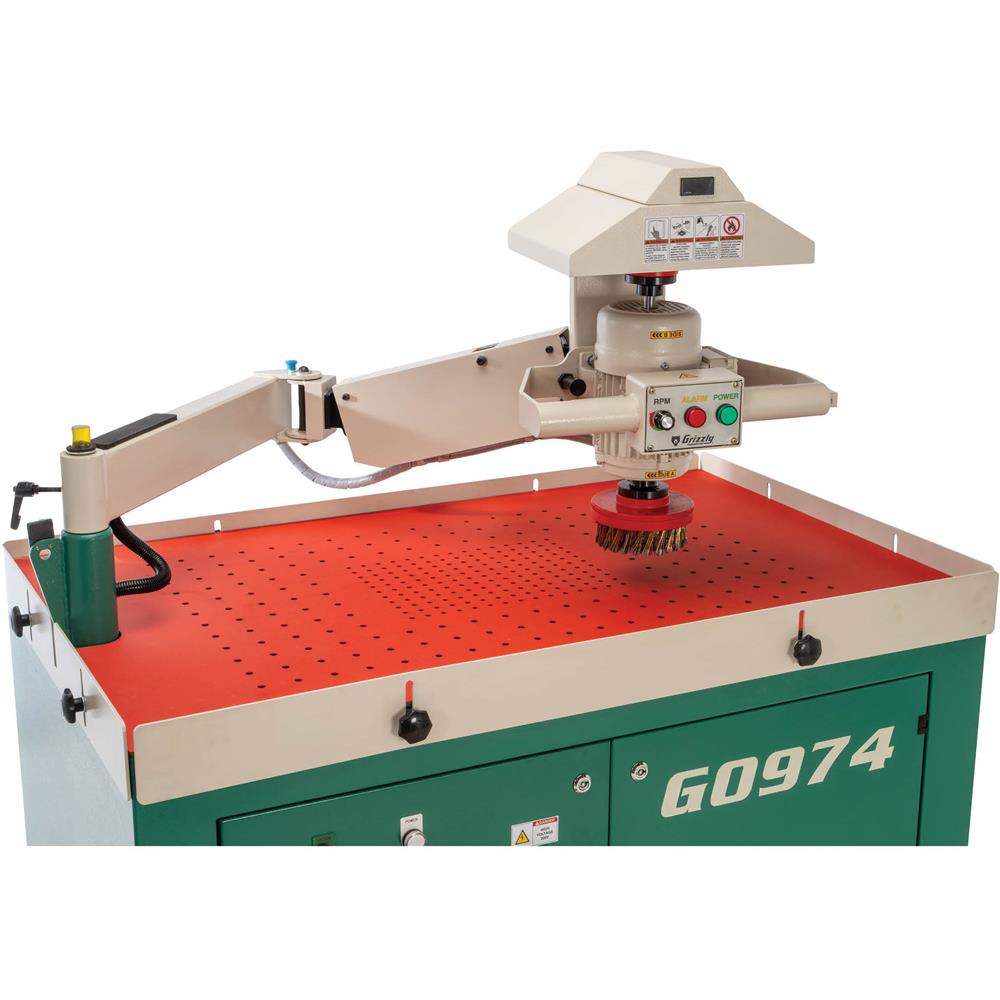

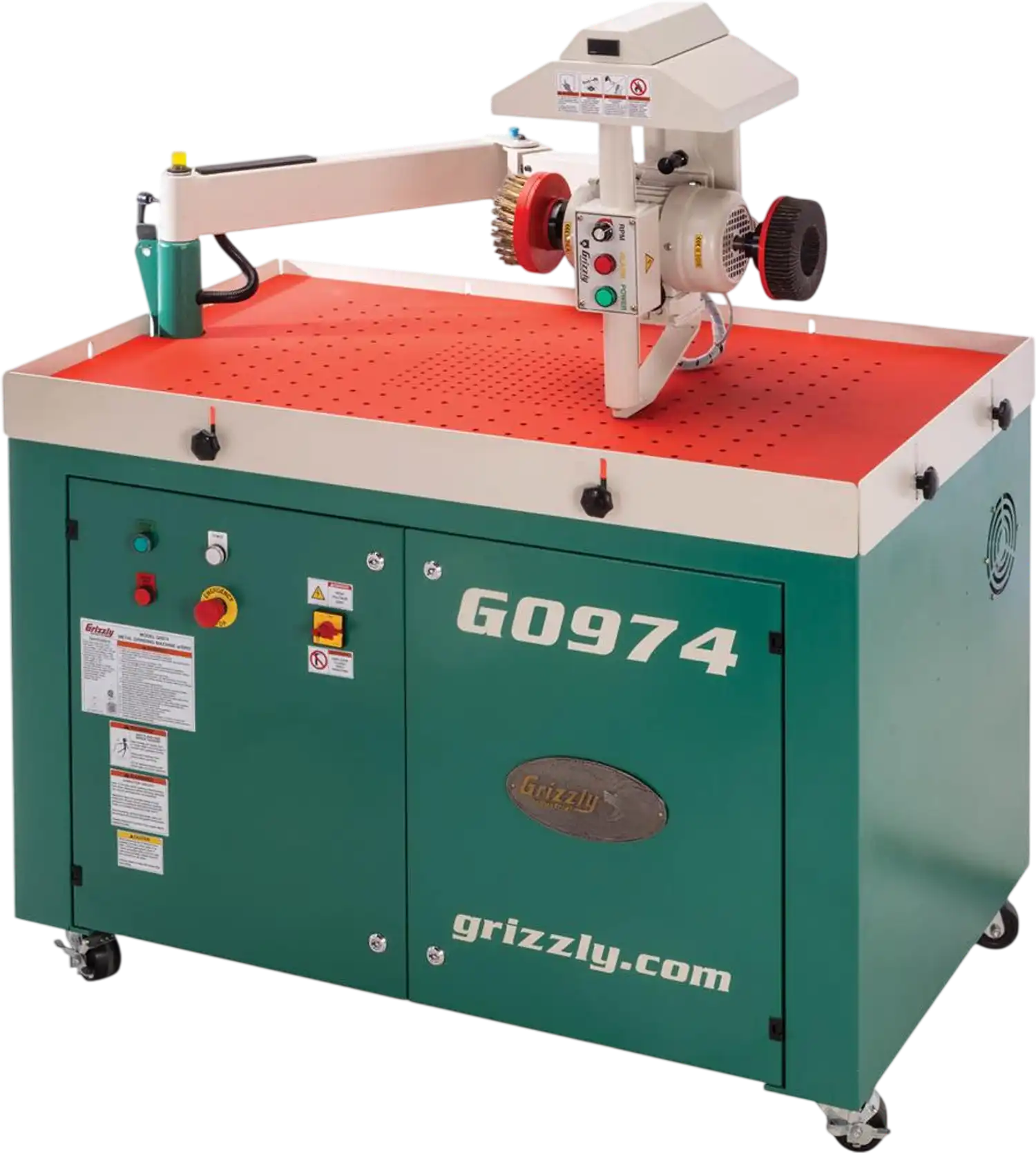

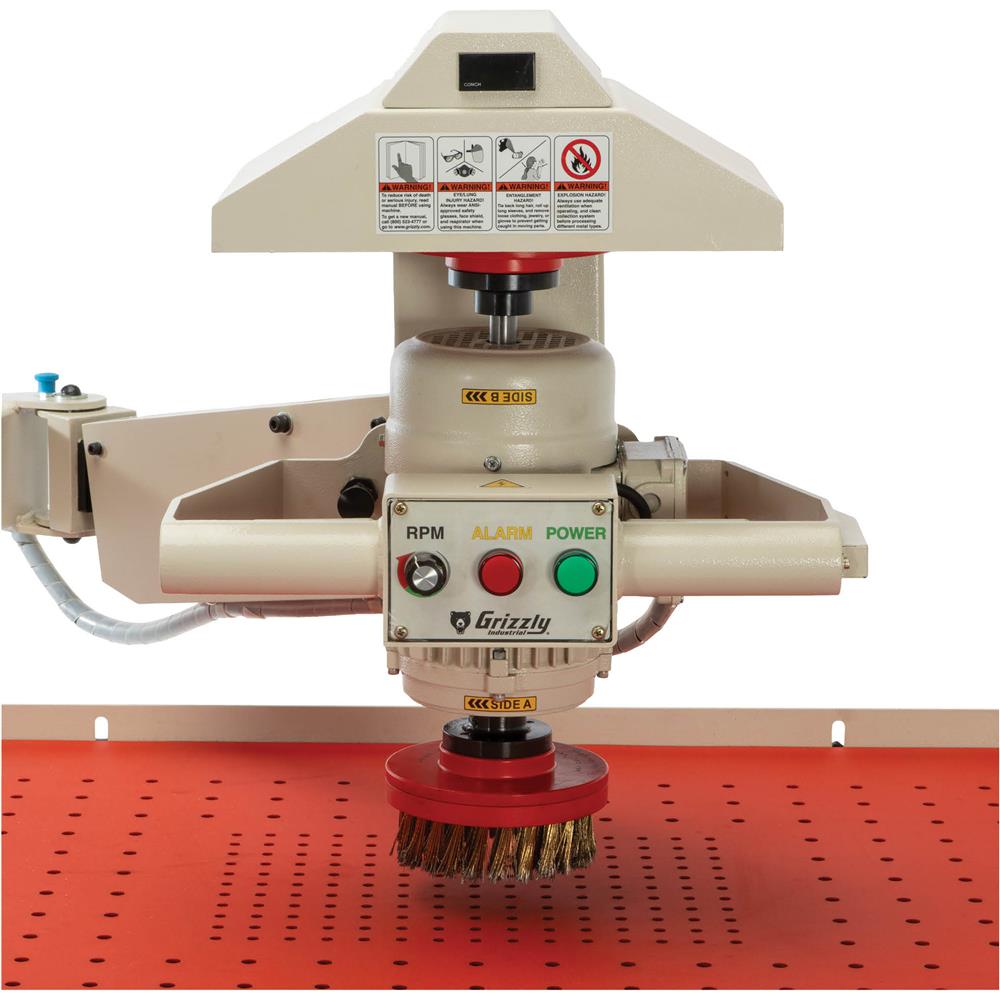

The Grizzly G0974 is a heavy-duty deburring machine designed to grind, deburr, and polish metal parts faster and more consistently than hand finishing. Its articulating arm and rotating grinding head let you switch quickly between two mounted sanding or brushing accessories, making it easy to move from heavy burr removal to smoothing and edge rounding.
A variable spindle speed range of 240 to 1500 RPM with digital readout helps you dial in the right speed for different materials and finishing tasks. The high-friction work table supports larger pieces, while the integrated vacuum hold-down keeps smaller workpieces stable during operation for cleaner, more controlled results.
Built for metalworking shops, fabrication environments, and production users, this machine is well suited for anyone who needs efficient finishing on a variety of part sizes. Its spacious table, adjustable guards, and maneuverable caster base make it a practical choice for demanding shop use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

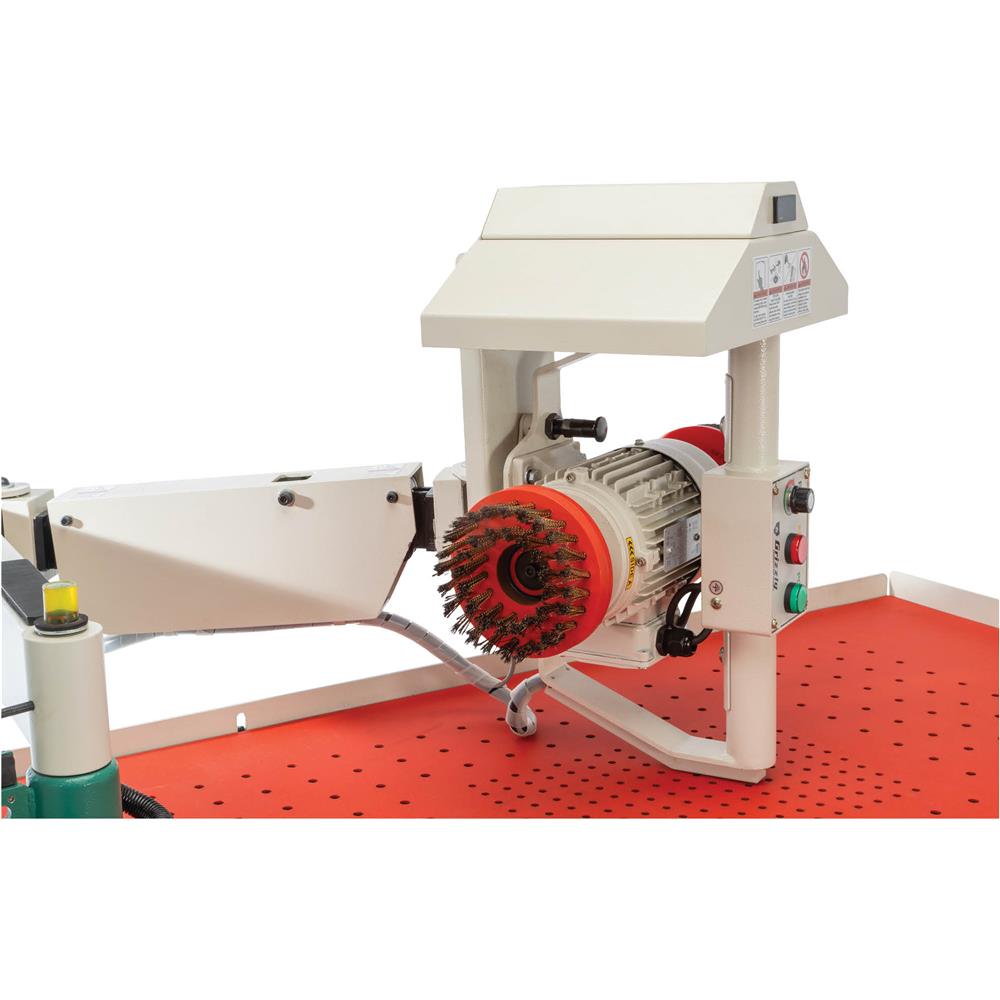

- Four-point articulating arm with weight compensation

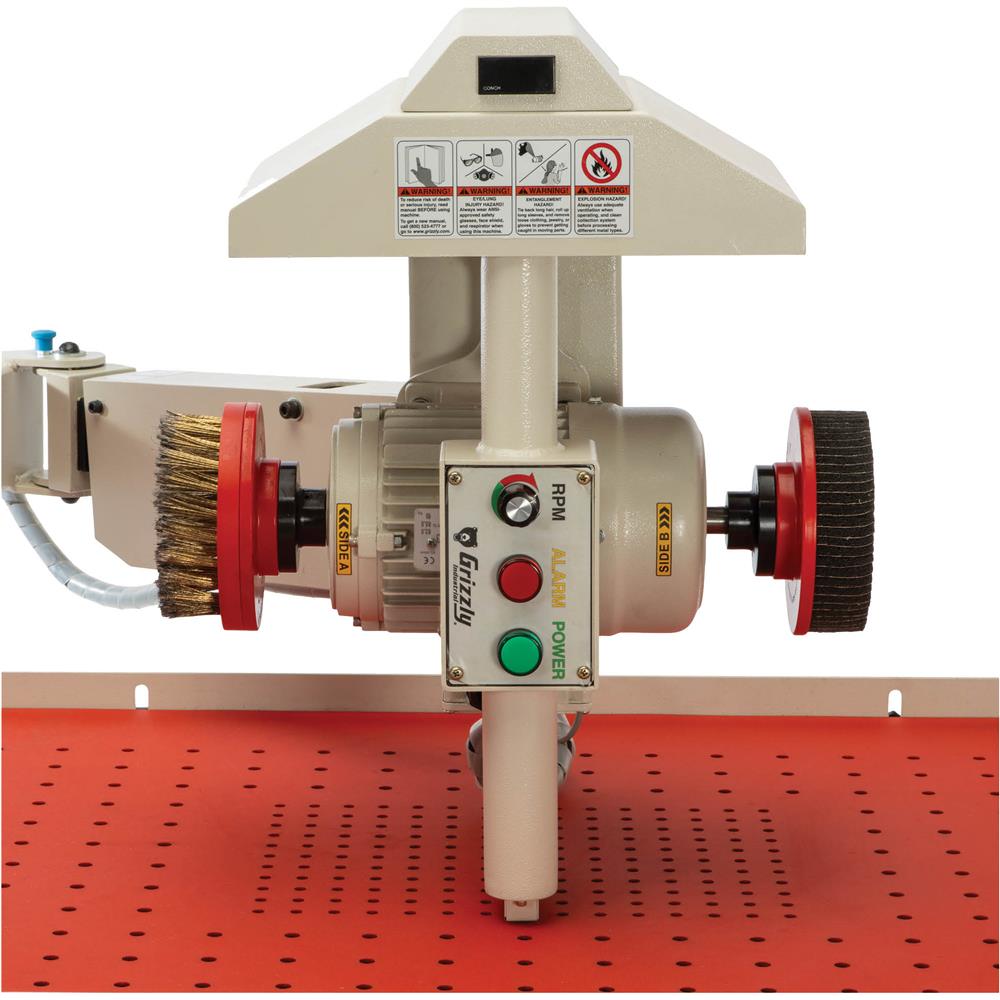

- Dual-spindle 1 HP motor rotates 180°

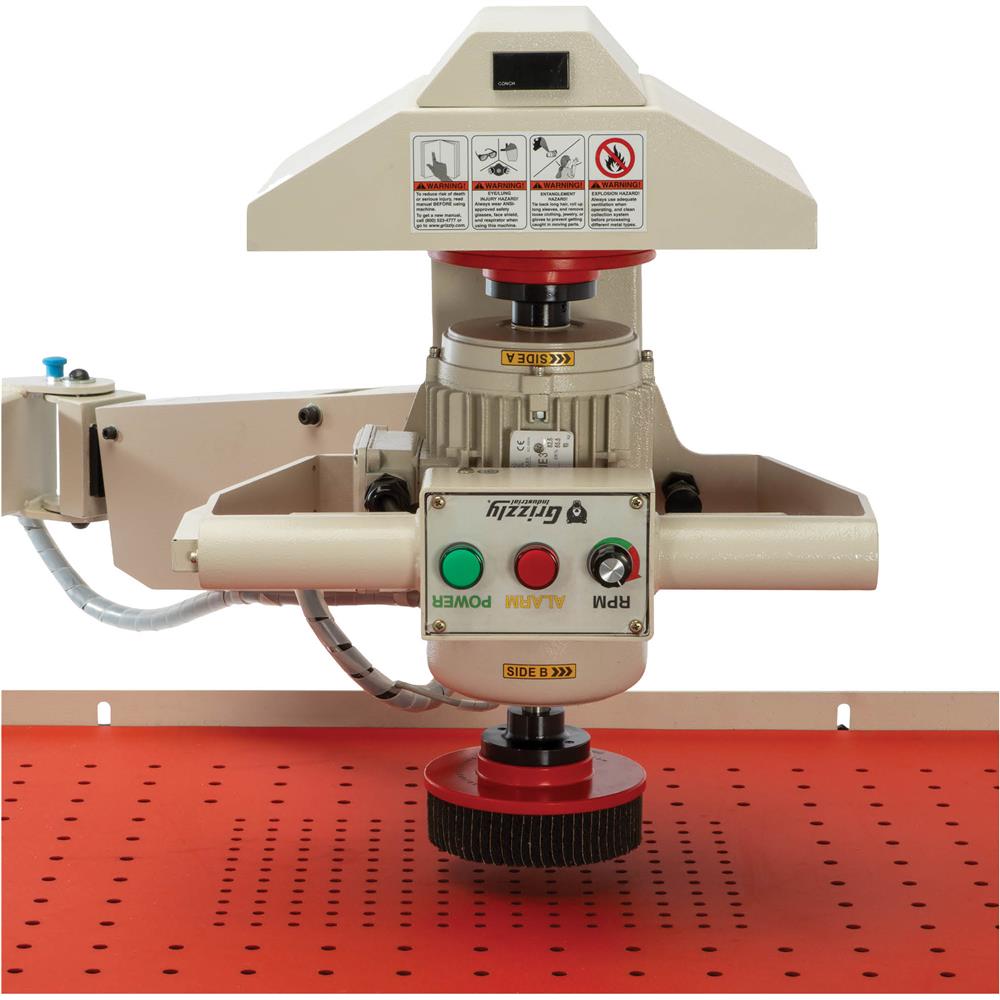

- Variable spindle speed digital readout
- Vacuum table for small workpieces
- Four adjustable table guards
- Four swivel casters for maneuverability
- 1-year limited warranty
Specifications
| Main motor | 1 HP, 220V, 3-phase, 3A |

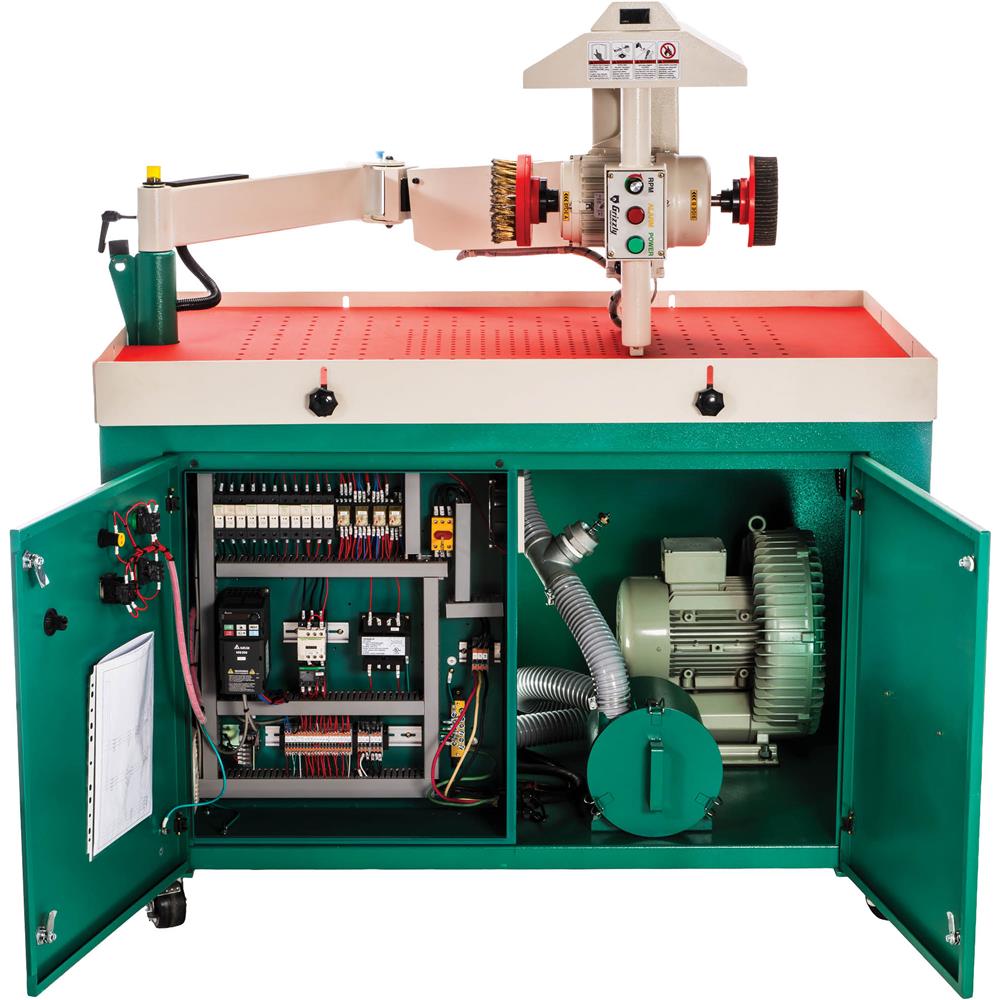

| Vacuum pump motor | 3 HP, 220V, 3-phase, 9A |
| Table size | 51-1/4" W x 31-1/2" D |
| Vacuum table size | 13-3/4" W x 9-7/8 D" |
| Minimum workpiece size | 3-1/8" x 1-7/8" |
| Spindle speed, Variable, 240–1500 RPM | |
| Wheel diameters | 150mm |
| Wheel bores | 25mm |
| Maximum height deslagging brush | 2-3/8" |
| Maximum height sanding disc | 3-15/16" |
| Maximum height deburring disc | 3-1/8" |
| Maximum height oxide brush | 2-3/8" |
| Dust collection port | 5" |
| Footprint | 52" x 32" |
| Overall dimensions | 54" W x 36" D x 59" H |
| Approximate shipping weight | 926 lbs. |
Warranty
This item comes with a 1 year factory warranty.
