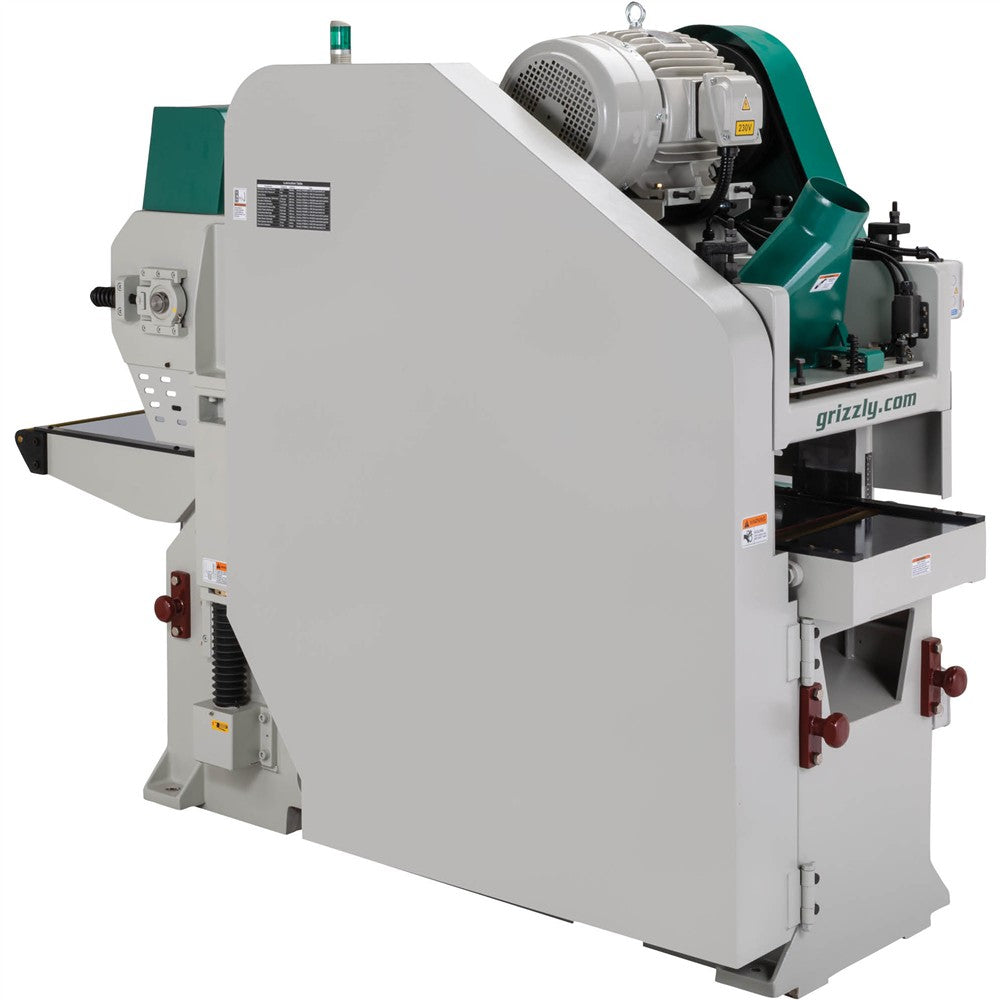

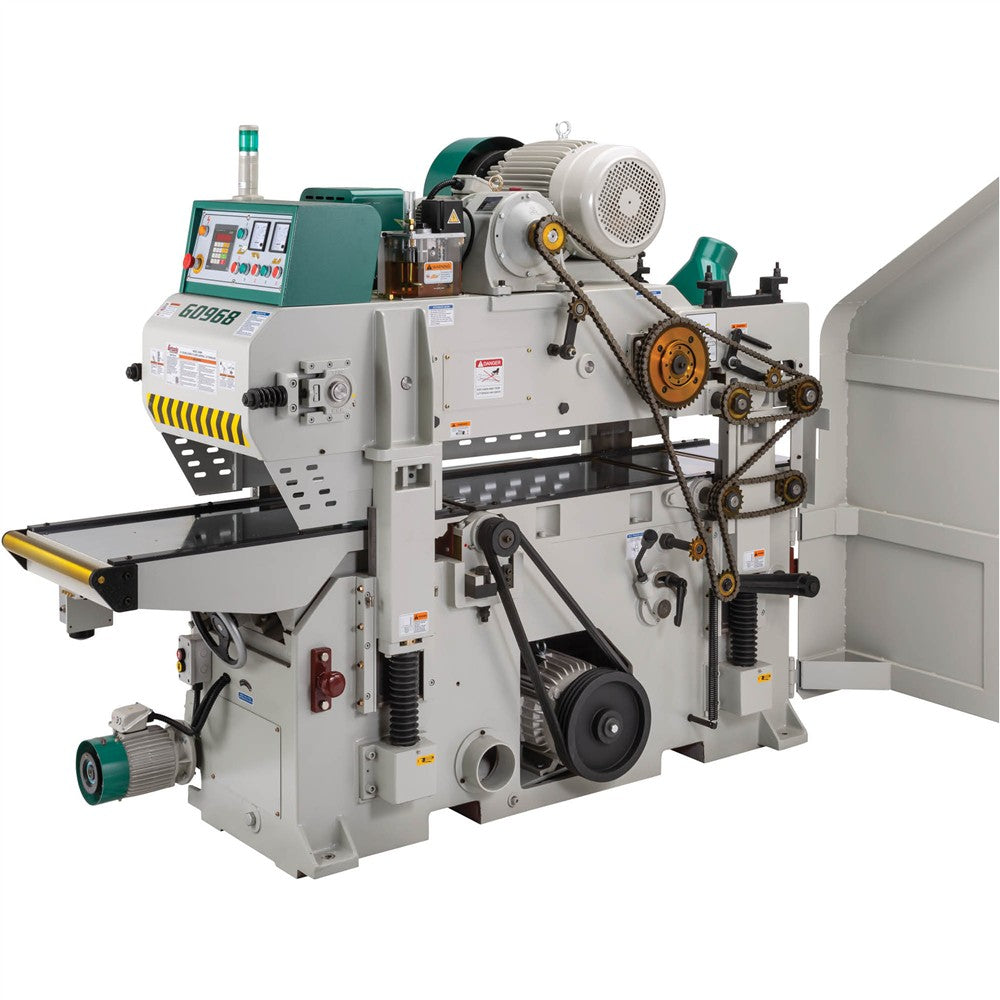

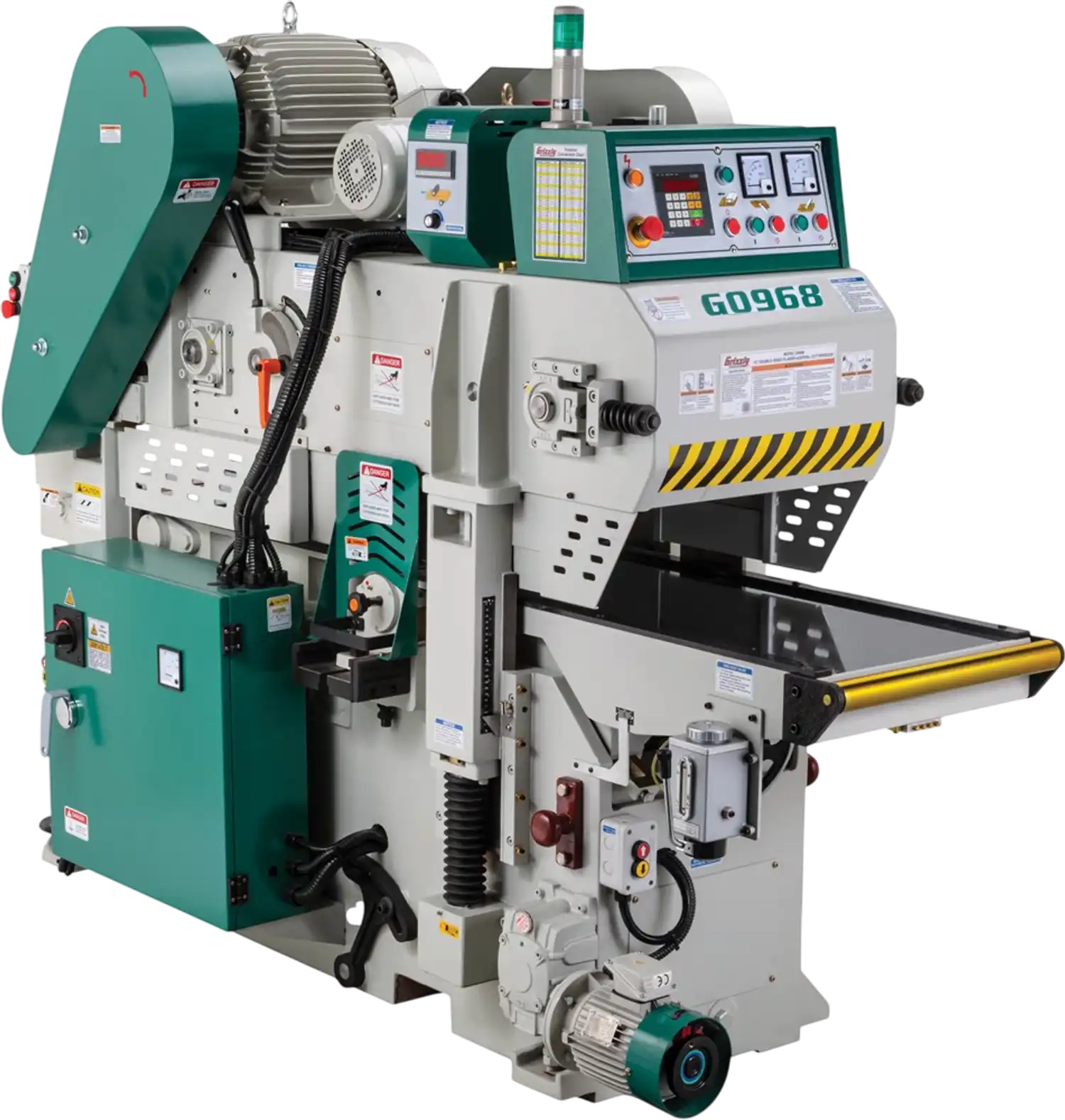

Grizzly G0968 Double-Sided Planer 16" Extreme Series New
Product Overview

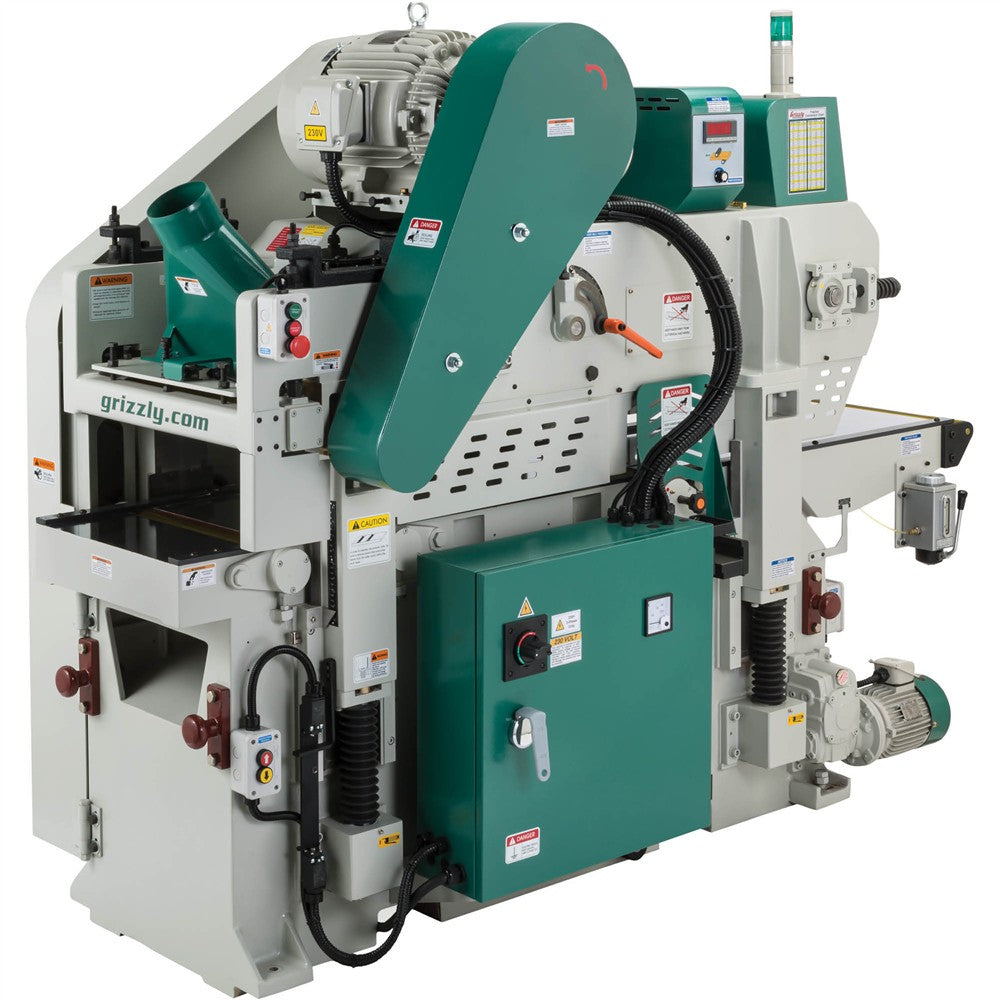

The Grizzly G0968 is a 16-inch double-sided planer built for high-production woodworking environments. It planes the top and bottom of rough lumber in a single pass, helping commercial shops reduce processing time while improving dimensional consistency across runs.

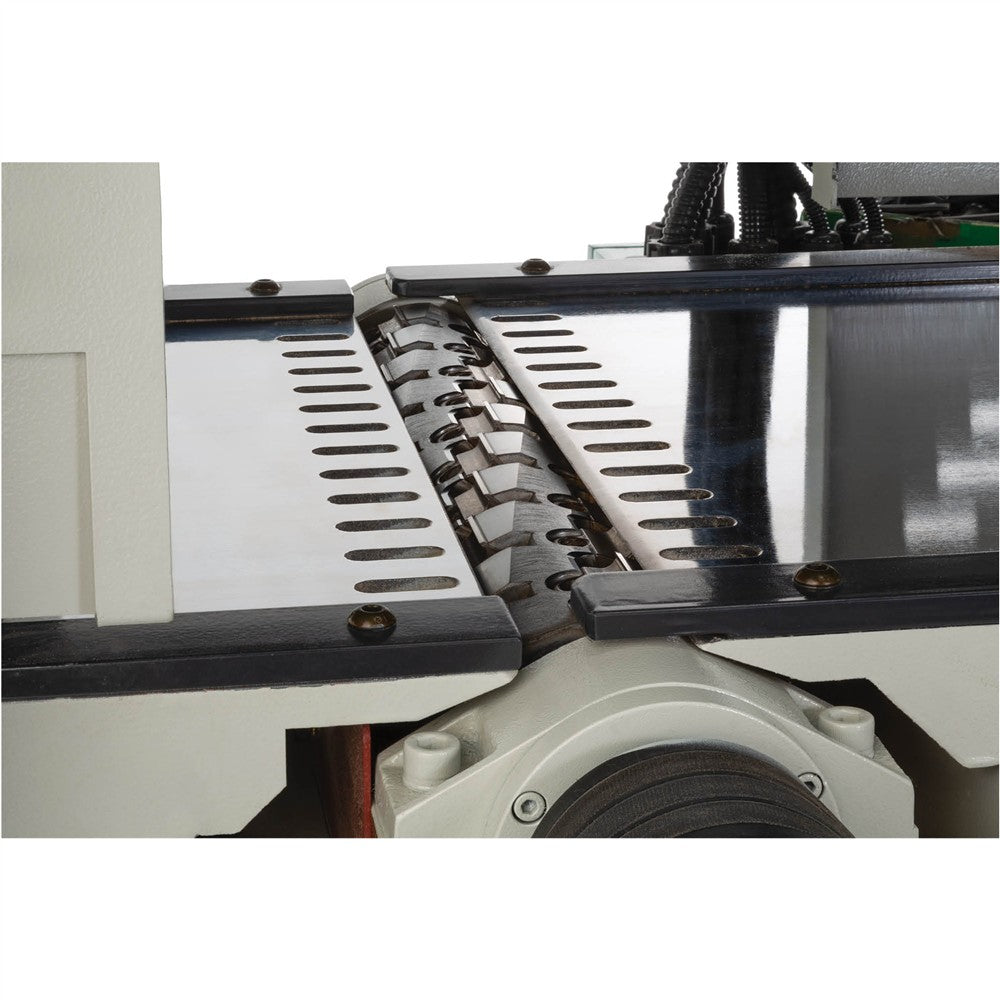

Dual spiral cutterheads with 60 indexable inserts each are powered by separate 15 HP and 10 HP motors for strong, efficient stock removal. Digital thickness positioning and variable feed speeds from 20 to 69 FPM make it easier to dial in accurate results, while the quick-change lower slide-out cutterhead helps keep workflow moving.
A precision-ground, chrome-plated table, steel bed rollers, and built-in oiling features support smooth feeding during demanding daily use. With a maximum planing width of 15-3/4 inches and capacity for stock up to 7-7/8 inches thick, this machine is a practical choice for busy professional shops handling serious lumber volume.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

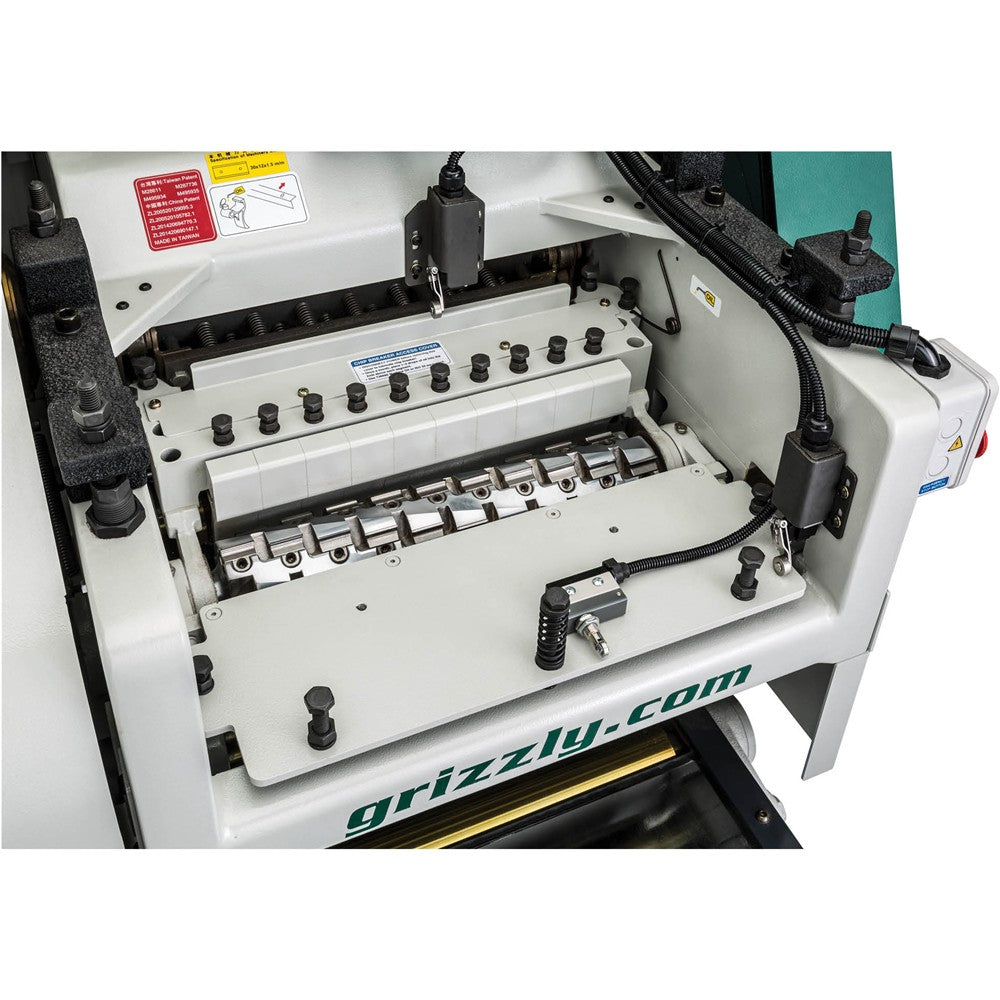

- Dual spiral cutterheads, each with 60 indexable cutters
- Two main motors for increased power

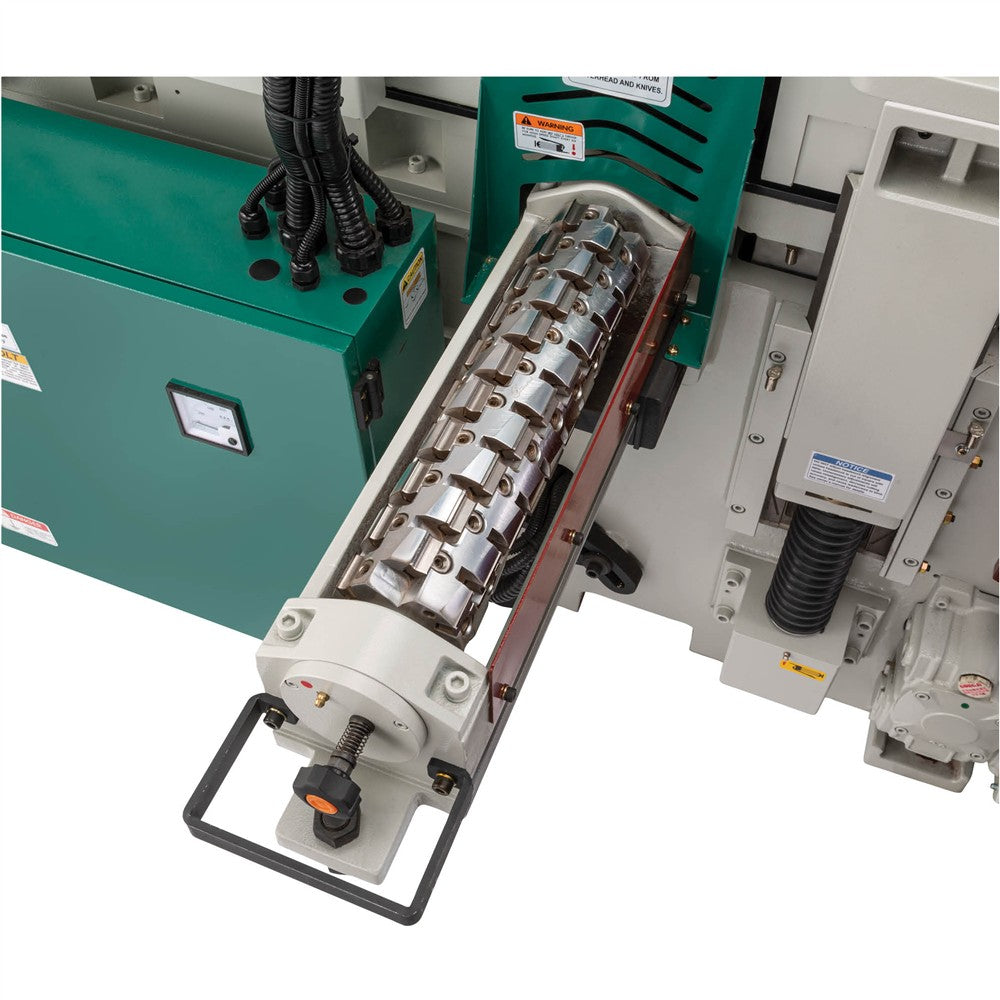

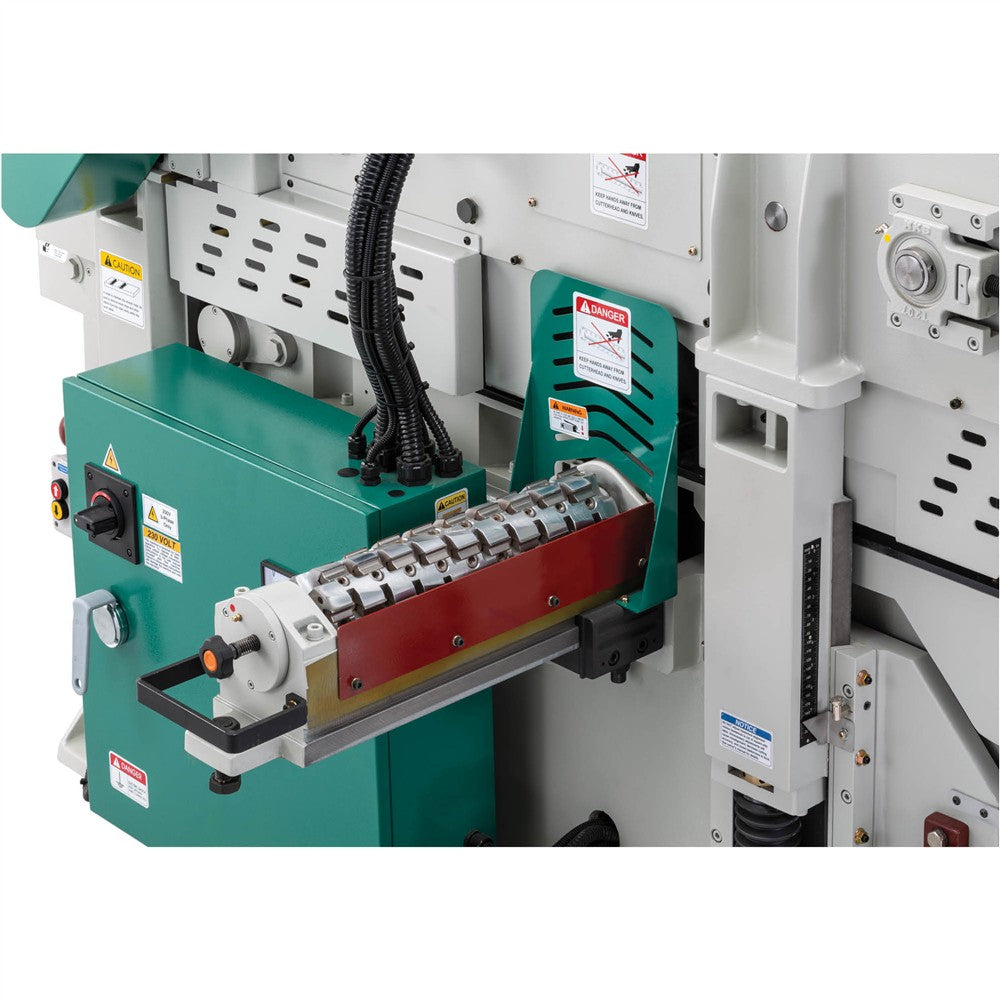

- Quick-change lower slide-out cutterhead

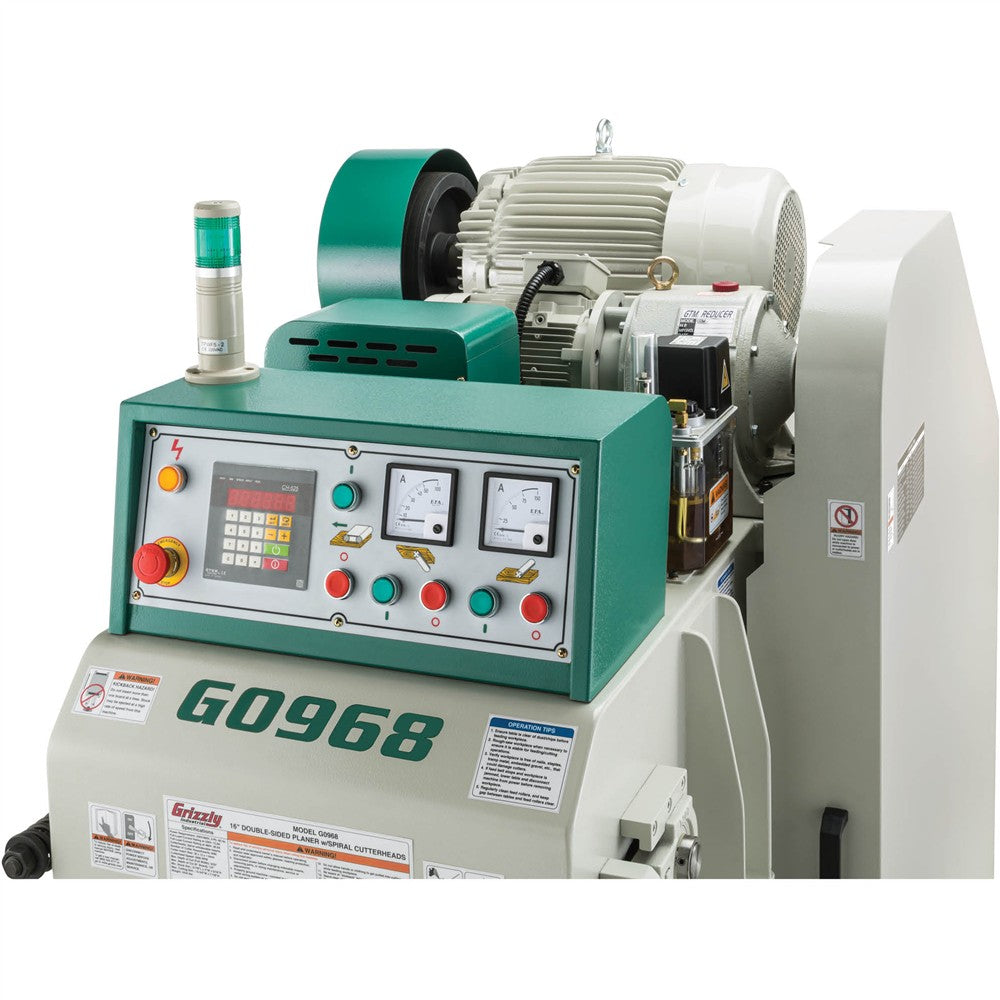

- Digital thickness positioning
- Variable-feed speed control via digital inverter
- Precision-ground, chrome-plated table surface
- Automatic oiler for feed system lubrication
- One-shot table oiler
- Three steel bed rollers
- Two 5" dust ports
- Rear-outfeed emergency stop
Specifications

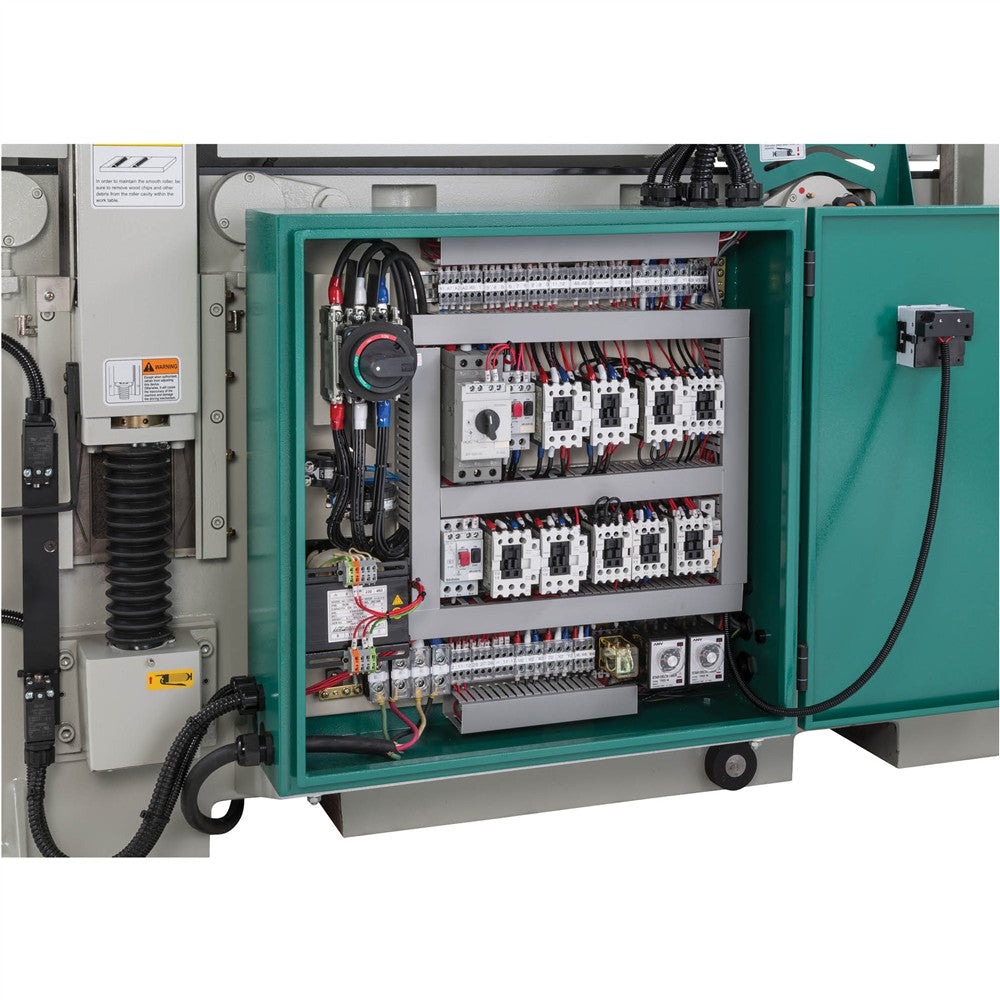

| Required power source | 230V or 460V, 3-phase, min. 100A circuit 230V/50A circuit 460V |

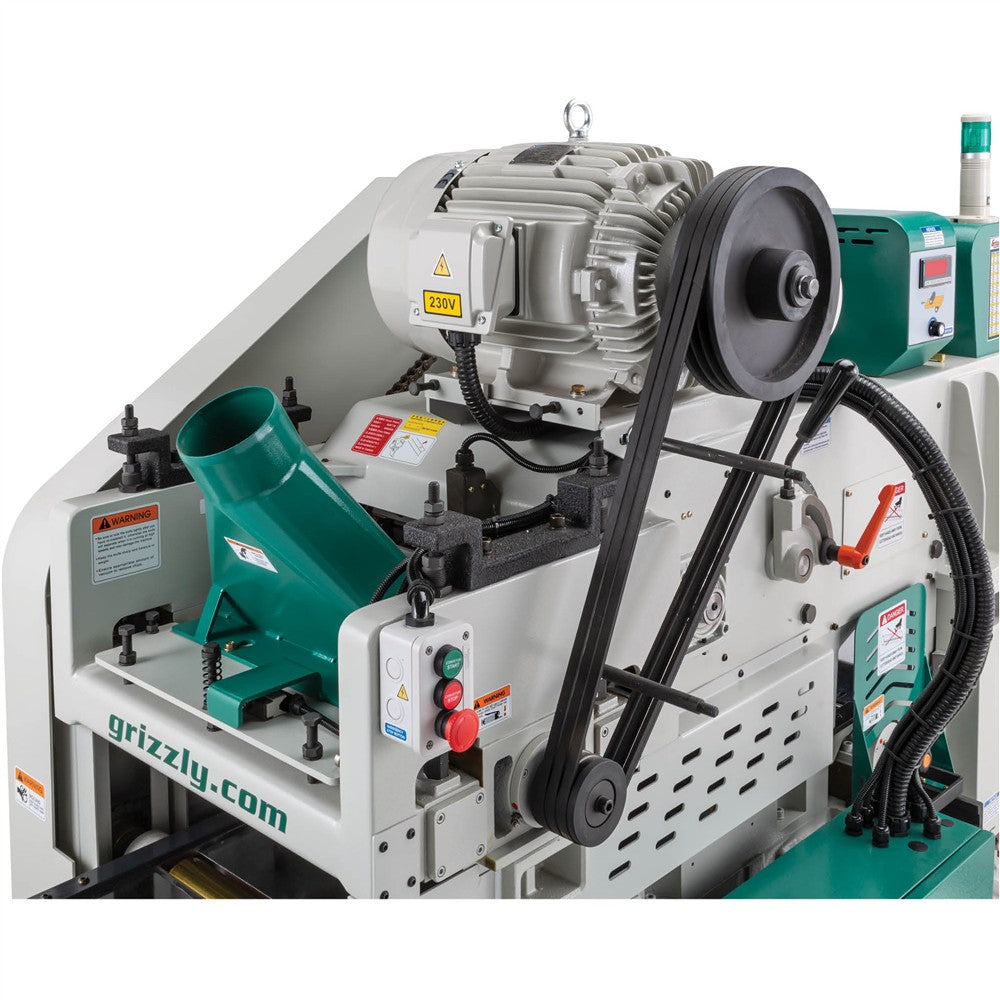

| Upper cutterhead motor | 15 HP, 230V/460V (prewired 230V) |
| Lower cutterhead motor | 10 HP, 230V/460V (prewired 230V) |

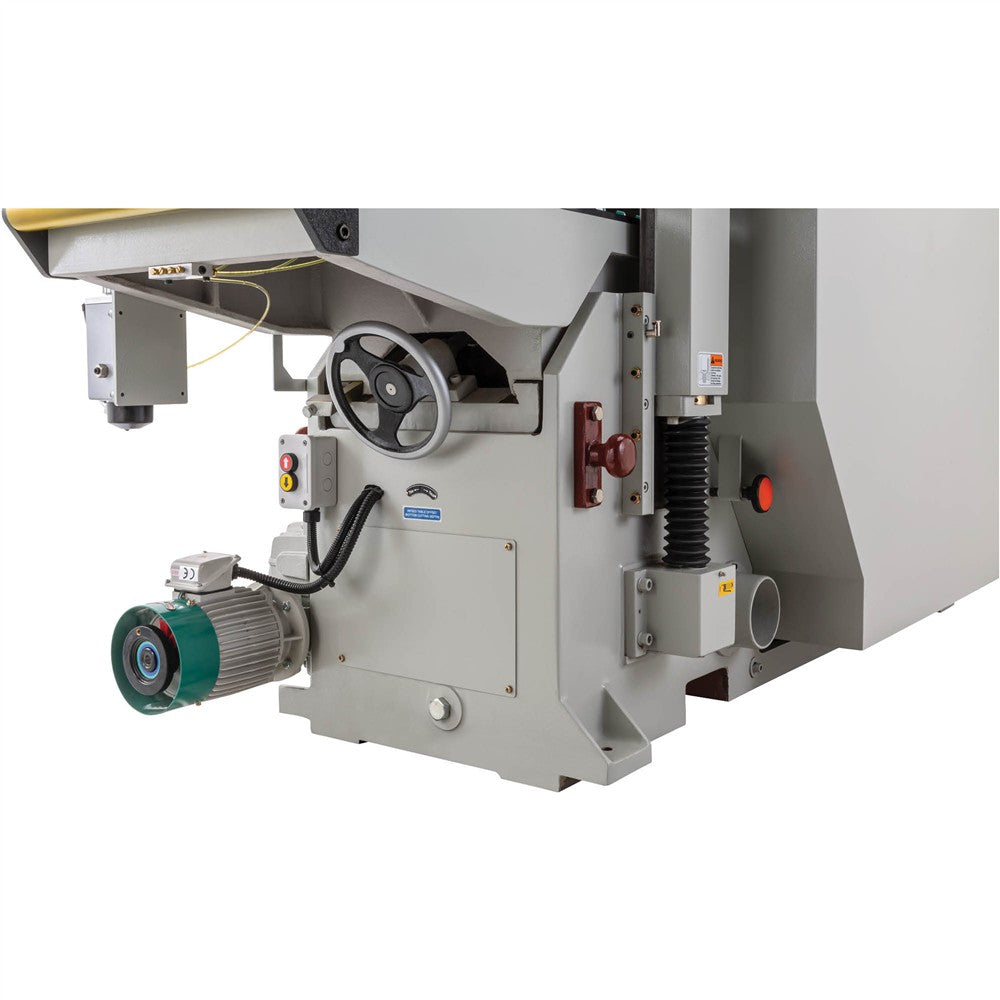

| Feed motor | 2 HP |
| Headstock elevation motor | 1/2 HP |
| Maximum stock width | 15-3/4" |
| Maximum stock thickness | 7-7/8" |
| Minimum stock thickness | 5/16" |
| Maximum cutting depth planing full width | 5/32" |
| Maximum cutting depth planing 6" wide board | 1/4" |
| Cutterhead diameter | 4" |
| Cutterhead type | Spiral (2), with 60 inserts each |
| Cutterhead speed | 5000 RPM |
| Feed rate | Variable, 20-69 FPM |
| Table size | 86" x 16" |
| Dust port size | 5" |
| Footprint | 64" x 25" |
| Overall dimensions | 40-1/2" W x 88-1/2" D x 70-1/2" H |
| Approximate shipping weight | 4531 lbs. |
Warranty
This item comes with a 1 year factory warranty.
