Grizzly G0966 Metal Dust Collector 1-1/2 HP New
Manufacturer: Grizzly
SKU: G0966
QTY
or
(888) 999-1522
C
$7,703.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Grizzly G0966 Metal Dust Collector 1-1/2 HP New
Product Overview

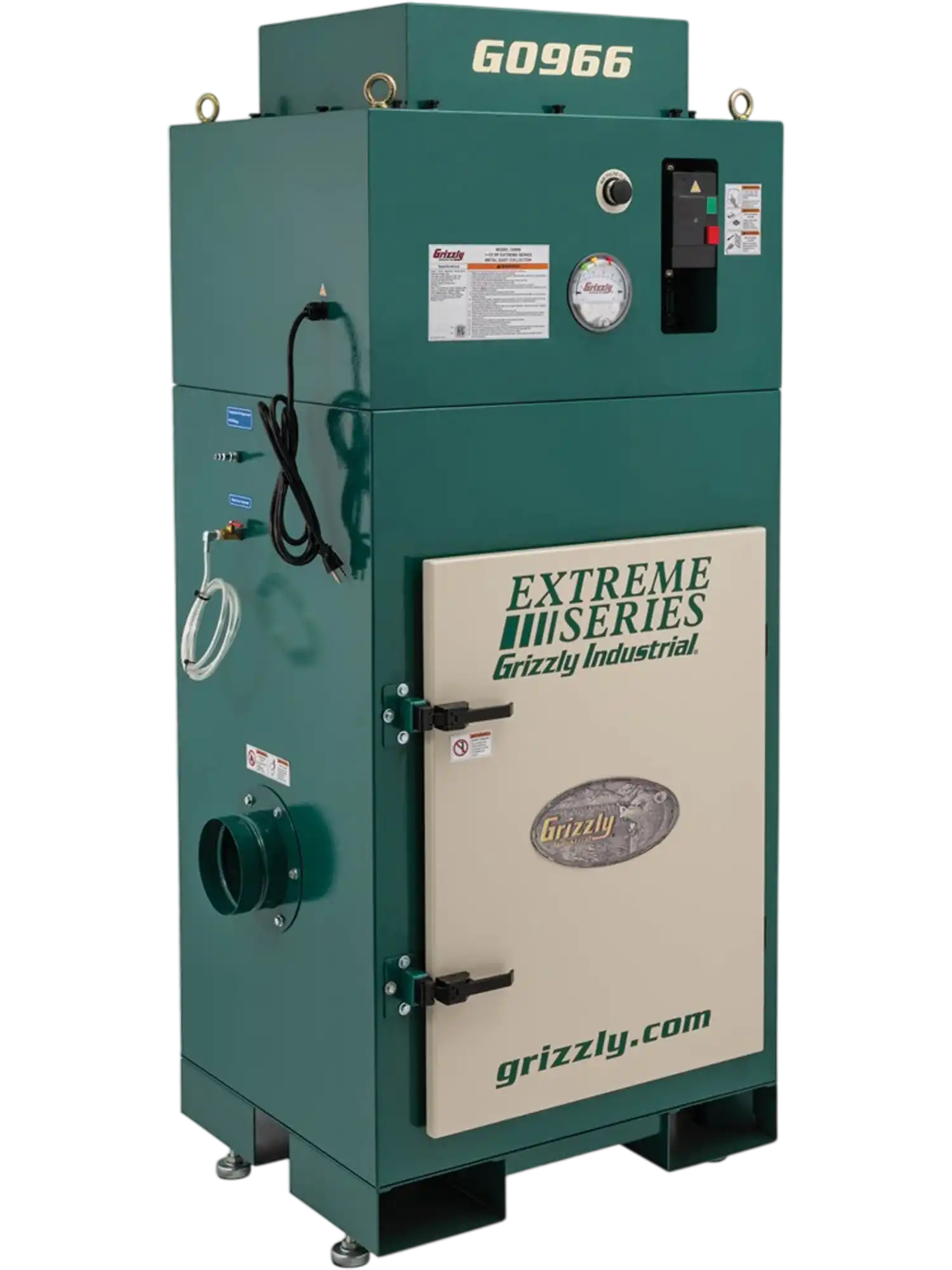

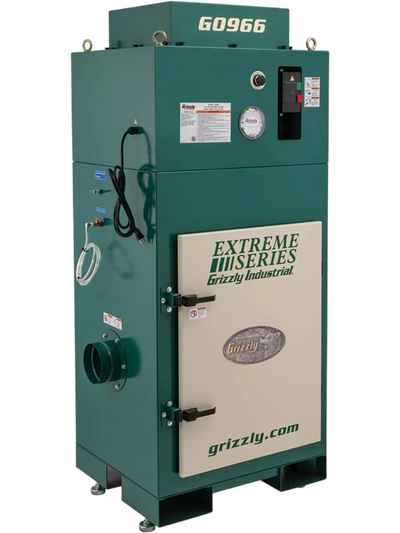

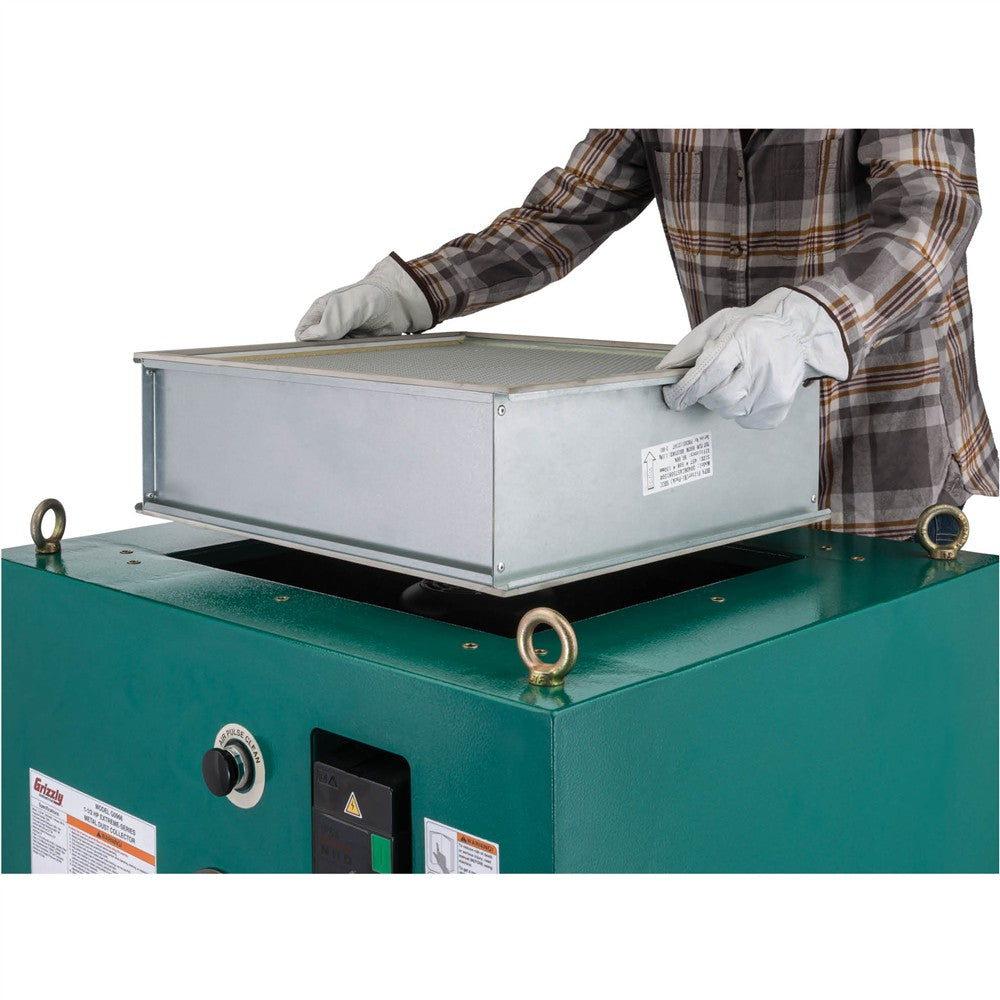

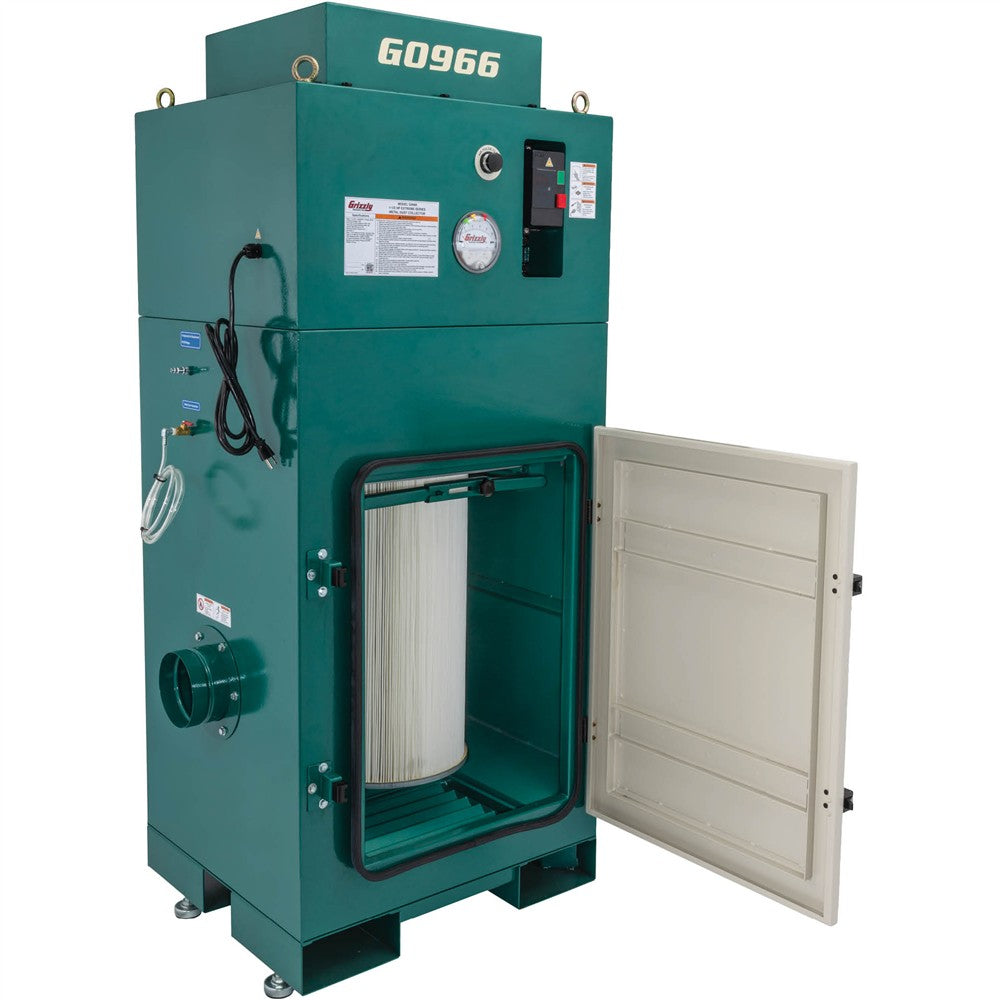

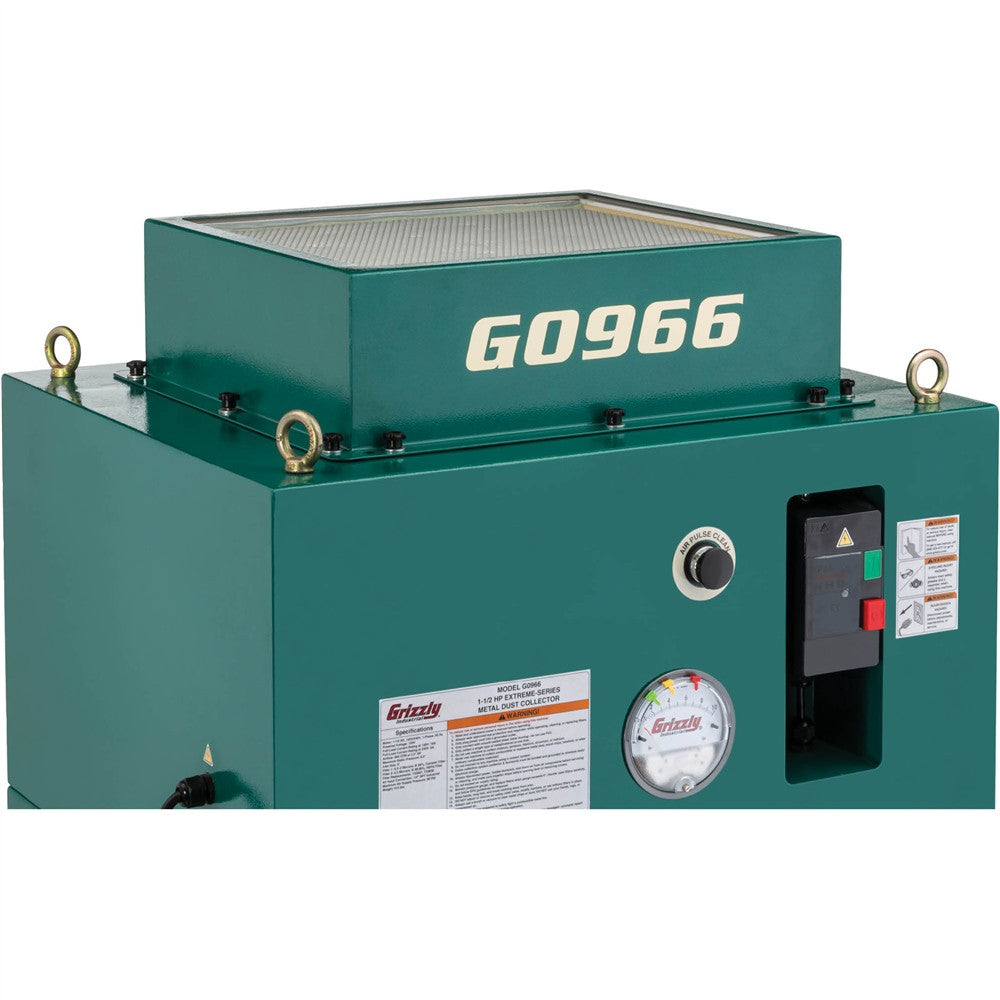

The Grizzly G0966 is a heavy-duty 1-1/2 HP metal dust collector designed to capture dry metal dust, chips, swarf, and fine airborne particles in fabrication and metalworking shops. Its 2-stage filtration system combines a flame-resistant canister filter with high-efficiency HEPA filtration to help create a cleaner, safer workspace.

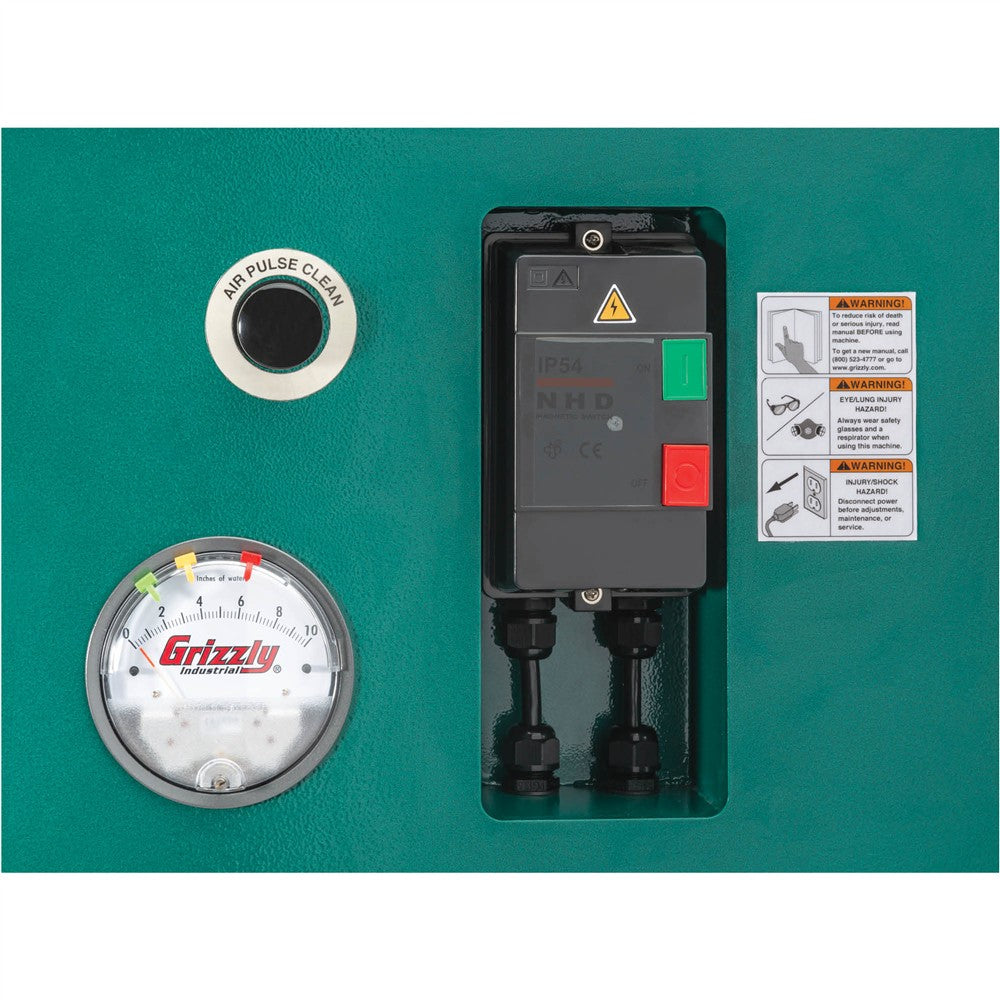

With 884 CFM airflow, this unit is built to handle demanding dust collection tasks from grinding, cutting, and other dry metalworking operations. A built-in pressure gauge helps monitor filter condition, while the pneumatic air-pulse cleaning system and removable dust tray make routine operation and dust disposal more convenient.
Running on standard 120V power and housed in a rugged steel cabinet, this collector is a practical choice for professional shops and serious metalworkers who need effective air filtration without requiring a 220V connection. It is intended for dry metal debris only and should not be used for wood dust or metal chips containing coolant.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Specifications
| Motor | 1-1/2 HP, 120V/240V (prewired for 120V), single-phase, 18A/9A |
| Airflow performance | 884 CFM @ 2.2" SP |
| Max. static pressure (at 0 CFM) | 8.3" |
| Inlet size | 6" |
| Machine collection capacity | 1 |
| Material collection capacity | 0.55 cu. ft. |
| Air input connection size | 1/4" NPT |
| Tank size | 1 Gallon |
| Maximum tank pressure | 90 PSI |
| Footprint | 30" x 26" |
| Overall dimensions | 33-1/2" W x 29" D x 74-1/2" H |
| Approximate shipping weight | 661 lbs. |
Warranty
This item comes with a 1 year factory warranty.
