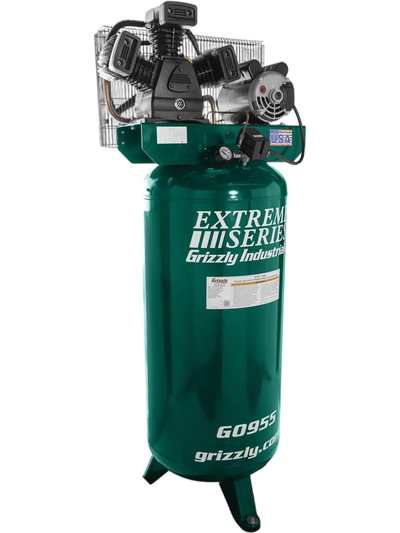

Grizzly G0955 Air Compressor 60-Gallon 5 HP Extreme Series New
Product Overview

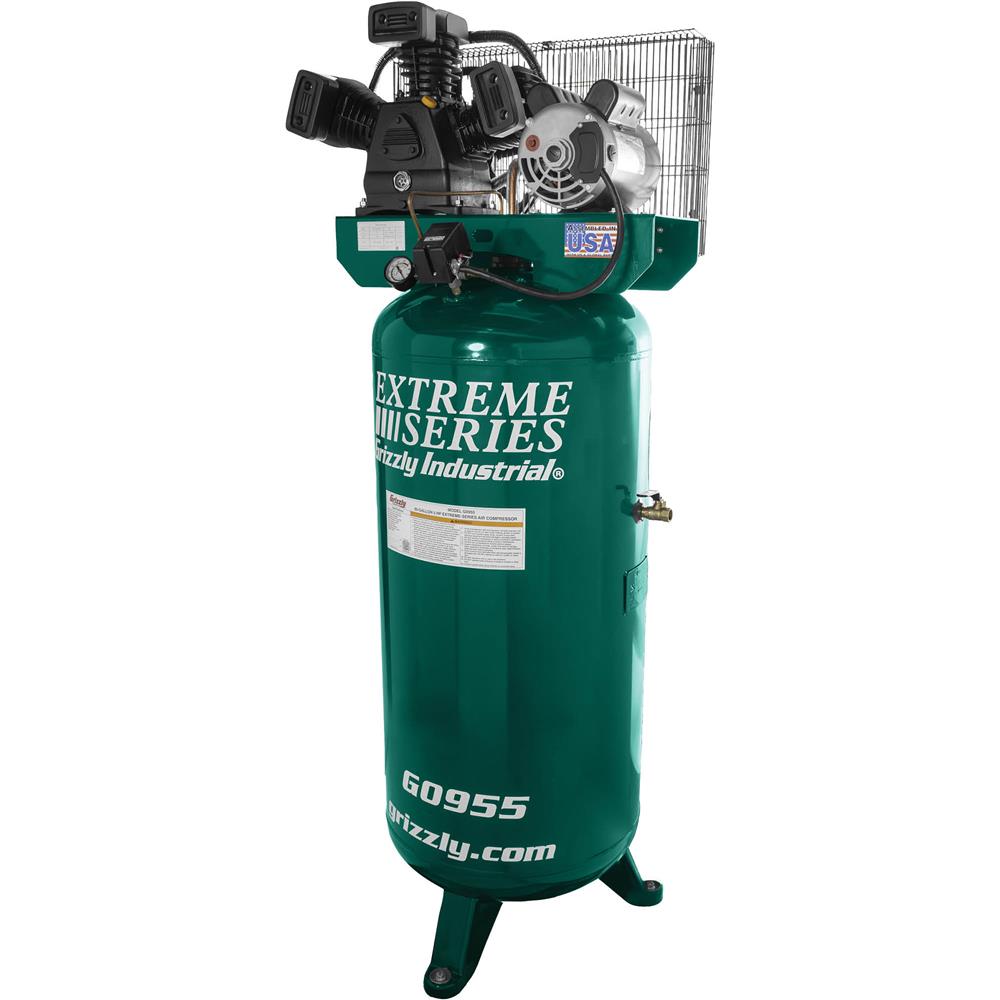

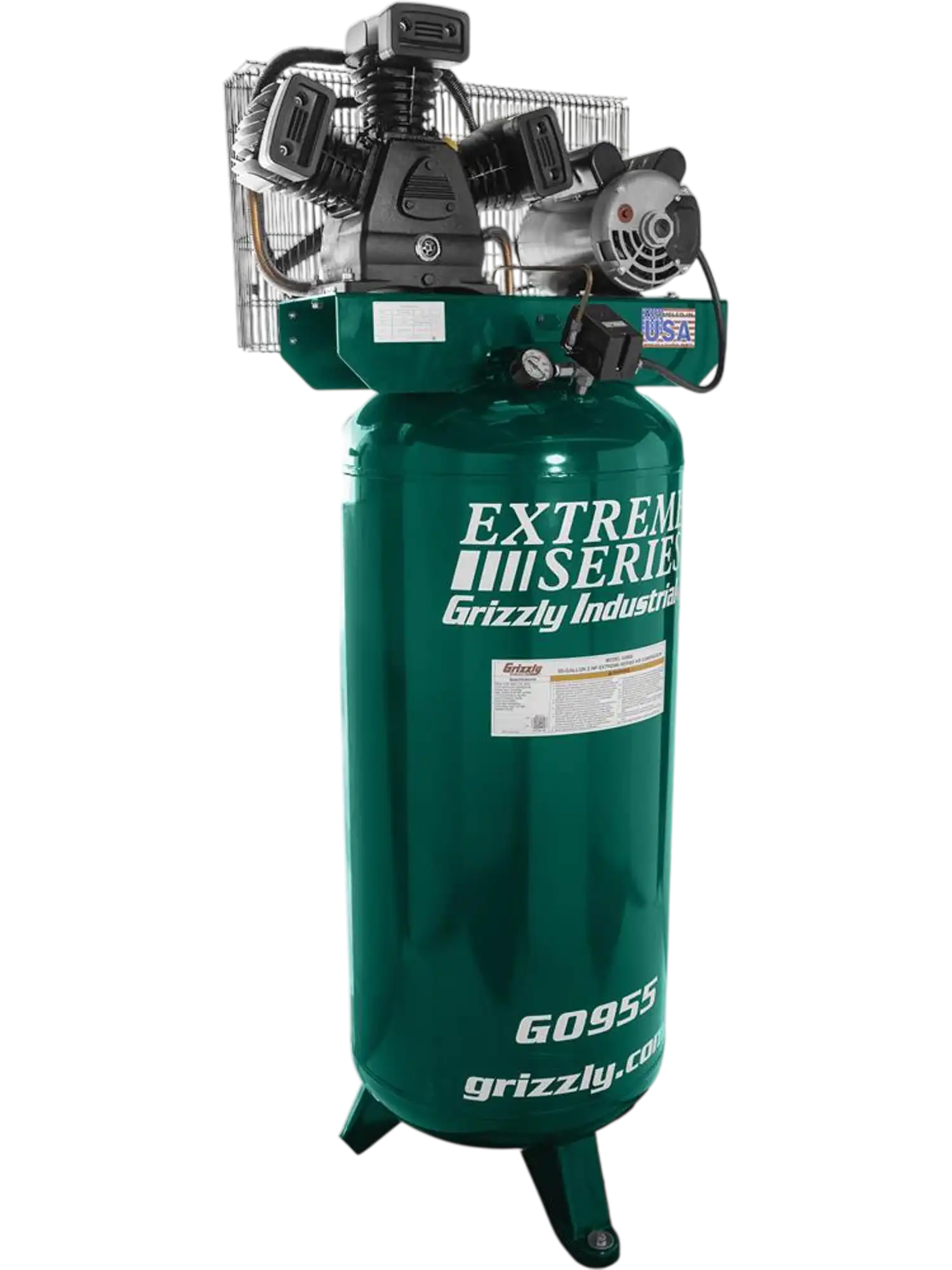

The Grizzly G0955 is a heavy-duty 60-gallon vertical air compressor built for high-output shop use. Its 5 HP, 230V motor delivers up to 150 PSI, with strong airflow performance of 18 CFM at 90 PSI and 20 CFM at 40 PSI for demanding pneumatic applications.

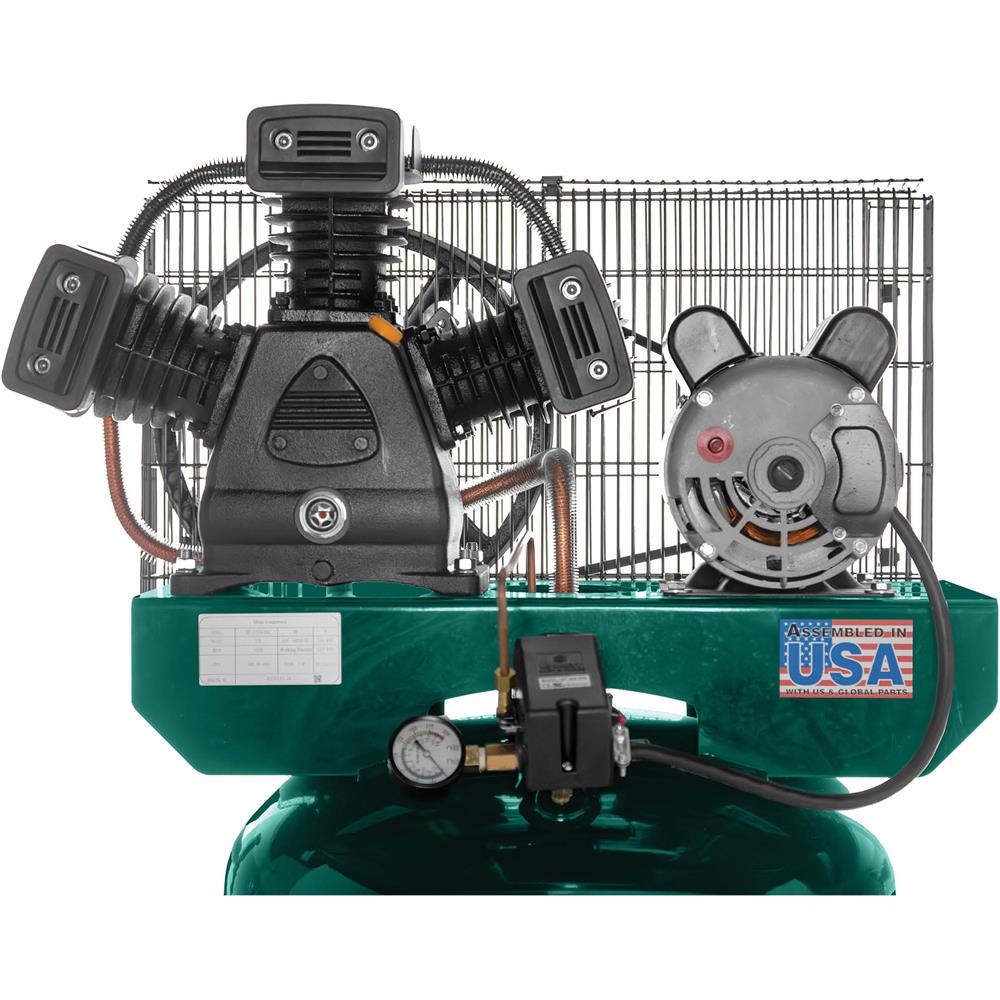

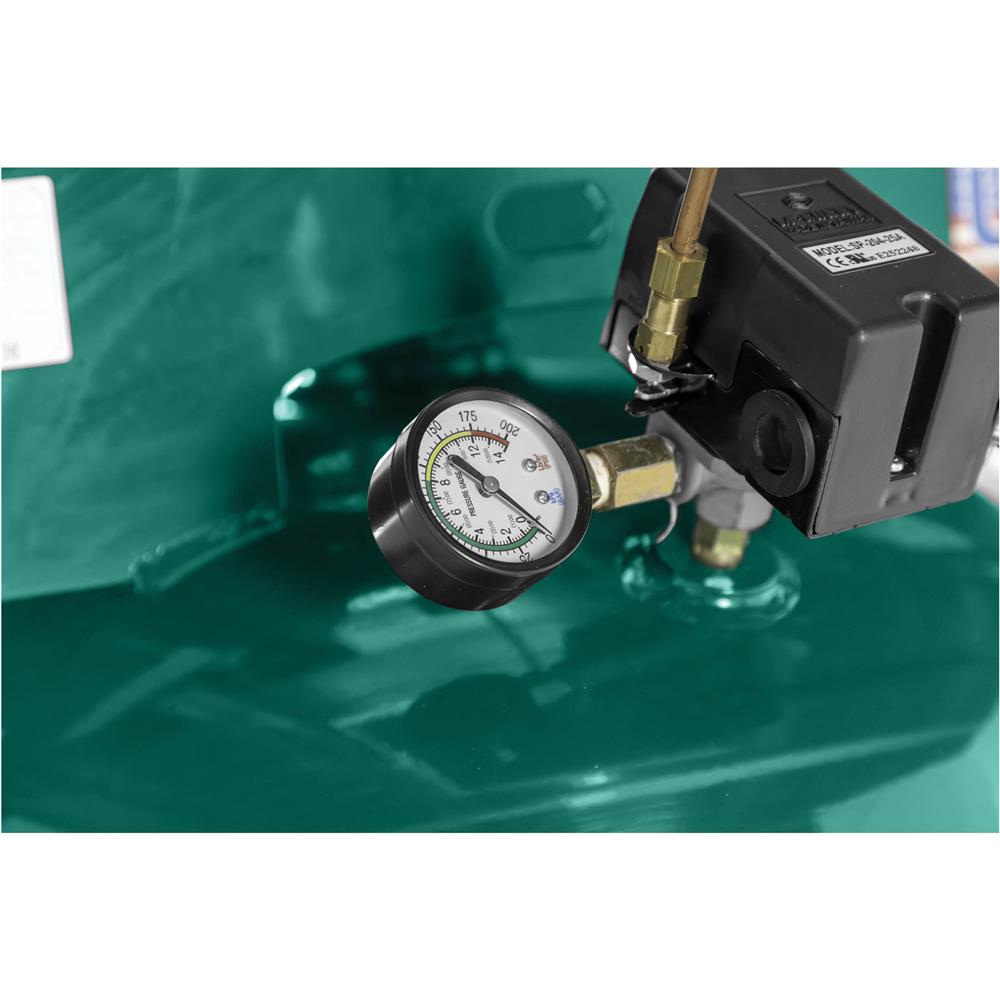

Designed to run at low RPMs, this one-stage compressor combines a cast-iron oil-lubricated pump with a W-cylinder design for dependable air delivery and reduced wear. Cooling-focused details like the wired belt guard, fan pulley, and cooling fins help the unit stay cooler during extended operation, while the oil sight glass, pressure gauge, and ball-valve controls make everyday use straightforward.

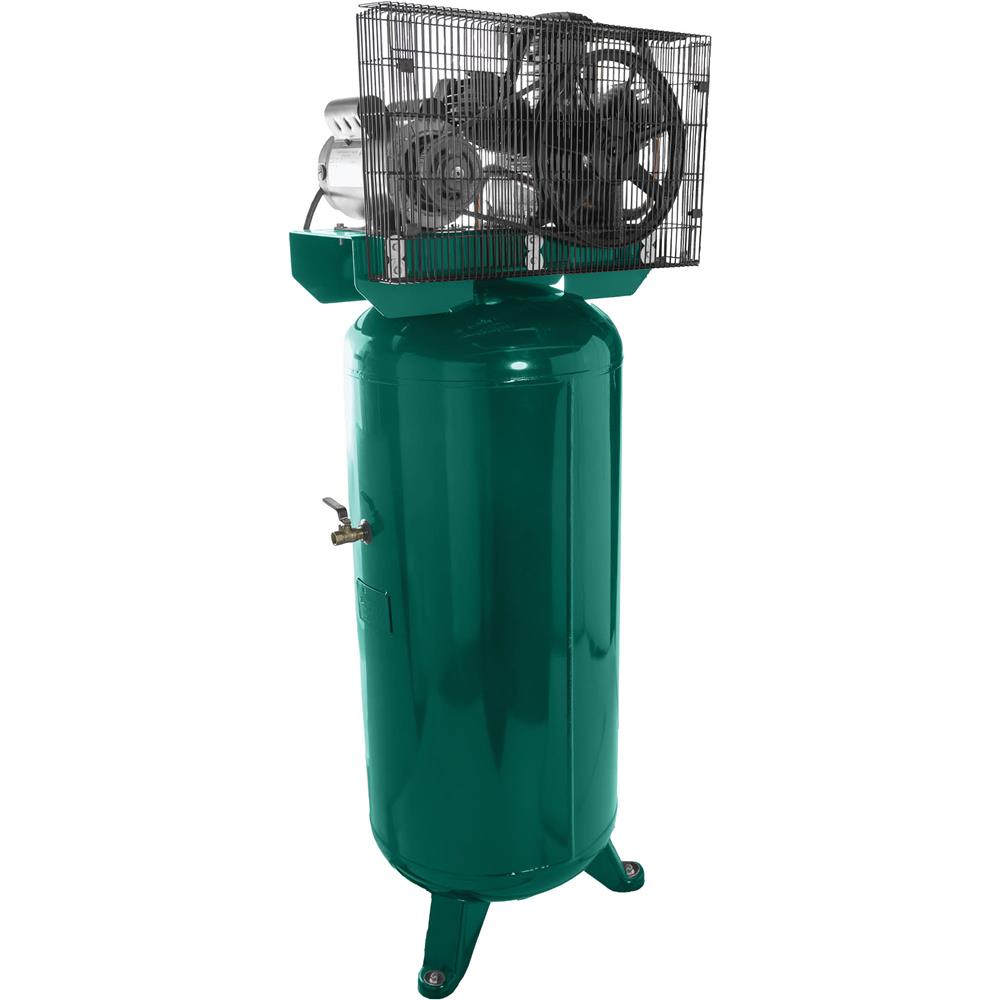

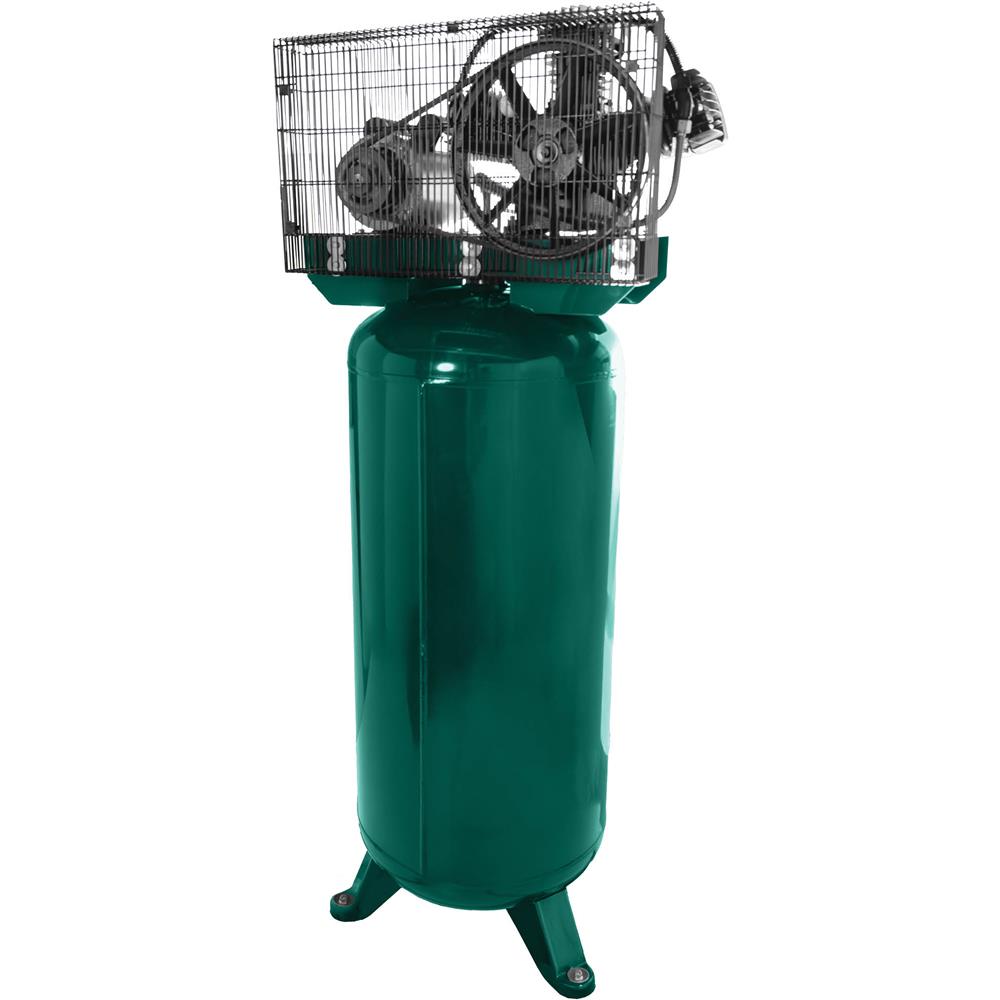

This model is well suited for serious home garages, farm shops, and professional workspaces that need consistent compressed air for spray equipment, impact tools, sanders, and other air-powered tools. The ASME-certified 60-gallon tank provides substantial air storage in a space-saving vertical format.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Large oil level sight glass

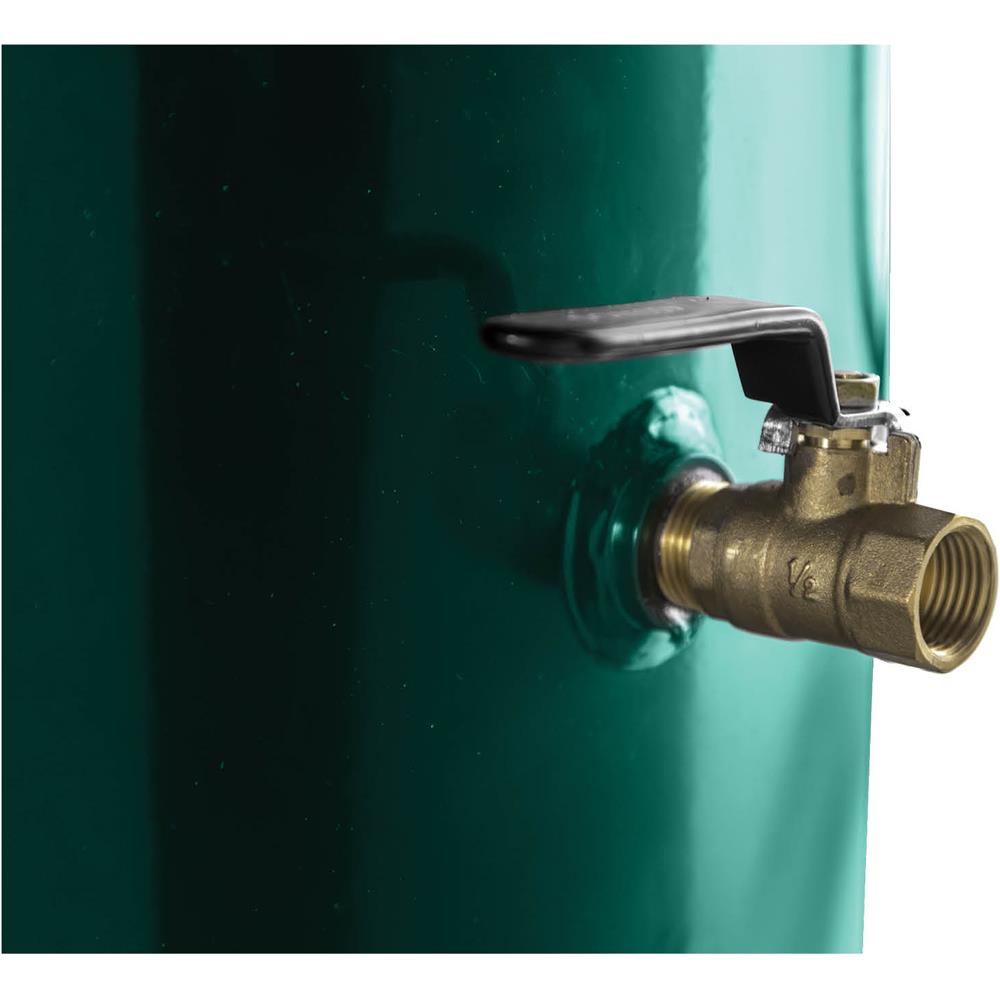

- Ball-valve drain and output control

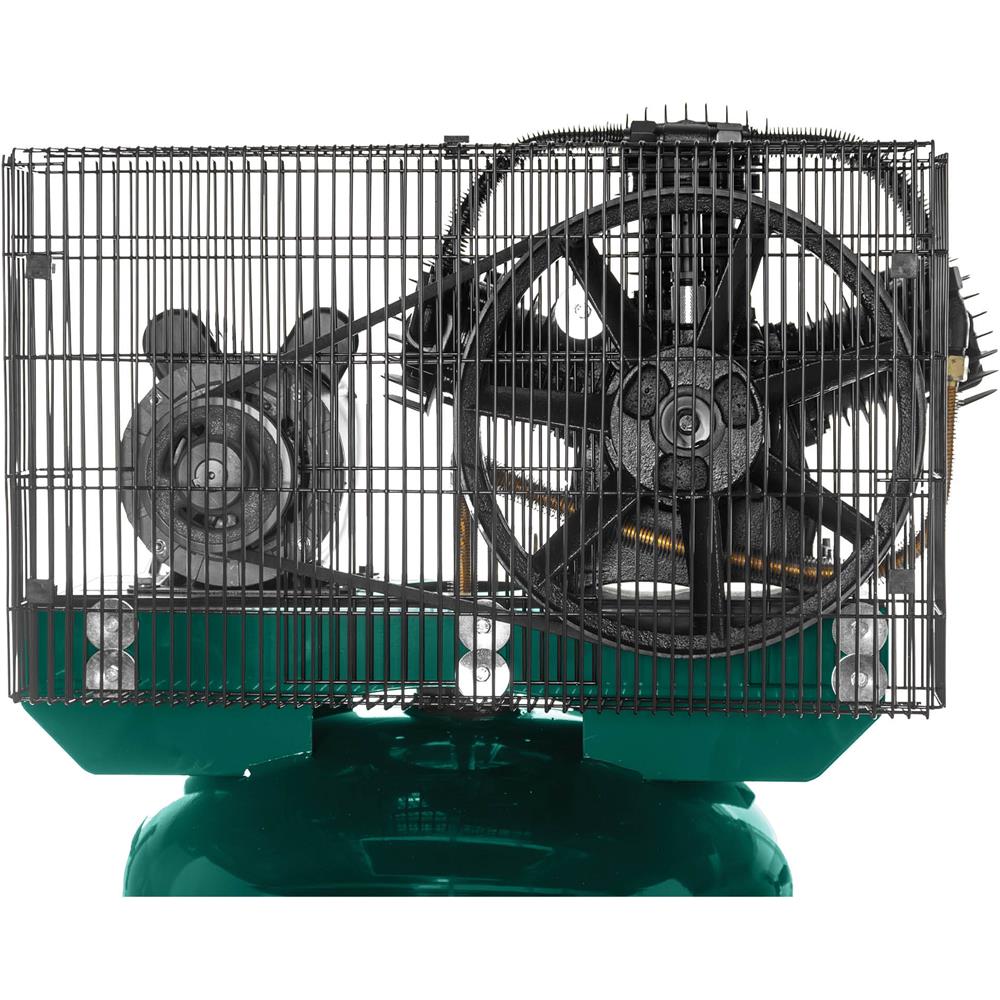

- Wired-formed belt guard for more efficient cooling
- Fan pulley and cooling fin design to keep compressor cool
- W-cylinder cast-iron air compressor pump
- Made and assembled in the USA with global parts
- ASME-certified 60-gallon tank
Specifications
| Motor | 5 HP, 230V, single-phase, 22.5A |
|---|---|
| Airflow capacity | 18 CFM at 90 PSI and 20 CFM at 40 PSI |
| Maximum air pressure | 150 PSI |
| Overall size | 30" W x 22" D x 68" H |
| Approximate shipping weight | 345 lbs. |
|---|
Warranty
This item comes with a 1 year factory warranty.
