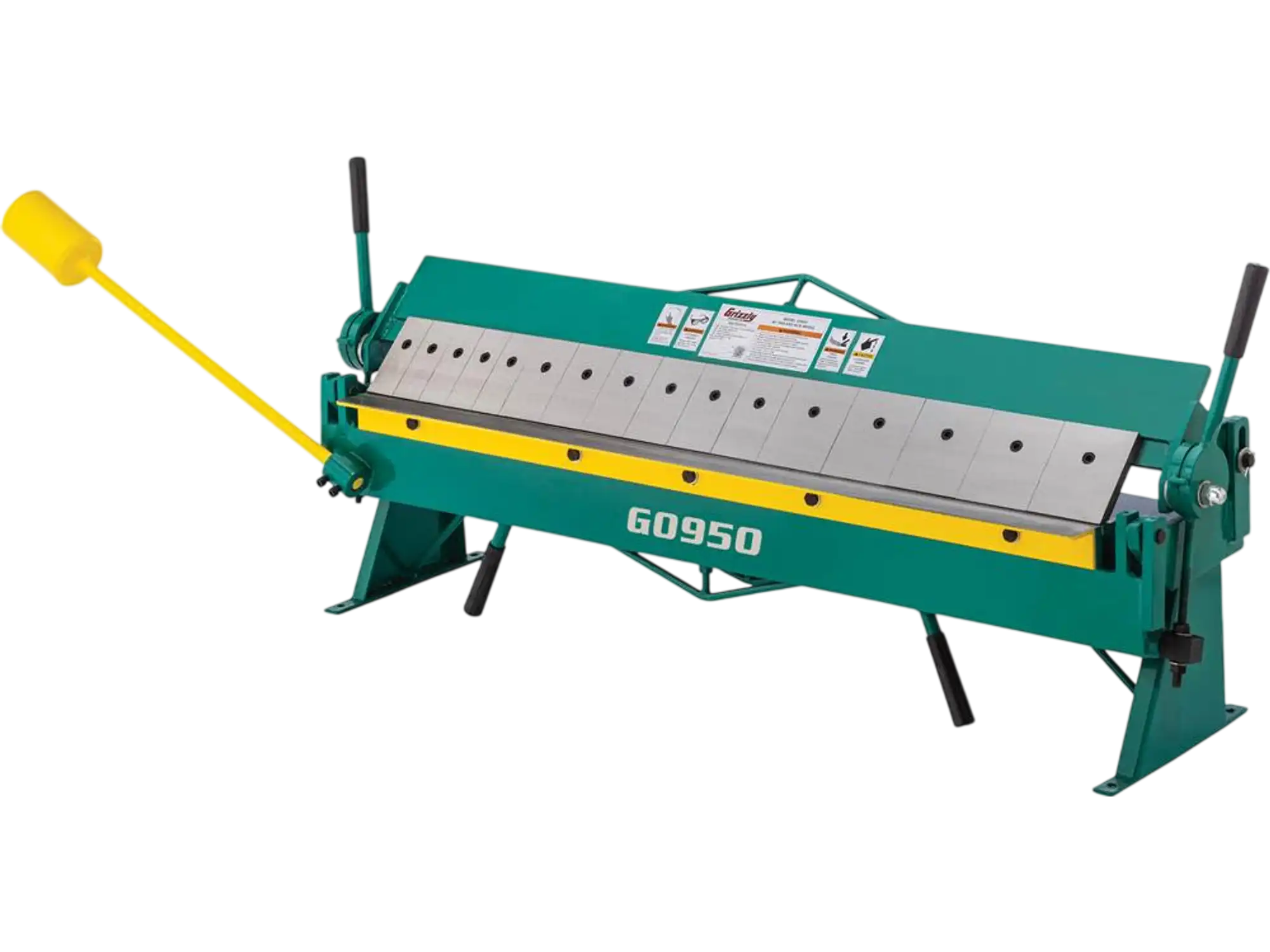

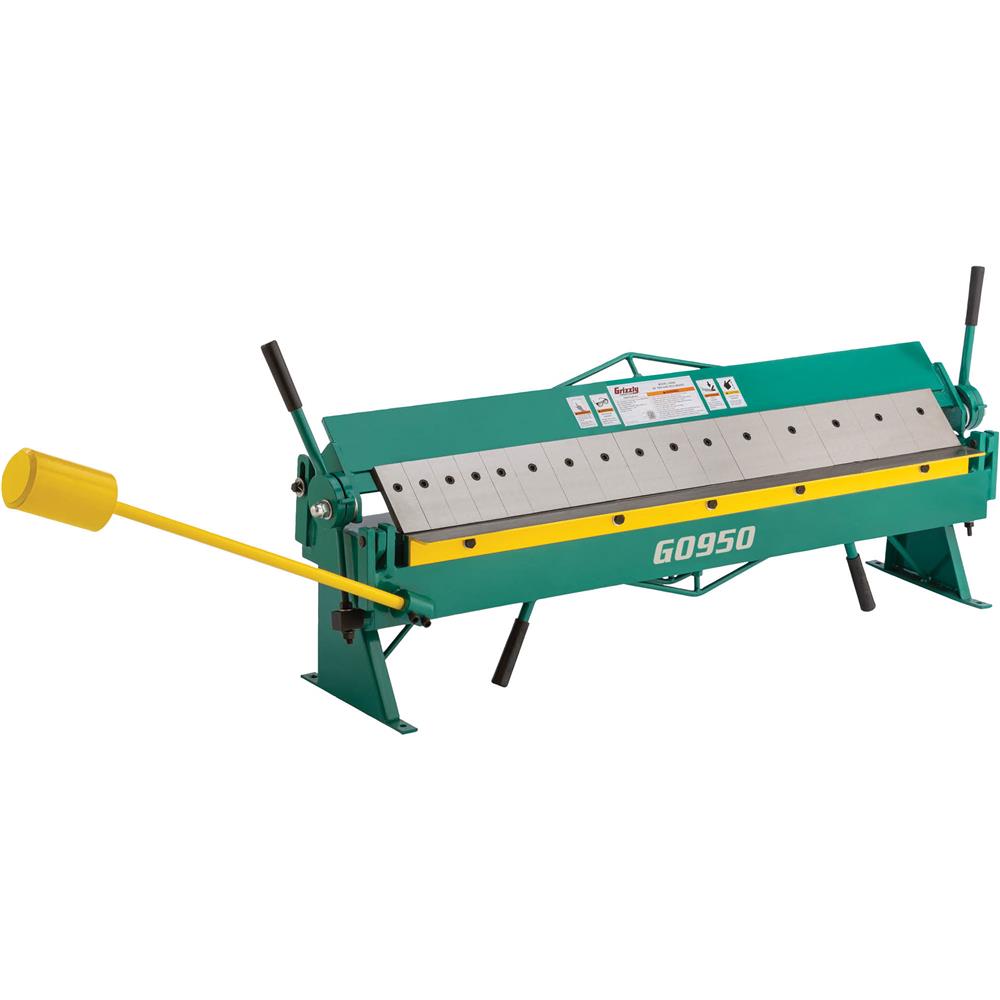

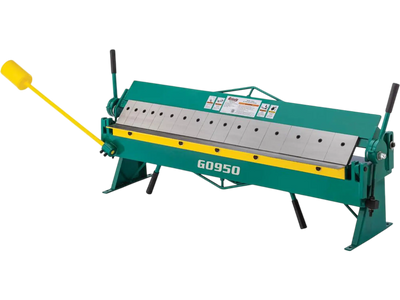

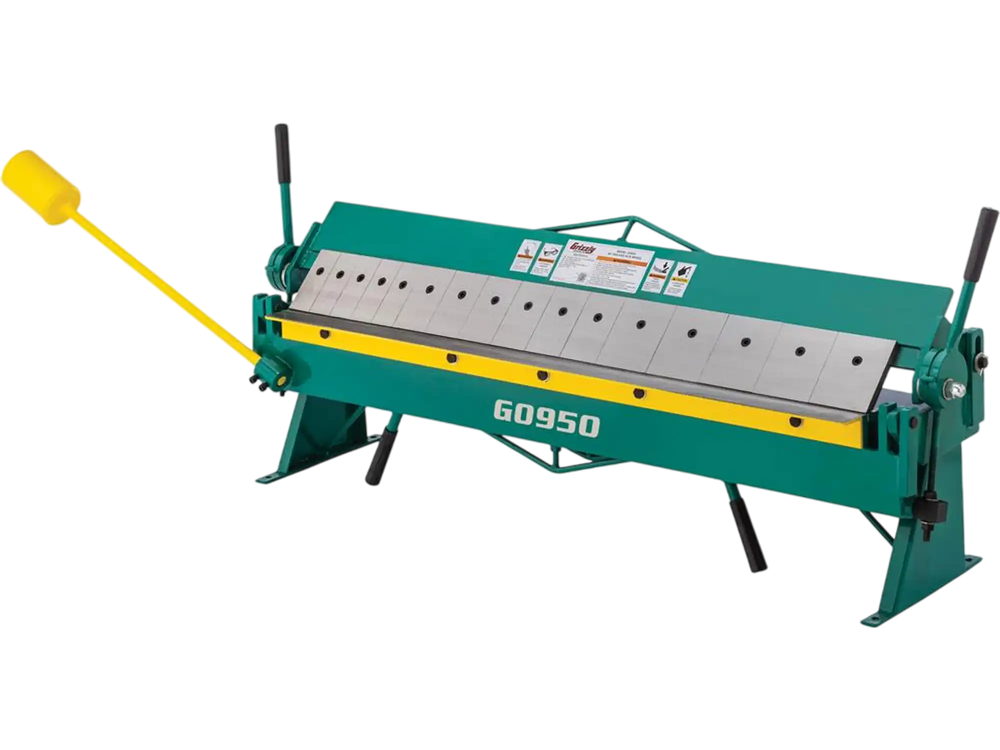

Grizzly G0950 Pan & Box Brake 48" 16-Gauge New
Product Overview

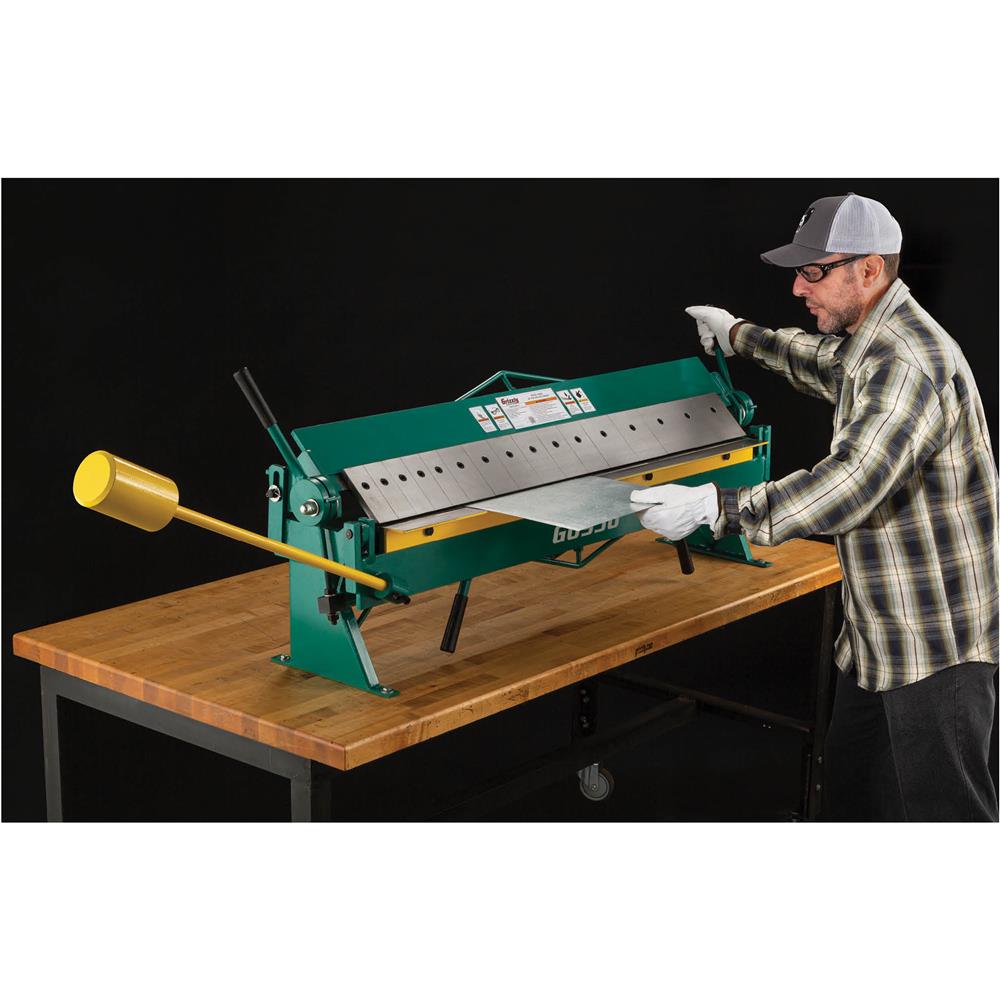

The Grizzly G0950 is a bench-type 48-inch pan and box brake built for shaping sheet metal in fabrication, repair, and shop work. It handles up to 16-gauge mild steel at half width and 18-gauge at full width, making it a practical choice for forming pans, boxes, channels, and bends with consistent control.
This brake features a rigid trussed frame, precision-aligned bed and beam, and a counterweighted bending leaf for easier operation through a 0° to 135° range. Sixteen removable and repositionable fingers in 2-inch, 3-inch, and 4-inch sizes allow flexibility for a wide range of bending setups, while hardened finger edges help support accurate results.
With a maximum pan or box side height of 2-1/2 inches and a compact bench-style footprint, this model is well suited for metalworkers, maintenance departments, HVAC fabrication, and serious home shops that need versatile forming capability in a durable machine.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

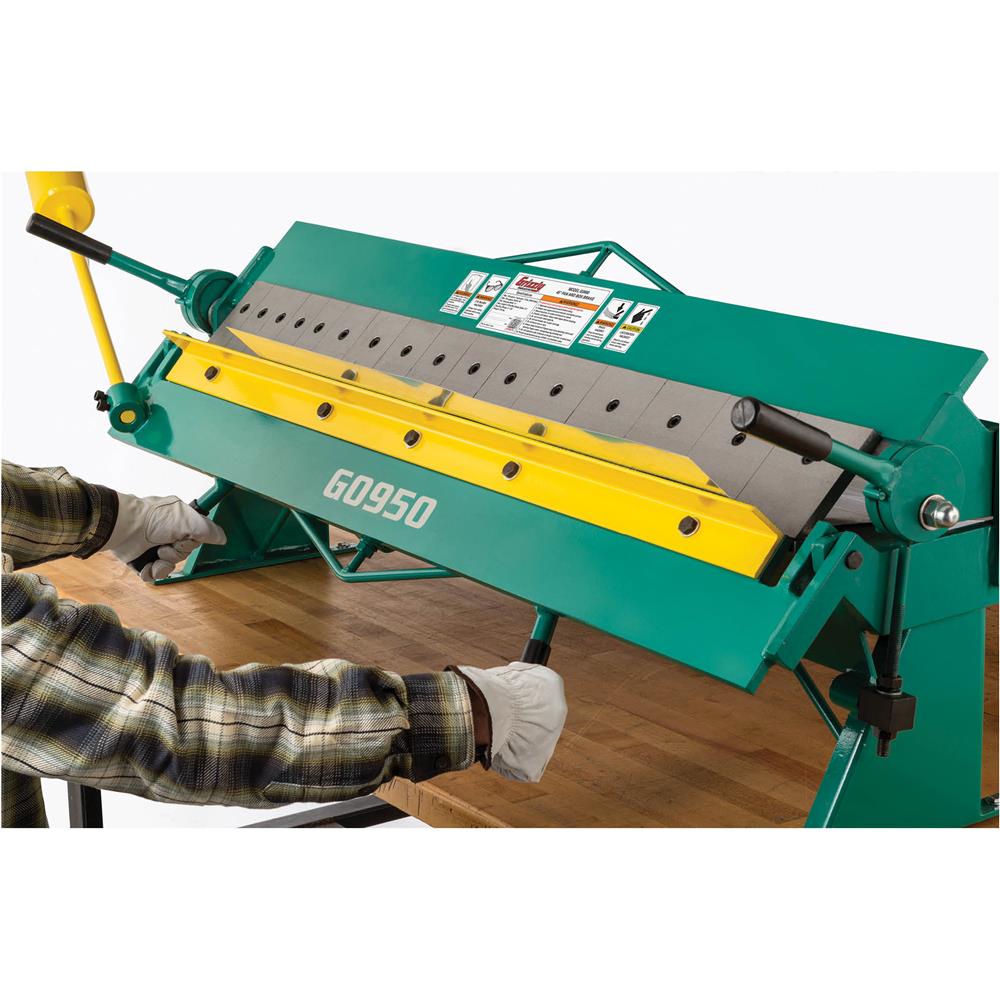

- Bending leaf counterweighted for leverage

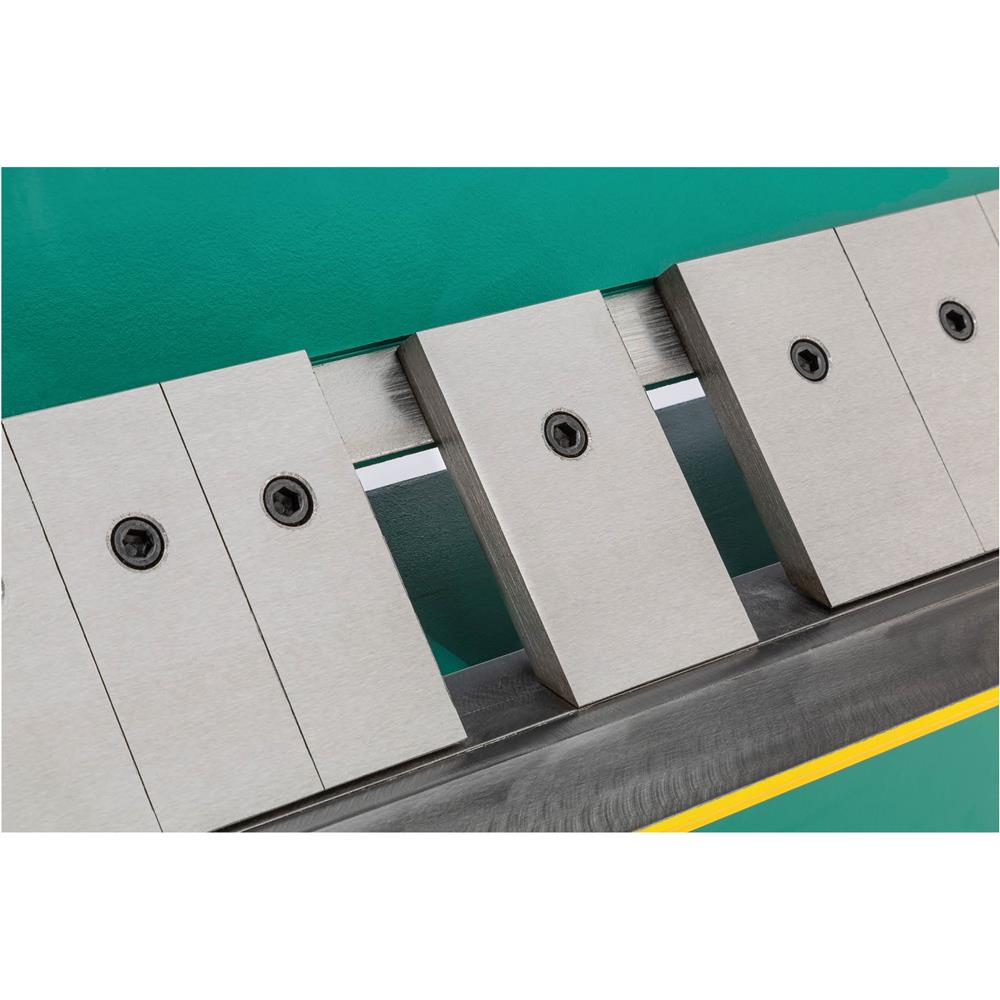

- Precision-ground steel fingers with hardened edges
- Sixteen adjustable/removable fingers
Specifications
| Maximum capacity | 48" |
|---|---|
| Mild Steel Gauge | 16-gauge at half width, 18-gauge at full width |
| Brake range | 0-135° |
| Minimum reverse bend | 7/16" |
| Maximum height of pan/box sides | 2-1/2" |
| Number of each box finger size | (5) 2", (6) 3", (5) 4" |
| Footprint | 12-1/2" x 52" |
|---|---|
| Overall dimensions | 78-1/2" W x 18" D x 31" H |
| Approximate shipping weight | 383 lbs. |
Warranty
This item comes with a 1 year factory warranty.
