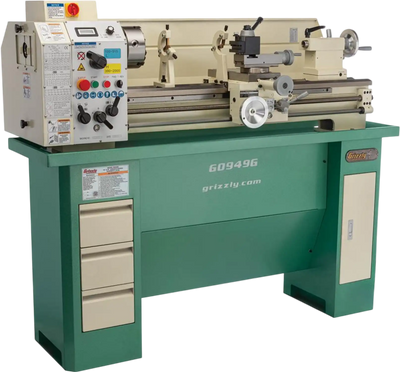

Grizzly G0949G Metal Lathe 12" x 35" Variable-Speed Gunsmith New
Manufacturer: Grizzly
SKU: G0949G
QTY
or
(888) 999-1522
C
$8,736.00
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Grizzly G0949G Metal Lathe 12" x 35" Variable-Speed Gunsmith New
Product Overview

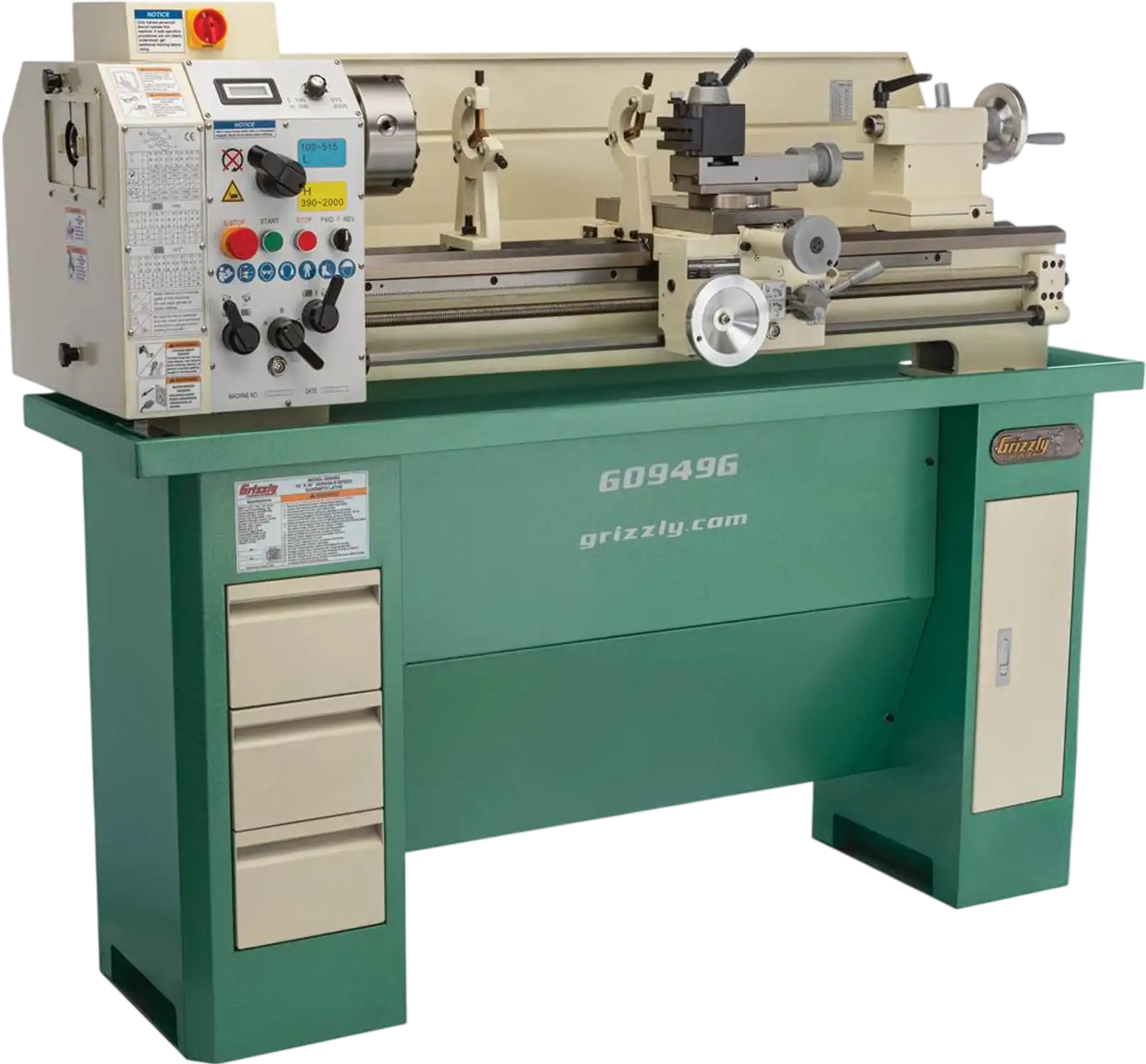

The Grizzly G0949G is a 12" x 35" variable-speed metal lathe built for precision turning, threading, and gunsmithing work in a space-saving footprint. It combines a 1-1/2 HP motor with two speed ranges and variable spindle control, giving users the flexibility to handle both slower, controlled cuts and higher-speed machining.

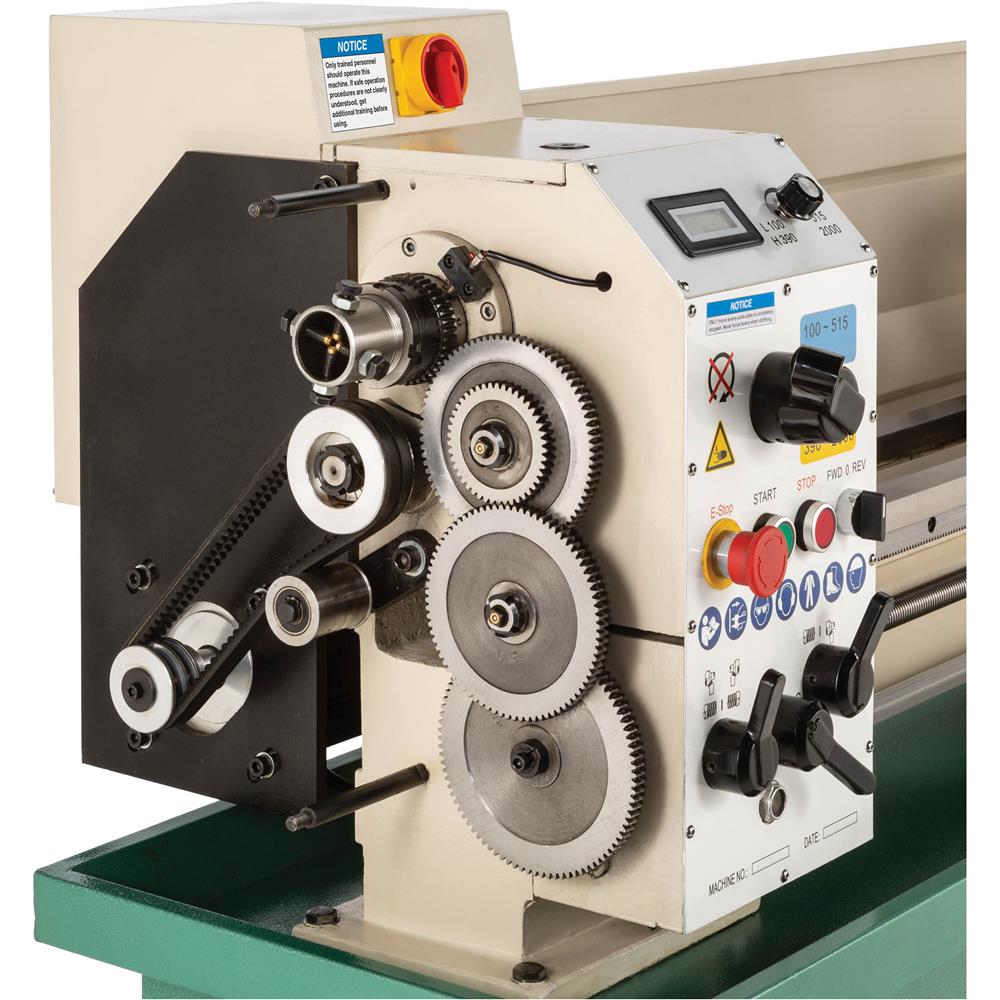

Designed with gunsmith-specific capability, it features an outboard spindle support spider with brass-tipped screws to help stabilize long stock and rifle barrels. A digital spindle speed readout, D1-4 camlock spindle, quick-change tool post, and full-length splash guard make it well suited for detailed shop work and repeatable results.

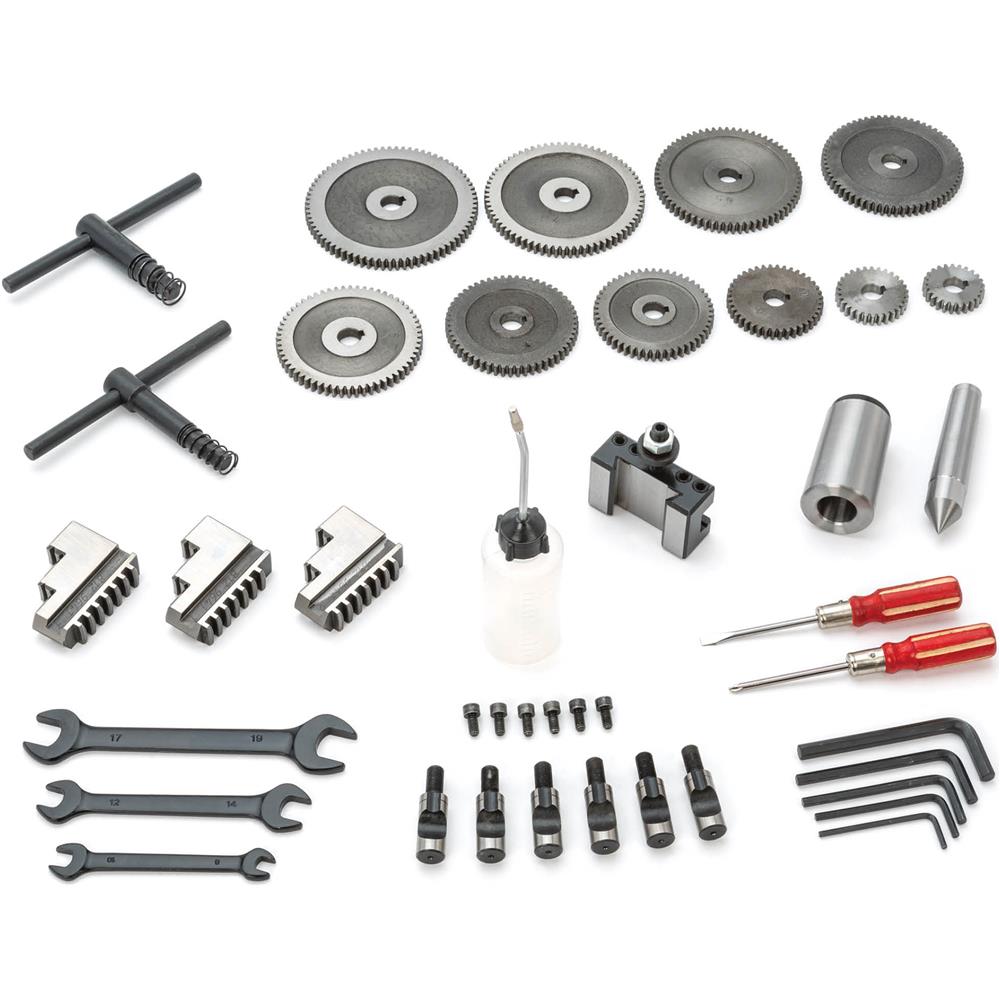

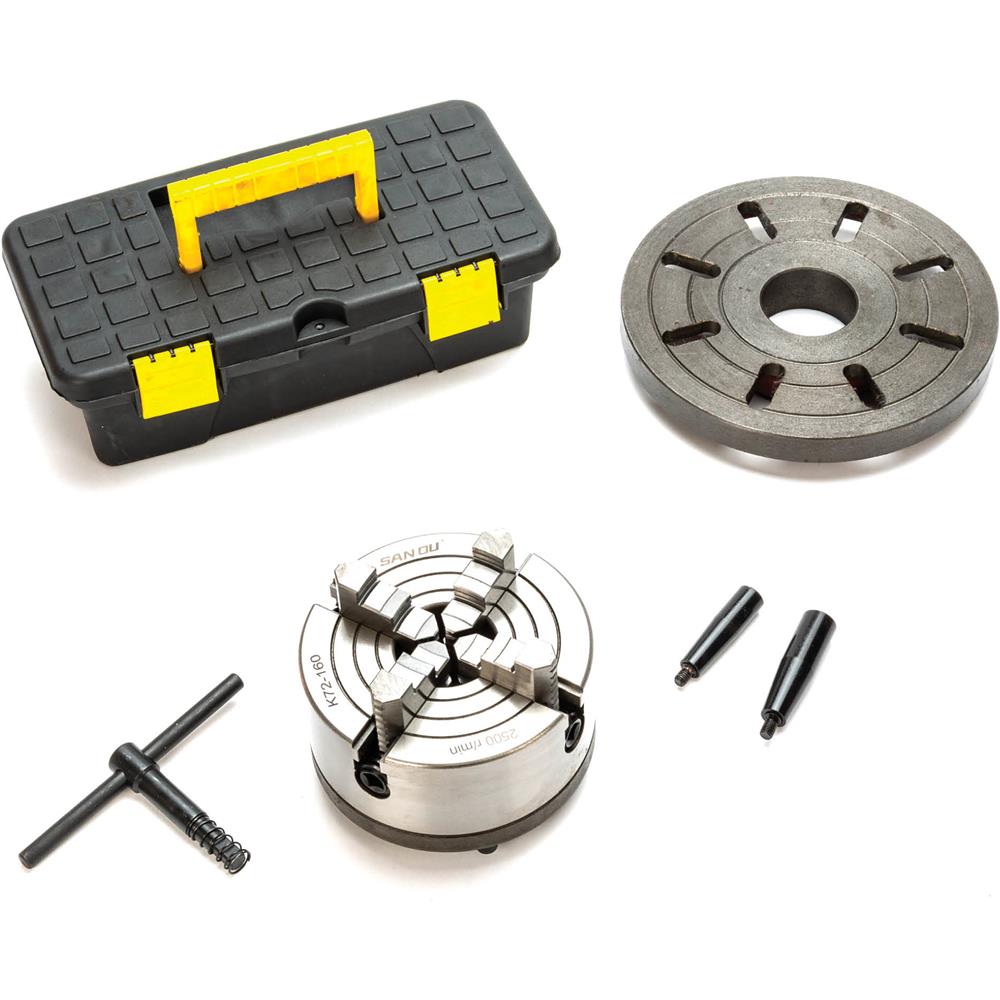

This lathe is a strong fit for gunsmiths, machinists, and serious hobbyists who want more capability than a standard bench lathe. Included accessories such as 3-jaw and 4-jaw chucks, faceplate, steady and follow rests, and change gears make it a versatile choice for a wide range of metalworking tasks.
Brand new
1 year factory warranty
Manufacturer direct shipping
Authorized Grizzly dealer
Features

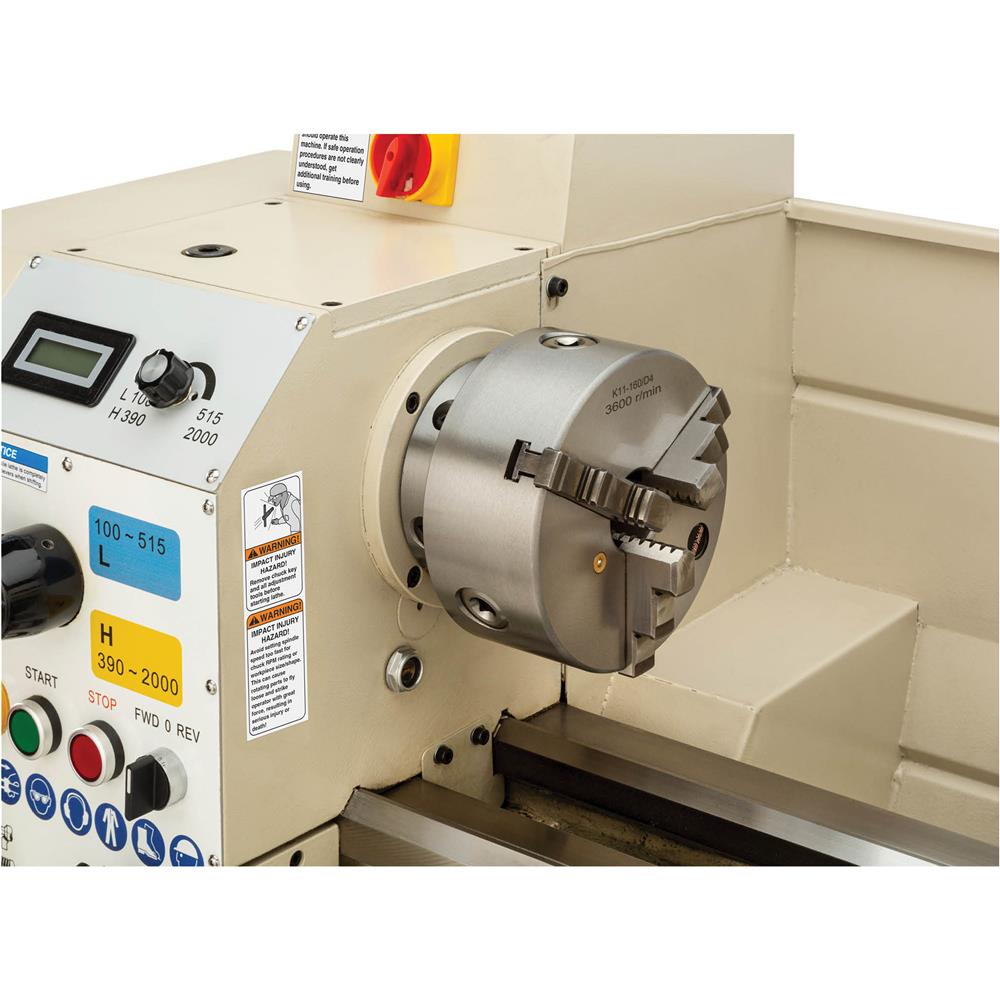

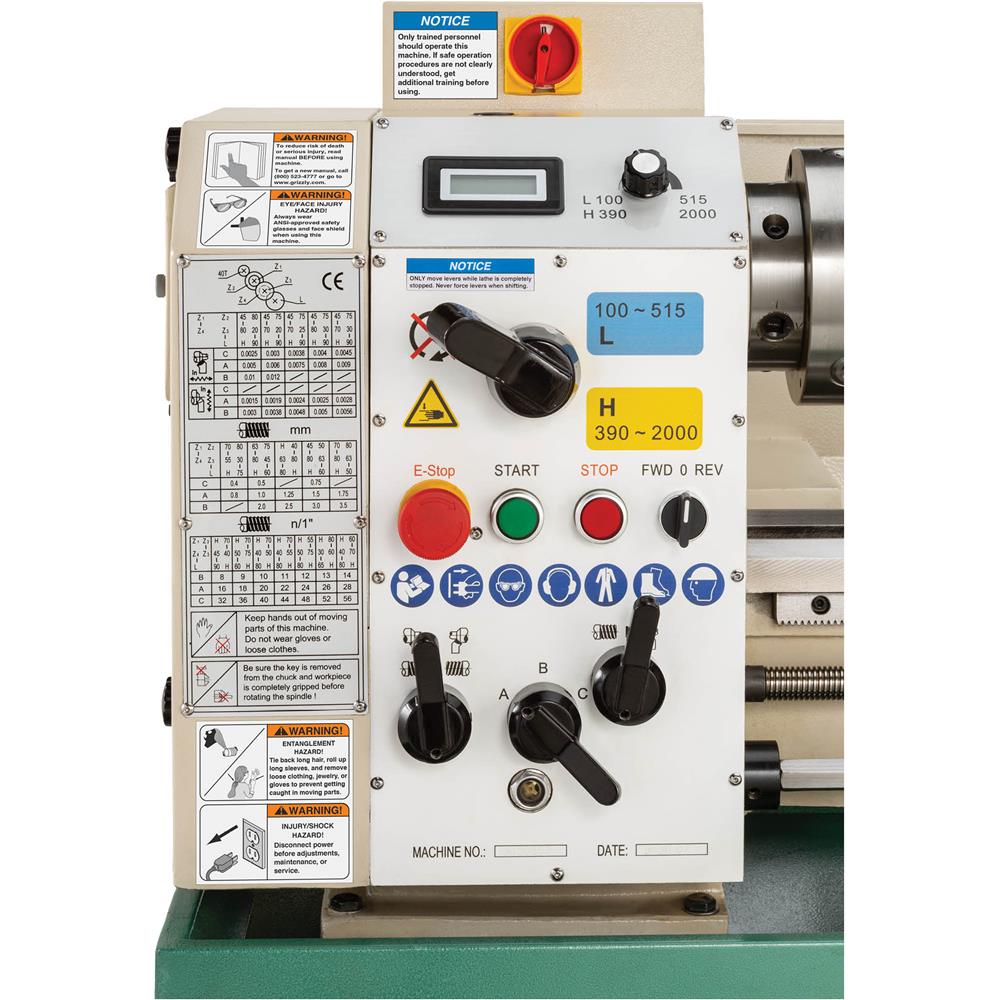

- Digital spindle speed readout

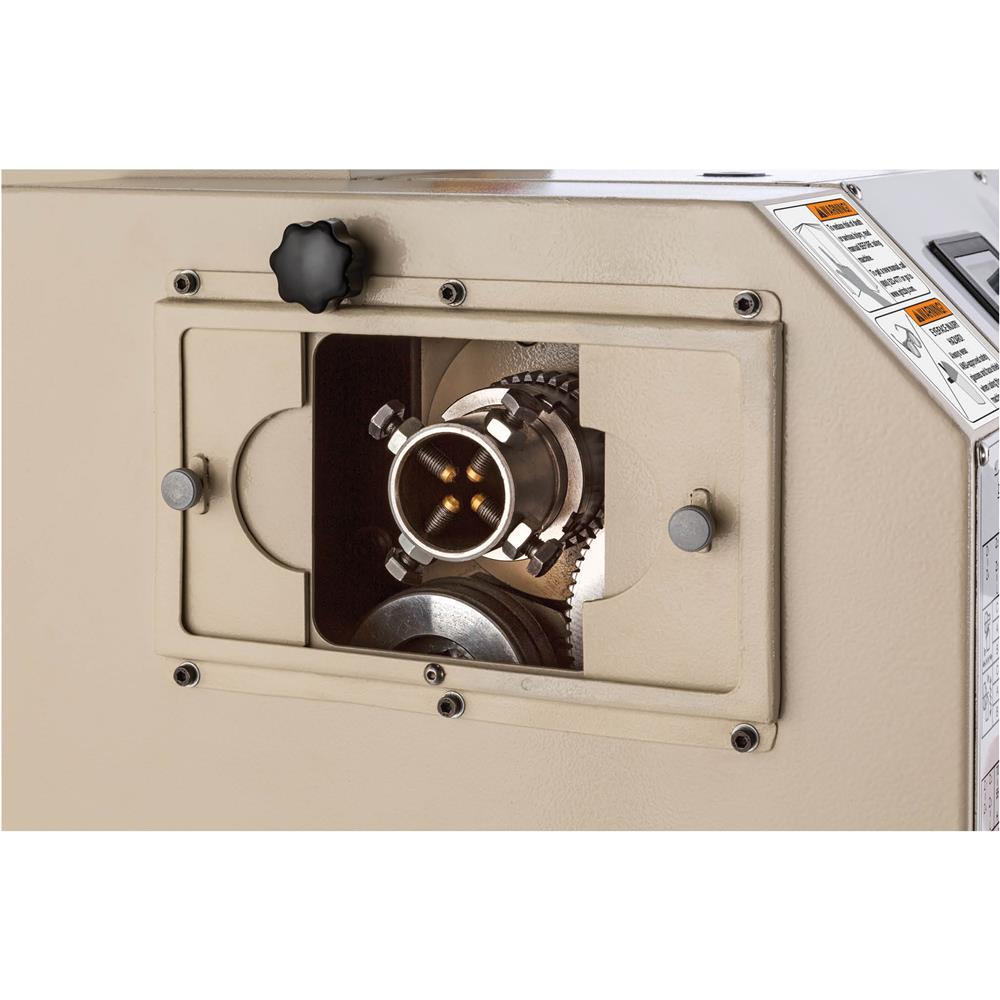

- Outboard spindle support spider with 4 brass-tipped bolts
- D1-4 camlock spindle
- Full-length splash guard

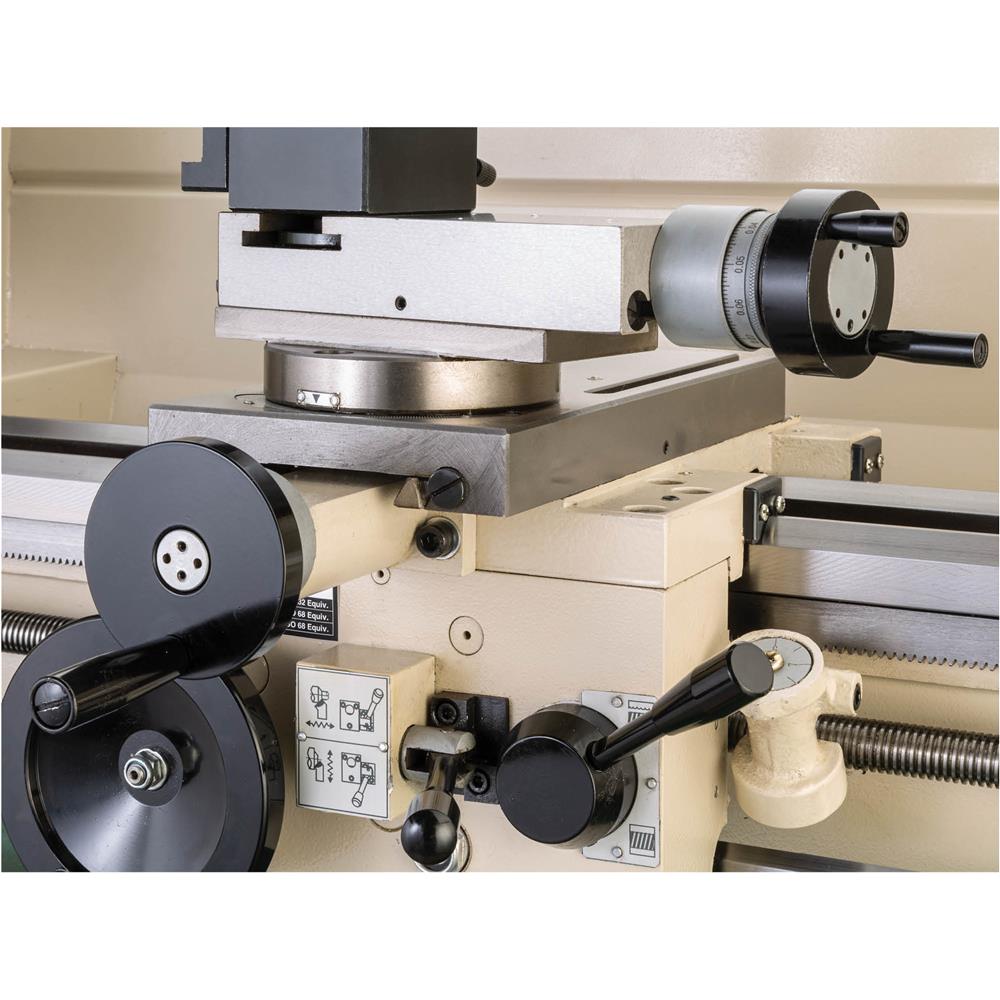

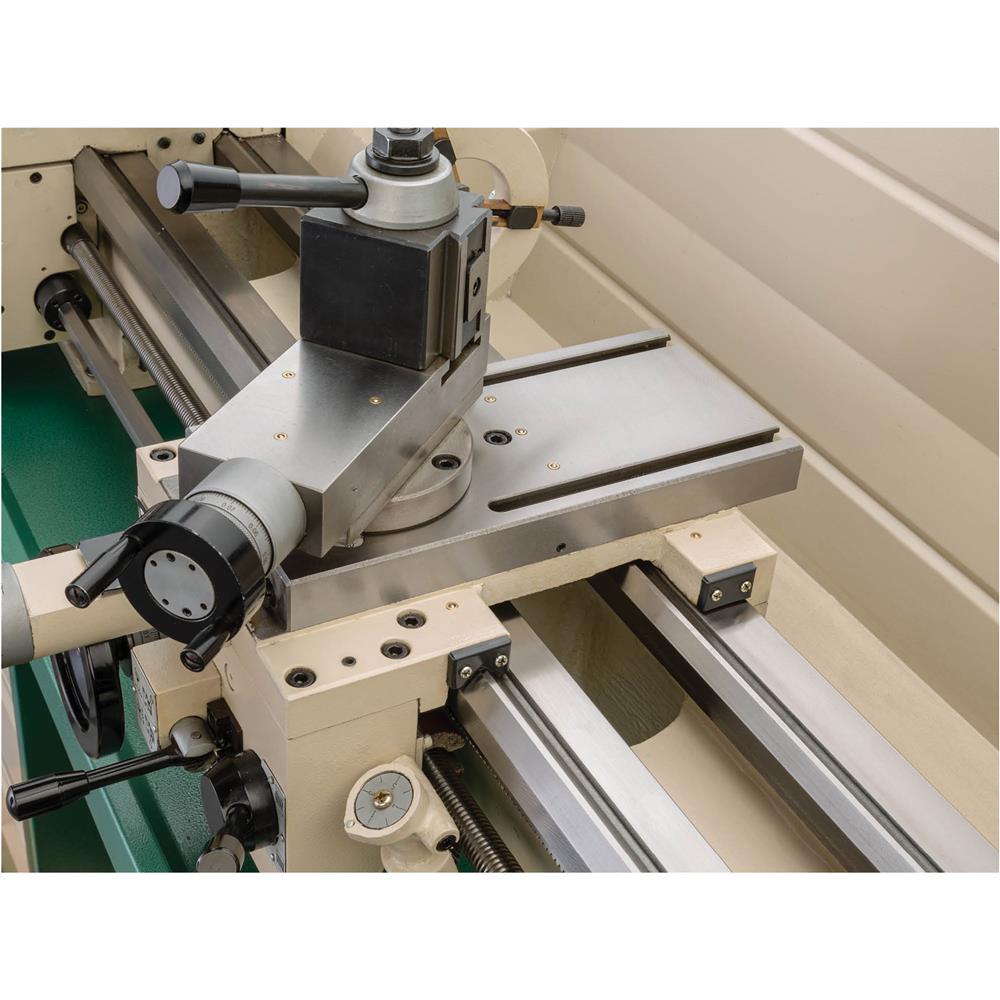

- 200-Series quick-change tool post

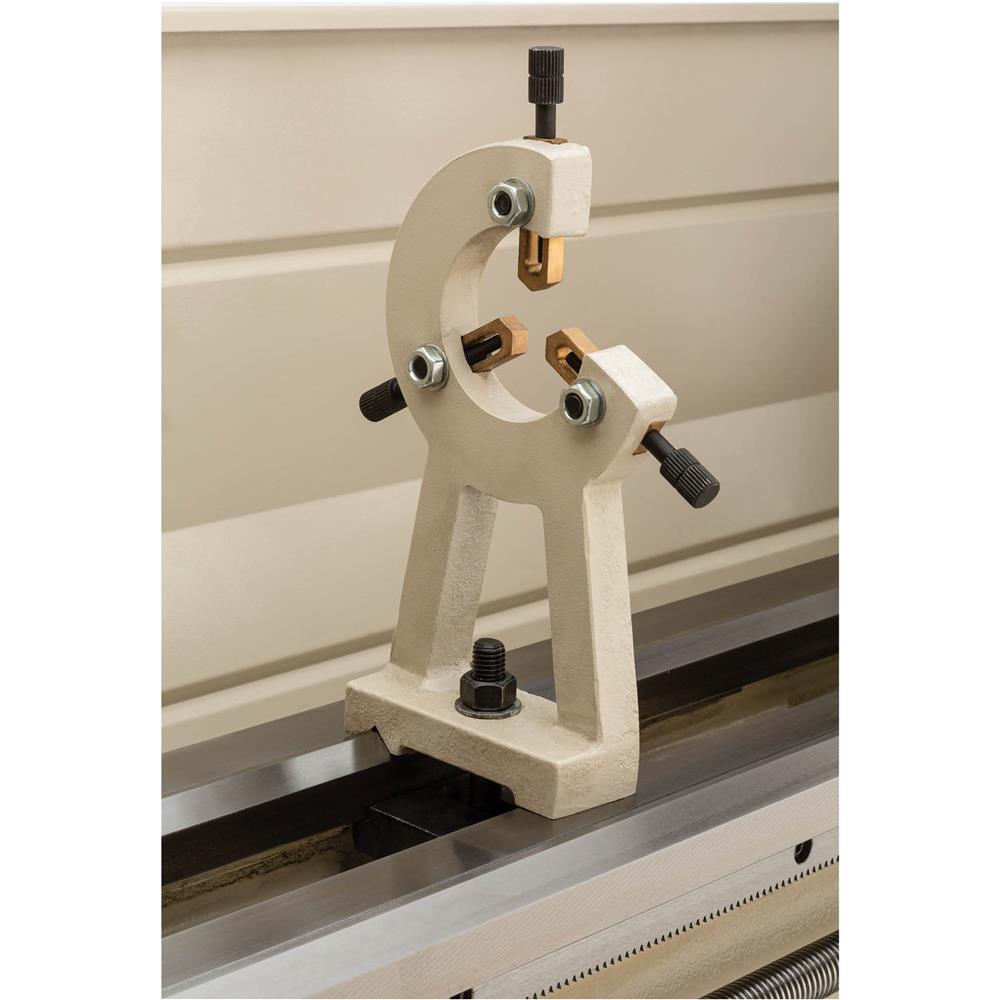

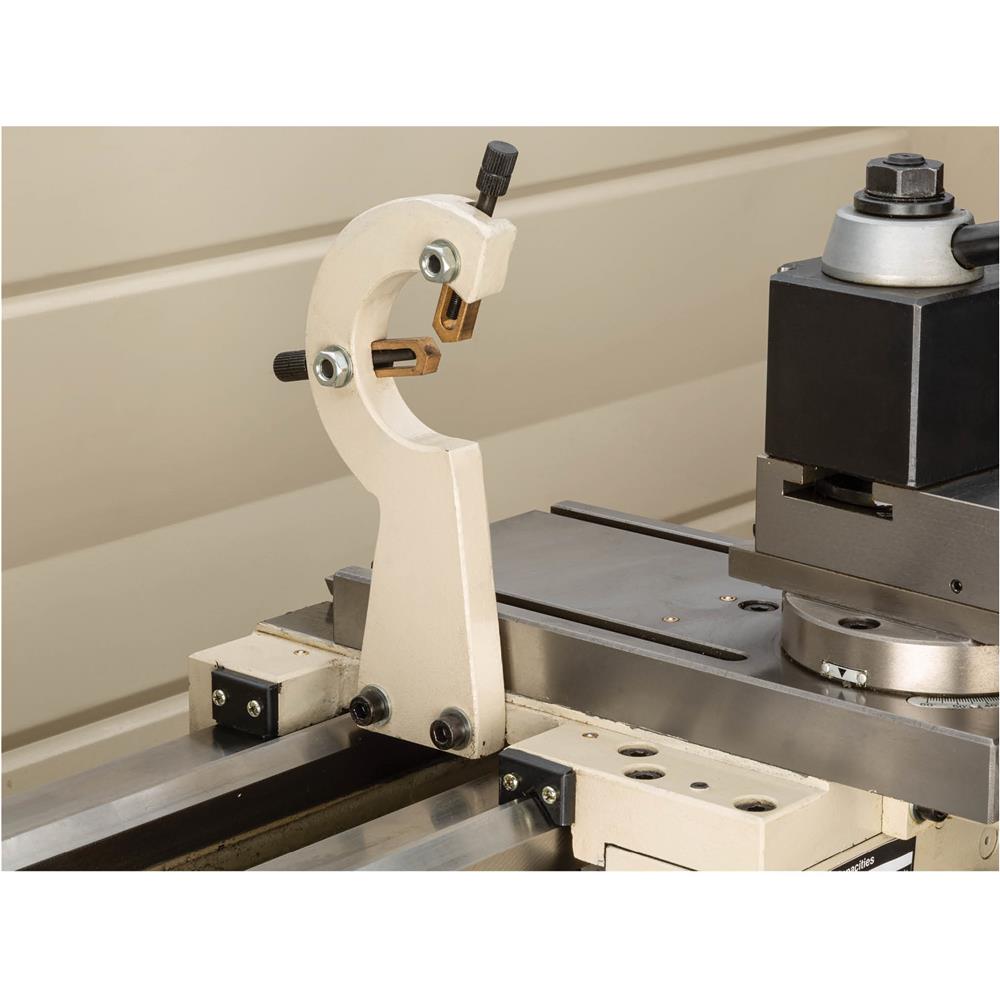

- Steady and follow rests with brass supports

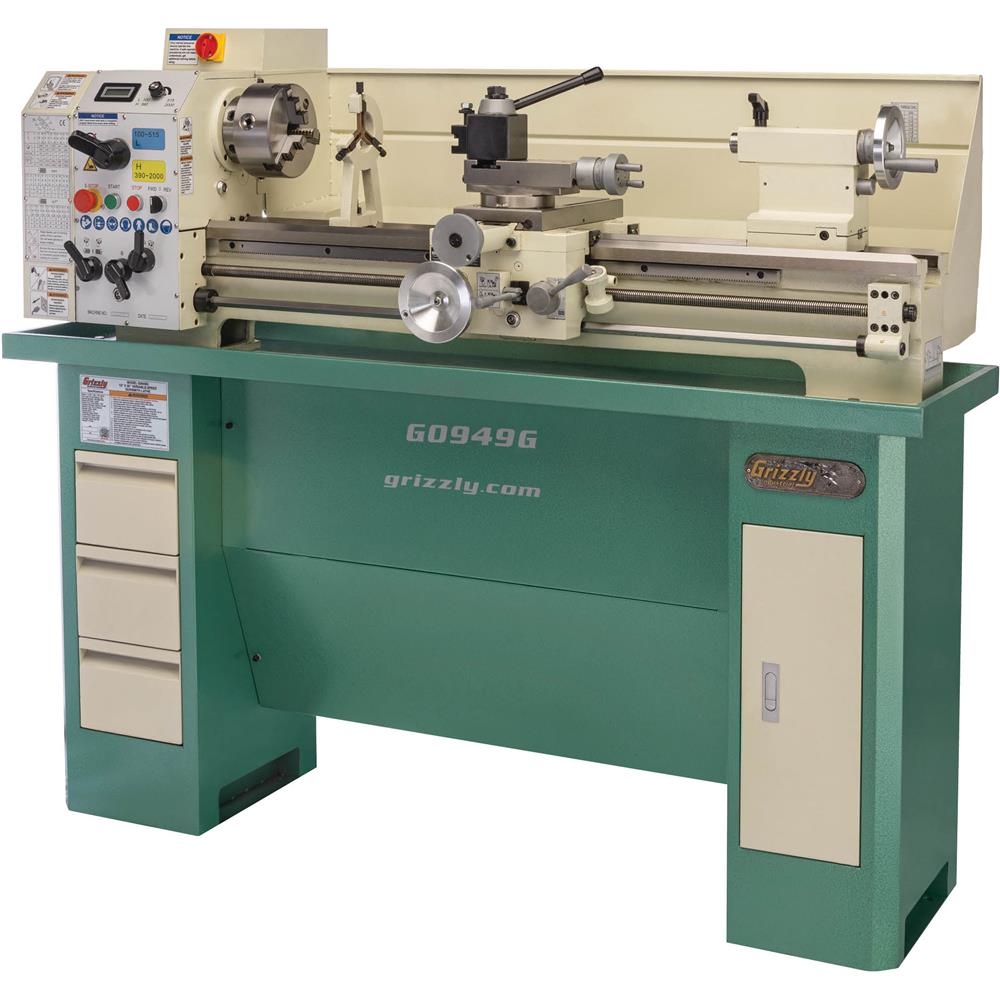

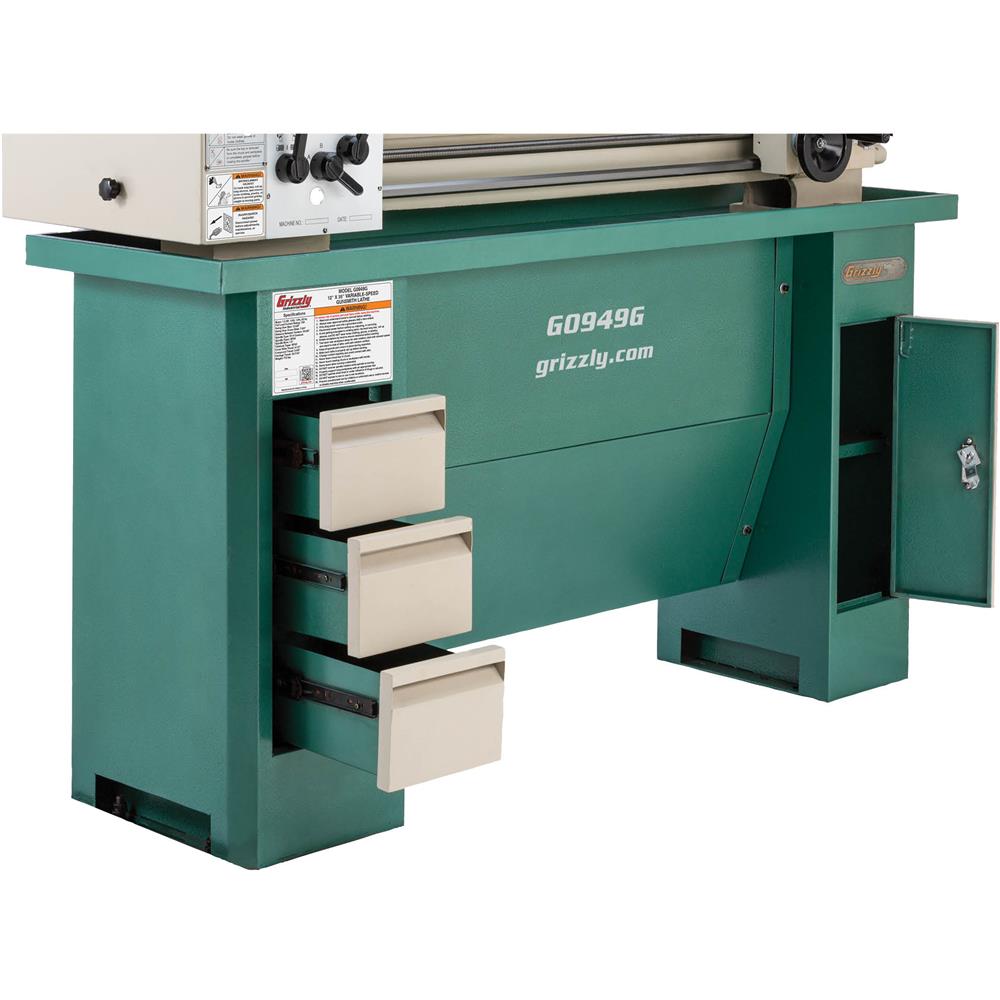

- Stand with 3 storage drawers and 1 cabinet
- Variable-speed control through 2 speed ranges
Specifications
| Main motor | 1-1/2 HP, 110V, single-phase, 15A |
|---|---|
| Swing over bed | 12-5/8" |
| Swing over saddle | 10-1/2" |
| Swing over cross slide | 7-3/4" |
| Distance between centers | 34-5/8" |
| Spindle nose | D1-4 camlock |

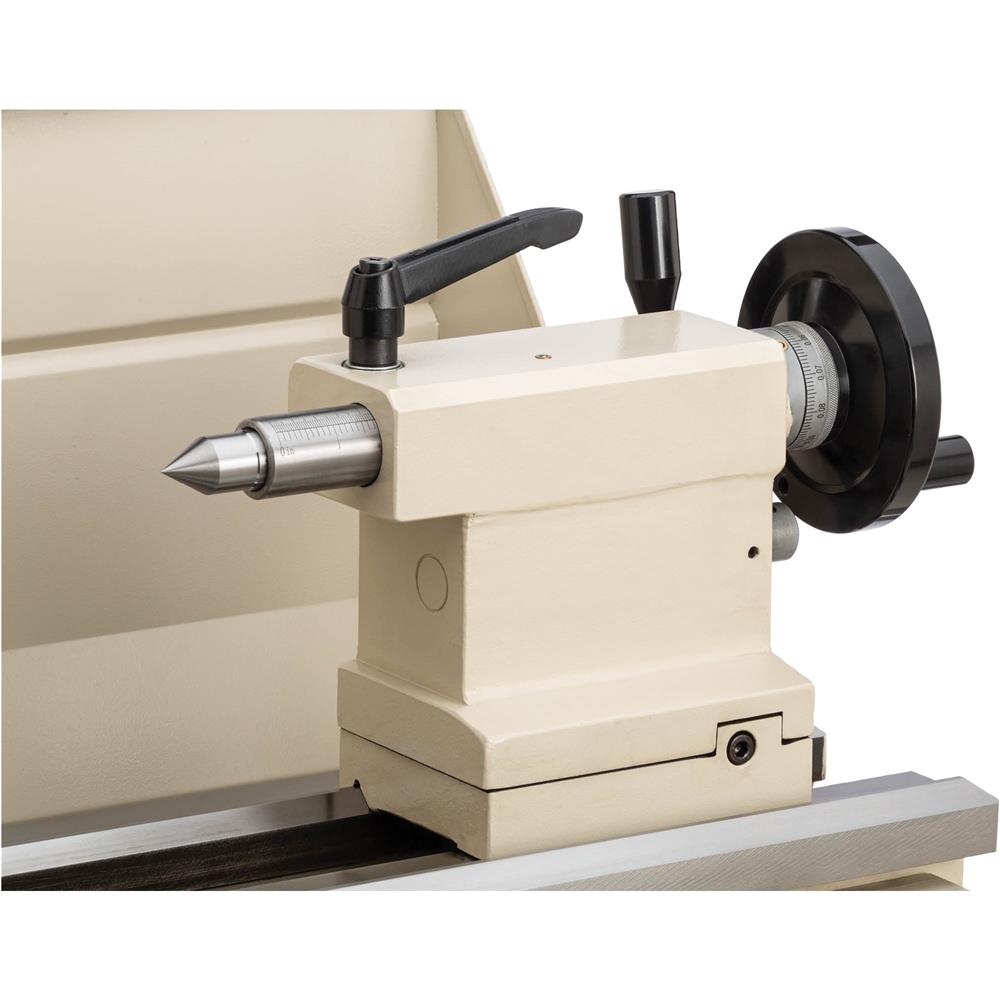

| Tailstock quill travel | 3-1/8" |
| Cross slide travel | 6-1/2" |
| Compound travel | 3-3/8" |
| Spindle speeds | Variable, 100-515 RPM and 390-2000 RPM |
|---|---|
| Range of threads (inches) | 21 @ 8-56 TPI |
| Range of threads (metric) | 12 @ 0.4-3.5 mm |
| Footprint | 58-1/2" x 15" |
| Overall dimensions | 65" W x 30-1/2" D x 53" H |
| Approximate shipping weight | 894 lbs. |
Warranty
This item comes with a 1 year factory warranty.
