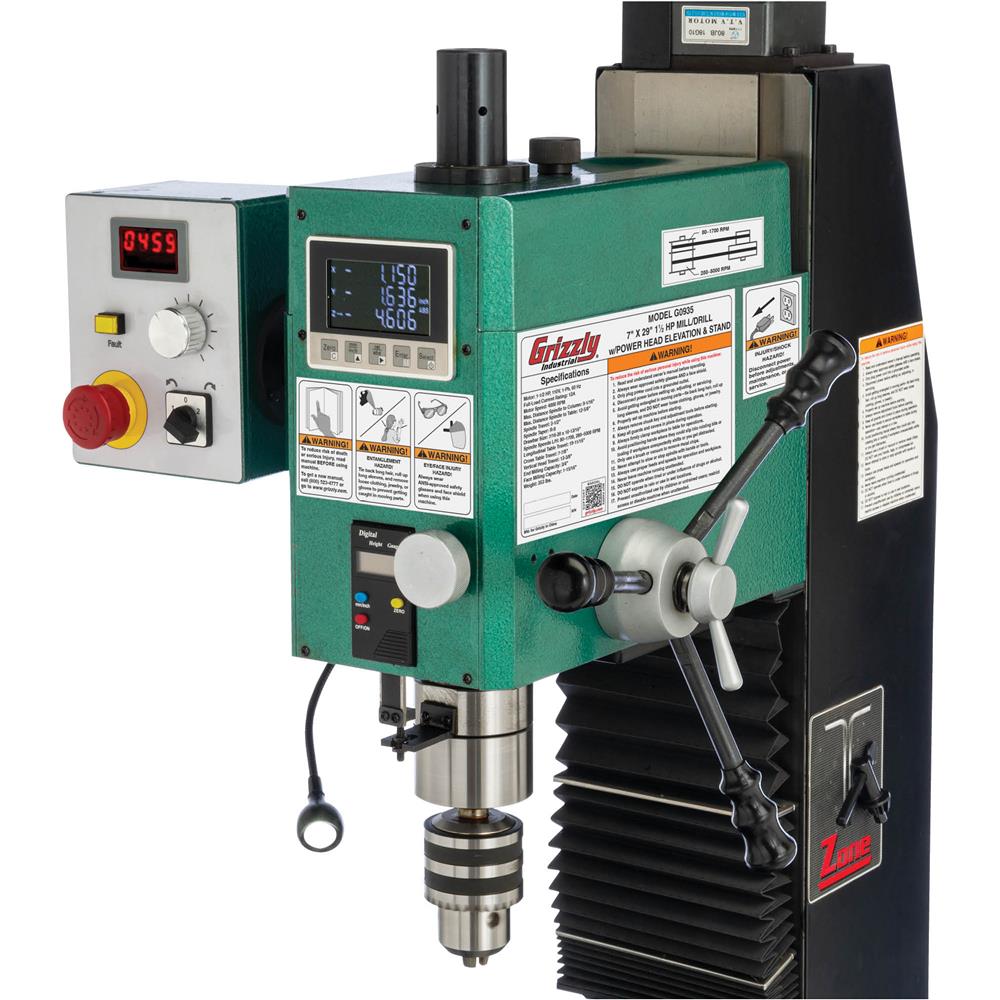

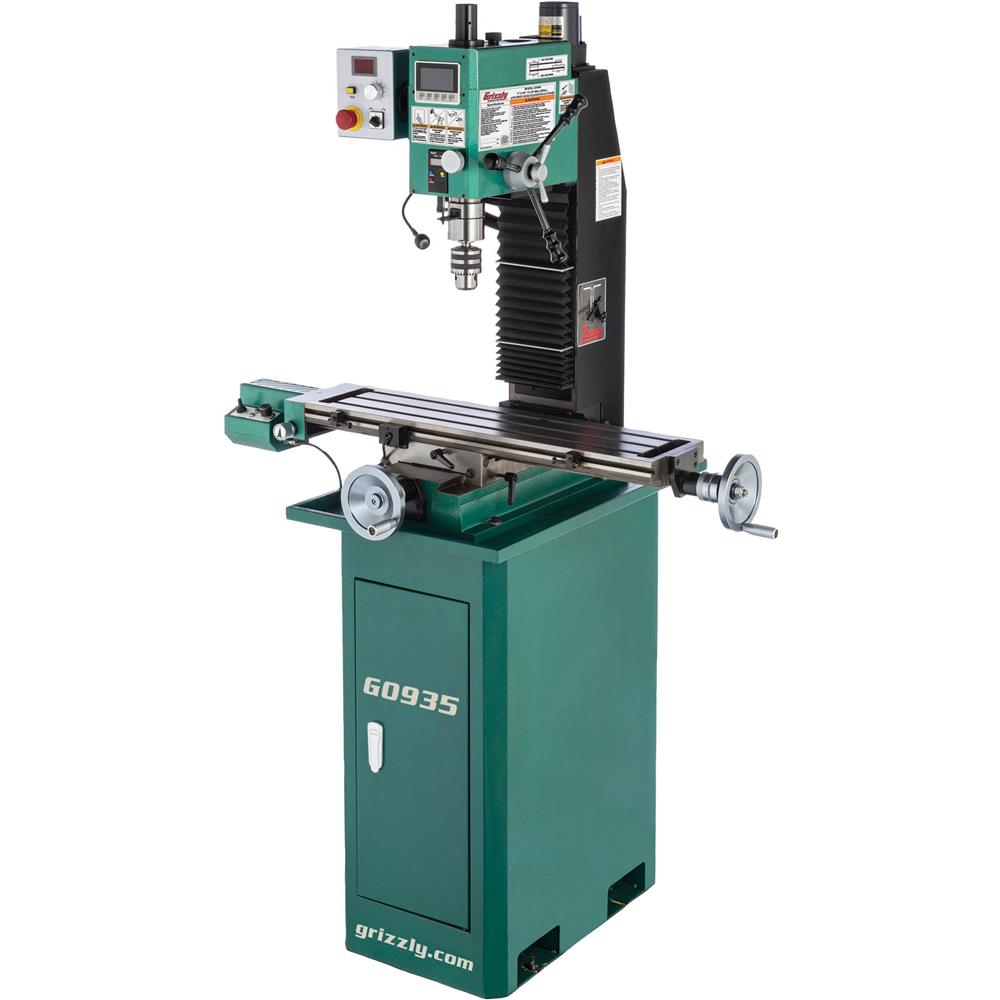

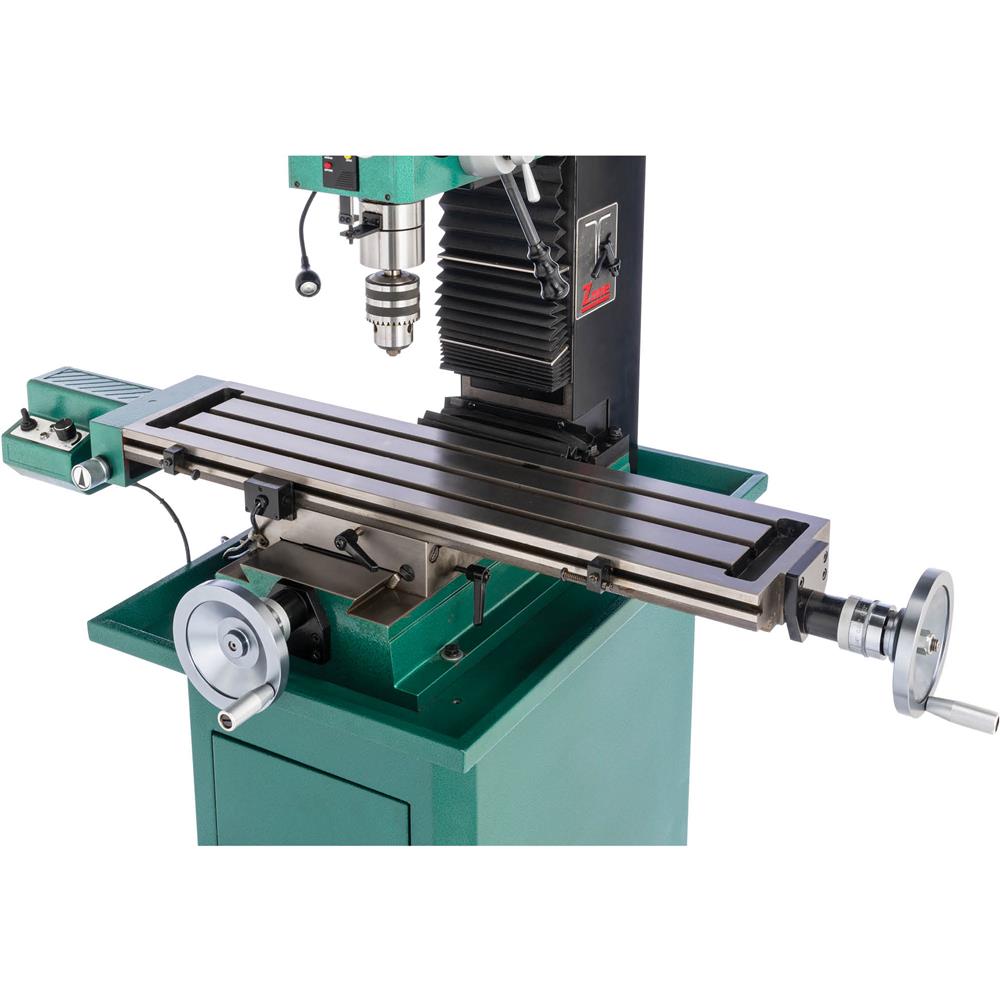

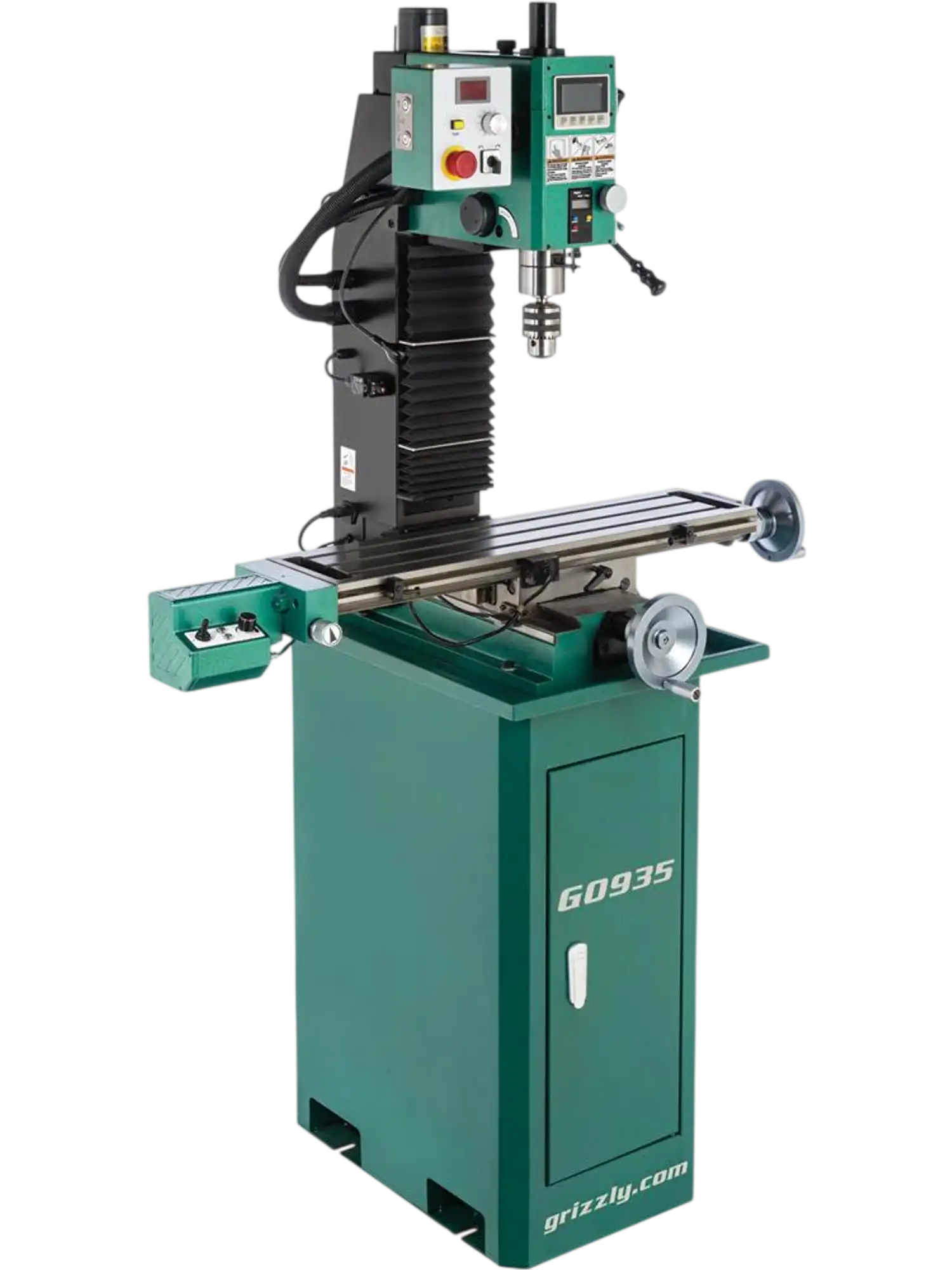

Grizzly G0935 Mill Drill 7" x 29" 1-1/2 HP w/ Power Head Elevation & DRO New
Product Overview
The Grizzly G0935 is a 7" x 29" mill/drill built for precision milling and drilling in a compact, feature-rich machine. It combines a 1-1/2 HP variable-speed motor, R-8 spindle, and generous table travel to handle a wide range of metalworking tasks, from drilling larger holes to accurate milling passes.
Designed to improve efficiency and repeatability, this model includes a 3-axis digital readout with quill display, digital RPM readout, variable-speed X-axis power feed, and powered head elevation for faster Z-axis adjustments. Electronic variable speed lets you change spindle speed without stopping for belt changes, while the fine downfeed helps with controlled, accurate cutting.
With its 1-1/8" drilling capacity, 3/4" end milling capacity, and sturdy cabinet stand, this machine is a strong fit for serious hobbyists, home shops, and small professional fabrication or maintenance environments. It is well suited for users who want more capability and convenience than a basic mill/drill offers.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- 3-Axis DRO with quill DRO and 0.001" resolution
- Variable-speed spindle with digital RPM display
- Variable-speed X-axis power feed table
- 3" Spindle stroke with fine downfeed
- Forward/reverse spindle control
- 1–16mm JT6 drill chuck
- Cabinet stand with built-in storage
- LED work light
Specifications
| Motor | 1-1/2 HP, 110V, single-phase, 12A |
| Spindle taper | R-8 |
| Spindle Speed | Variable, 80-1700 RPM low, 280-5000 RPM high |
| Max. distance spindle to column | 9-1/16" |
| Max. distance spindle to table | 12-5/8" |
| Spindle travel | 3-5/64" |
| Drilling capacity | 1- 1/8" |
| Head travel | 13-3/8" |
| Table size | 29-1/8" x 7-1/16" |
| Longitudinal travel | 19-11/16" |
| Cross travel | 7-7/8" |
| T-slots | 3 @ 2-1/16 centers, 15/32" W |
| End milling capacity | 3/4" |
| Face milling capacity | 1-15/16" |
| Footprint | 20-1/2" x 11-1/2" |
| Overall dimensions | 37-1/2" W x 32" D x 36" H |
| Approximate shipping weight | 574 lbs. |
Warranty
This item comes with a 1 year factory warranty.
