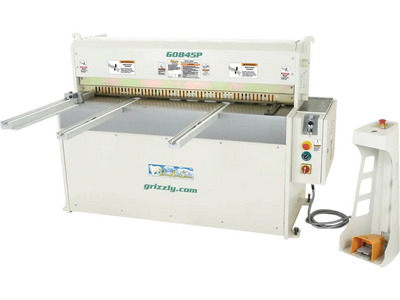

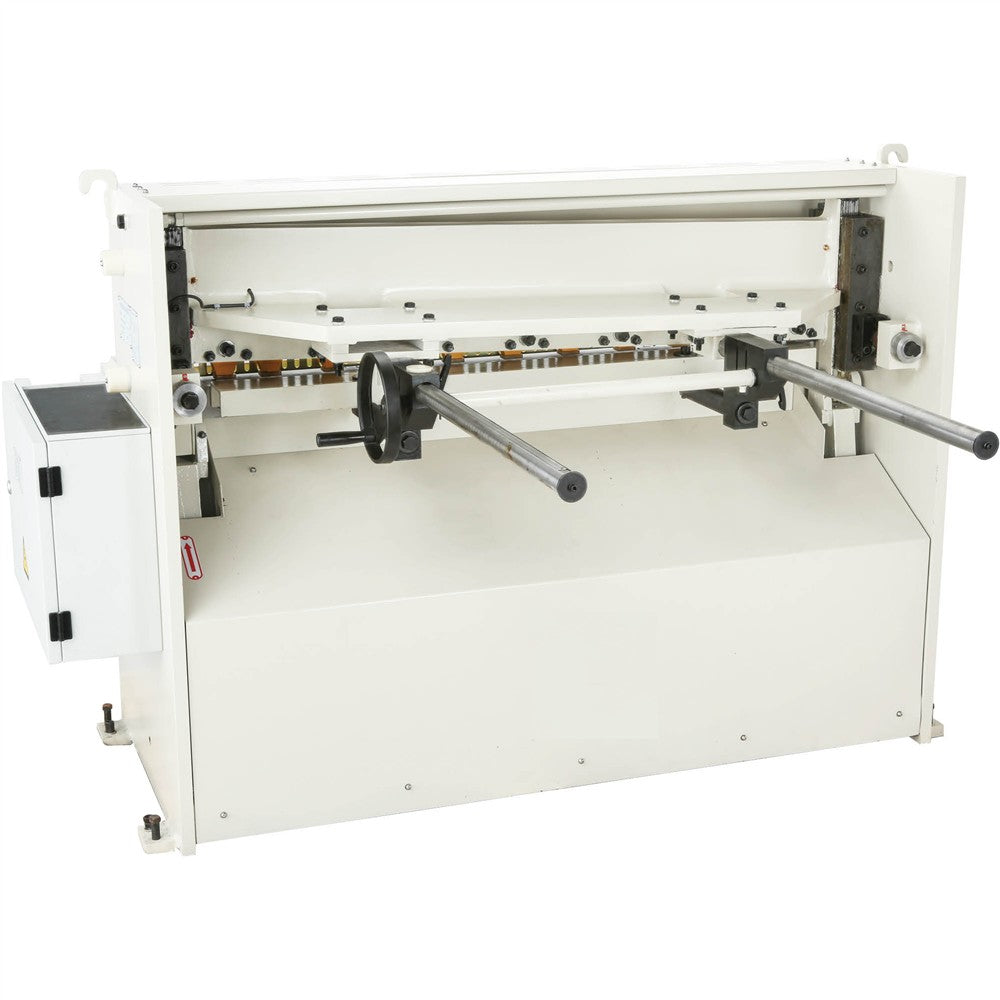

Grizzly G0845P Shears Heavy-Duty 50" Electric Metal Shear Polar Bear Series New
Product Overview
The Grizzly G0845P is a heavy-duty 50-inch electric metal shear designed for production fabrication work. Powered by a 7-1/2 HP, 220V, 3-phase motor, it delivers the strength needed to shear up to 10-gauge mild steel or 10-gauge aluminum across wide sheets with consistent results.
This machine features a fully integrated steel frame, hardened alloy dies, adjustable front and rear work stops, and a non-marring hold-down carriage to help improve accuracy and repeatability. A remote foot pedal control, quiet operation, and shadow light make it easier to handle larger materials and maintain clear visibility at the cut line.
With a compact footprint for its capacity, this shear is well suited for fabrication shops that need serious cutting power without giving up valuable floor space. It is an excellent choice for metalworking professionals focused on efficient, repeatable sheet metal cutting in a true 3-phase shop environment.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

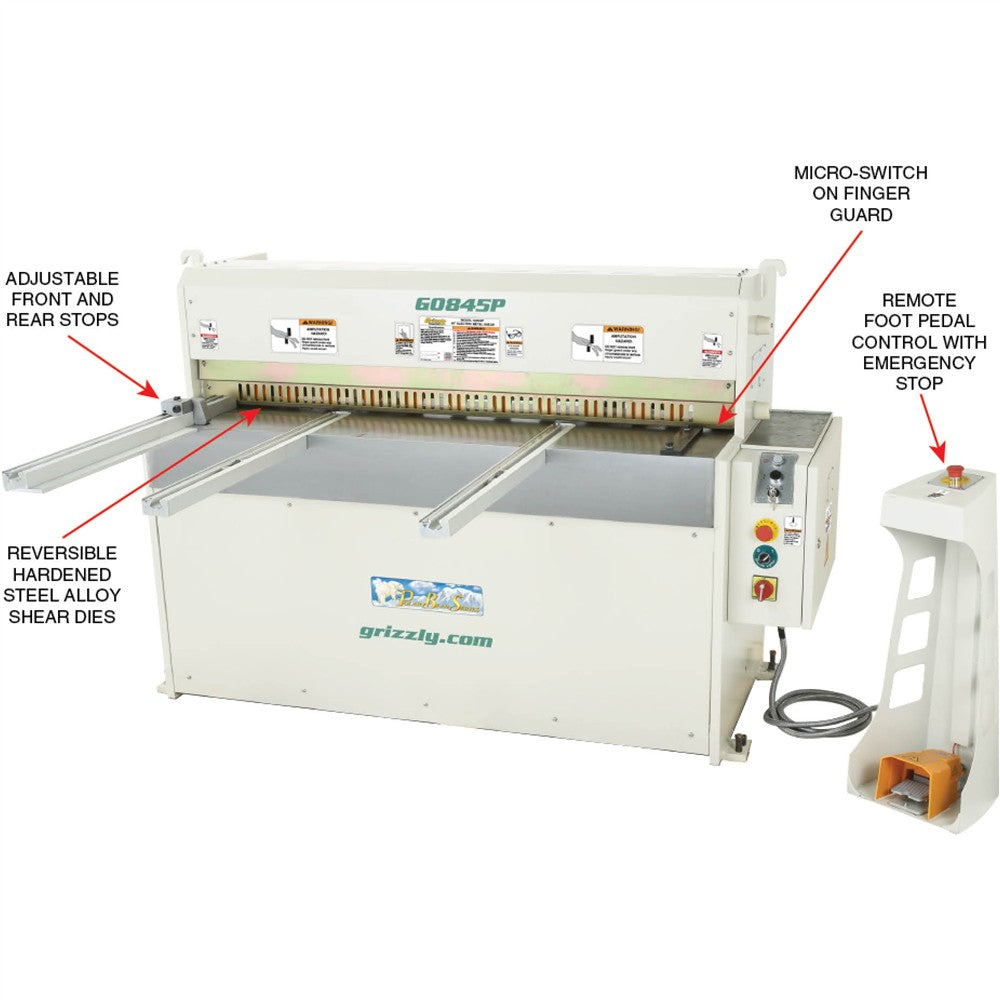

Features
- Reversible hardened steel alloy cutting sheer dies for extended life
- Hand and foot pedal operation
- Micro-switch on finger guard overrides main switch if guard is removed

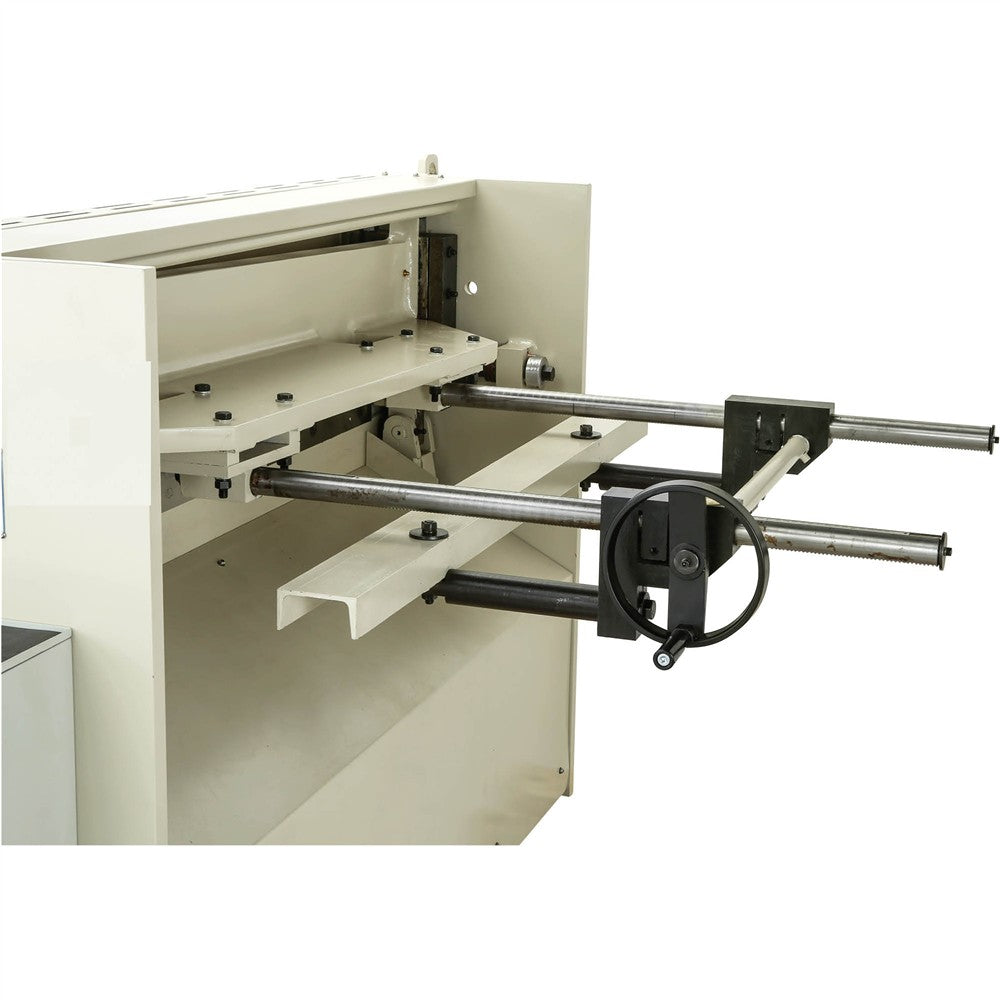

- Adjustable front and rear stop scales
- Triple V-belts drive the counter-balance shaft

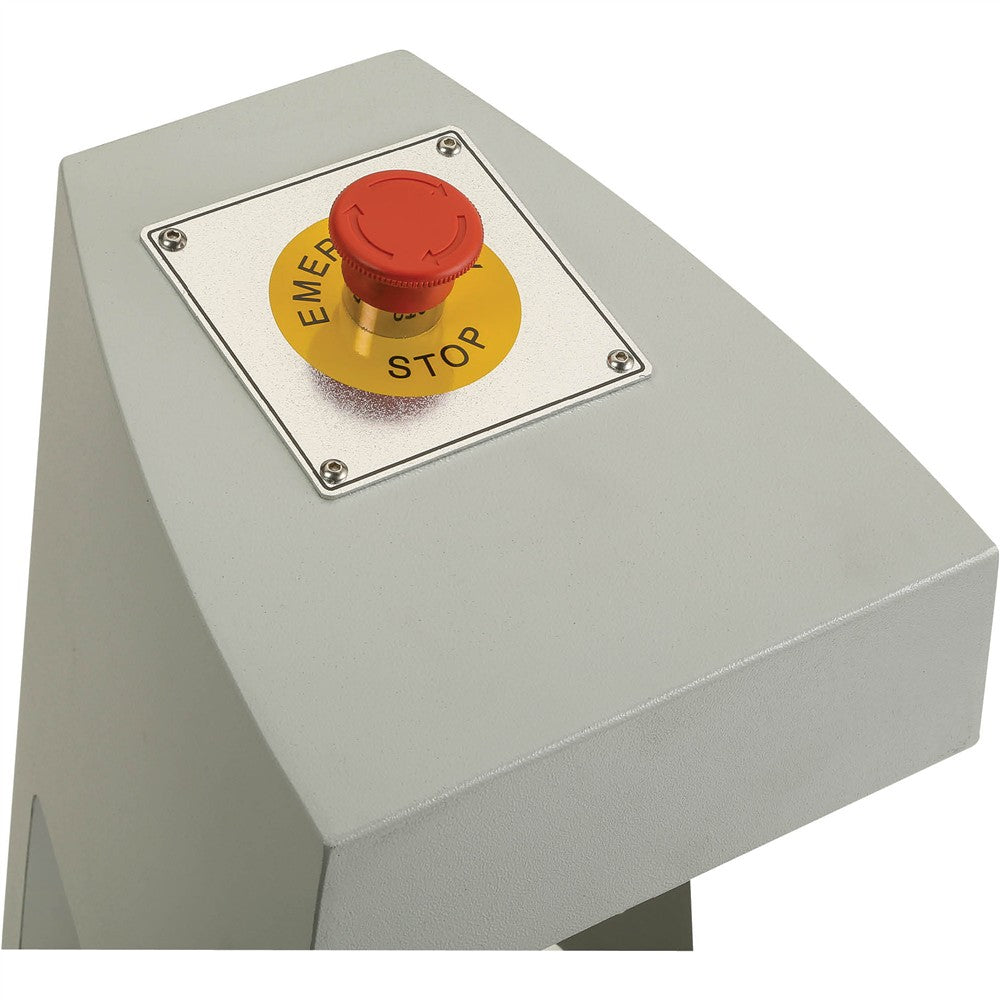

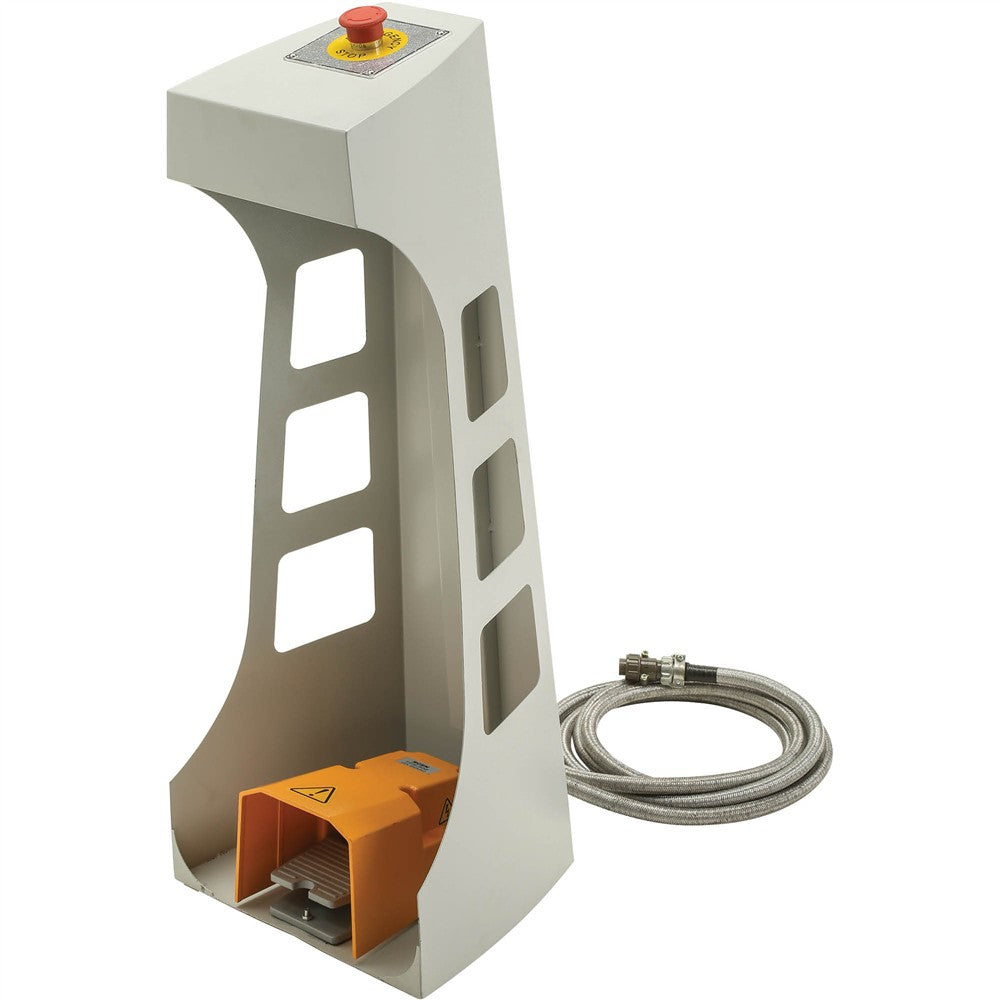

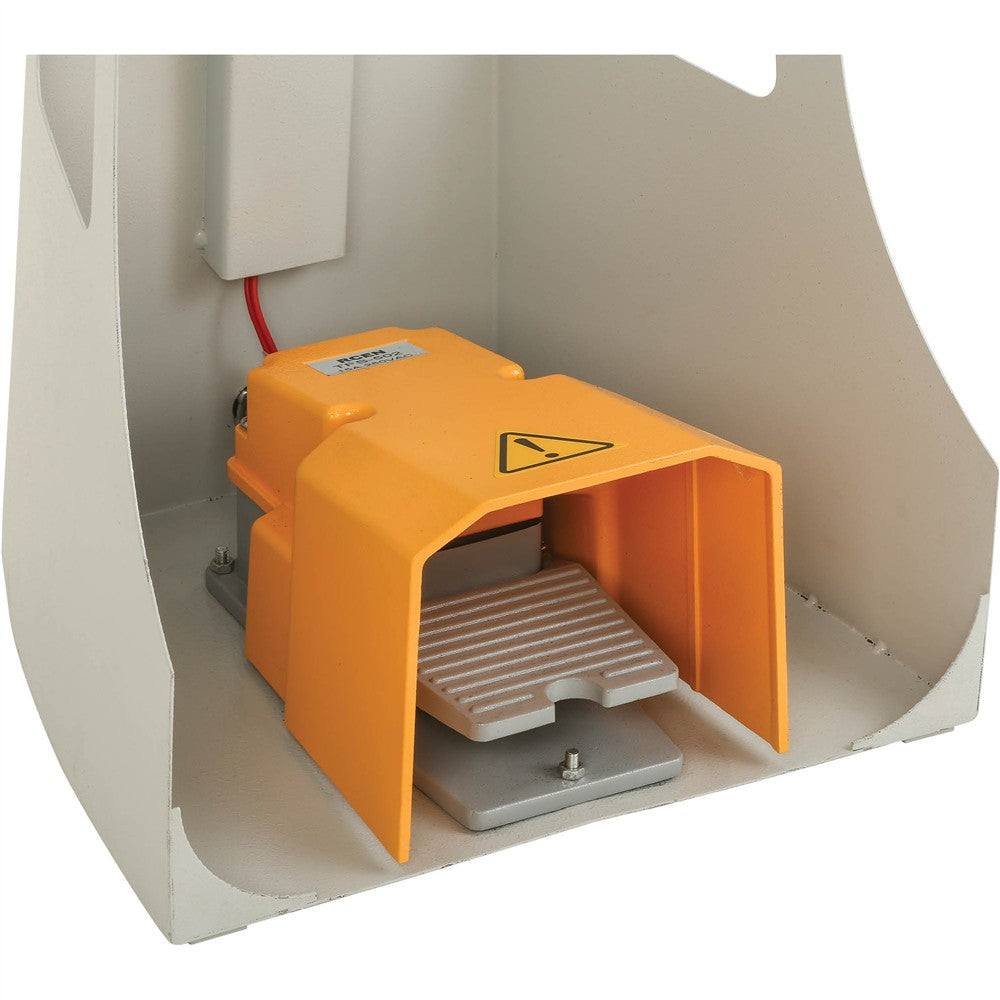

- Remote on/off foot pedal control
- Super-quiet operation
- Built-in non-marring hold down clamp
- Shadow light
Specifications
| Motor | 7-1/2 HP, 220V, 3-phase, 20.7A |
| Maximum thickness | 10-gauge steel, 10-gauge aluminum |
| Rear stop adjustment | 0-24" |
| Front stop adjustment | 0-36" |
| Maximum cutting capacity | 50" |
| Maximum beam lift | 1/2" - 1-13/16" |
| Front scale range | 3-5/16" to 39-5/16" |
| Rear scale range | 0 to 25-5/8" |
| Bed height above floor | 31-1/2" |
| Base dimensions | 28-1/2" x 66-1/2" |
| Overall size | 72-1/2"W x 80"D x 48"H |
| Approximate shipping weight | 3266 lbs. |
Warranty
This item comes with a 1 year factory warranty.
