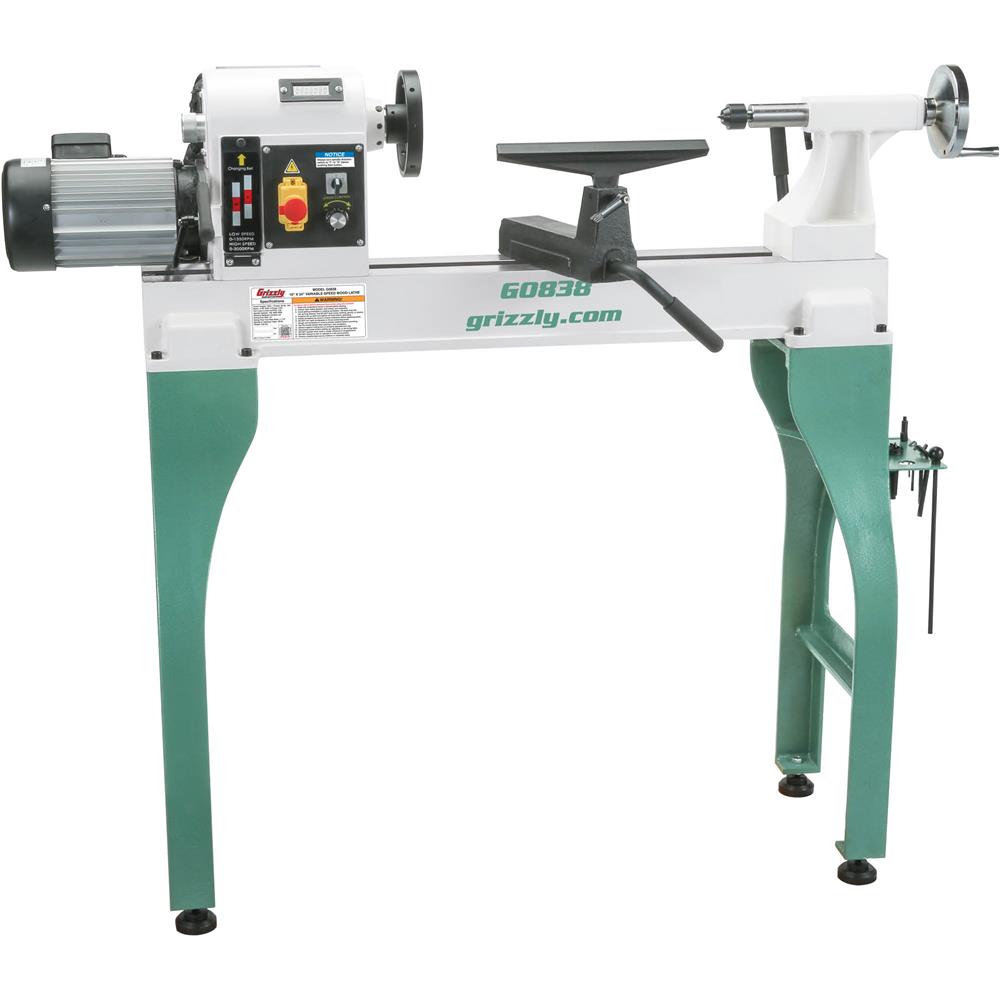

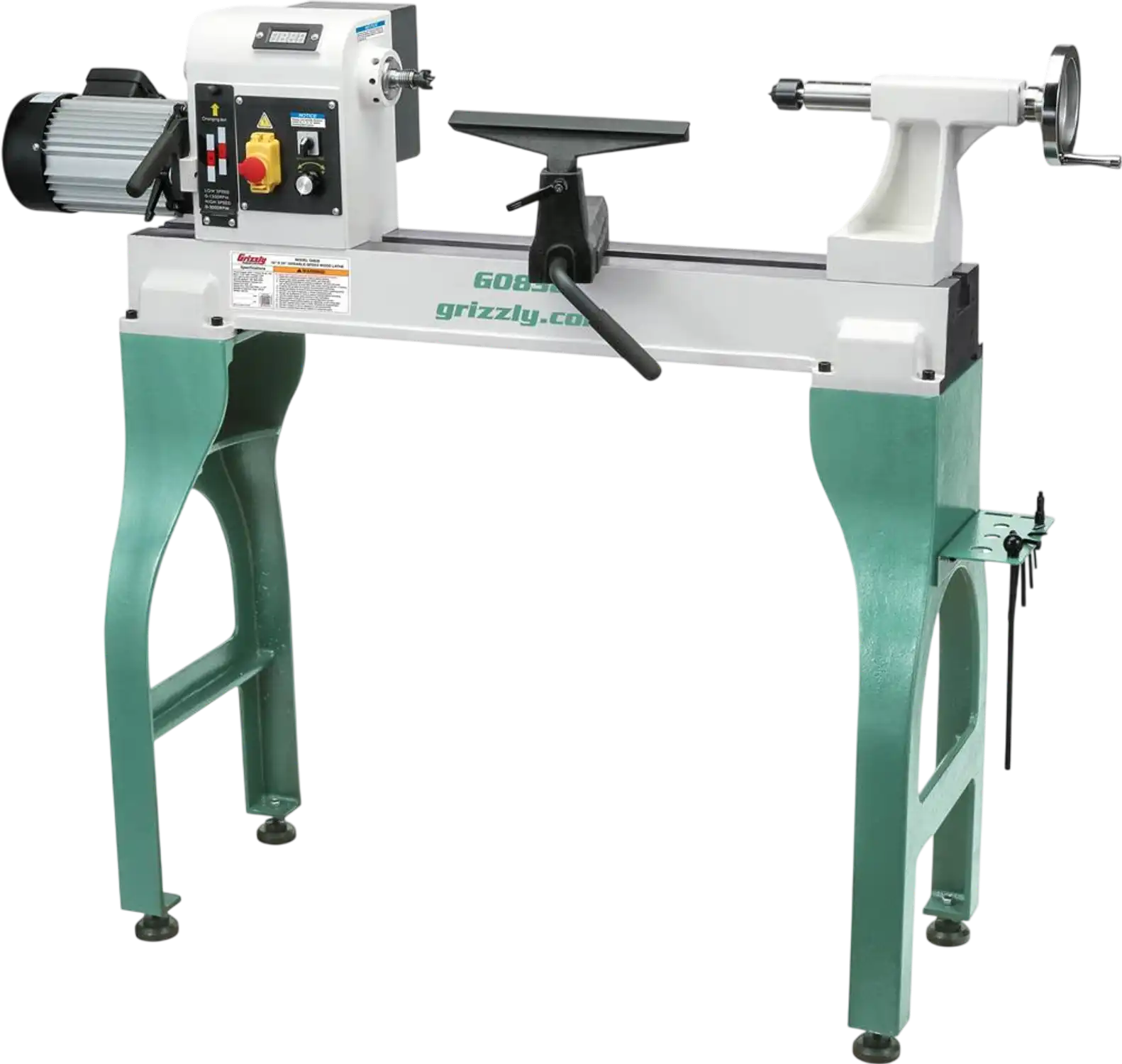

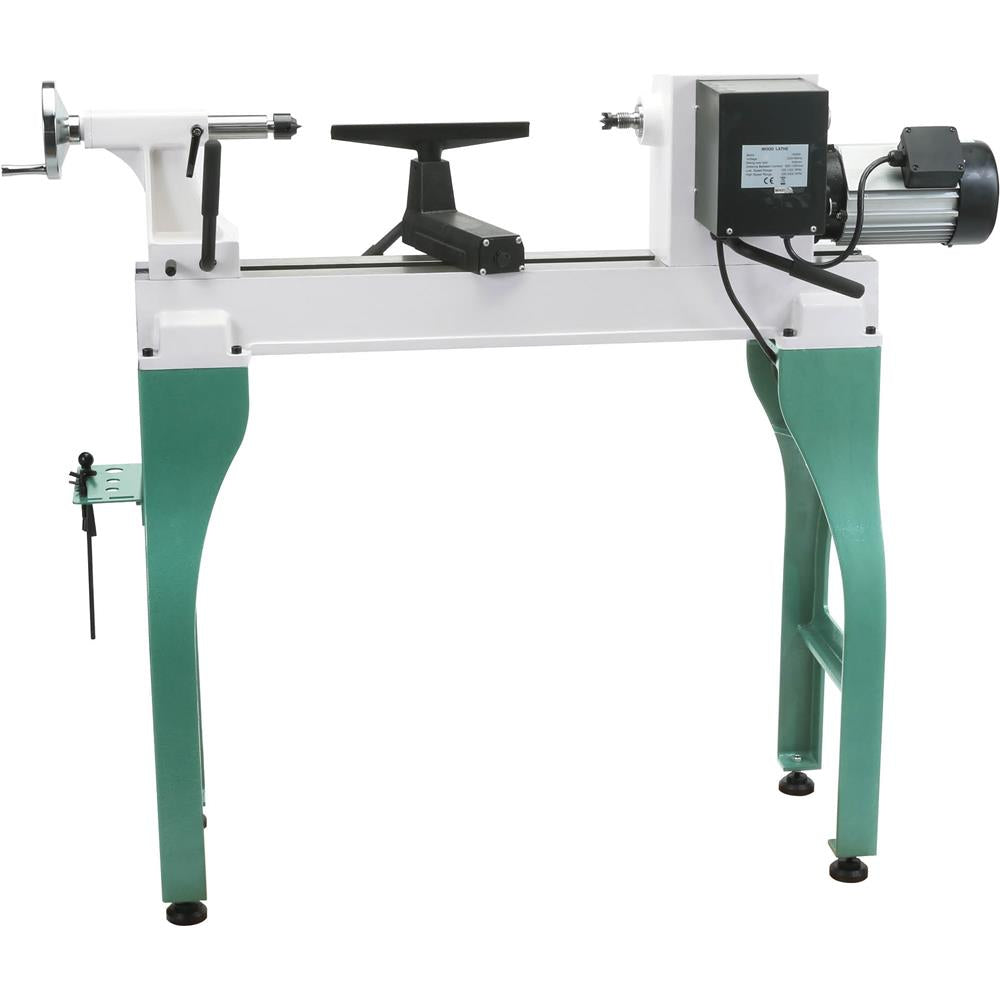

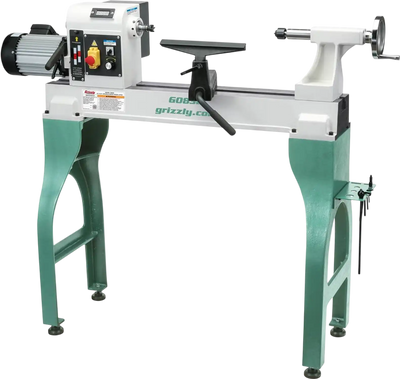

Grizzly G0838 Wood Lathe 16" x 24" Variable-Speed New
Product Overview
The Grizzly G0838 is a compact 16" x 24" variable-speed wood lathe built to deliver the capability of a much larger machine. With a 2 HP motor, heavy cast-iron construction, and smooth electronic speed control, it offers the power and stability needed for serious woodturning in a space-conscious footprint.
A sliding headstock and outboard turning capability make it especially appealing for bowl turners and anyone working on larger or more creative projects. The digital speed readout, forward and reverse operation, and indexing positions also help with accurate shaping, sanding, carving, and other detailed turning tasks.
This lathe is a strong fit for dedicated hobbyists, small professional shops, and woodworkers ready to move up to a more capable machine. It is designed for users who want versatile performance, reduced vibration, and convenient adjustments for a wide range of spindle and faceplate turning applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

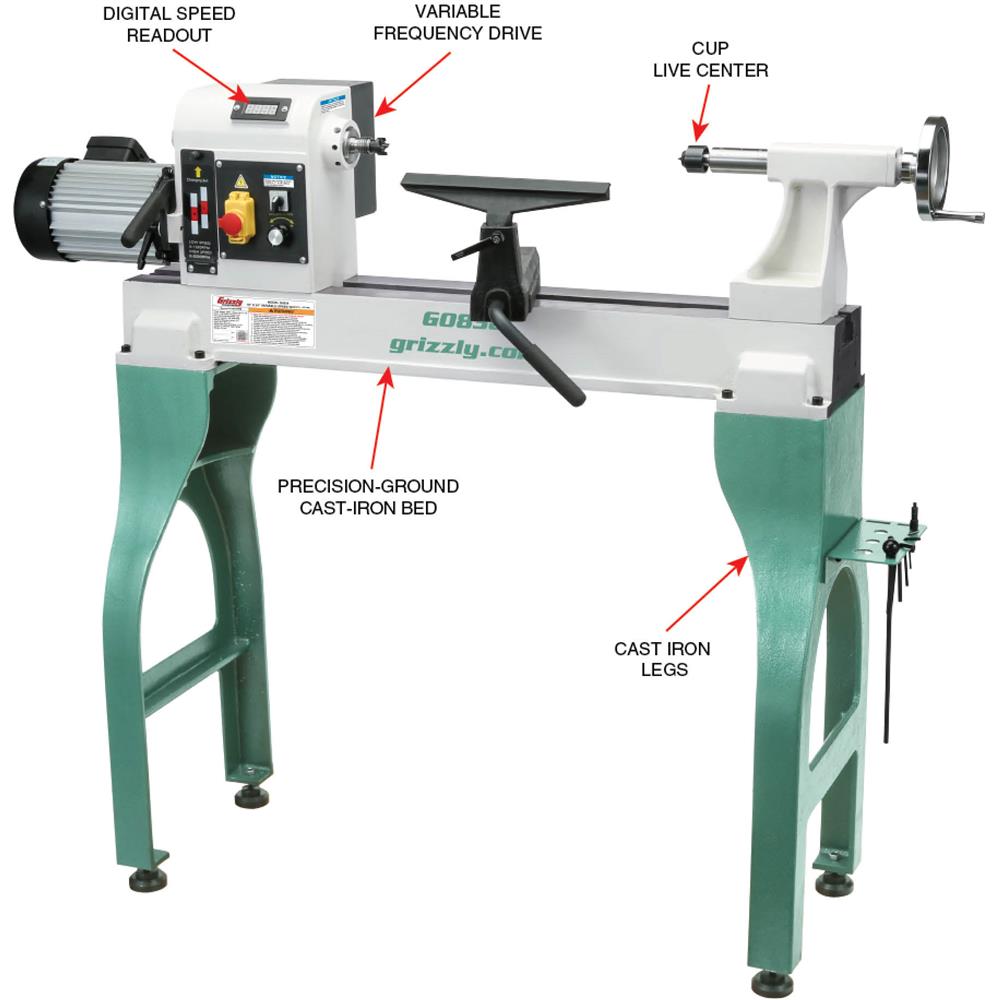

Features

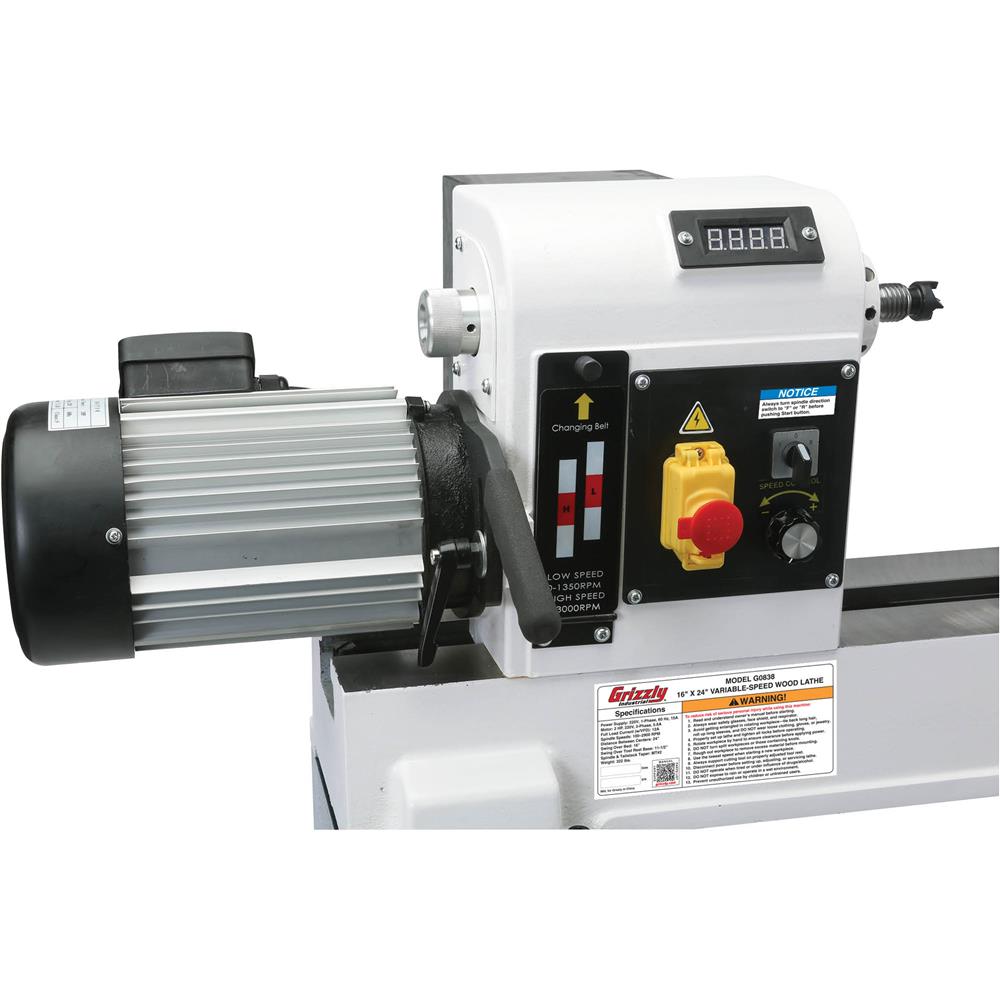

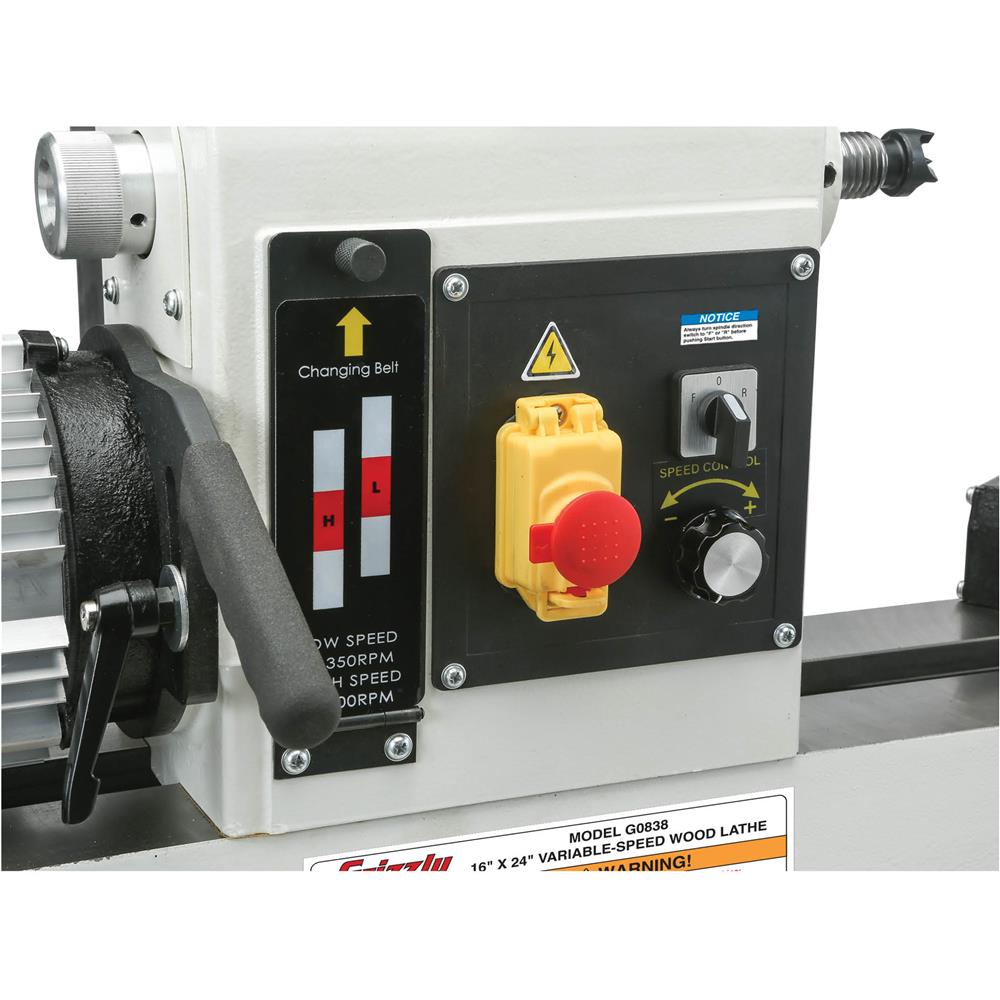

- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Heavy-duty cast-iron bed and legs ensure stability and minimize vibration
- Digital spindle speed tachometer
- Quick, easy, and secure cam-lock headstock and tailstock adjustment
- Headstock can be positioned anywhere along the bed
- Spindle indexes at 10° and 30° for precise, evenly spaced marking, drilling, carving, etc.

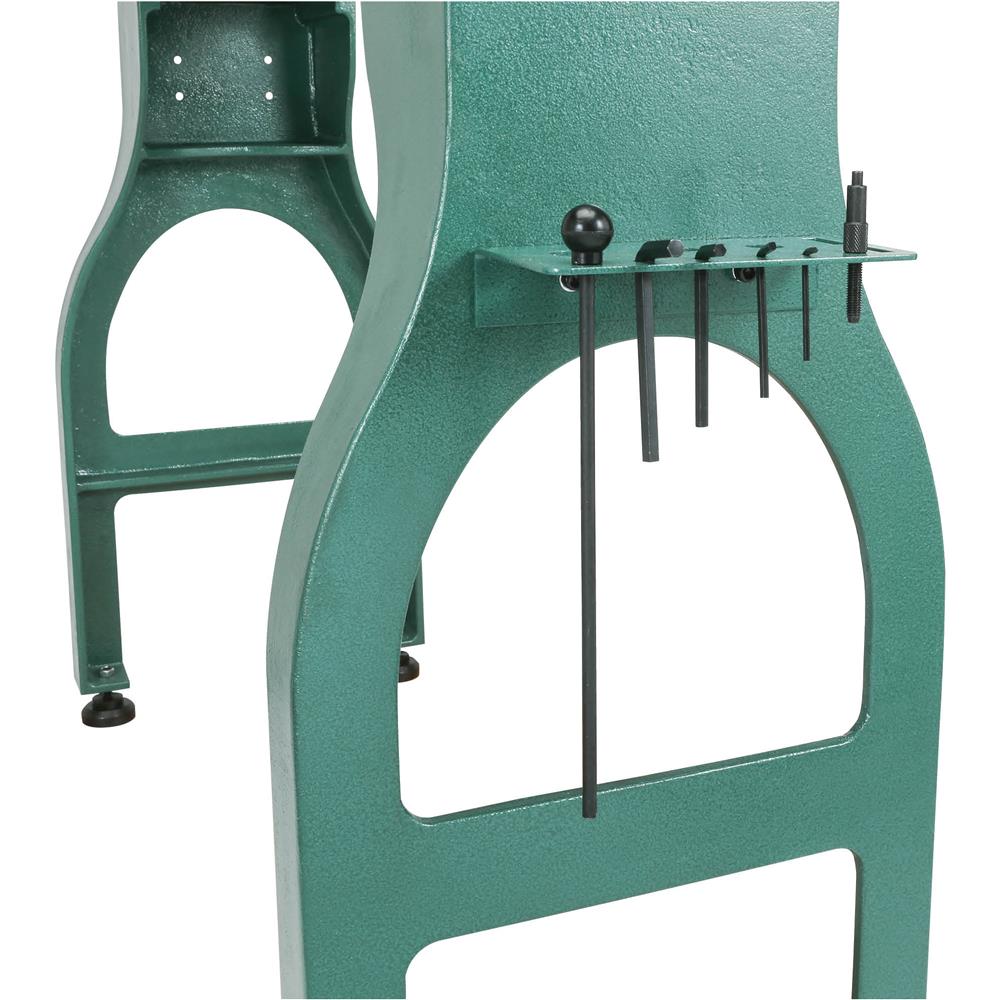

- Built-in, easy access tool holder

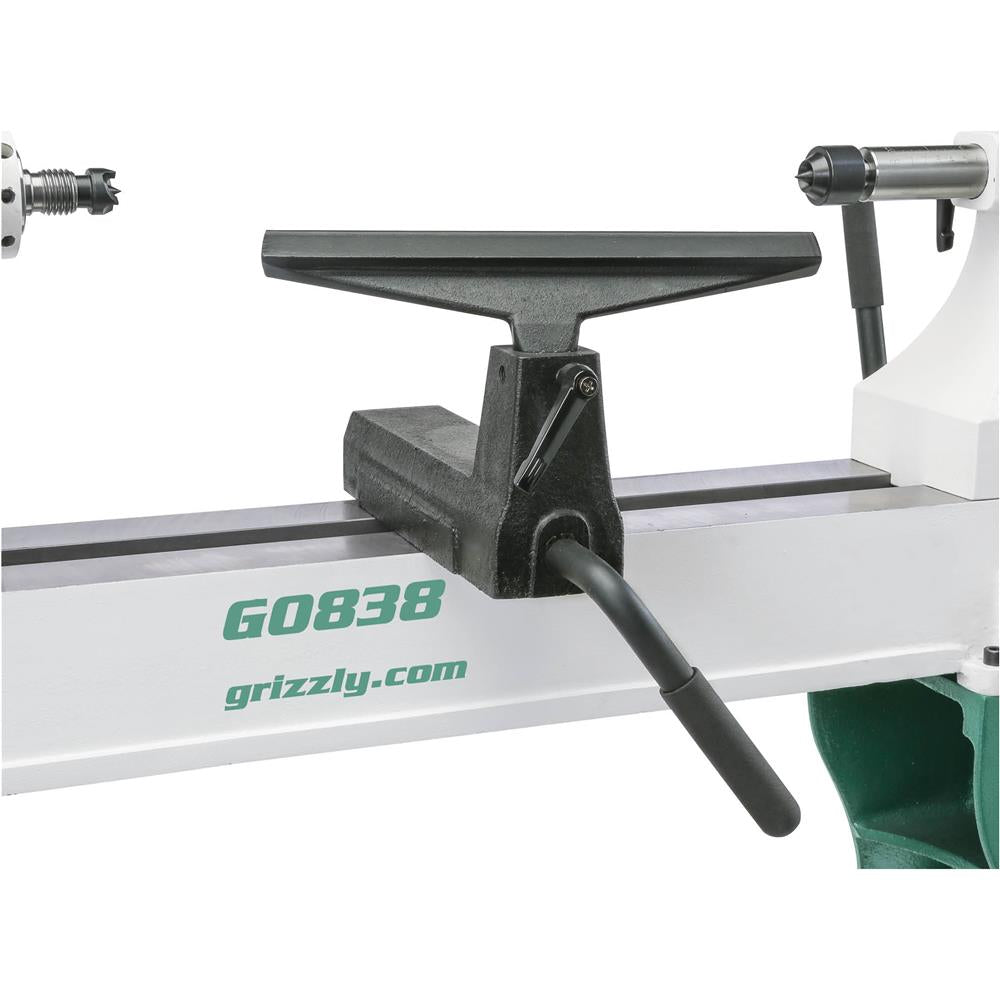

- 12" tool rest with 1" post

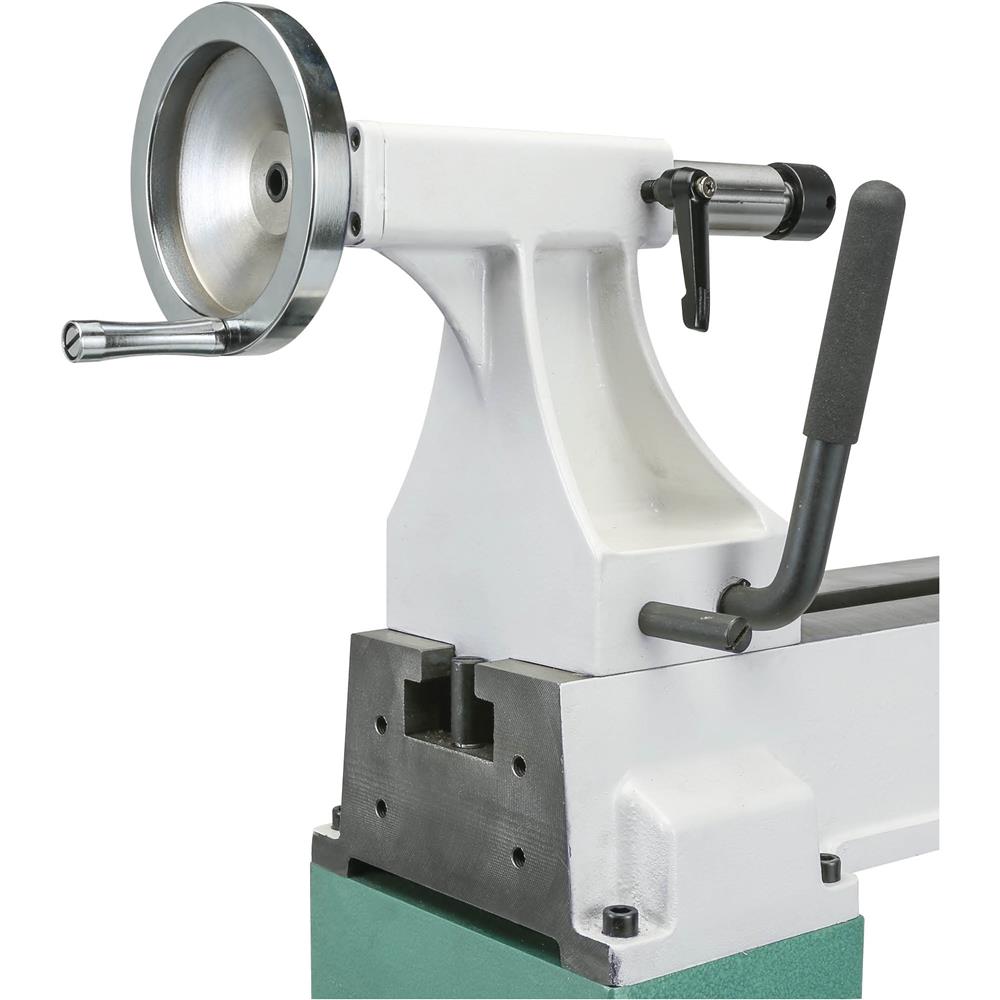

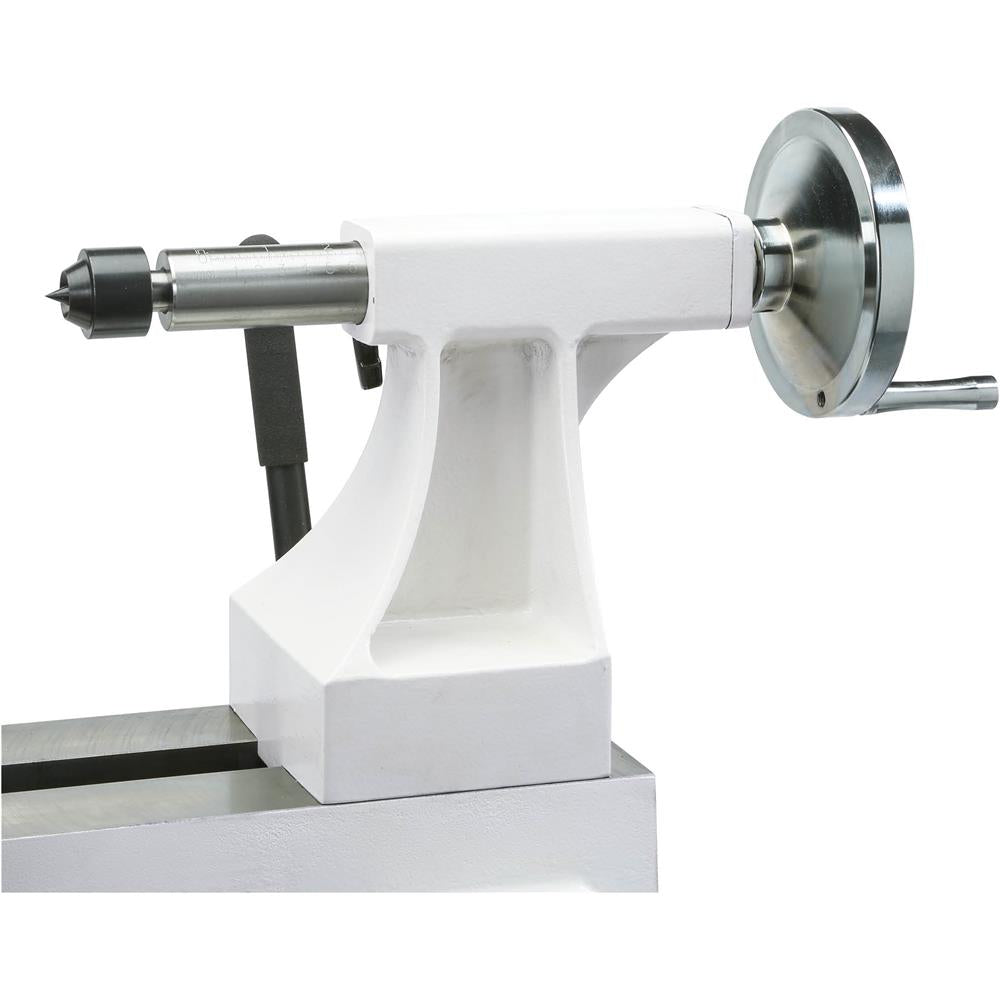

- Cam-lock/release levers for tailstock and headstock
- Forward and reverse turning capacity
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
|---|---|
| Motor | 2 HP, 220V |
| Swing over bed | 16" |
| Swing over tool rest base | 11-1/2" |
| Spindle taper | MT#2 |
| Spindle thread size | 1" x 8 TPI RH |
| Tailstock taper | MT#2 |
| Spindle bore | 3/8" |
| Spindle speeds | Variable, 100-1300 RPM (low); 150-2900 RPM (high) |
| Tool rest width | 12" |
|---|---|
| Tool rest post diameter | 1" |
| Footprint | 42-1/2" x 16" |
| Overall dimensions | 60-1/2" w x 23-1/2" D x 48" H |
| Approximate shipping weight | 388 lbs. |
Warranty
This item comes with a 1 year factory warranty.
