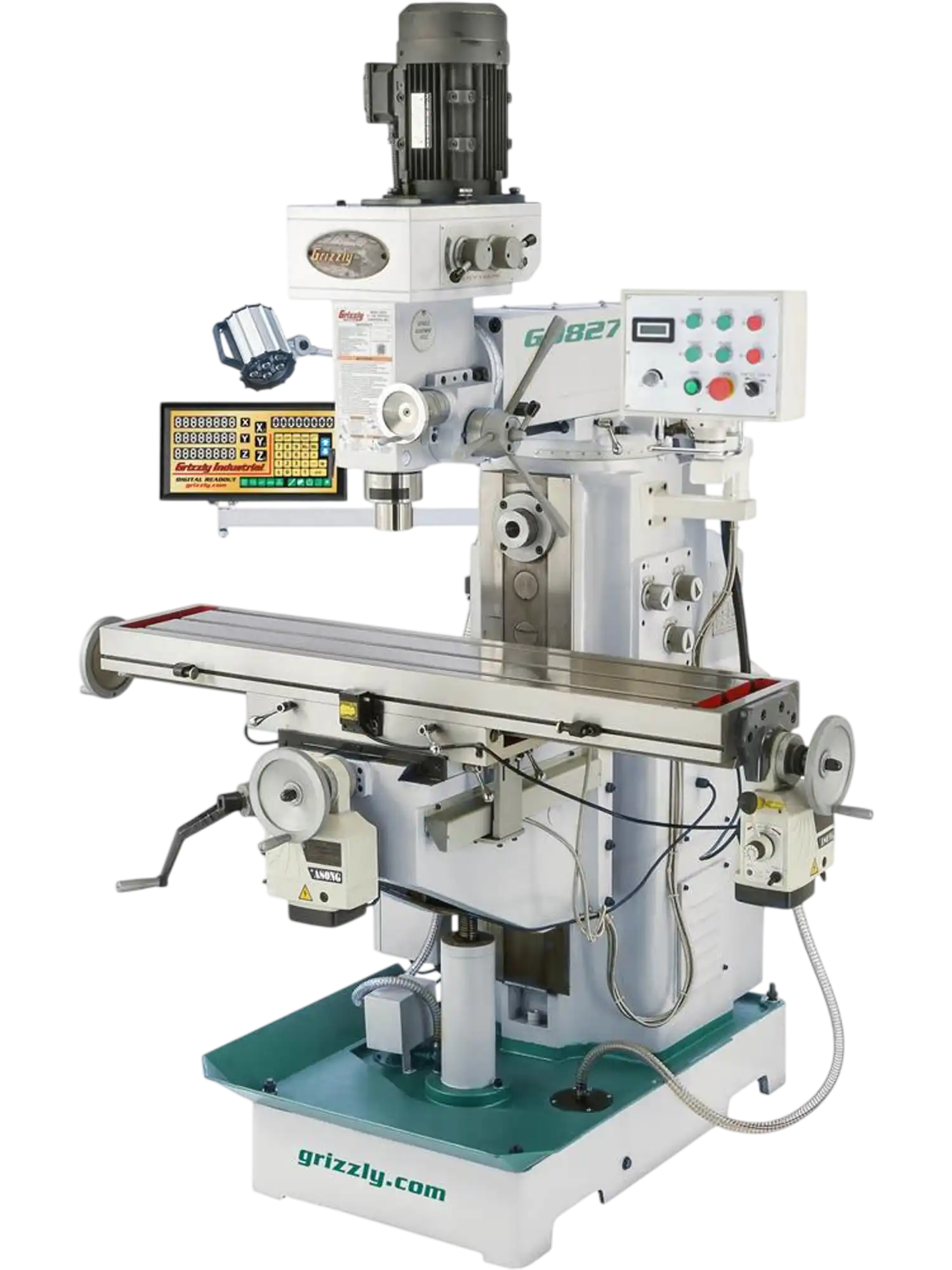

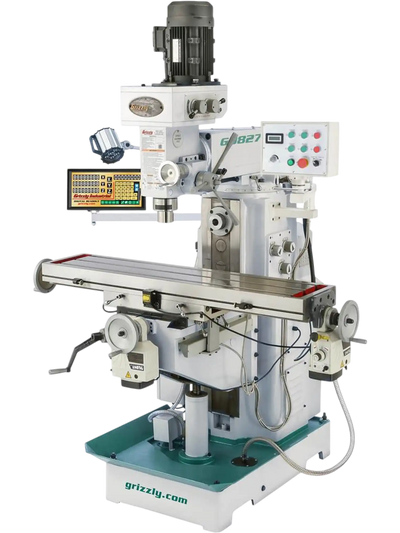

Grizzly G0827 Milling Machine 11" x 50" 2 HP Horizontal Vertical Mill with DRO New
Product Overview
The Grizzly G0827 is an 11" x 50" horizontal/vertical milling machine built for versatile metalworking in fabrication shops, maintenance departments, and serious machine rooms. With both horizontal and vertical R-8 spindles, it handles a wide range of milling tasks while reducing setup changes between operations.
This gearhead mill delivers strong, consistent performance with 8 vertical spindle speeds from 140 to 2100 RPM and 12 horizontal spindle speeds from 48 to 1560 RPM. A movable ram, 180° turret swivel, and 45° head tilt give you flexible positioning for complex work, while independent X- and Y-axis power feeds help improve efficiency on larger jobs.
A 3-axis digital readout provides precise, repeatable positioning down to 0.0002" resolution for accurate machining. The large table offers plenty of room for vises, rotary tables, and fixtures, and the built-in coolant recycling system supports cleaner operation during extended cutting.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- 3-Axis DRO
- Horizontal and vertical R-8 spindles
- High-precision P5 spindle bearings
- Independent X- and Y-axis power feed
- Coolant recycling system
- LED work light
Specifications
| Required power source | 220V, 3-phase, min. 15A |
| Vertical spindle motor | 2 HP, 220V, 3-phase |
| Horizontal spindle motor | 3 HP, 220V, 3-phase |
| Coolant pump motor | 40W, 220V, 3-phase |
| Spindle taper | R-8 |
| Vertical spindle speeds | 8, 140–2100 RPM |
| Horizontal spindle speeds | 12, 48–1560 RPM |
| Spindle travel | 5" |
| Max. distance spindle-to-column | 27-1/2" |
| Max. distance spindle-to-table | 17-1/16" |
| Table size | 11" x 50" |
| Longitudinal travel | 29" |
| Cross travel | 10-1/2" |
| Vertical travel | 13-9/16" |
| Ram Travel | 18" |
| Head turret/column swivel | 180° |
| Head tilt | 45° |
| Footprint | 41" x 24" |
| Overall dimensions | 65" W x 67" D x 85" H |
| Approximate shipping weight | 3087 lb. |
Warranty
This item comes with a 1 year factory warranty.
