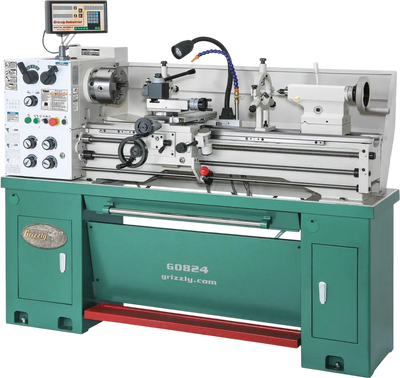

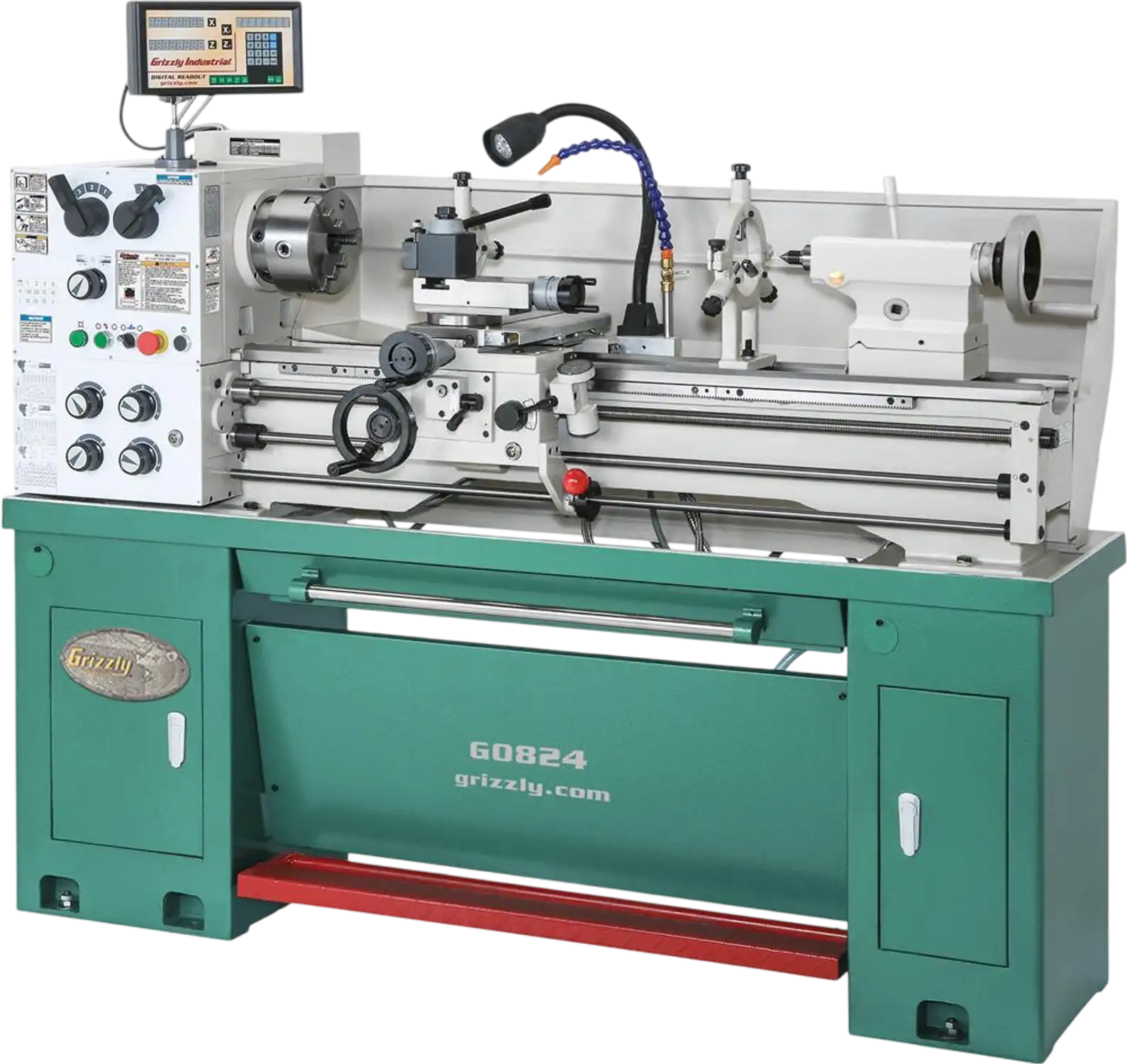

Grizzly G0824 Metal Lathe 14 x 40" 2-1/2 HP Gunsmithing w/ DRO New
Product Overview

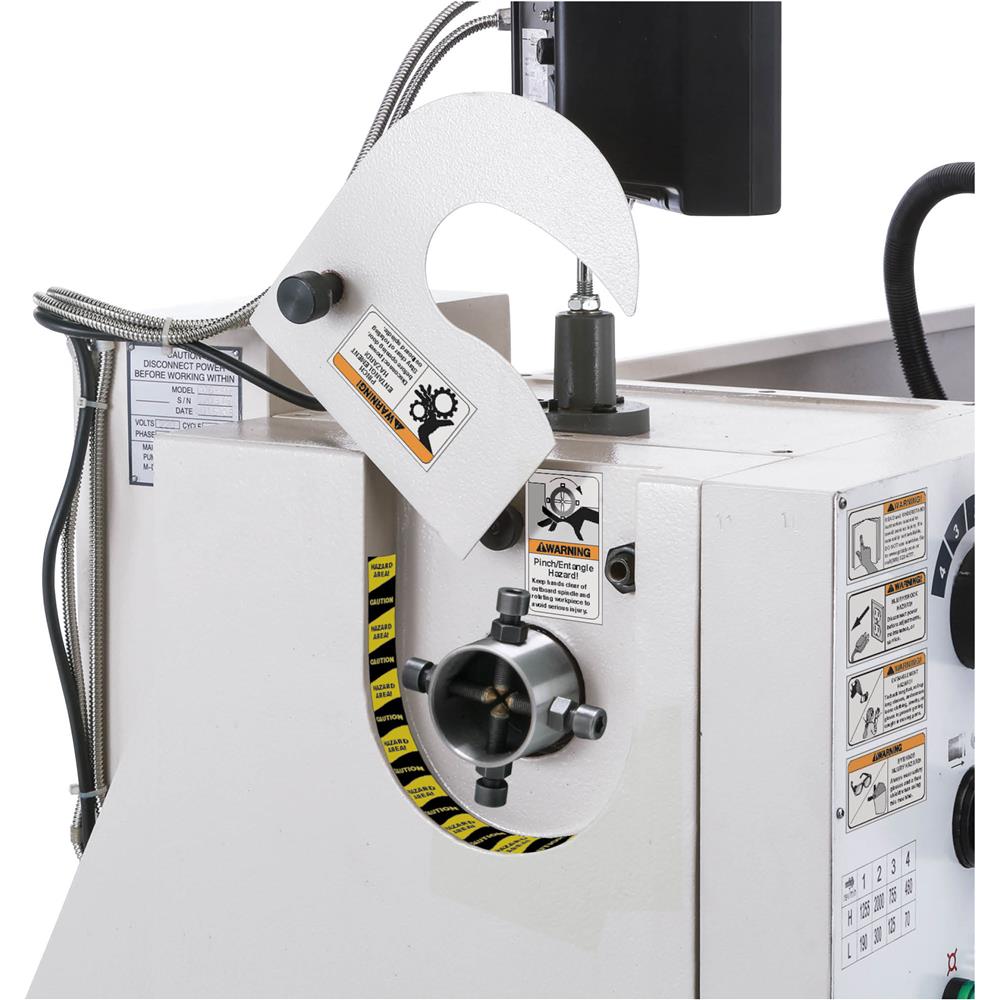

The Grizzly G0824 is a 14" x 40" metal lathe built for precision turning, threading, and chambering work, especially for gunsmithing applications. Its standout 2.01" spindle bore and spider mount system make it especially well suited for supporting barrels and other long workpieces that pass through the spindle.
Powered by a 2-1/2 HP motor, this gearhead lathe offers 8 spindle speeds from 70 to 2000 RPM for handling a wide range of machining tasks. The included X- and Z-axis DRO helps improve accuracy, while the quick-change controls, D1-5 camlock spindle, and threading capability in both inch and metric pitches add versatility for serious shop work.
This machine is a strong fit for gunsmiths, metalworking professionals, and advanced shop users who need a full-size lathe with stable support features and precision-focused equipment. It also comes equipped with useful shop essentials such as steady and follow rests, a quick-change tool post, coolant system, foot brake, and both 3-jaw and 4-jaw chucks.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

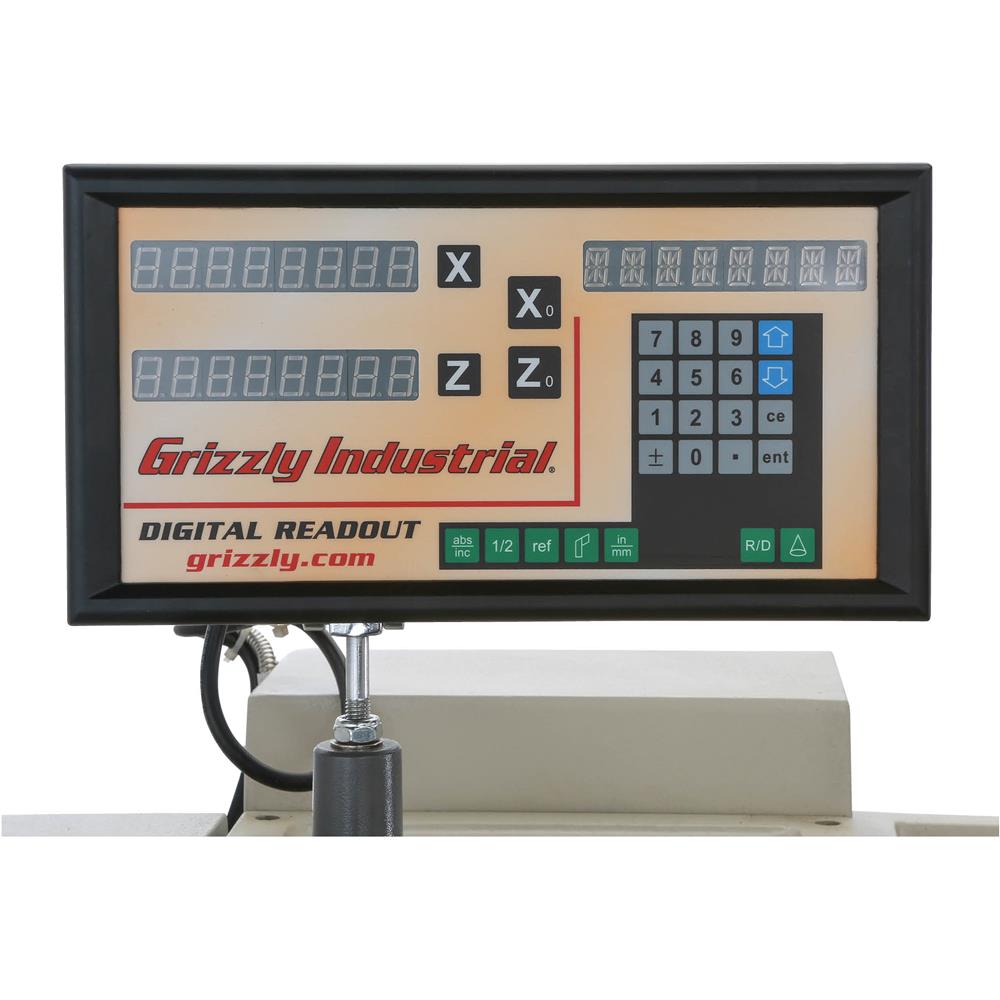

- X- and Z-axis DRO

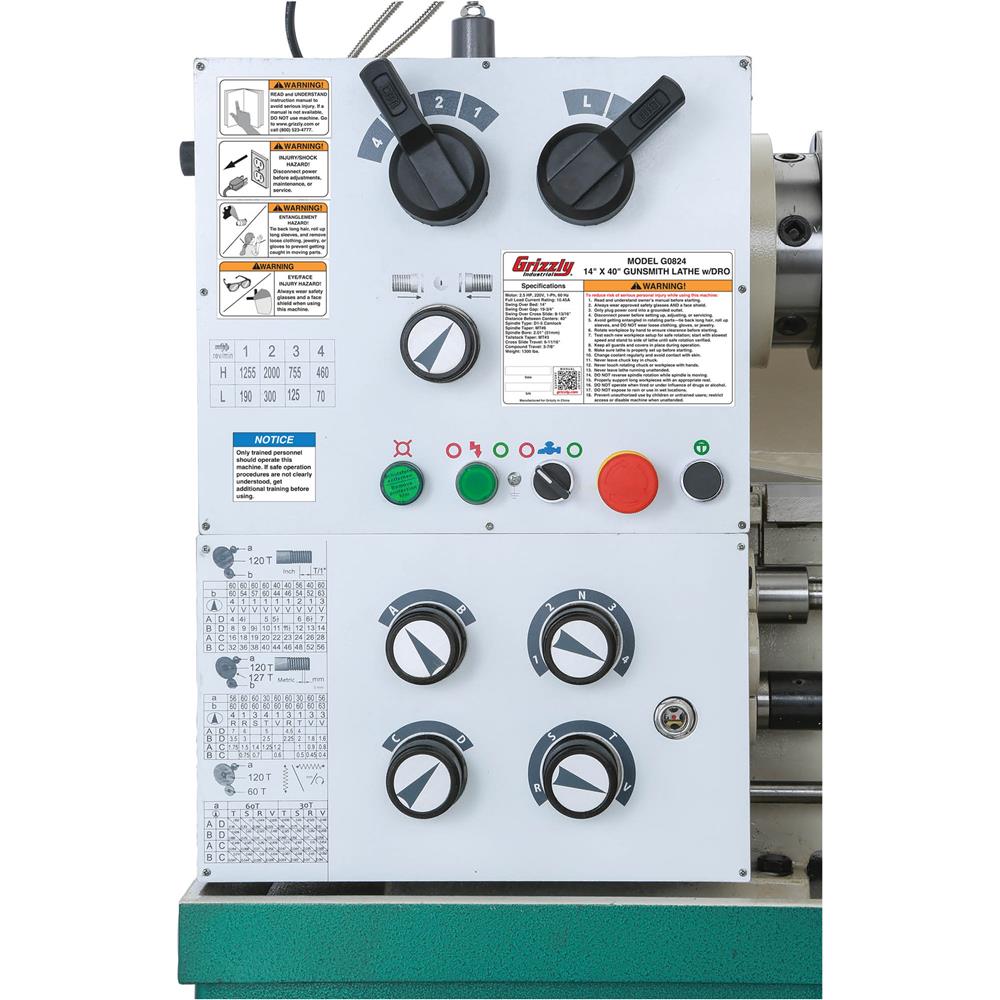

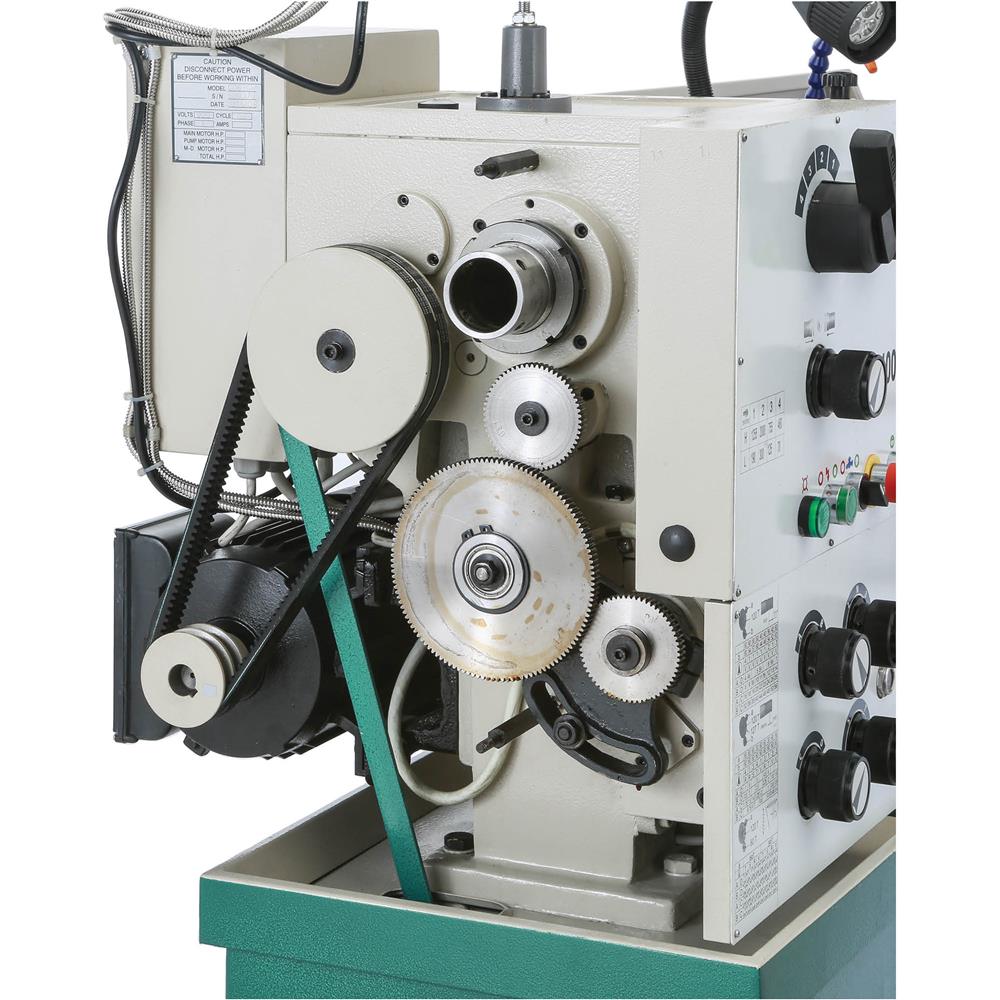

- Quick-change spindle speed and gearbox controls
- On/Off reverse spindle switch on carriage
- Steady and follow rests with roller bearing supports
- Foot brake with motor shut-off switch

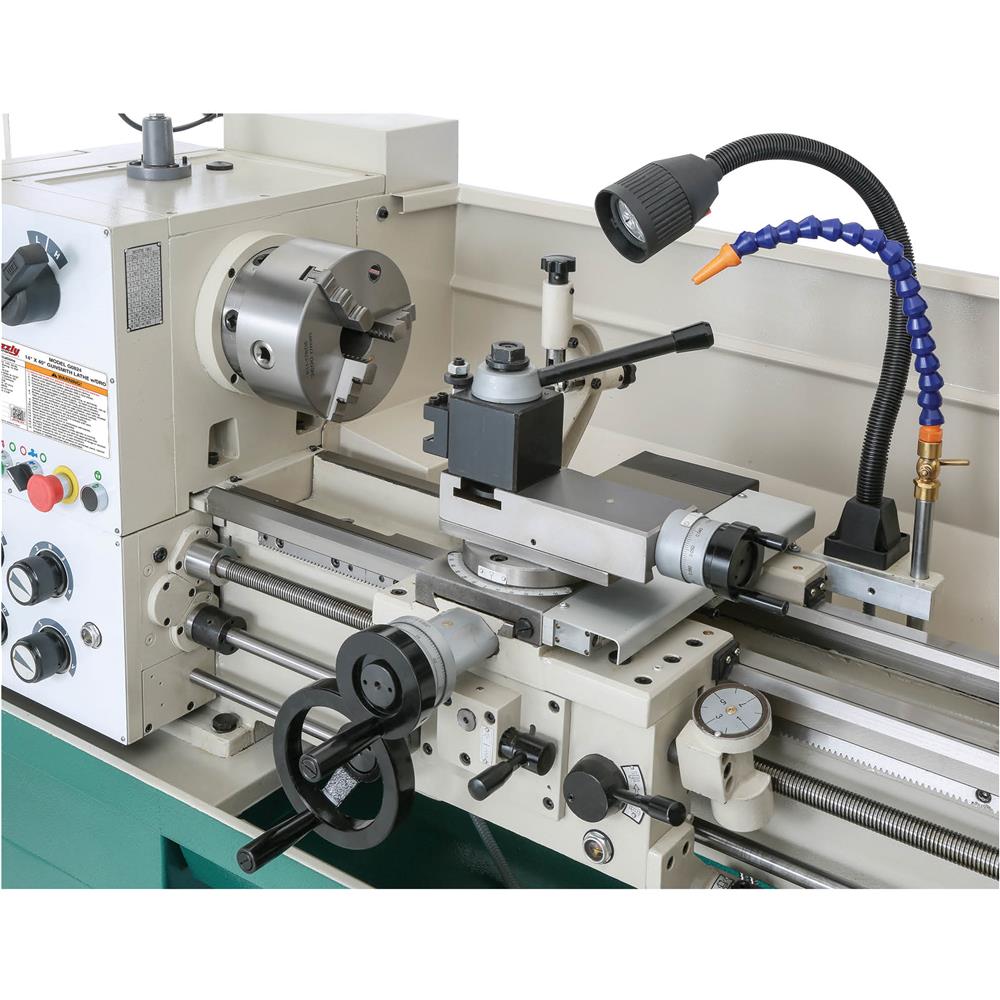

- 10-Quart coolant system
- D1-5 camlock spindle nose
- 7" 3-jaw chuck and 8" 4-jaw chuck

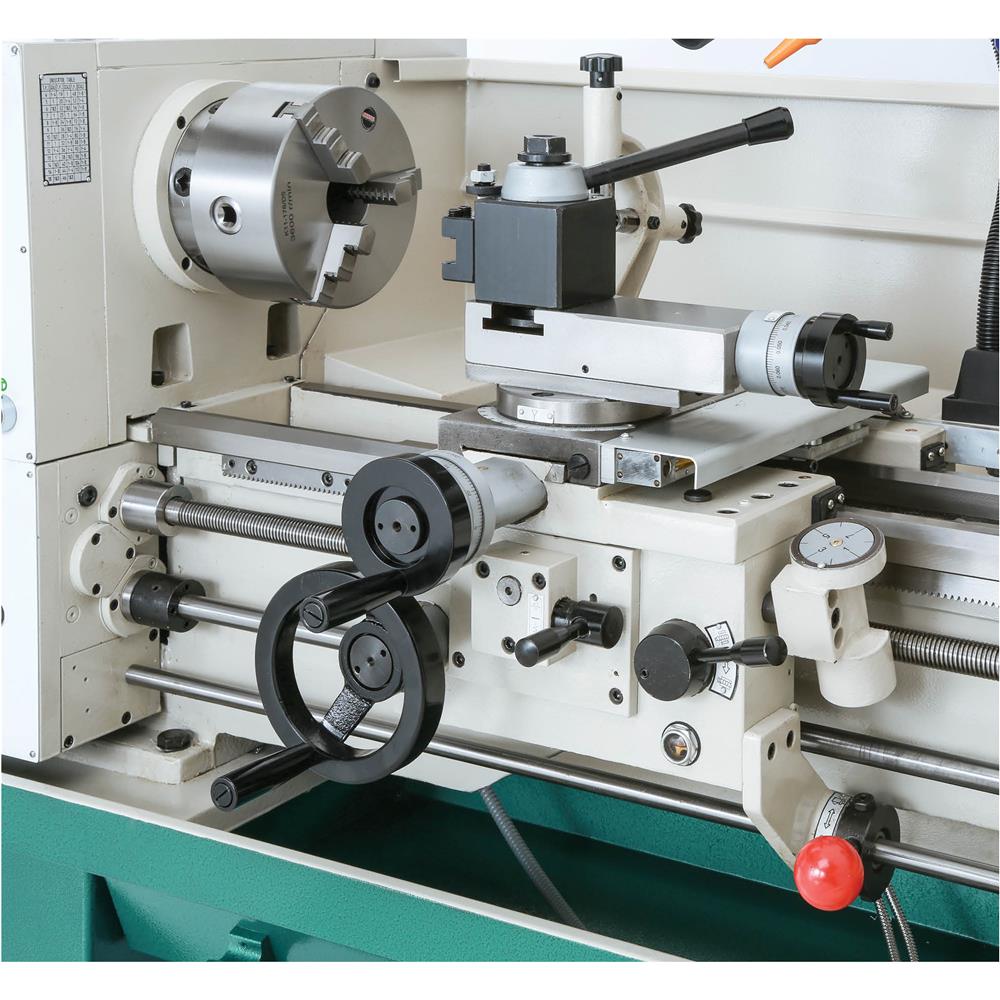

- 200-series quick-change tool post
Specifications

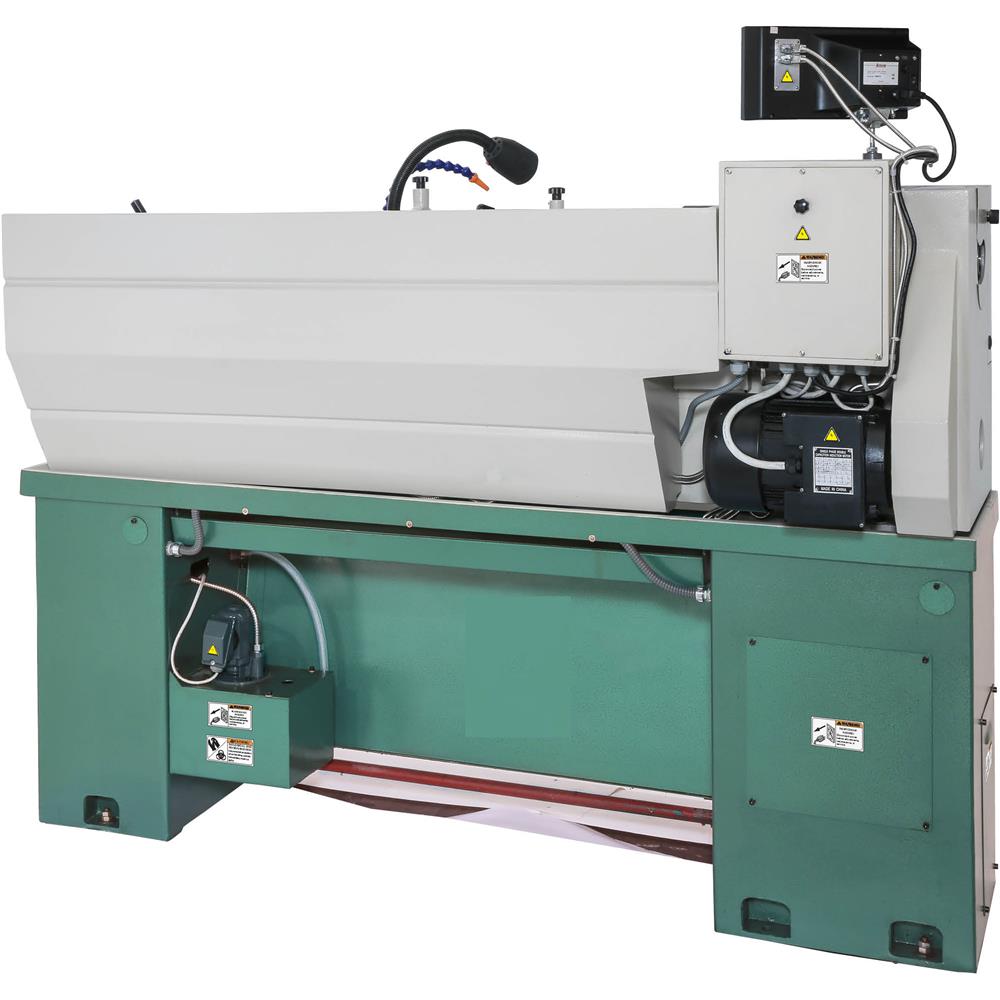

| Main motor | 2-1/2 HP, 220V, single-phase, 10A |
| Coolant pump motor | 40W, 0.45A |
| Swing over bed | 14" |
| Swing over cross slide | 8-13/16" |
| Distance between centers | 40" |
| Spindle nose | D1-5 camlock |
| Spindle bore | 2.01" (51mm) |
| Spindle taper | MT#6 |
| Spindle speeds | 8, 70–2000 RPM |
| Spindle length | 17-1/4" |

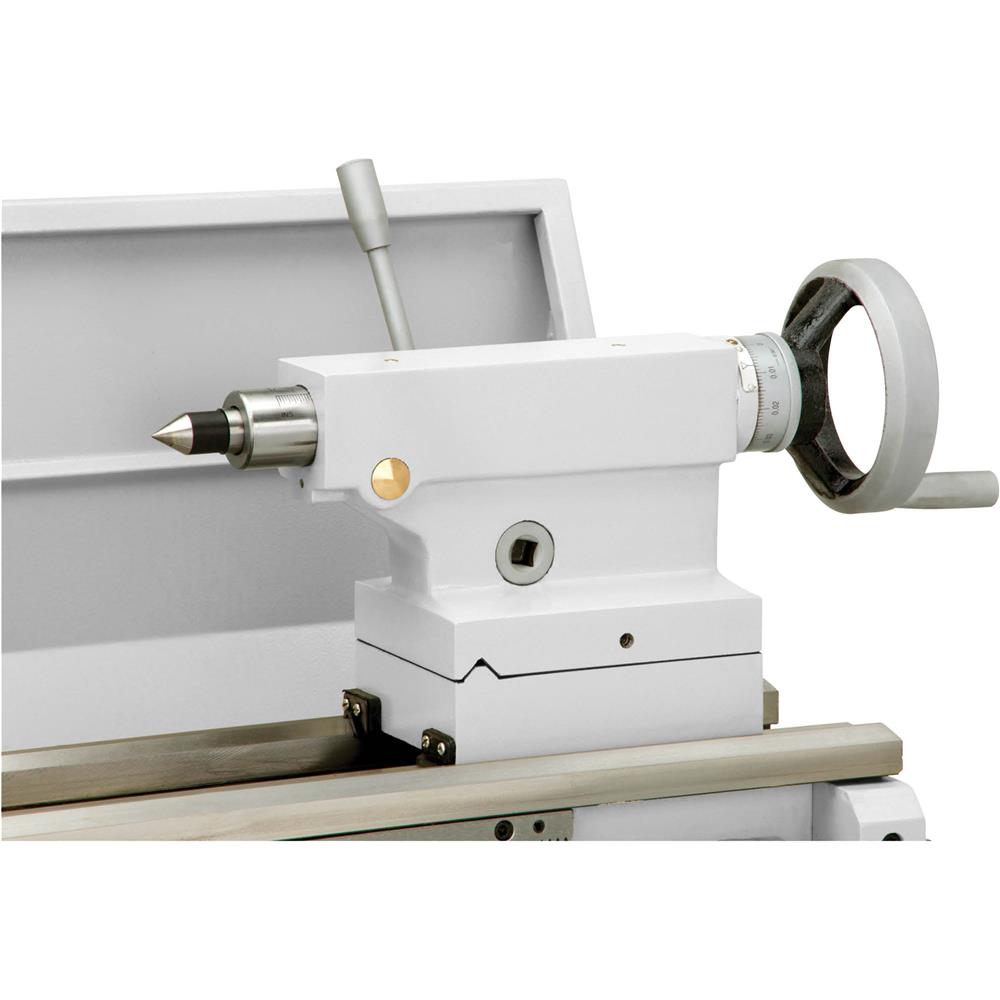

| Tailstock barrel taper | MT#3 |
| Tailstock barrel travel | 3-15/16" |
| Cross slide travel | 6-11/16" |
| Compound travel | 3-7/8" |
| Inch threads | 34 @ 4–56 TPI |
| Metric threads | 26 @ 0.4–7mm |
| Width of bed | 7-3/8" |
| Footprint | 71" x 16" |
| Overall dimensions | 78" x 31" x 61-1/2" |
| Approximate shipping weight | 1550 lb. |
Warranty
This item comes with a 1 year factory warranty.
