Grizzly G0816 Bead Roller Heavy-Duty New
Product Overview

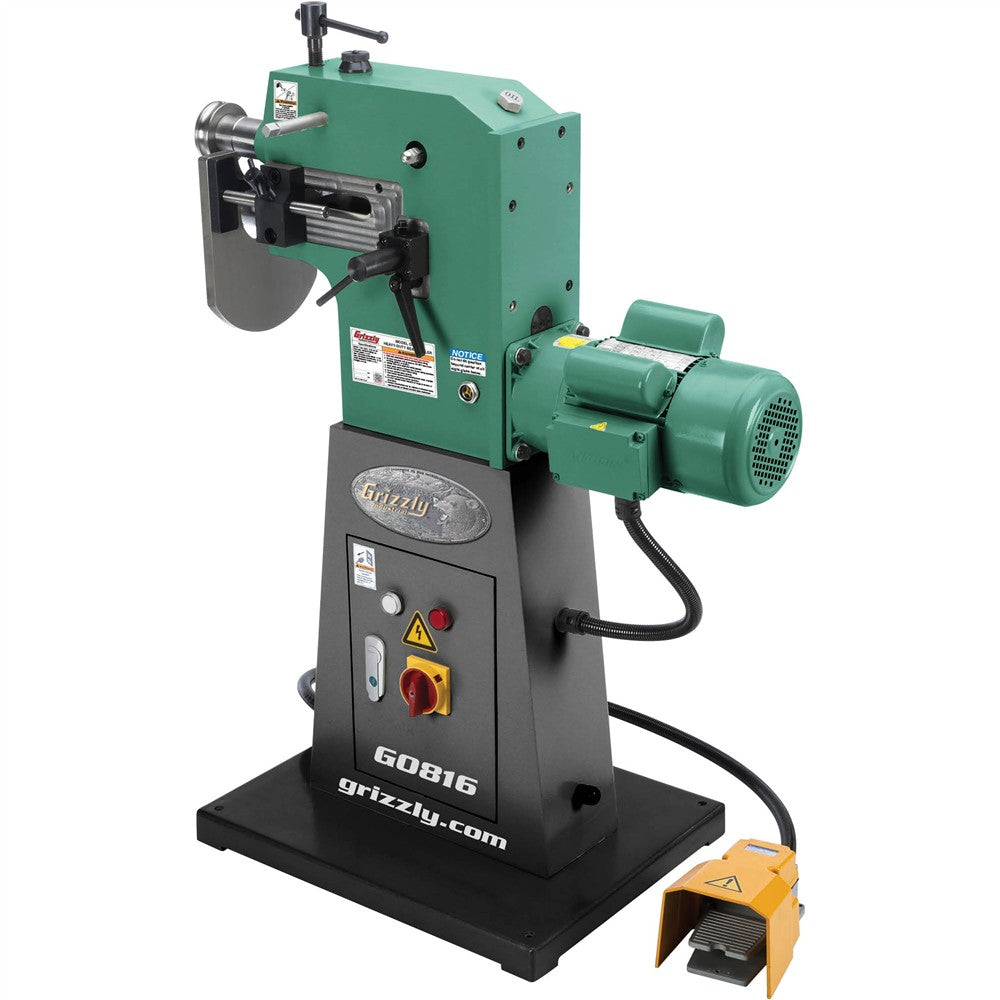

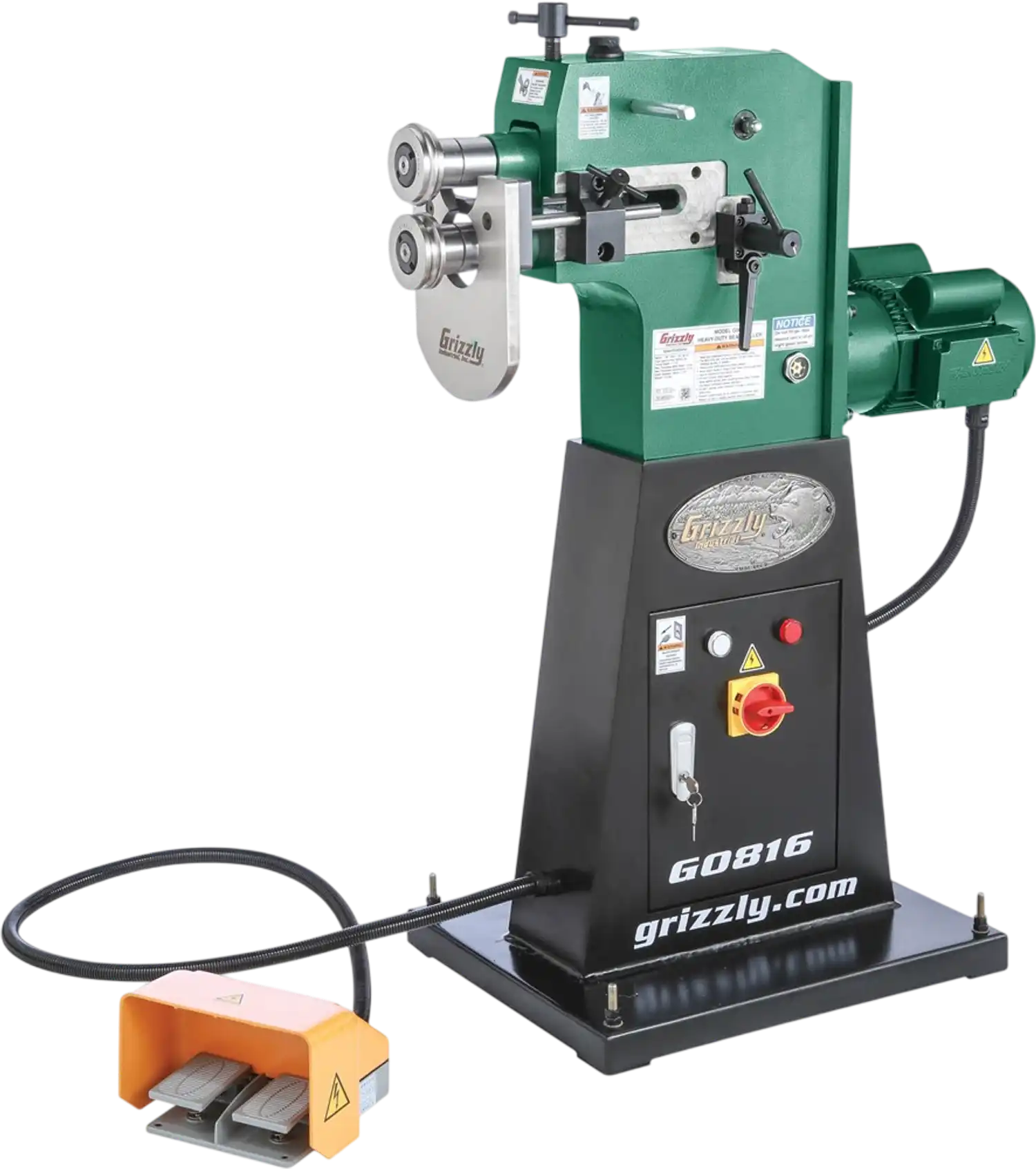

The Grizzly G0816 Heavy-Duty Bead Roller is a floor-standing metalforming machine built for shaping strong, consistent beads in sheet metal. Designed for demanding fabrication work, it handles material up to 12-gauge aluminum and 14-gauge mild steel, making it a solid choice for automotive, restoration, HVAC, and custom metal shop projects.
An 11-1/2-inch throat depth, adjustable backplate, and one-hand mandrel height control help you create straighter lines and more precise results across a range of panel sizes. Foot pedal operation keeps both hands free to support larger workpieces, while the heavy steel stand and oversized footprint provide the stability needed for accurate rolling.
This model includes a 1/2-inch bead mandrel set and uses heavy-duty 30mm shafts for robust performance. It is well suited for fabricators and serious metalworkers who need a powerful, shop-ready bead roller for frequent use on larger or heavier panels.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

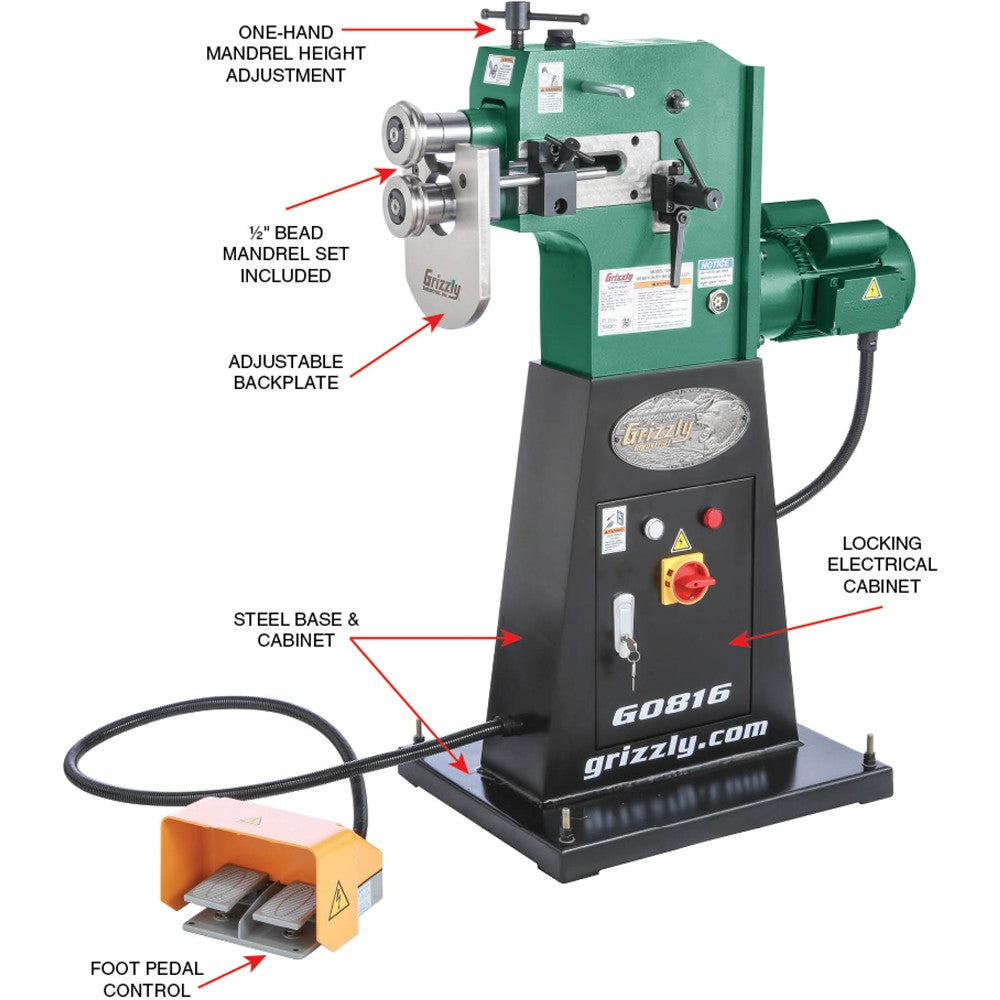

Features
- Hands-free operation with foot pedal control
- 11-1/2" throat capacity for workpieces up to 23" wide
- 12-Gauge aluminum capacity
- 14-Gauge mild steel capacity

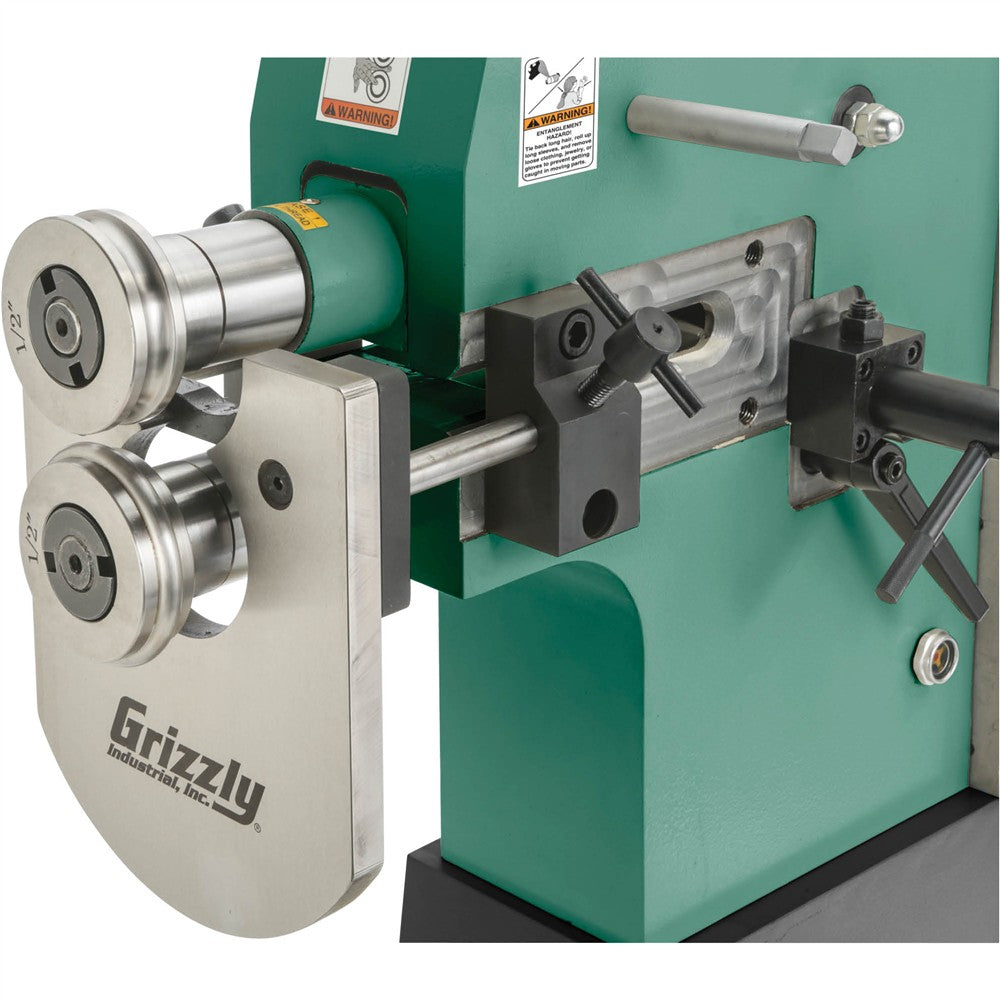

- 1/2" Bead mandrel set
- Adjustable throat depth
- Adjustable backplate
- Heavy-duty steel body and stand
- One-hand mandrel height adjustment
- Ball oiler lubrication
- Locking electrical cabinet
Specifications
| Motor | 1 HP, 220V, single-phase, 5A |
| Maximum thickness (mild steel) | 14-gauge |
| Maximum thickness (aluminum) | 12-gauge |
| Throat depth | 11-1/2" |
| Shaft diameter | 30mm |
| Footprint | 18" x 22-1/2" |
| Overall size | 22-1/2" W x 44" H x 34" D |
| Approximate shipping weight | 455 lbs. |
Warranty
This item comes with a 1 year factory warranty.
