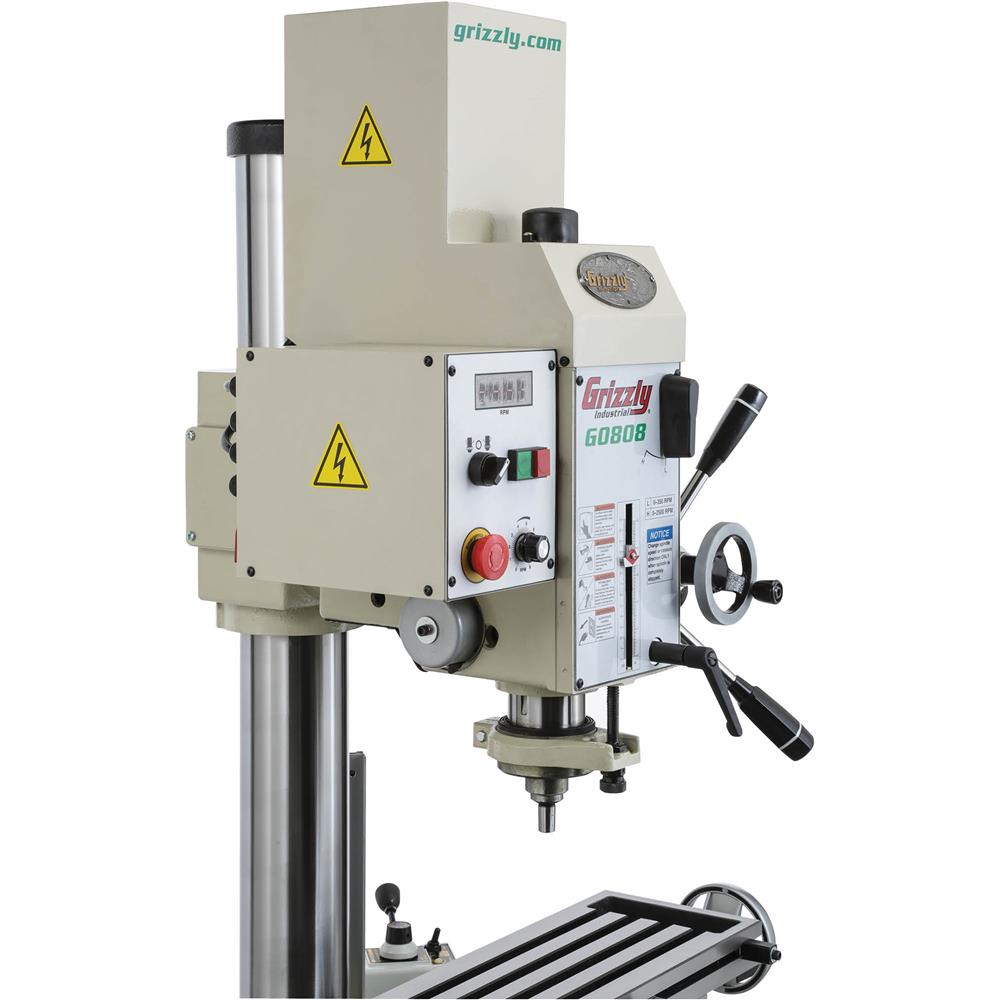

Grizzly G0808 Mill Drill 20-3/4" Gearhead Drill Press with Cross-Slide Table New
Product Overview

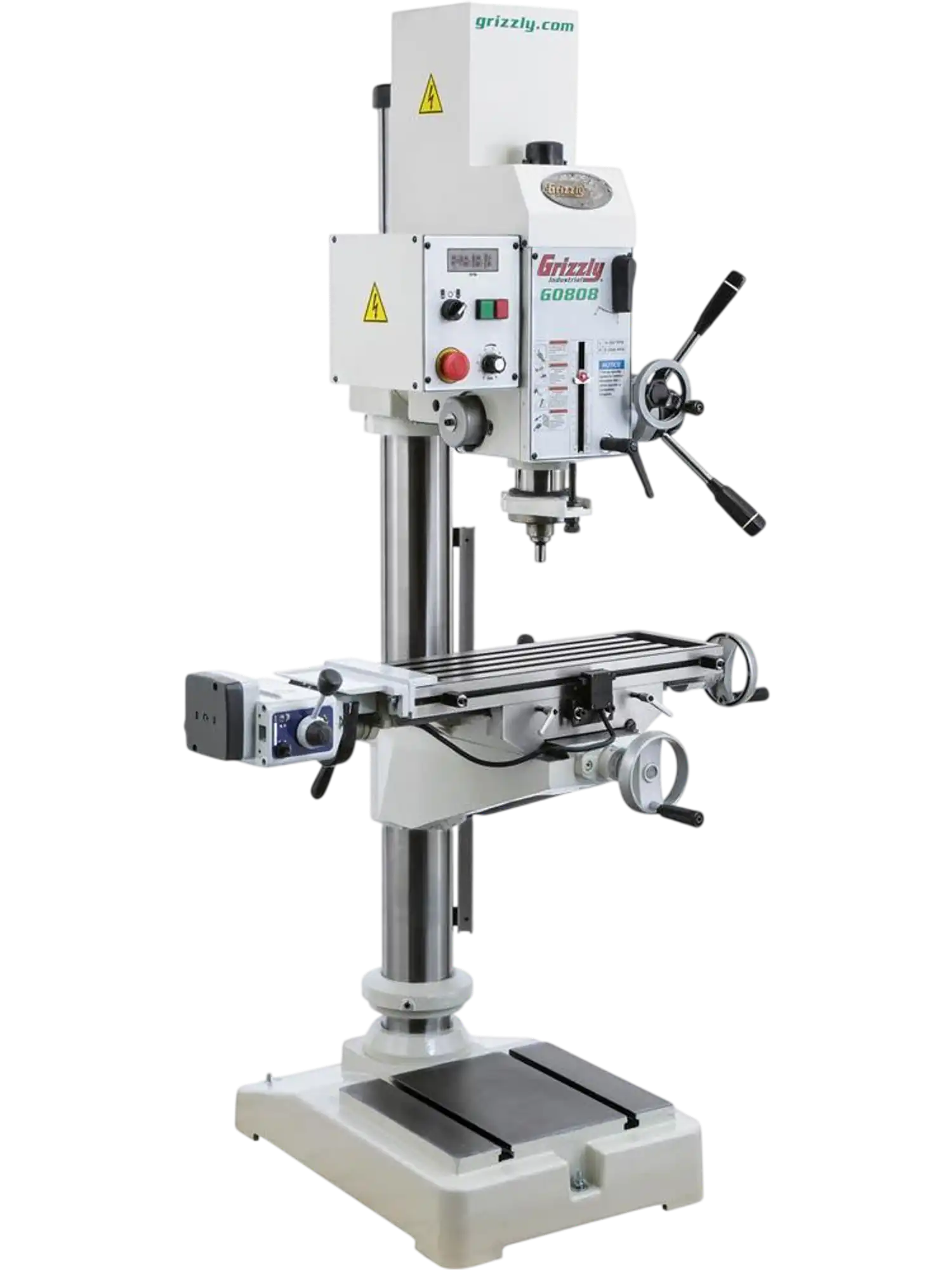

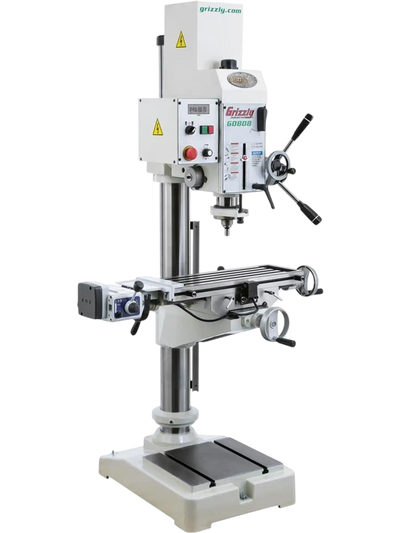

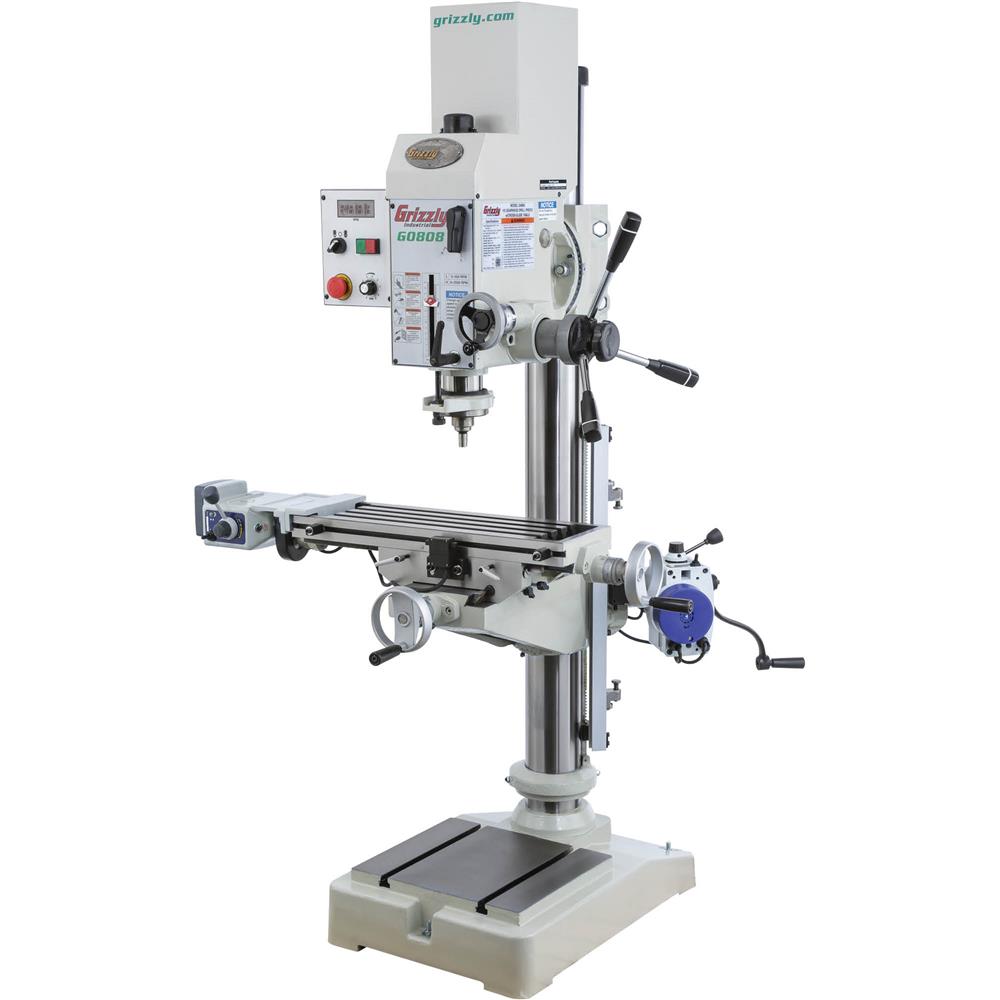

The Grizzly G0808 is a heavy-duty gearhead mill drill and drill press designed for drilling, light milling, and precise positioning work in one machine. Its 20-3/4" swing, R-8 spindle, and cross-slide table make it a versatile choice for shops that need more capability than a standard drill press.

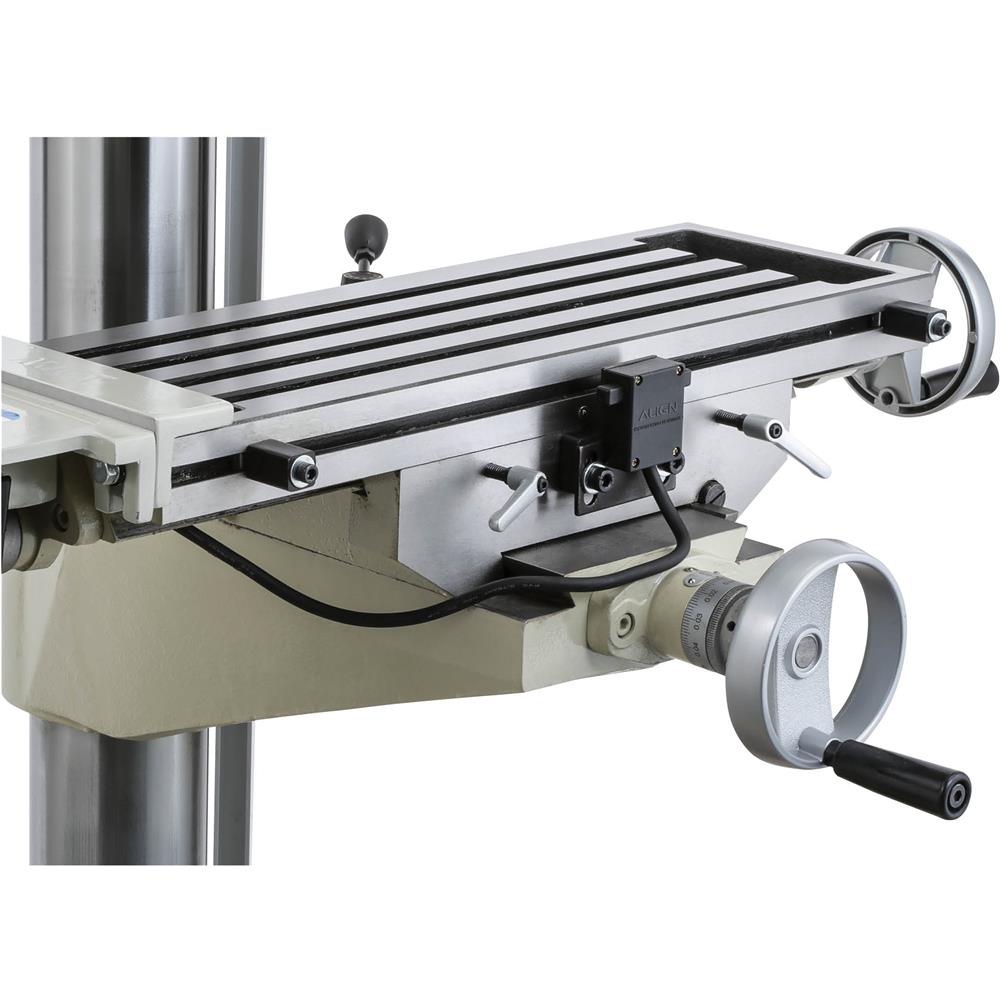

Variable spindle speed from 0 to 2500 RPM, a digital speed display, and coarse and fine downfeed controls help users dial in accurate results across a wide range of materials and operations. The precision-ground cast-iron table adds X- and Y-axis travel, while longitudinal power feed and powered table elevation speed up repetitive setups and adjustments.
With a 1-1/2 HP motor, 1-9/16" drilling capacity in mild steel, and adjustable head tilt, this machine is well suited for serious hobbyists, maintenance departments, fabrication work, and small professional shops. It is a strong fit for users who want the functionality of a drill press with added milling convenience and controlled table movement.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

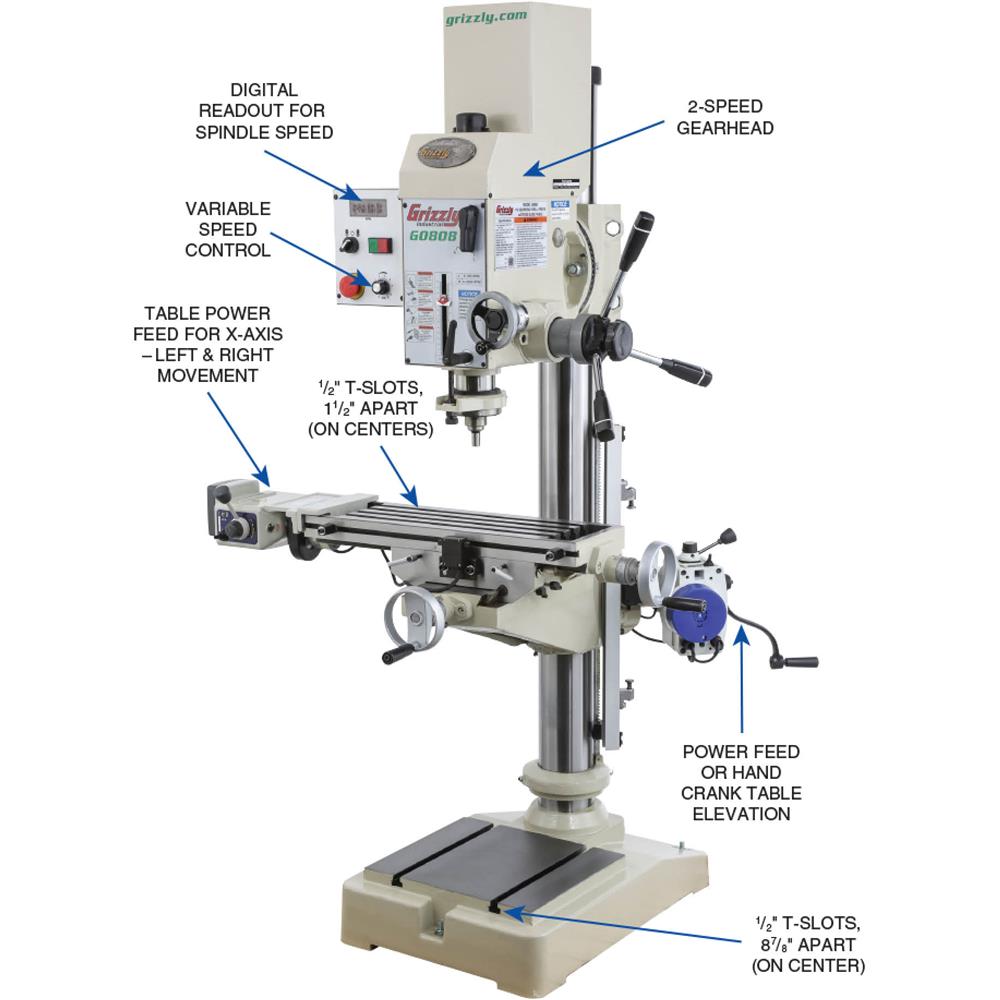

Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

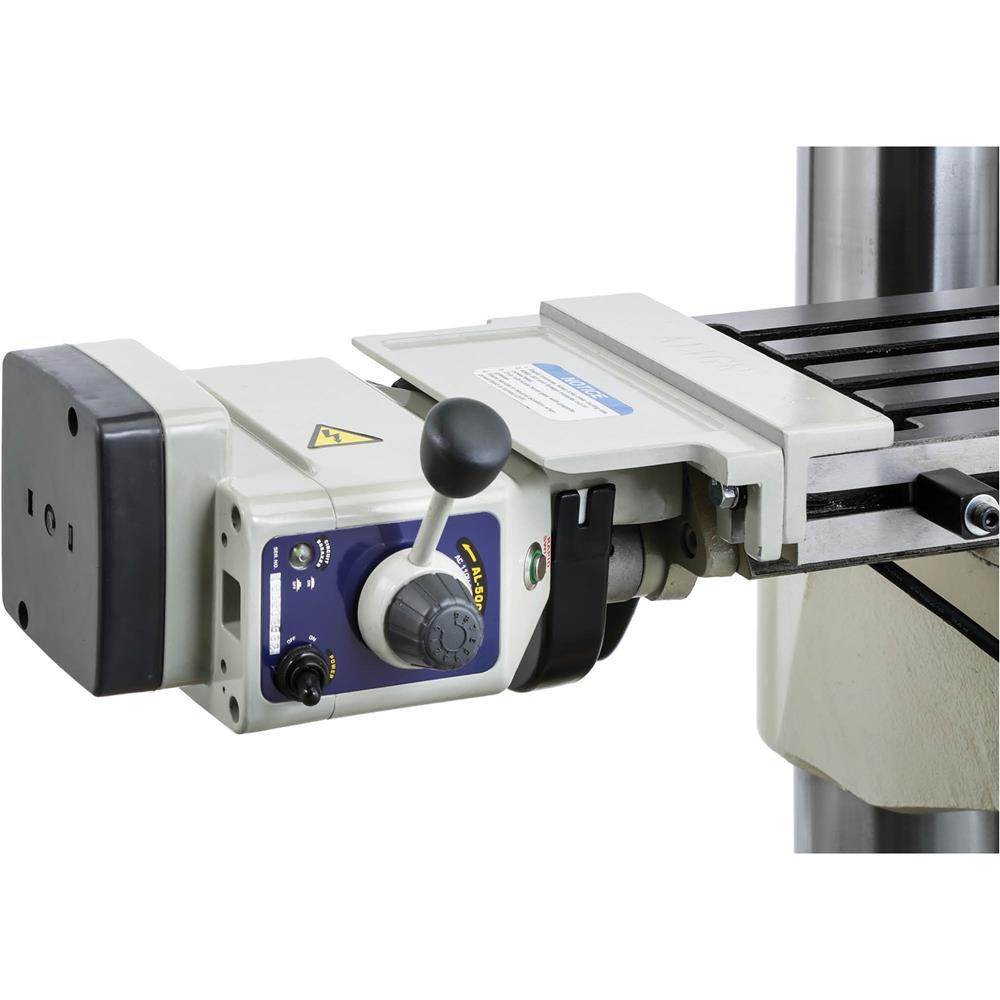

- Longitudinal power feed on precision-ground cast-iron table

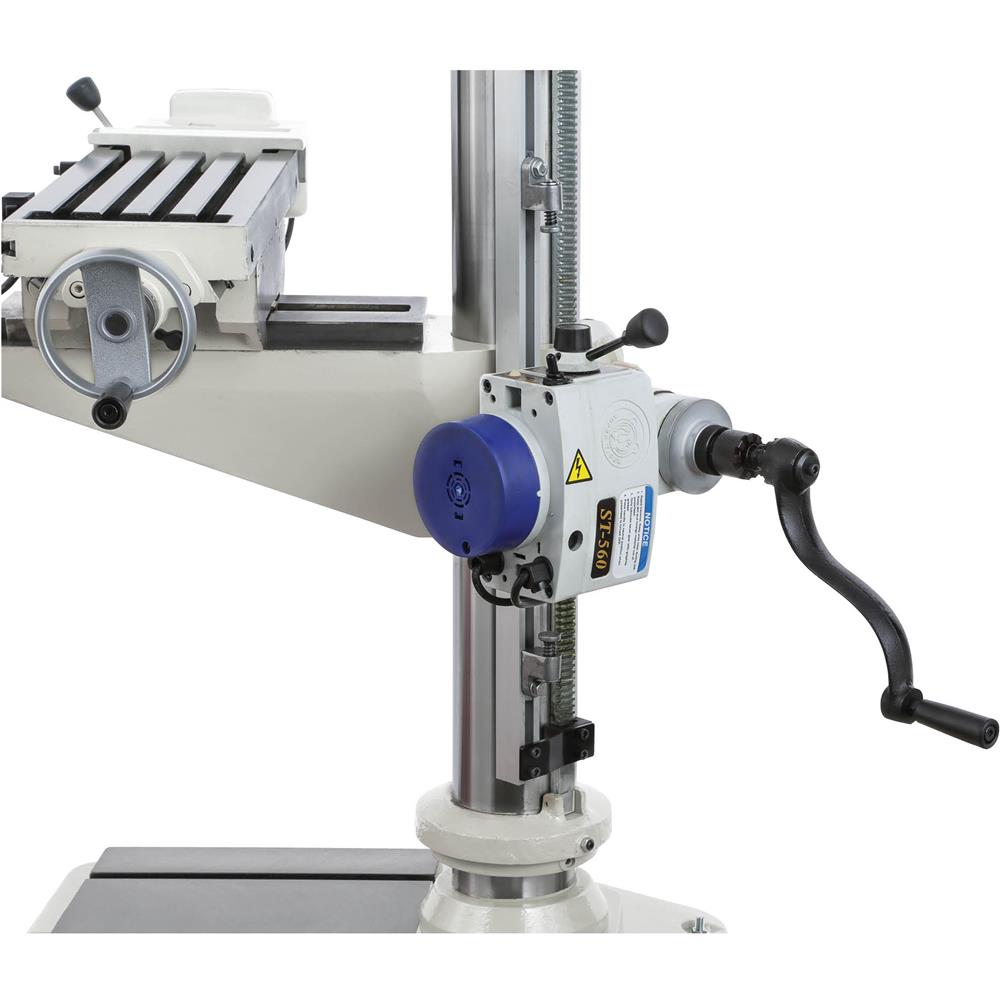

- Power feed or hand crank-enabled rack-and-pinion table elevation

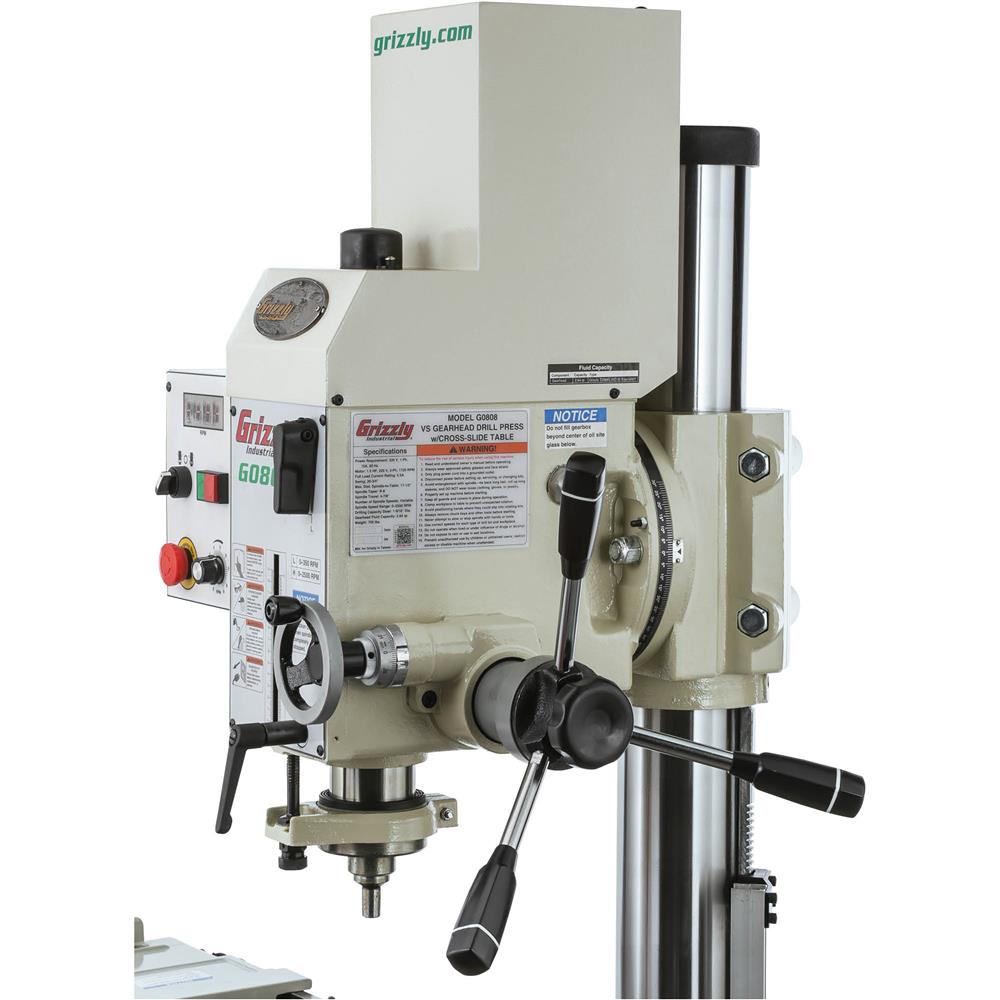

- Coarse and fine downfeed controls
- 360° table and head positioning around column
- Digital spindle speed display
- Front-mounted e-stop button
- Forward/reverse spindle switch
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
| Main motor | 1-1/2 HP, 220V |
| Swing | 20-3/4" |
| Spindle taper | R-8 |
| Spindle travel | 4-7/8" |
| Spindle speed | variable, 0–2500 RPM |
| Drilling capacity | 1-9/16" mild steel |
| Head tilt | 30° left, 90° right |
| Max. distance from spindle to column | 10-7/16" |
| Max. distance from spindle to table | 17-1/2" |
| Table dimensions | 7-1/2" x 23" |
| Quill diameter | 2-15/16" |
| Longitudinal table travel (X-axis) | 15" |
| Cross table travel (Y-axis) | 7" |
| Vertical table travel (Z-axis) | 17-3/4" |
| T-slots size | 1/2" (4 on table, 2 on base) |
| Overall dimensions | 42" W x 46-1/2" D x 77-1/2" H |
| Approximate shipping weight | 739 lbs. |
Warranty
This item comes with a 1 year factory warranty.
