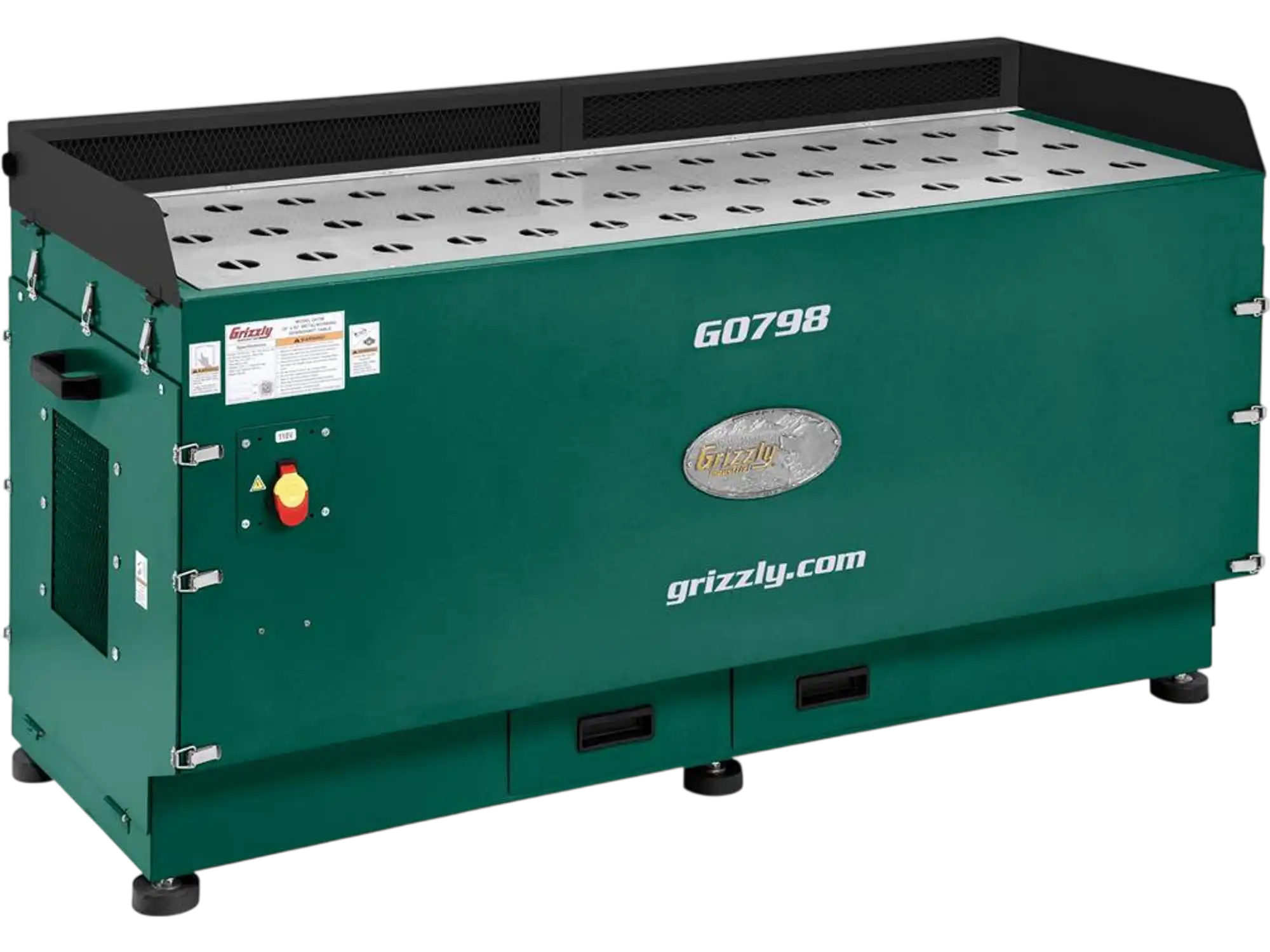

Grizzly G0798 Metal Downdraft Table 24" x 62" Metalworking Dust Collector New
Manufacturer: Grizzly
SKU: G0798
QTY
or
(888) 999-1522
C
$4,772.00
Exceptional Customer Service
Authorized Dealer
Grizzly G0798 Metal Downdraft Table 24" x 62" Metalworking Dust Collector New
Product Overview

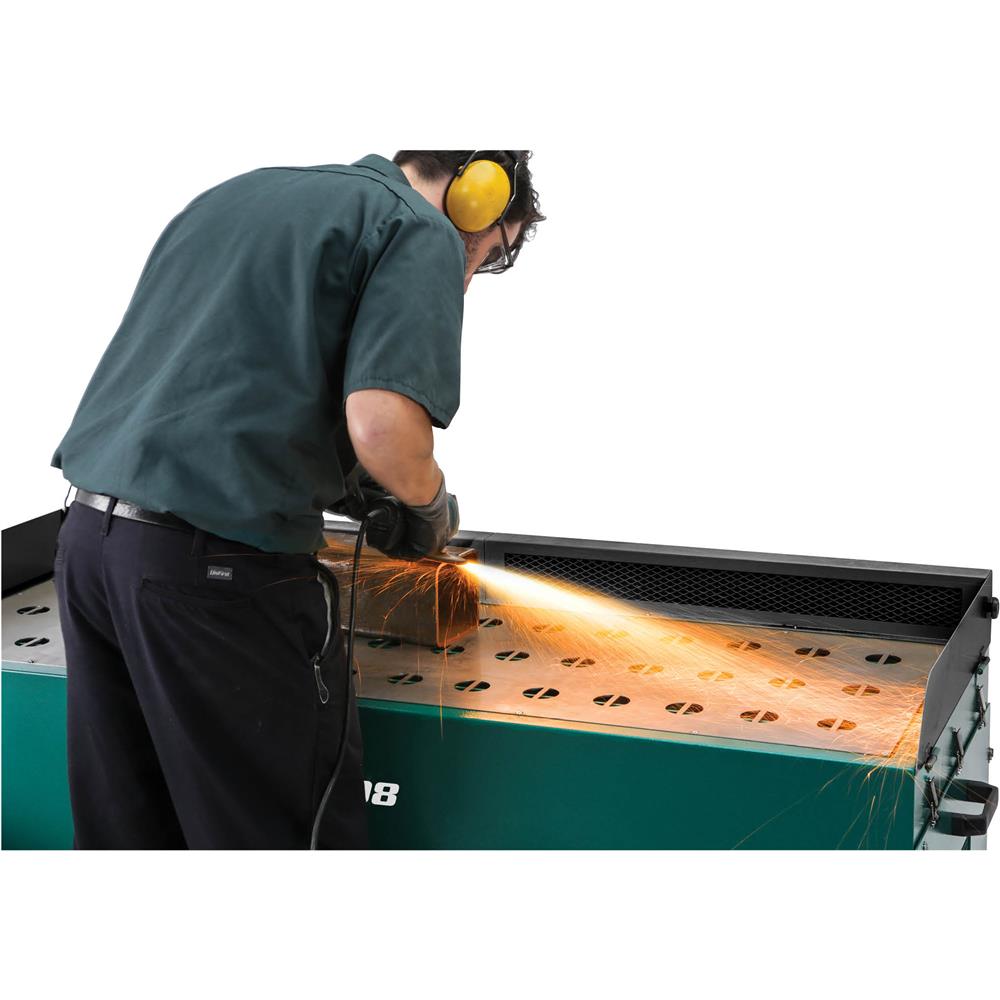

The Grizzly G0798 Metal Downdraft Table is a heavy-duty work surface designed to capture fine metal dust and larger particulate during sanding, grinding, soldering, and polishing. Its 24" x 62" format provides ample room for demanding metalworking tasks while helping keep the work area cleaner and safer.
Dual 3/4 HP motors and squirrel-cage impellers deliver up to 3700 CFM of airflow, while four 200-micron filters help contain debris before it spreads through the shop. Two removable swarf trays make cleanup simple, and the 1/8" steel table inserts and powder-coated construction are built for regular industrial or fabrication use.
With a table load capacity of 440 lbs. and quiet operation, this downdraft table is well suited for metalworking shops, fabrication spaces, maintenance departments, and serious makers who need effective dust collection at the source.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

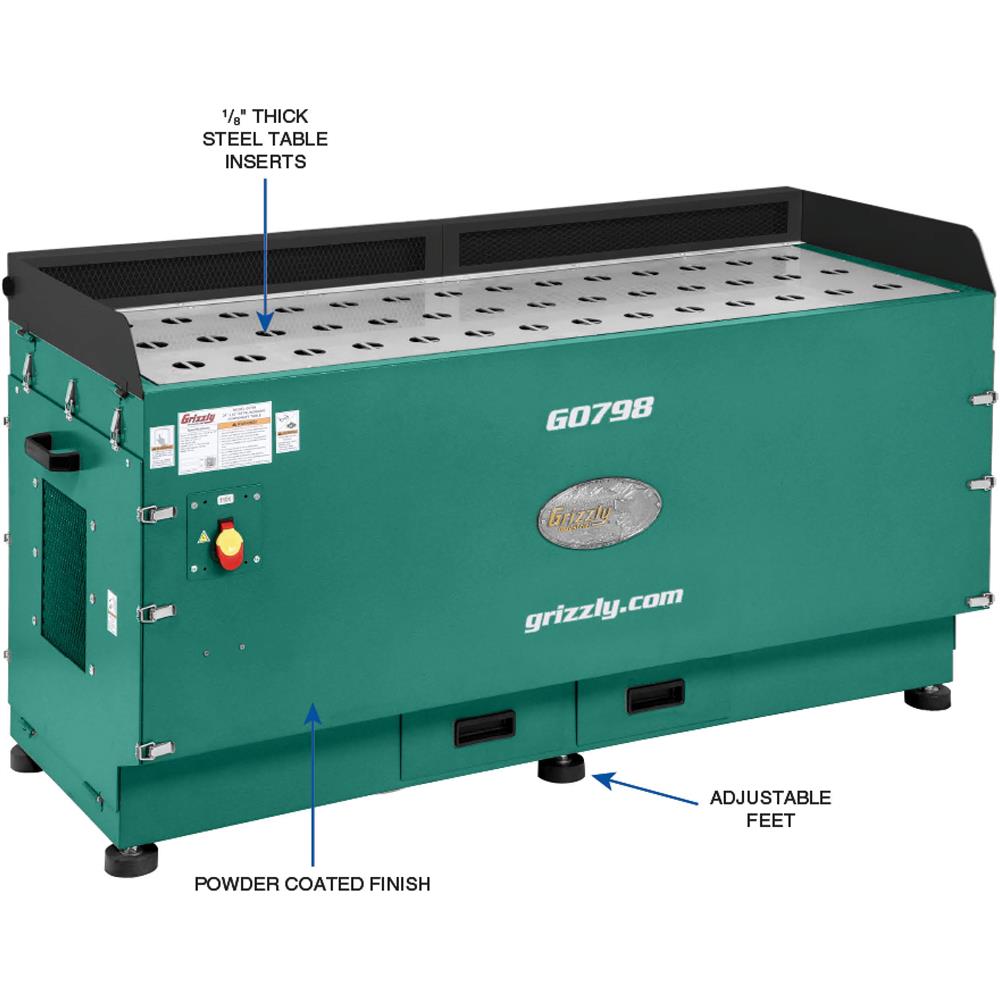

Features
- Designed to accommodate metal sanding, grinding, soldering, and polishing applications

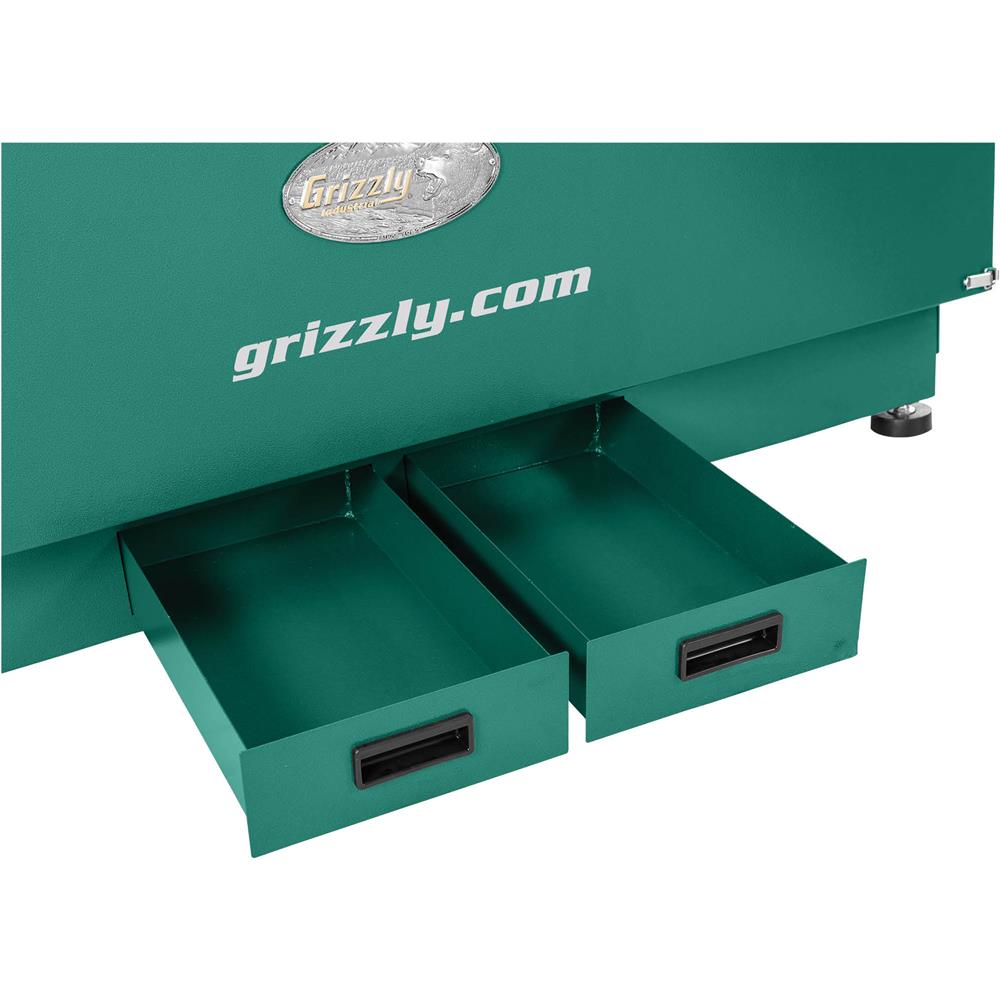

- Two easy-to-clean swarf trays

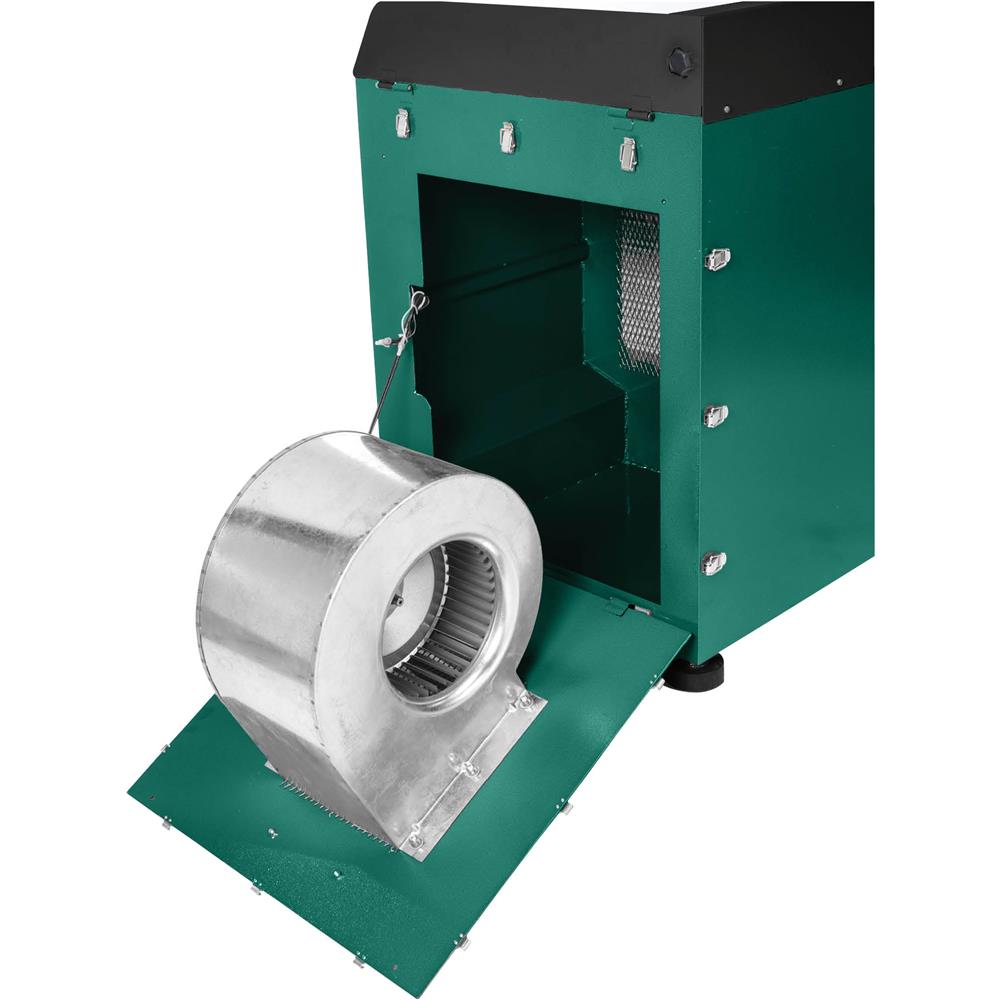

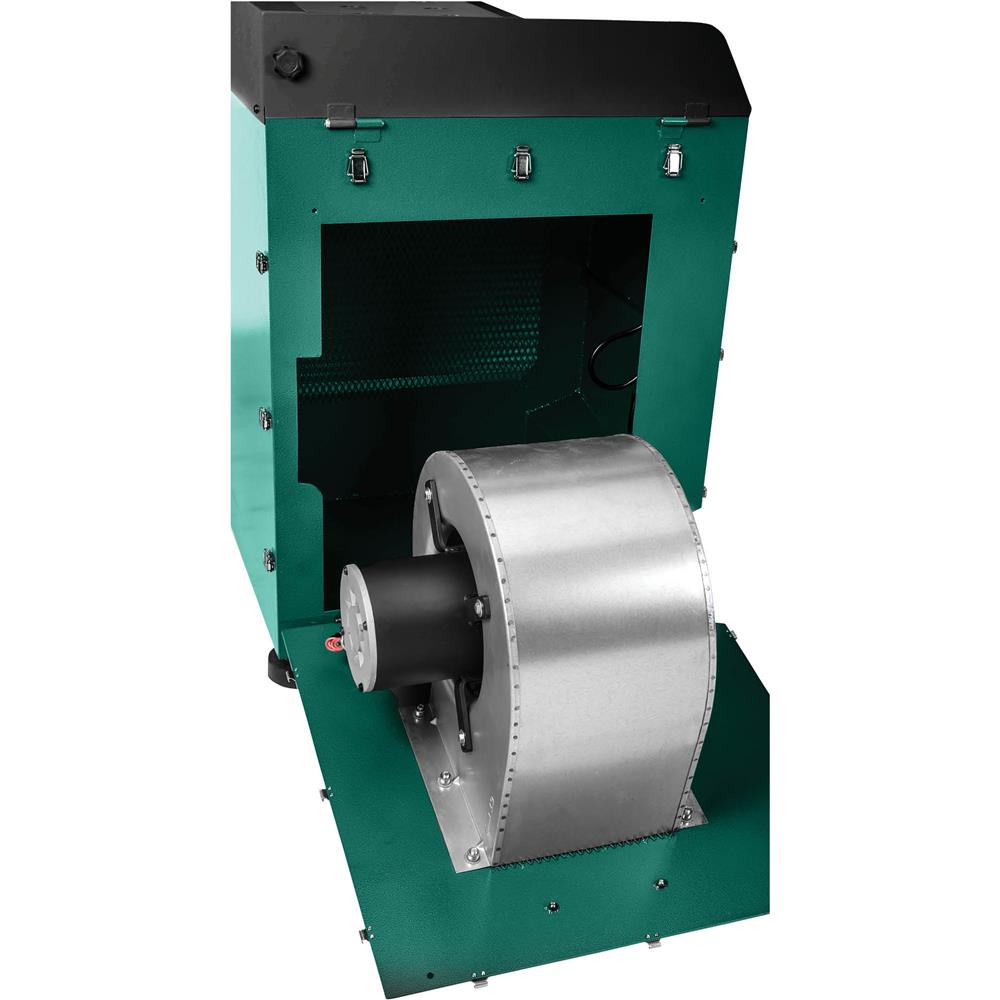

- Dual 9-1/2" x 7" squirrel cage fans
- Durable powder-coated finish
- Quiet operation

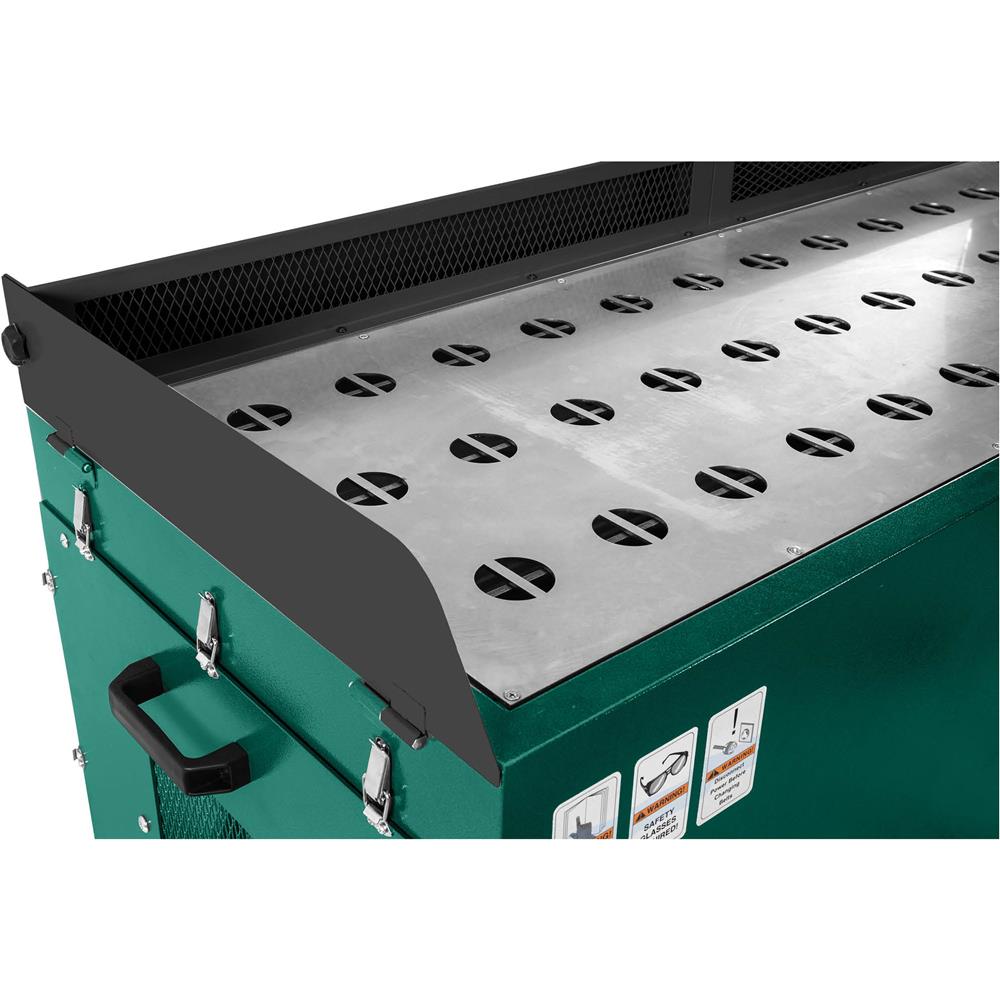

- 1/8" thick steel table inserts
- Adjustable, vibration-dampening rubber feet

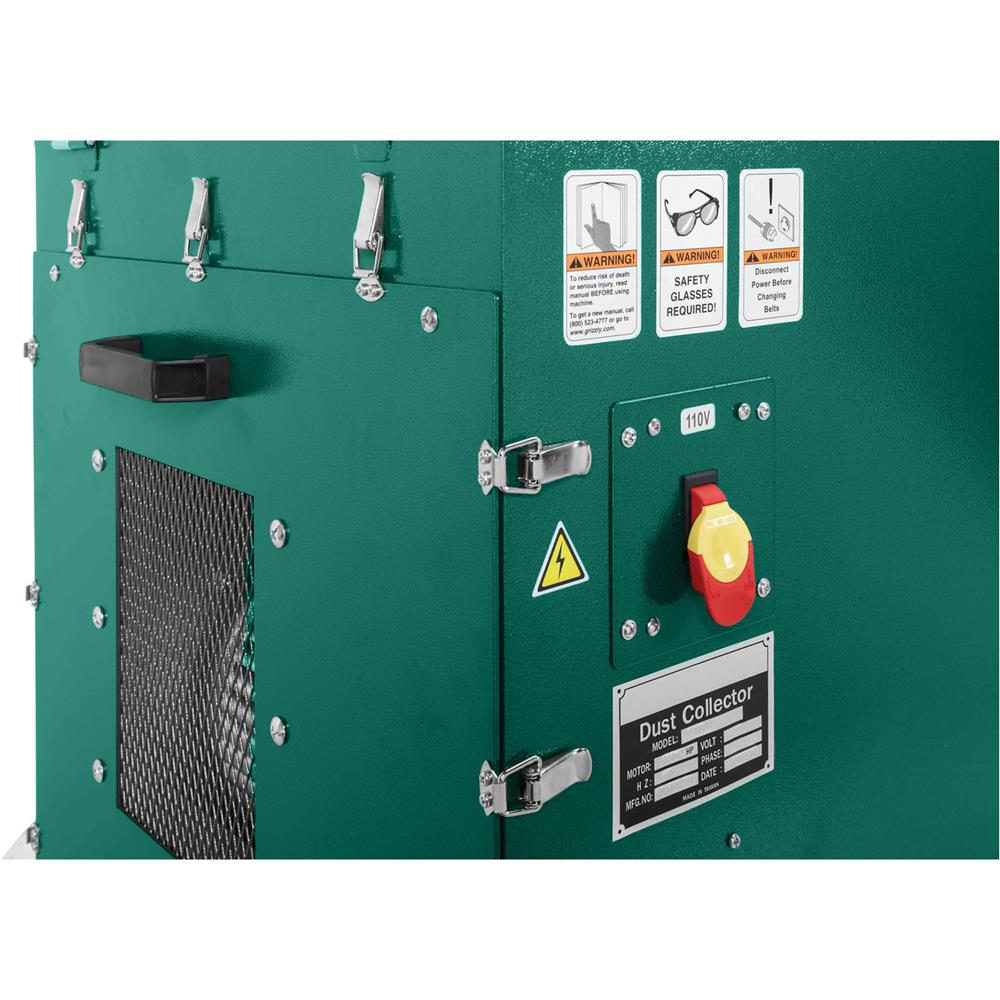

- Paddle safety switch with removable key
Specifications
| Motors | 3/4 HP, 110V, single-phase, 6A (x2) |
|---|---|
| Airflow rating | 3700 CFM total |
| Filter micron | 200 |
| Impeller size | 9-1/2" x 7" squirrel cage (x2) |
| Inlet hole diameter | 8" |
| Outlet size | 10" x 8" |
| Number of filters | 4 |
| Filter size | 20" x 16" x 1" |
| Table dimensions | 23-5/8" x 61-3/8" |
| Floor to table height | 29-1/2" |
|---|---|
| Table load capacity | 440 lbs. |
| Tray dimensions | 2@ 11" W x 19" L x 3-1/2" H |
| Footprint size | 21" W x 62" L |
| Overall size | 65" W x 24" D x 33-1/2" H |
| Approximate shipping weight | 349 lbs. |
Warranty
This item comes with a 1 year factory warranty.
