Grizzly G0784 Metal Drill Press 15" Heavy-Duty Floor Drill Press New
Product Overview
The Grizzly G0784 is a 15-inch heavy-duty floor drill press built for precise drilling in metal, wood, and plastic. Powered by a 2 HP, 220V motor, it offers 12 spindle speeds from 140 to 2436 RPM and a drilling capacity up to 1-1/8 inch in mild steel, making it a strong fit for demanding shop work.
This machine is designed for accuracy and flexibility, with both coarse and fine downfeed controls, a micrometer collar graduated in 0.01-inch increments, and an R-8 spindle taper for expanded tooling options. The precision-ground cast-iron table rotates 360 degrees, tilts 60 degrees left or right, and provides generous vertical travel for positioning larger or more complex workpieces.
With solid cast-iron construction, a forward/reverse switch, and precision-ground work surfaces on both the table and base, this floor model is well suited for machinists, fabrication shops, maintenance departments, and serious home workshops that need dependable performance and versatile setup capability.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

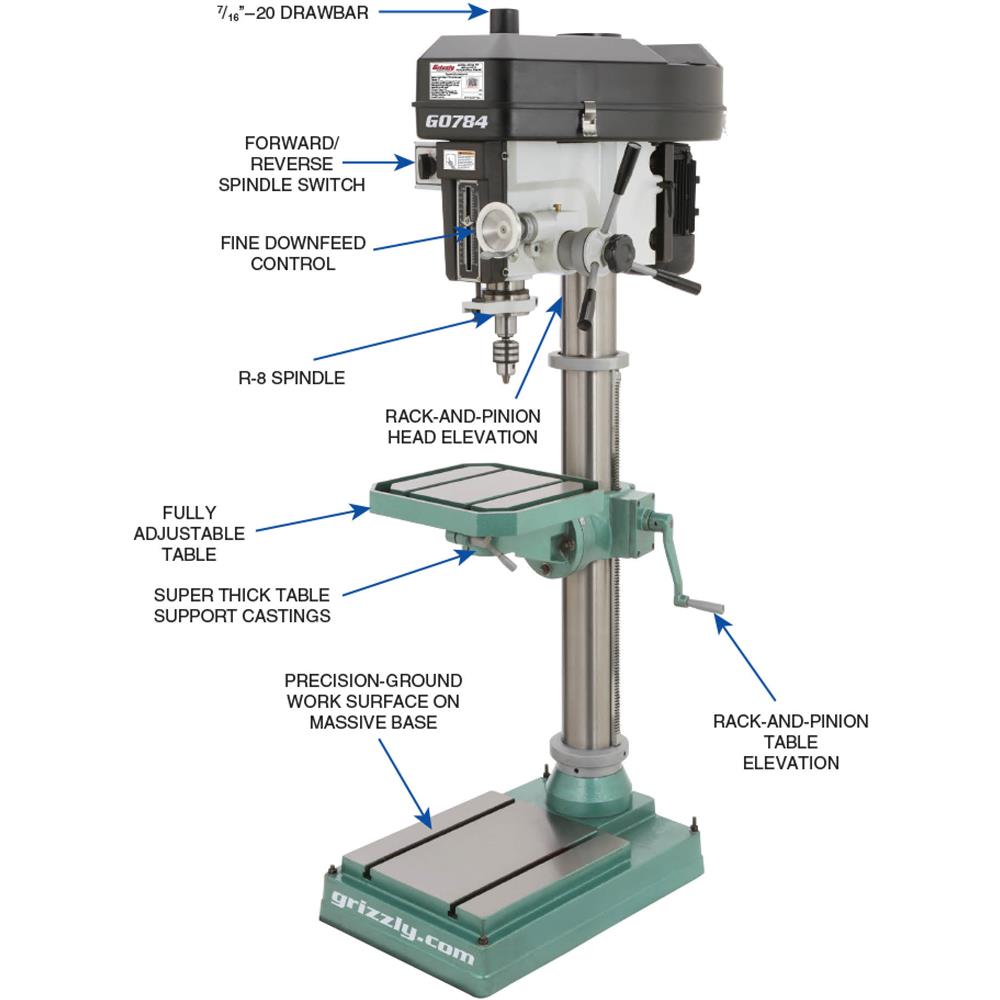

Features
- Solid cast-iron construction
- Fine downfeed control with 0.01" increments and zero set

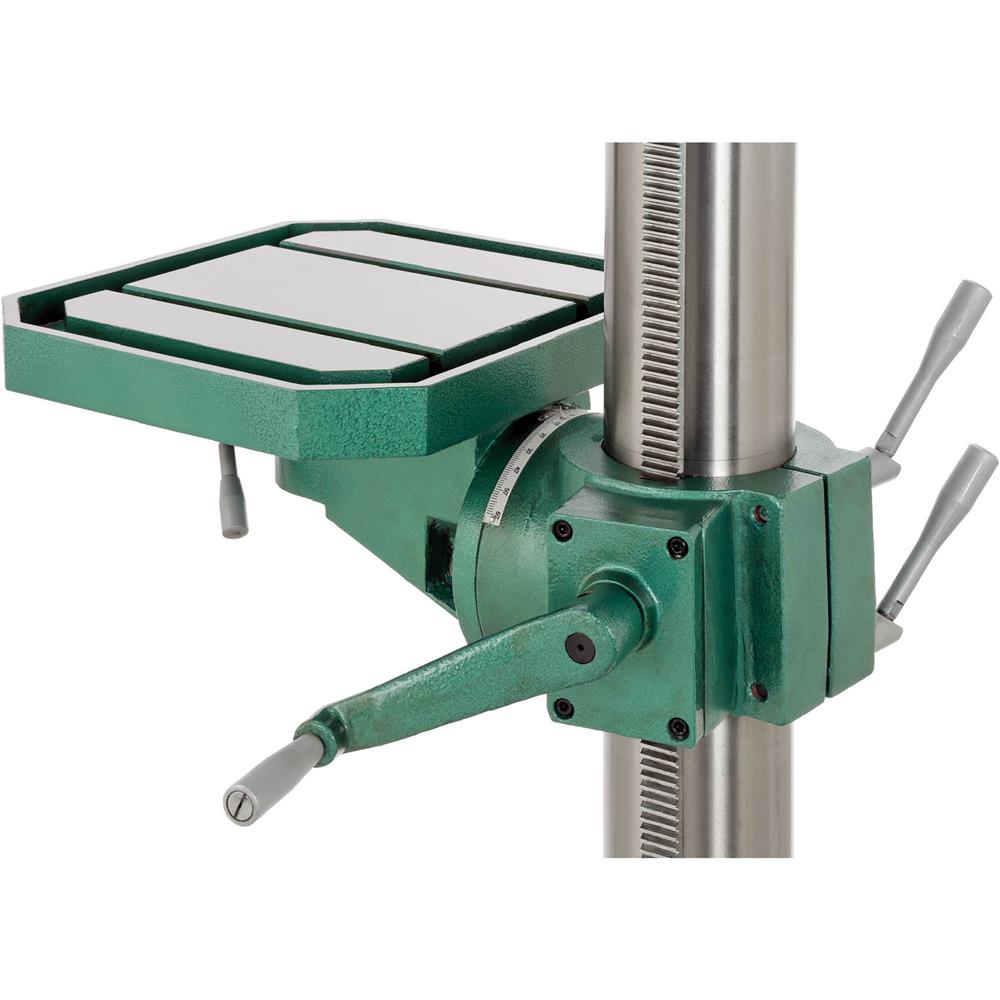

- Precision-ground cast-iron table
- 360° table positioning around column
- 360° head positioning around column
- Base has precision-ground, cast-iron work surface with two 1/2" T-slots
- Forward/reverse switch
Specifications

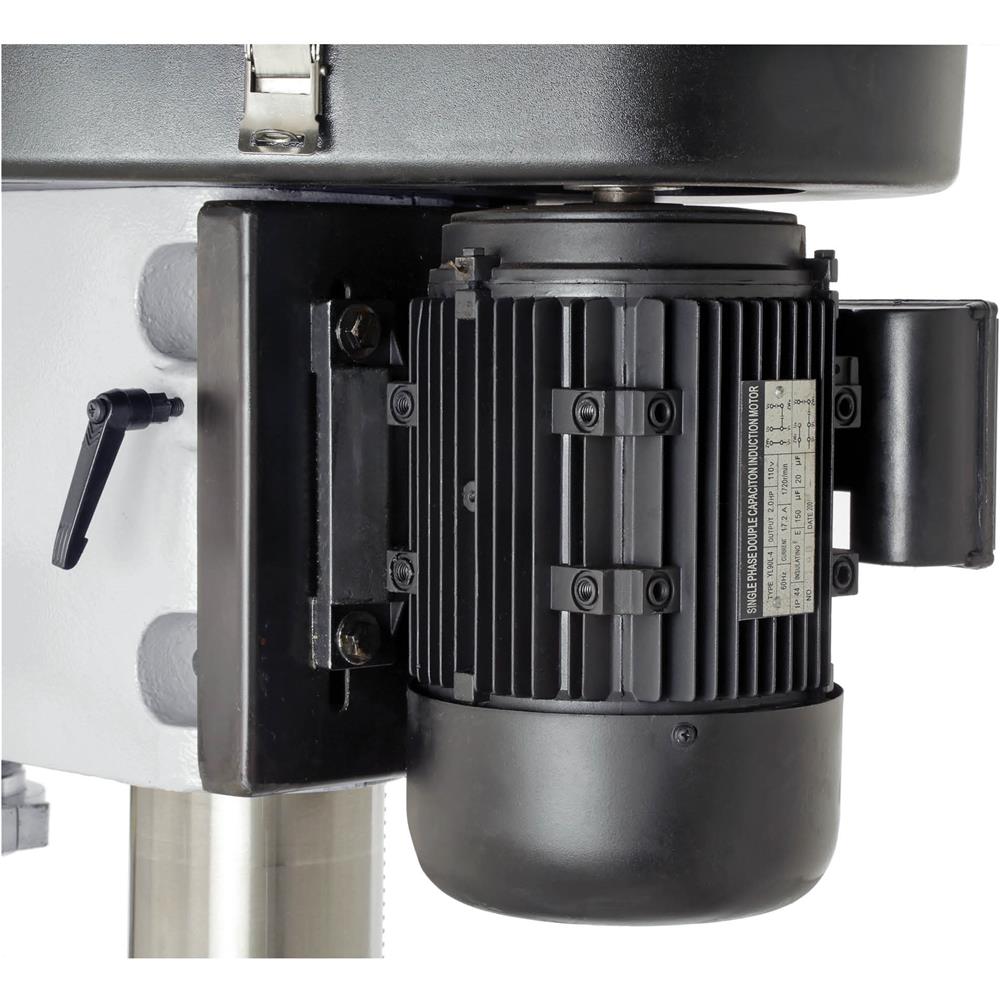

| Motor | 2 HP, 220V, single-phase, 8.6A |
| Swing | 15" |
| Drill chuck | 1/64"–1/2", B16 |
| Drilling capacity | 1-1/8" mild steel |
| Spindle taper | R-8 |
| Spindle travel | 4-5/8" |
| Spindle speeds | 12, 140—2436 RPM |
| Maximum movement of head | 7-13/16" |
| Table size | 14" x 15" |
| Table swing | 360° |
| Table tilt | 60° L/R |
| Table T-slots | 2, 1/2" |
| Vertical table travel | 23-1/2" |
| Column diameter | 4-1/2" |
| Footprint | 18" W x 26" D |
| Overall dimensions | 23" W x 35-1/2" D x 67" H |
| Approximate shipping weight | 772 lbs. |
Warranty
This item comes with a 1 year factory warranty.
