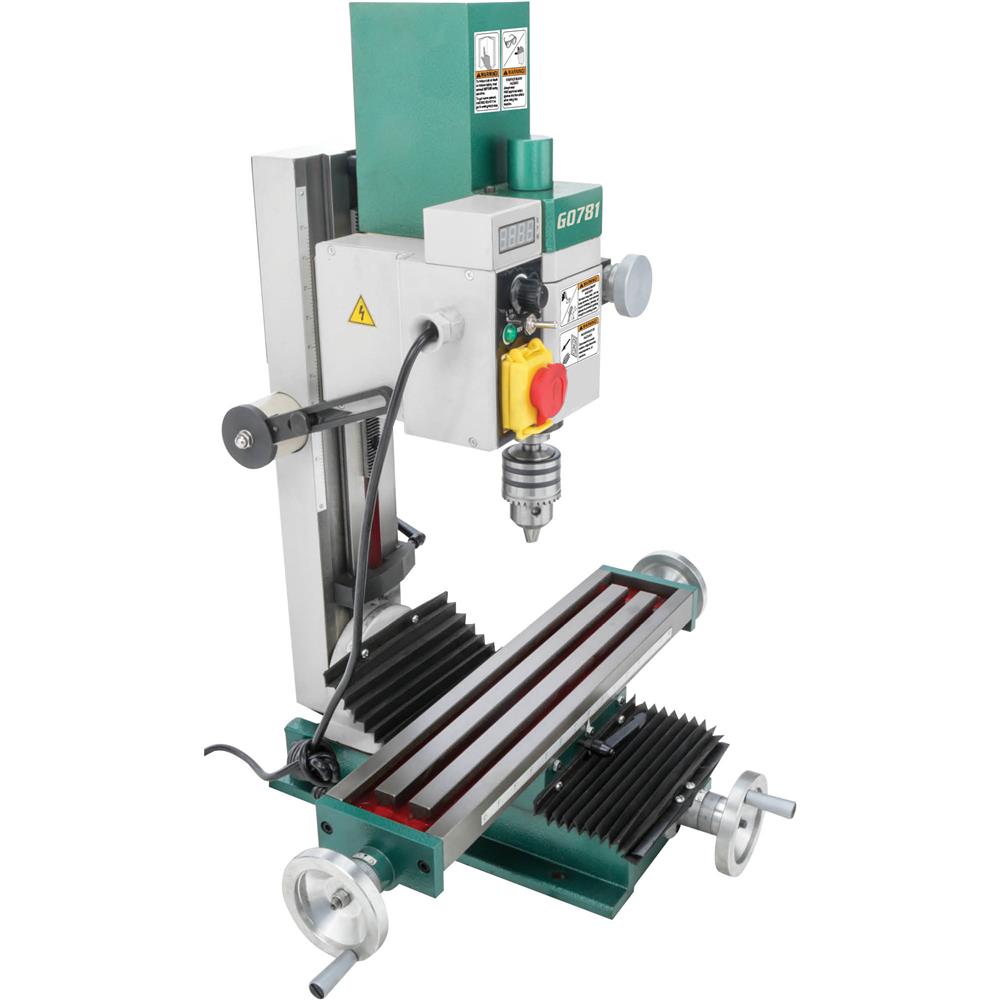

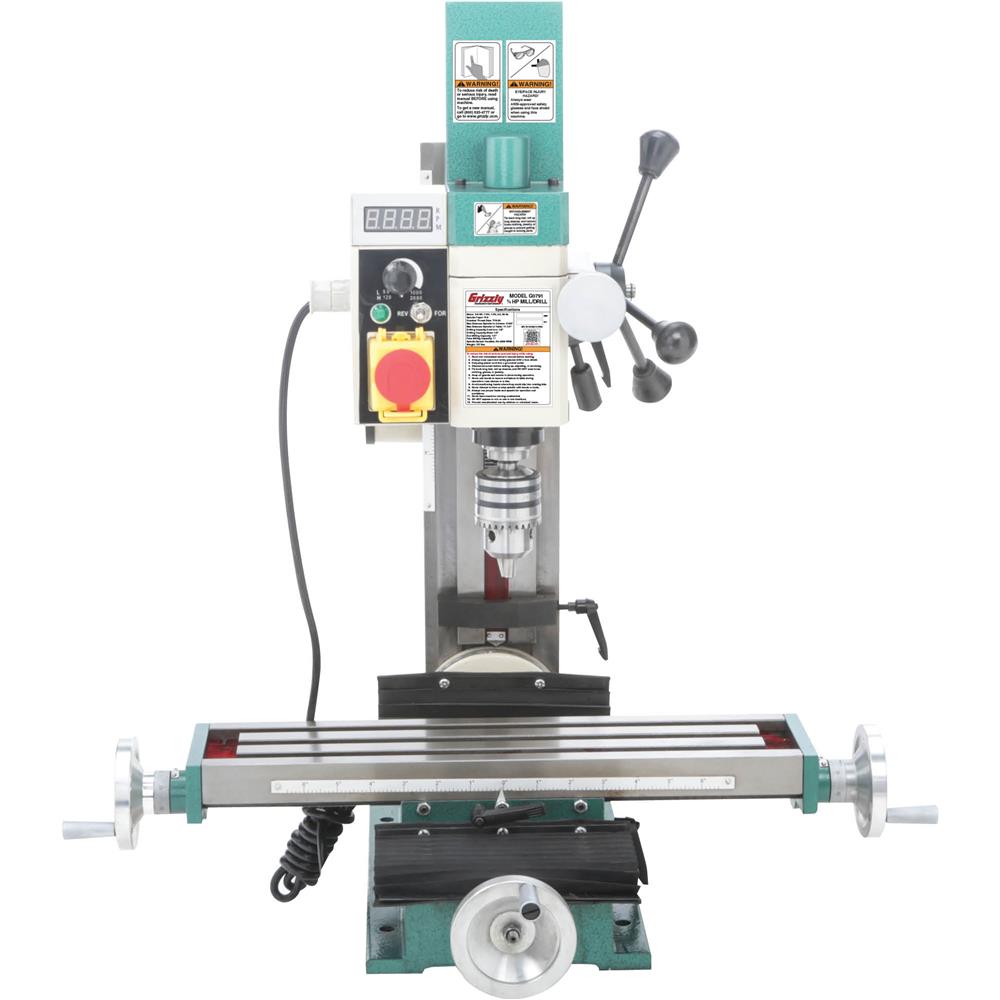

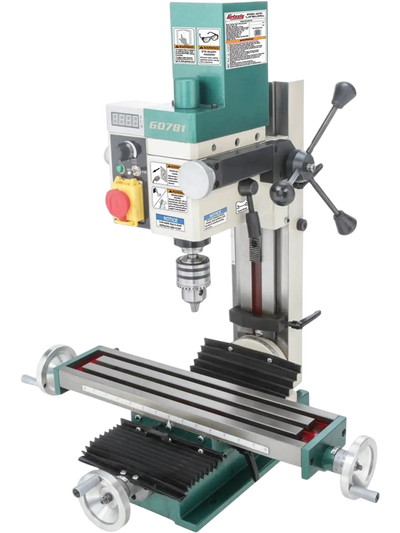

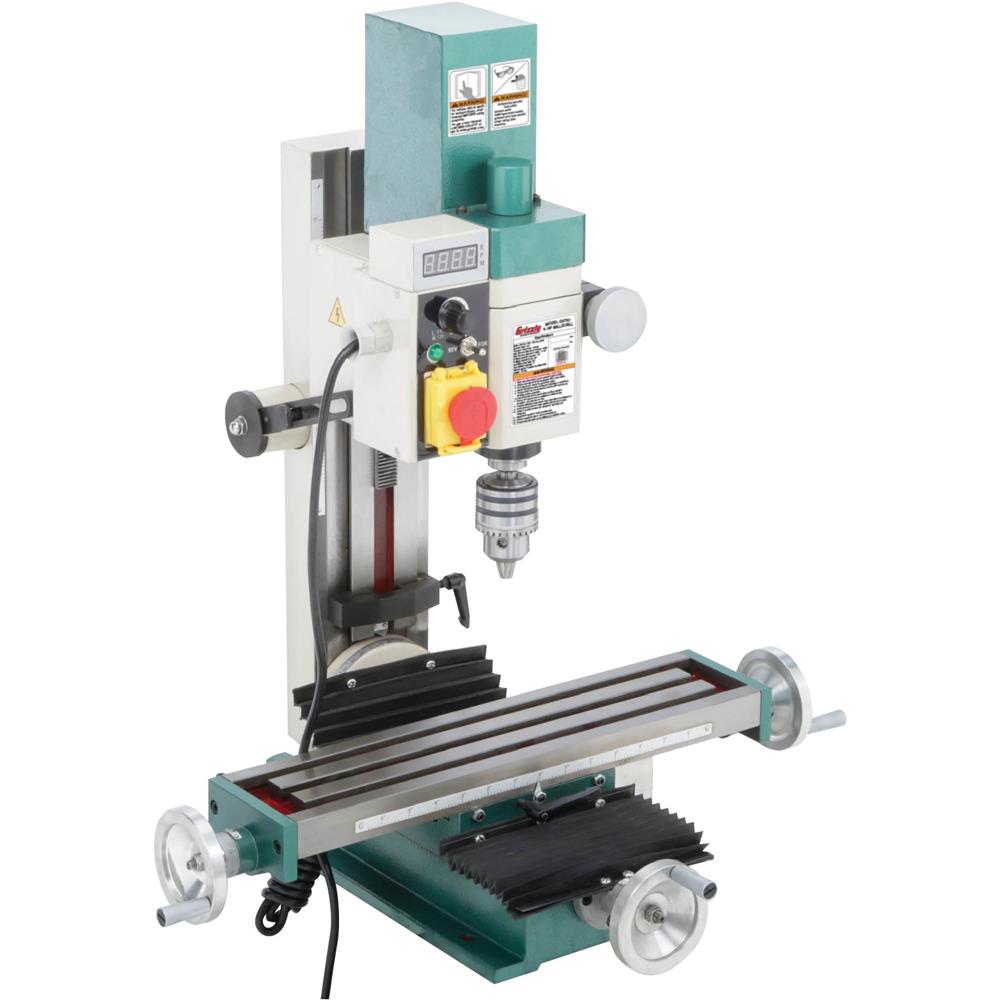

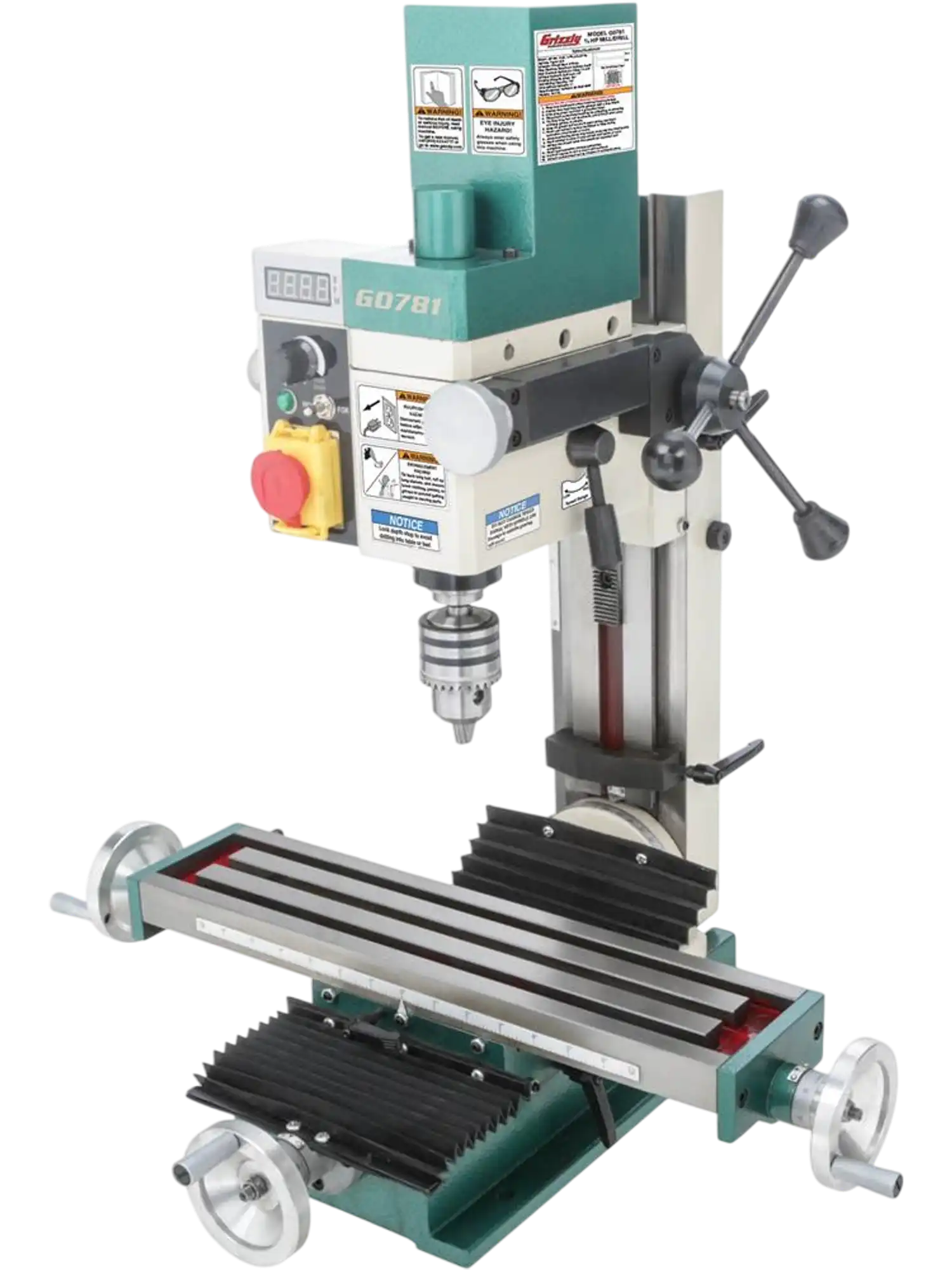

Grizzly G0781 Mill Drill 4" x 18" 3/4 HP New
Product Overview
The Grizzly G0781 is a compact benchtop mill/drill designed for drilling, end milling, and face milling in a small shop footprint. With a 3/4 HP motor, R-8 spindle, and variable speed ranges from 50 to 2000 RPM, it delivers the versatility needed for a wide range of metalworking tasks.

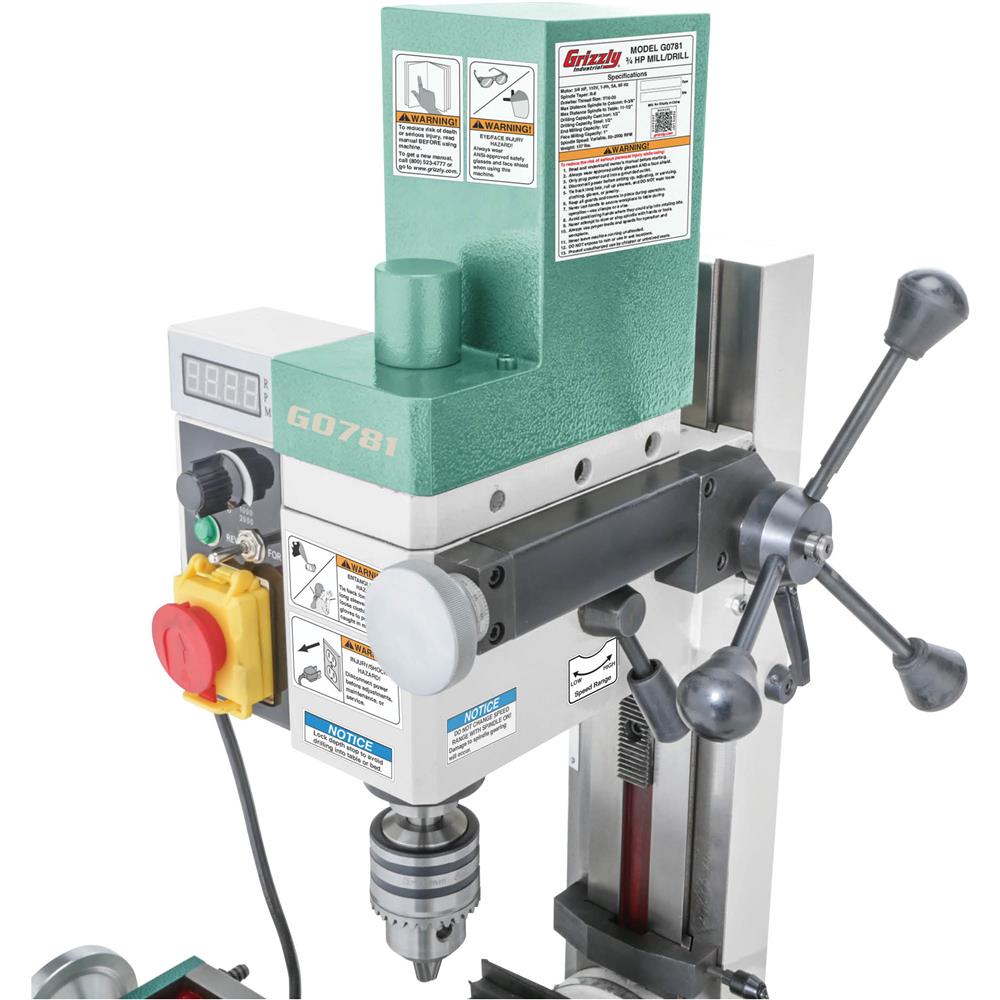

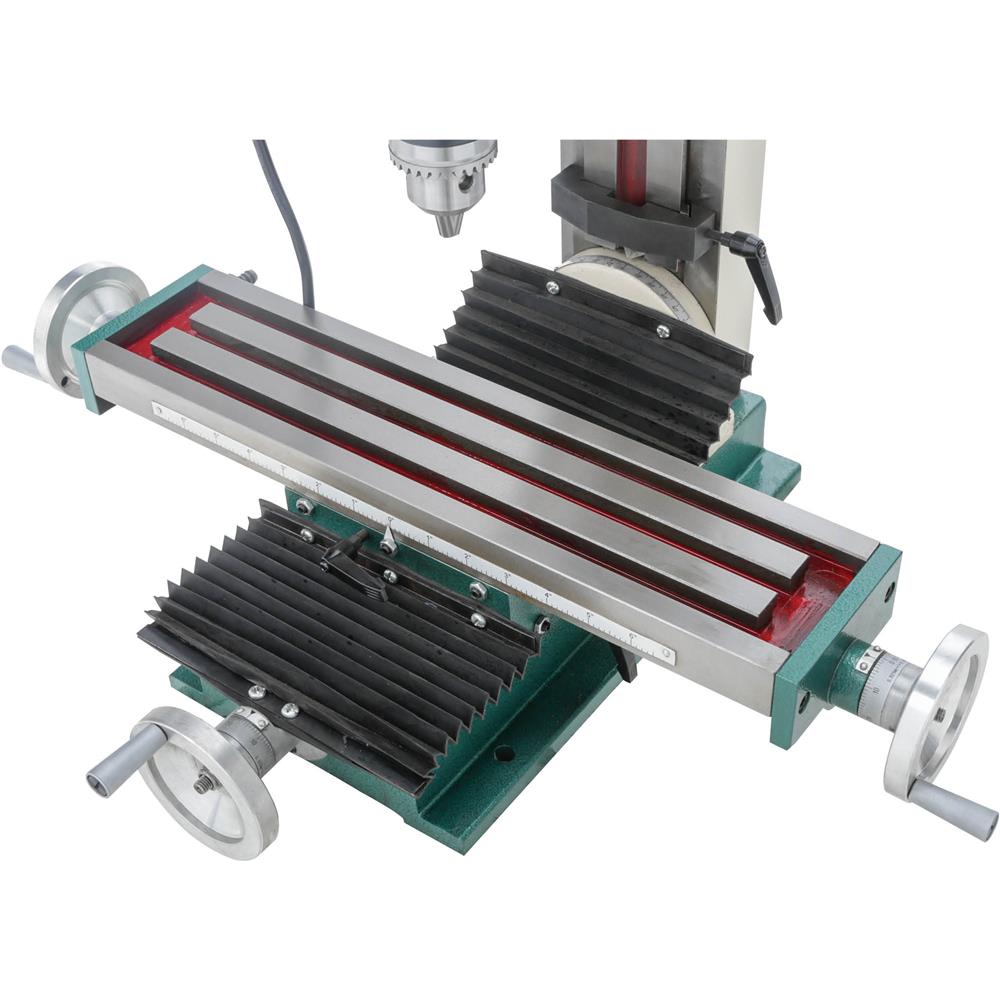

This machine features a 4-1/4" x 18" table, fine downfeed control, a digital readout display, and a high/low geared drive for quick speed changes. The head moves up and down the column and tilts 45 degrees left or right, making it easier to handle angled cuts, precise drilling, and detailed machining work.
Ideal for hobbyists, home machinists, and small fabrication or repair shops, this mill/drill offers solid capability in a space-saving size. It is a practical choice for users who want accurate control and useful milling features without moving up to a full-size machine.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

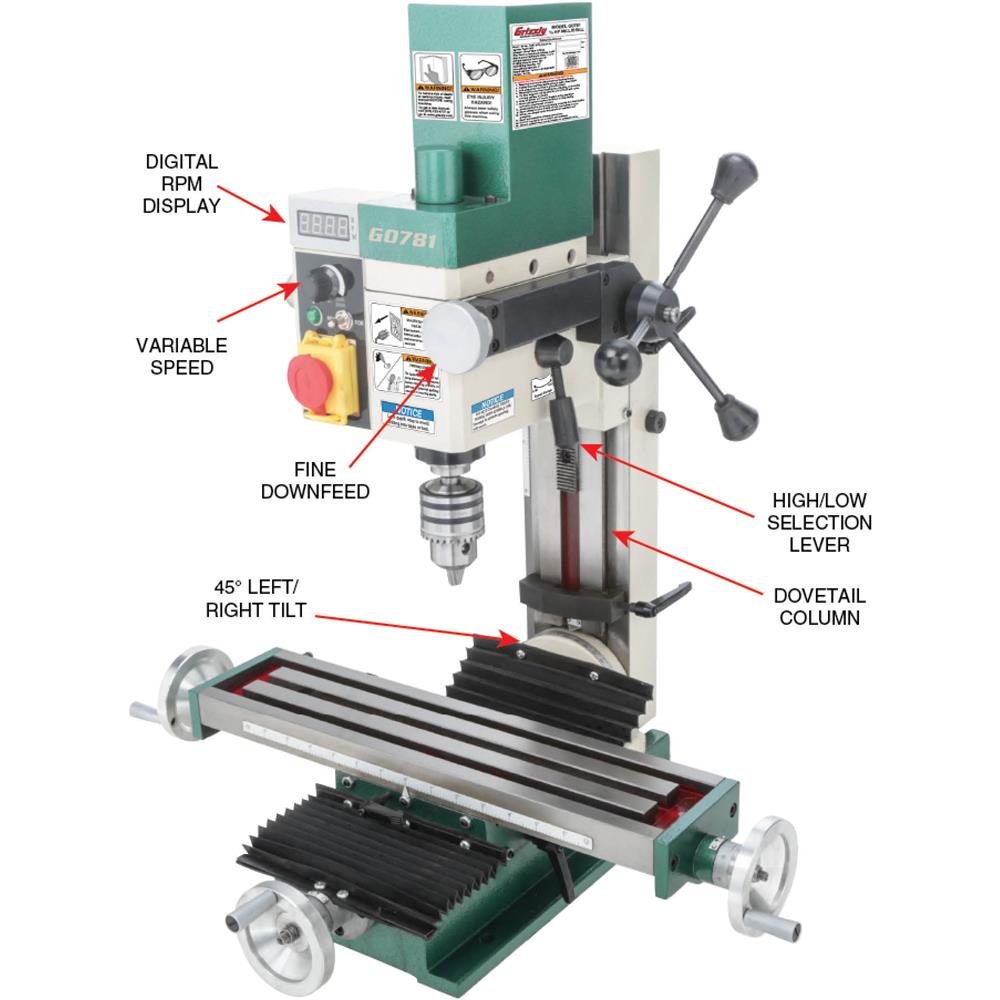

Features
- Fine downfeed control
- High/low geared drive
- Digital readout display
- Adjustable depth stop
- Rubber chip guards on ways
- Precision-ground dovetail column
- R-8 spindle
- 3–16mm JT3 drill chuck
- Safety shut-off button
Specifications
| Motor | 3/4 HP, 110V, single-phase, 5A |
| Spindle taper | R-8 |
| Spindle speeds | Variable, 50–1000 and 100–2000 RPM |
| Max distance spindle-to-column | 6-3/8" |
| Max distance spindle-to-table | 11-1/2" |
| Drilling capacity | 1/2" mild steel |
| End milling capacity | 1/2" |
| Face milling capacity | 1" |
| Head travel | 7-1/16" |
| Column tilt | 45° left/right |
| Table size | 4-1/4" x 18" |
| T-slots | 3 @ 1-1/4" centers, 7/16" wide |
| Table travel (longitudinal) | 11-13/16" |
| Table travel (cross) | 5-1/8" |
| Footprint | 14-1/2" x 8-1/2" |
| Overall size | 26-1/2" W x 20-1/2" D x 31" H |
| Approximate shipping weight | 167 lbs. |
Warranty
This item comes with a 1 year factory warranty.
