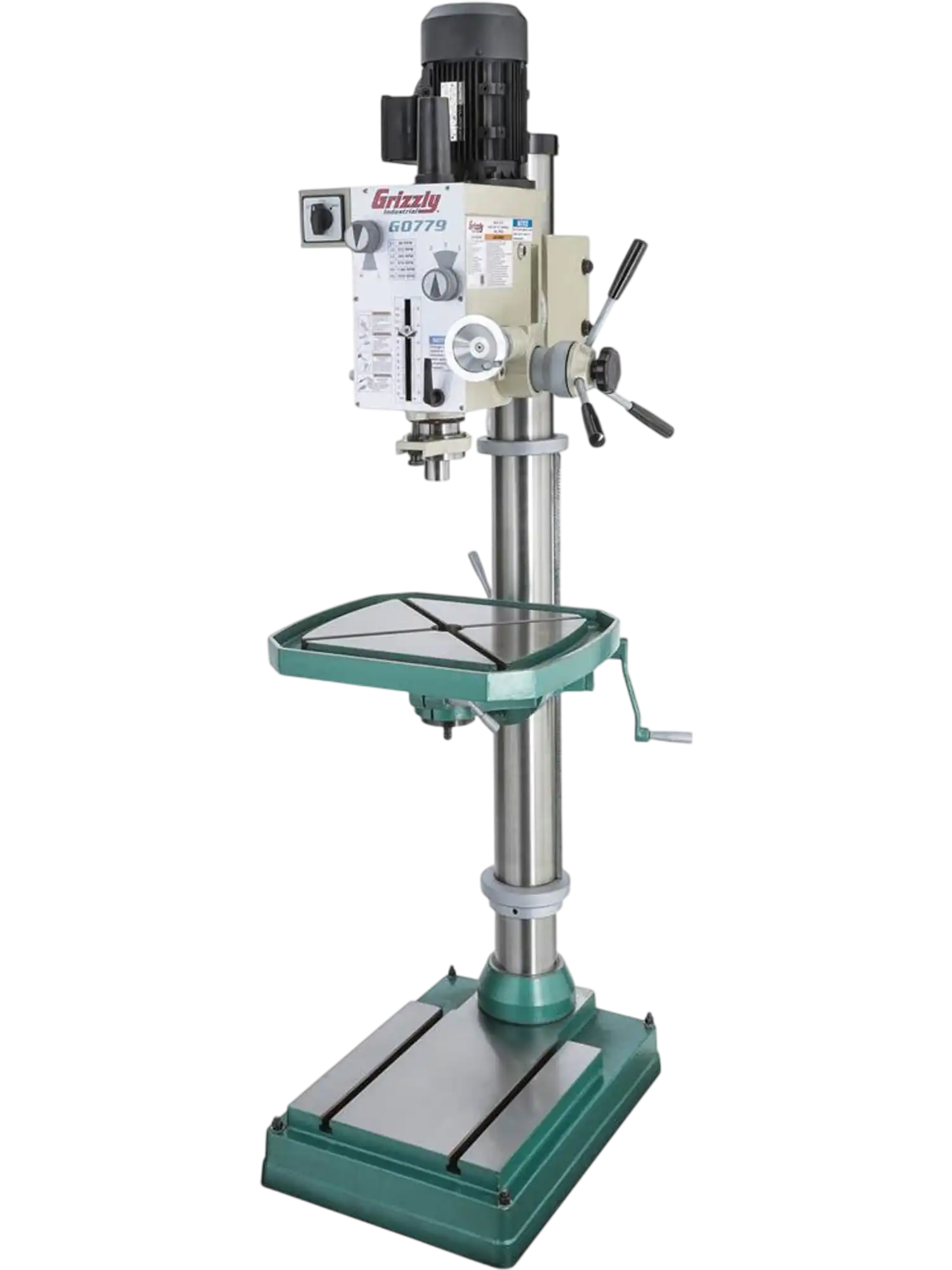

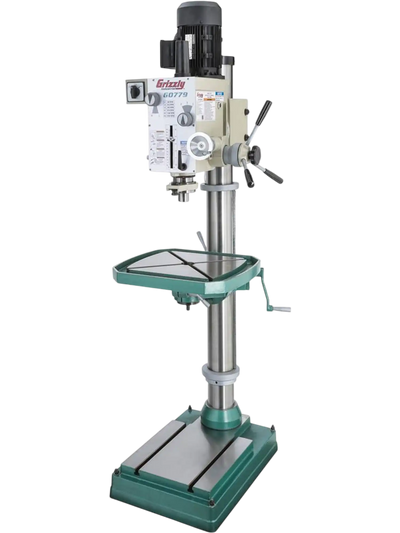

Grizzly G0779 Floor Gearhead Drill Press 23-3/8" Heavy-Duty New
Product Overview
The Grizzly G0779 is a heavy-duty floor gearhead drill press built for demanding metal drilling applications. With a 23-3/8" swing, 5" spindle travel, and a 2 HP motor, it is designed to handle larger holes and tougher materials than many belt-driven machines.

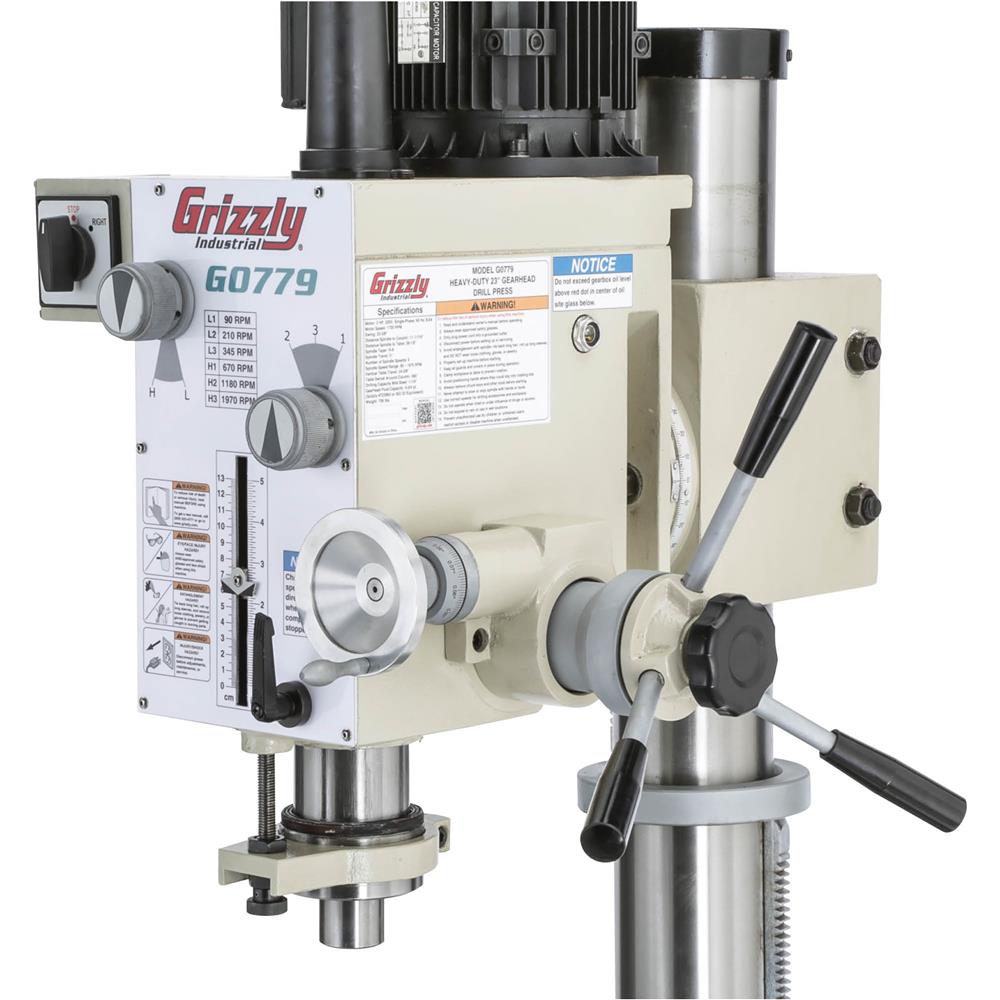

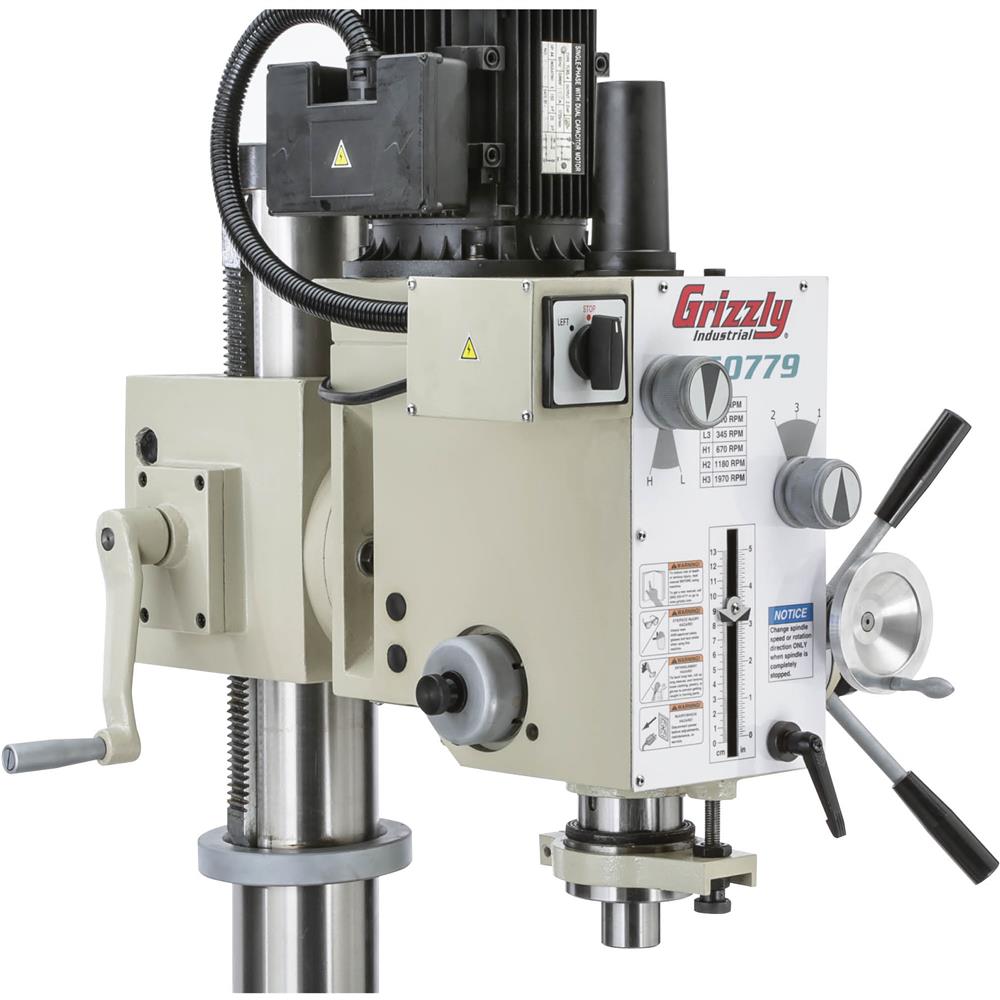

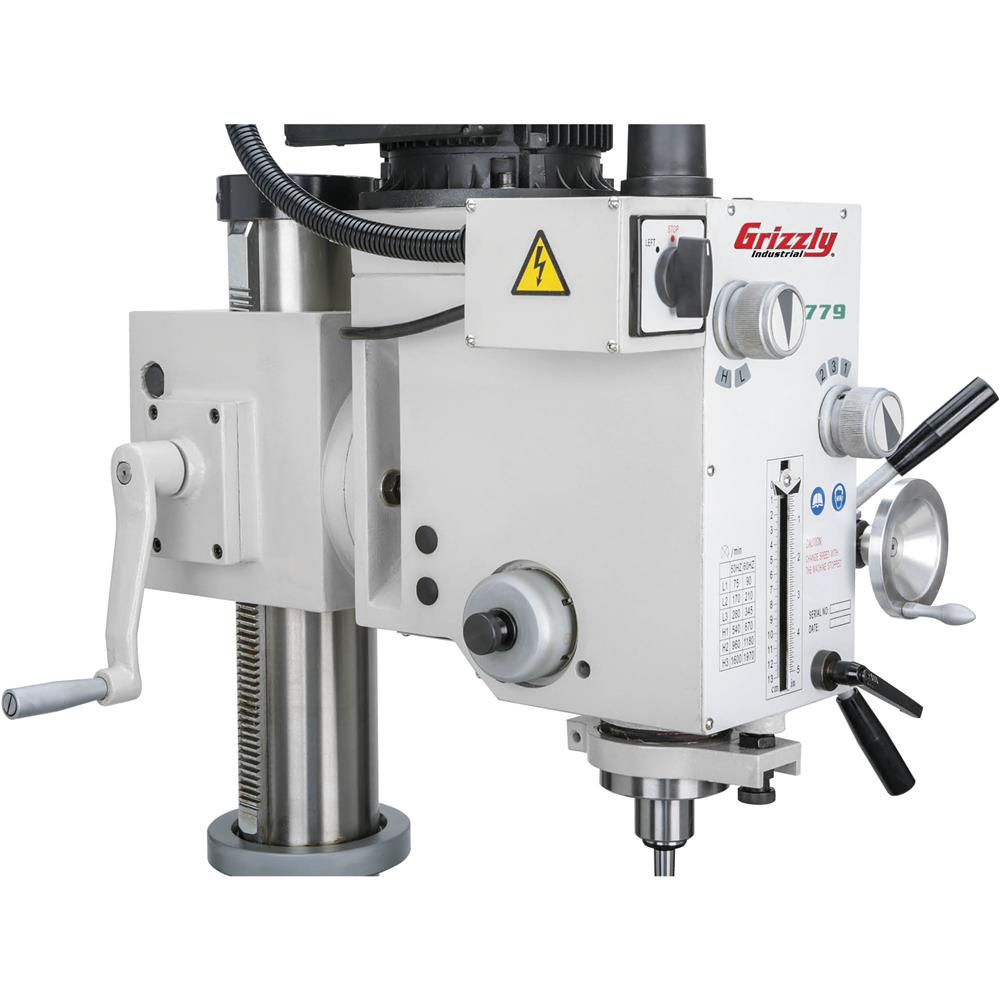

Its gearhead design offers six quick-change spindle speeds from 90 to 1970 RPM, making it easy to match speed to the job. The machine also features forward and reverse operation, an R-8 spindle taper, and both coarse and fine downfeed controls for improved accuracy and versatility.
This model is a strong fit for machine shops, fabrication environments, and serious metalworking users who need flexible positioning and solid capacity. The tilting, swiveling head and table, along with T-slots on both the table and base, help support a wide range of drilling setups.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- R-8 spindle
- 1/64"–1/2" drill chuck
- 360° table positioning around column

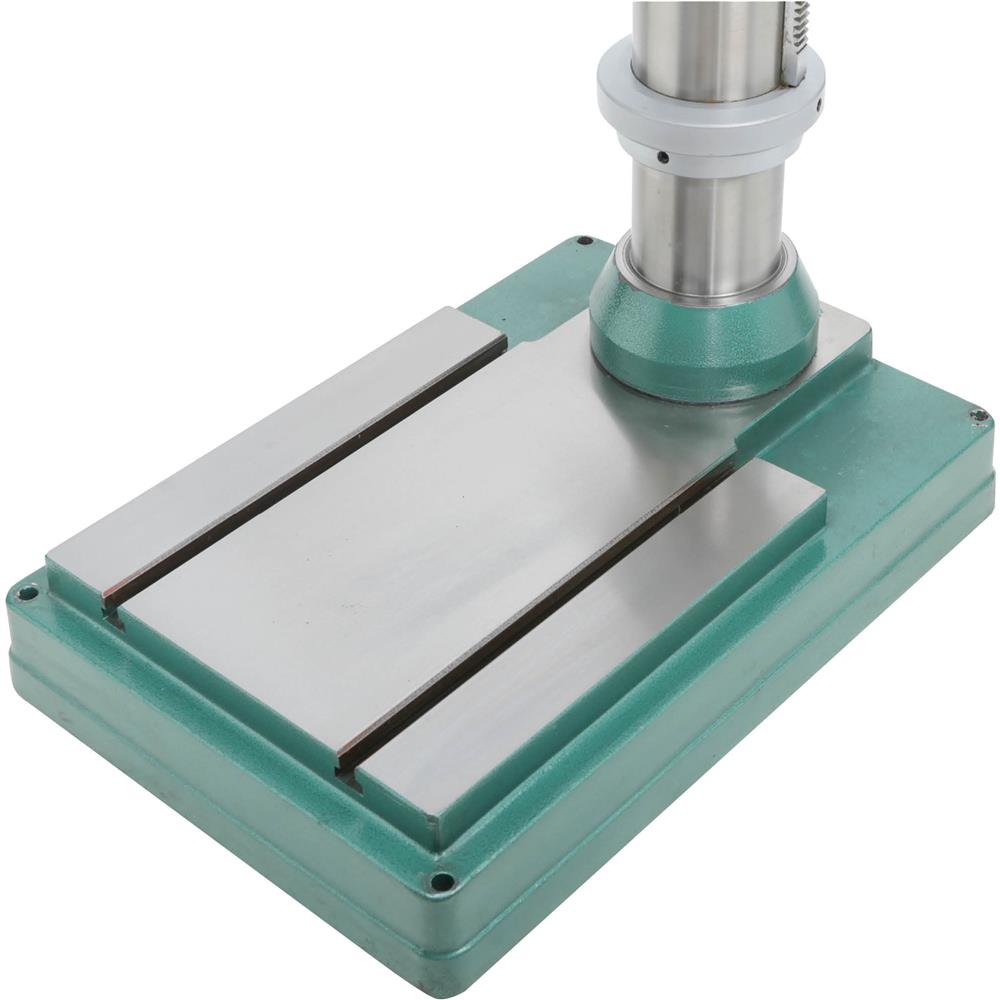

- Precision-ground base with 1/2" T-slots

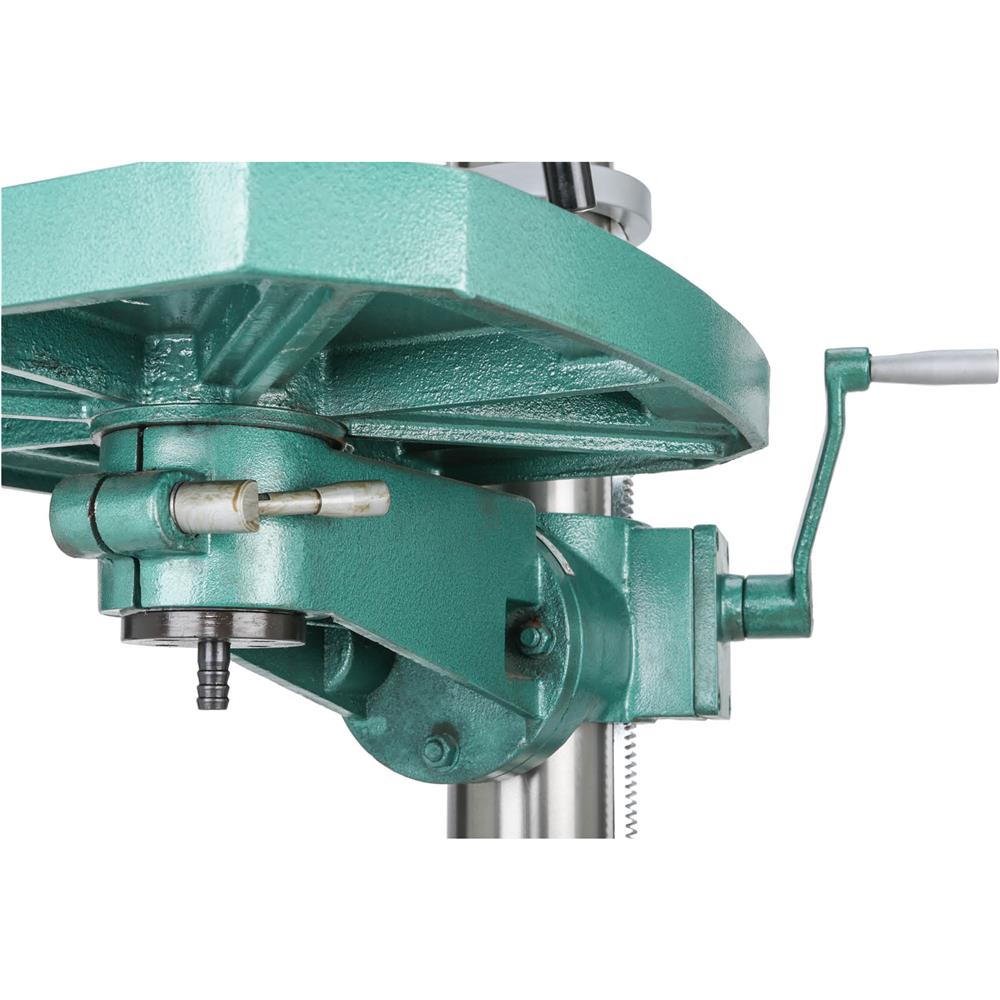

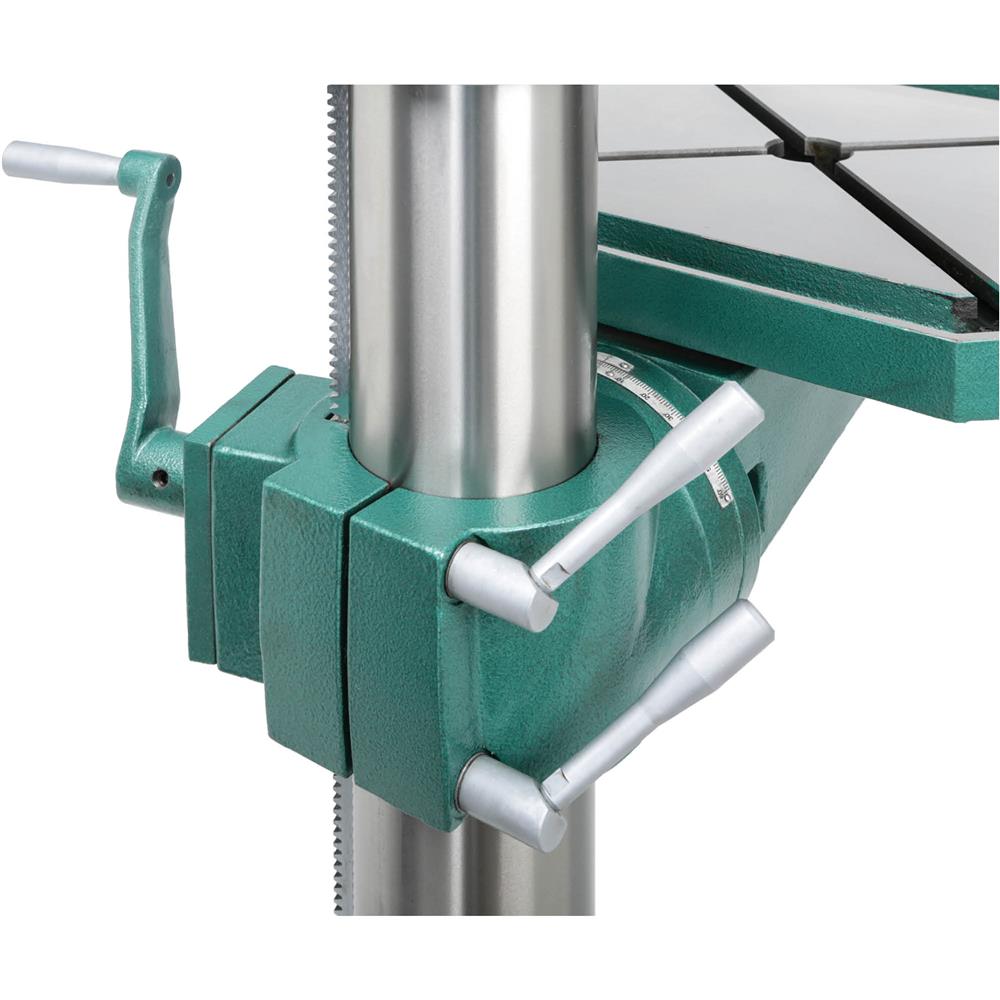

- Crank handle operated rack-and-pinion vertical table and head movement

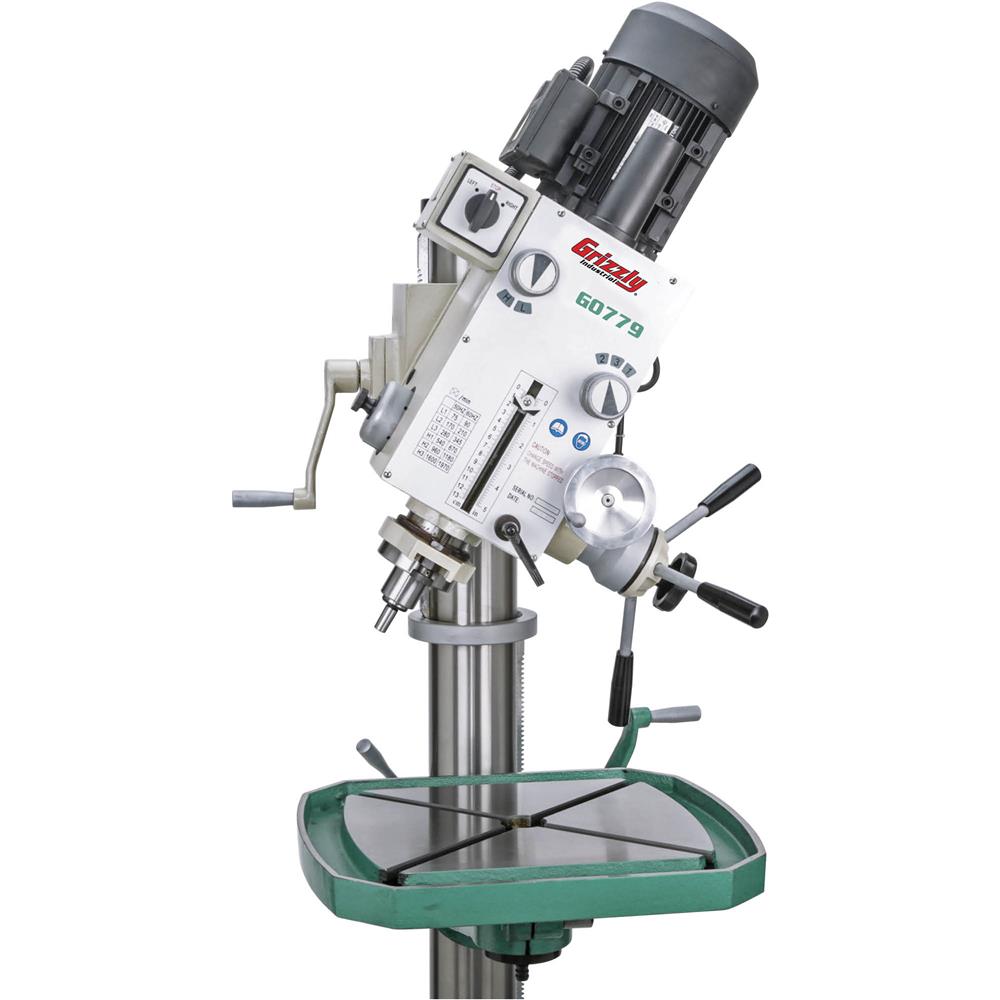

- Head tilts 90° right and left
Specifications
| Motor | 2 HP, 220V, single-phase, 8.6A |
| Swing | 23-3/8" |
| Spindle taper | R-8 |
| Spindle travel | 5" |
| Spindle speeds | (6), 90–1970 RPM |
| Drill chuck | 1–13mm, B16 |
| Drilling capacity | 1-1/4" mild steel |
| Head tilt | 90° L/R |
| Head swivel | 360° |
| Max. distance spindle to column | 11-11/16" |
| Max. distance spindle to table | 26-1/2" |
| Max. distance spindle to base | 44-3/16" |
| Table dimensions | 18" x 19-5/8" |
| Quill diameter | 2-15/16" |
| Drawbar threads | 7-16"-20 |
| Drawbar length | 17-3/4" |
| Table tilt | 60° L/R |
| Table swivel around center and column | 360° |
| Vertical table travel | 24-3/8" |
| T-slots size | 1/2" (4 on table, 2 on base) |
| Footprint | 18" x 26" |
| Overall dimensions | 25" W x 33" D x 80" H |
| Approximate shipping weight | 786 lbs. |
Warranty
This item comes with a 1 year factory warranty.
