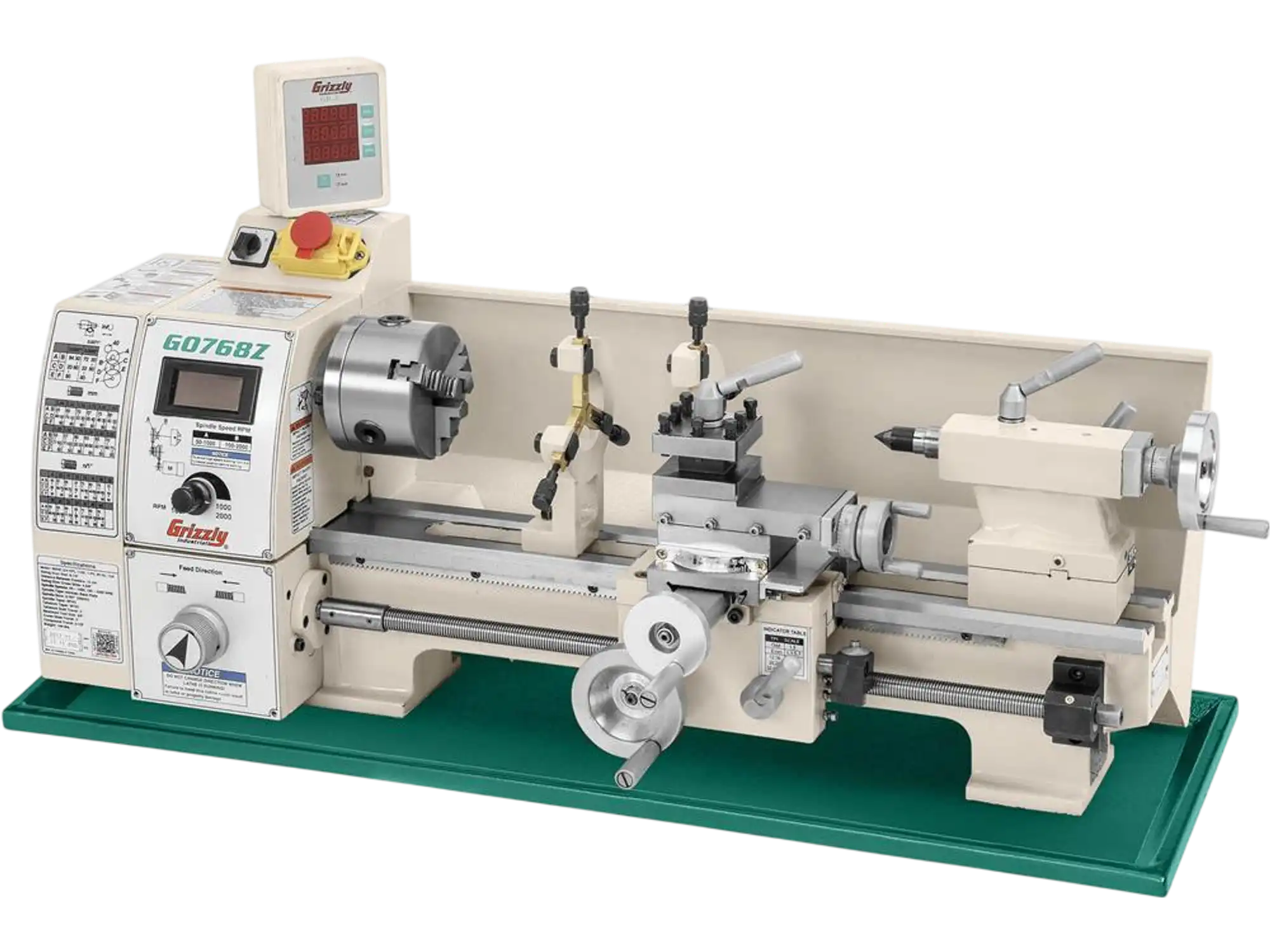

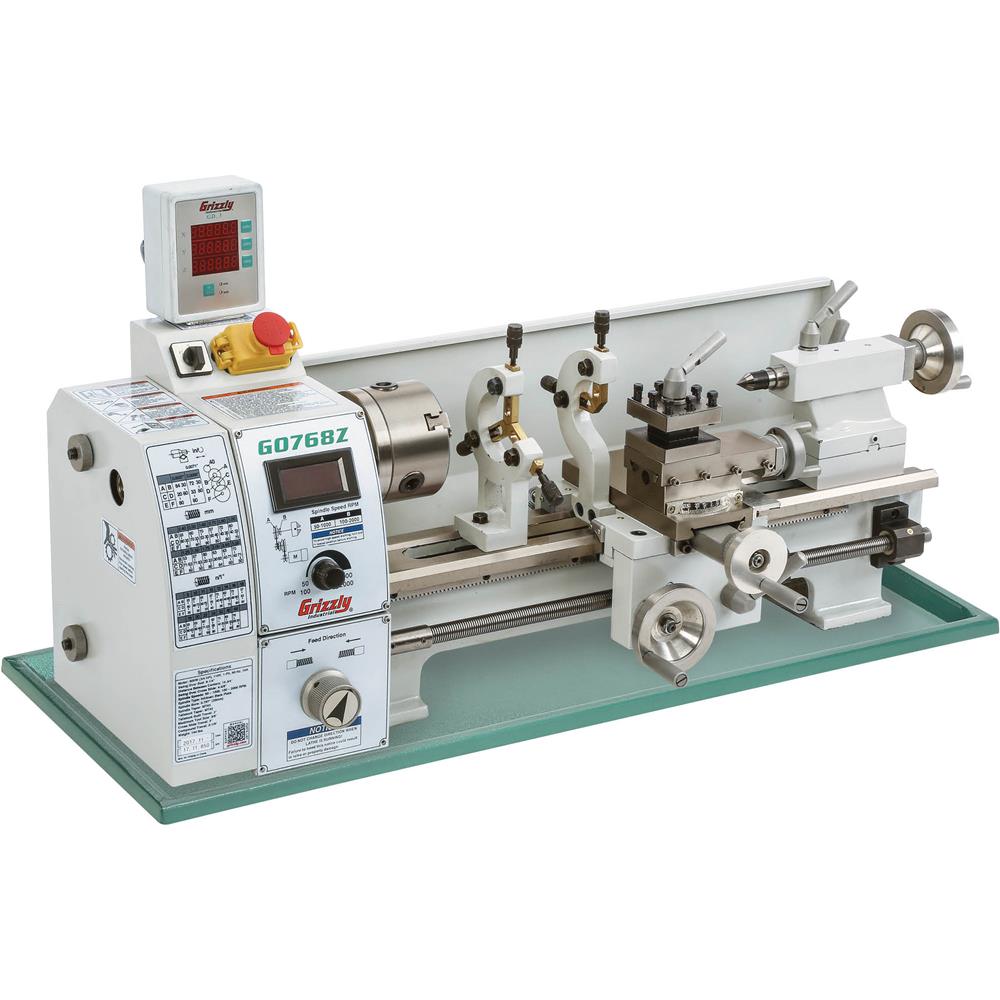

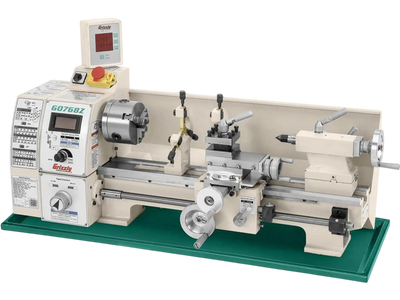

Grizzly G0768Z Benchtop Metal Lathe 8" x 16" Variable-Speed with DRO New
Product Overview
The Grizzly G0768Z is a compact 8" x 16" benchtop metal lathe built for precise turning, threading, and part-making in a small workshop footprint. Its electronic variable-speed spindle control, high and low speed ranges, and digital RPM readout make it easy to dial in the right cutting speed for a wide range of metalworking tasks.

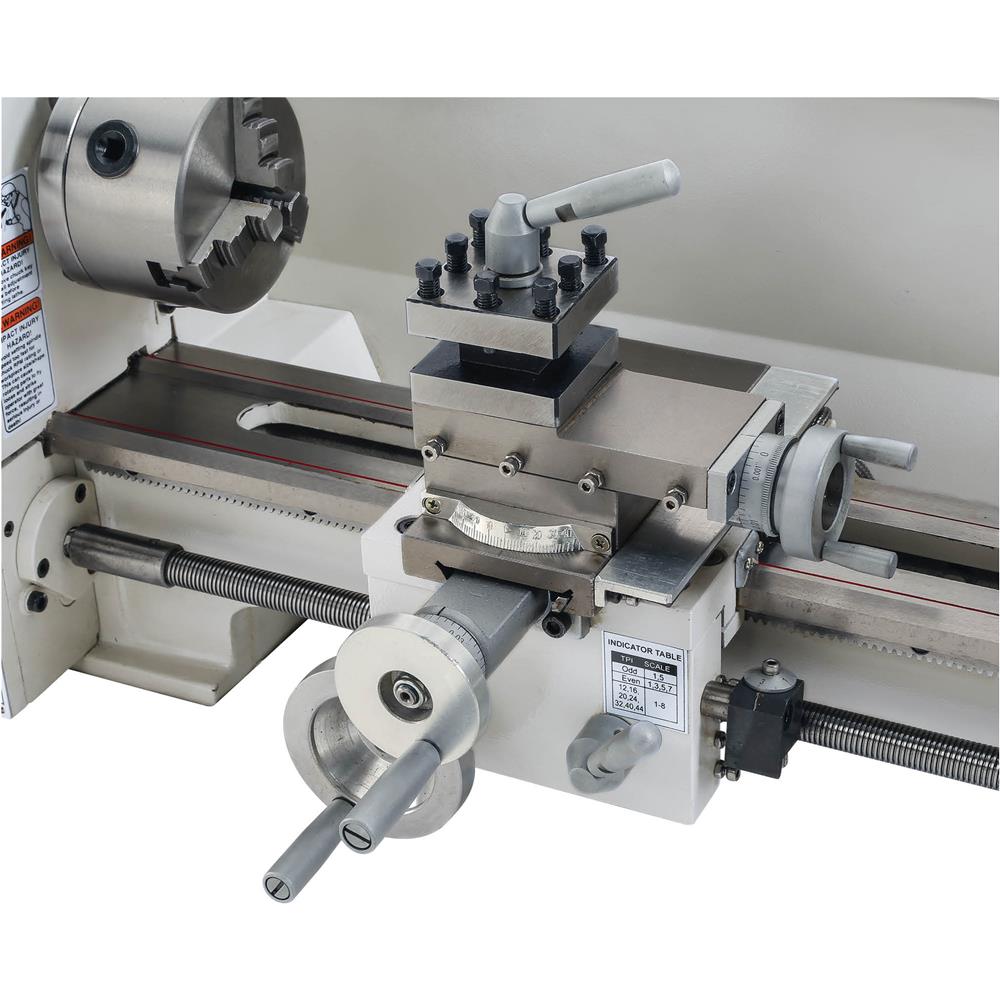

A magnetically mounted X/Z-axis DRO helps you track cross slide and carriage travel for more accurate, repeatable results. The quick-lock tailstock, reverse feed for left-hand threading, thread dial indicator, chip tray, and backsplash guard add convenience and control for detailed machining work.
This lathe is well suited for hobby machinists, home shop users, and light-duty professional work where bench space is limited but precision still matters. It also comes equipped with useful accessories, including 3-jaw and 4-jaw chucks, a faceplate, rests, a turret tool post, and service tools to support a broad range of projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

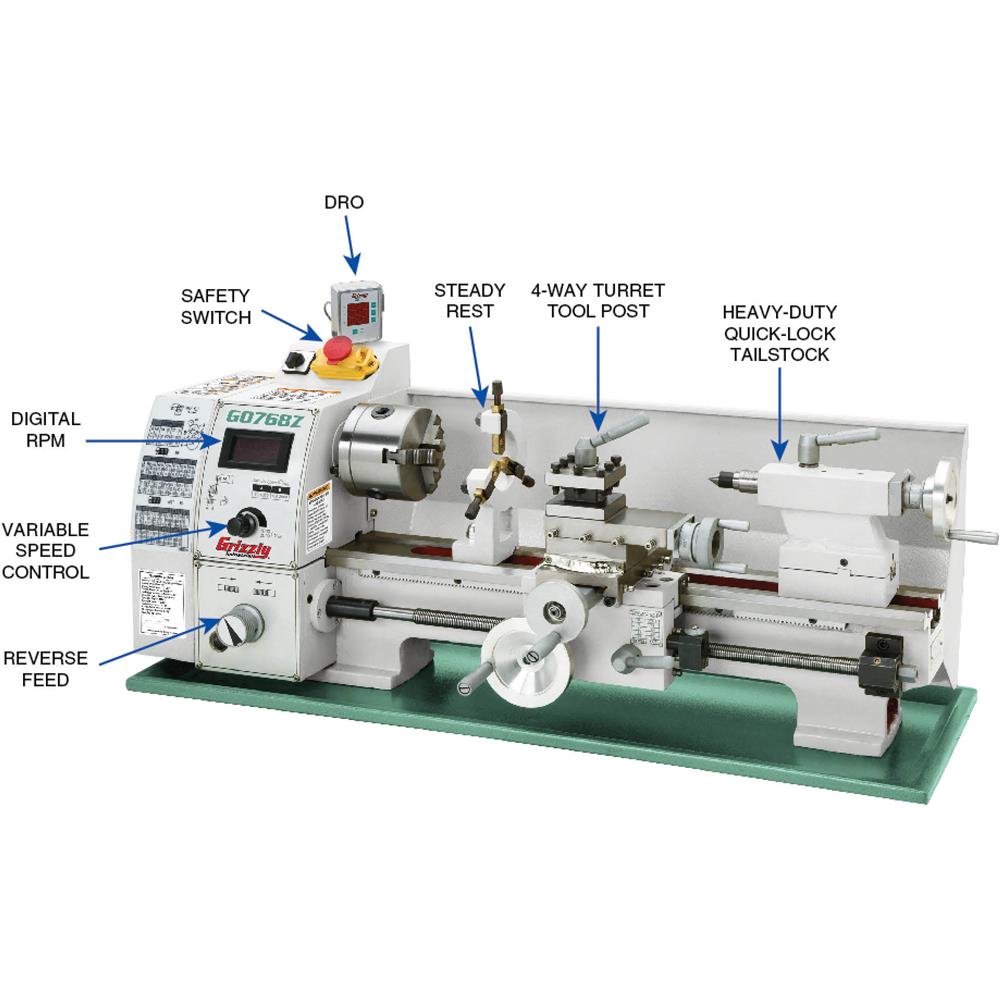

Features

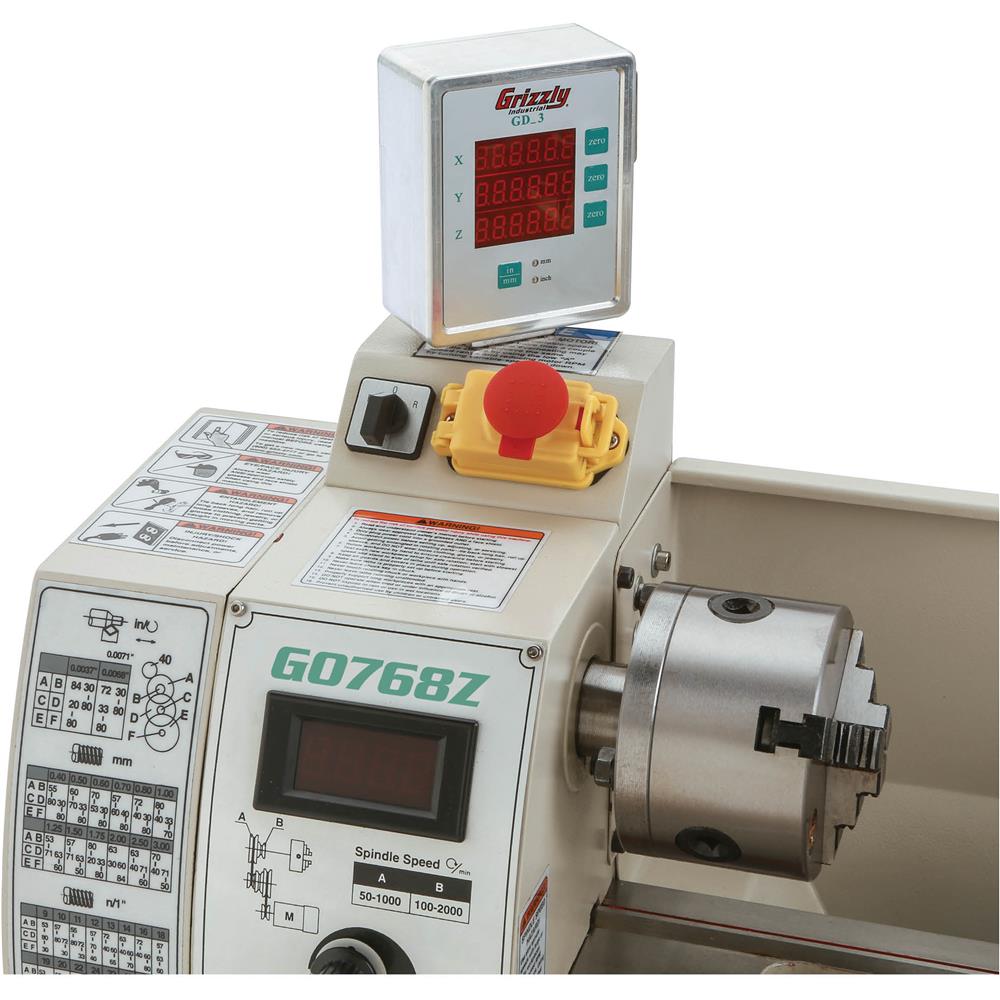

- Magnetically mounted X/Z-Axis DRO
- Electronic variable-speed spindle control with digital readout
- High and low variable spindle speed ranges

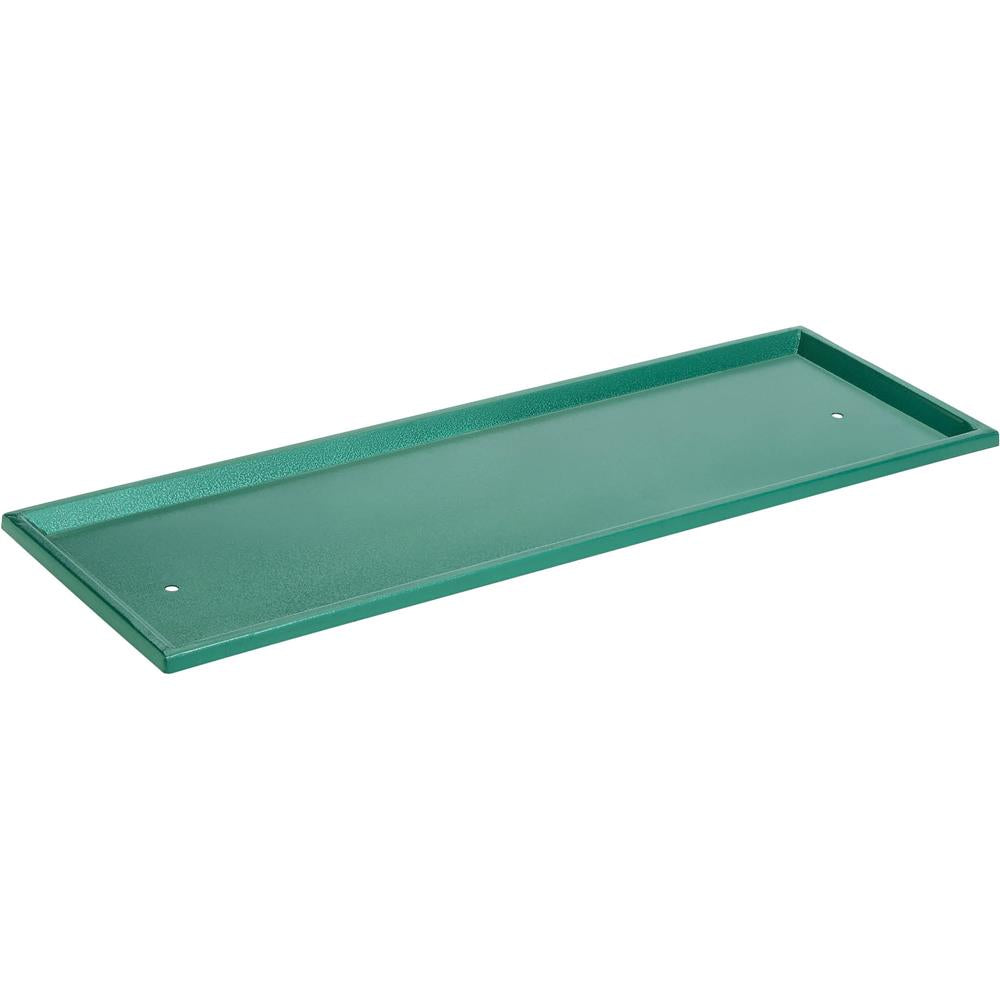

- Chip tray and backsplash guard
- Thread dial indicator
- Emergency stop button
- Quick-locking tailstock
- 1-year limited warranty
Specifications
| Motor | 3/4 HP, 110V, single-phase, 10A |
| Swing over bed | 8-1/4" |
| Swing over cross slide | 4-5/8" |
| Swing over saddle | 6-7/8" |
| Distance between centers | 15-3/4" |
| Bed width | 4" |
| Spindle bore | 0.787" (20mm) |
| Spindle taper | MT#3 |
| Tailstock taper | MT#2 |
| Tailstock quill travel | 2" |
| Cross slide travel | 3" |
| Compound travel | 2-1/8" |
| Spindle speed | Variable, 50–2000 RPM |
| Longitudinal feeds | (2) 0.0037, 0.0068 in./rev. |
| Inch thread range | (15) 9–44 TPI |
| Metric thread range | (12) 0.4–3.0mm |
| Footprint | 10-1/2" x 31-1/2" |
| Overall dimensions | 36" W x 16" D x 18" H |
| Approximate shipping weight | 166 lbs. |
Warranty
This item comes with a 1 year factory warranty.
