Grizzly G0761 Mill Drill 10" x 32" 2 HP HD Benchtop w/ Power Feed & Tapping New
Manufacturer: Grizzly
SKU: G0761
QTY
or
(888) 999-1522
C
$5,650.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
$463.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$565.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$695.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

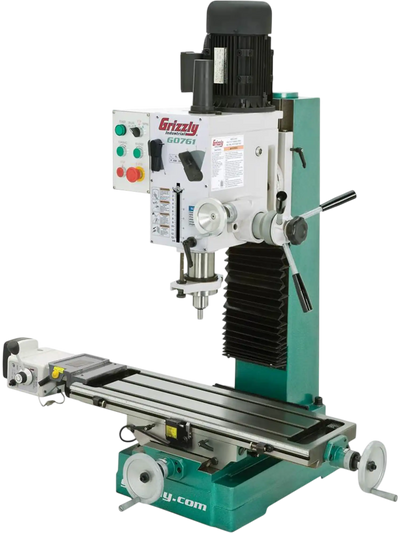

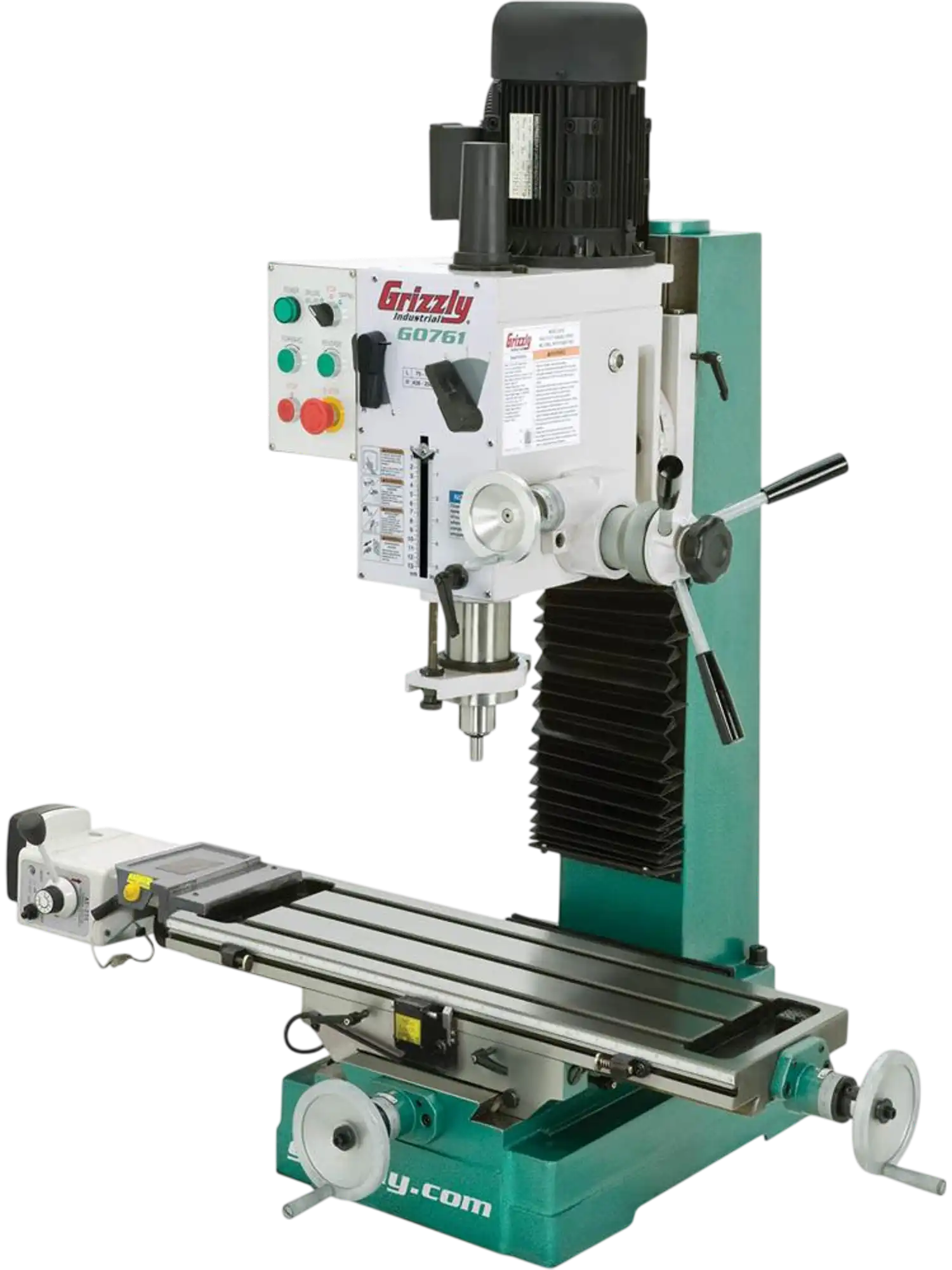

Grizzly G0761 Mill Drill 10" x 32" 2 HP HD Benchtop w/ Power Feed & Tapping New
Product Overview
The Grizzly G0761 is a heavy-duty benchtop mill/drill built for accurate drilling, milling, and tapping in a compact footprint. Powered by a 2 HP single-phase motor, it features a 10-inch class by 32-inch table, an R8 spindle, and six spindle speeds from 90 to 1970 RPM for handling a wide range of metalworking tasks.
This machine is designed for rigidity and control, with a dovetail column and ways, adjustable gibs, dual locks, and high-precision P5 spindle bearings to support consistent results. A variable-speed longitudinal power feed helps maintain smooth table movement, while reversible spindle and tapping controls, plus coarse and fine spindle downfeed, make setup and operation more efficient.

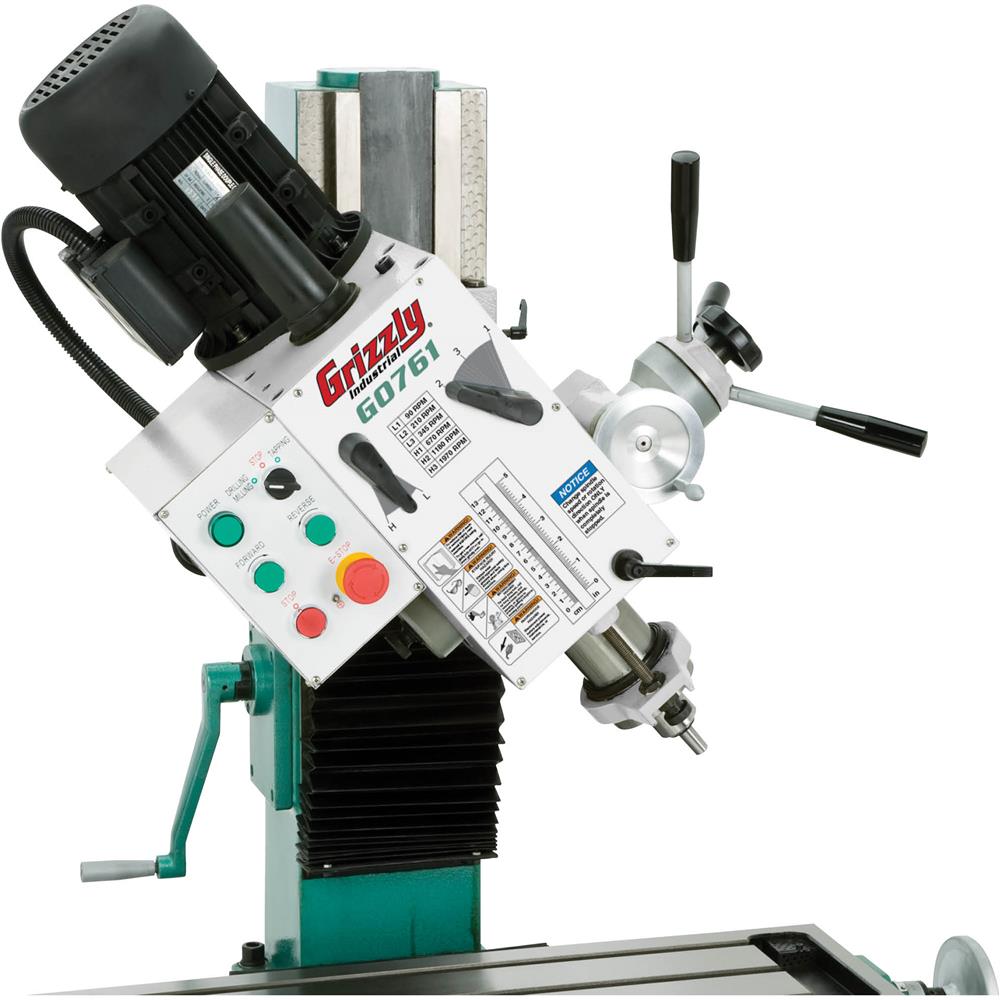

With 22 inches of X-axis travel, 7-1/2 inches of Y-axis travel, and a head that tilts 45 degrees left or right, it offers the versatility needed for both straightforward and angled work. It is a strong choice for serious hobbyists, prototype shops, maintenance departments, and small fabrication or machine shops that want knee-mill-like capability in a benchtop format.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Reversible spindle & tapping controls
- Longitudinal variable-speed power feed
- High-precision P5 spindle bearings
- Table is coolant-system ready
- Dovetail ways, each with adjustable gibs & dual locks for accuracy
- Coarse/fine spindle downfeed with stops
- Drill chuck 1-13mm with B16 taper, tool box & oil bottle included
Specifications
| Motor | 2 HP, 220V, single-phase, 8.6A |
| Swing | 20-1/4" |
| Max. distance spindle-to-table | 18-1/8" |
| Table size | 9-1/2" x 31-1/2" |
| Table travel (X-, Y-Axis) | 22", 7-1/2" |
| Head travel (Z-Axis) | 13-3/4" |
| Spindle travel | 4-3/4" |
| Spindle speeds | 6, 90–1970 RPM |
| Spindle taper | R-8 |
| Head tilt | 45° left & right |
| Table T-slots | 1/2" wide, 3-1/8" OC |
| Overall size | 49-5/8" W x 30-3/4" D x 57" H |
| Base footprint | 17-3/4" W x 21-5/8" D |
| Approximate shipping weight | 714 lbs. |
Warranty
This item comes with a 1 year factory warranty.
