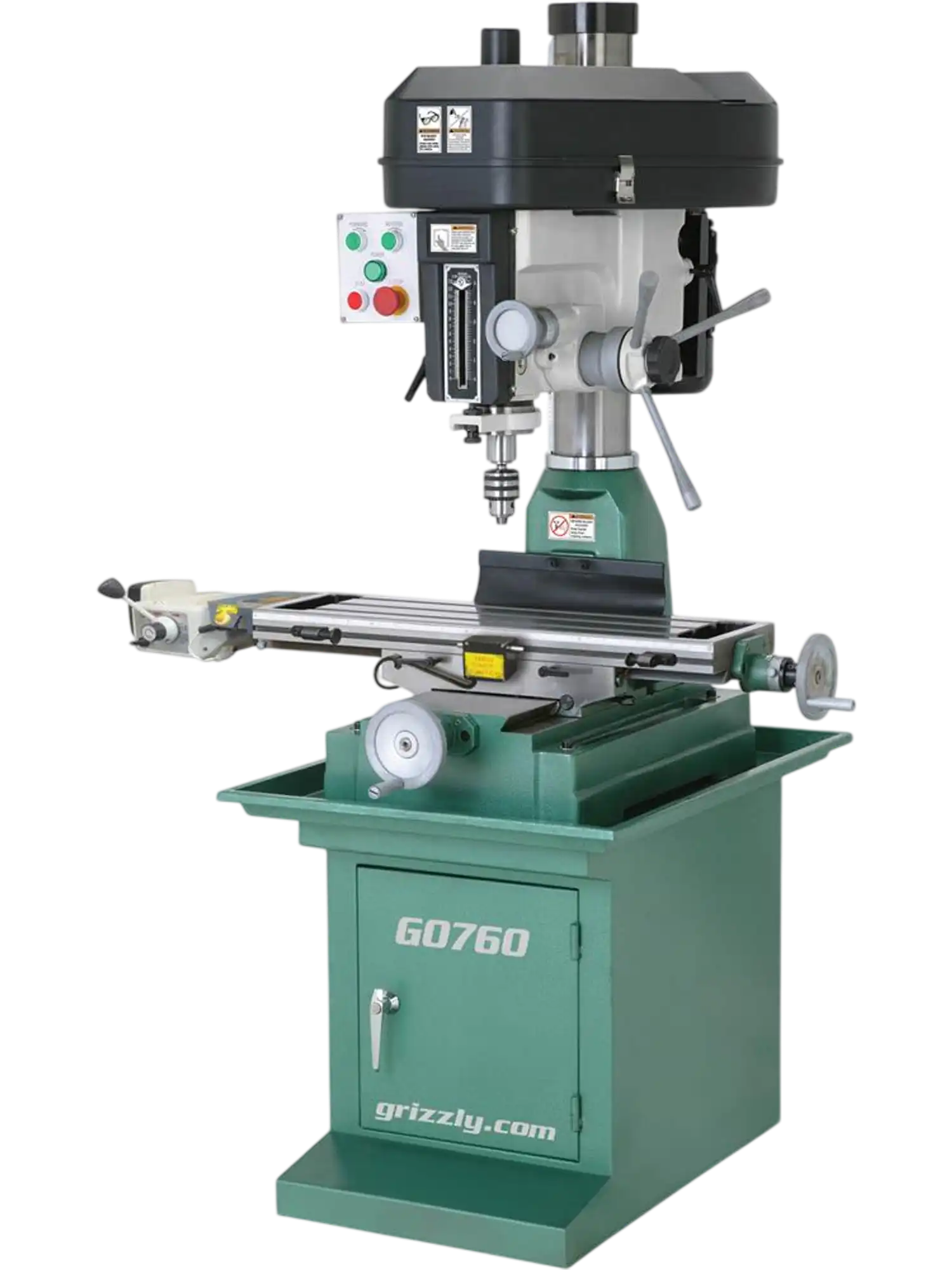

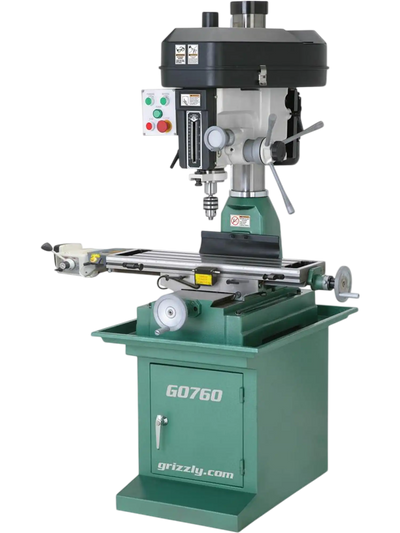

Grizzly G0760 Mill Drill 8" x 29" 2 HP with Stand and Power Feed New
Product Overview
The Grizzly G0760 is a heavy-duty 8" x 29" mill drill built for machining, drilling, and precision metalworking in one versatile machine. Powered by a 2 HP motor and equipped with an R-8 spindle, it offers the capacity and control needed for a wide range of shop tasks, from general fabrication to more demanding production work.
An X-axis power feed provides smooth, precise longitudinal table movement with adjustable limit stops, helping improve consistency on repeated operations. The machine also features fine downfeed control, a calibrated depth stop, generous table travel, and a stand with built-in storage to keep essential tooling close at hand.
This model is well suited for serious home machinists, maintenance departments, small fabrication shops, and professionals who need a compact but capable milling and drilling solution. With its solid build, useful travel range, and variable-speed operation, it is designed for users who want accuracy, convenience, and productivity in a single floor-standing machine.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Calibrated depth stop
- Fine feed downfeed control, graduated in 0.001"
- Coolant trough
- Variable-speed longitudinal power feed
- Quill moves 0.108" per revolution of fine feed handwheel
- Table moves 0.100" per revolution of handwheel
- Stand with storage shelves
Specifications
| Motor | 2 HP, 110V/220V* (prewired 220V), single-phase. 17.8A/8.6A |
| Minimum circuit size | 20A @ 120V, 15A @ 240V |
| Spindle taper | R-8 |
| Spindle speeds | 12, 140–2436 RPM |
| Max. distance spindle to column | 7-3/4" |
| Max. distance spindle to table | 17-5/16" |
| Spindle travel | 4-11/16" |
| Drilling capacity for steel | 1" |
| Drilling capacity for cast-iron | 1-3/16" |
| Table size | 8-1/4" x 28-3/4" |
| Longitudinal travel | 19-11/16" |
| Cross travel | 7-1/2" |
| T-Slots | 3 @ 2-1/2" centers, 5/8" wide |
| Overall dimensions | 47" W x 40-1/2" D x 66-1/2" H |
| Approximate shipping weight | 848 lbs. |
Warranty
This item comes with a 1 year factory warranty.
