Grizzly G0759 Mill Drill 7" x 27" 1 HP w/ Stand & DRO New
Product Overview

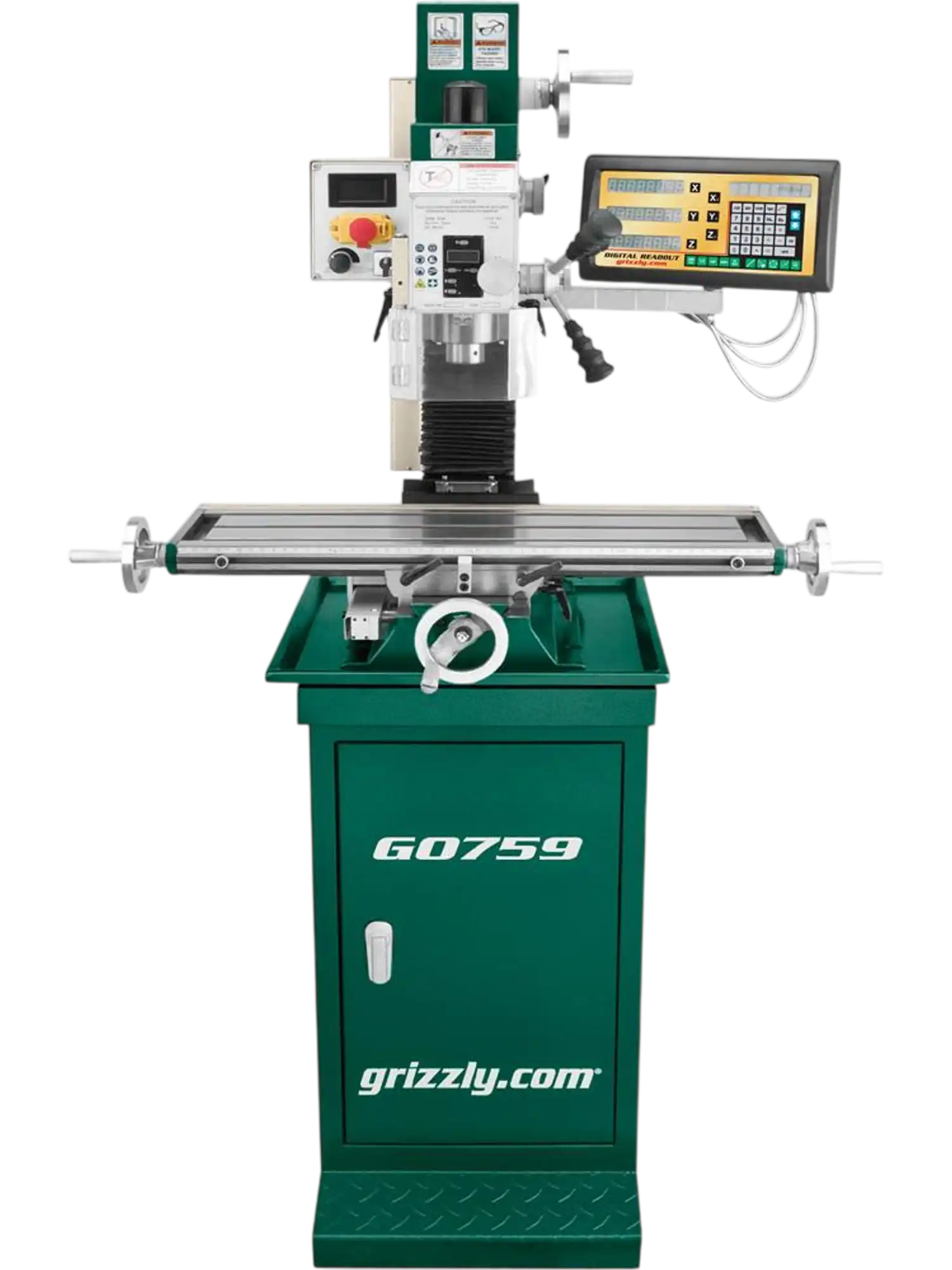

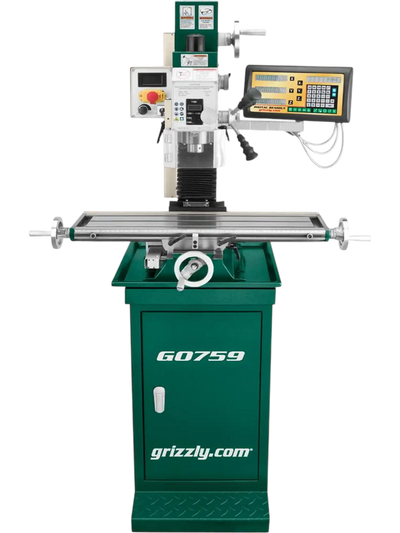

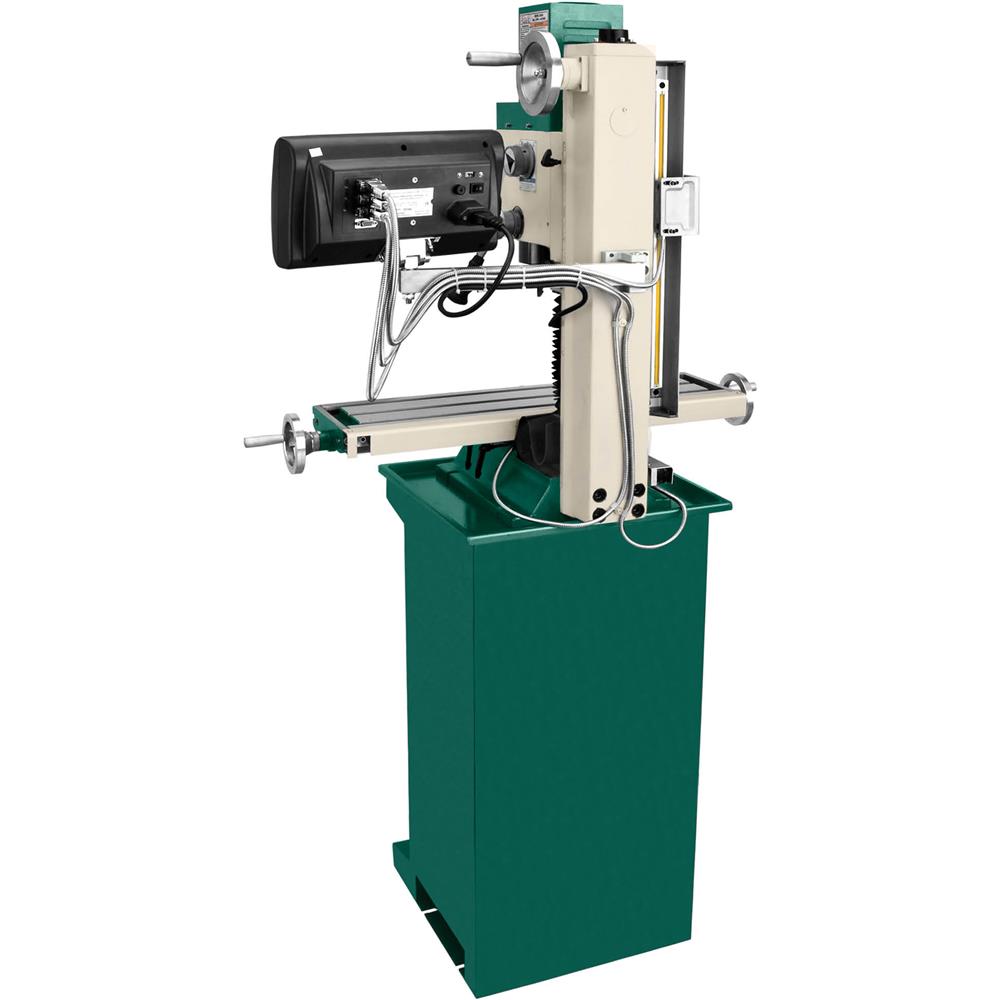

The Grizzly G0759 is a 7" x 27" mill drill designed for precision milling and drilling in a compact footprint. It combines a variable-speed 1 HP motor, R-8 spindle, and 2-speed gearbox with a 3-axis DRO for accurate tool and table positioning during detailed machining work.

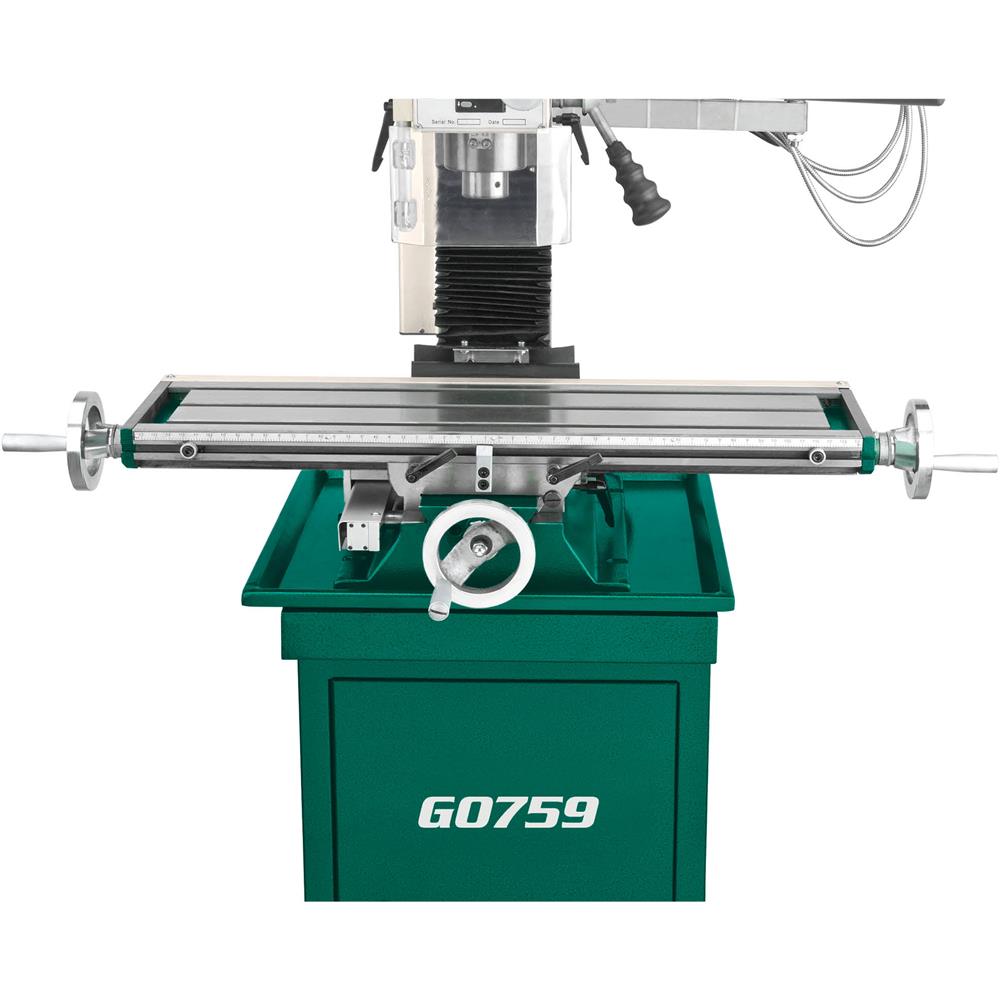

Its large work table, dovetail column, fine-feed head control, and tapered gibs help deliver rigidity and control for cutting, slotting, facing, and drilling. Variable spindle speeds from 50 to 2250 RPM and forward/reverse operation make it adaptable to a wide range of materials and shop tasks.
This machine is a strong fit for small professional shops, maintenance departments, and serious hobbyists looking to expand into milling operations without stepping up to a larger machine. The included stand makes it ready for dedicated use where accuracy, versatility, and efficient use of space matter.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

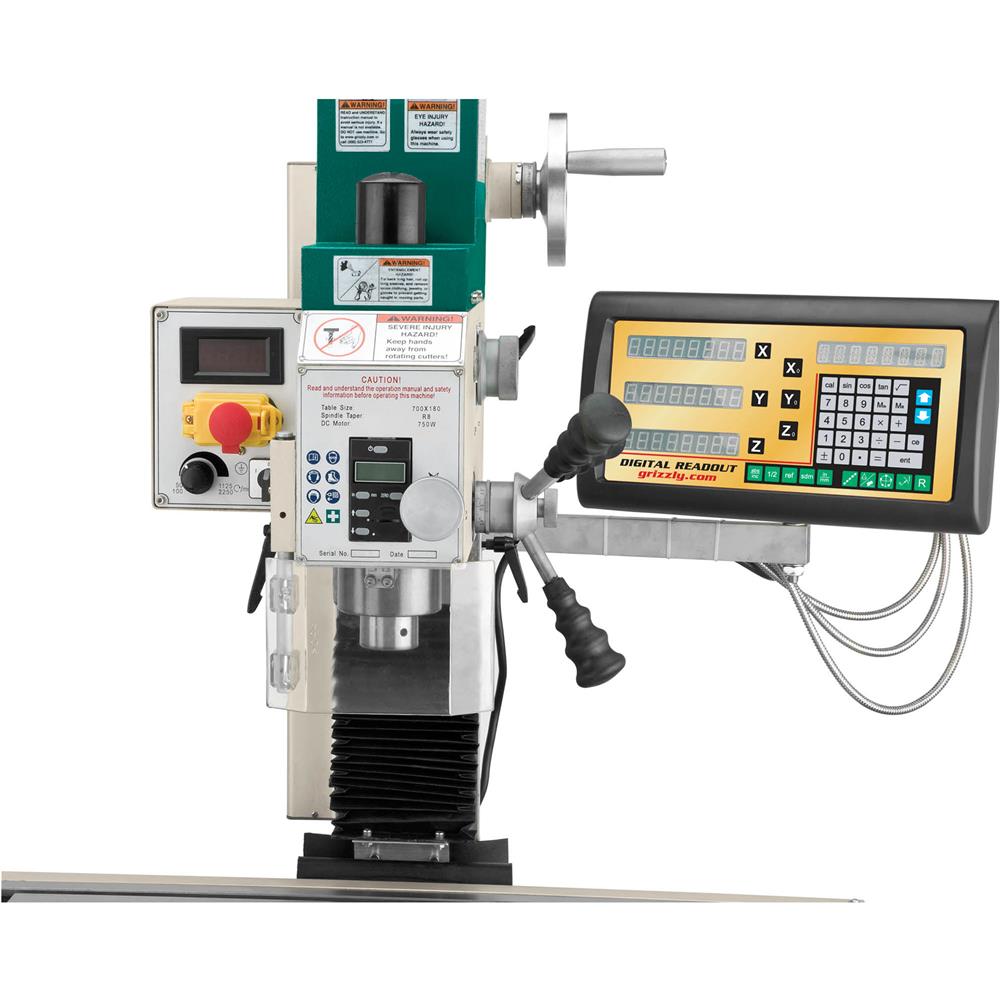

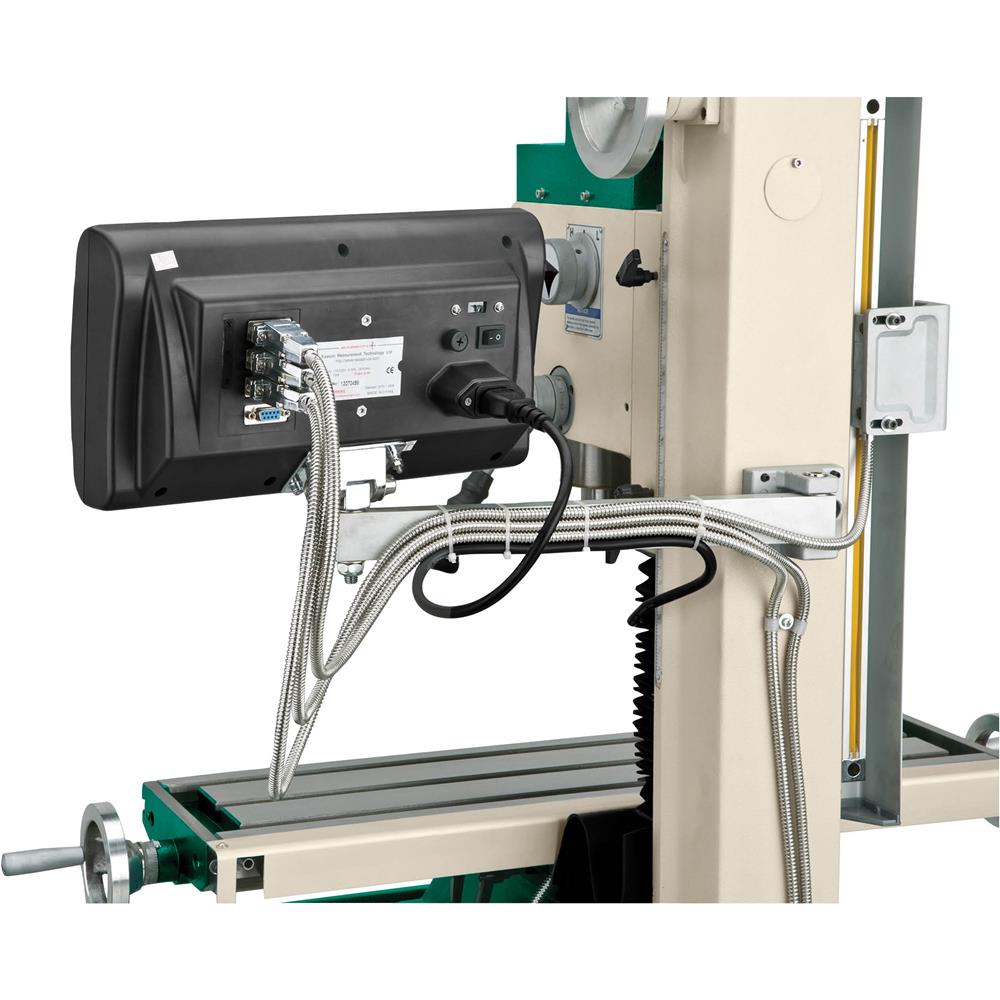

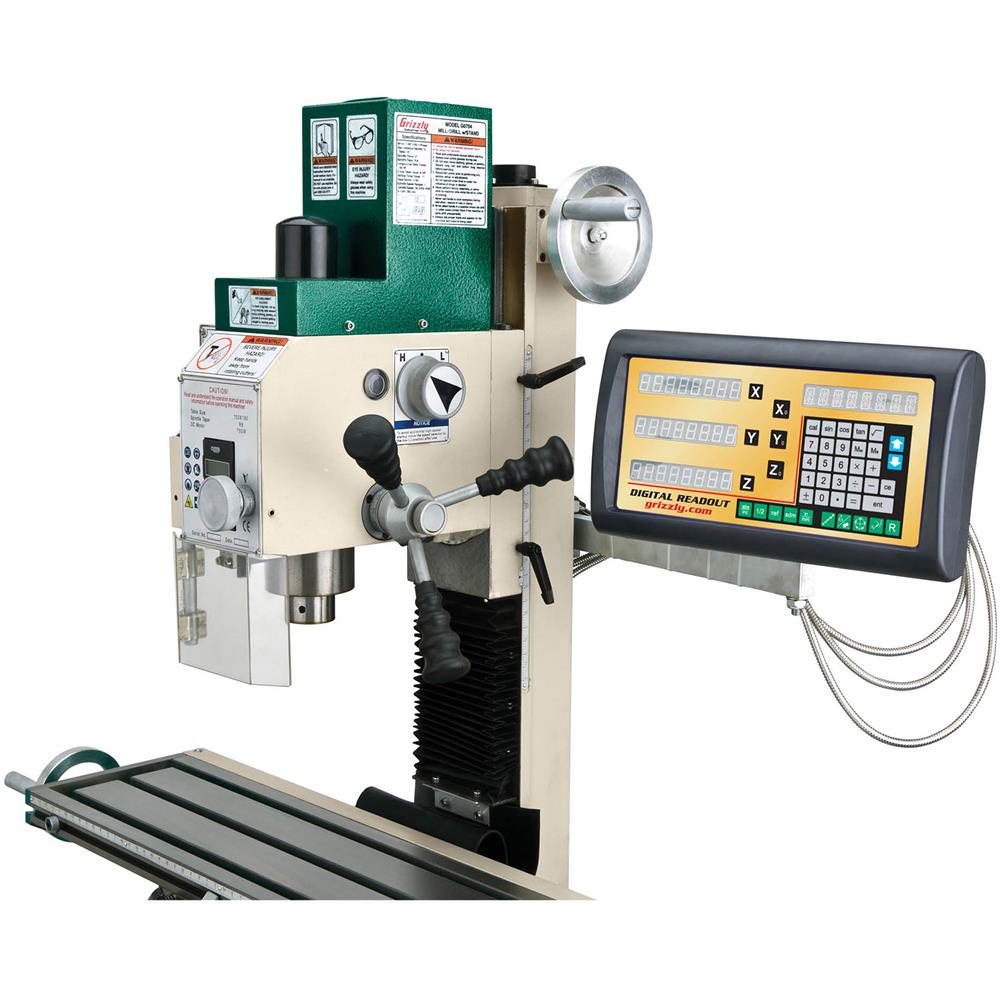

- 3-Axis DRO on spindle
- Dovetail column
- Fine feed head control
- 2-Speed gearbox
- Clear chip guard on spindle
- Rubber chip guards on ways
- Zero setting dials
- Dials read inches
- Safety shut off switch
- Forward/Reverse switch
Specifications
| Motor | 1 HP, 110V, single-phase, 12A |
| Spindle taper | R-8 |
| Spindle travel | 2" |
| T-slots | 3 @ 2-1/2" centers, 7/16" wide |
| Head travel | 11" |
| Head tilt | 90° left & right |
| Max. distance spindle to table | 13" |
| Swing | 15" |
| Table travel (longitudinal) | 18-7/8" |
| Table travel (cross) | 5-1/2" |
| Table size | 7-1/16" x 26-5/8" |
| Spindle speed | Variable, 50-1125 RPM low, 100-2250 high |
| Floor-to-table height | 37-1/2" |
| Footprint | 15-3/4" x 16-1/2" |
| Space required | 57" x 25" |
| Overall dimensions | 38" x 24" x 67" |
| Approximate shipping weight | 392 lbs. |
Warranty
This item comes with a 1 year factory warranty.
