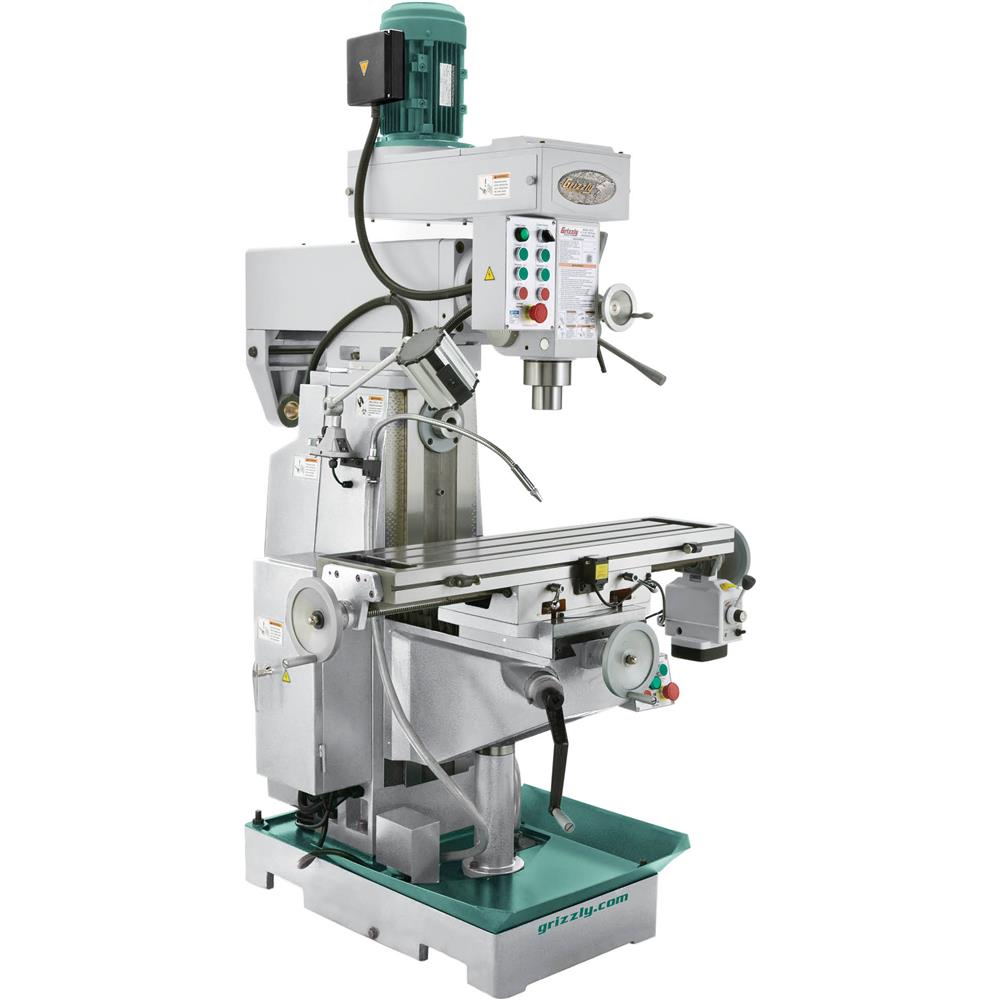

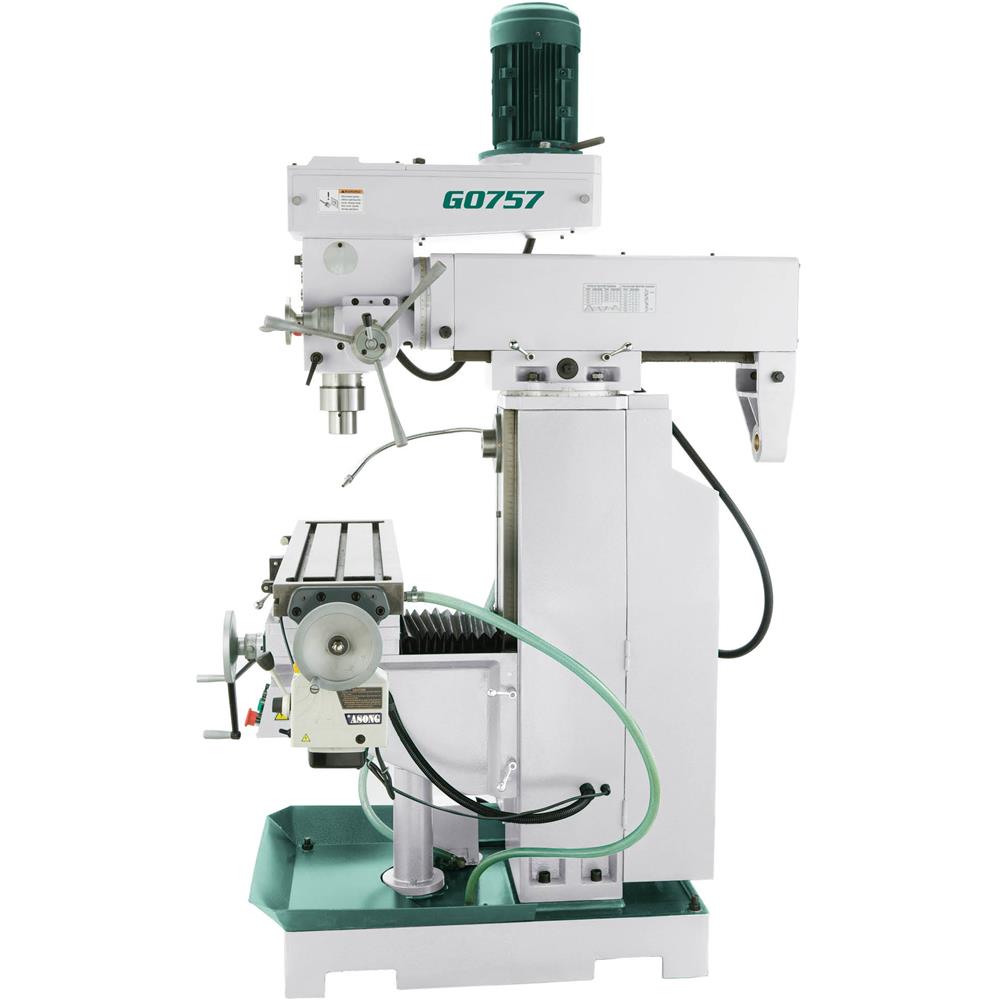

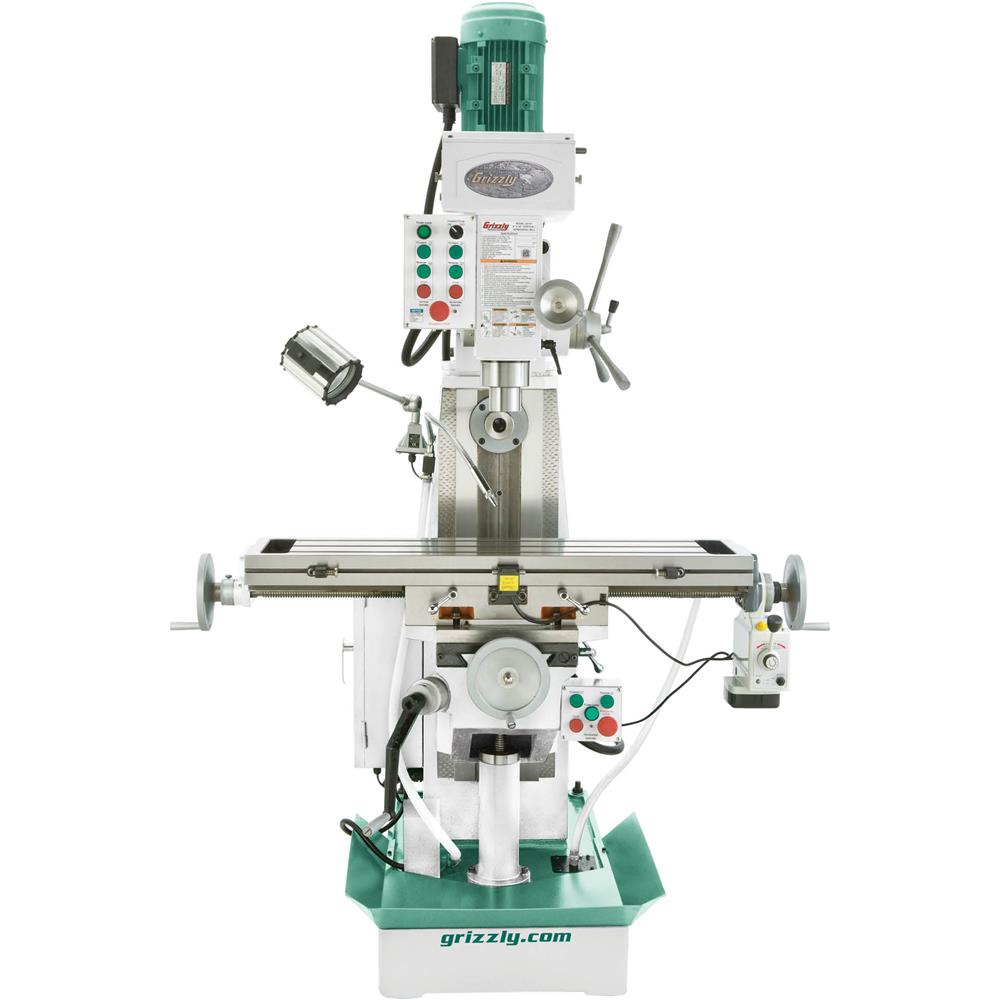

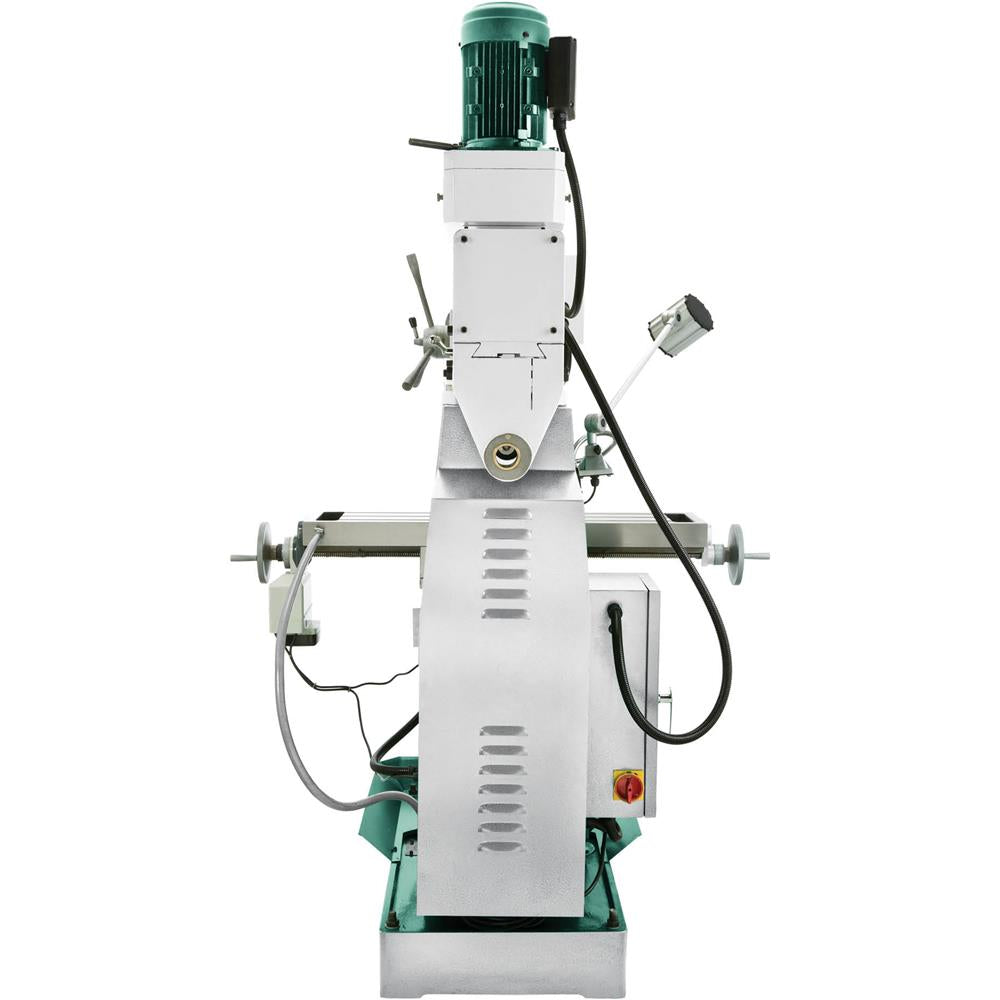

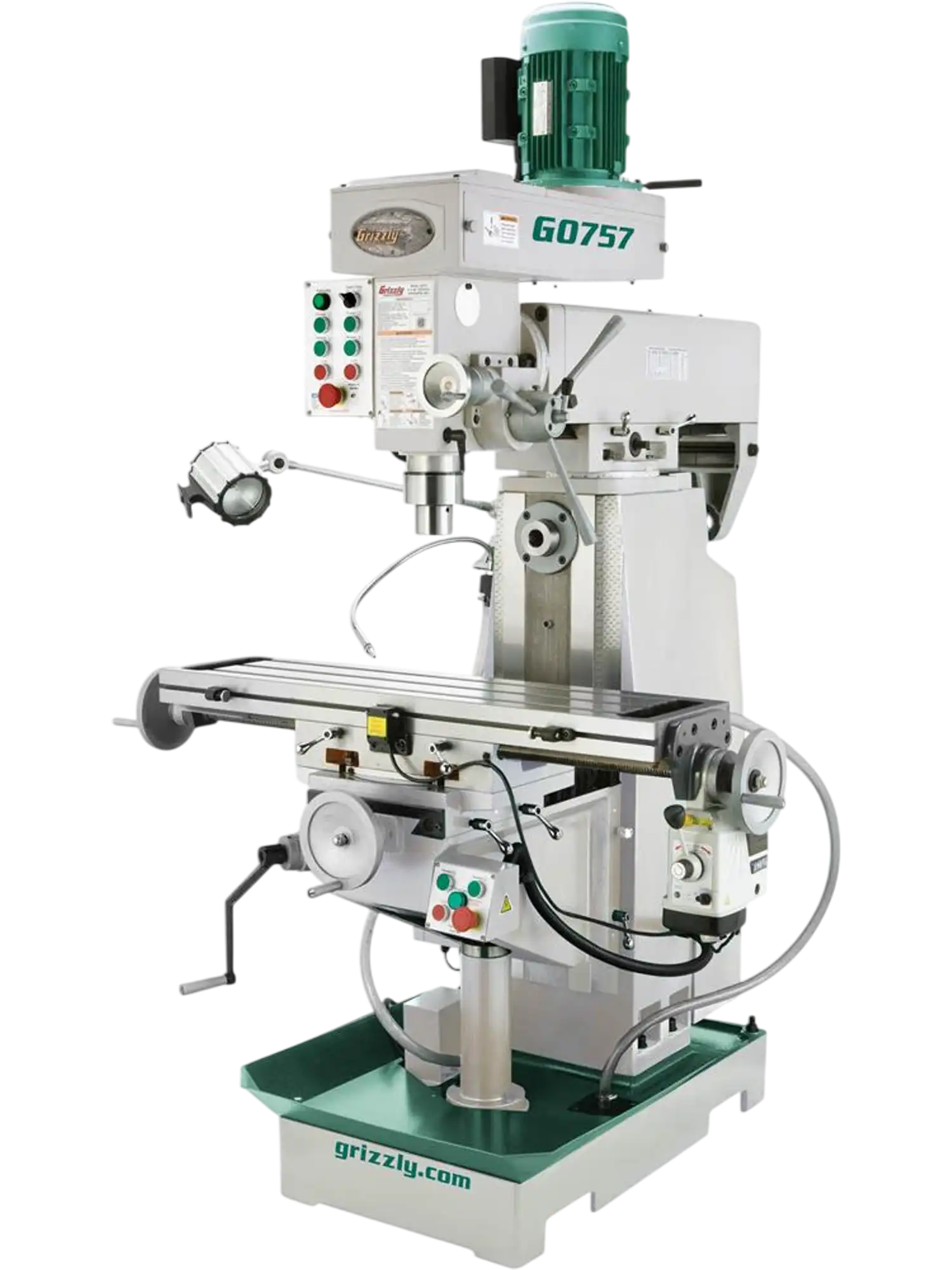

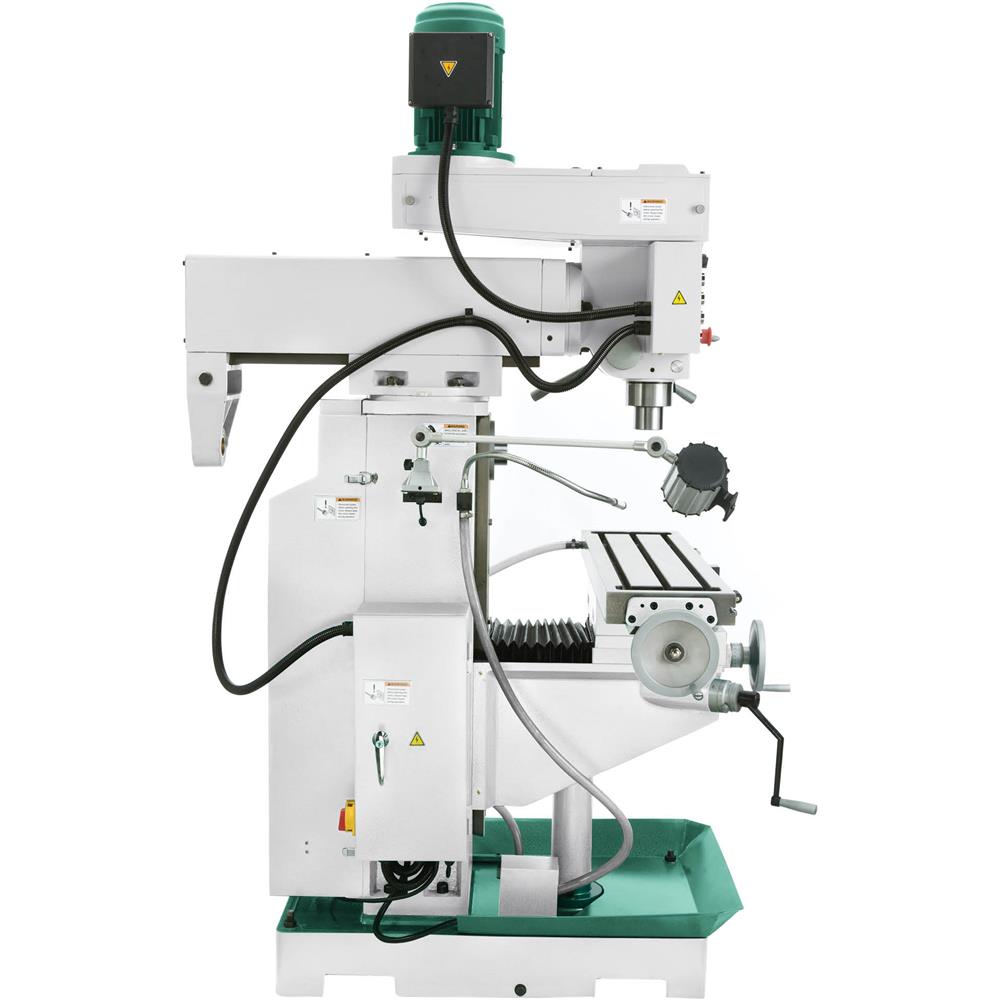

Grizzly G0757 Milling Machine 9" x 39" 2 HP Horizontal/Vertical Mill with Power Feed New
Product Overview

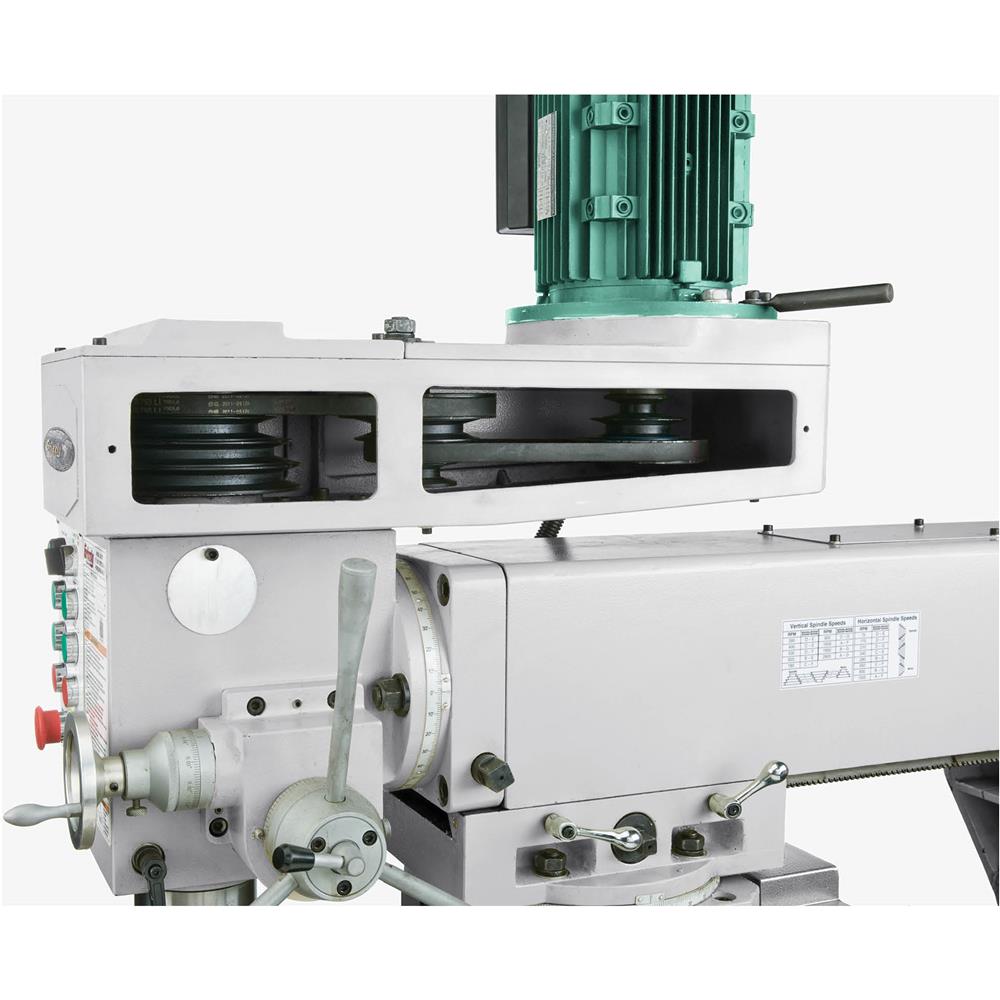

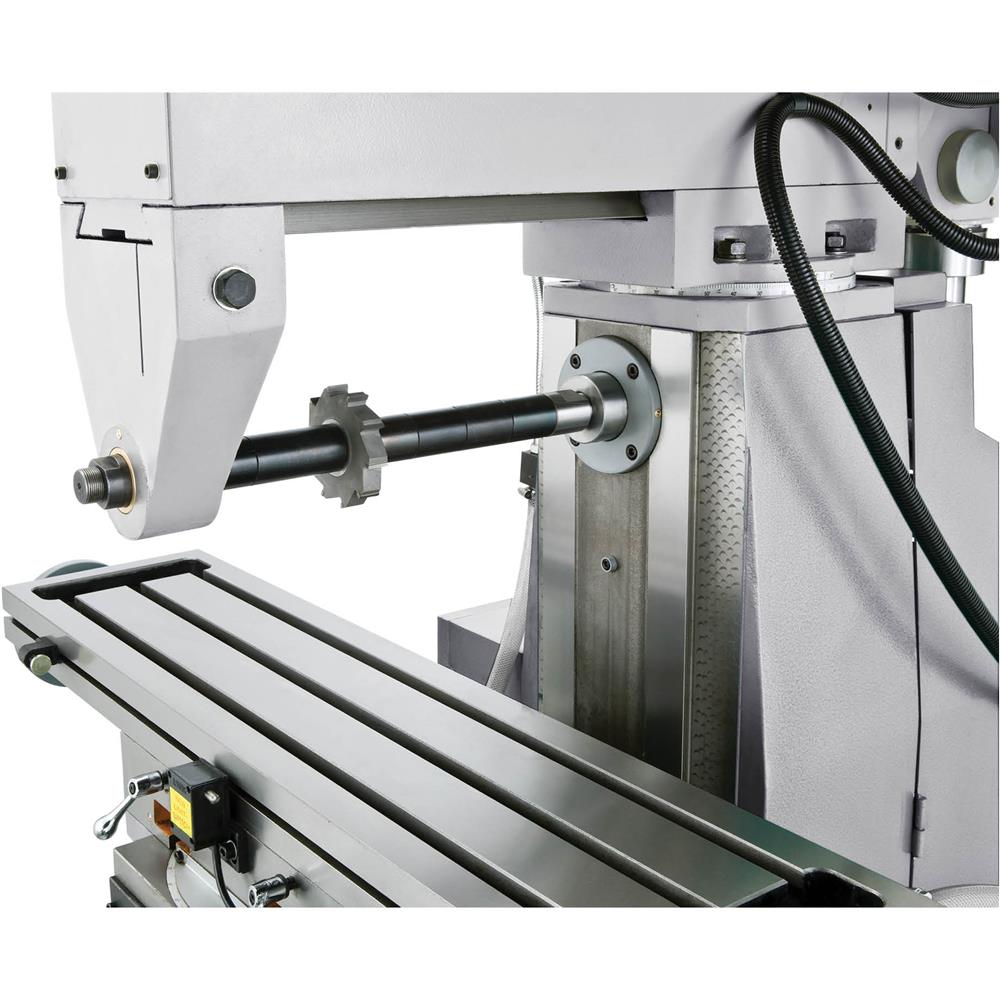

The Grizzly G0757 is a heavy-duty 9" x 39" horizontal/vertical milling machine built for shops that need broad machining capability in one footprint. It uses dedicated motors for each spindle and converts from vertical to horizontal milling by rotating the head and installing a horizontal arbor, making it well suited for a wide range of metalworking tasks.

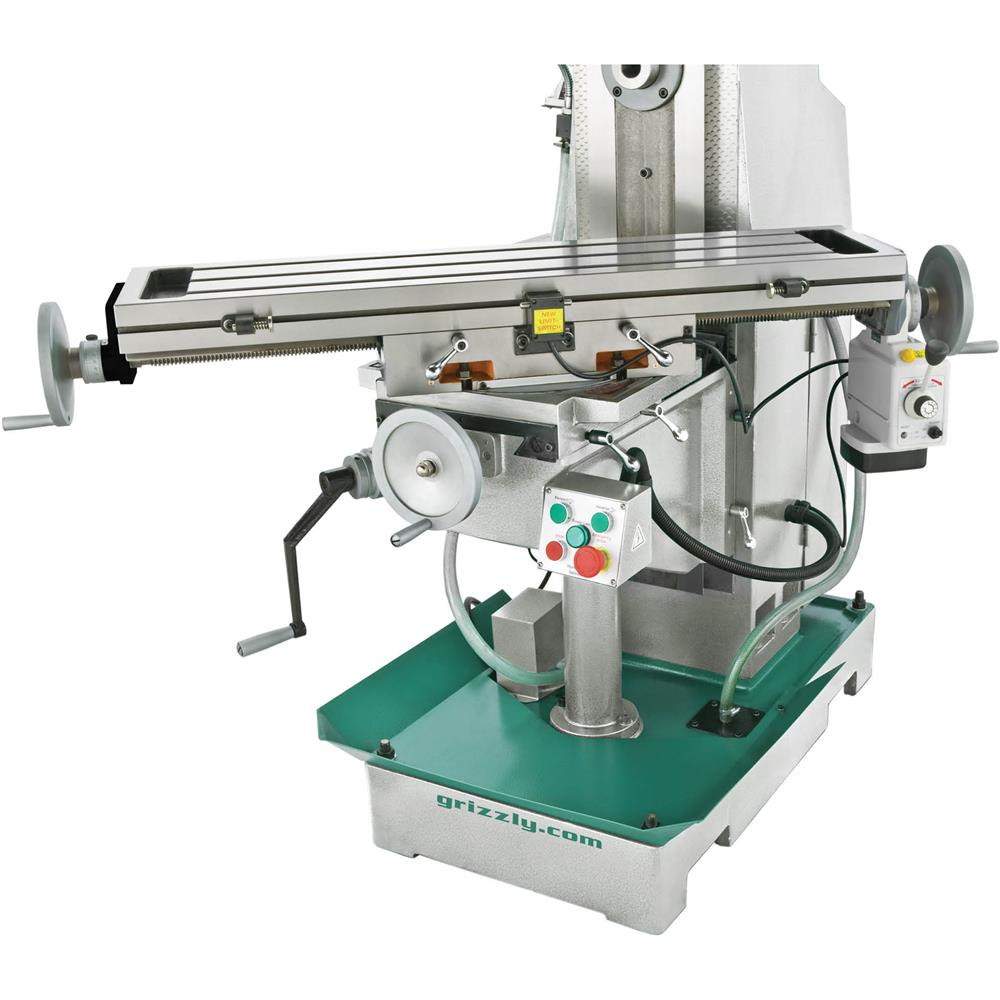

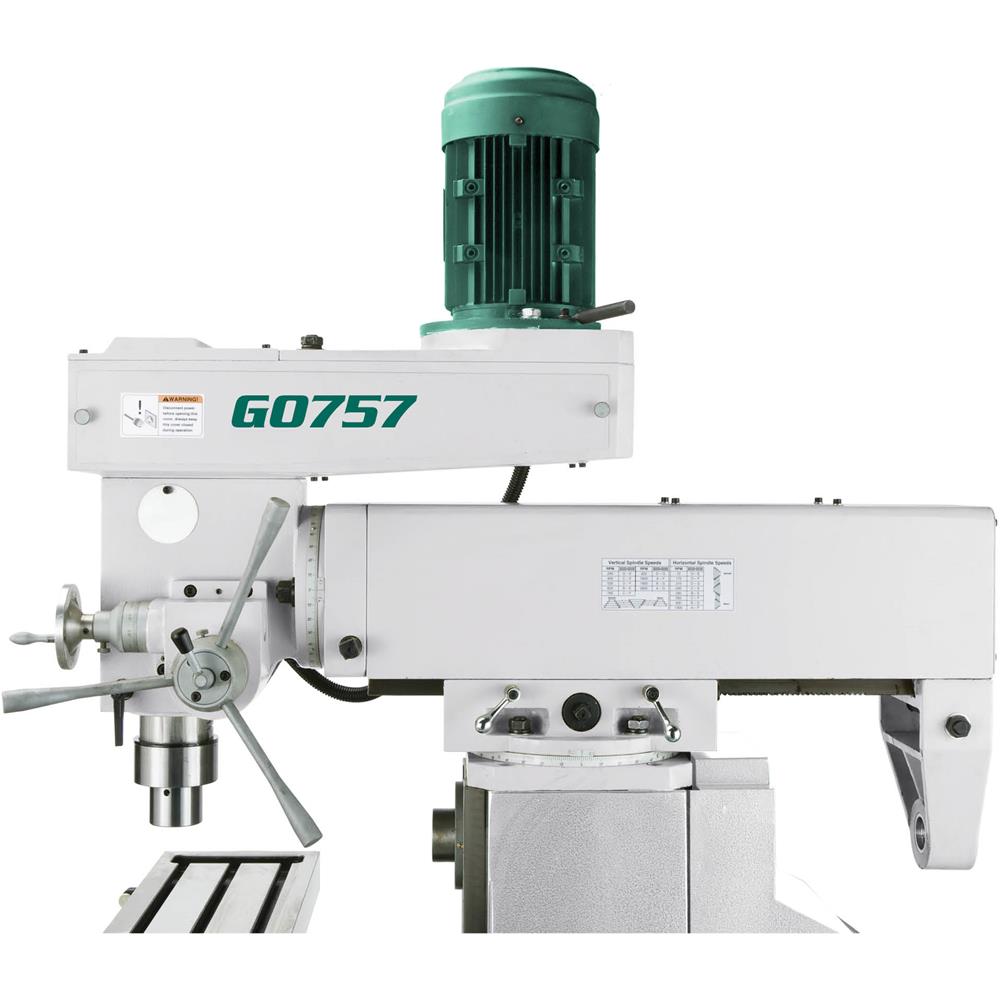

Its flexible design supports precise positioning with a table that rotates 45° left or right, a head that tilts 90° and swivels 180°, and 11" of ram travel for added reach. Multiple spindle speeds, longitudinal power feed, a built-in coolant system, and an LED work light help improve efficiency for everything from routine milling to more complex setups.
This machine is a strong fit for fabrication shops, maintenance departments, toolrooms, and experienced machinists who want the versatility to handle both standard vertical work and productive horizontal operations such as gang milling. The large table, solid construction, and wide travel range make it a practical choice for serious metalworking applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Recycling coolant system
- Longitudinal power feed
- High-precision P5 spindle bearings
- LED work light
Specifications
| Vertical spindle motor | 3 HP, 220V, single-phase, 13A |
| Horizontal spindle motor | 2 HP, 8.6A |
| Vertical spindle speeds | 9, 285–2300 RPM |

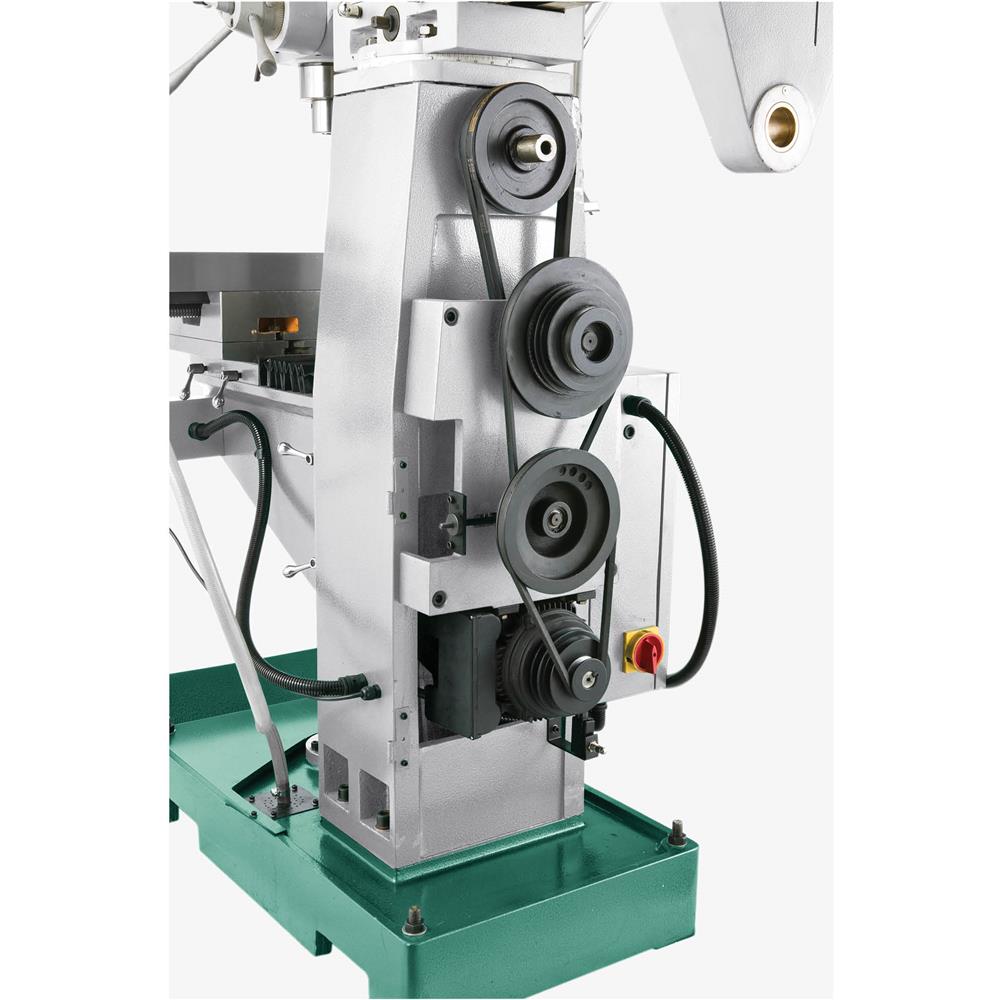

| Horizontal spindle speeds | 8, 72–1300 RPM |
| Spindle taper | R-8 |
| Spindle travel | 5" |
| Table size | 9-1/2" x 39-3/8" |
| Table travel (longitudinal) | 23-1/2" |
| Table travel (cross) | 8-1/2" |
| Knee travel (vertical) | 12-1/2" |
| Table rotation | 45° L/R |
| Head swivel | 180° |
| Head tilt | 90° L/R |
| T-slots | Three 5/8" slots, 3" on center |
| Footprint | 35-1/2" x 20" |
| Overall dimensions | 53-1/2" W x 54-7/8" D x 81-7/8" H |
| Approximate shipping weight | 2050 lbs. |
