Grizzly G0731 Milling Machine 8" x 30" 1-1/2 HP Vertical Mill with Power Feed New
Product Overview

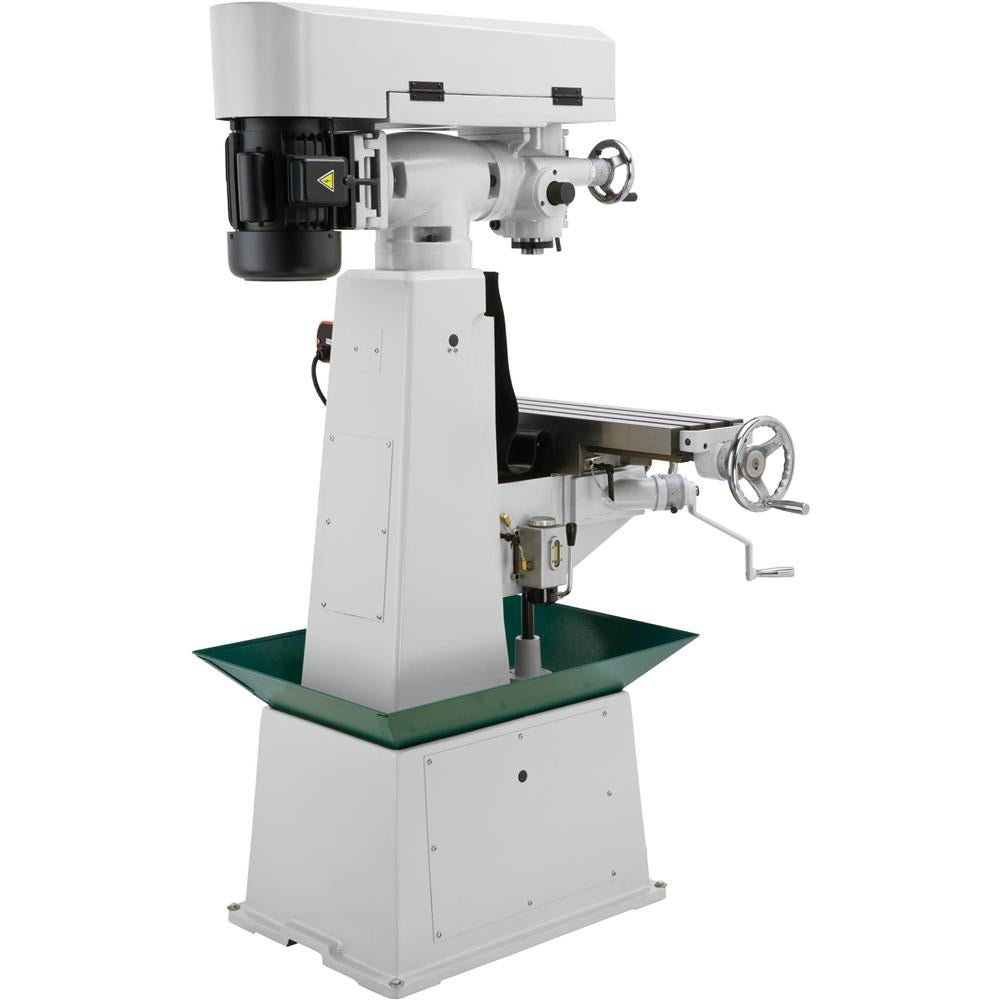

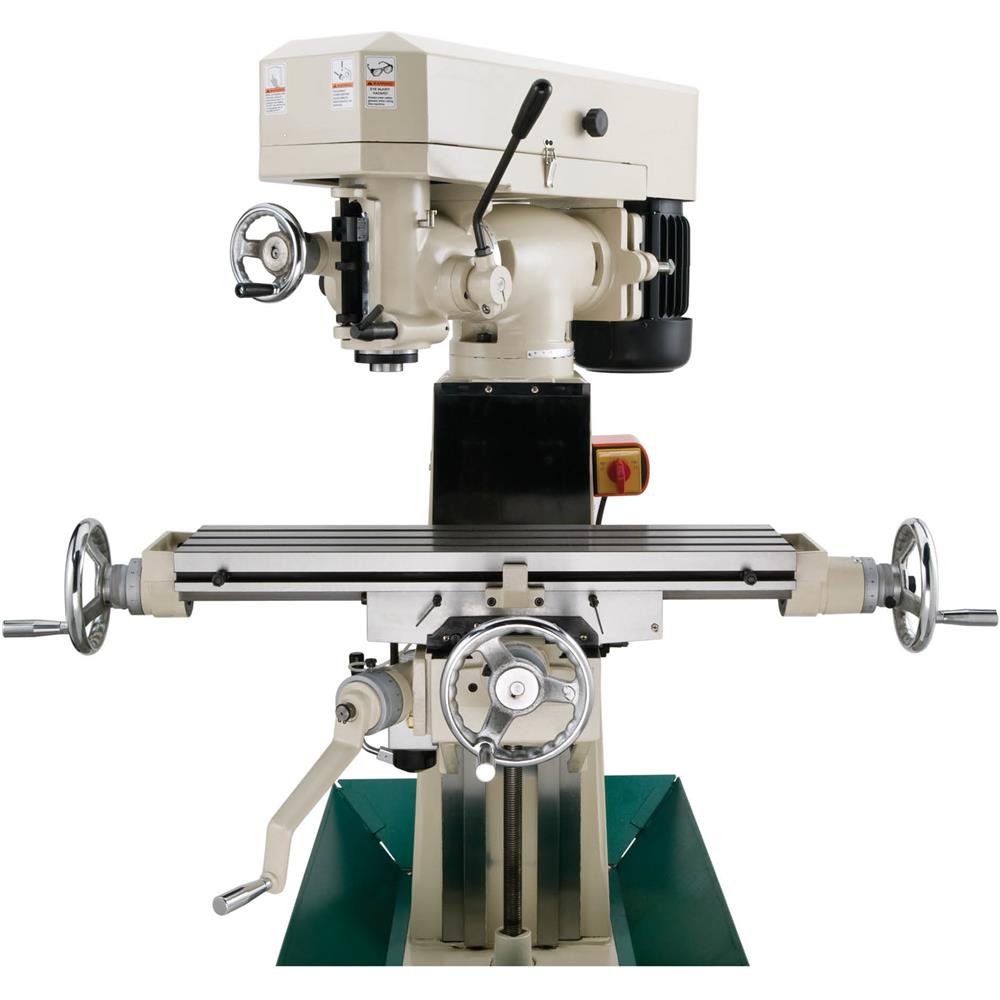

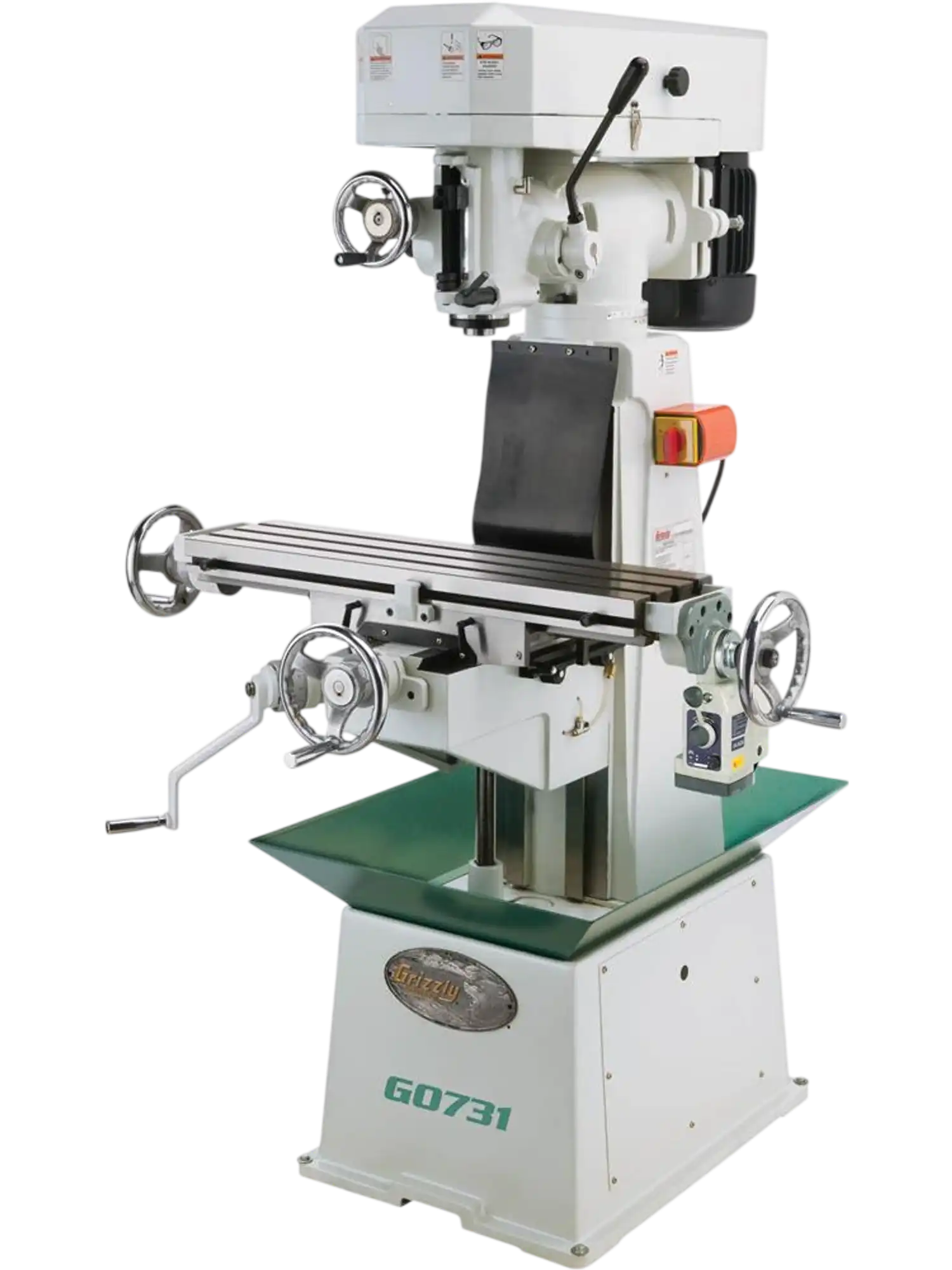

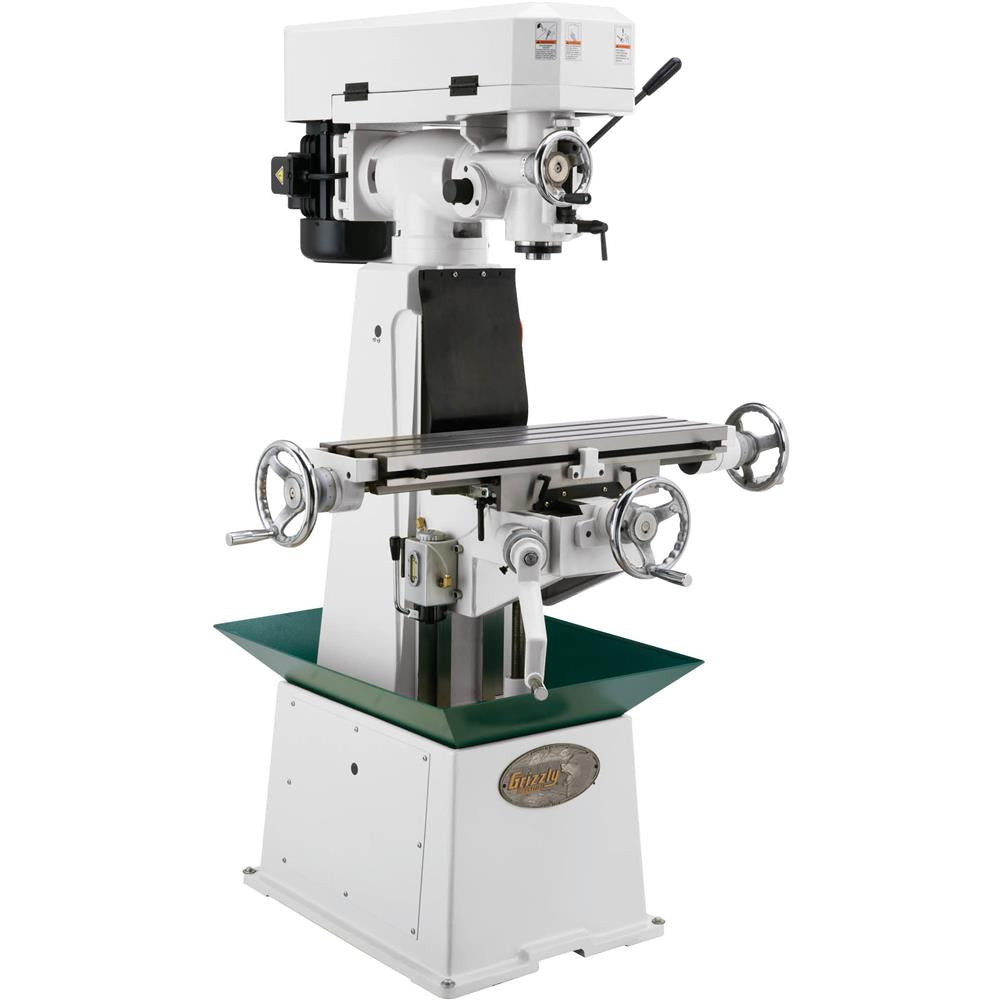

The Grizzly G0731 is an 8" x 30" vertical milling machine built for accurate metalworking in small shops, maintenance departments, and serious home workshops. Powered by a 1-1/2 HP motor, it offers the capacity and control needed for milling, drilling, and general fabrication tasks on a wide range of solid materials.

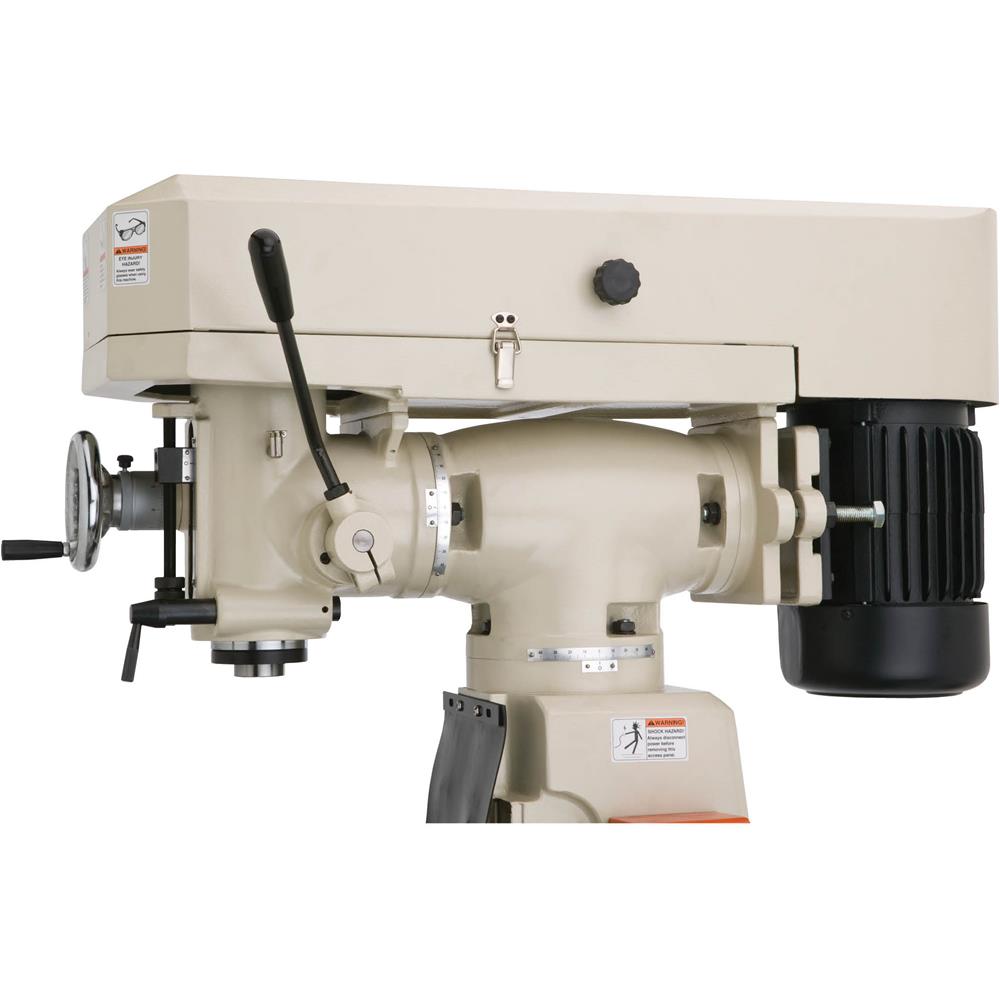

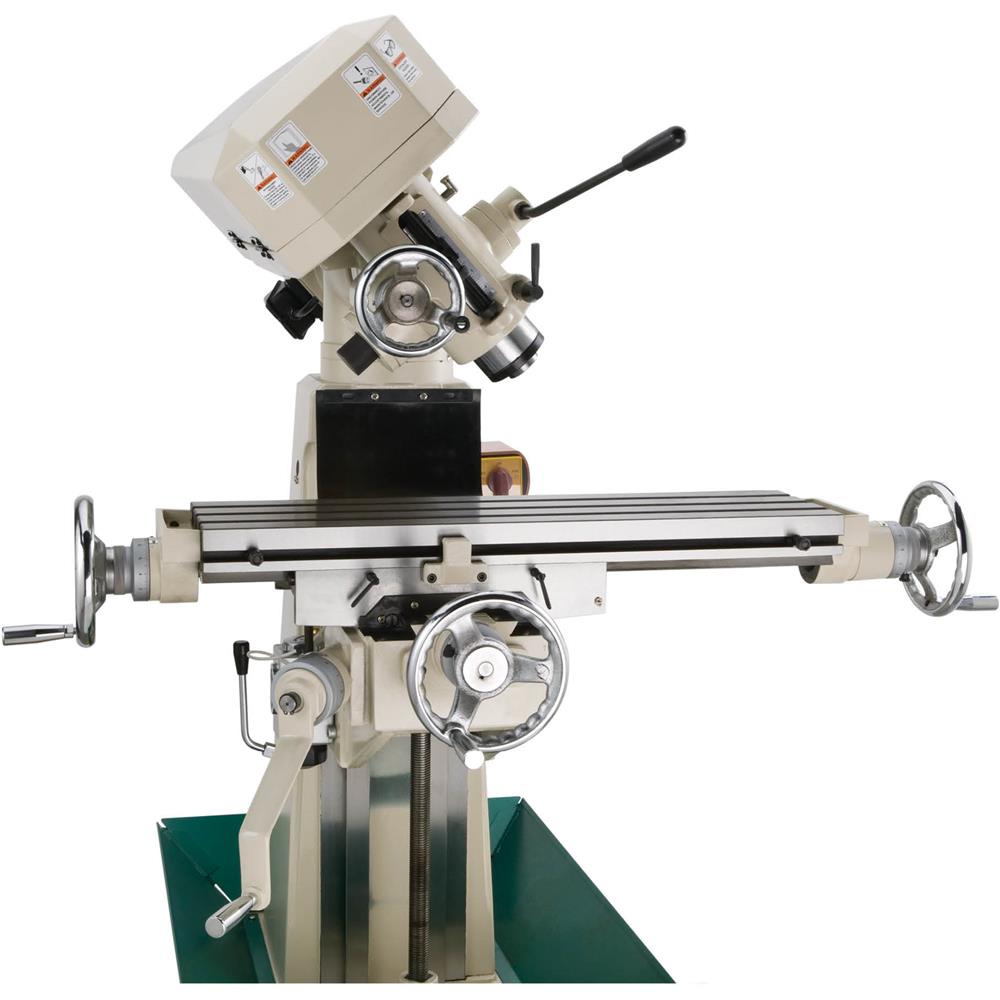

This mill features nine spindle speeds from 300 to 2840 RPM, an R-8 spindle, and a longitudinal power feed with limit switch for controlled X-axis movement. The head tilts 45 degrees left and right, while the turret rotates a full 360 degrees to handle angled and complex setups with greater flexibility.
Dovetail ways, a precision-ground table, and coarse and fine downfeed controls help deliver consistent results. With a one-shot lubrication system, 18" of X-axis travel, and compatibility with either 110V or 220V power, this machine is a strong choice for machinists who want versatile performance in a compact vertical mill.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Dovetail sliding ways for accuracy

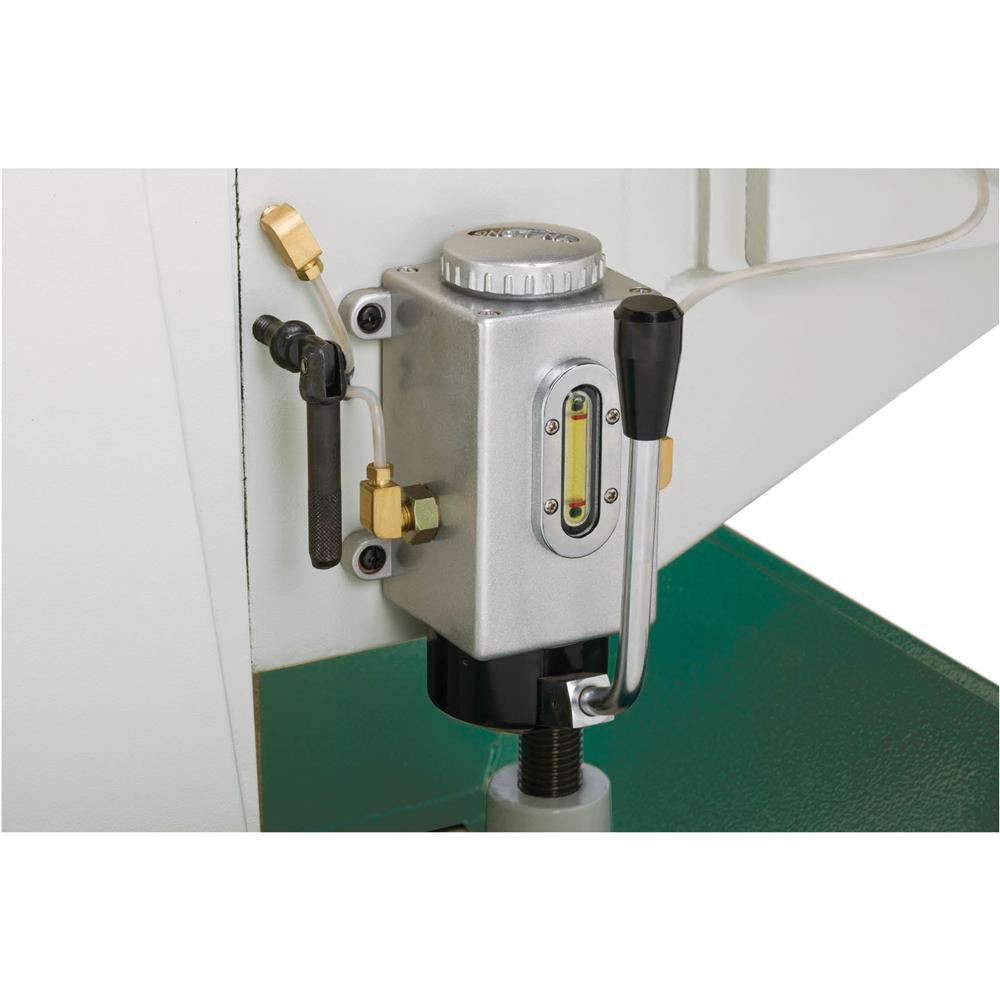

- One-shot oiler lubrication system
- Catch tray allows for coolant system upgrade
- Large stroke handle
- Forward/Reverse switch
- Rotating turret-style column
- Head tilts side-to-side
- Precision-ground table
- Coarse and fine downfeed controls
- Adjustable downfeed stop system
Specifications
| Motor | 1-1/2 HP, 110V/220V (prewired for 110V), single-phase, 18A/9A |
| Spindle taper | R-8 |
| Spindle travel | 3-1/2" |
| Spindle speeds | 9, 300–2840 RPM |
| Max. distance spindle to table | 20" |
| Max. distance spindle to column | 7" |
| T-Slots | 3 @ 2-3/16" on center, 1/2" wide |
| Table size | 8" x 30" |
| Table travel (X-axis) | 18" |
| Table travel (Y-axis) | 7-3/4" |
| Vertical table travel (Z-axis) | 17-3/4" |
| Head tilt | 45° left/right |
| Column swivel | 360° |
| Drilling capacity | 3/4" mild steel |
| Footprint | 19" x 36" |
| Overall dimensions | 40-1/2" W x 42-3/4" D x 67" H |
| Approximate shipping weight | 954 lbs. |
Warranty
This item comes with a 1 year factory warranty.
