Grizzly G0695 Milling Machine 8" x 30" 1-1/2 HP Variable-Speed Knee Mill w/ Ram Head New
Product Overview

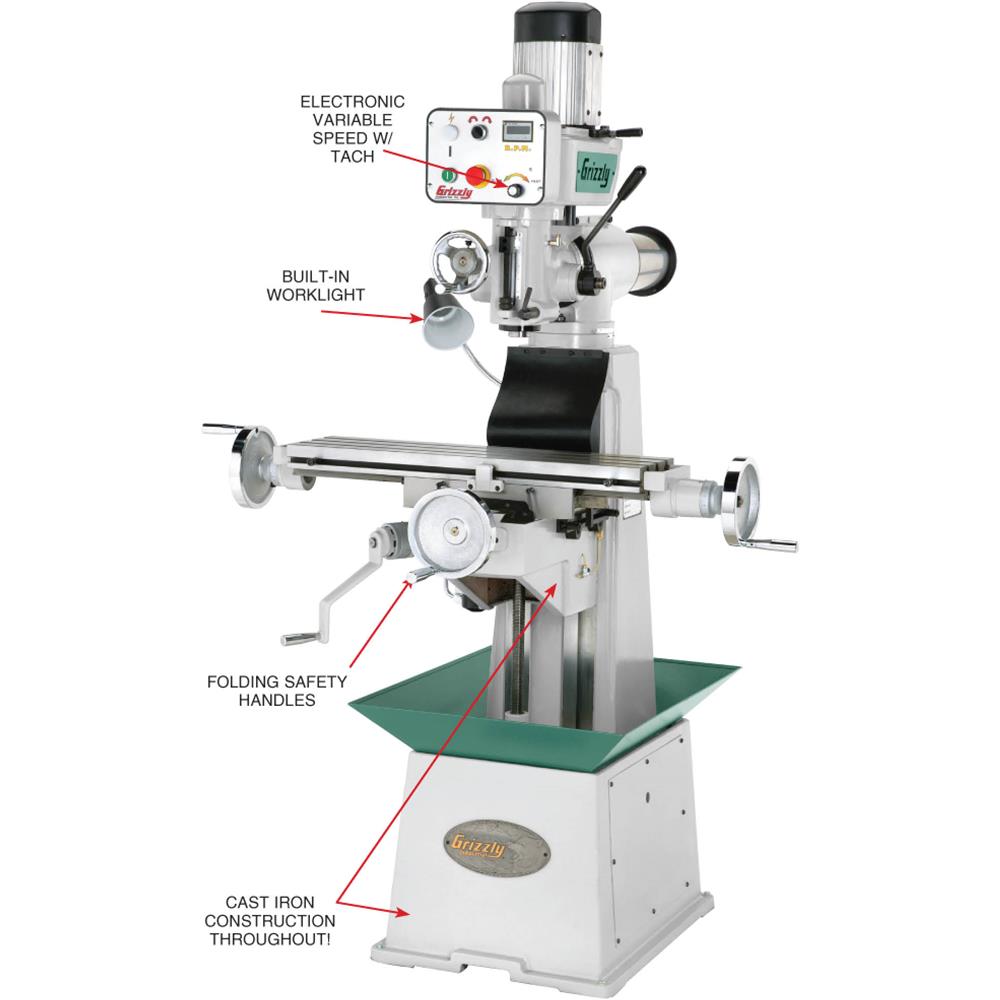

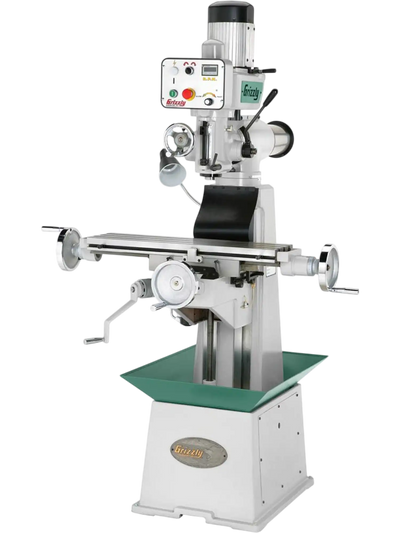

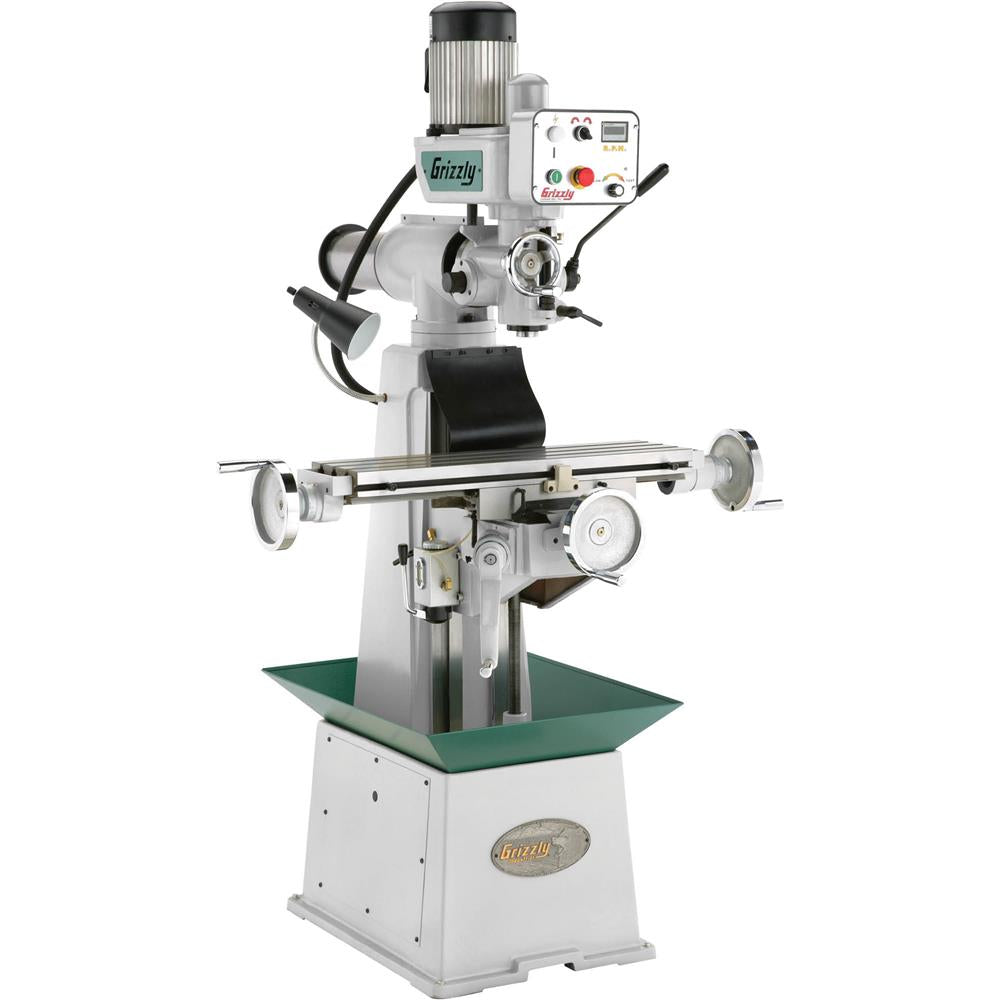

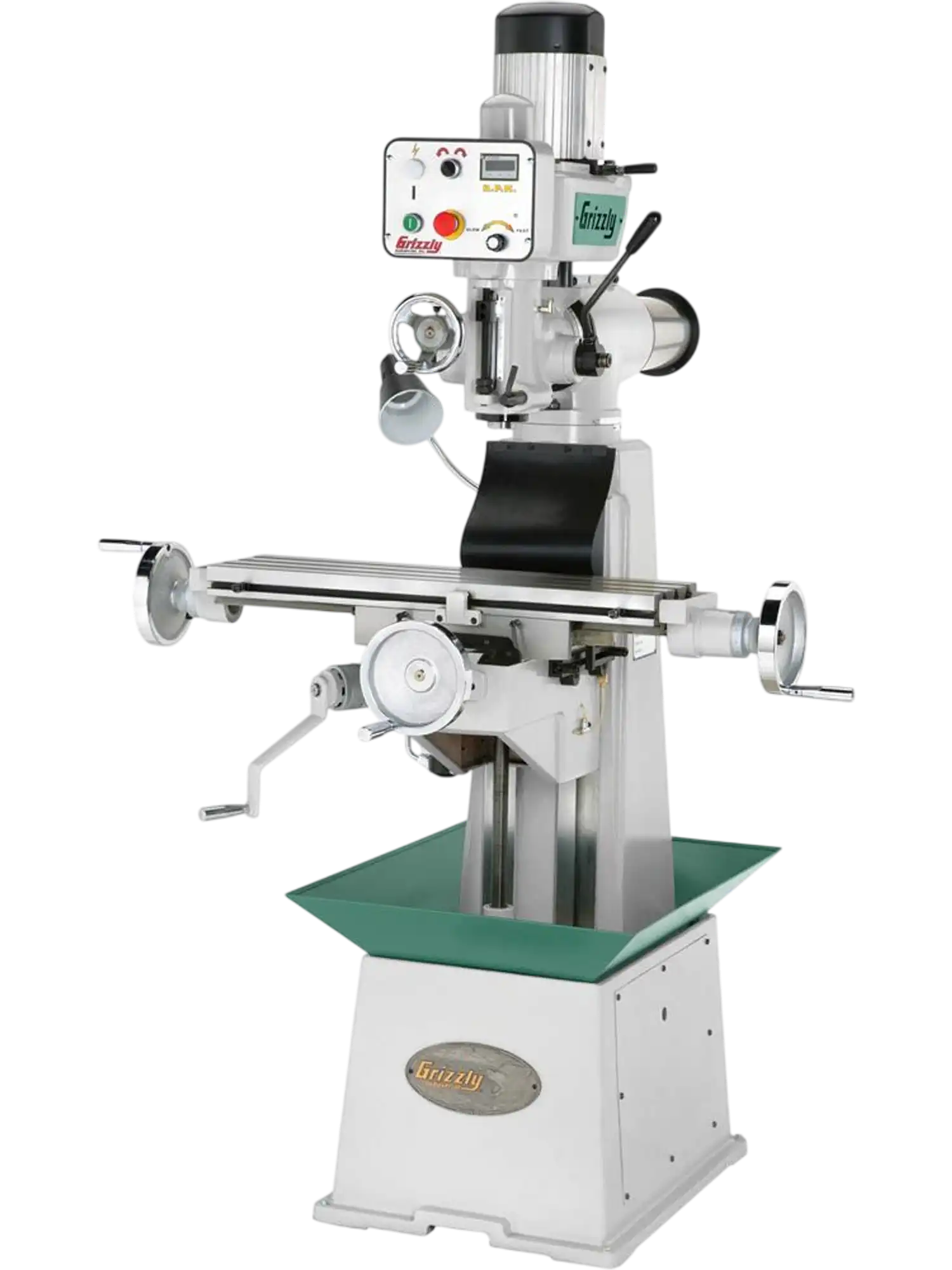

The Grizzly G0695 is an 8" x 30" variable-speed knee mill built for accurate drilling, boring, and milling in home shops, schools, and small job shops. Its 1-1/2 HP motor runs on 220V single-phase power and delivers a wide spindle speed range up to 2250 RPM for handling a variety of materials and cutting tasks.

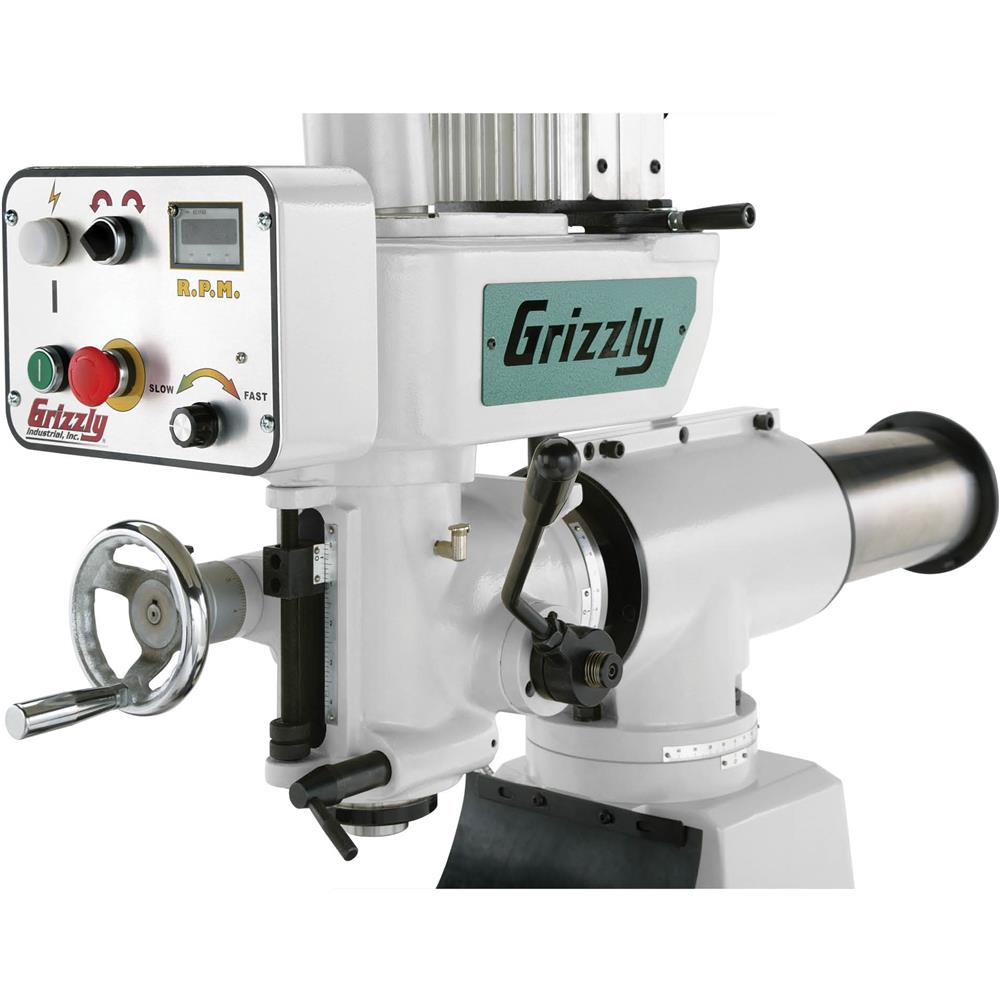

This machine features a ram head that slides, swivels, and tilts 45 degrees left or right for flexible positioning and more complex setups. An R-8 spindle, 3-1/2" spindle travel, and generous X, Y, and Z table movement give users the range needed for detailed work and everyday machining operations.
Cast-iron construction, hardened precision-ground leadscrews, high-precision ball bearings, and a one-shot lubrication system help support smooth performance and consistent results. It is a strong choice for machinists who want versatile manual milling capability in a compact knee mill format.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

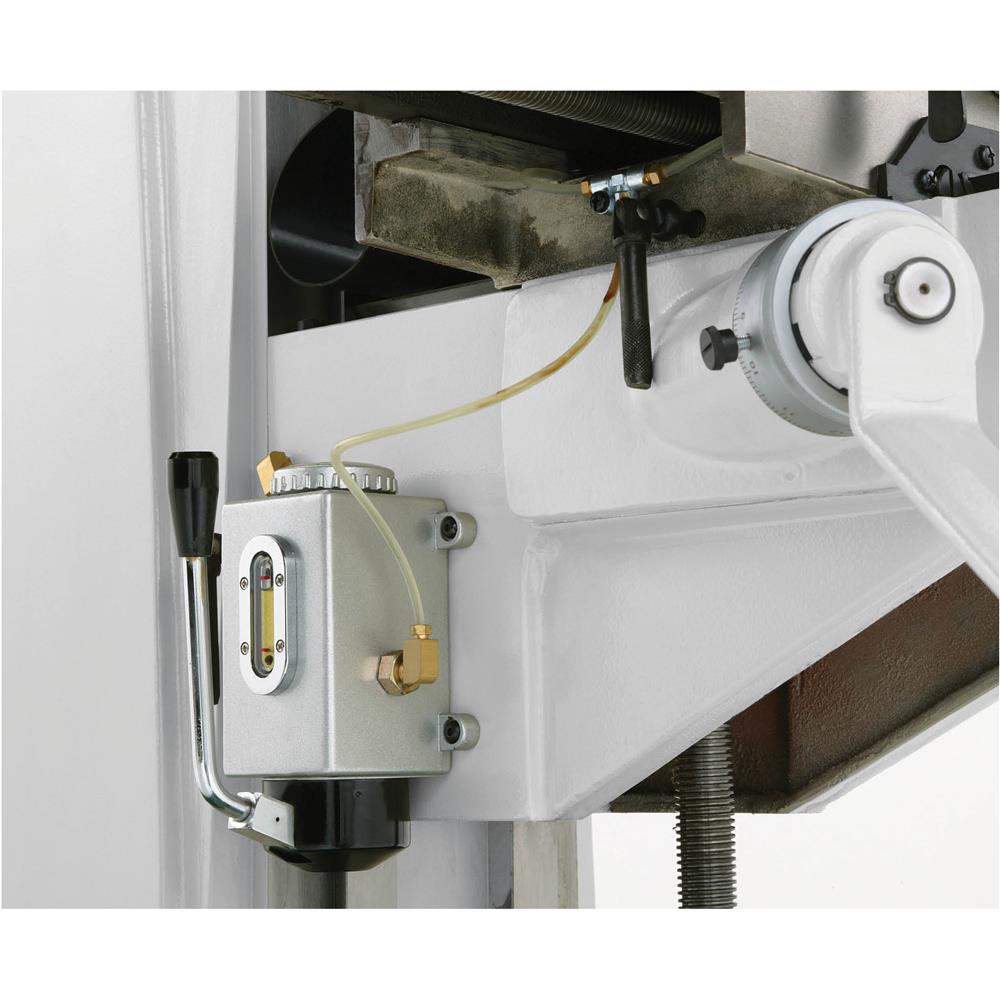

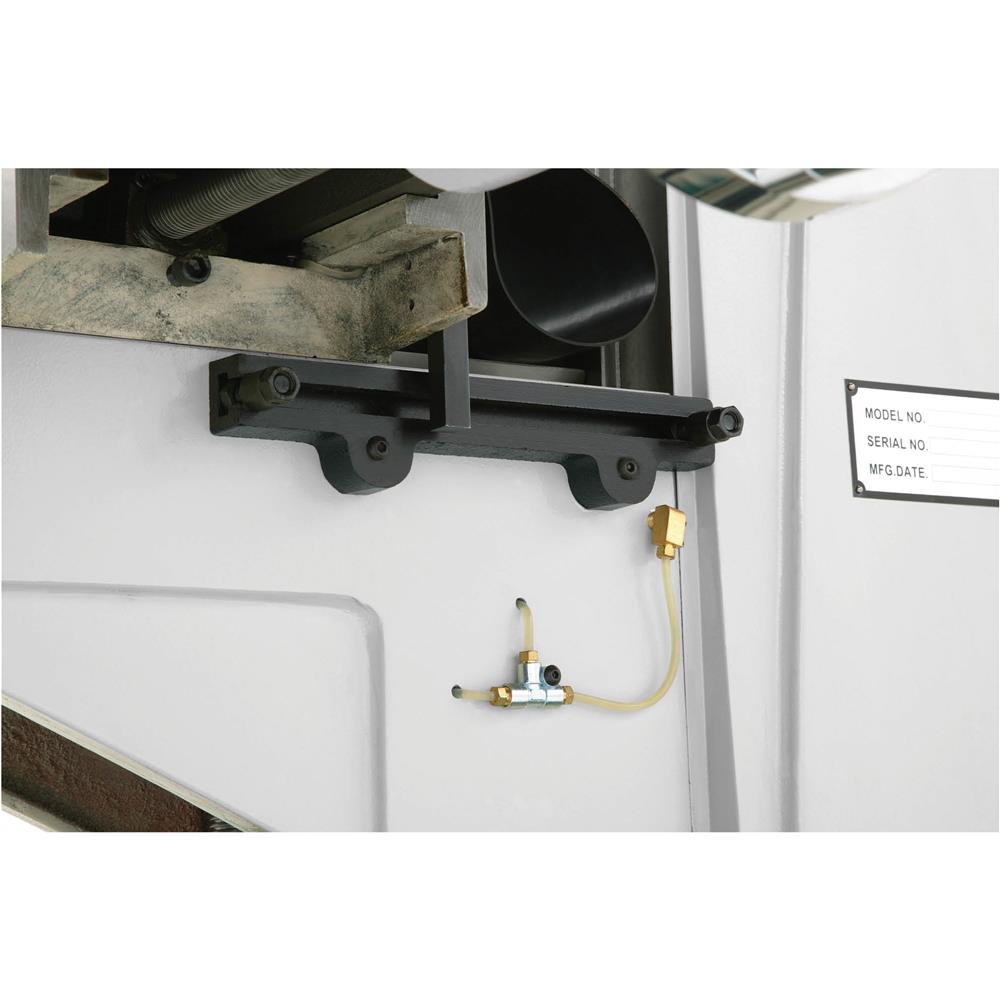

- Convenient one-shot lubrication system
- High-precision ball bearings
- Bronze nut on longitudinal and cross feed leadscrews
- Variable-speed frequency drive allows speeds from 200 to 2250 RPM
- Hardened and precision-ground leadscrews
- Runs on single-phase power using an inverter
- Cast-iron construction throughout machine
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
| Motor | 1-1/2 HP, 220V |
| Spindle taper | R-8 |
| Spindle travel | 3-1/2" |
| Spindle speed | Variable, 220–2250 RPM |
| Max distance spindle-to-table | 20" |
| T-Slots | 3 @ 1/2" wide, 2-3/16" centers |
| Table size | 8" x 30" |
| Longitudinal table travel (X-axis) | 18" |
| Cross table travel (Y-axis) | 7-1/2" |
| Vertical table travel (Z-axis) | 17-3/4" |
| Head tilt | 45° left/right |
| Ram travel | 18" |
| Drilling capacity | 3/4" mild steel |
| Overall size | 42-3/4" W x 40-1/2" D x 79" H |
| Approximate shipping weight | 1006 lbs. |
Warranty
This item comes with a 1 year factory warranty.
