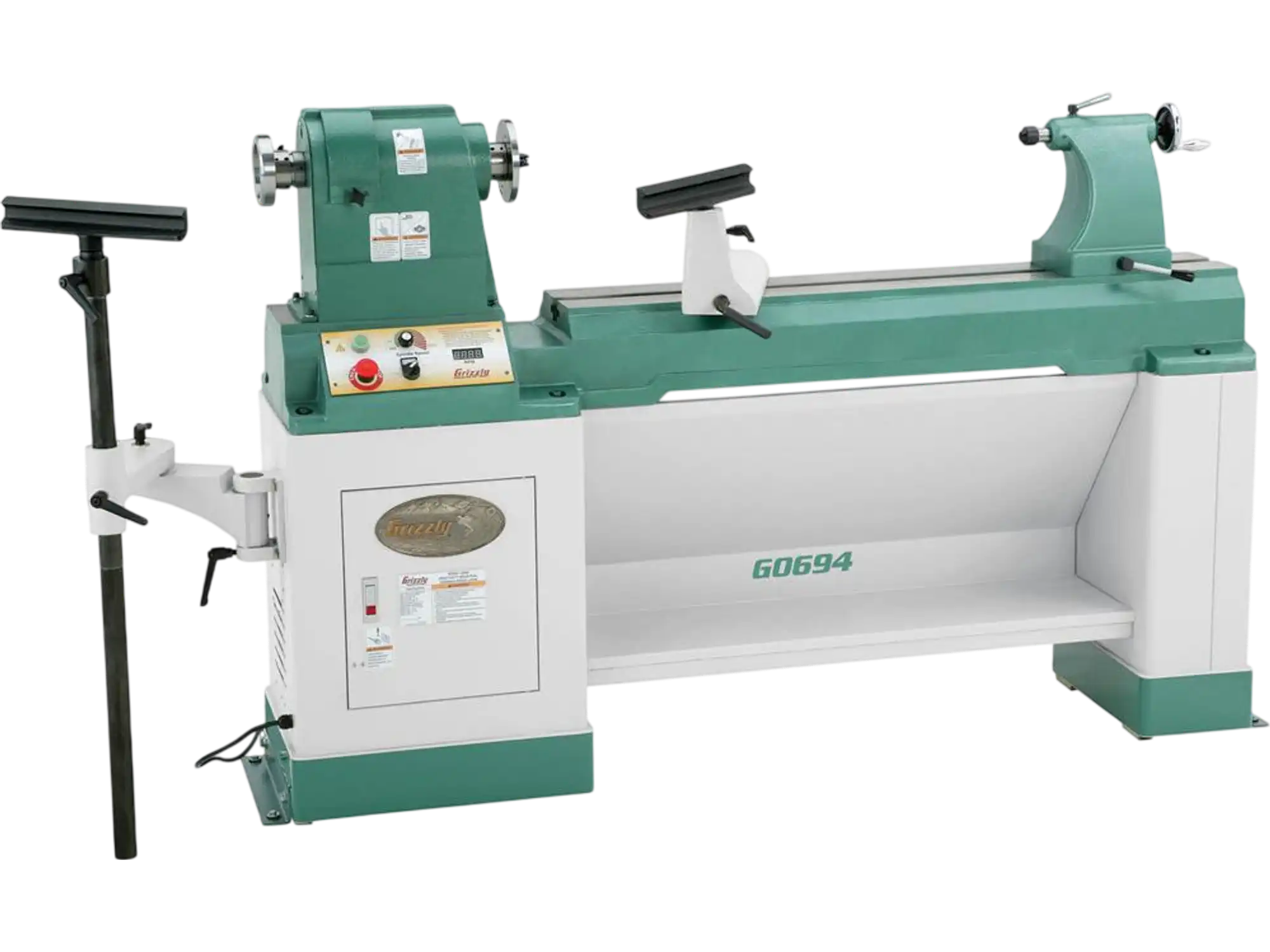

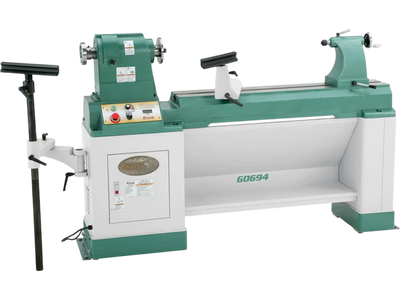

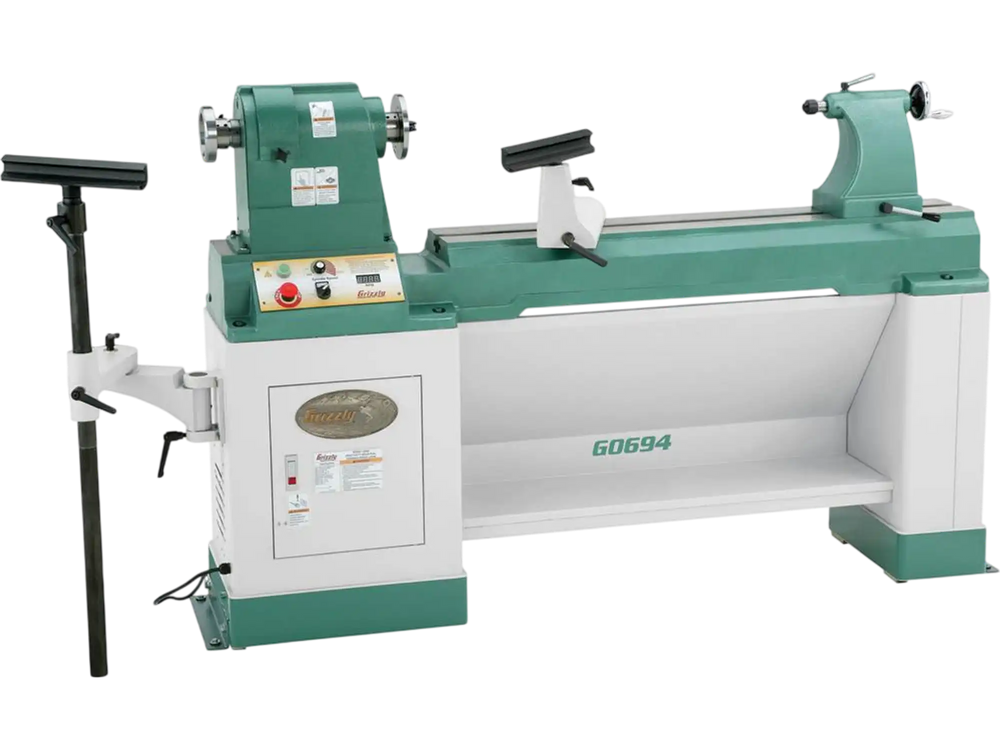

Grizzly G0694 Wood Lathe 20" x 43" Heavy-Duty Variable-Speed New
Product Overview
The Grizzly G0694 is a heavy-duty 20" x 43" wood lathe built for serious turning work. Its massive cast-iron construction helps reduce vibration, while the 3 HP motor and variable-speed drive deliver smooth, high-torque performance for everything from small spindle work to larger bowl and platter projects.

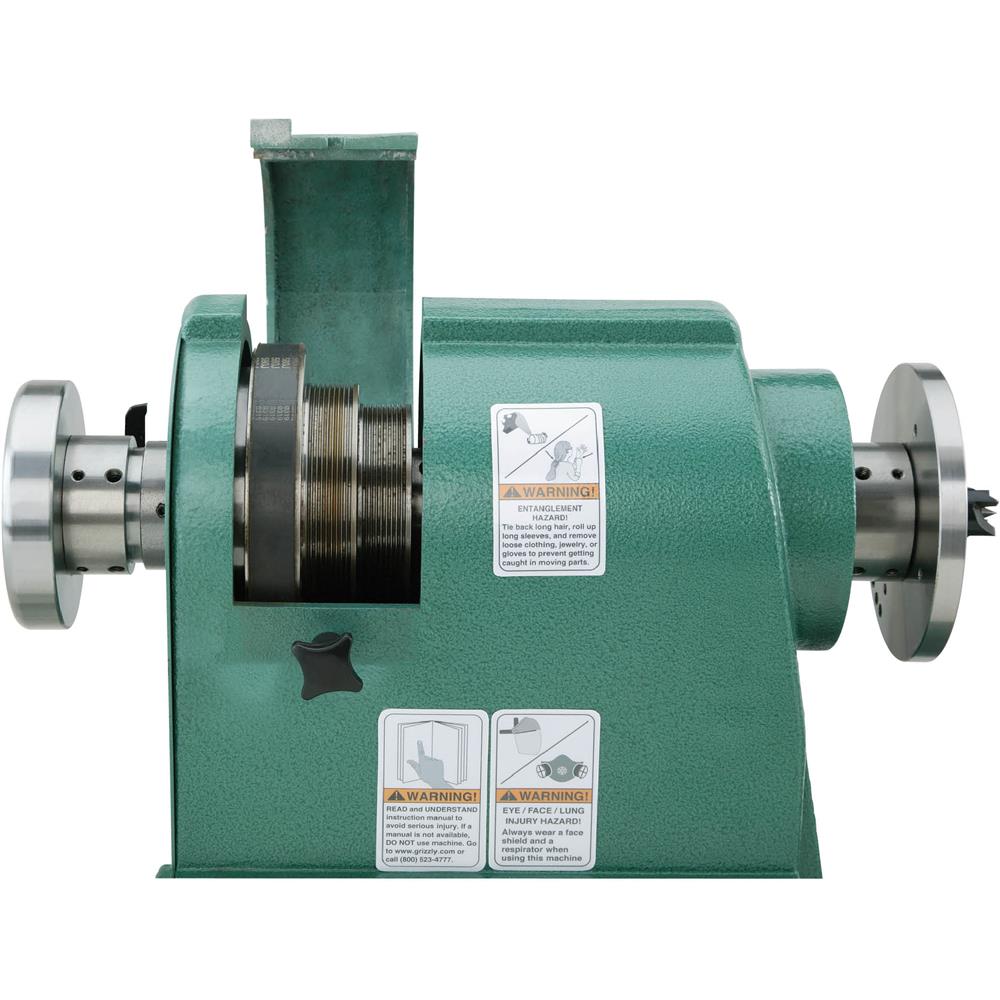

Variable speed from 100 to 3000 RPM, a digital RPM readout, and forward/reverse control make it easy to fine-tune operation for different materials and techniques. The double-sided spindle and outboard tool rest also allow turning larger-diameter workpieces beyond the standard 20" swing capacity.
With 43" between centers and a precision-ground bed, this lathe is well suited for experienced woodworkers, dedicated hobbyists, and professional shops that need power, stability, and flexibility for demanding woodturning applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

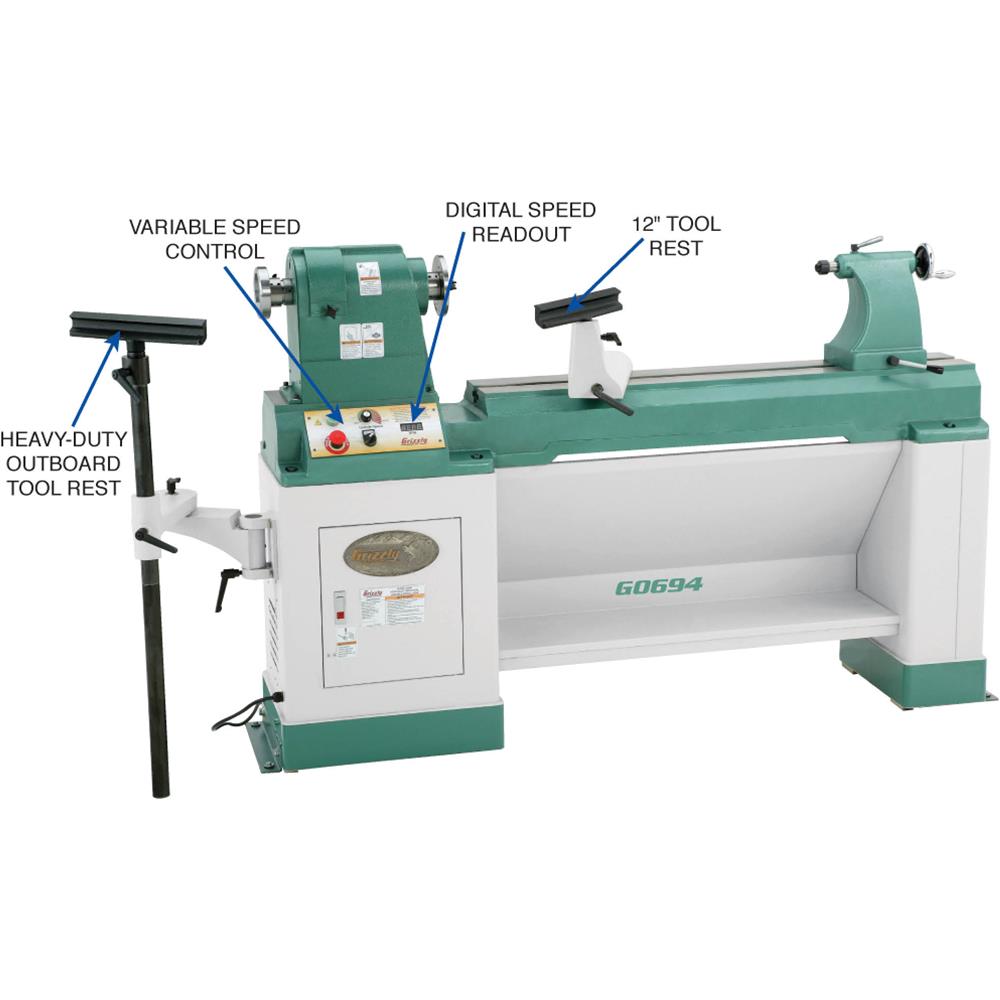

Features

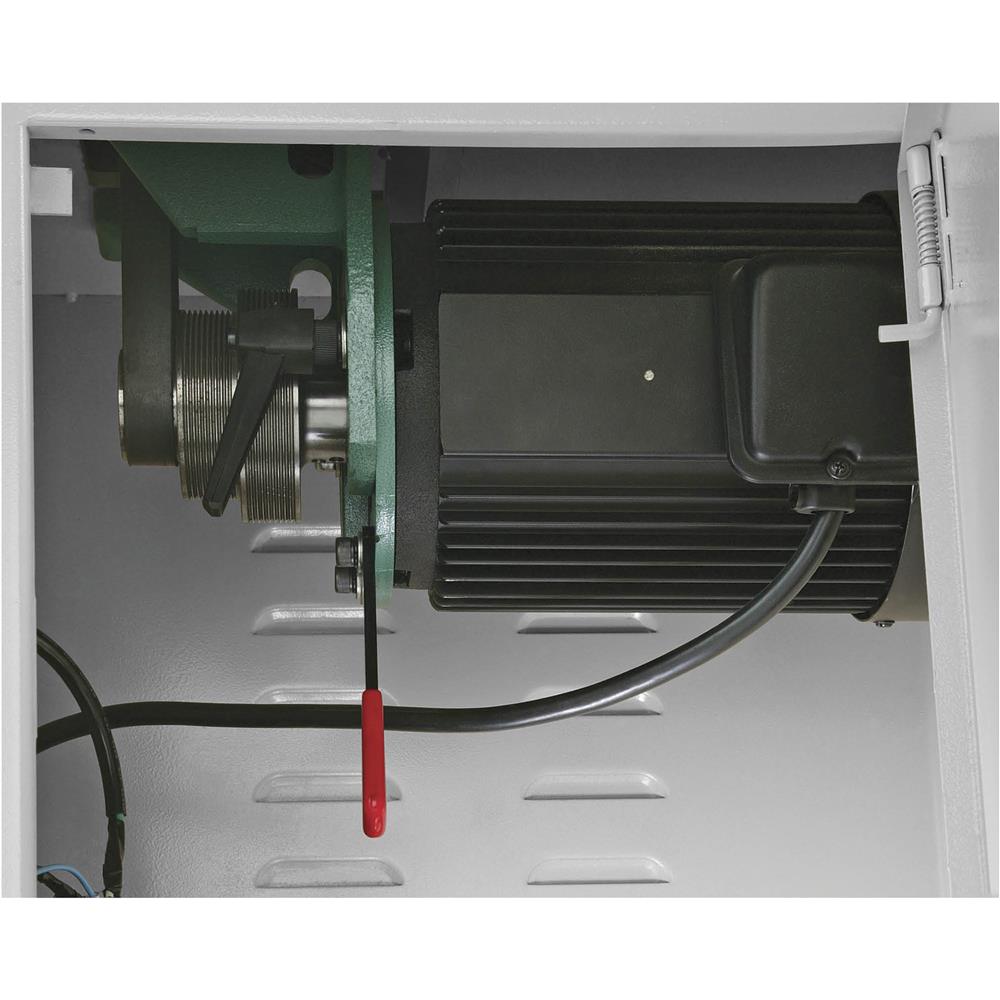

- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Precision-ground cast-iron bed
- Low speed range of 100–1000 RPM
- Mid speed range of 1000–2000 RPM
- High speed range of 2000–3000 RPM
- Quick-release belt tension lever for easy spindle speed range changes

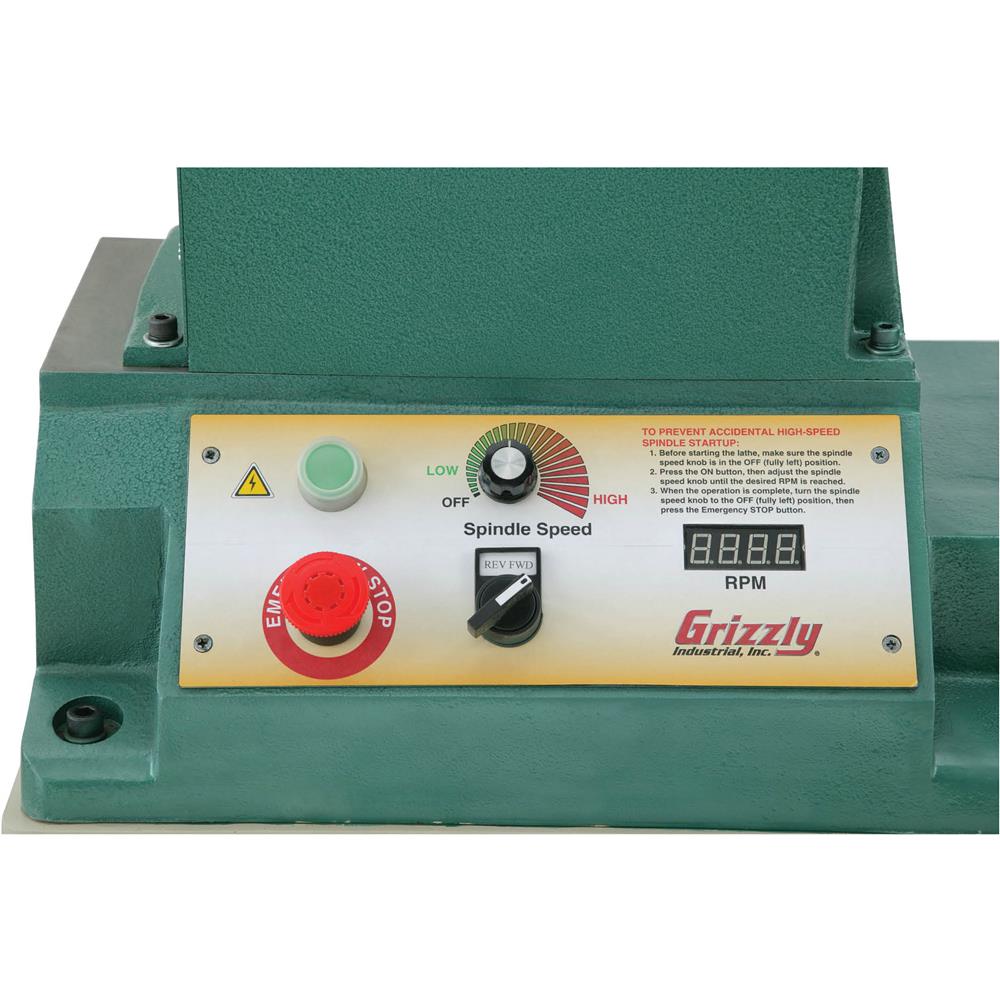

- Digital spindle speed readout
- Forward/reverse spindle control

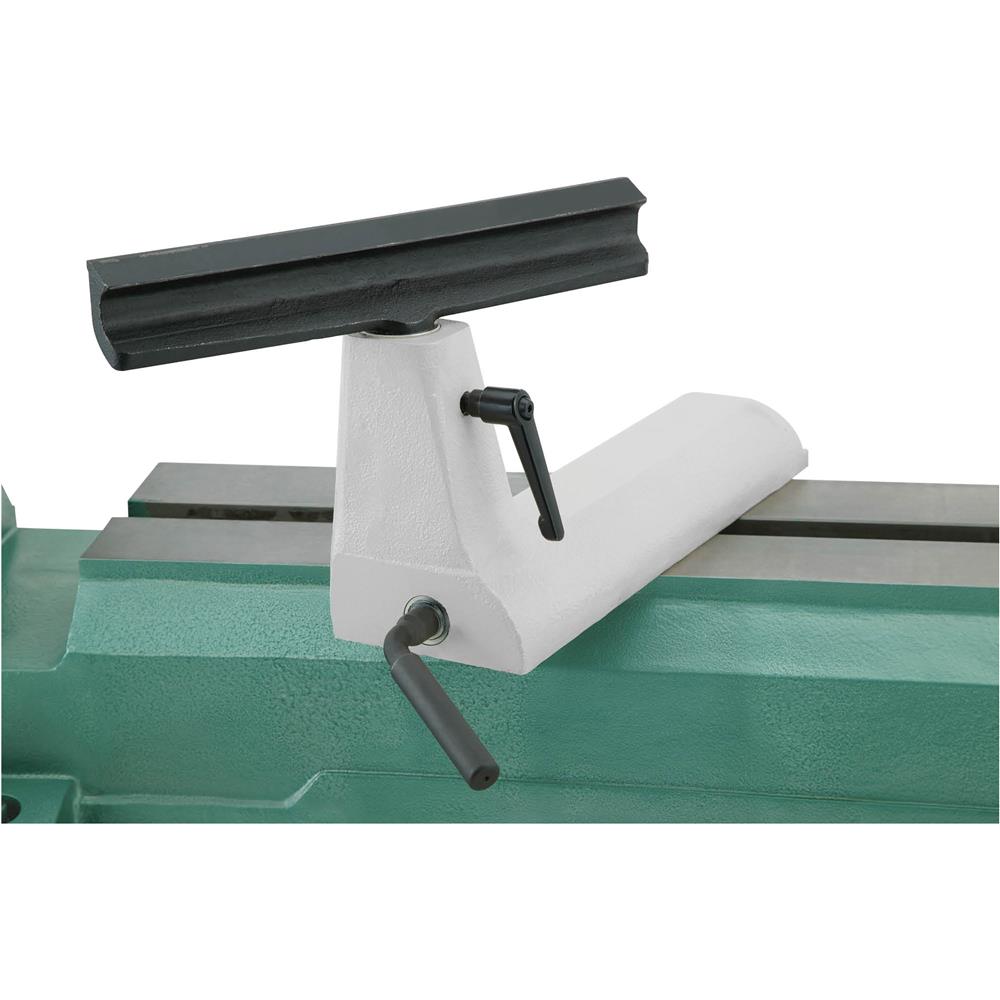

- 13-3/4" wide outboard tool rest
- Spindle indexed every 15°
- Includes MT#2 live and spur centers
Specifications
| Required power source | 220V, single-phase, min. 20A circuit |
| Motor | 3 HP, 220V |
| Swing over bed | 20" |
| Swing over tool rest base | 16-1/4" |
| Distance between centers | 43" |
| Spindle speed | Variable, 100–3000 RPM |
| Spindle threads | 1-1/4" x 8 TPI |
| Spindle taper | MT#2 |
| Tailstock taper | MT#2 |
| Tool rest width | 13-13/16" |
| Tool rest post diameter | 1-1/4" |
| Footprint | 16-1/2" x 77" |
| Overall dimensions | 103" W x 25" D x 49-1/2" H |
| Approximate shipping weight | 814 lbs. |
Warranty
This item comes with a 1 year factory warranty.
