Grizzly G0686 Drill Bit Grinder Large Sharpener New
Product Overview

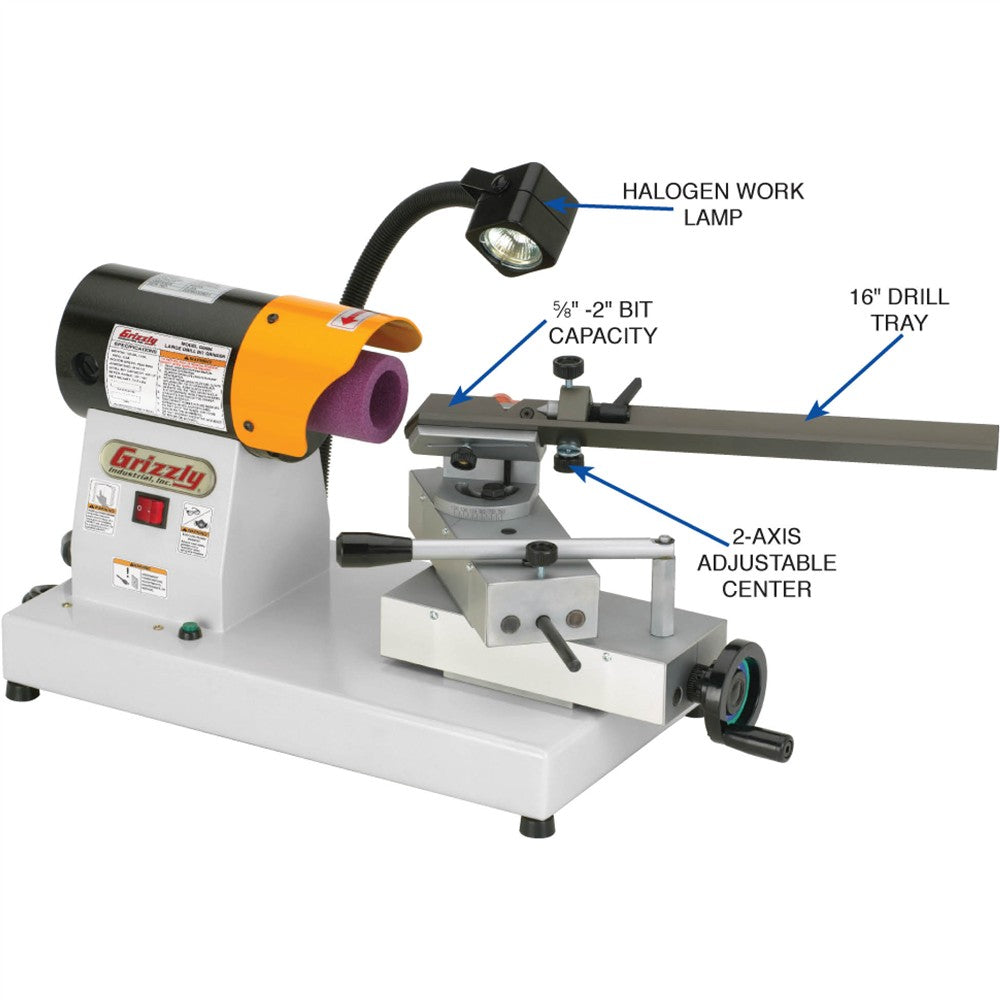

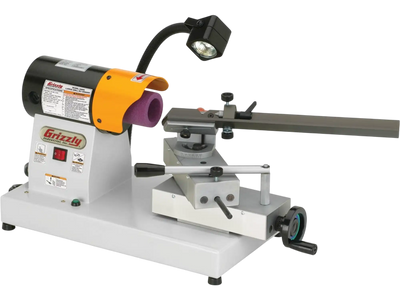

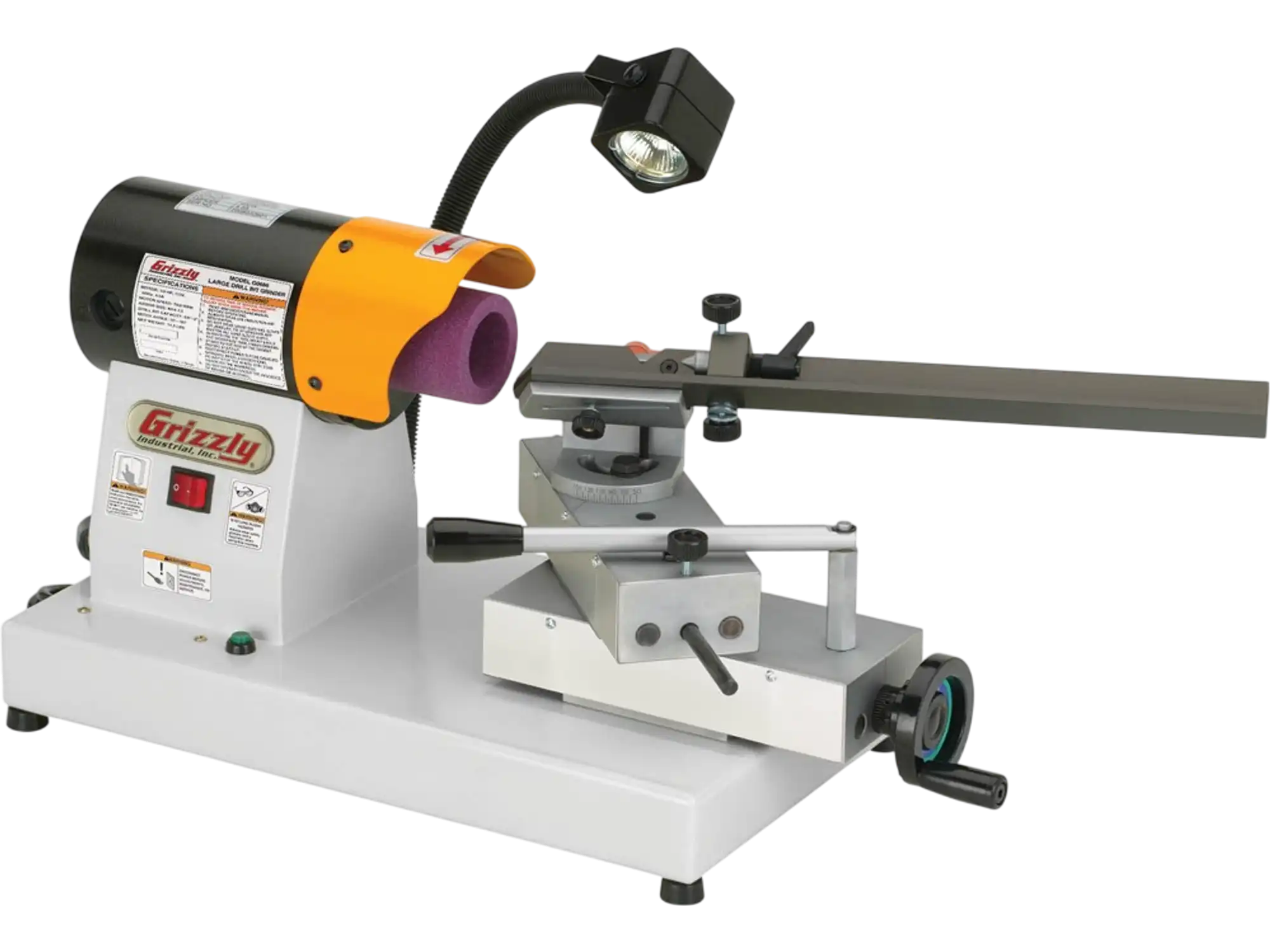

The Grizzly G0686 is a large drill bit grinder built to restore the cutting edges and point angle on 2-flute twisted drill bits from 5/8 inch to 2 inches in diameter. It is designed for fast, accurate sharpening of larger bits used in metalworking, fabrication, maintenance, and shop environments.

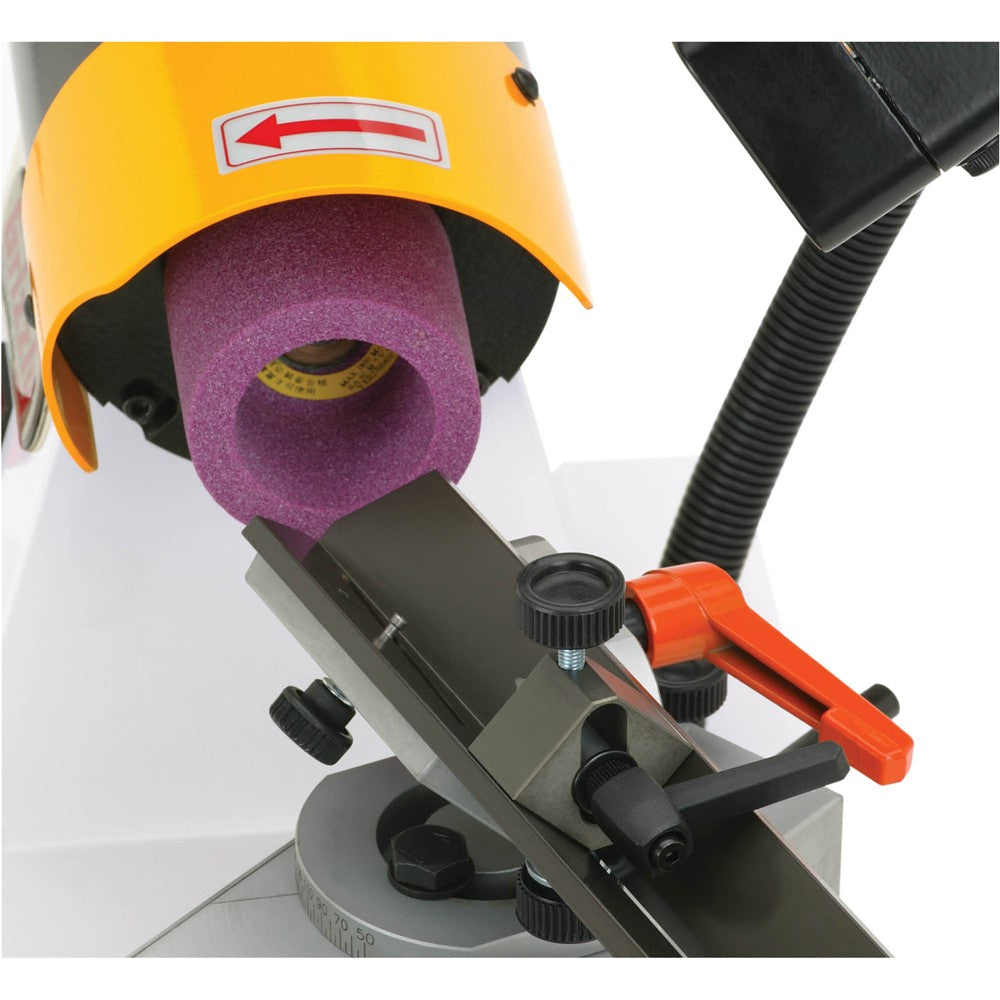

An easy-to-read scale lets you set drill angles from 50° to 150°, while the calibrated infeed handwheel, adjustable center, and swing arm help guide precise grinding motion. The grinding wheel bore produces clean, finished cutting edges, and the built-in LED work light improves visibility right where the wheel meets the bit.
Powered by a 1/2 HP, 110V motor and running at 6800 RPM, this sharpener is a practical choice for users who need consistent results on large drill bits. It is well suited for machinists, maintenance departments, and serious shop users looking to keep expensive bits working efficiently.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Unique stroke arm with 2-way adjustable stops
- Calibrated infeed handwheel
- 16" Drill tray
- 2-Axis adjustable center
- LED work light
- M14-1.5 threaded arbor
Specifications
| 1/2 HP, 110V, single-phase, 4.5A | |
| Spindle speed | 6800 RPM |
| Drill bit diameter capacity | 5/8"–2" |
| Miter angle | 50°–150° |
| Footprint | 11" x 20" |
| Overall size | 15-1/2" W x 25" D x 19" H |
| Approximate shipping weight | 77 lbs. |
Warranty
This item comes with a 1 year factory warranty.
