Grizzly G0632Z Wood Lathe 16" x 42" Variable-Speed New
Manufacturer: Grizzly
SKU: G0632Z
QTY
or
(888) 999-1522
C
$3,105.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

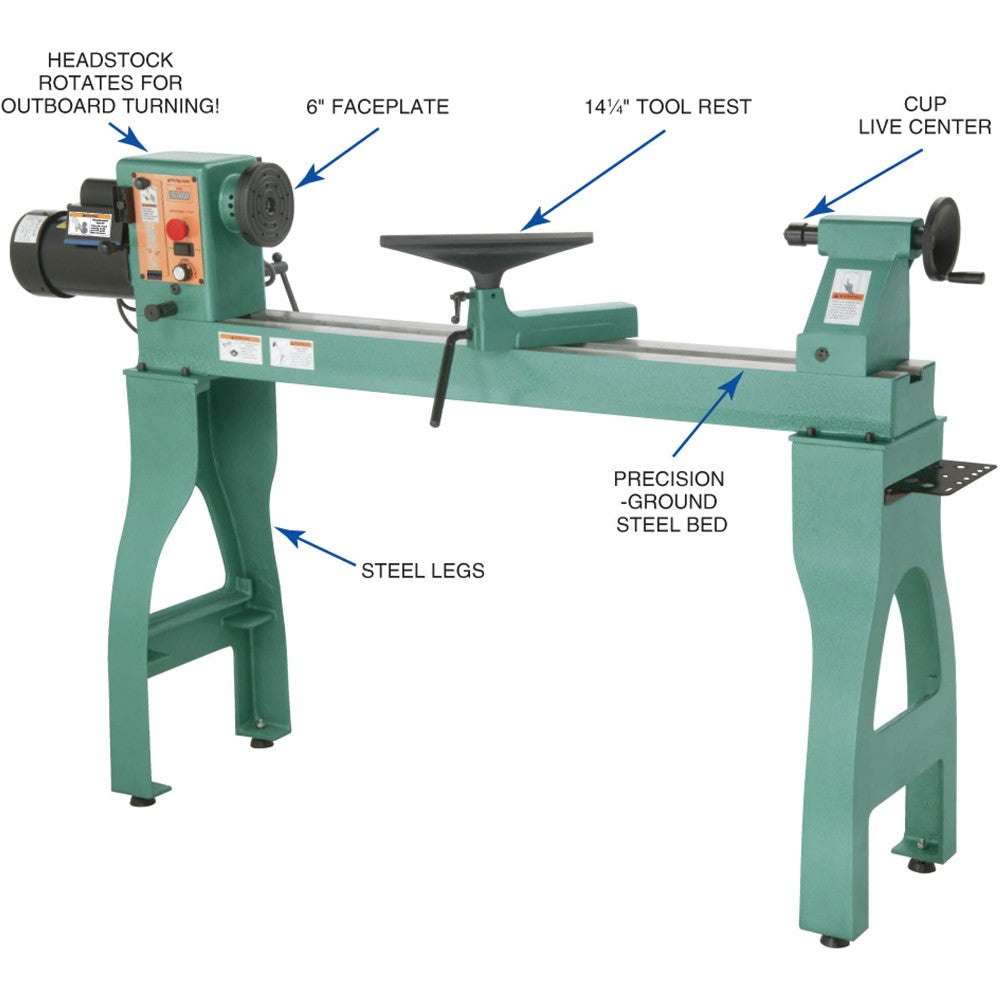

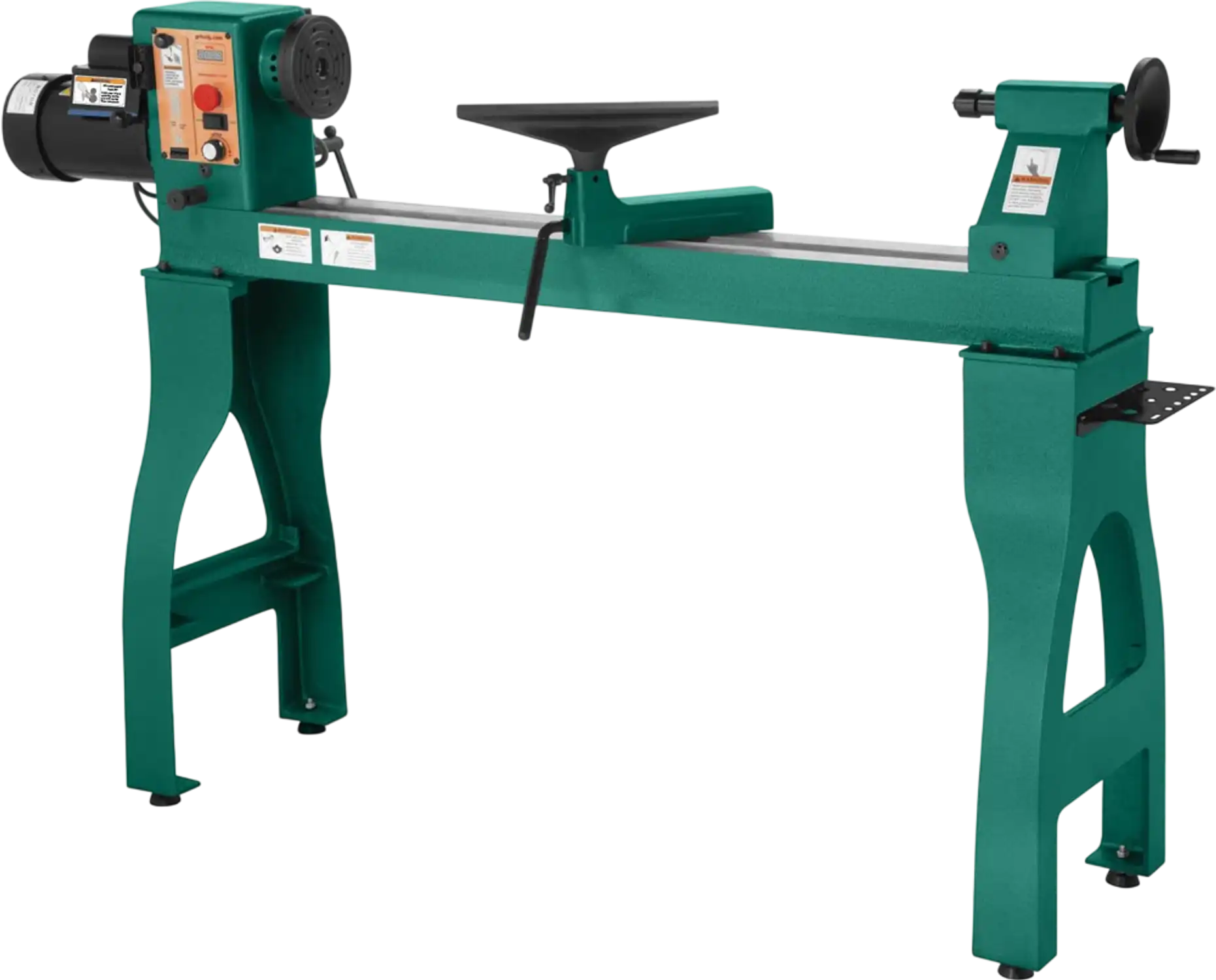

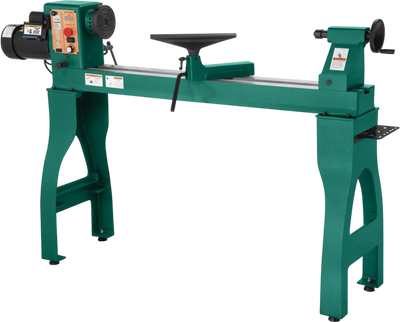

Grizzly G0632Z Wood Lathe 16" x 42" Variable-Speed New
Product Overview
The Grizzly G0632Z is a heavy-duty 16" x 42" wood lathe built for a wide range of turning work, from spindles and bowls to larger custom projects. A 2 HP motor, variable-speed control from 100 to 3200 RPM, and a digital speed readout give you the control needed for both roughing and fine finishing.

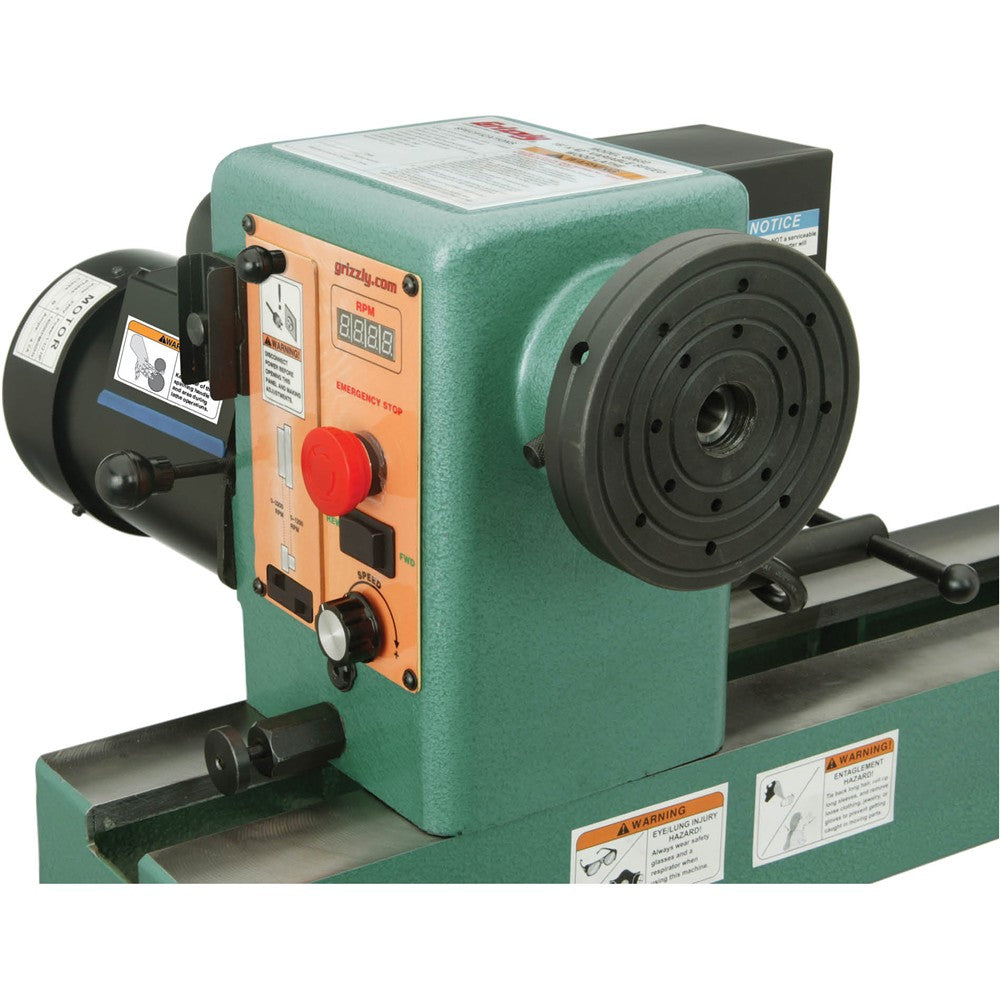

Designed for flexibility, the swiveling headstock locks at multiple angles for outboard turning and can be positioned anywhere along the bed to suit different setups. The precision-ground steel bed, lever-action cam locks, forward/reverse operation, and indexing capability make it easy to adjust quickly and work with confidence.
This lathe is a strong choice for serious woodworkers, furniture makers, and dedicated hobbyists who need generous capacity and versatile speed control in one machine. Its rugged construction and adaptable layout make it well suited for shops handling everything from everyday turning to larger, more demanding workpieces.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Digital spindle-speed indicator
- 30° direct indexing using one indexing hole
- 10° indexing using all three indexing holes
- Headstock can be positioned anywhere along the bed
- Belt drive offers two speed ranges to maximize spindle torque
- Spindle lock pin
- Outboard spindle handle
- Forward/reverse switch
- Emergency stop switch
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
| Motor | 2 HP, 220V |
| Swing over bed | 16" |
| Swing over tool rest | 11-1/2" |
| Distance between centers | 42" |
| Spindle taper | MT#2 |
| Spindle thread size | 1-1/4" x 8 TPI RH |
| Tailstock taper | MT#2 |
| Spindle speed | Variable, 100–3200 RPM |
| Headstock rotation | 0°, 45°, 90°, 135°, 180°, 270° |
| Tool rest width | 14-1/8" |
| Overall dimensions | 77-1/16" L x 22-1/16" W x 47" H |
| Approximate shipping weight | 394 lbs. |
Warranty
This item comes with a 1 year factory warranty.
