Grizzly G0623X Sliding Table Saw 10" 5 HP New
Product Overview

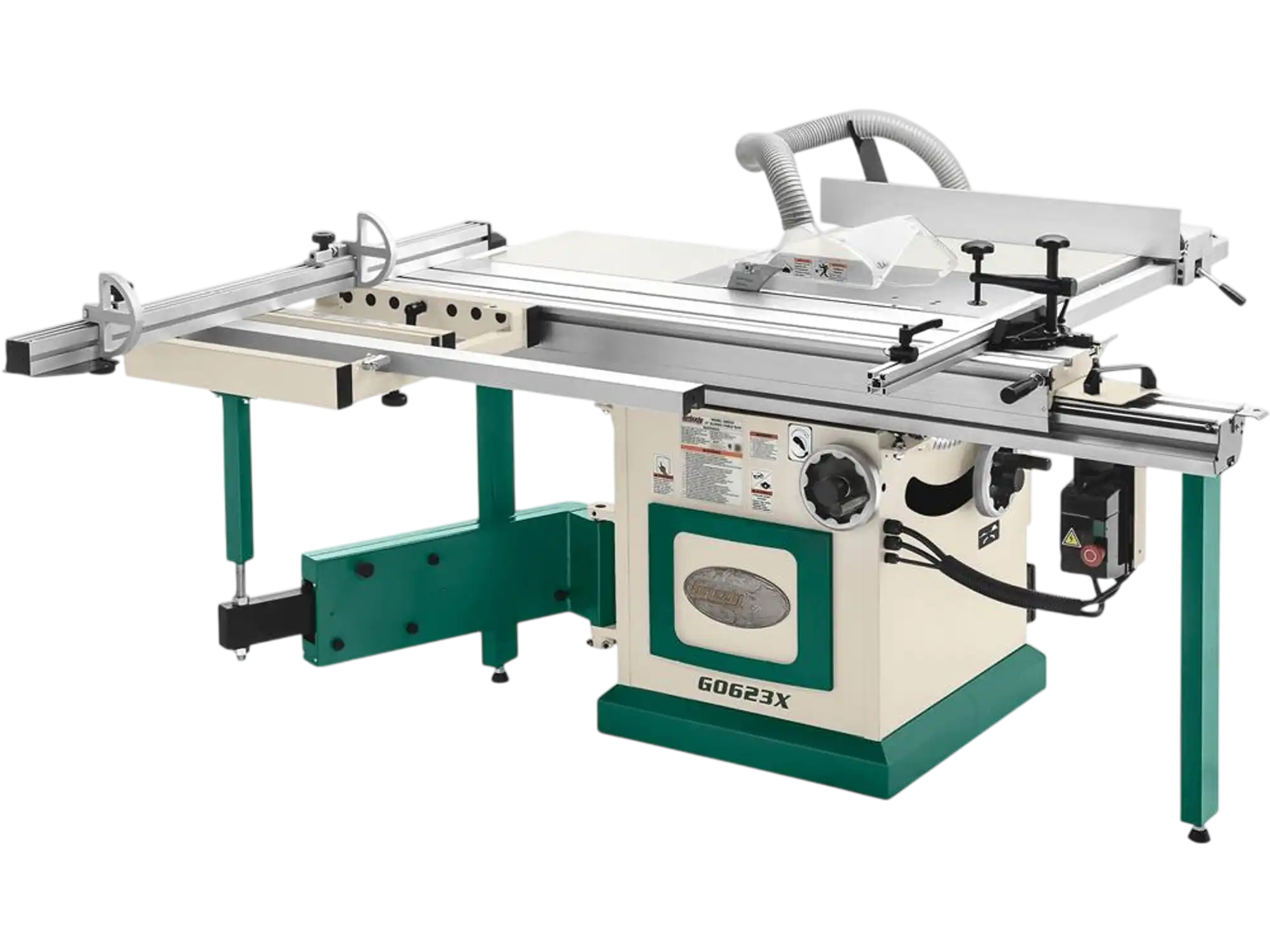

The Grizzly G0623X is a 10-inch sliding table saw designed to bring full-size panel cutting and traditional table saw performance into shops where space is limited. Powered by a 5 HP motor, it combines a precision-ground cast-iron main table with a heavy-duty aluminum sliding table for smooth, accurate cutting on sheet goods, solid wood, and cabinet components.
Its sliding table and crosscut fence make it easy to handle large panels, miters, and repetitive cuts, while the 33-inch rip capacity adds everyday versatility for general table saw work. A scoring blade helps reduce tear-out before the main blade cuts through, delivering cleaner edges and a more professional finish on veneered plywood and other delicate materials.
With 0 to 45 degree blade tilt, generous crosscut capacity, and integrated dust ports, this saw is well suited for cabinetmakers, furniture builders, and serious woodworkers who need precision, power, and efficient workflow in a compact footprint.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

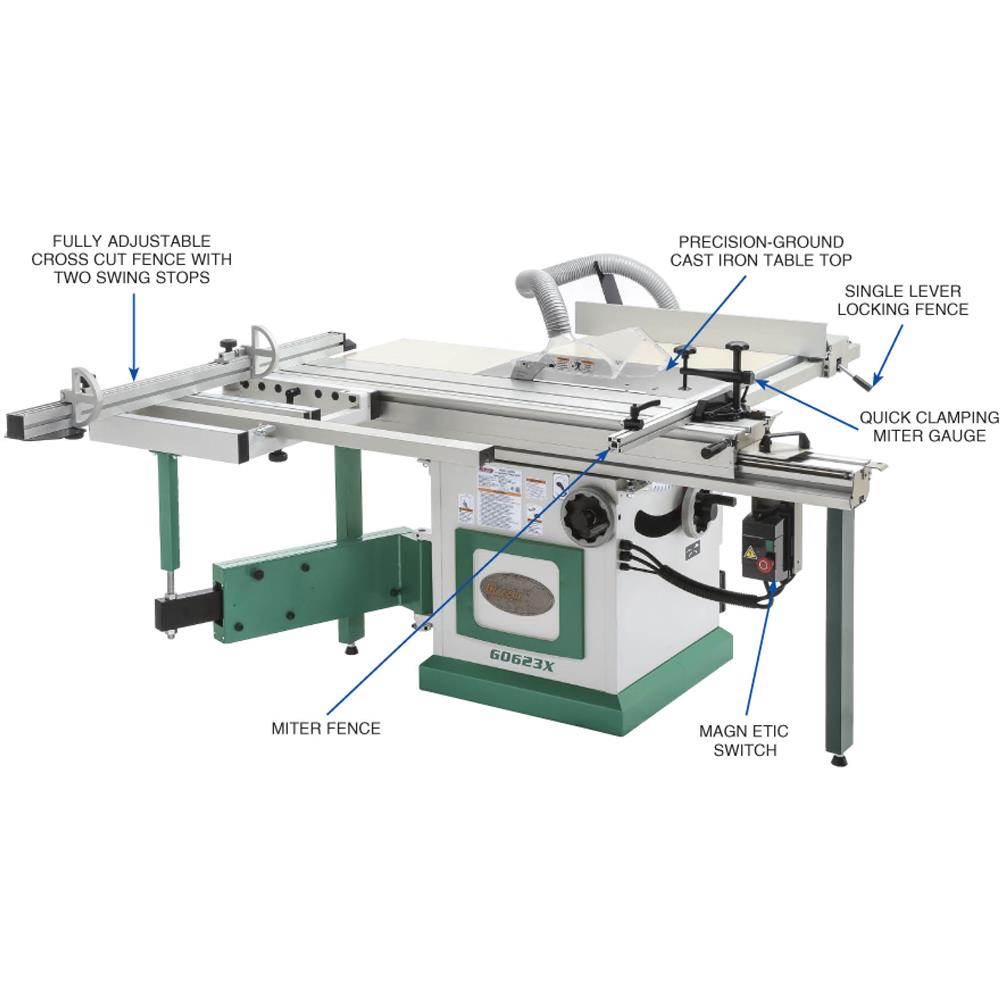

Features
- Full sheet cutting capacity

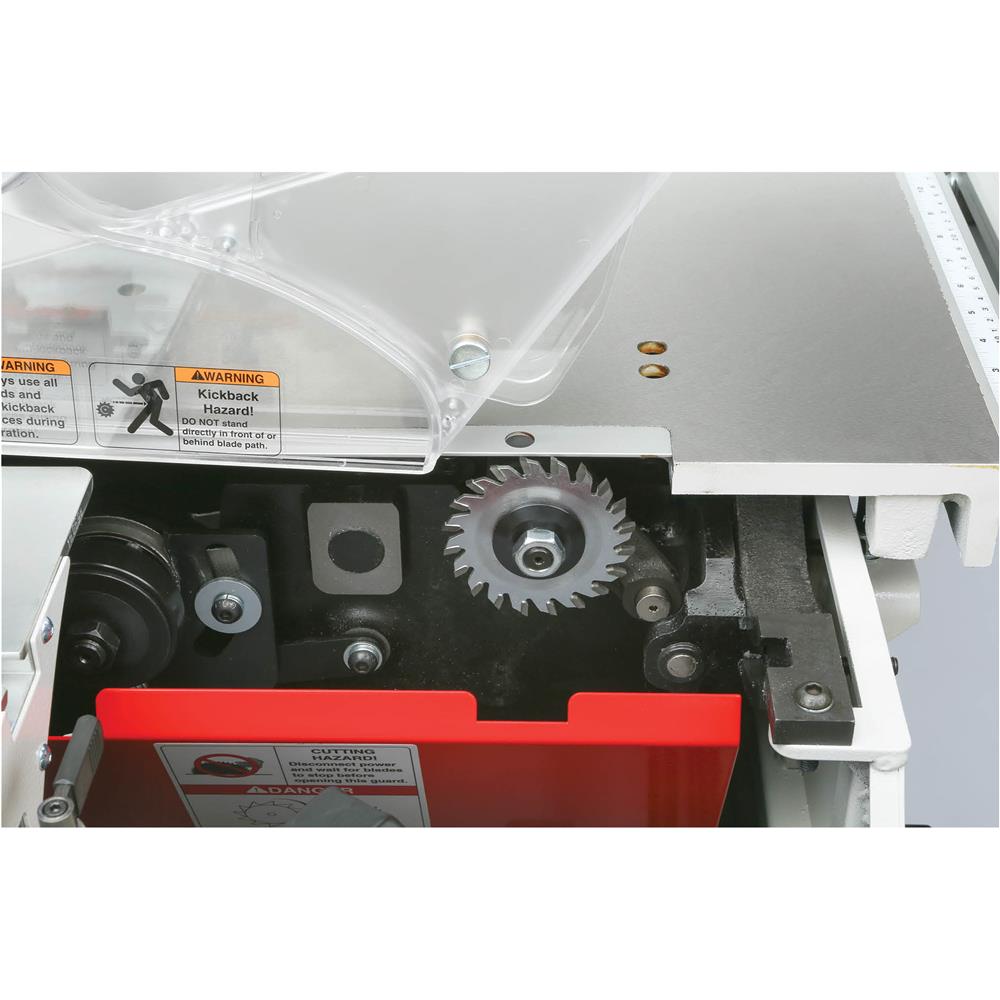

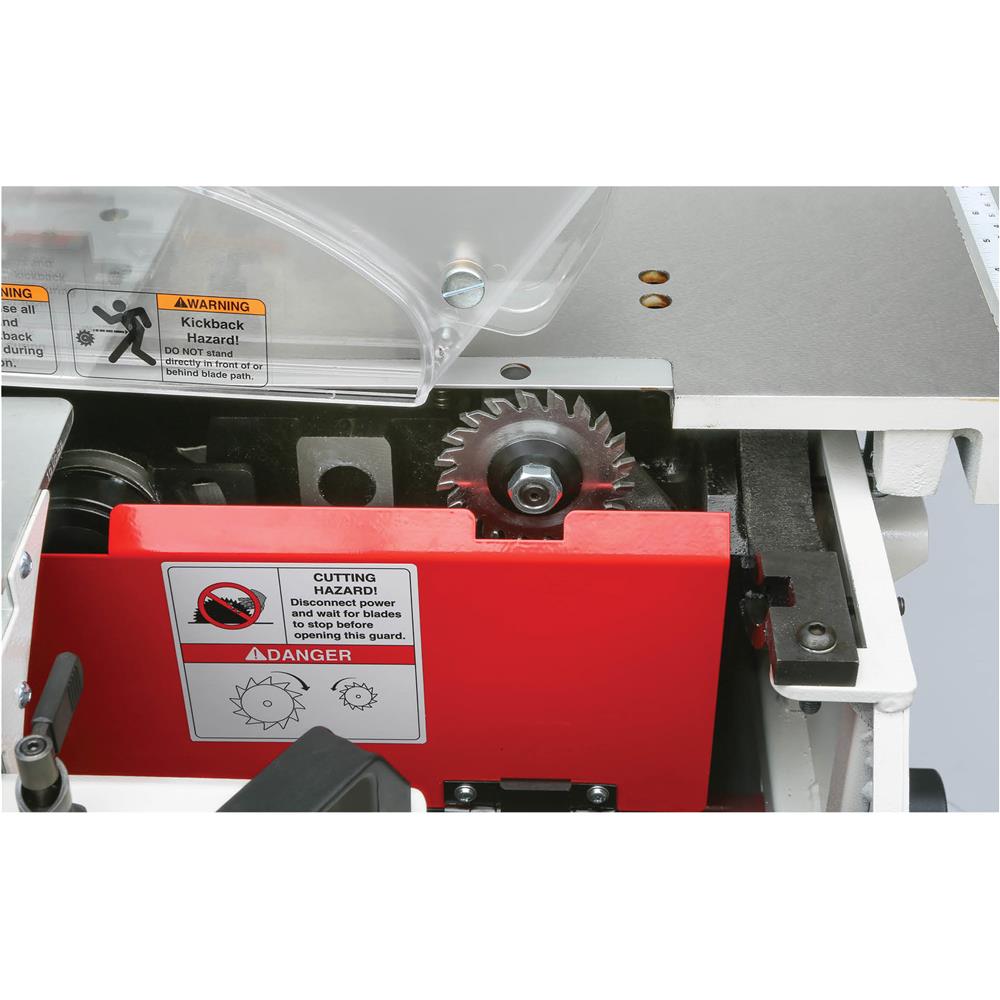

- Scoring blade ensures tear-out free cuts
- A quick clamp-on, extruded aluminum sliding table

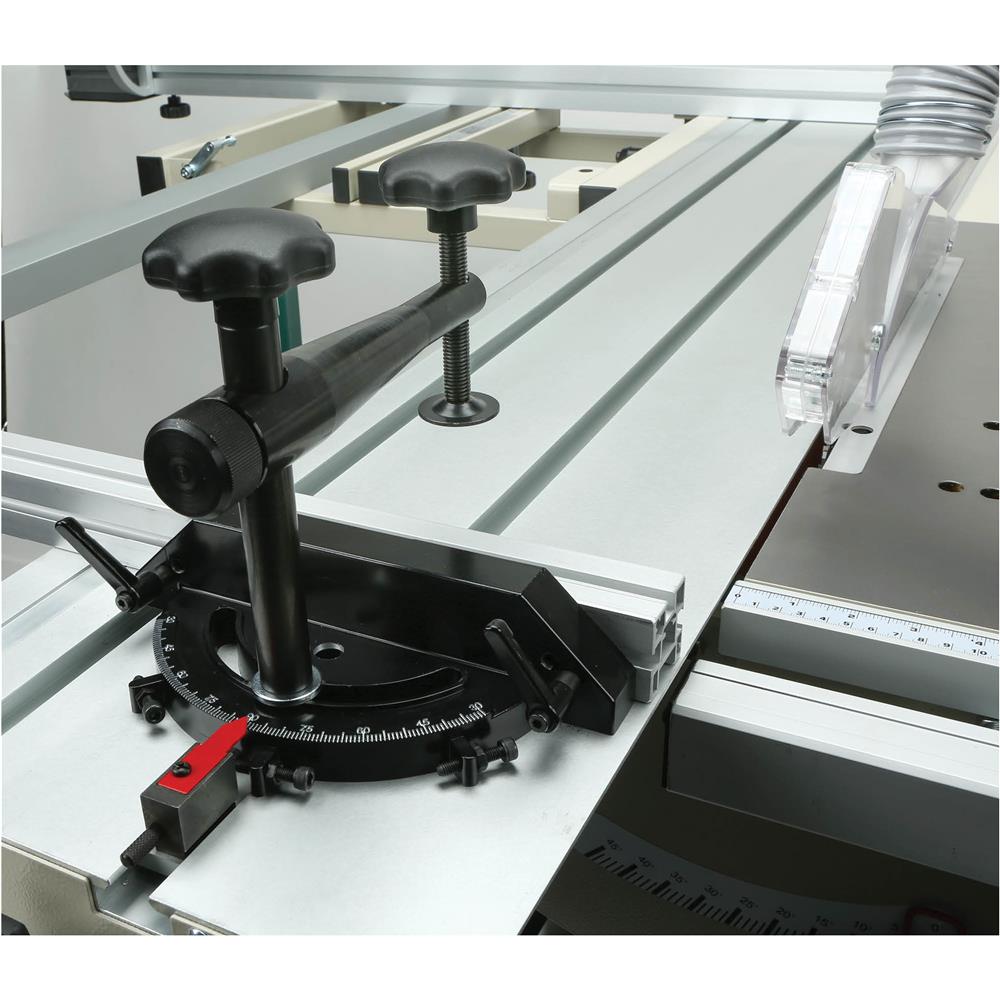

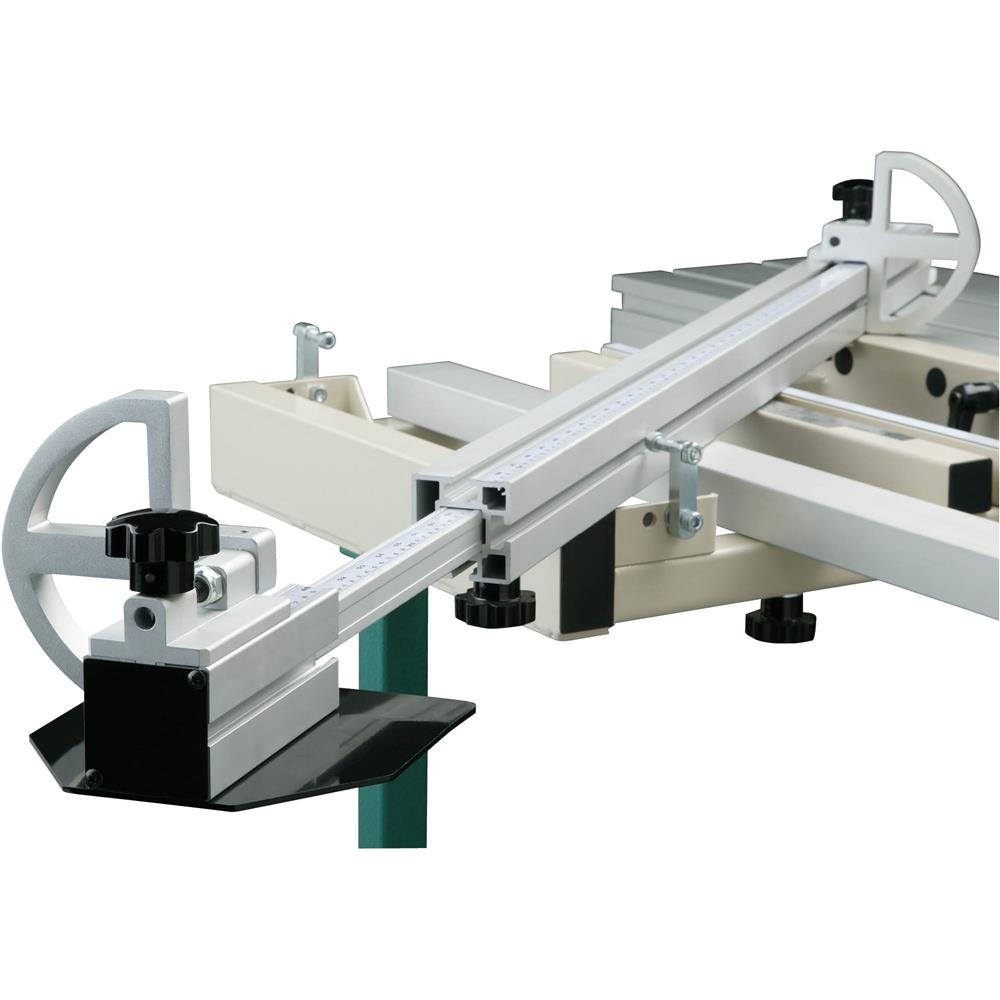

- Miter fence positions 45° right or left with two flip stops for repetitive cutting

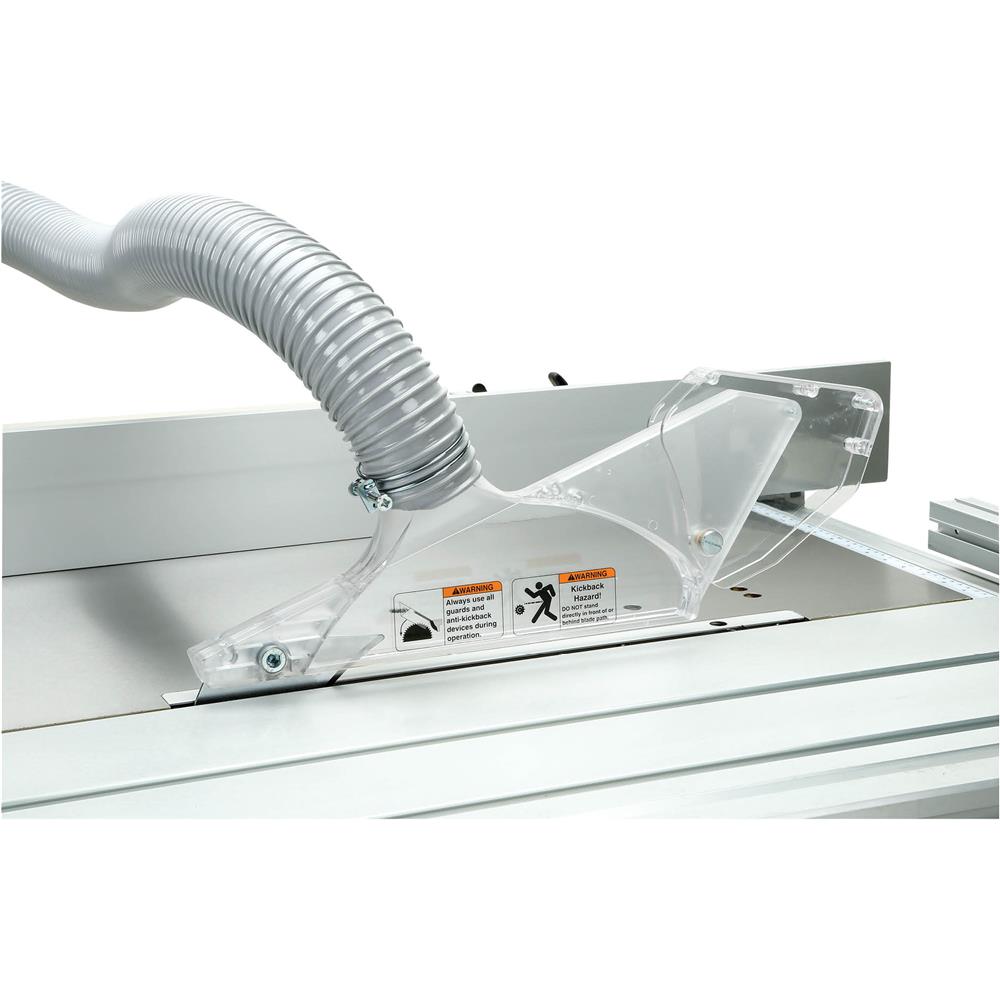

- Auxiliary 2-1/2" dust port at the blade for maximum dust collection
- Precision-ground cast-iron main table with extensions

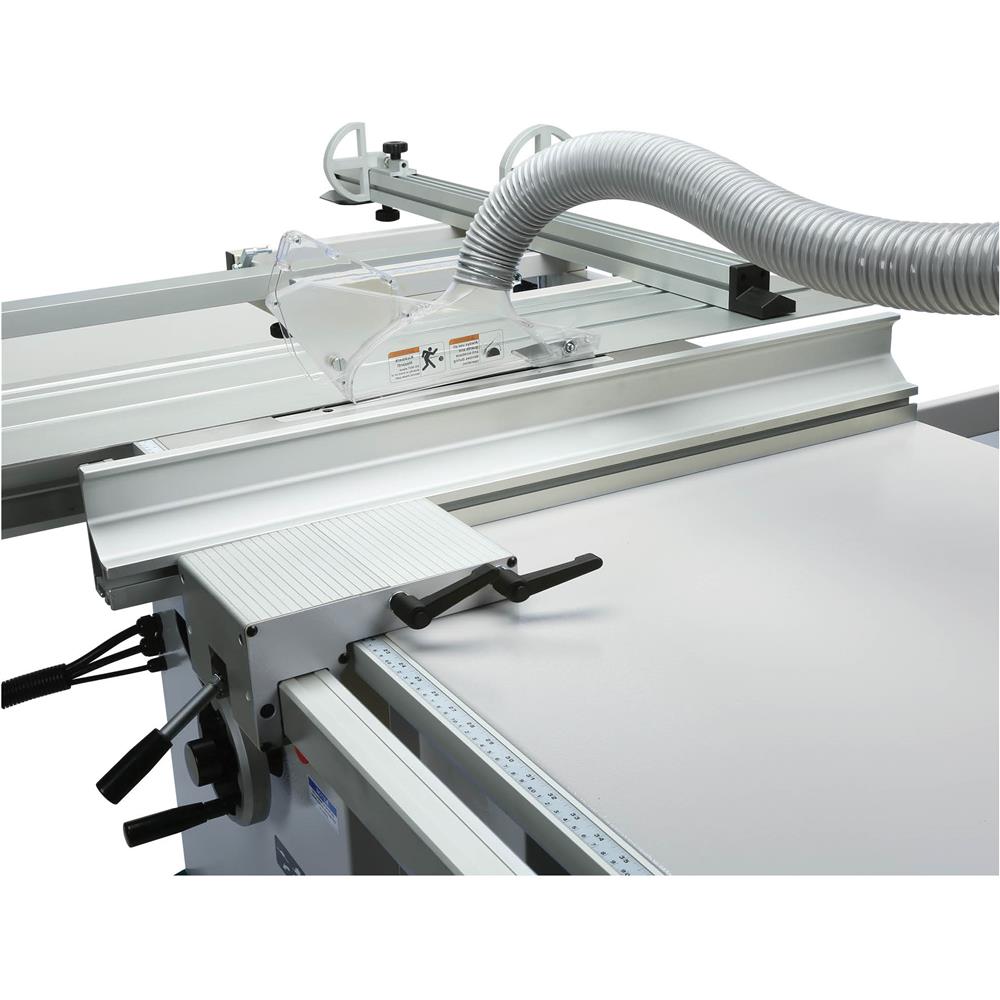

- Single lever locking fence
Specifications

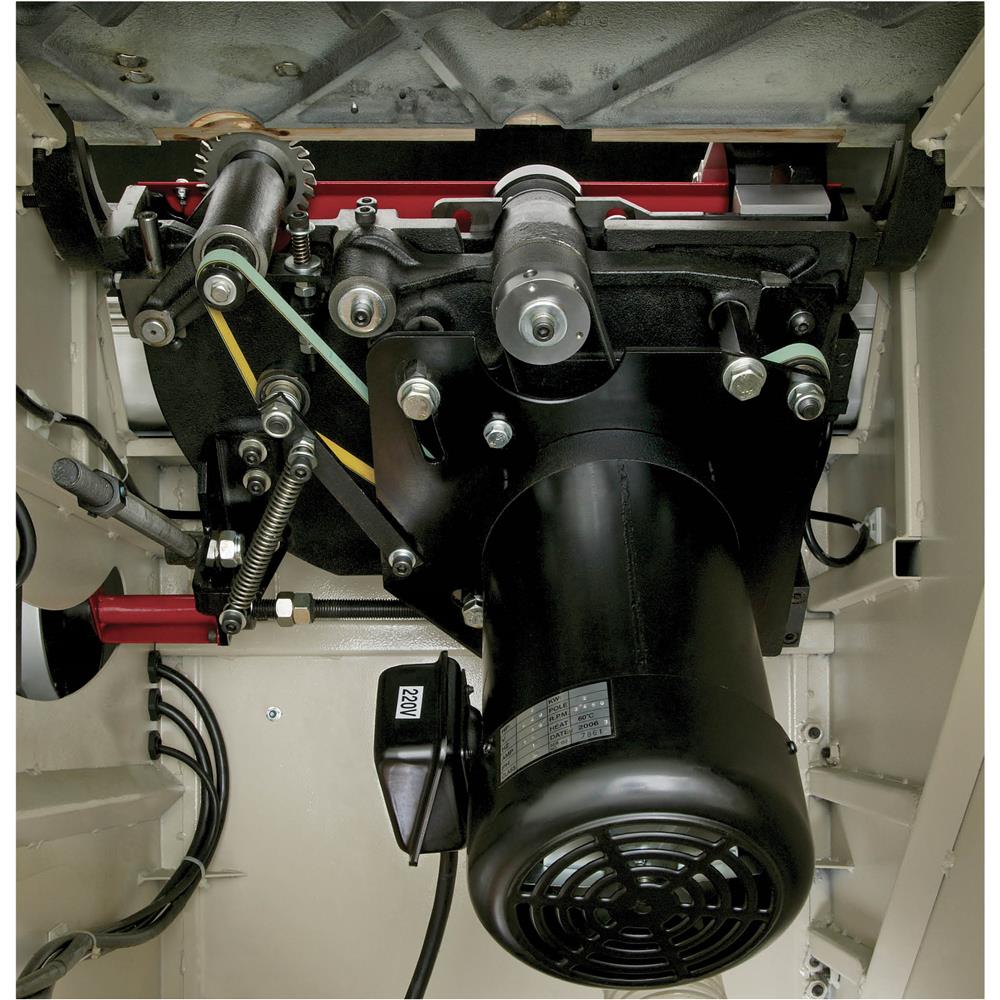

| Motor | 5 HP, 230V, single-phase, 19A |
| Rip capacity | 33" |
| Crosscut capacity | 78-1/2" |

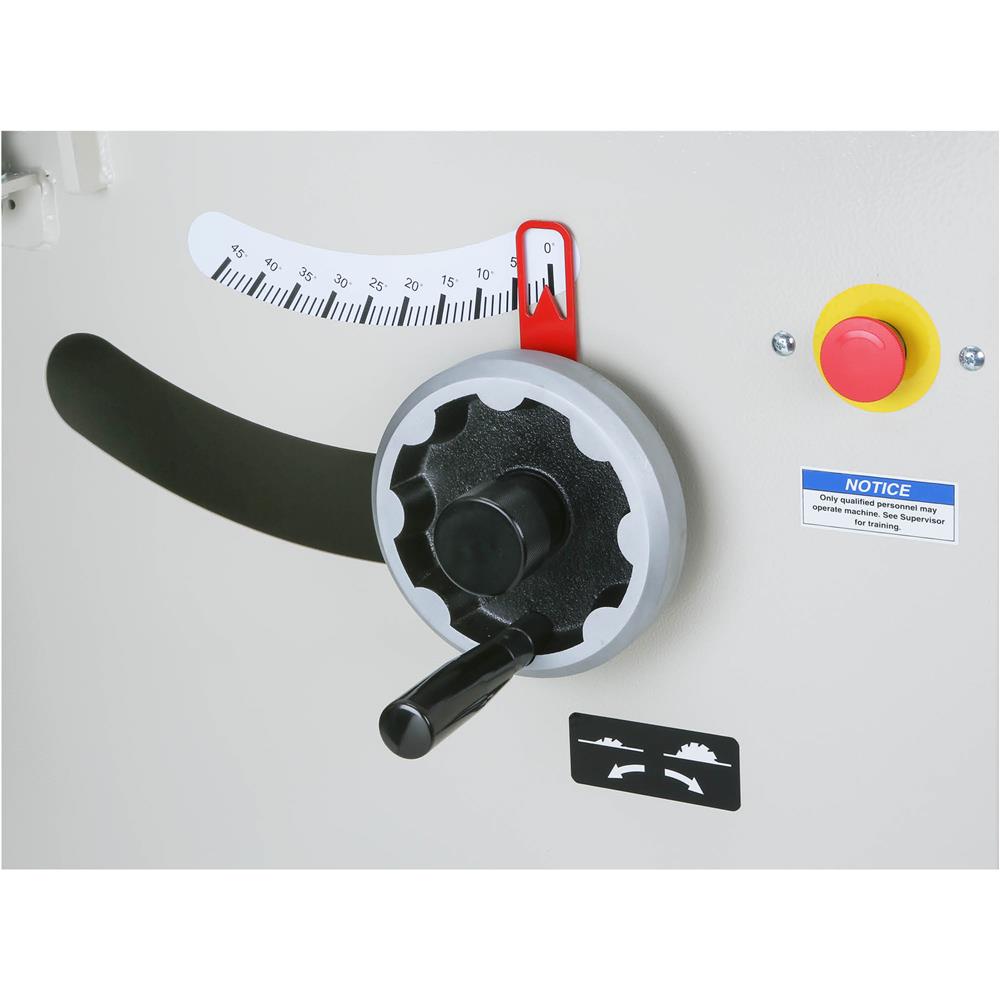

| Blade tilt | 0–45° |
| Max. depth of cut @ 90° | 3-1/8" |
| Max. depth of cut @ 45° | 2-1/4" |
| Main table size | 27" x 14-3/8" |
| Sliding table size | 63" x 12-1/4" |
| Floor-to-table height | 33-5/8" |
| Main blade size | 10" |
| Main blade arbor | 5/8" |
| Main blade speed | 4000 RPM |
| Scoring blade size | 3-1/8" (80mm) |
| Scoring blade arbor | 22mm |
| Scoring blade speed | 8000 RPM |
| Max. width of dado | 13/16" |
| Dust port sizes | 2-1/2", 4" |
| Footprint | 25-1/2" x 28" |
| Floor space required | 150" W x 123" D |
| Overall dimensions | 76" W x 125" D x 46" H |
| Approximate shipping weight | 688 lbs. |
Warranty
This item comes with a 1 year factory warranty.
