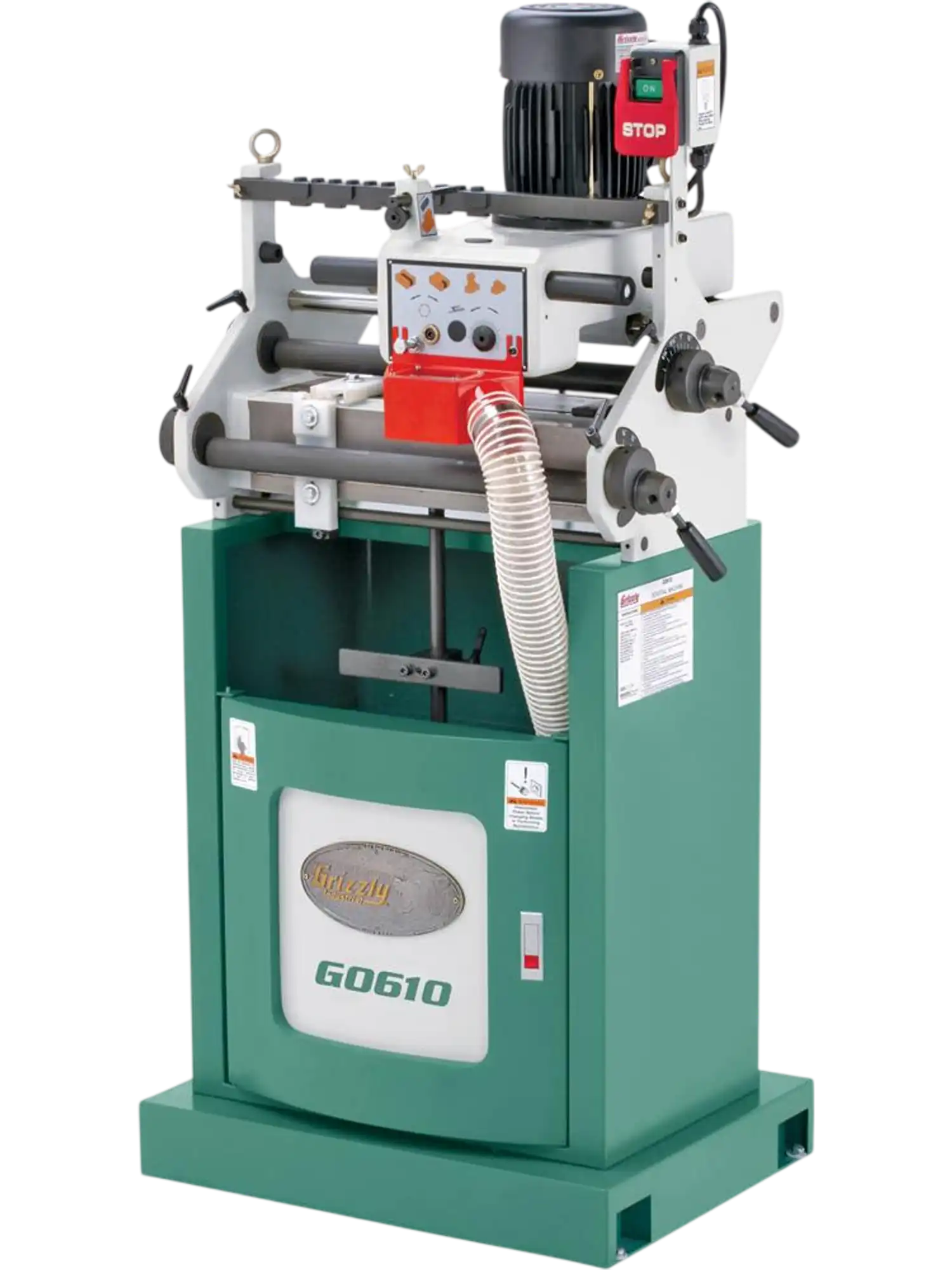

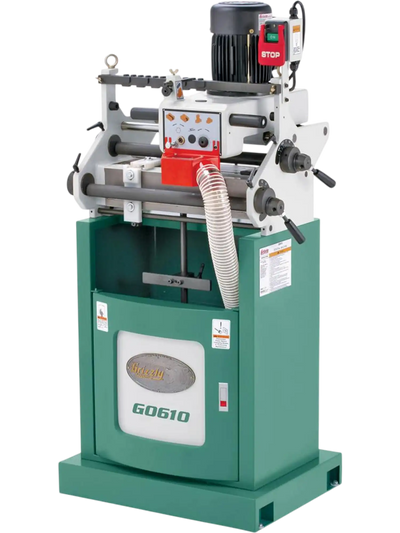

Grizzly G0610 Dovetail Machine 11-1/4" New
Product Overview
The Grizzly G0610 is an 11-1/4-inch dovetail machine designed to produce strong, clean half-blind dovetail joints quickly and consistently. Its 1 HP motor and 18,500 RPM spindle help speed up drawer and casework production, making it a practical choice for shops that want efficient, repeatable results.
A four-way dovetail template makes it easy to switch joint styles, while quick cam clamps, workpiece stops, and a micro-adjustable spindle head support fast setup and accurate cuts. The precision-ground cast-iron table, ball-bearing linear guides, and spring-loaded carriage contribute to smooth operation across a range of stock sizes and thicknesses.
This machine is well suited for cabinetmakers, furniture builders, and woodworking shops producing drawers or other dovetailed components. With prewired 110V operation and the option to convert to 220V, it fits easily into many shop environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

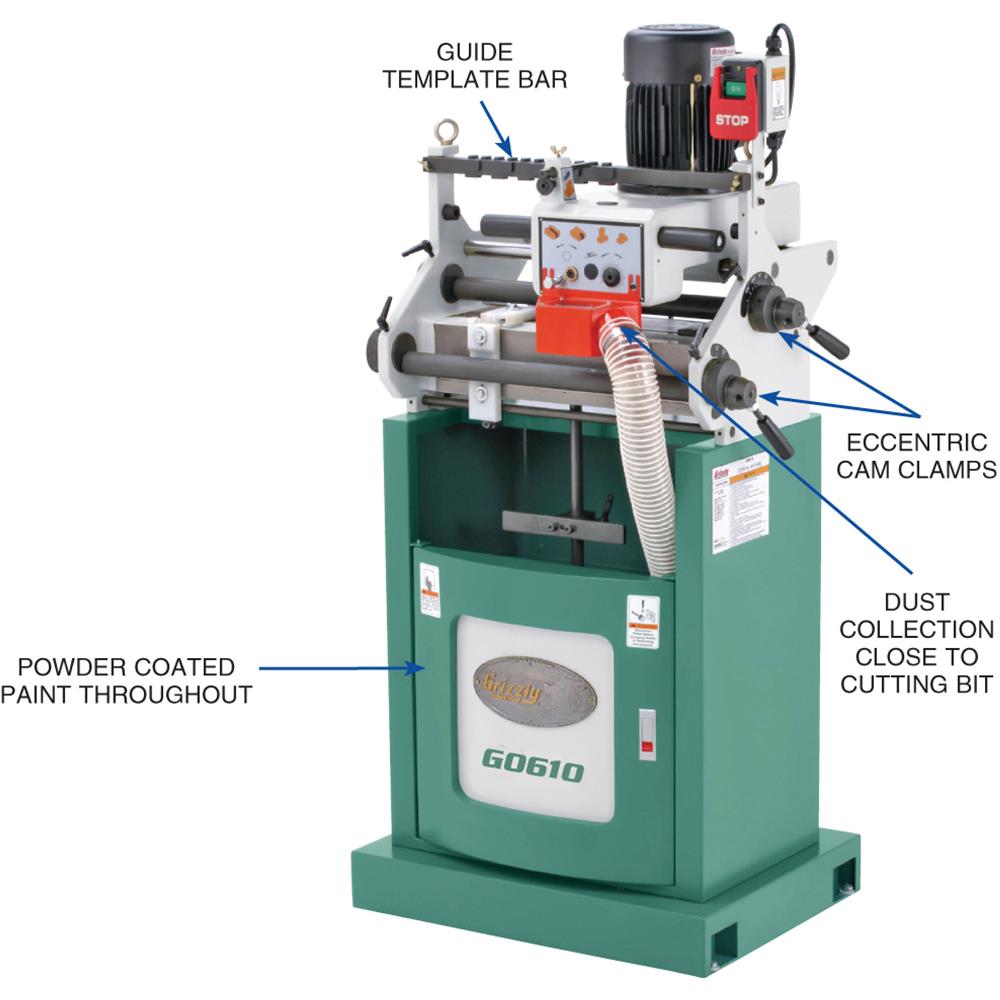

Features
- Precision-ground cast-iron table
- Cast-aluminum carriage
- Steel stand
- Hardened and ground chrome steel slide ways
- Ball-bearing linear guides
- Four-way dovetail template

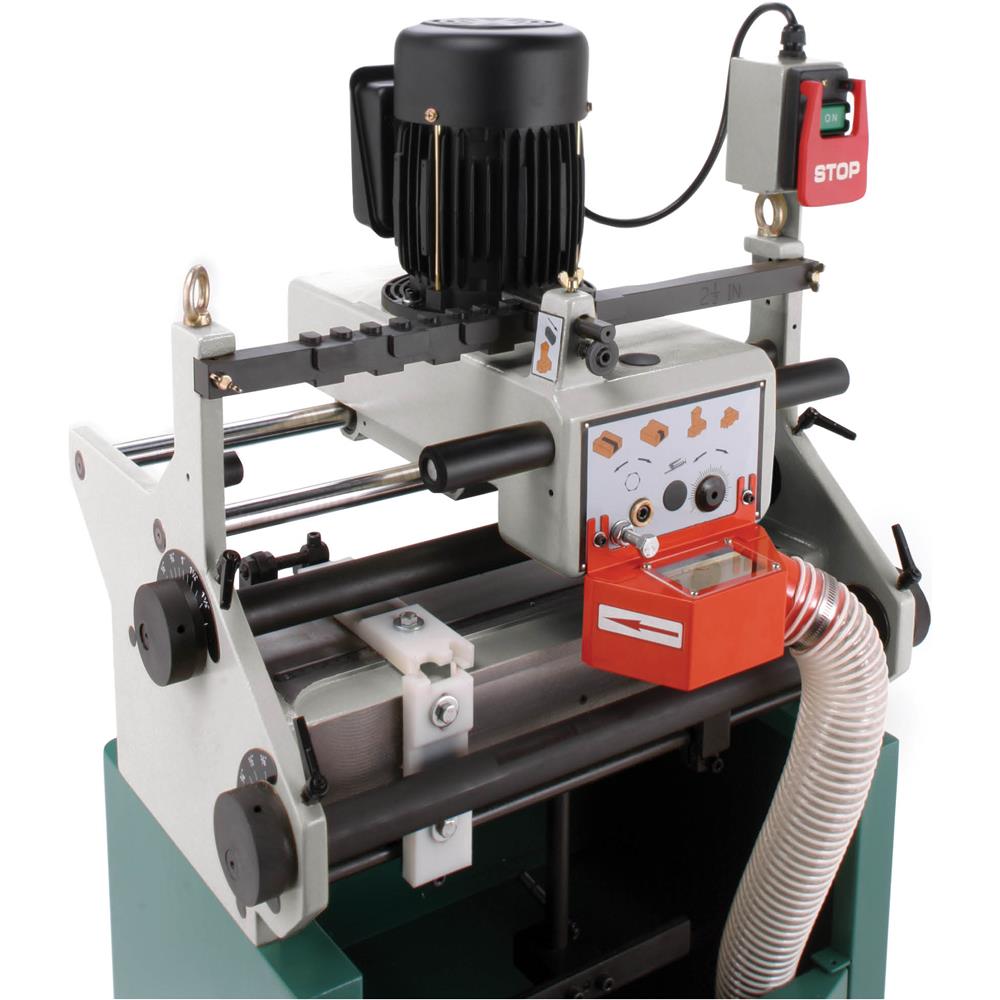

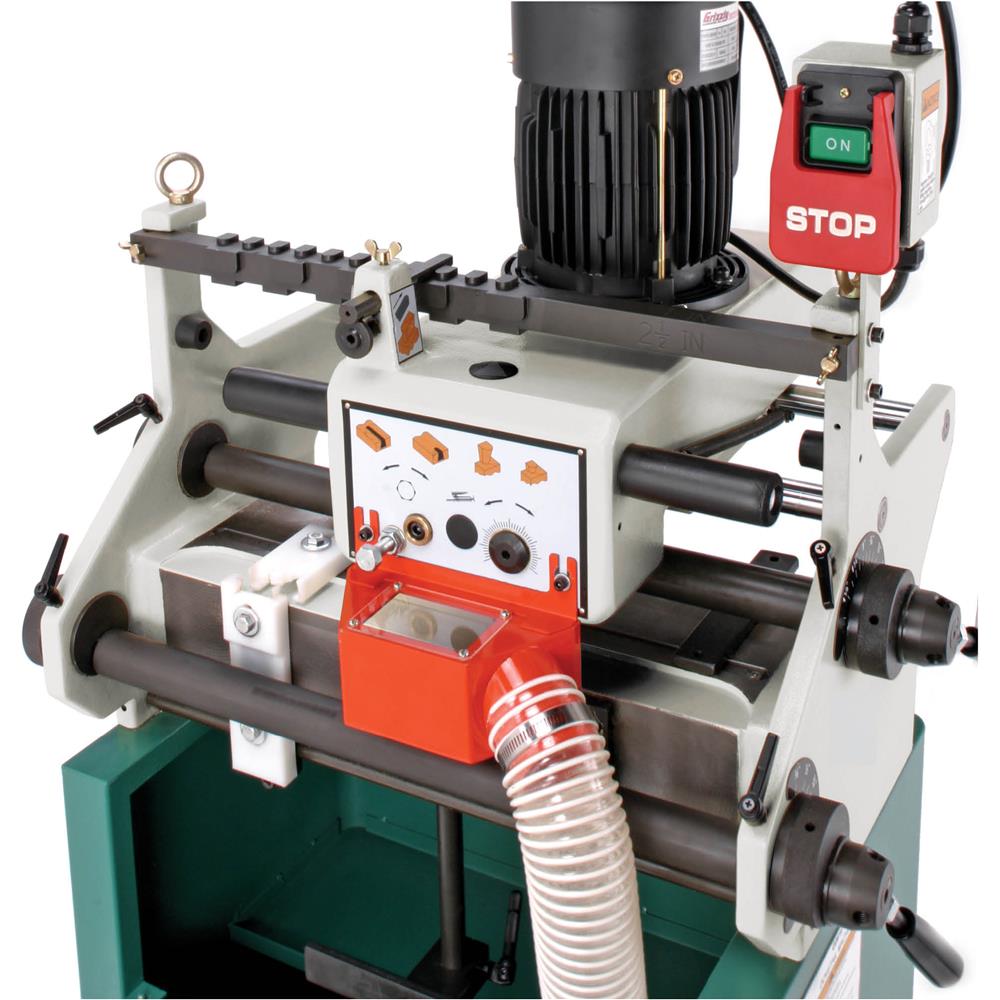

- Micro-adjustable spindle head
- Workpiece stops
- Quick cam clamp
- 4" dust port
- Spring-loaded carriage for smooth operation
Specifications
| Motor | 1 HP, 110V/220V (prewired 110V), single-phase, 10A/5A |
| Number of spindles | 1 |
| Spindle speed | 18,500 RPM |
| Dovetail bit | 10° x 5/8" long |
| Dovetail shank | 1/2" |
| Maximum dovetail height | 3/4" |
| Minimum dovetail height | 3/16" |
| Maximum thickness | 1-3/4" |
| Minimum thickness | 13/32" |
| Maximum stock size | 11-1/4" W x 28" L |
| Minimum stock size | 2-3/8" W x 7-7/8" L |
| Table size | 19-1/2" x 7" |
| Floor to table height | 38-5/16" |
| Overall size | 30-1/2" W x 22-1/2" D x 57" H |
| Approximate shipping weight | 418 lbs. |
Warranty
This item comes with a 1 year factory warranty.
