Grizzly G0602 Benchtop Metal Lathe 10" x 22" New
Product Overview

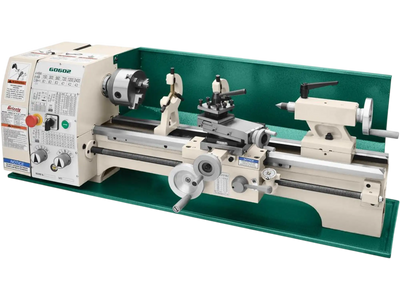

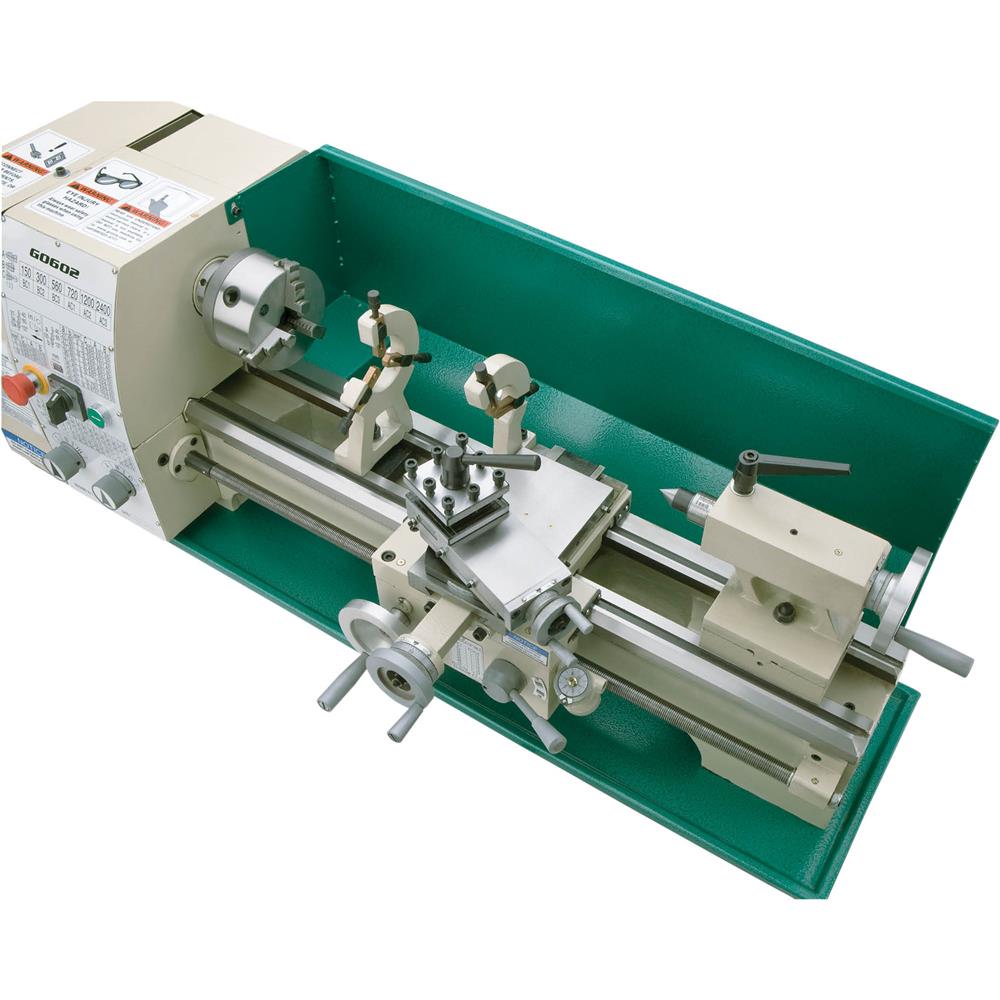

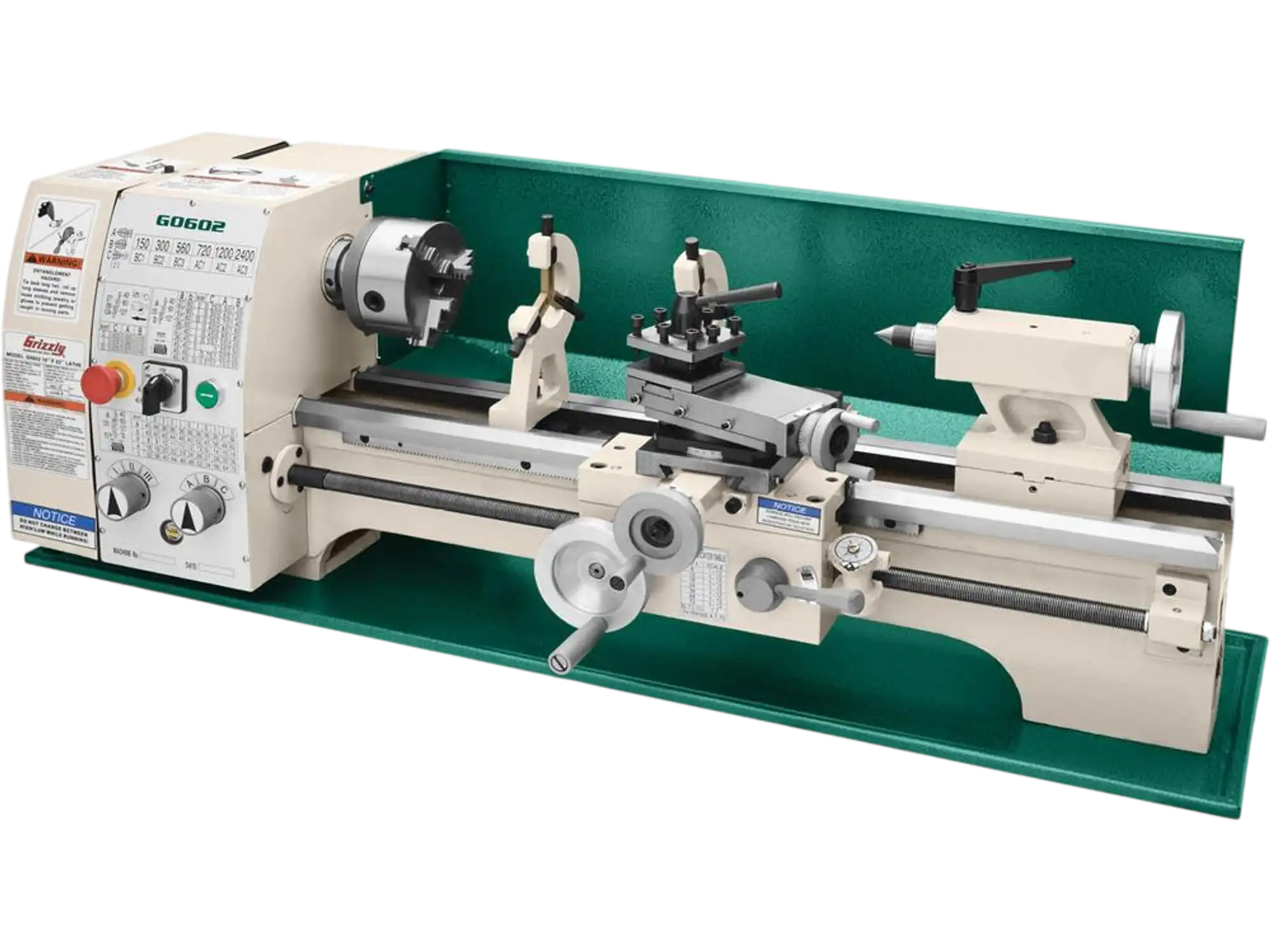

The Grizzly G0602 is a compact 10" x 22" benchtop metal lathe designed for accurate turning, facing, and threading in home garages, maintenance spaces, and small workshops. Its 1 HP motor and six spindle speeds from 150 to 2400 RPM give it the range needed for both lighter detail work and more demanding machining tasks.

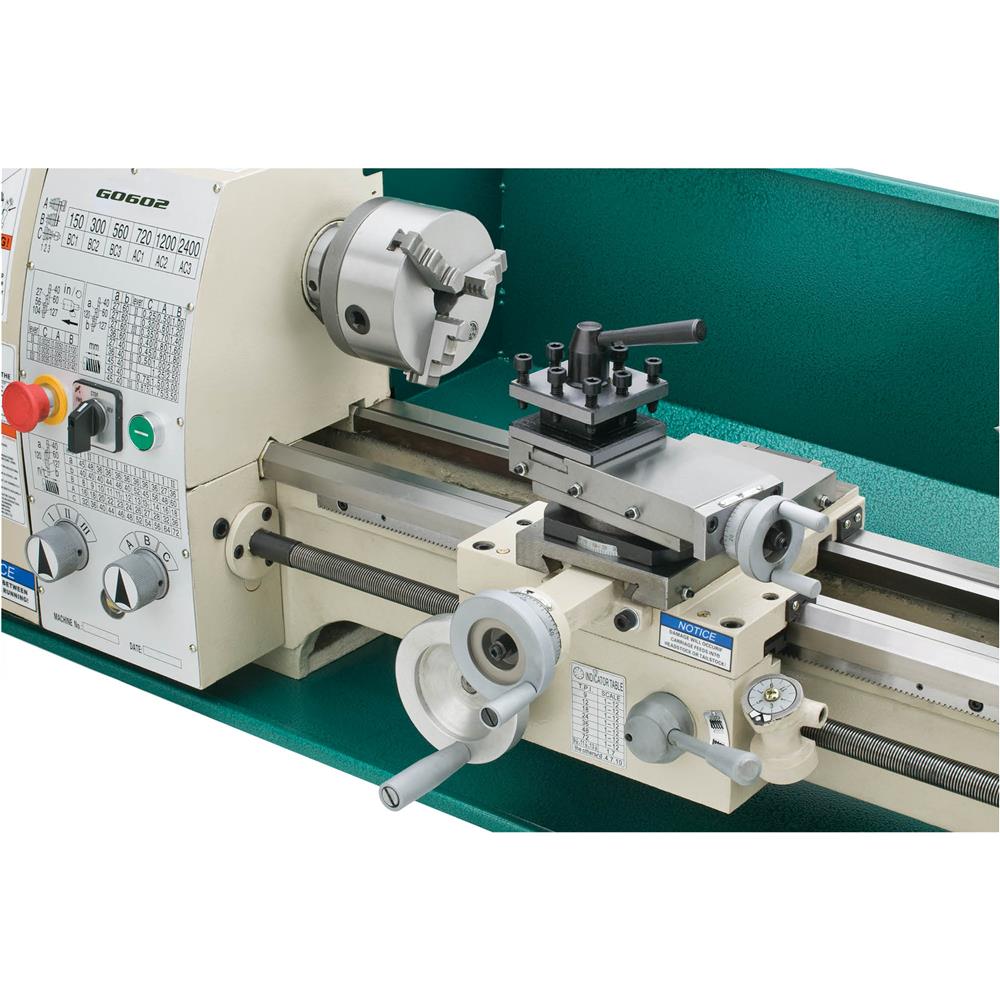

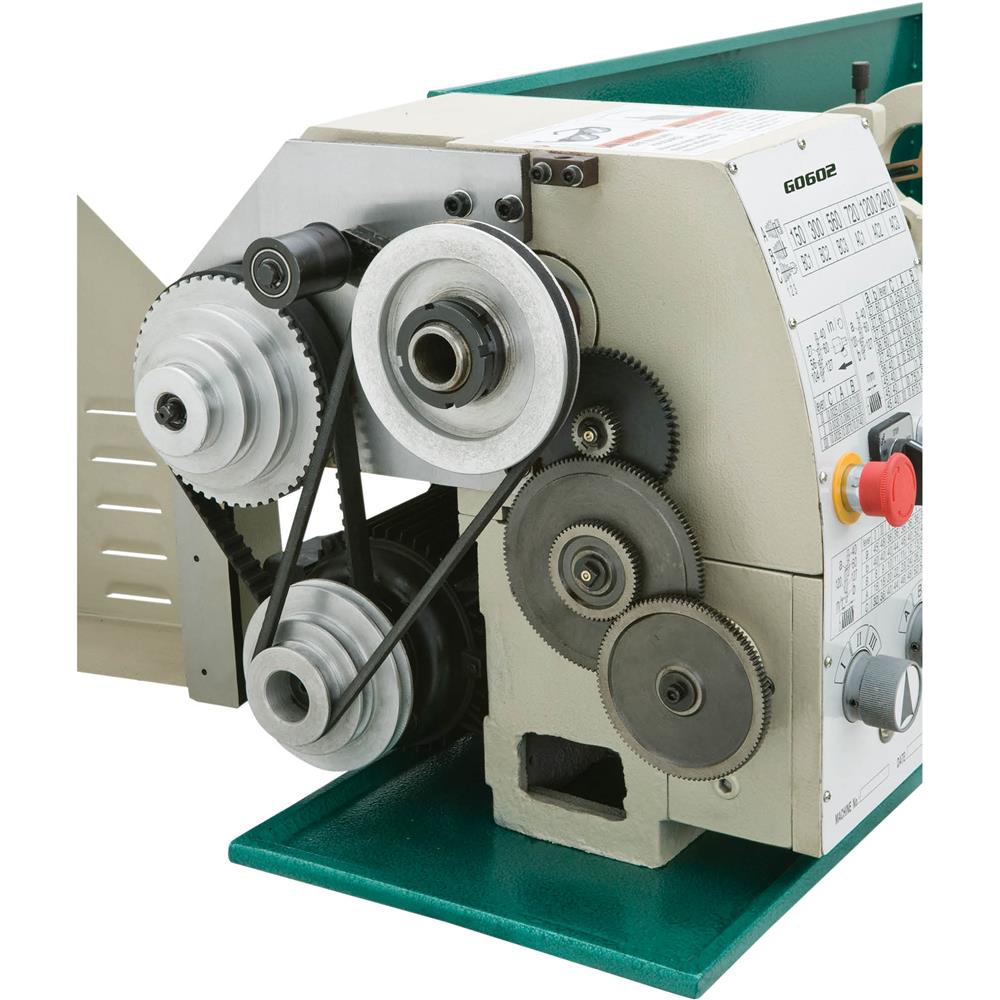

Built for precision and versatility, it features hardened and ground V-ways, a full carriage and apron assembly, inch and metric dials, a thread dial, and an enclosed oil-bath gearbox. The machine cuts right-hand threads and offers a wide selection of inch and metric threading options, making it a practical choice for fabricators, hobby machinists, and repair work.

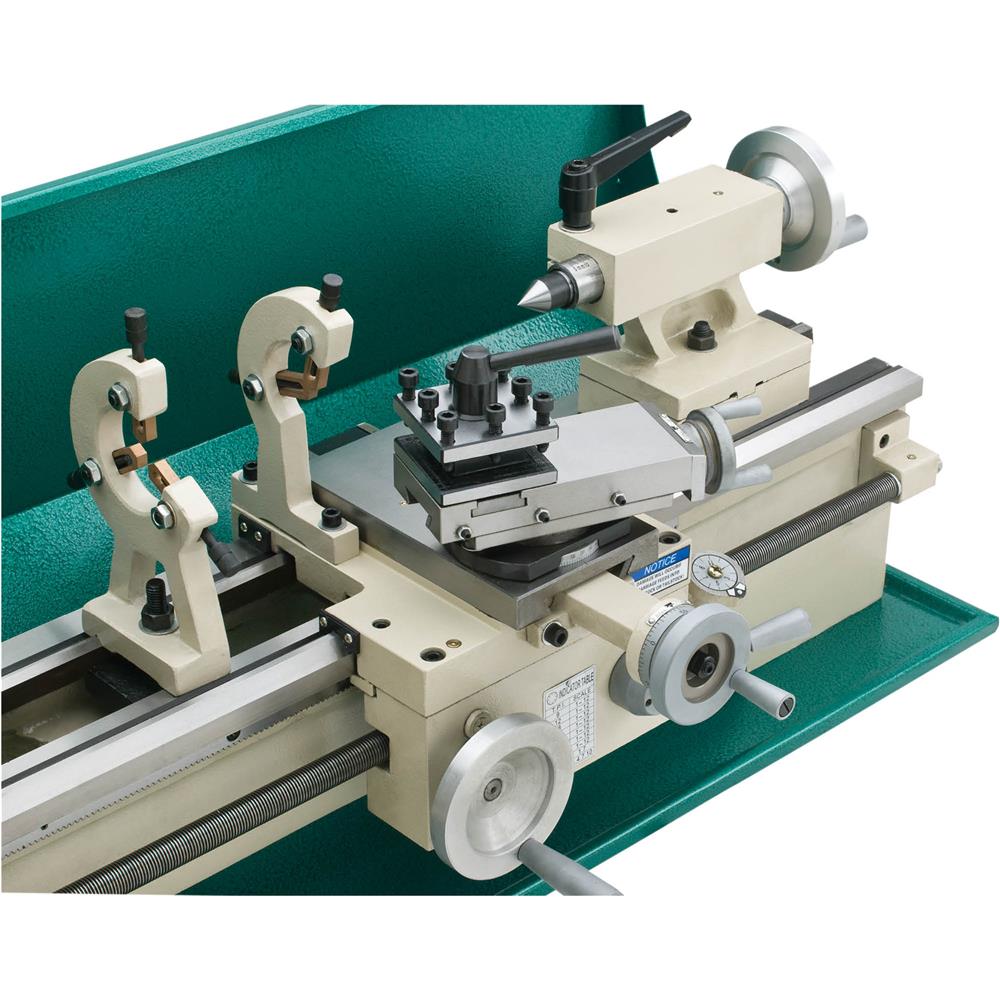

This benchtop lathe also comes equipped with essential tooling and workholding accessories, including 3-jaw and 4-jaw chucks, a faceplate, a 4-way tool post, change gears, and rests. It is well suited for users who want a space-saving metal lathe with solid capability for general-purpose shop projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

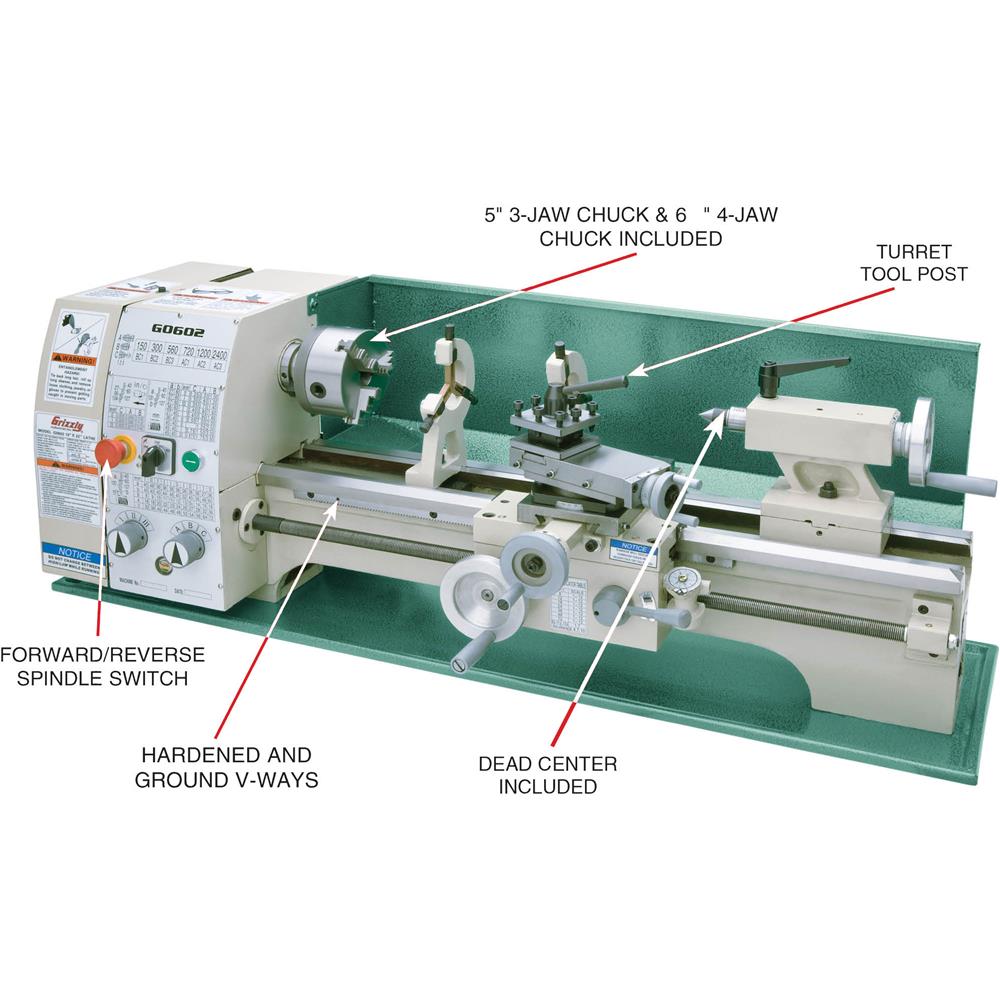

Features
- Hardened and ground V-ways
- Thread dial
- Spindle reversing switch
- Inch/metric dials
- Emergency stop button
- Quick-locking tailstock
- Enclosed oil-bath gearbox
- Chip tray and backsplash guard
- 1-year limited warranty
Specifications
| Motor | 1 HP, 110V, single-phase, 13.6A |
| Swing over bed | 9-1/2" |
| Swing over cross slide | 6-1/8" |
| Swing over saddle | 6-1/8" |
| Distance between centers | 22" |
| Bed width | 6-1/8" |
| Spindle bore | 25mm |
| Spindle speeds | 6, 150–2400 RPM |
| Spindle type | Threaded, 1-3/4" x 8 TPI |
| Spindle taper | MT#4 |
| Tailstock taper | MT#3 |
| Tailstock quill travel | 2-1/2" |
| Cross slide travel | 6-1/2" |
| Compound travel | 3-1/2" |
| Maximum tool bit size | 1/2" |
| Leadscrew | 3/4" x 12 TPI |
| Longitudinal feeds | (9) 0.0025, 0.0140 in./rev. |
| Inch thread range | (31) 8–72 TPI |
| Metric thread range | (26) 0.25–3.50mm |
| Footprint | 12-1/2" x 47-1/2" |
| Overall dimensions | 46" W x 22" D x 16-5/8" H |
| Approximate shipping weight | 432 lbs. |
Warranty
This item comes with a 1 year factory warranty.
