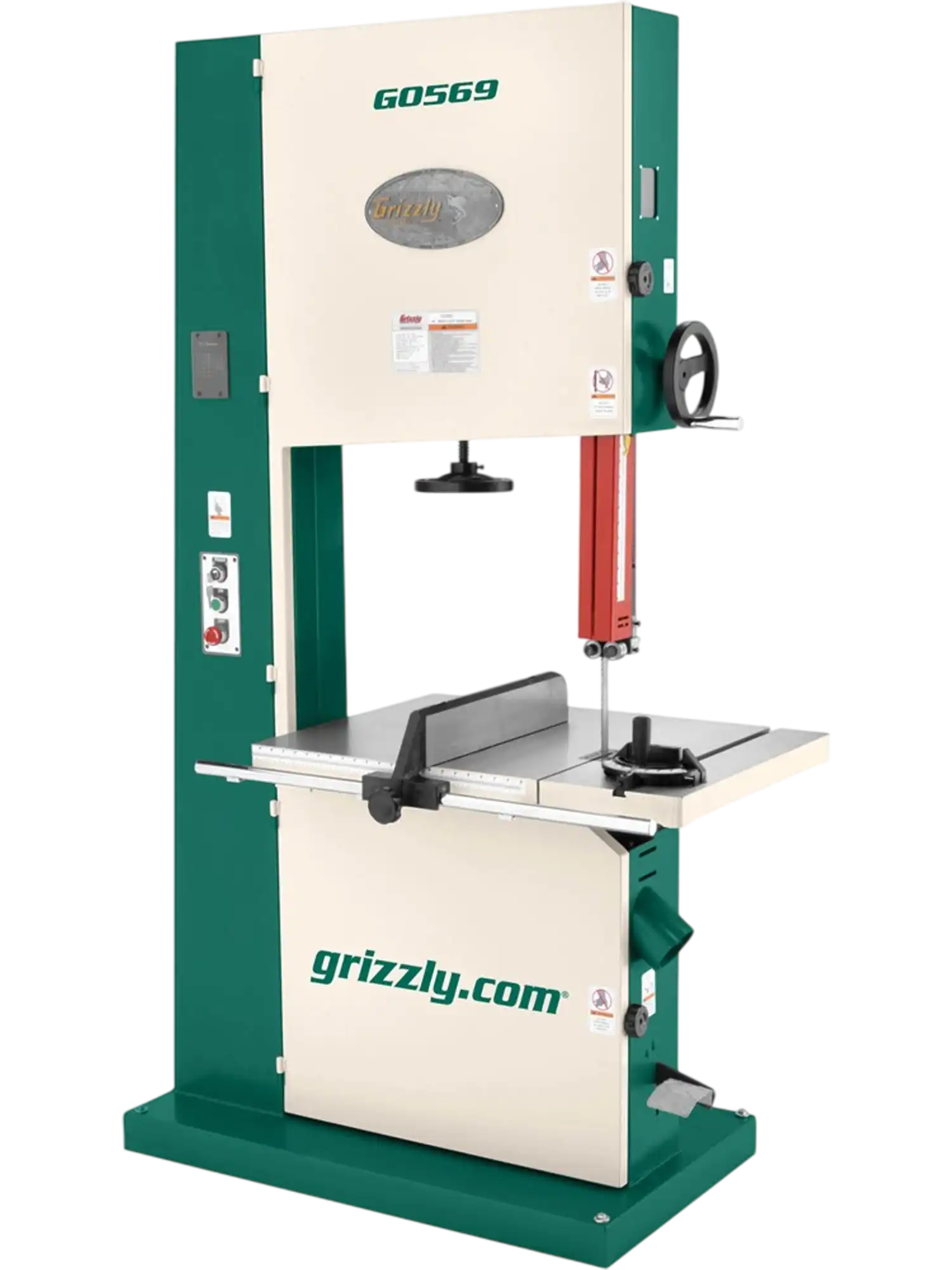

Grizzly G0569 Vertical Wood Bandsaw 24" 7-1/2 HP 3-Phase Industrial New
Product Overview

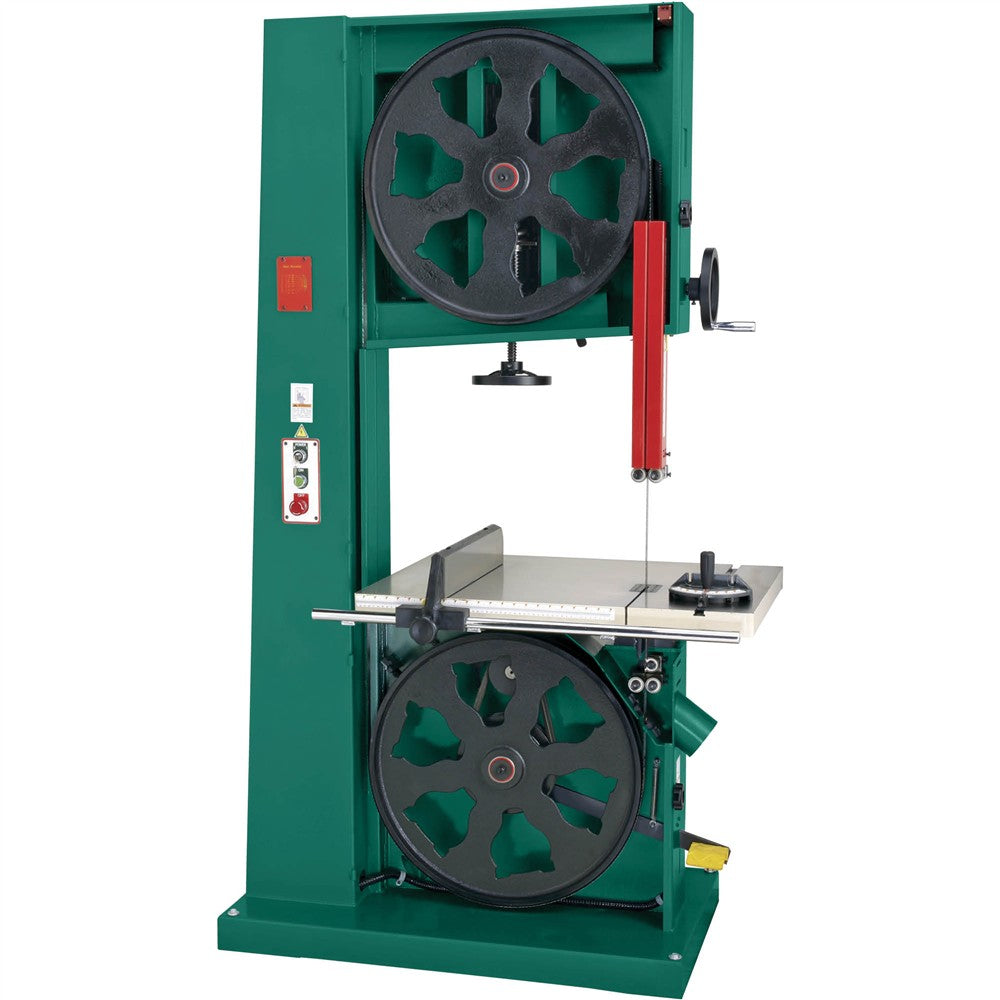

The Grizzly G0569 is a heavy-duty 24-inch vertical wood bandsaw built for industrial woodworking shops that need power, capacity, and reliable cutting performance. Its 7-1/2 HP 3-phase motor, 24-1/2-inch throat, and 16-1/4-inch resaw capacity make it well suited for cutting large stock, curved work, and demanding resawing tasks.
Designed for accuracy and efficiency, this saw features ball-bearing blade guides, balanced cast-iron wheels, and a precision-ground cast-iron table for smooth, controlled cuts. A rack-and-pinion table tilt helps with precise angle work, while the quick-release blade tensioner speeds up blade changes and adjustments.
Two 4-inch dust ports help manage debris during operation, and practical shop-focused details like the foot brake, blade tension scale, fence, and miter gauge add convenience for daily use. This model is a strong choice for cabinet shops, furniture makers, millwork operations, and other professional users working with large wood pieces.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

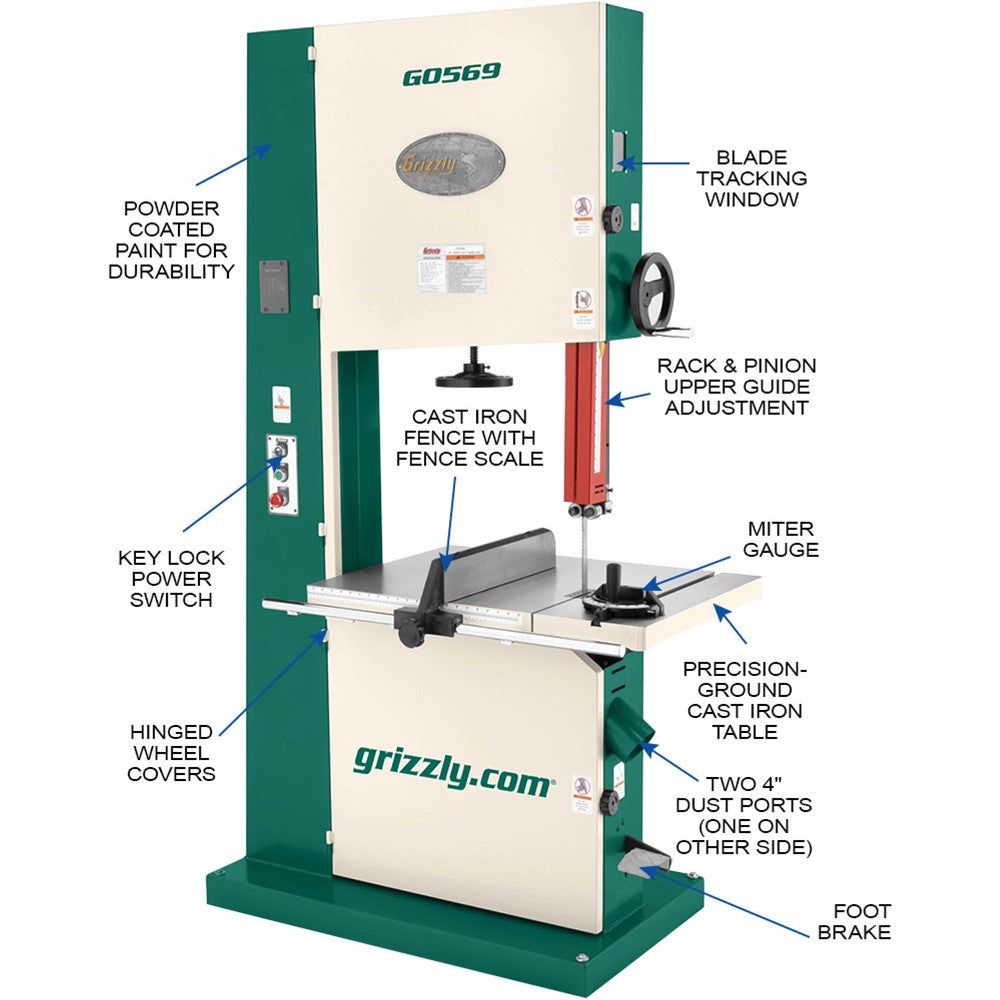

Features
- Foot pedal brake
- Two built-in 4" dust ports
- Precision-ground cast-iron table
- Quick-change blade release/tensioner

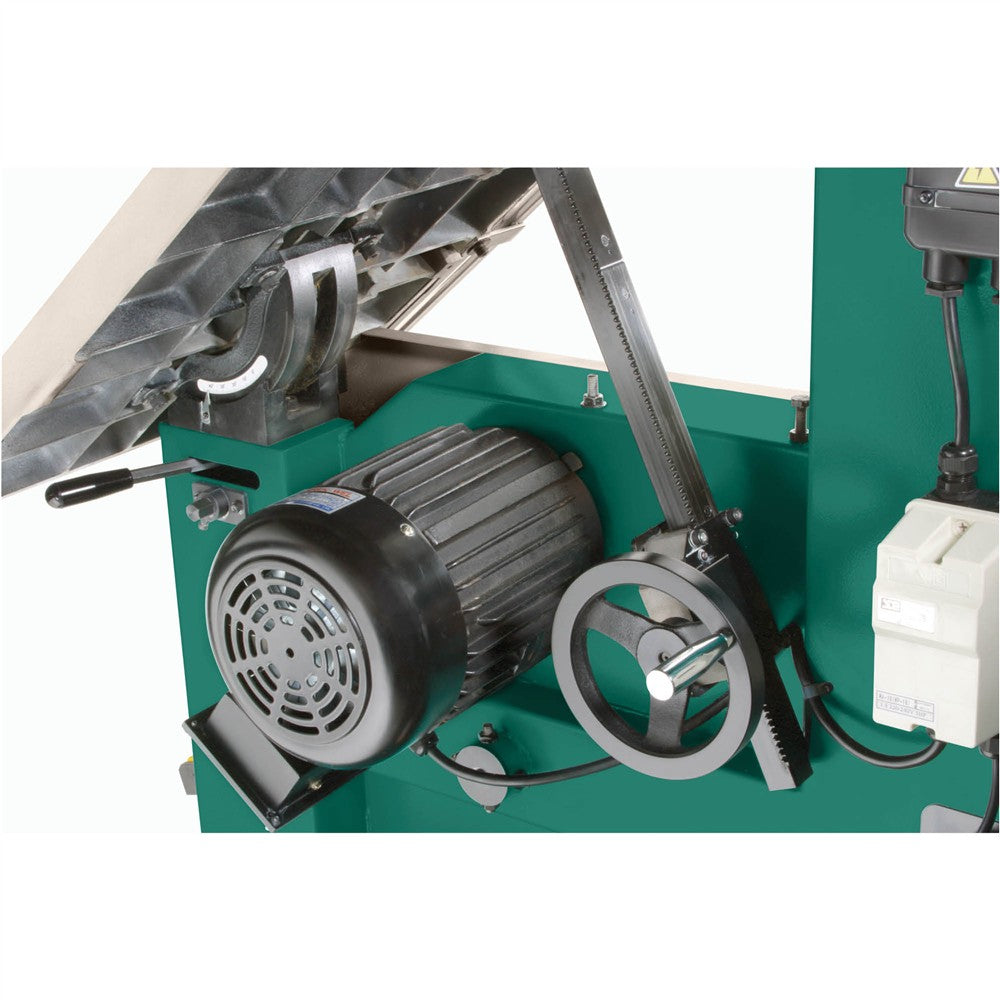

- Rack-and-pinion table tilt mechanism
- Blade height measurement scale

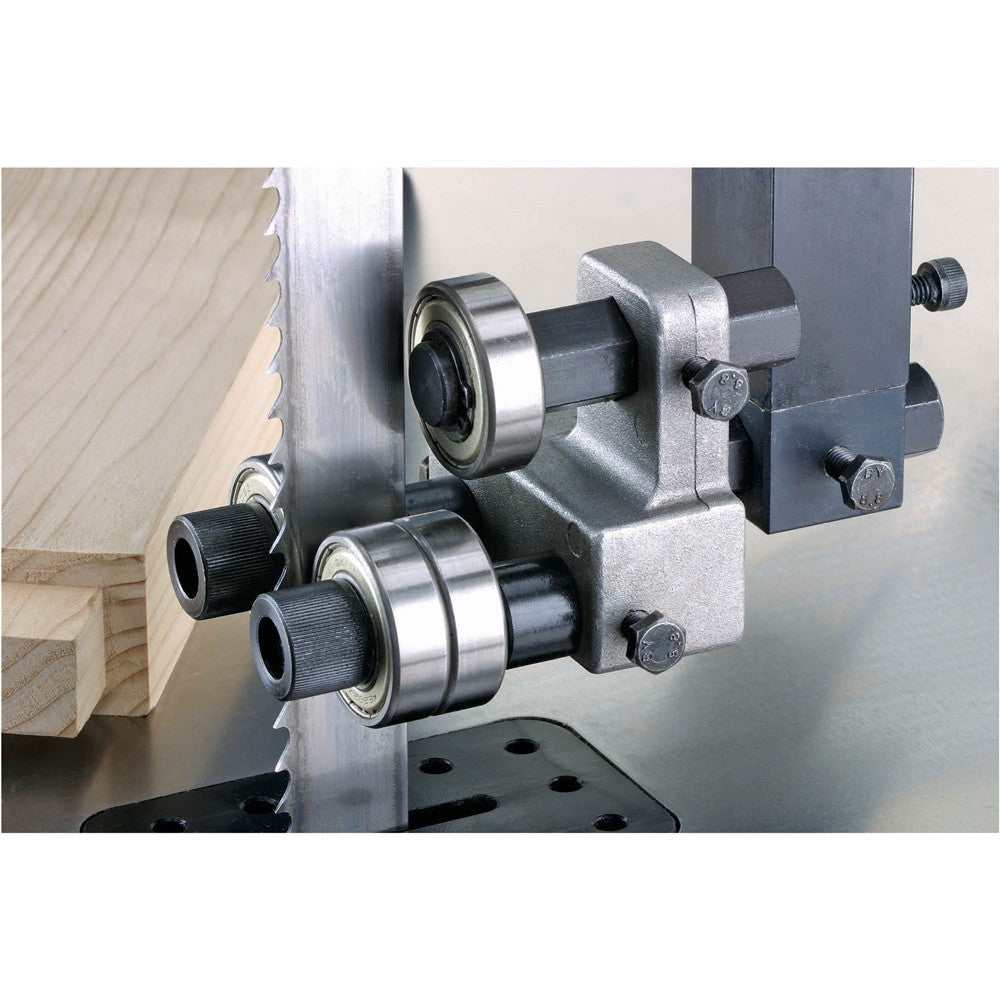

- Ball-bearing blade guides provide rigid, positive side support
- Balanced cast-iron wheels
- Convenient blade tension scale
- Rack-and-pinion upper guide adjustment
- Sealed and lubricated bearings
- Precision-ground cast-iron fence
- 1" hook blade
- Miter gauge
Specifications
| Motor | 7-1/2 HP, 220V/440V* (prewired 220V), 3-phase, 20A/10A |
| Minimum circuit size | 30A @ 220V, 15A @ 440V |
| Throat (max. width left of blade) | 24-1/2" |
| Resaw capacity | 16-1/4" |
| Blade size | 180" long |
| Blade width | 1/4"–1-1/2" wide |
| Blade speed | 5300 FPM |
| Table size | 33-1/2" x 23-5/8" x 2" |
| Table tilt | 0–45° right |
| Floor to table height | 34-1/2" |
| Table height with included riser | 34-1/2" |
| Footprint | 41-3/8" x 23-1/2" |
| Overall size | 48" W x 32" D x 83-1/2" H |
| Approximate shipping weight | 962 lbs. |
Warranty
This item comes with a 1 year factory warranty.
