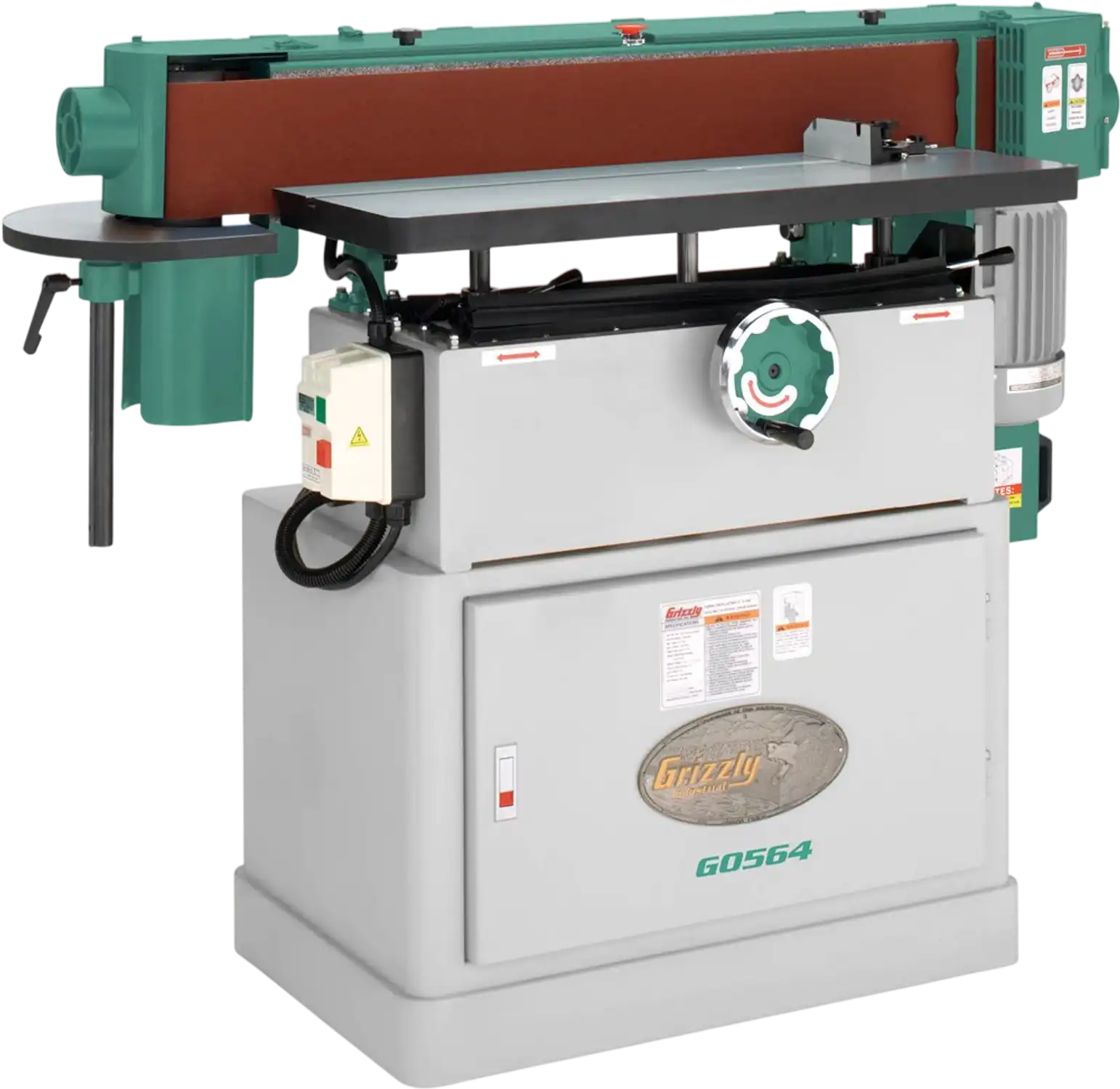

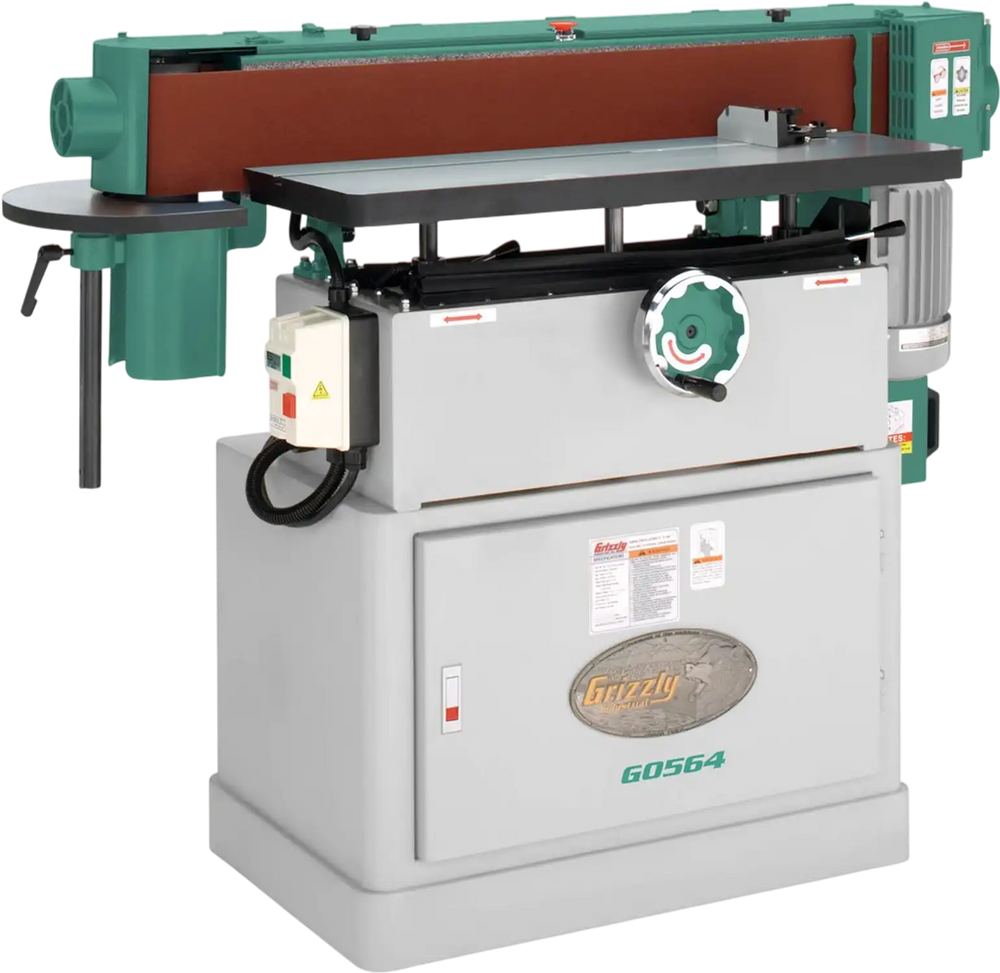

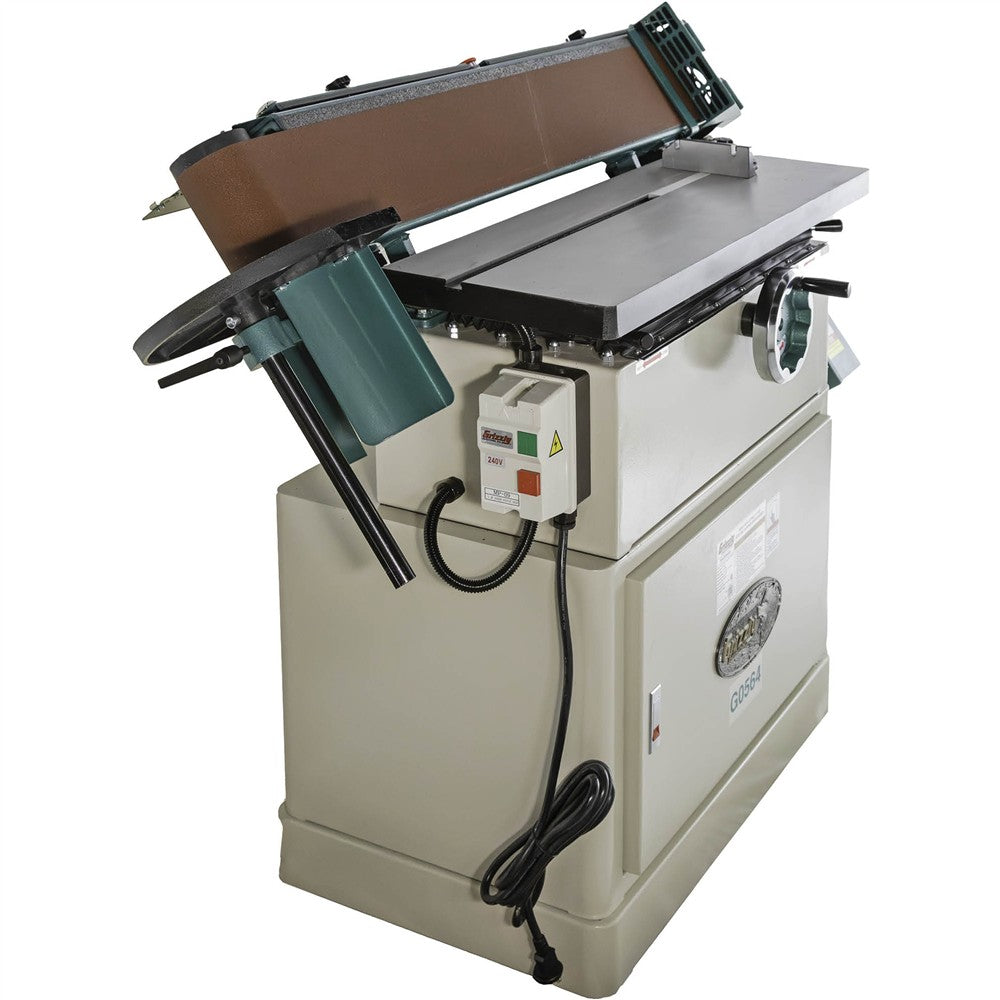

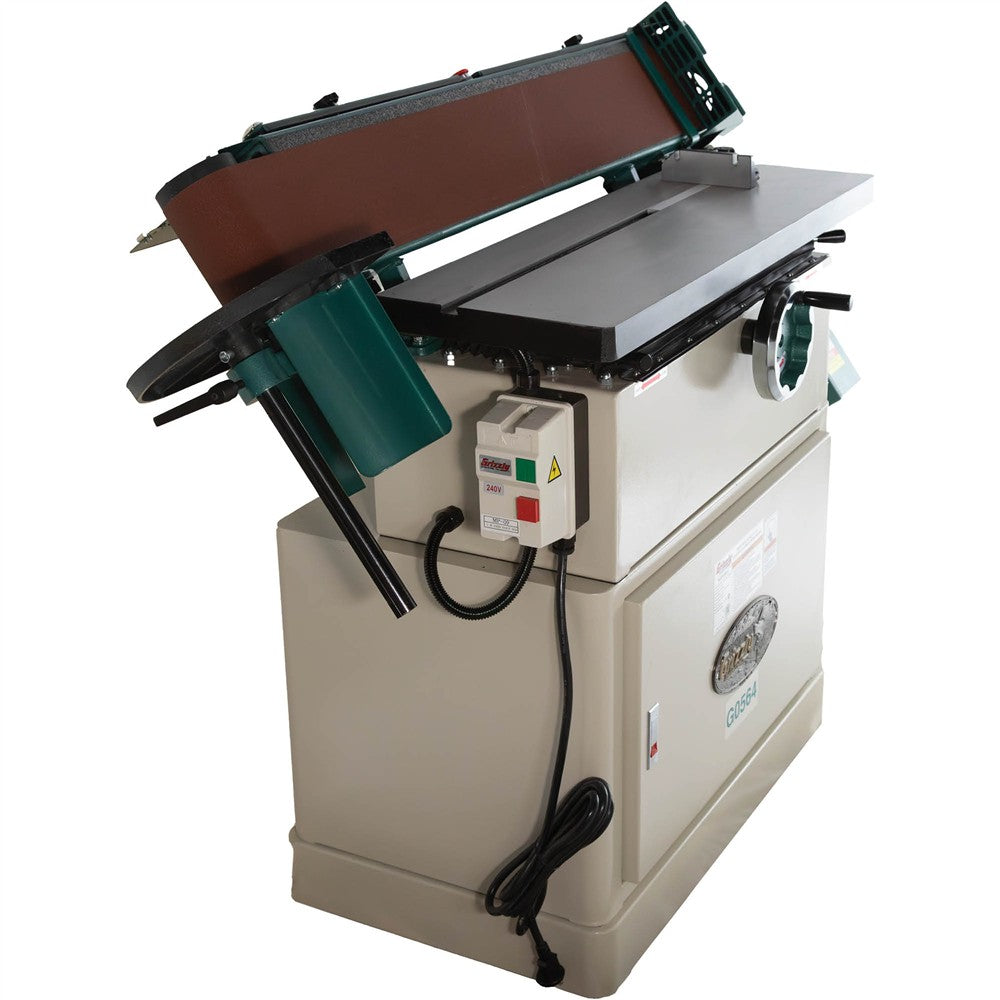

Grizzly G0564 Edge Sander 6" x 108" Oscillating New
Product Overview
The Grizzly G0564 is a 6" x 108" oscillating edge sander built for versatile sanding in woodworking and production shop environments. Powered by a 3 HP motor, it delivers a large sanding surface and oscillating belt action for efficient material removal and a smoother finish on edges, faces, and contours.

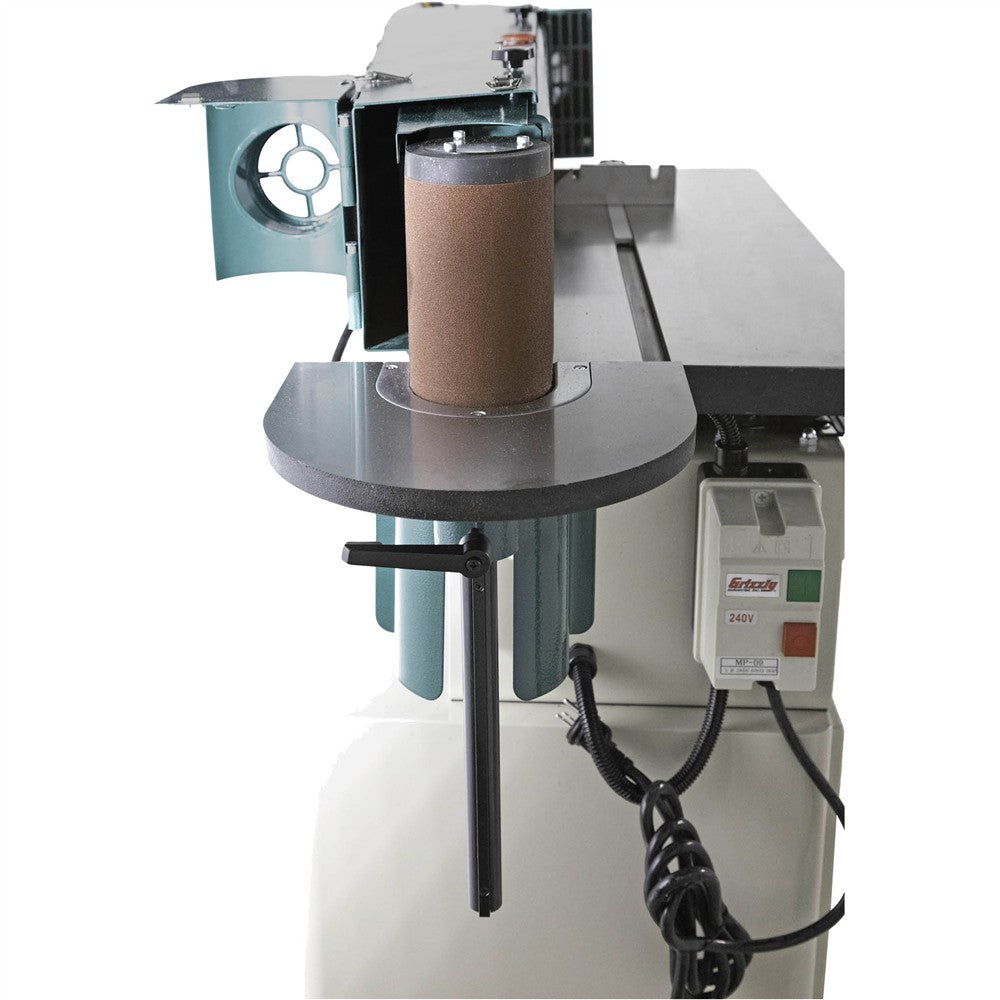

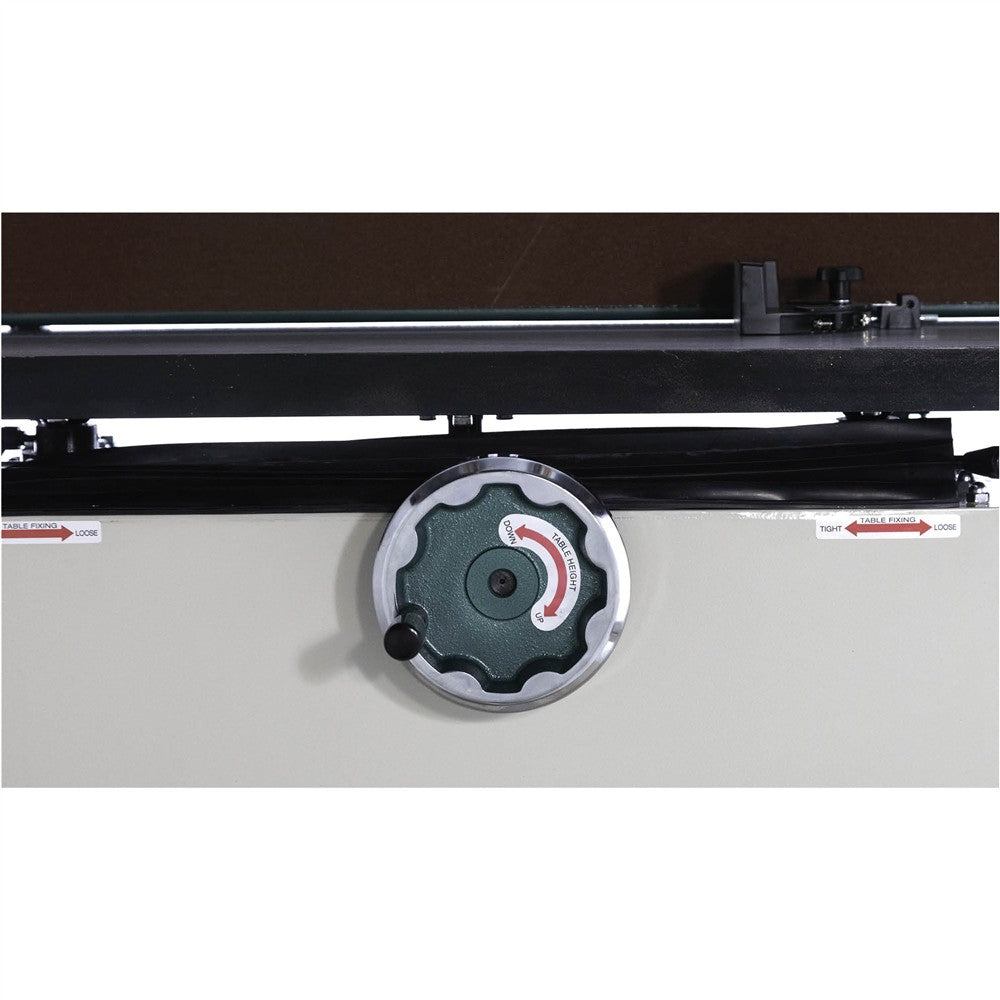

Its sanding surface tilts from vertical to horizontal, while the precision-ground cast-iron table adjusts for height and angle work. A tilting belt design makes bevel sanding easier to control, and the included spindle sanding attachment with interchangeable drums expands its capabilities for curved and contour sanding.
With features like a quick-release belt tension lever, graphite-coated platen, miter gauge, and dual 4" dust ports, this machine is well suited for cabinet shops, furniture makers, and serious woodworkers who need a heavy-duty edge sander for demanding daily use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

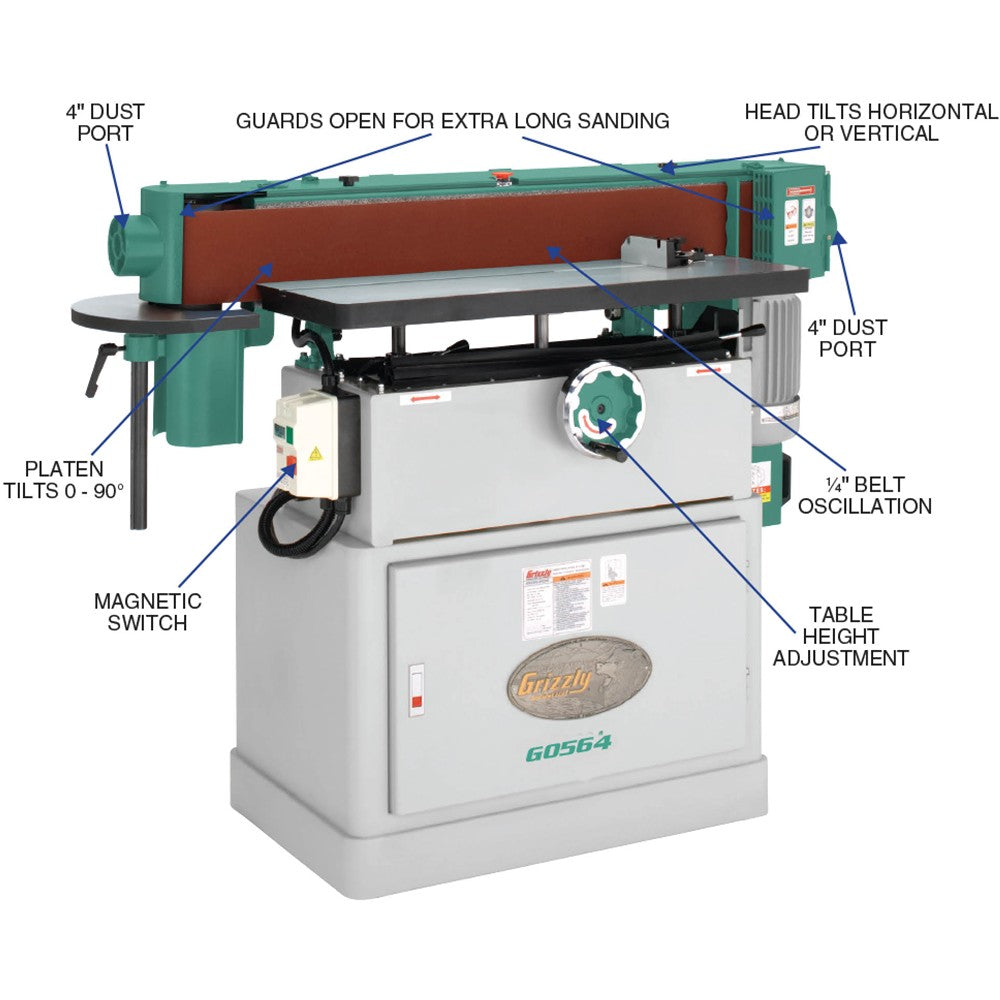

Features
- Sanding surface tilts vertical to horizontal
- T-Slot table and miter gauge
- Quick-release belt tension lever
- Graphite-coated platen

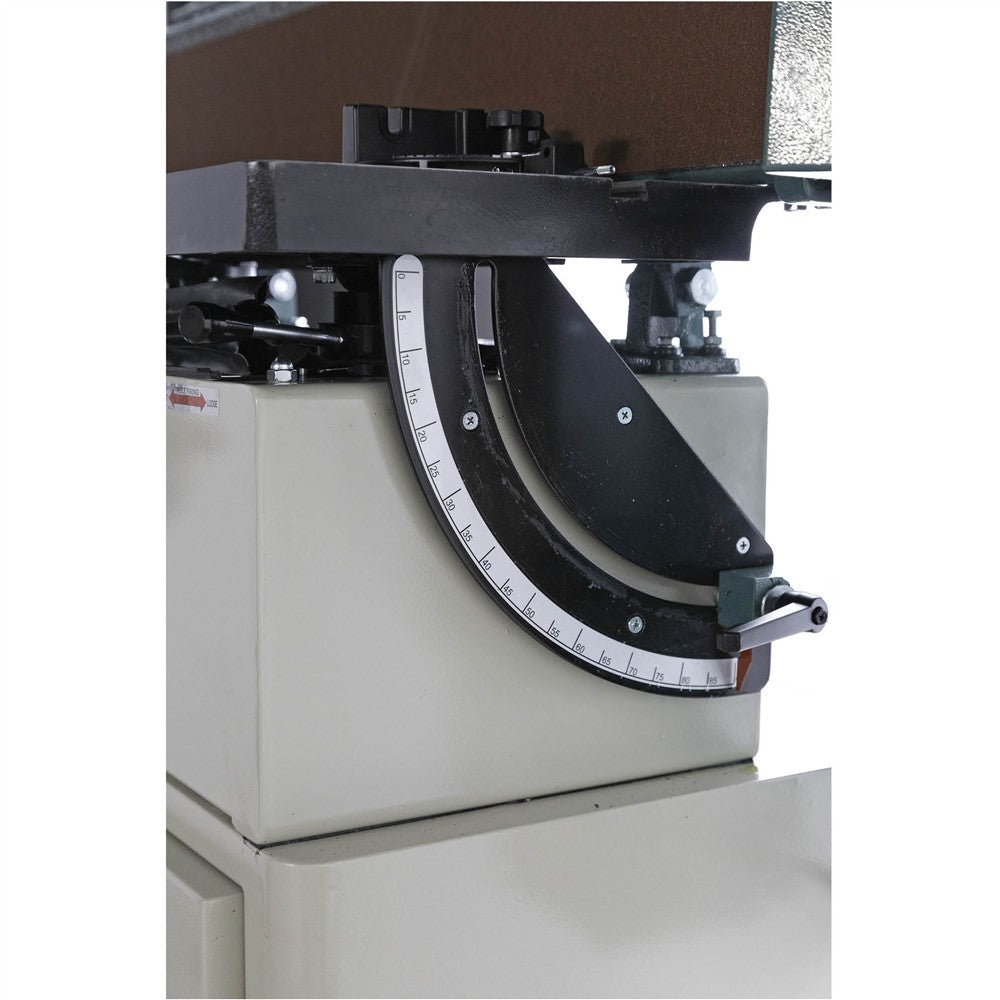

- Platen tilts 0 to 90° (5° scale)
- Oscillating sanding surfaces
- Precision-ground cast-iron tables
- Two 4" dust ports
- Shielded and permanently lubricated ball bearings
Specifications

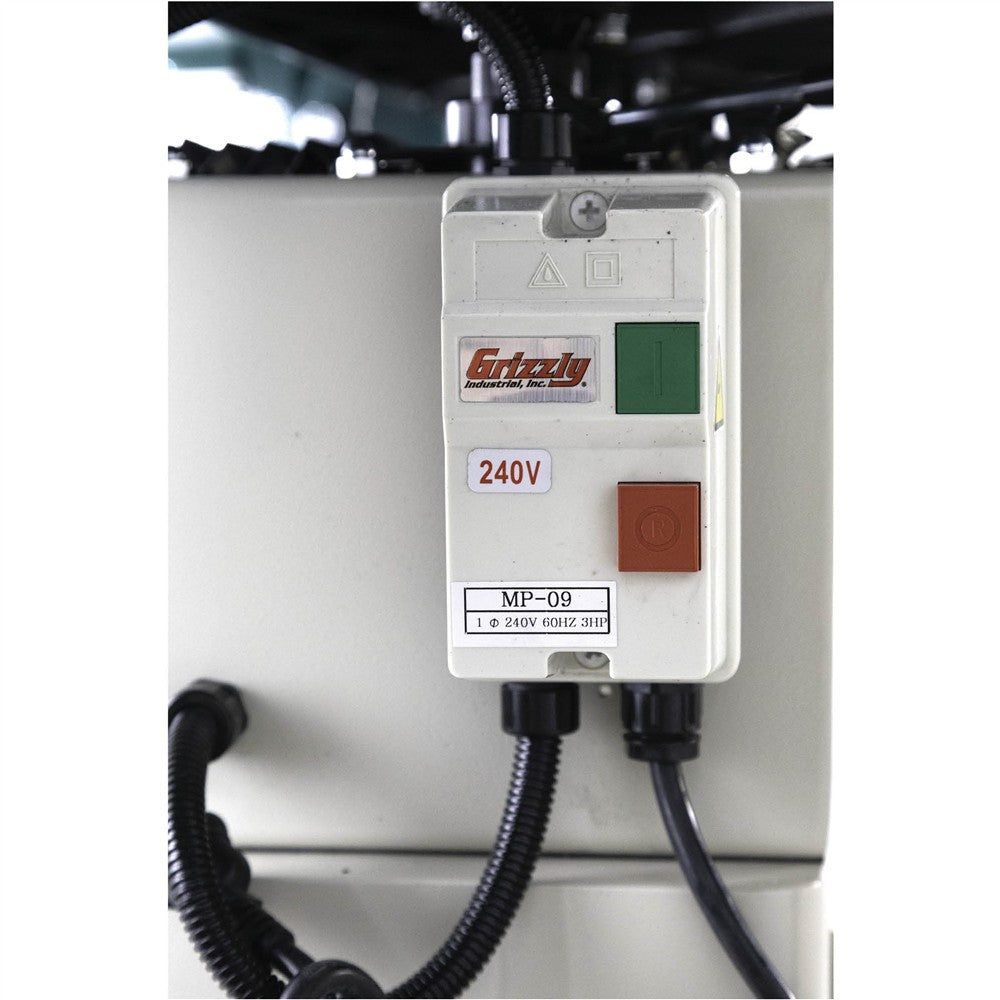

| Motor | 3 HP, 240V, single-phase, 11A |
| Sanding belt speed | 3150 FPM |
| Sanding belt size | 6" x 108" |
| Sanding belt oscillation stroke | 1/4" |
| Sanding belt tilt | 90° |
| Table size | 35-1/2" x 12" |
| Table travel | 4" |
| End table size | 10" x 11-1/2" |
| End table travel | 10" |
| Platen with graphite pad | 6-3/4" x 39-3/4" |
| Platen tilt | 0–90° |
| Drive roller diameter | 7" |
| Idler roller diameter | 3-7/8" |
| Spindle drums | 1-1/2", 2", 3" x 4-1/2" L |
| Overall dimensions | 60" W x 28" D x 49" H |
| Approximate shipping weight | 597 lbs. |
Warranty
This item comes with a 1 year factory warranty.
