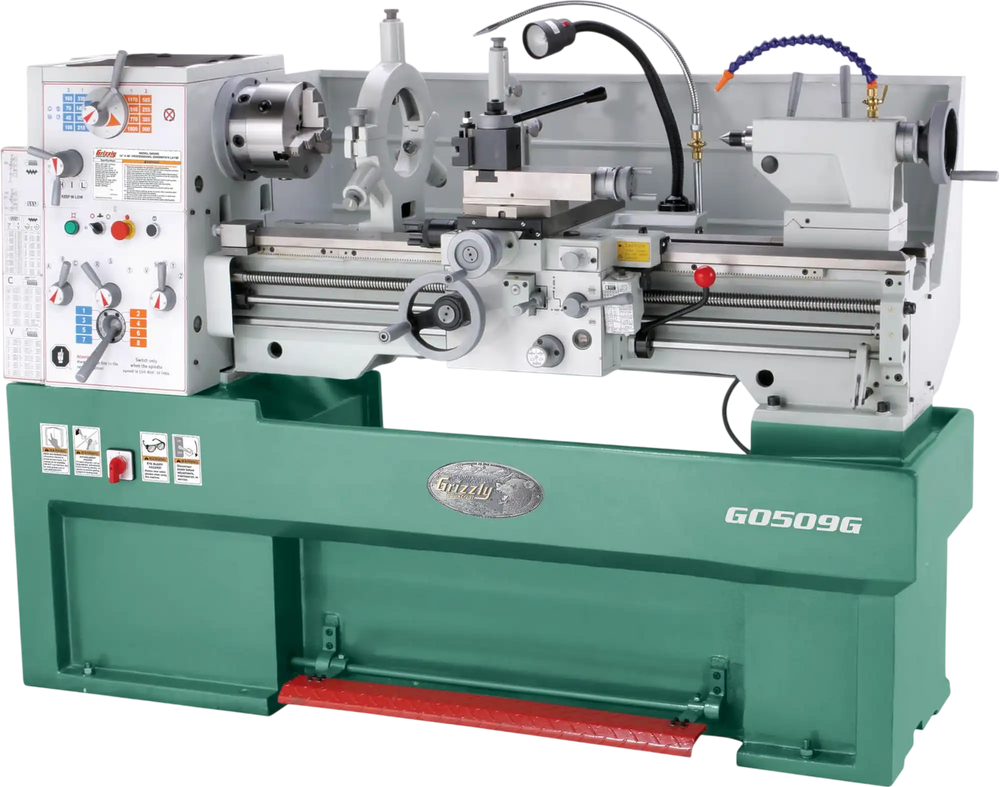

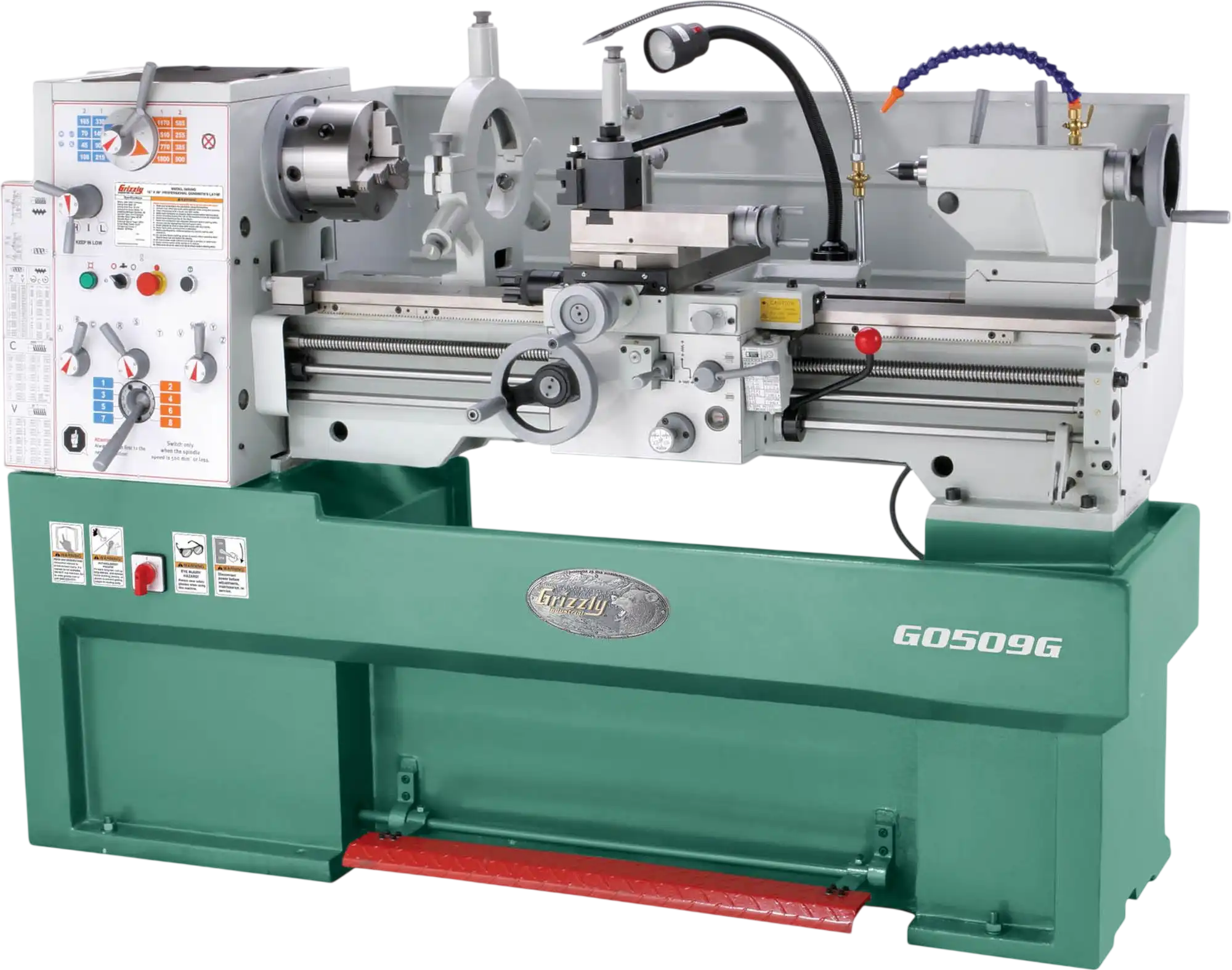

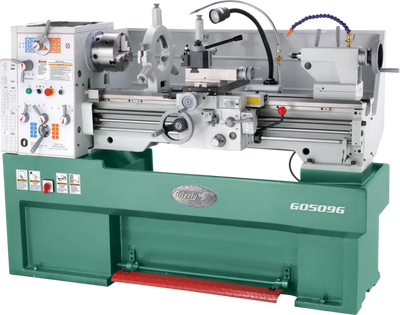

Grizzly G0509G Gunsmithing Metal Lathe 16" x 40" 4 HP/3 HP 3-Phase 220V New
Product Overview

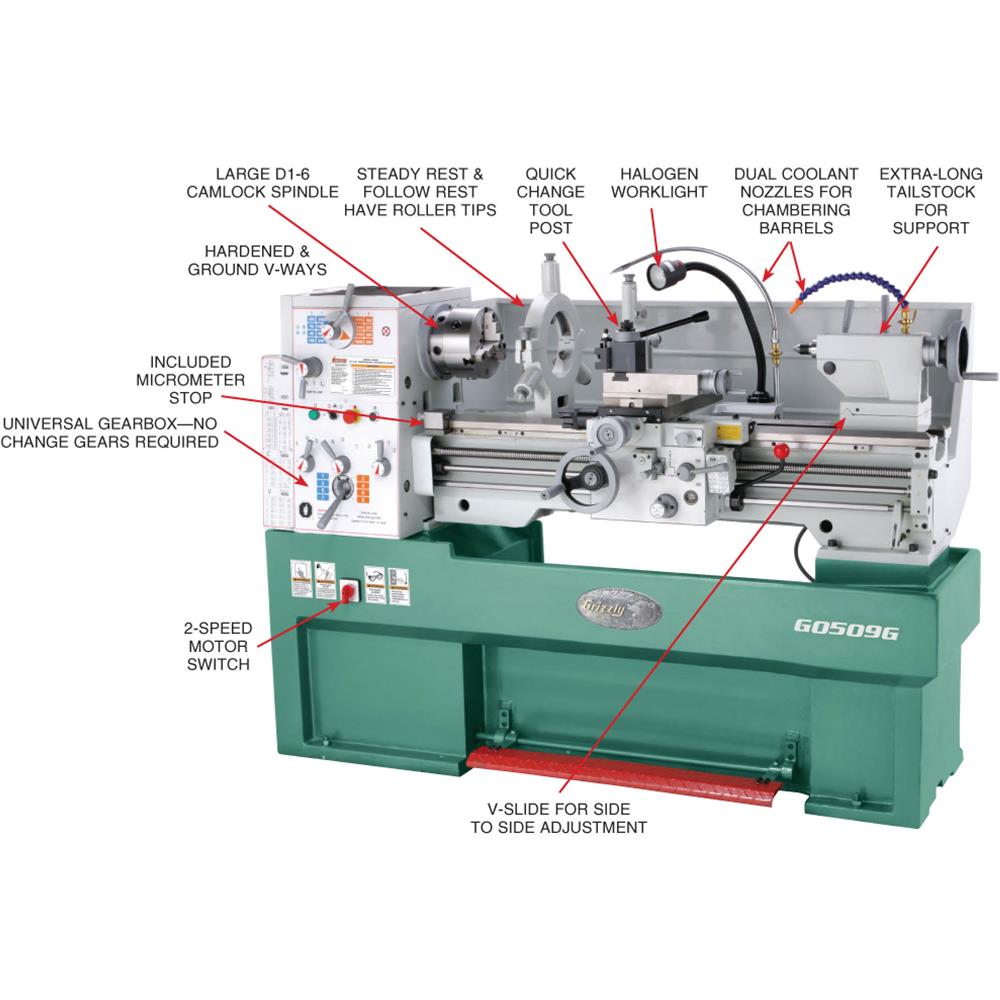

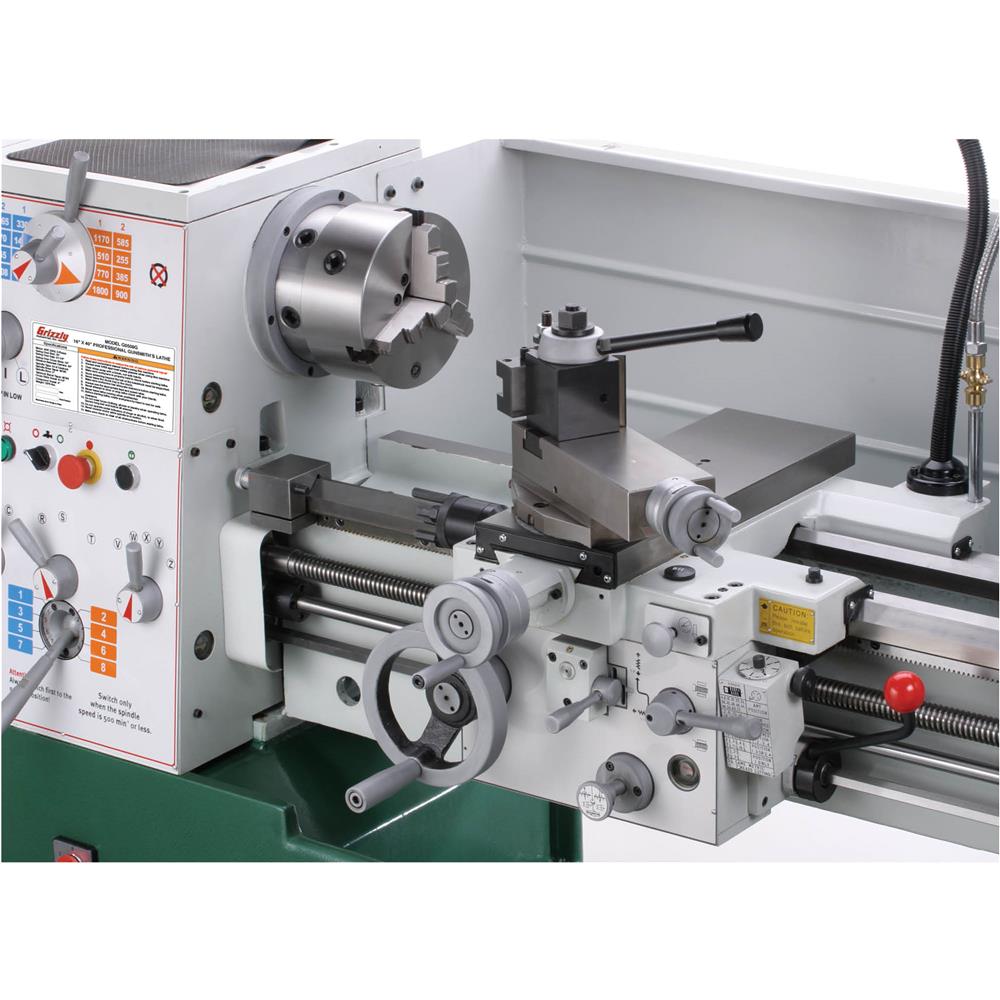

The Grizzly G0509G is a 16" x 40" metal lathe designed specifically for gunsmithing, precision barrel work, and general metal turning. It features high-precision spindle bearings, a longer tailstock for barrel support, and dual coolant nozzles for chambering. The cast-iron construction, hardened precision-ground bed, and spider mount system are designed for stability and accuracy. Supplied with a two-speed 4 HP/3HP motor, the 16-speed gearhead produces spindle speeds from 45-1800 RPM. Included accessories such as multiple chucks, rests, and a splash guard help make it a well-equipped machine for demanding shop use.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

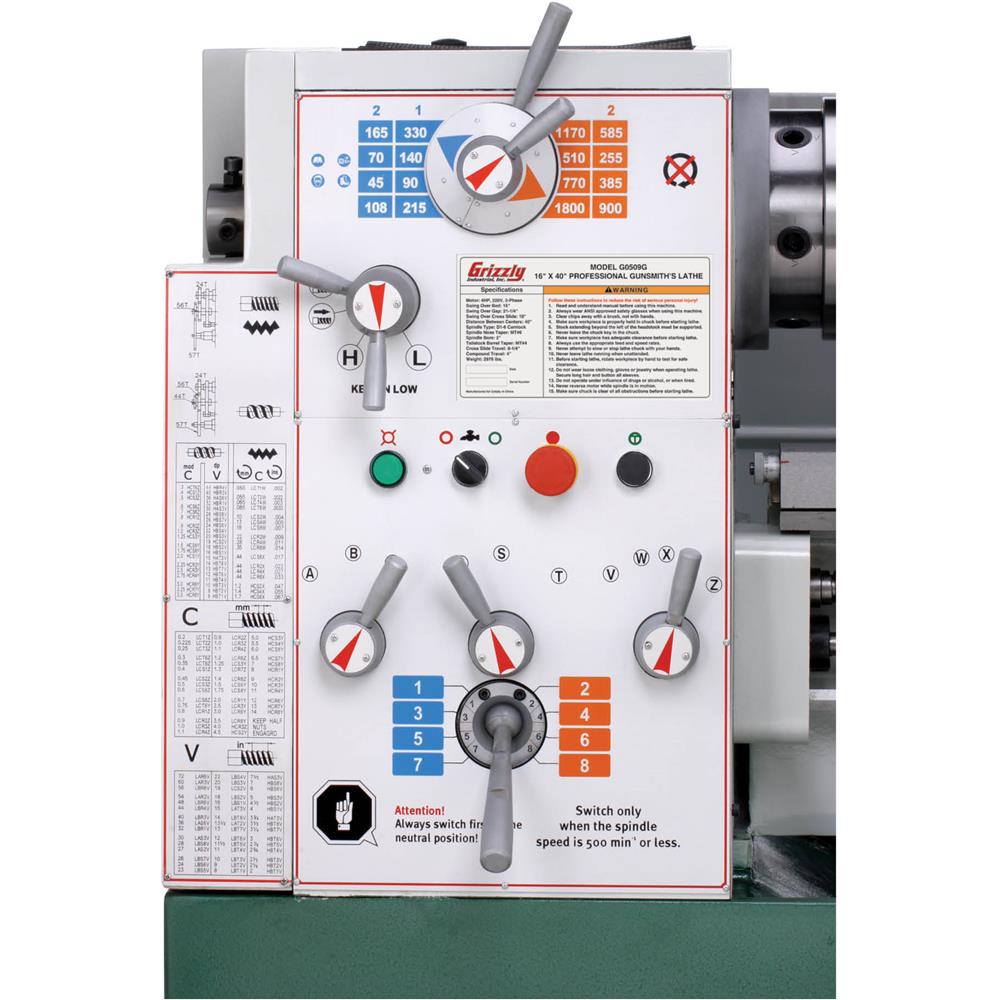

- Totally enclosed universal gearbox allows cutting of inch, metric, whitworth, modular and diametrical threads
- Cuts left-handed threads

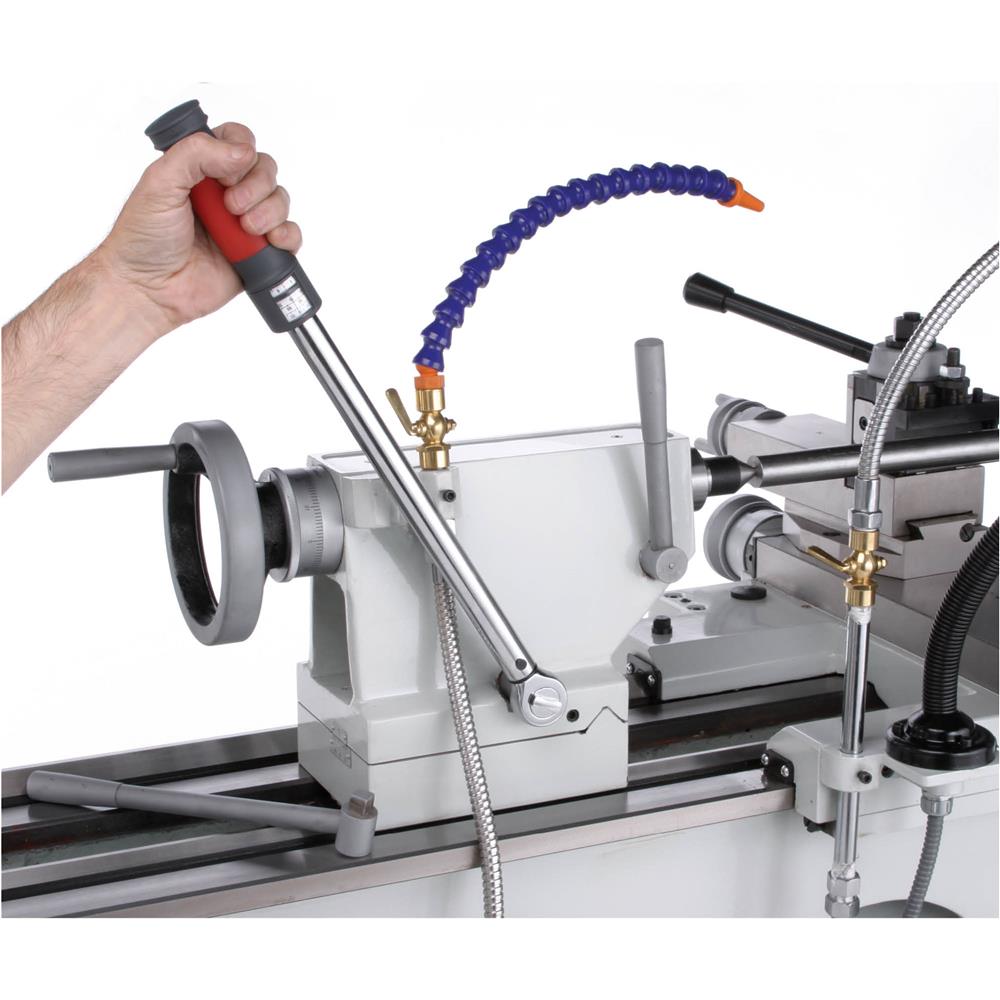

- Tailstock locking system
- Precision-ground and hardened V-way bed

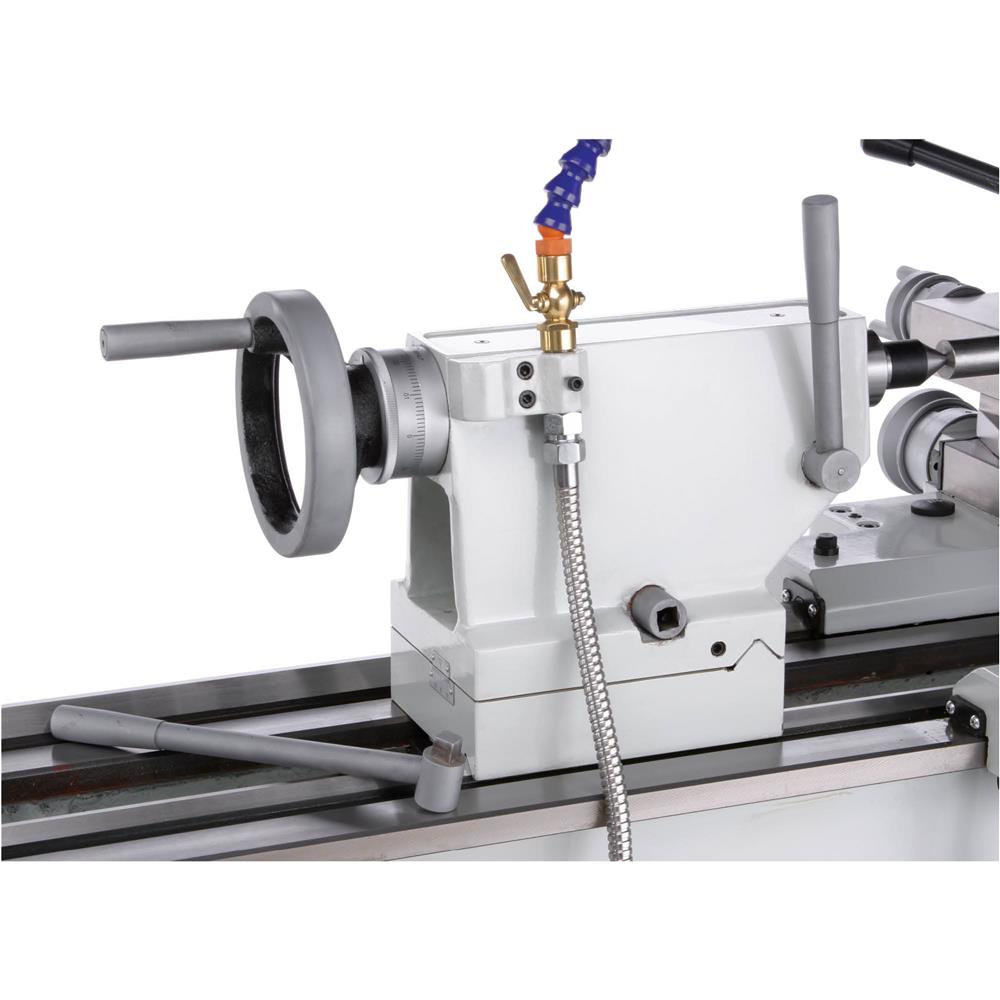

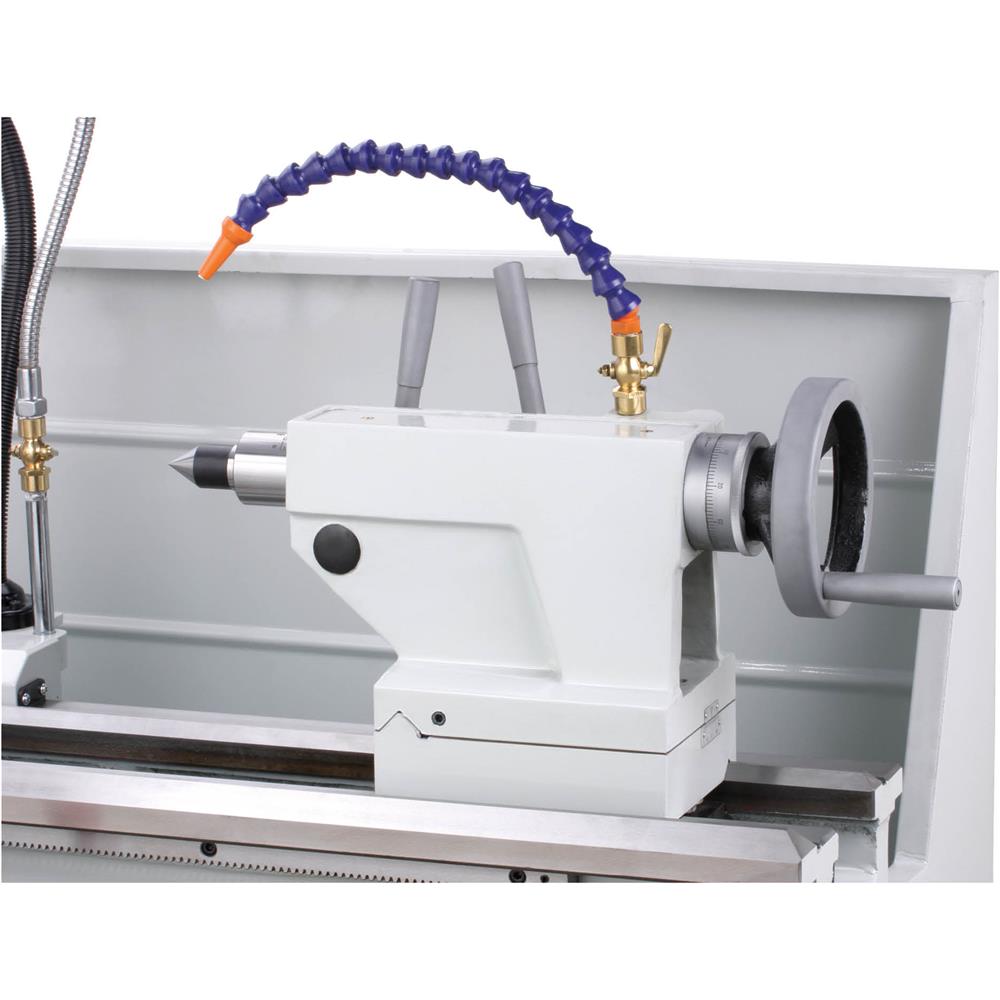

- Dual coolant nozzles for chambering barrels

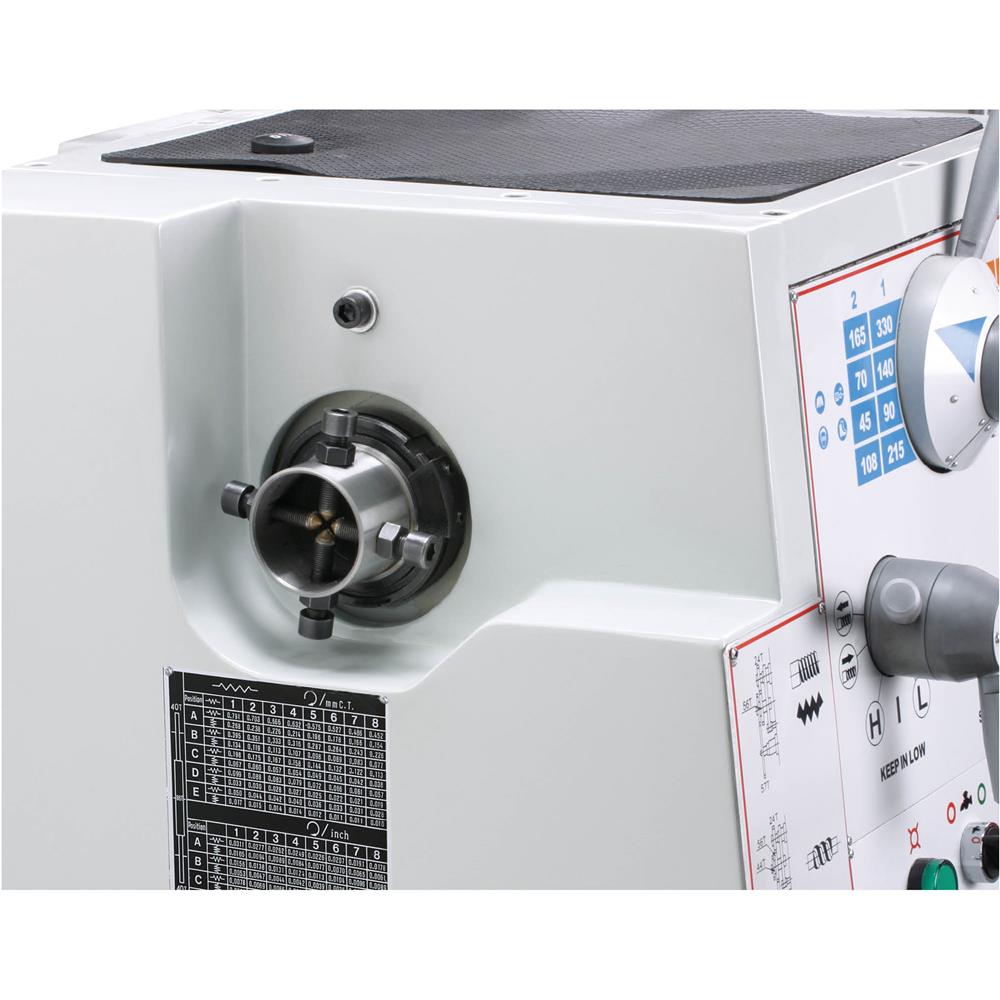

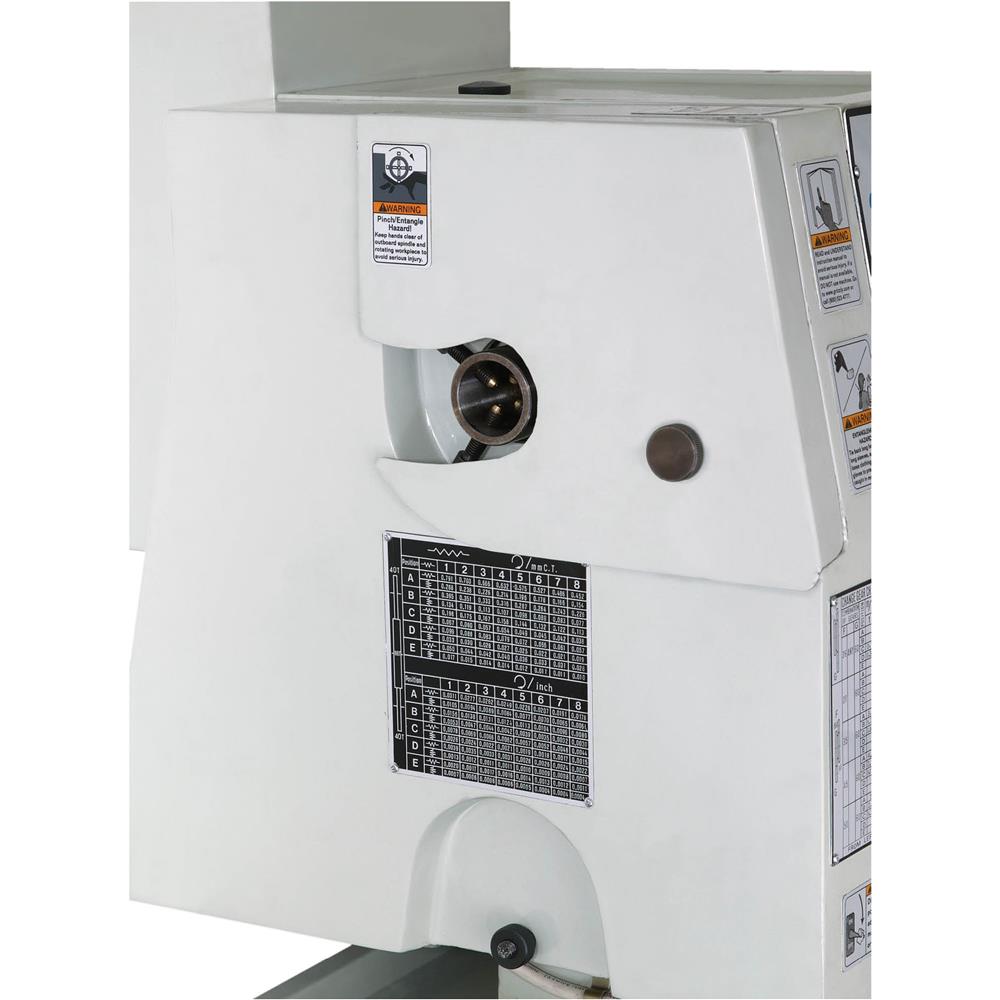

- Spider mount system has four screws that stabilize long shafting and rifle barrels
Specifications
| Main Motor | 4 HP / 3 HP, 220V, 3-phase, 2-Speed |
| Coolant Pump Motor | 1/8 HP, 0.45A |
| Swing Over Bed | 16" |
| Distance Between Centers | 40" |
| Swing Over Saddle | 14-3/4" |
| Swing Over Cross Slide | 10" |
| Spindle Nose Taper | MT#6 with MT#4 adapter |
| Spindle Type | D1-6 Camlock |
| Number Of Spindle Speeds | 16 |
| Spindle Speeds | 45-1800 RPM |
| Tailstock Taper | MT#4 |
| Tailstock Quill Travel | 4-3/4" |
| Compound Travel | 5-1/2" |
| Range Of Threads (inches) | 2-72 TPI |
| Range Of Threads (Metric) | 0.2-14.0 mm |
| Diametral Pitch Range | 21, 8-44 DP |
| Modular Pitch Range | 18, 0.3-3.5 MP |
| Footprint | 76" x 21-1/2" |
| Overall Dimensions | 76-3/8" W x 33-7/16" D x 51-3/16" H |
| Weight | 2976 lbs |
Package Contents
G0509G Gunsmithing Metal Lathe
#4 to 6 Morse Taper Spindle Nose Sleeve
12" 4-Jaw Chuck
14" Face Plate
8" 3-Jaw Chuck
Center Sleeve
Centers
Follow Rest with Roller Tips
MT#4 Dead Center
Quick Change Tool Post
Service Tools
Steady Rest with Roller Tips
Toolbox
Manual
Warranty
This item comes with a 1 year warranty.
