Grizzly G0503 Resaw Bandsaw 12" 20 HP Horizontal New
Product Overview

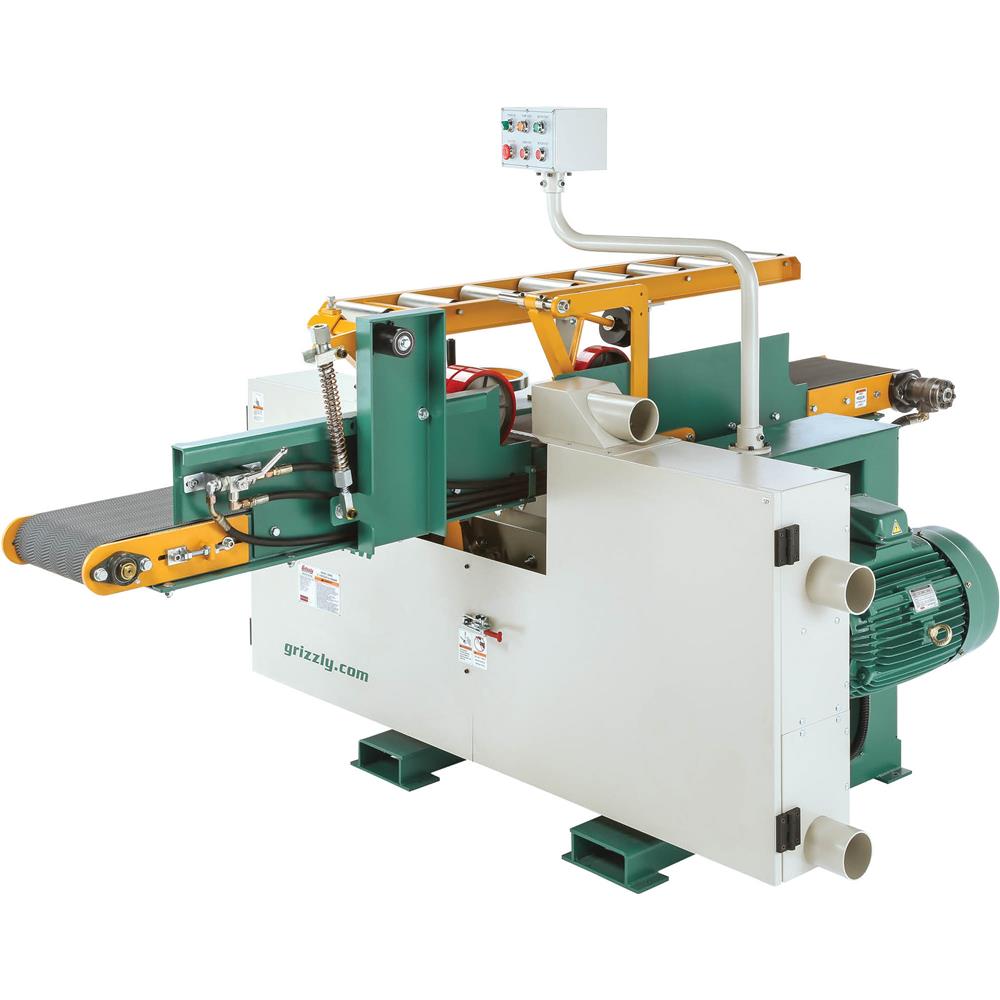

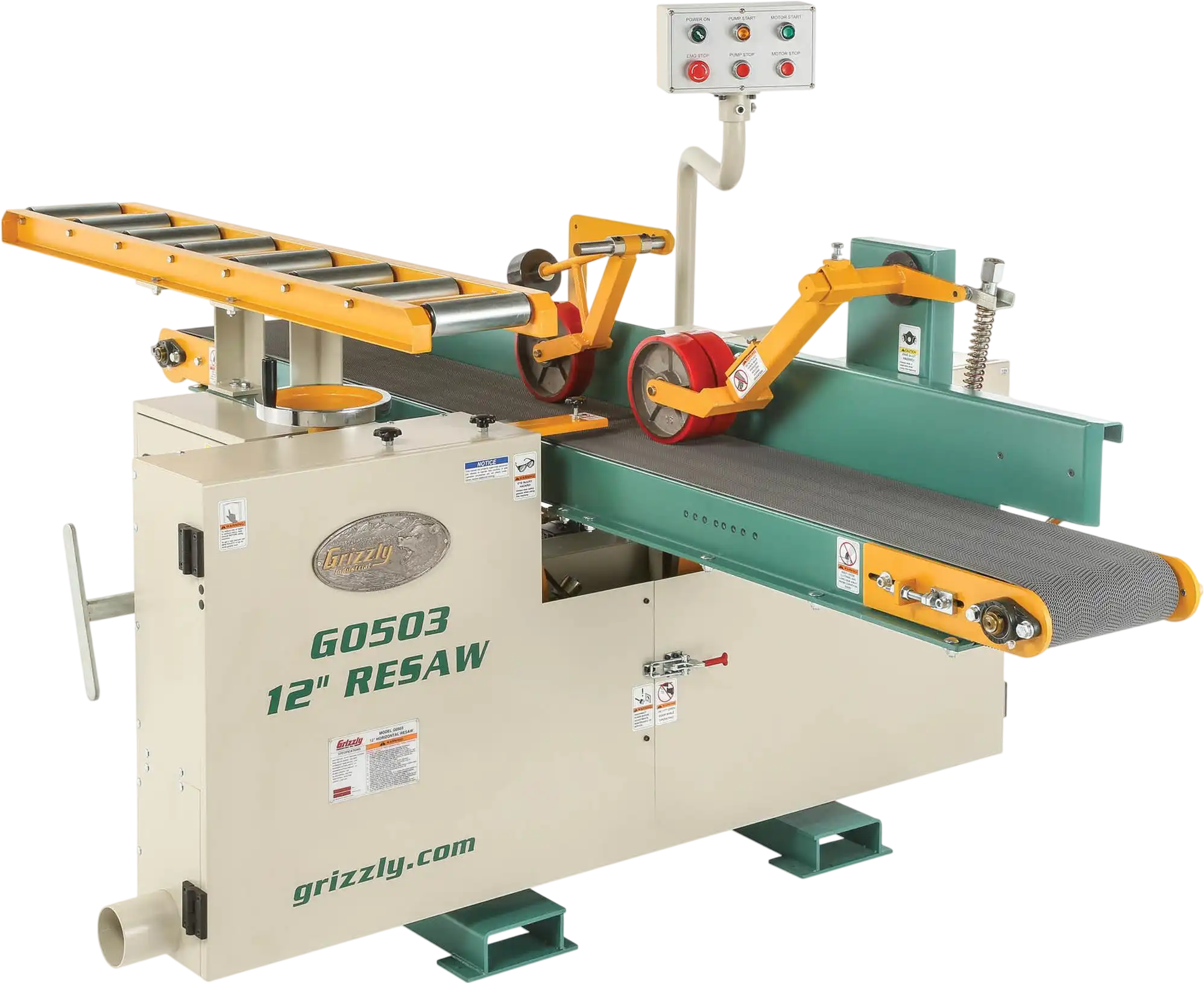

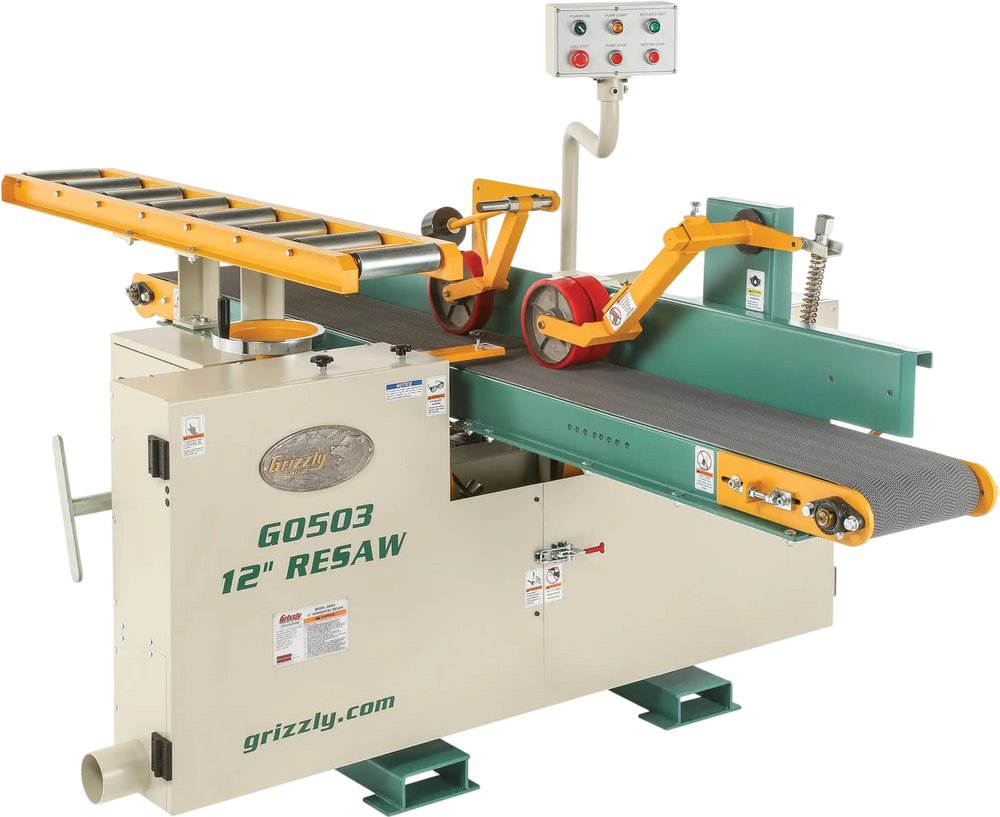

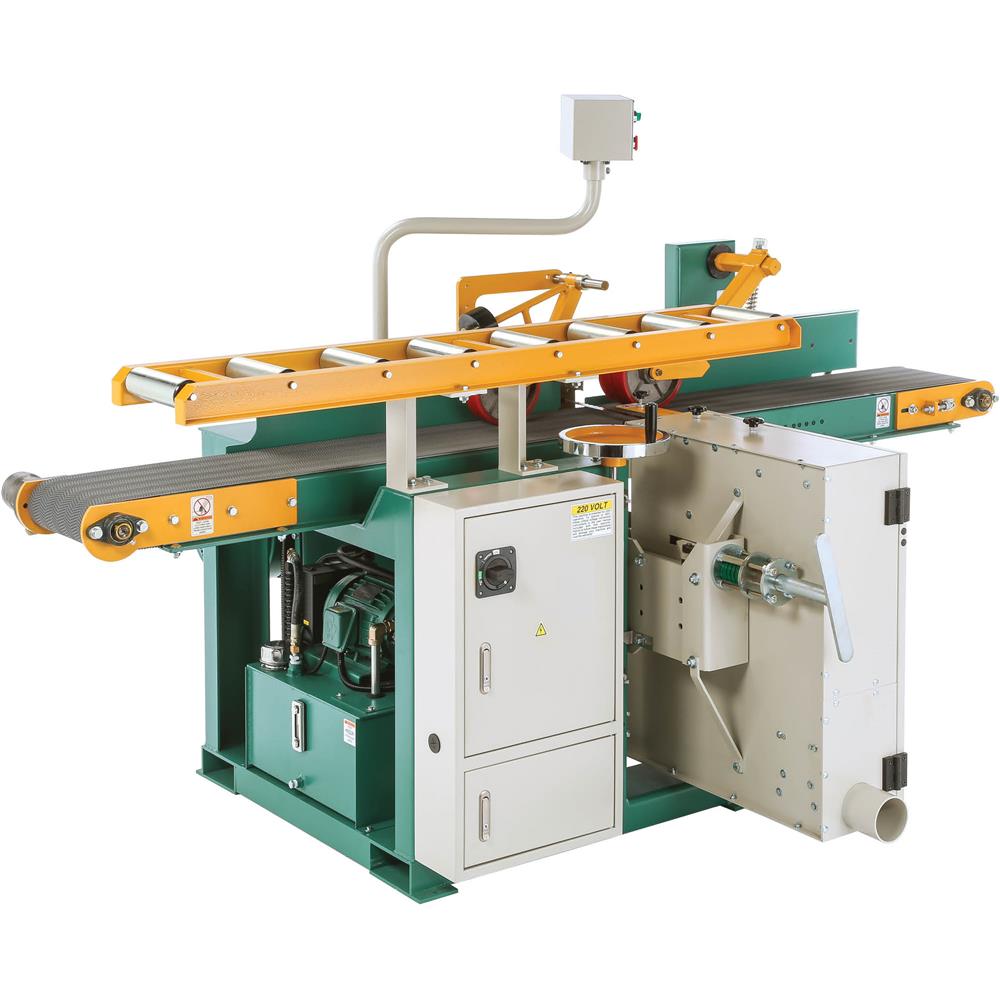

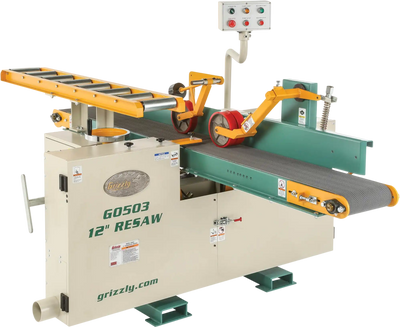

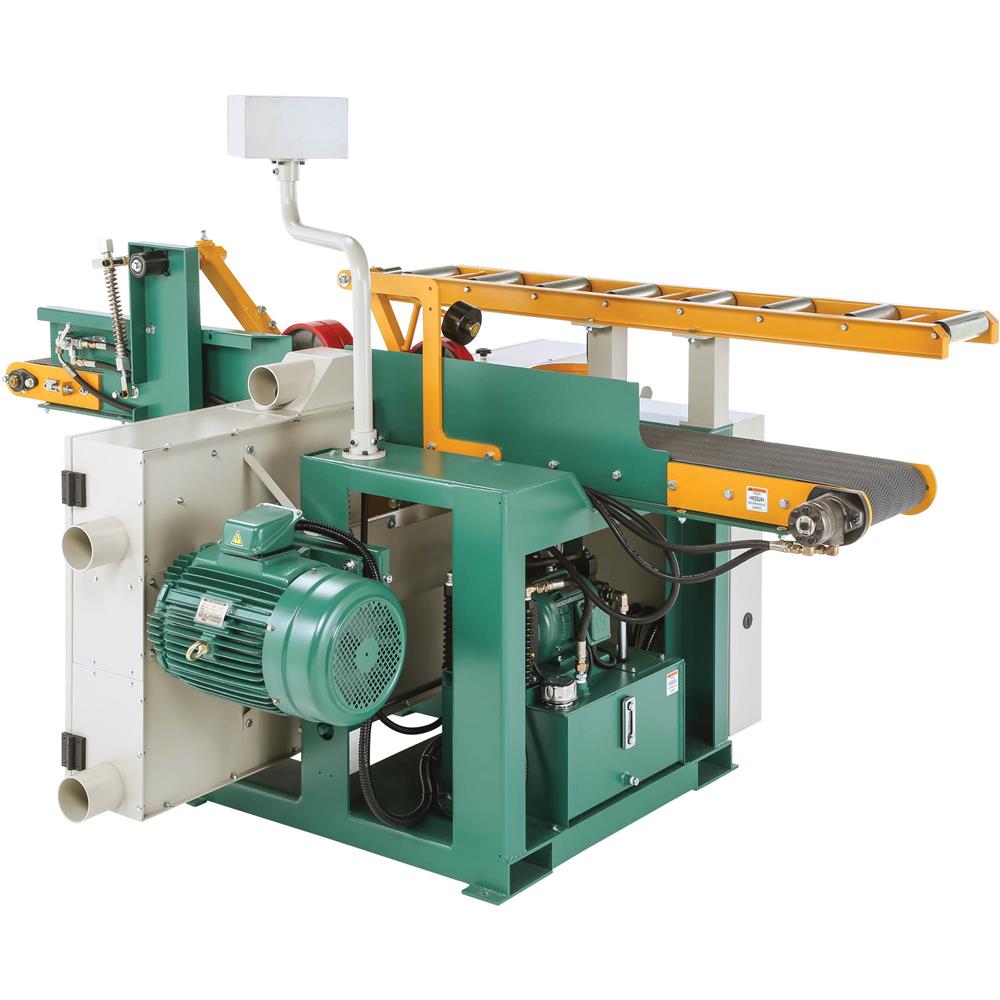

The Grizzly G0503 is a heavy-duty horizontal resaw bandsaw built for industrial wood resawing and increased production. Its 20 HP motor, 28" diameter wheels, and 168" blade are designed to handle demanding all-day operation on hard wood species. The horizontal design helps deliver accurate, consistent cutting results. A hydraulic variable feed system and sturdy steel construction support dependable performance in production environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features

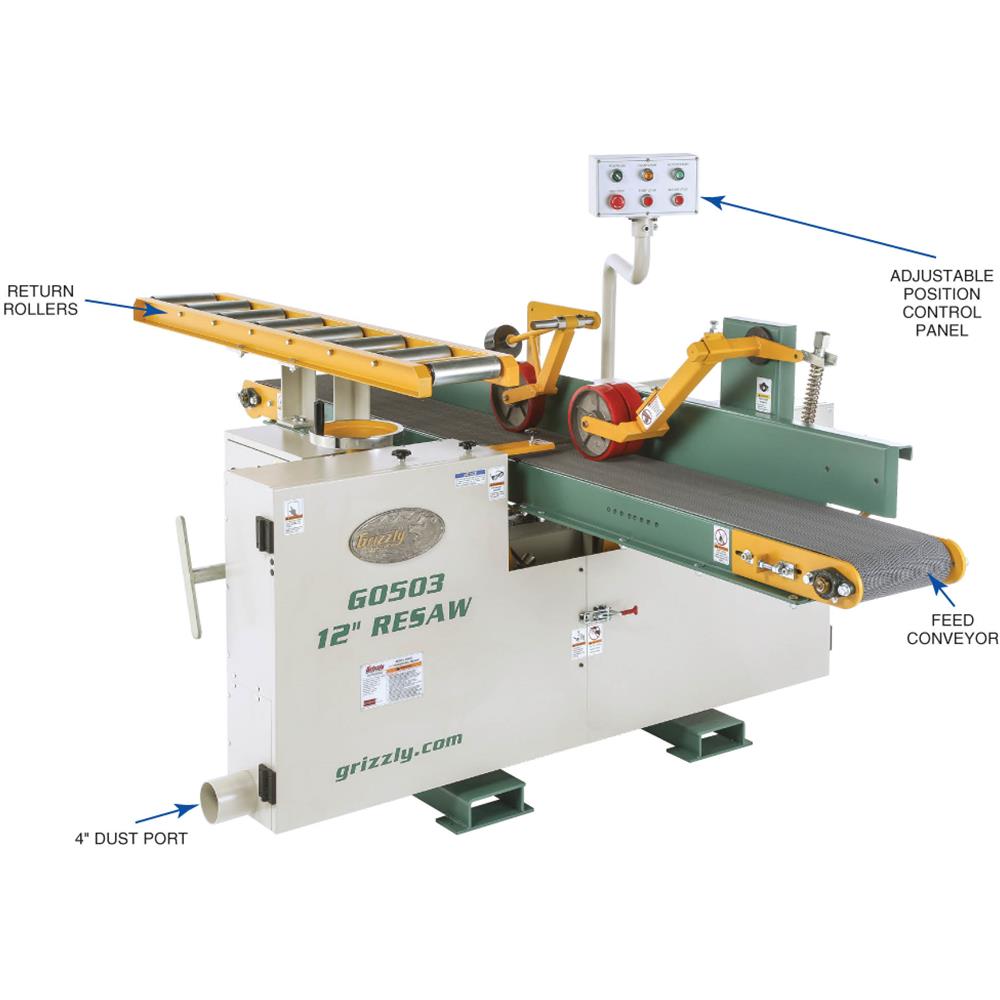

- Two 4" dust ports
- Return rollers
- Adjustable steel blade guides
- Manual cutting height adjustment

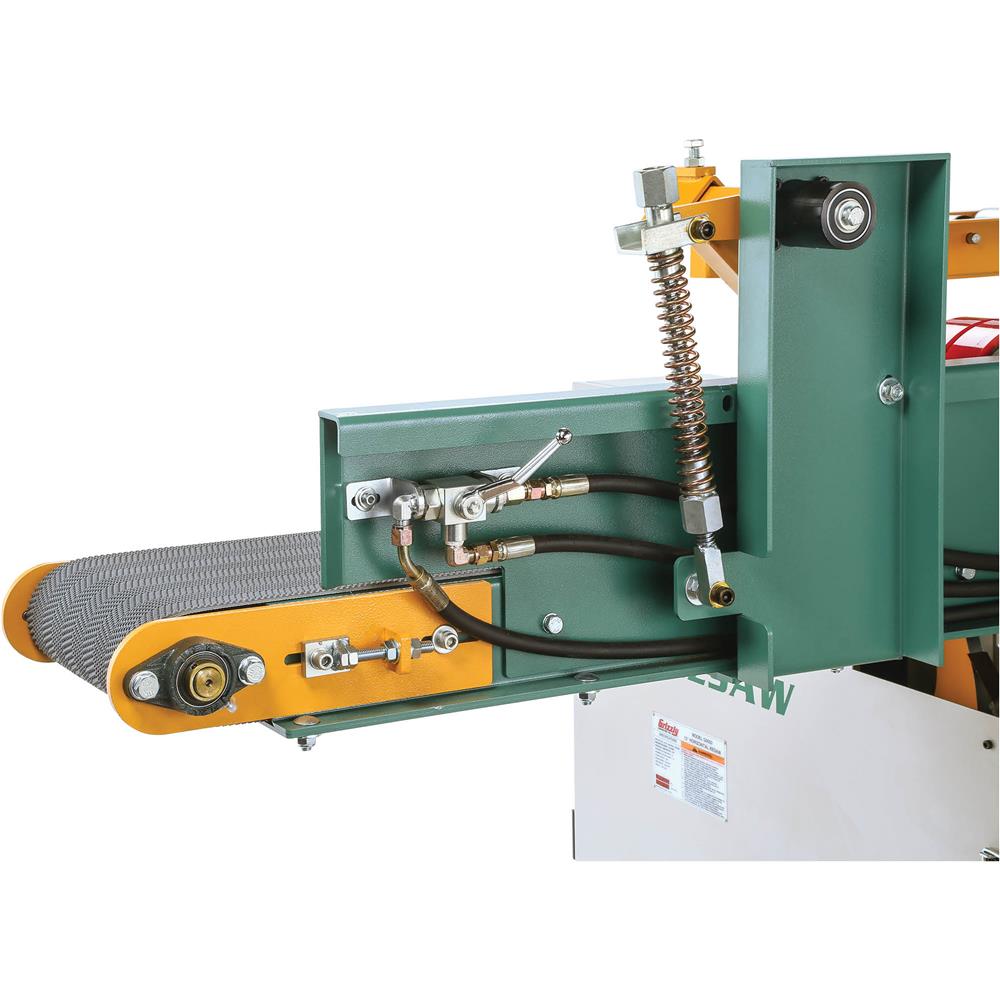

- Variable feed speed by hydraulic drive
- Manual blade tension adjustment

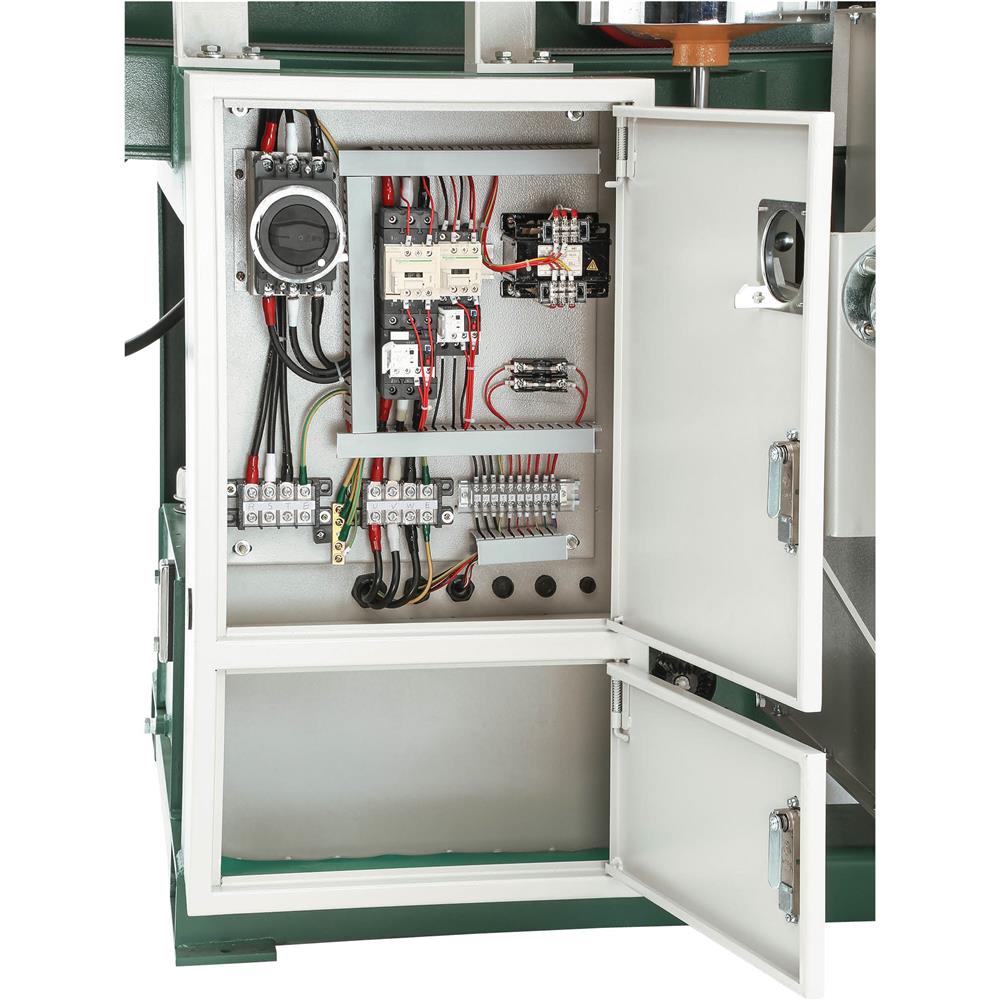

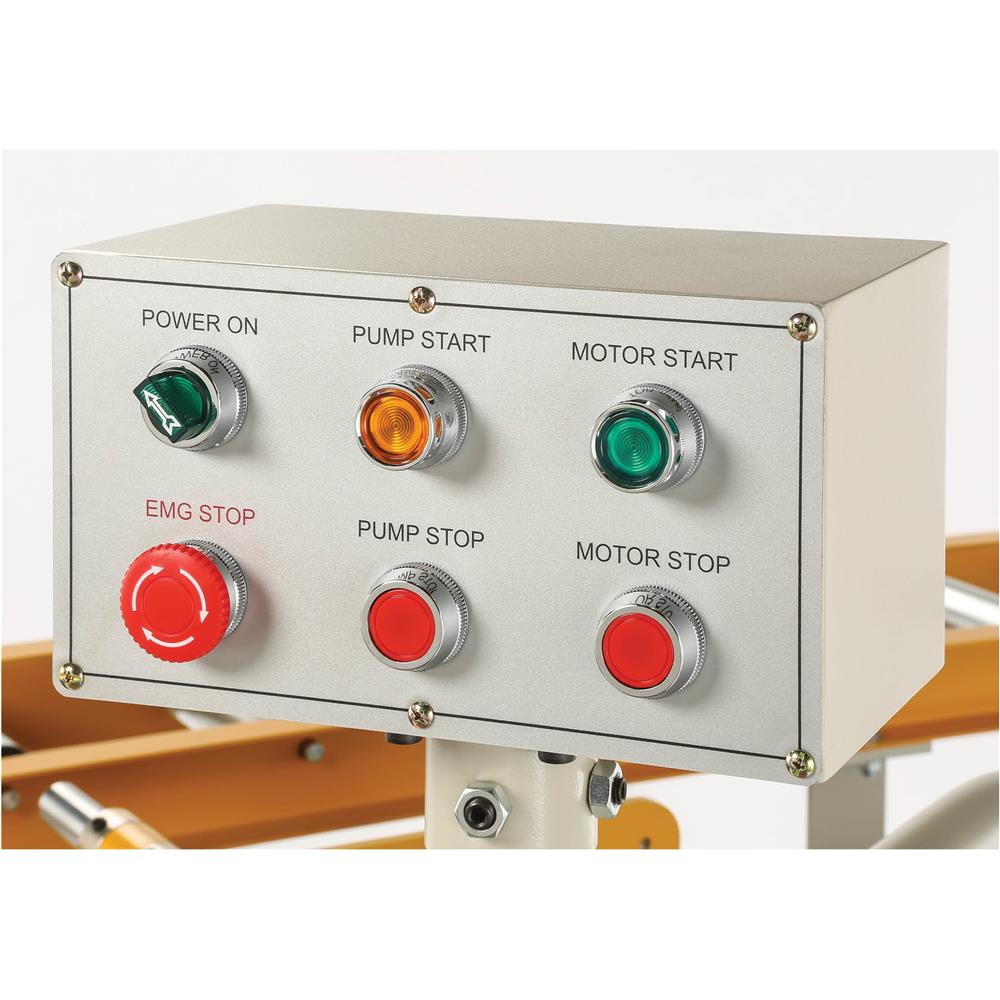

- Movable control panel
- Steel frame construction
- Steel conveyor table
- Rubber conveyor belt

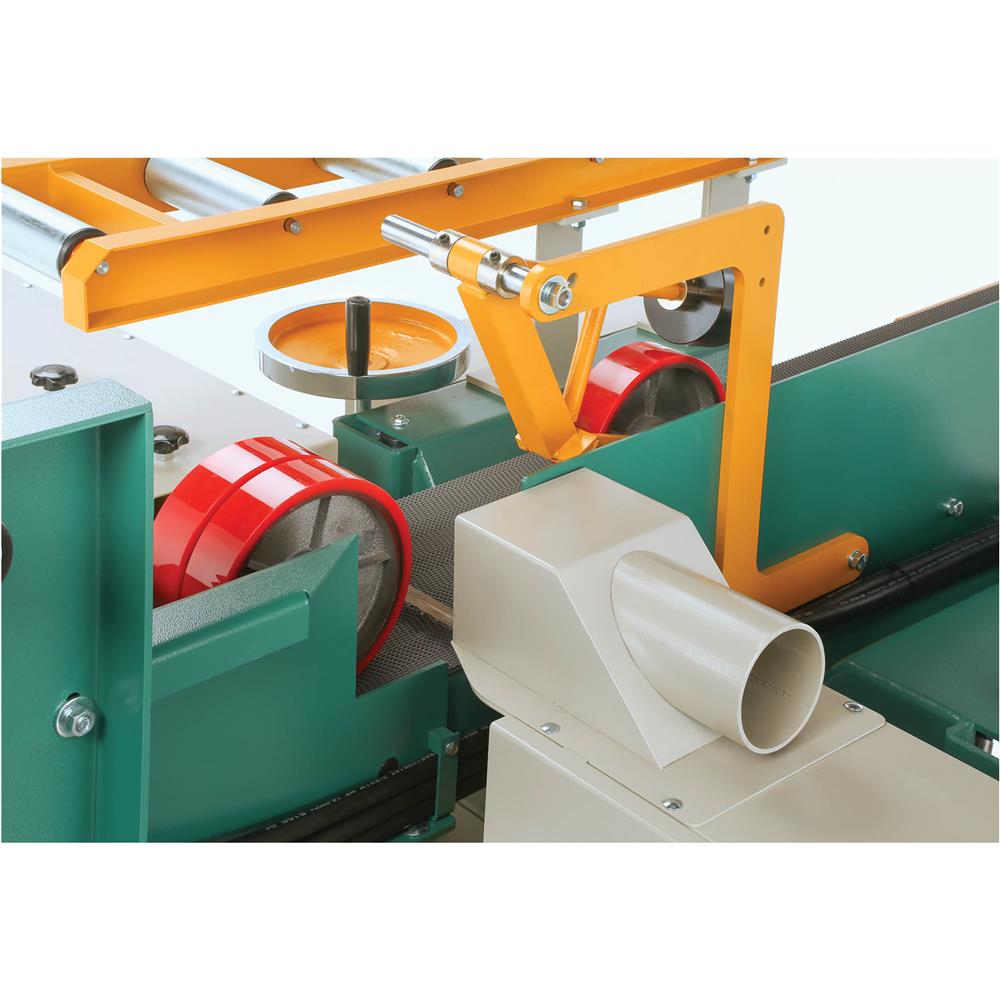

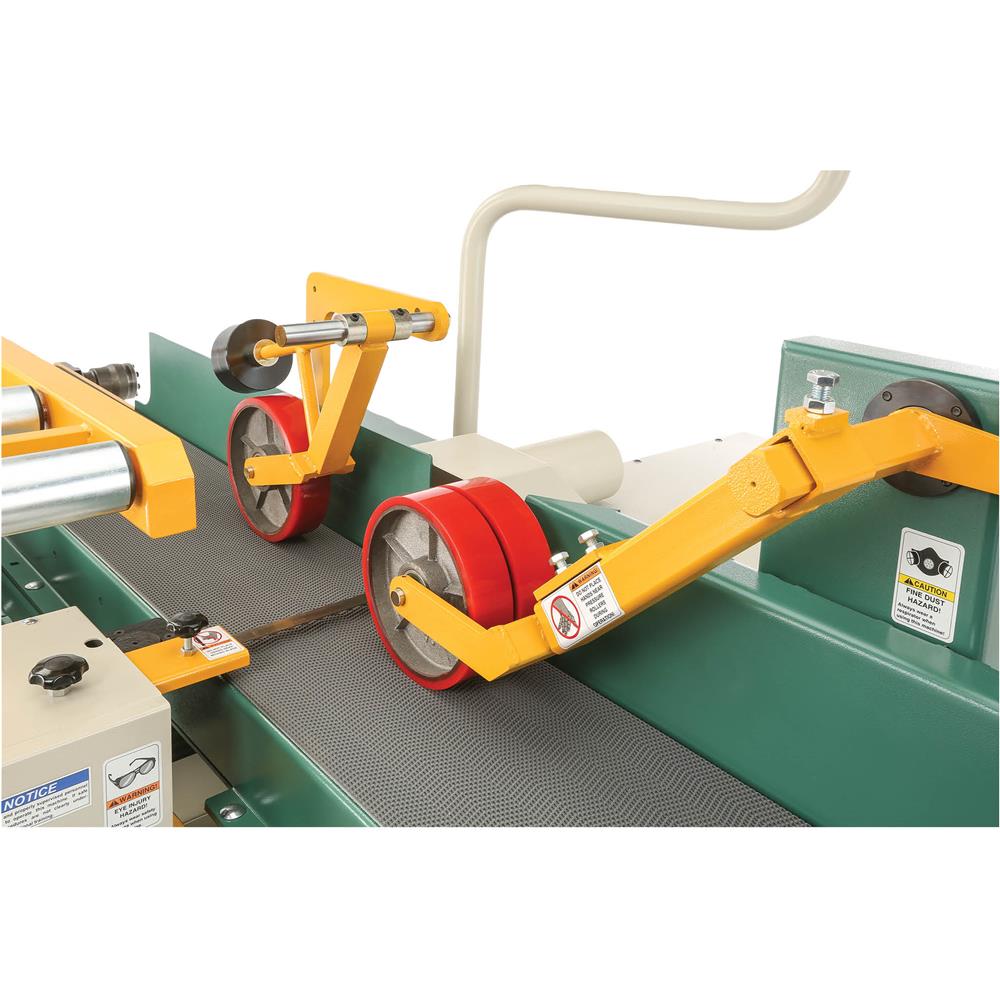

- 8" cast-iron pressure rollers with polyurethane tires
Specifications
| Main Motor | 20 HP, 220V/440V (prewired 220V), 3-phase, 50A/25A |
| Hydraulic Tank Motor | 2 HP, 6.2A/3.1A |
| Minimum Circuit Size | 80A at 220V, 40A at 440V |
| Hydraulic Pressure | 775 PSI |
| Maximum Cutting Capacity | 12" x 12" |
| Distance from Blade to Conveyor Table | 1/4"–5" |

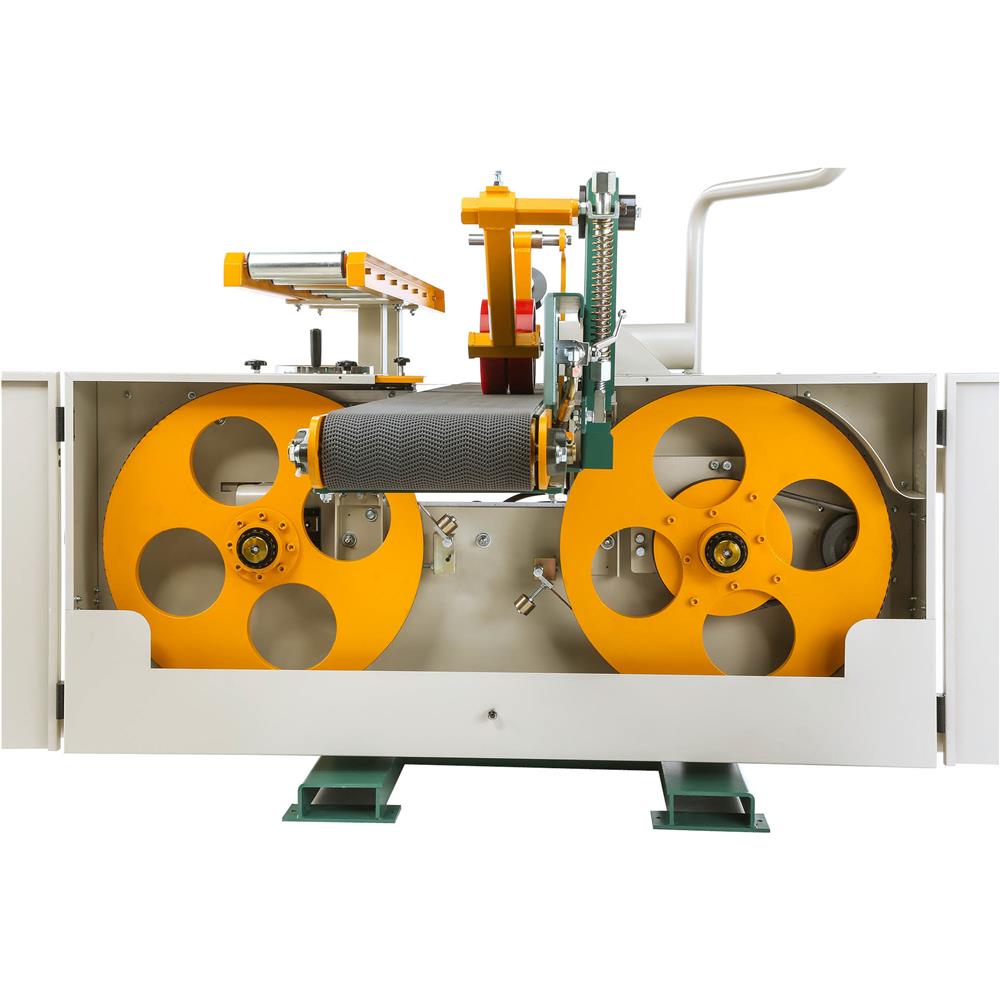

| Saw Wheel Size | 28" x 7/8" |
| Saw Blade Size | 168" x 1" |
| Saw Blade Speed | 7300 FPM |
| Conveyor Belt Size | 11-1/4" x 215-3/4" long |
| Variable Feed Speed | 32–82 FPM |
| Conveyor Table | 12" wide x 102" long |
| Floor to Table Height | 35-3/4" |
| Footprint | 39-1/4" x 40" |
| Overall Size | 108" W x 81" D x 65-1/2" H |
| Product Weight | 1870 lbs |
Package Contents
G0503 Resaw Bandsaw
Bandsaw Blade
Dust Hood
Blade Cover
Tool Kit
Hardware Bag
Manual
Warranty
This item comes with a 1 year warranty.
