Grizzly G0454Z Planer 20" 5 HP with Spiral Cutterhead New
Product Overview

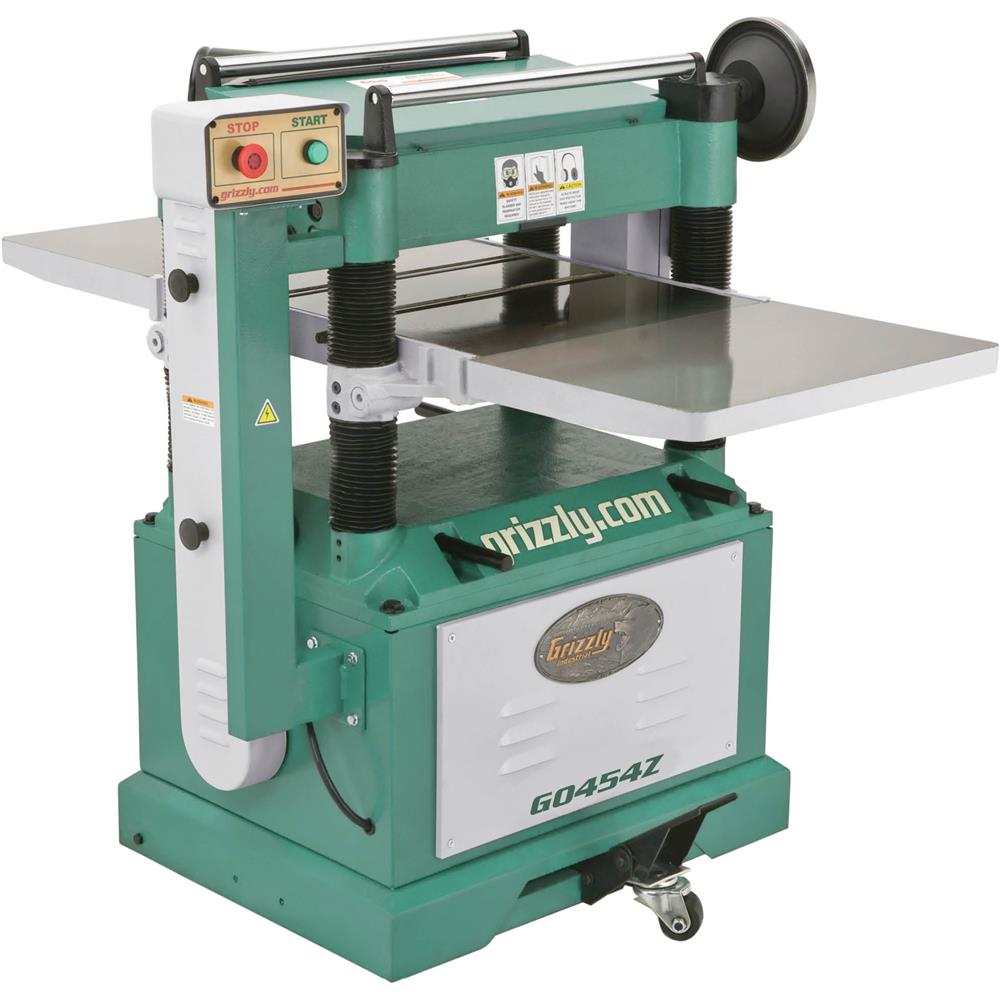

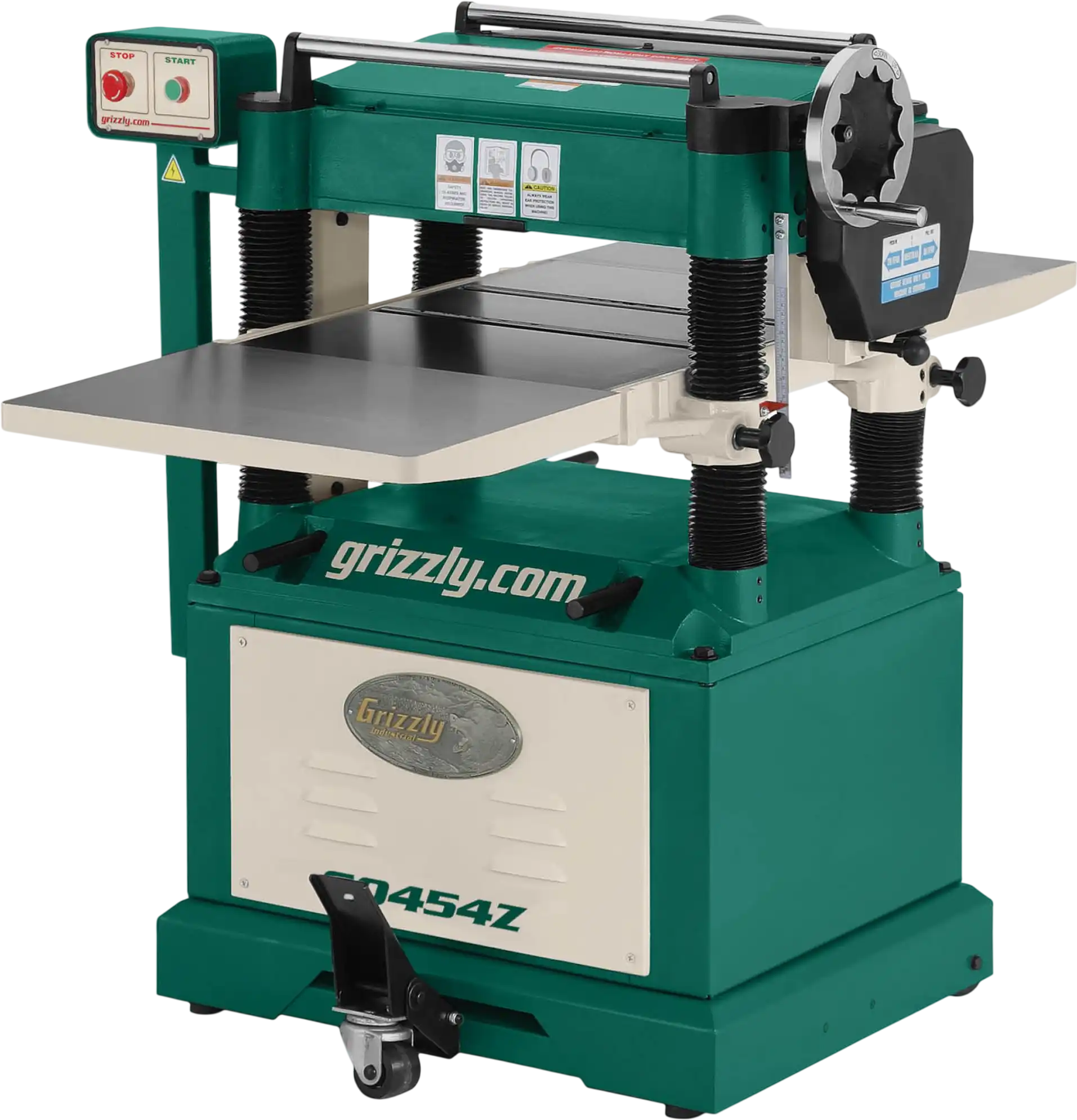

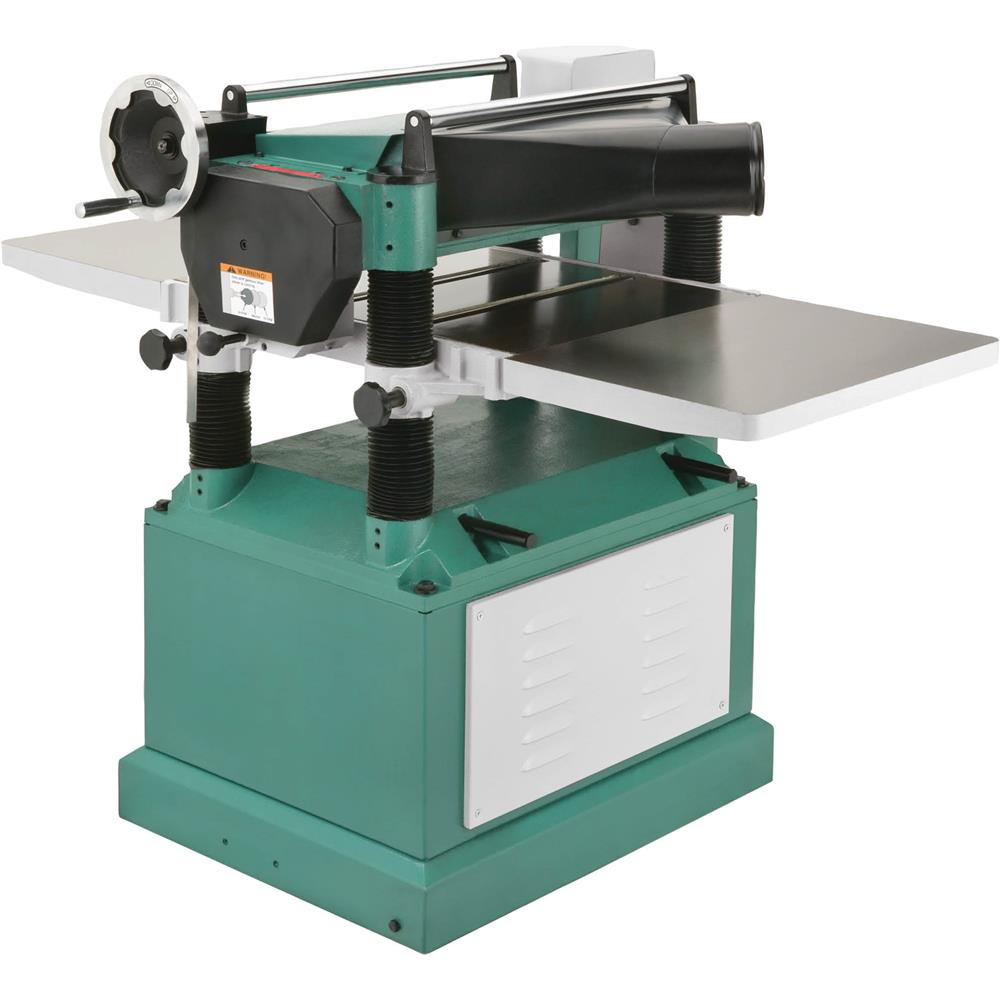

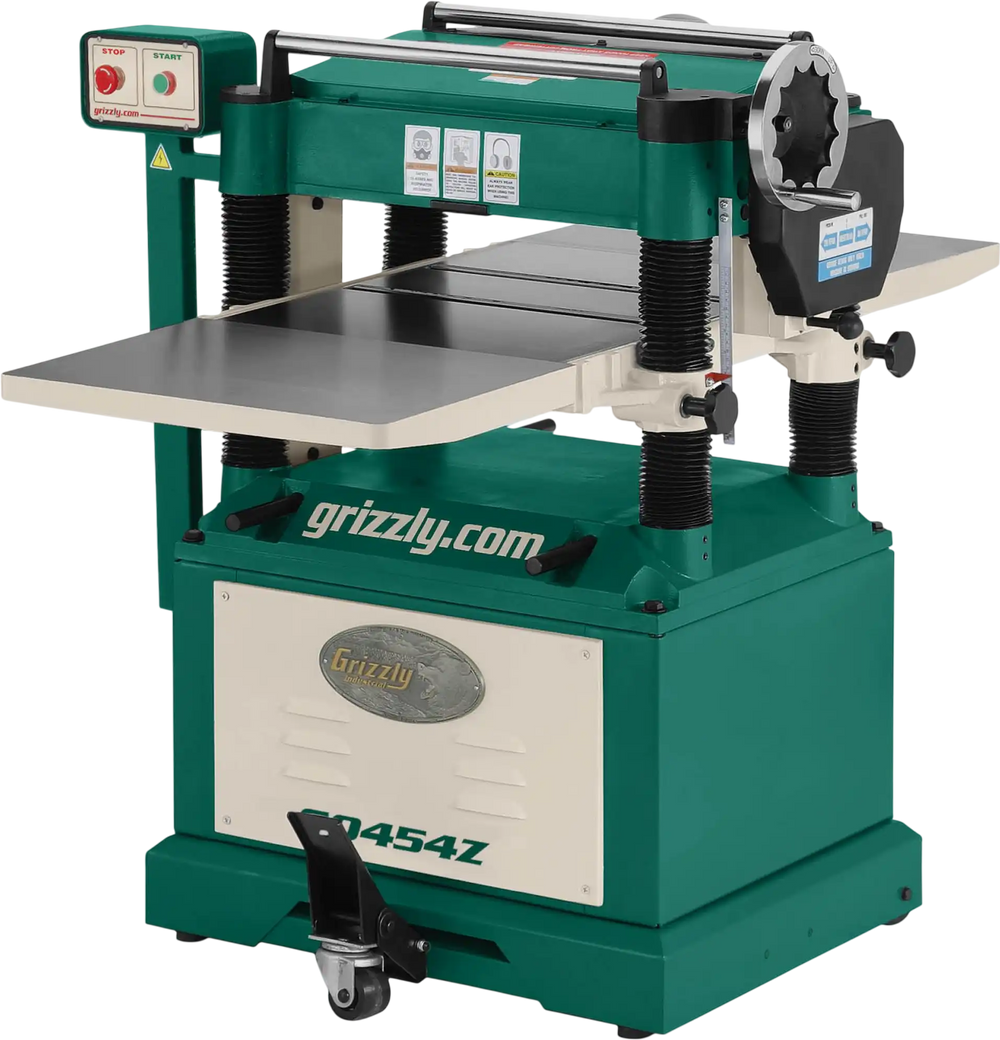

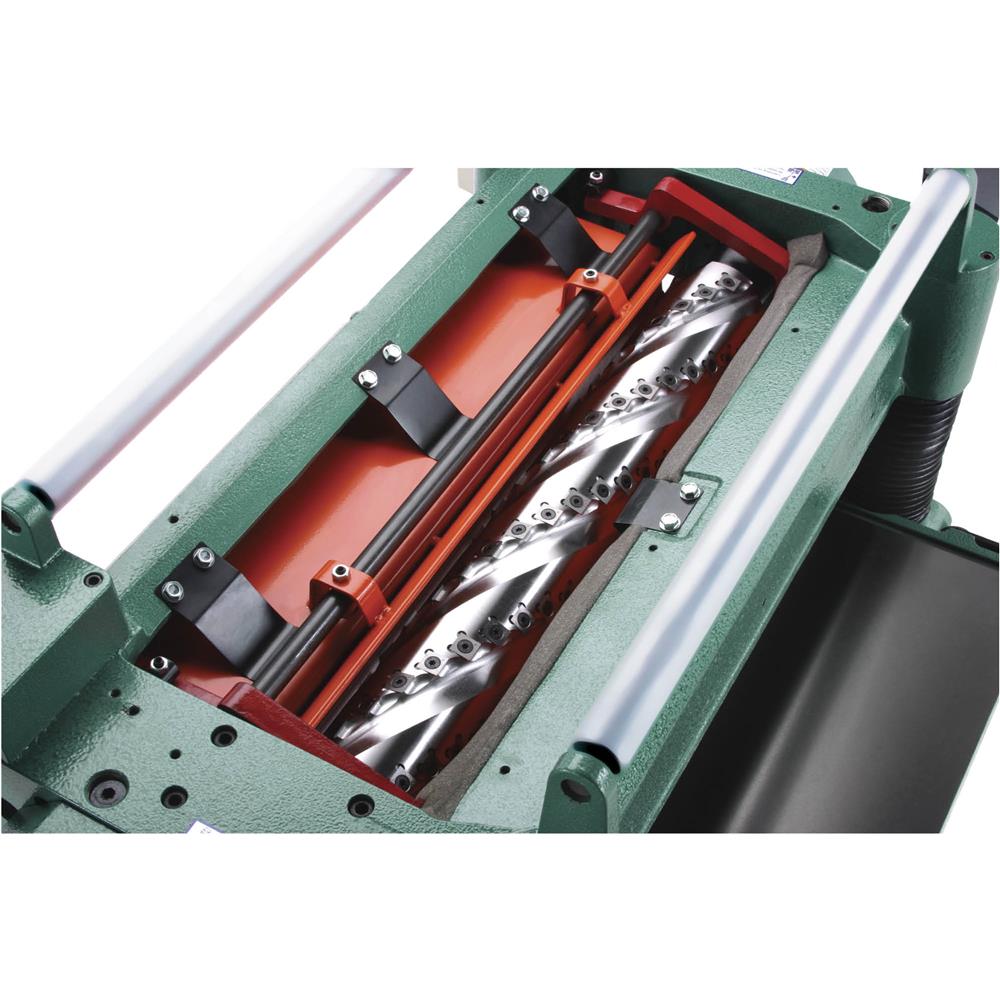

The Grizzly G0454Z is a 20" stationary planer with a 5 HP motor and a 4-row spiral cutterhead designed to deliver smooth finishes with reduced tearout. Its 98 indexable carbide insert cutters can be rotated to expose fresh cutting edges, helping extend cutter life and simplify maintenance. The planer handles stock up to 20" wide and 8" thick, with two feed speeds for added versatility. Heavy cast-iron and steel construction provides durability, while the built-in mobile base makes repositioning easier in the shop. A long precision-ground cast-iron table with extension wings offers solid support for larger workpieces.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer

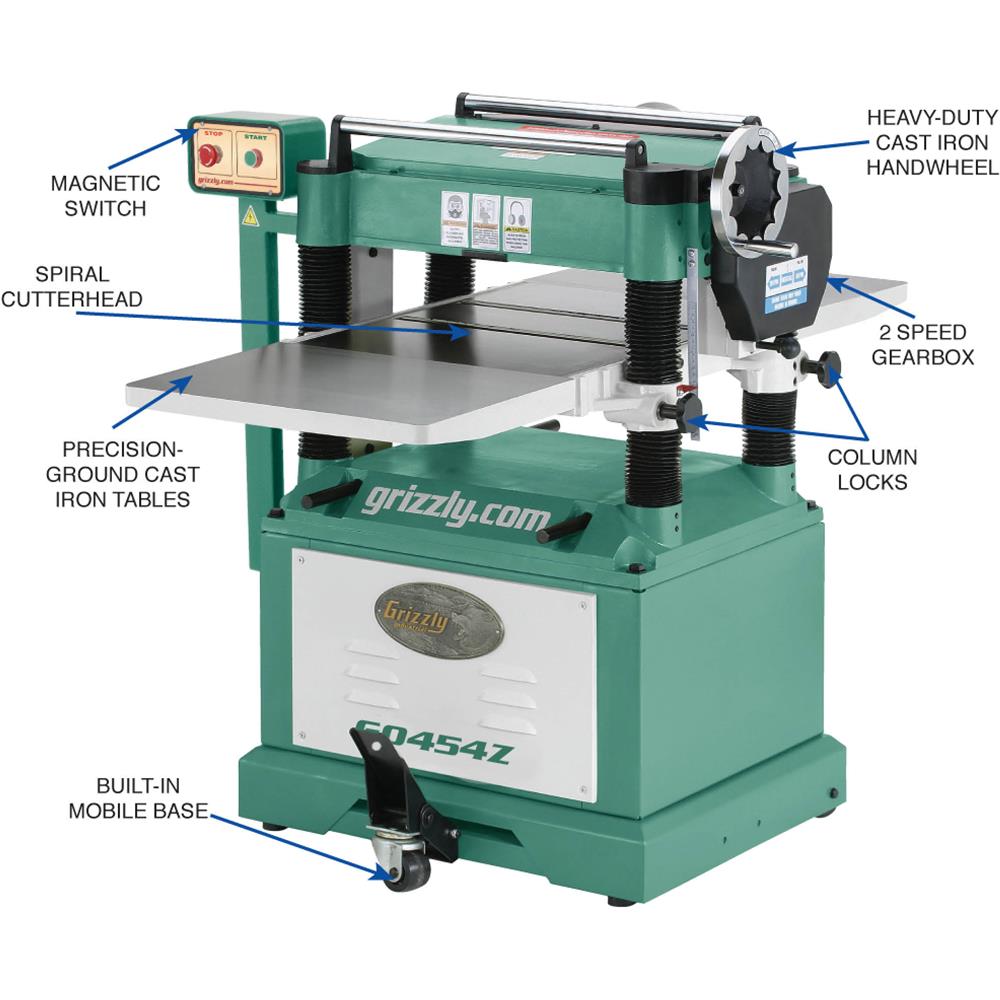

Features

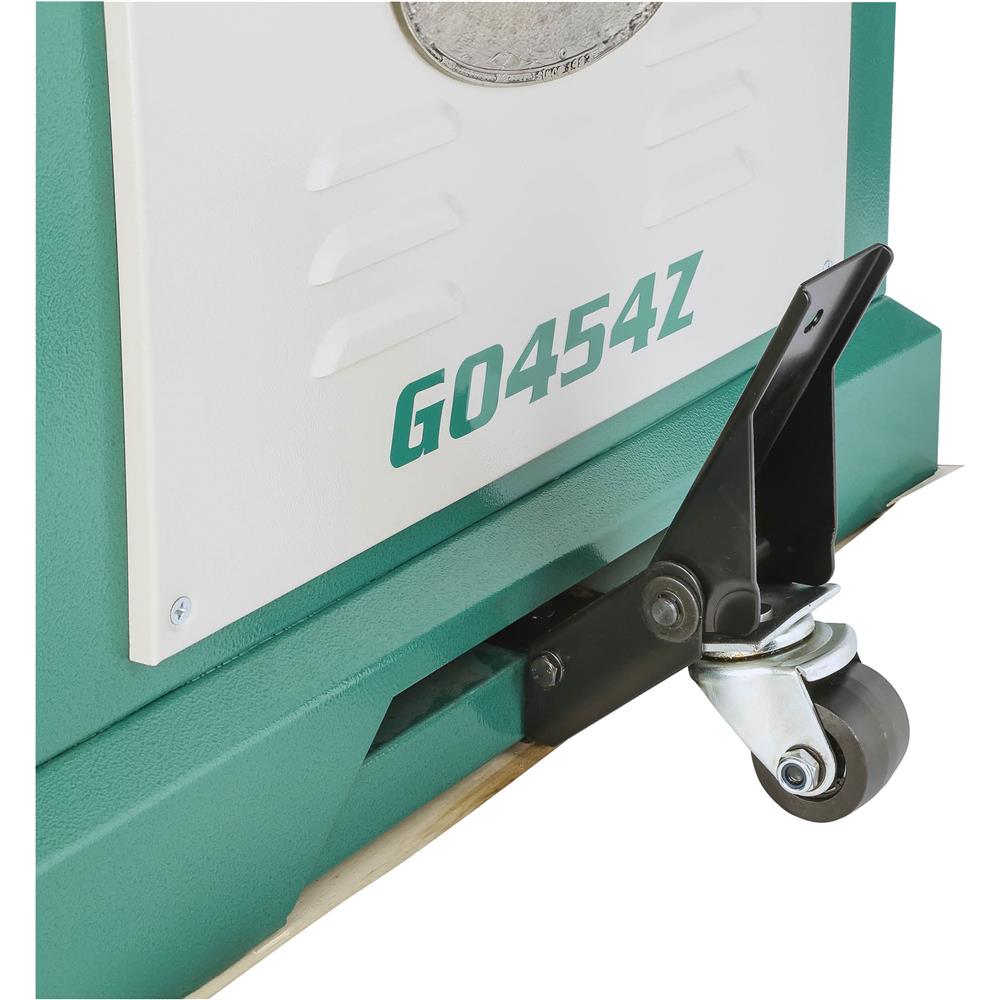

- Built-in mobile base

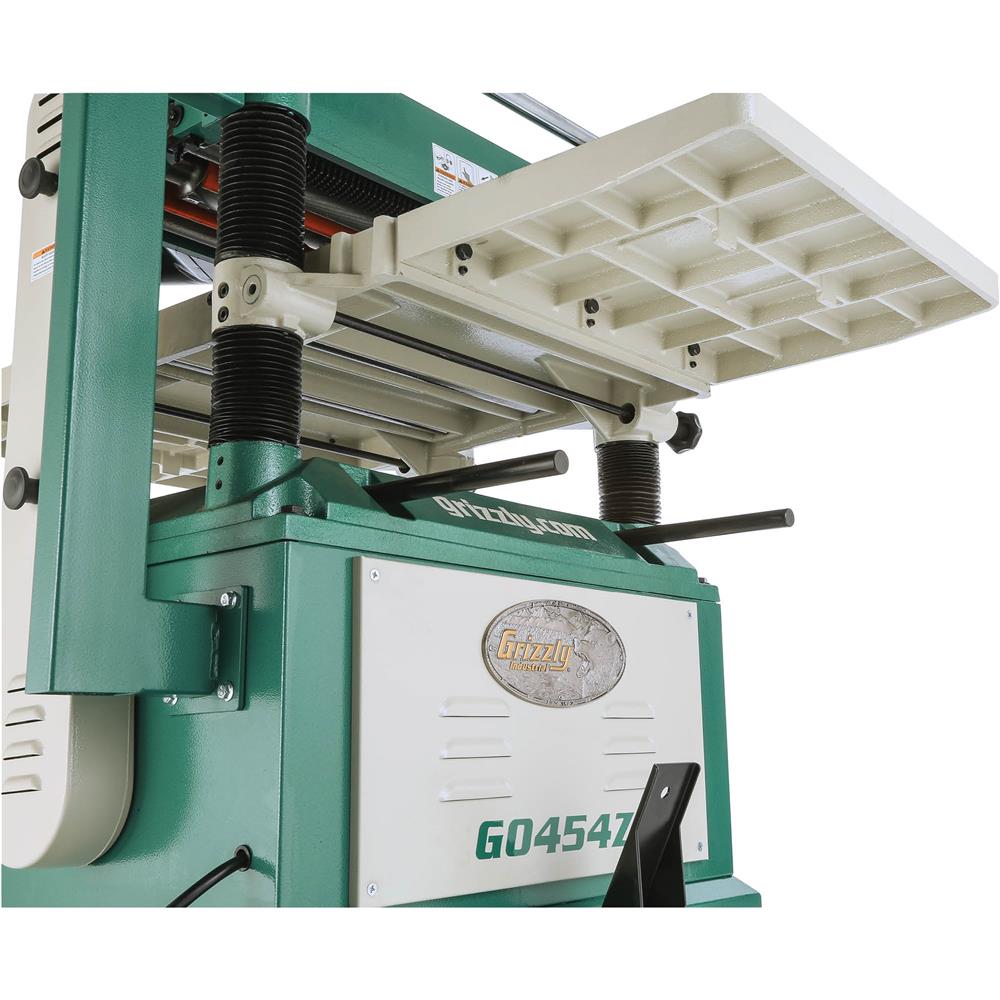

- Precision-ground cast-iron table and extension wings
- Board return rollers
- Built-in lifting rods

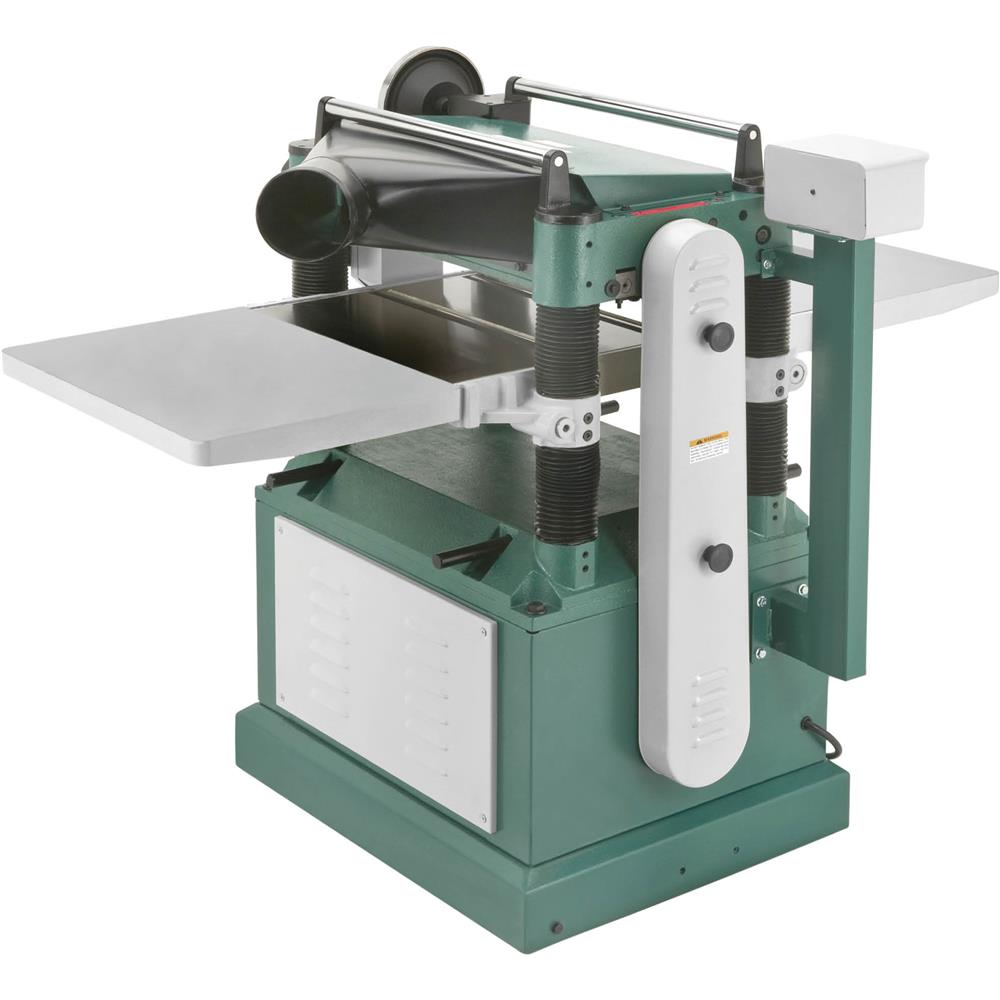

- Angled dust port hood
- Rubber-coated outfeed roller
- Adjustable bed rollers
- Magnetic switch with thermal overload protection
- Four-column support with table locks

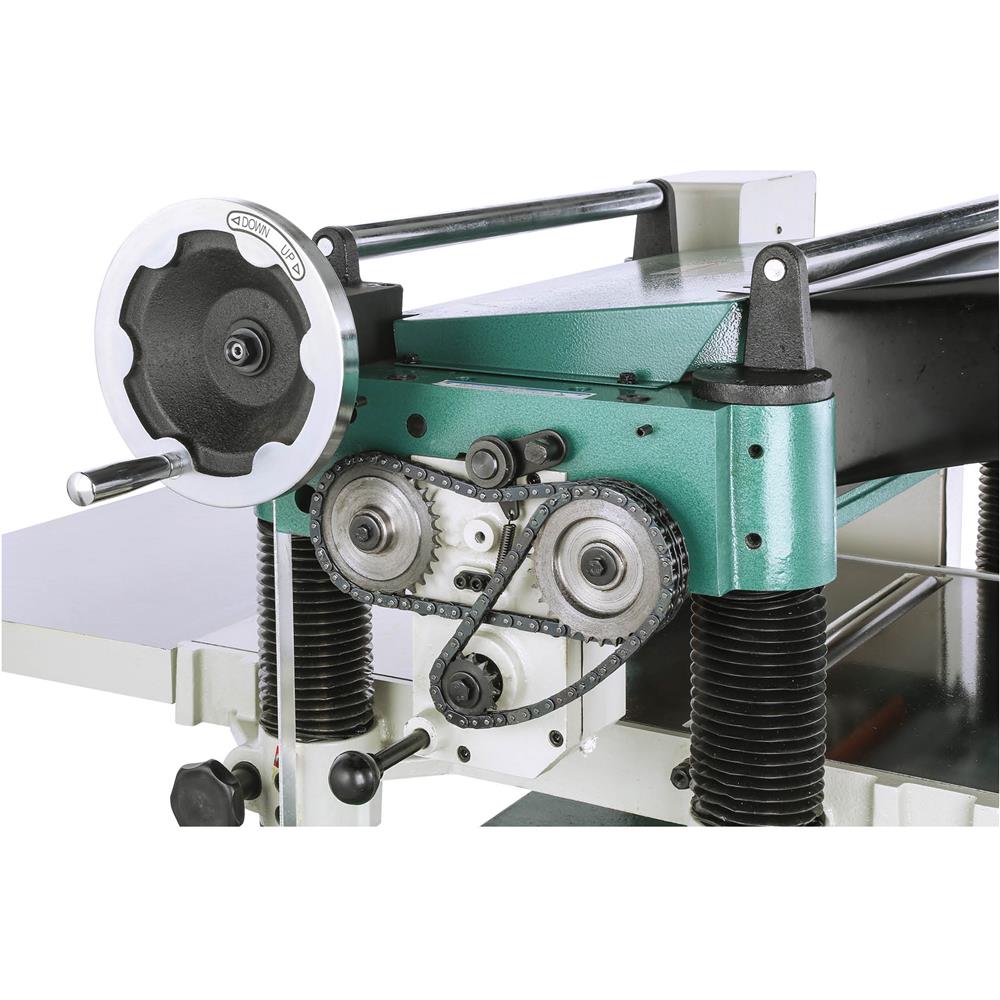

- Two-speed feed rate
Specifications

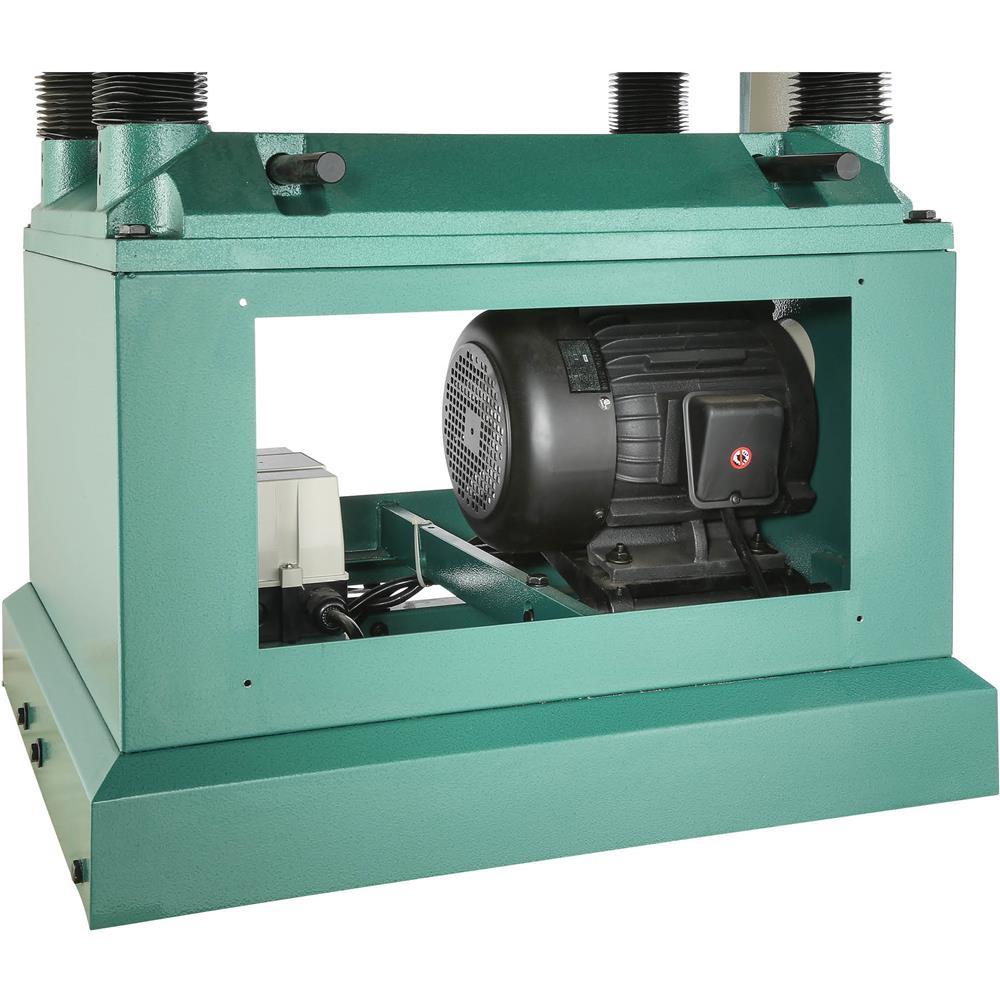

| Motor | 5 HP, 240V, single-phase, 19A |
| Maximum Stock Width | 20" |
| Maximum Stock Thickness | 8" |
| Minimum Stock Thickness | 3/16" |
| Minimum Stock Length | 8" |
| Maximum Cutting Depth Full Width | 1/16" |
| Cutterhead Type | 4-Row Spiral, 98 inserts |
| Cutter Insert Size | 14 mm x 14 mm x 2 mm |
| Cutterhead Speed | 4800 RPM |
| Feed Rate | 16 FPM and 20 FPM |
| Table Size with Extensions | 20" x 55-1/2" |
| Dust Port Size | 5" |
| Overall Dimensions | 39" W x 55-5/8" L x 45-7/8" H |
| Footprint | 29-1/2" x 23-1/2" |
| Product Weight | 783 lbs |
Package Contents
G0454Z Planer
Dust Hood
Foot Pedal
Handwheel
Caster
Extension Wings
Manual
Warranty
This item comes with a 1 year warranty.
