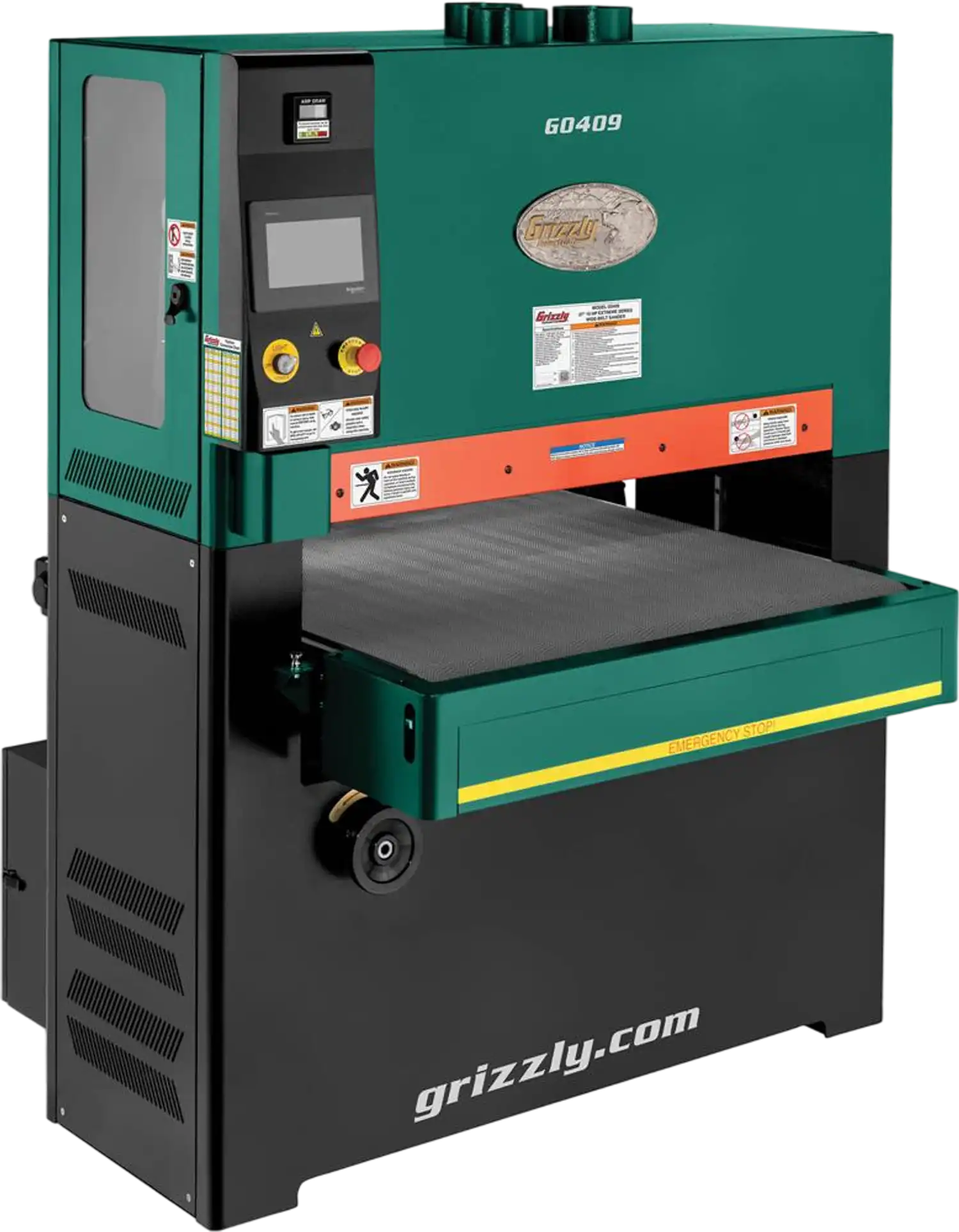

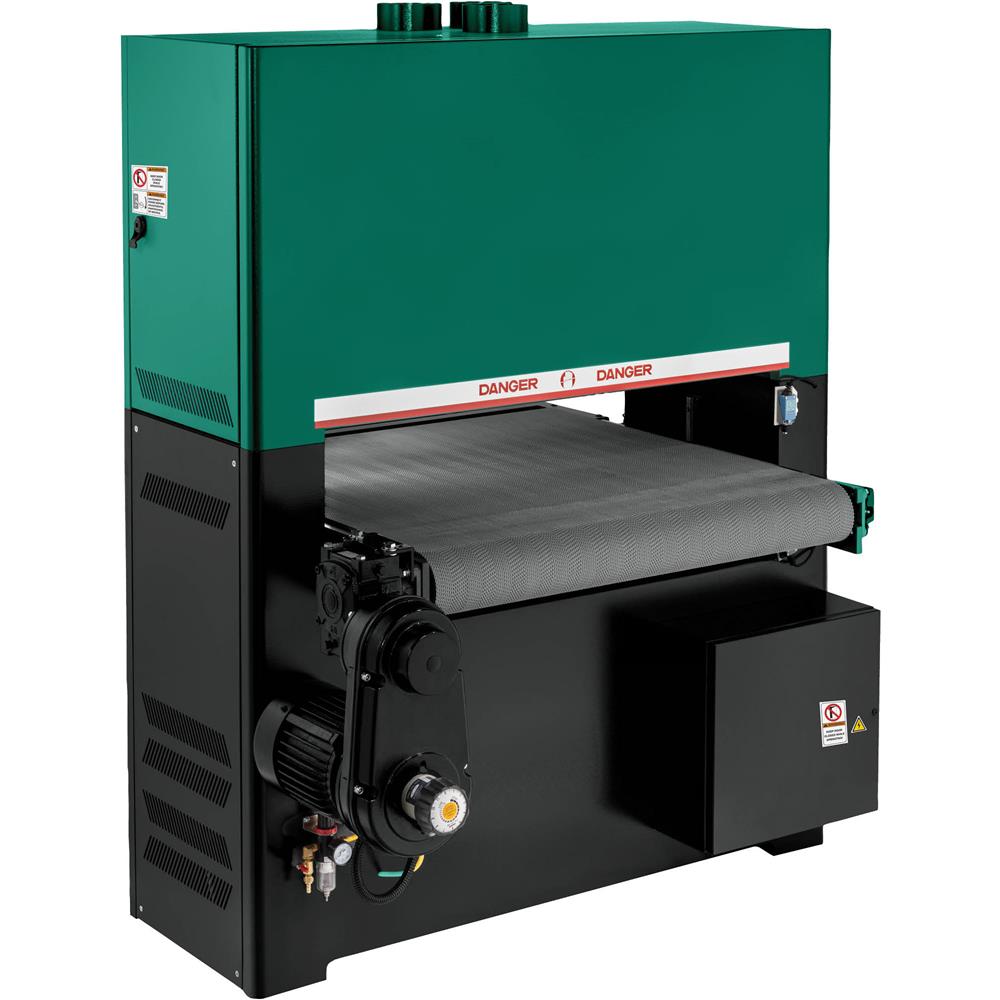

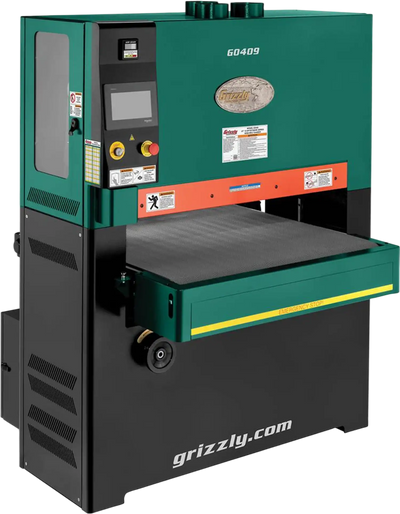

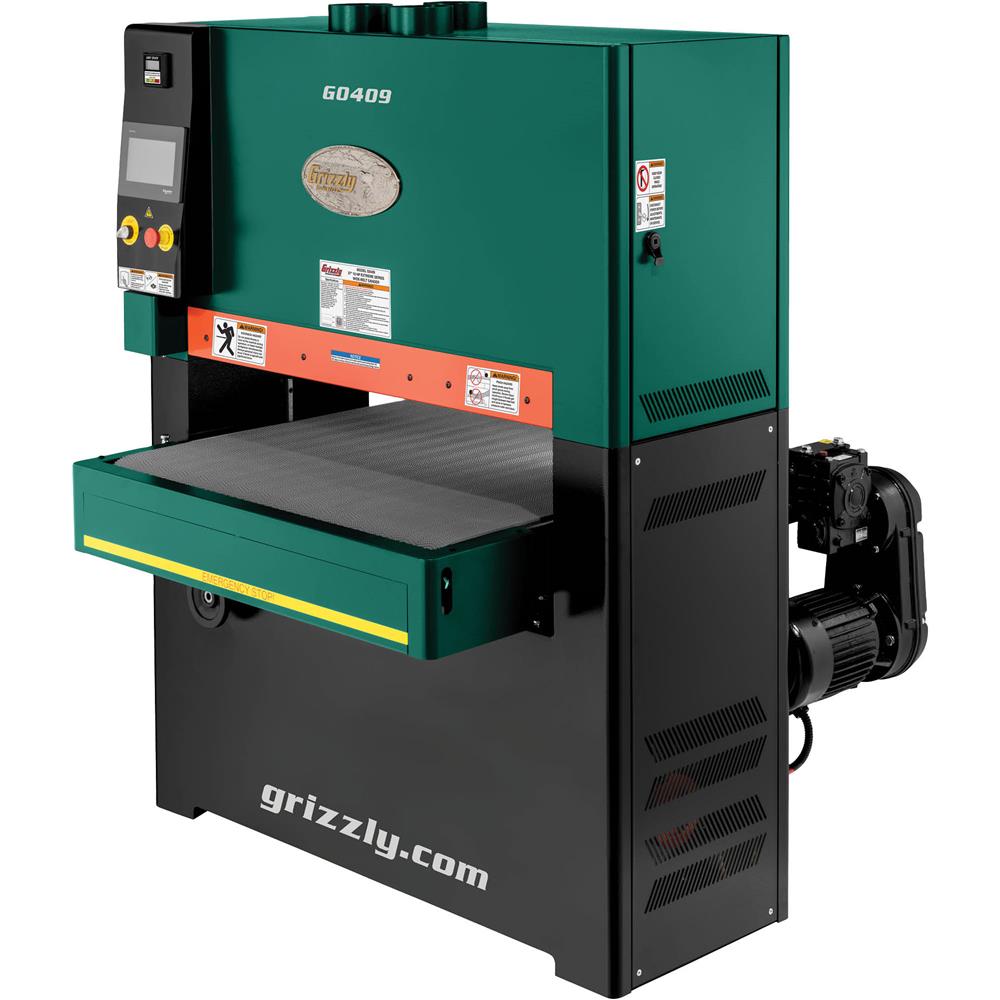

Grizzly G0409 Wide-Belt Sander 37" 10 HP Extreme Series 220V New
Manufacturer: Grizzly Industrial
SKU: G0409
QTY
or
(888) 999-1522
C
$21,612.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Grizzly G0409 Wide-Belt Sander 37" 10 HP Extreme Series 220V New
Product Overview

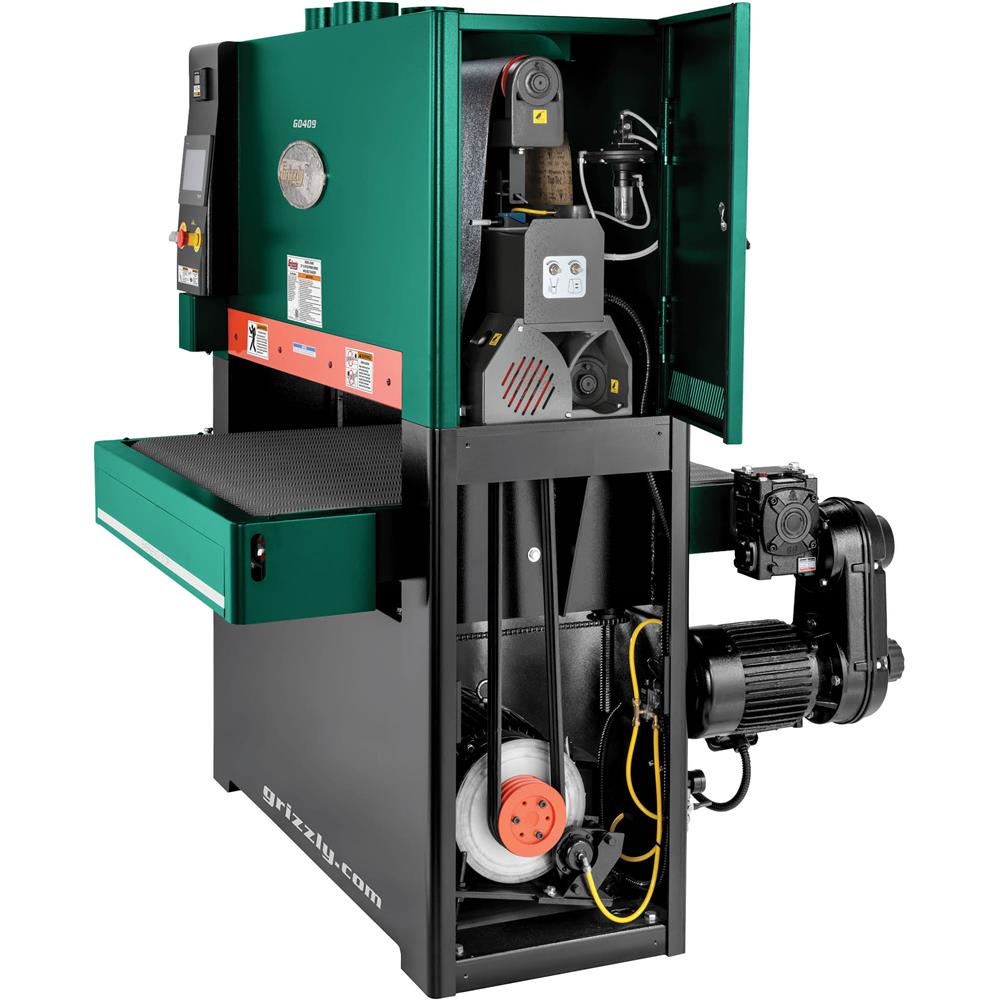

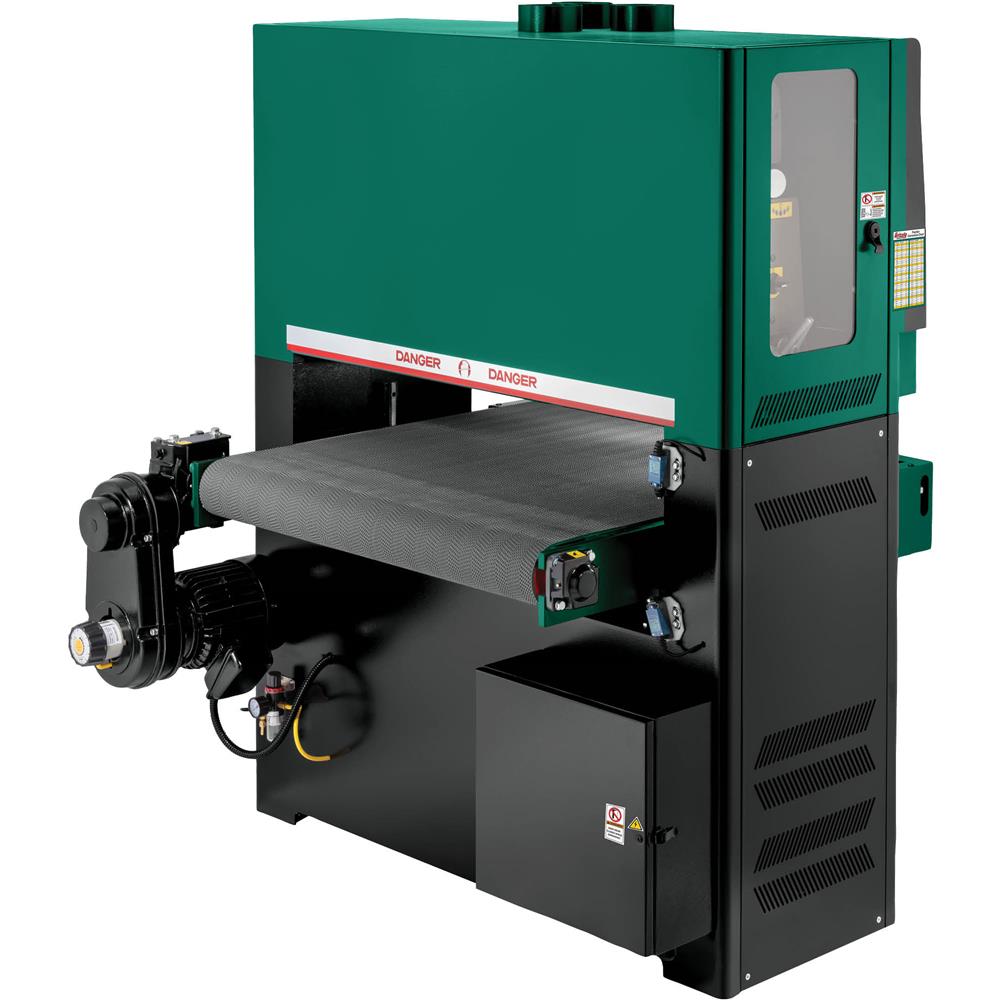

The Grizzly G0409 is a 37" wide-belt sander built to streamline high-volume woodworking and large-panel sanding. Its 10 HP motor, touchscreen controls, variable-speed conveyor, and powered table elevation help deliver efficient, consistent results in professional shops. A material thickness sensor, platen, and pneumatic belt tracking and tensioning support accurate sanding performance. Interior lighting and a side viewing window make belt tracking easier to monitor during operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- A platen offers even pressure for fine sanding with a smooth finish

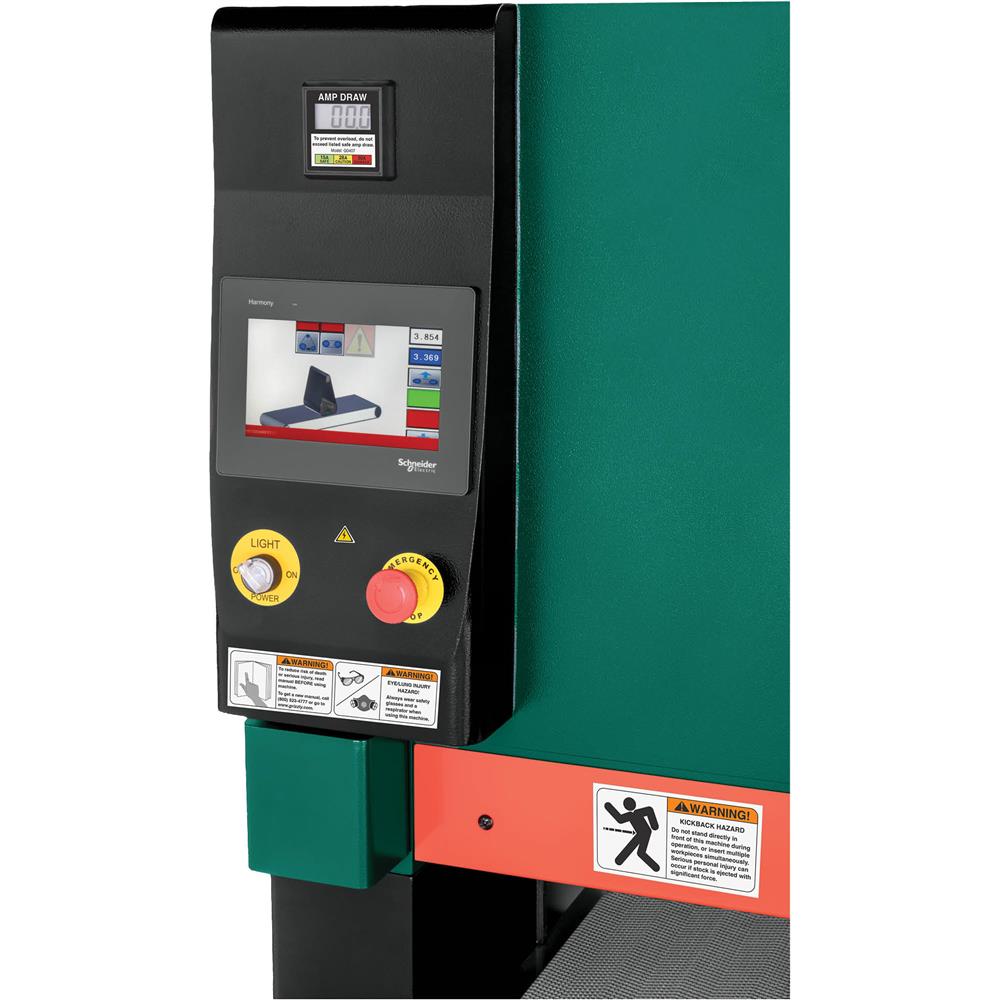

- Touch-screen controls for motors, sanding drum, conveyor, and table elevation
- Material thickness sensor automatically adjusts the table to the thickness of your workpiece

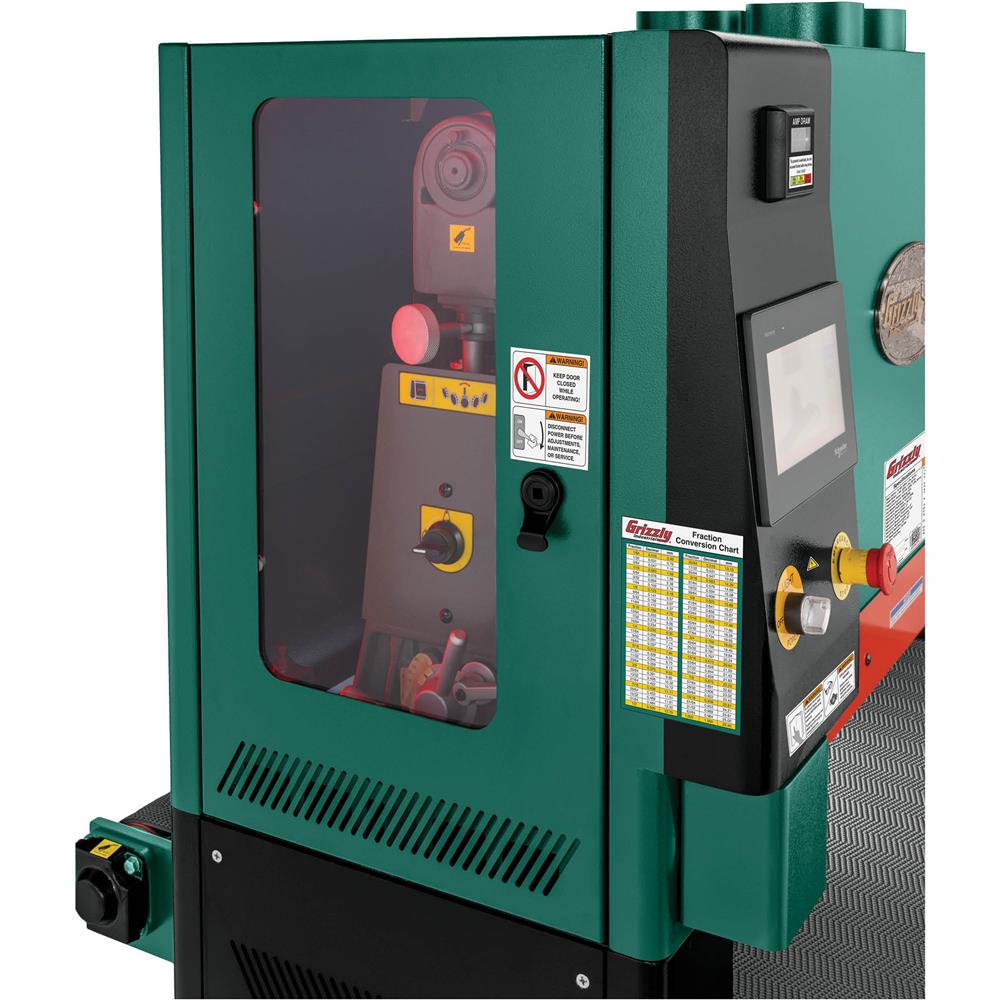

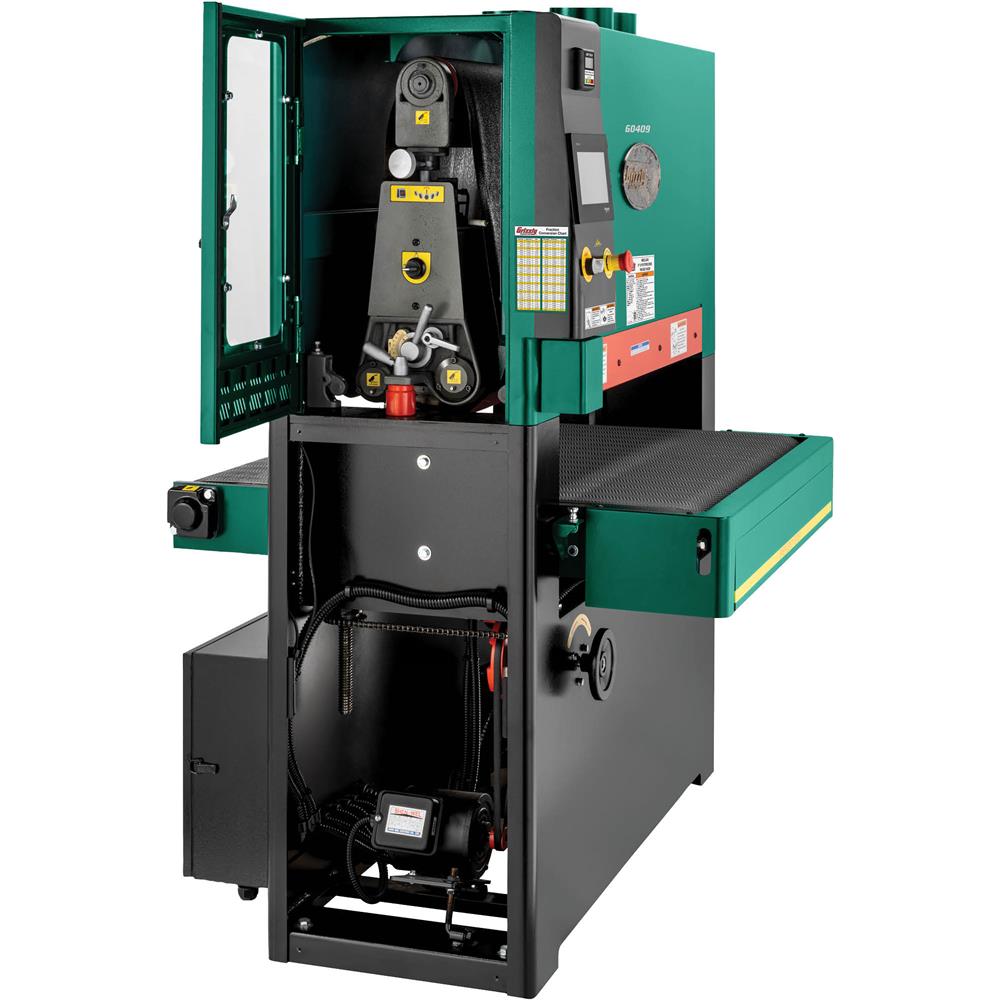

- Plexiglass side window and interior lights for easy viewing of sanding belt tracking

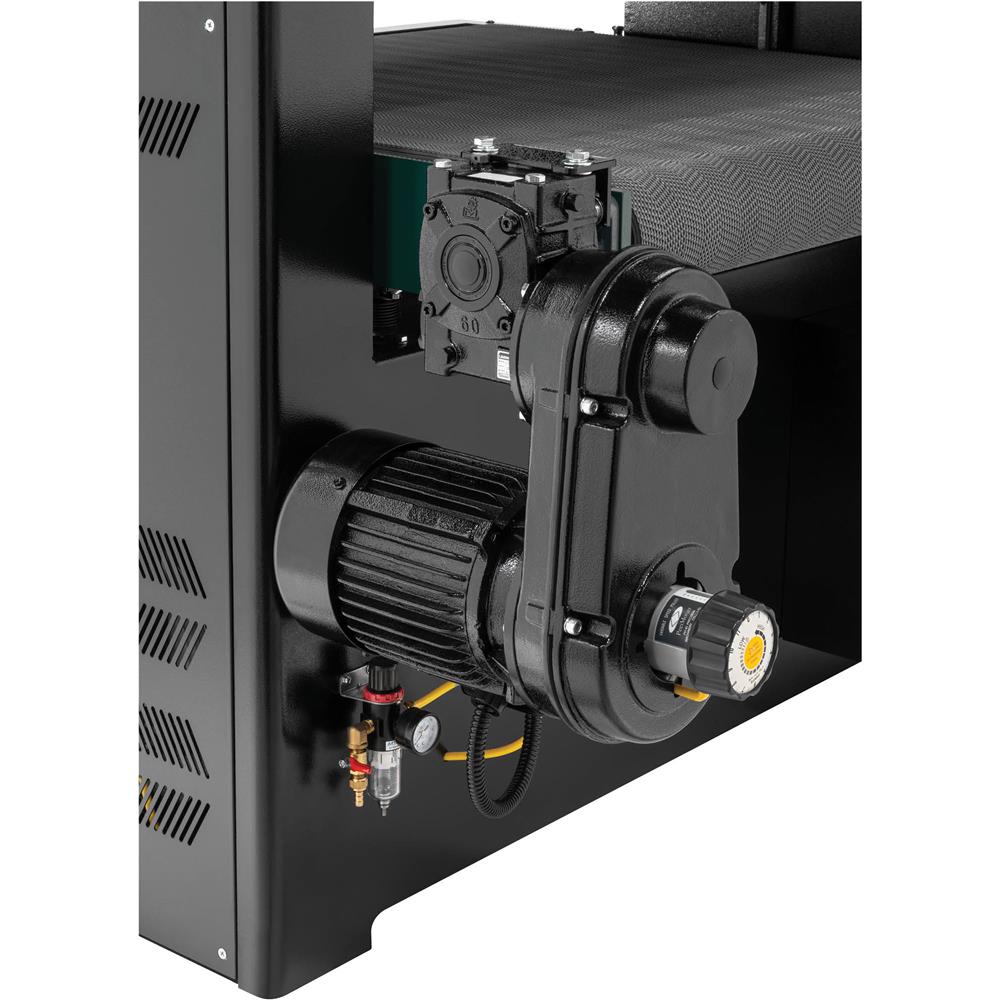

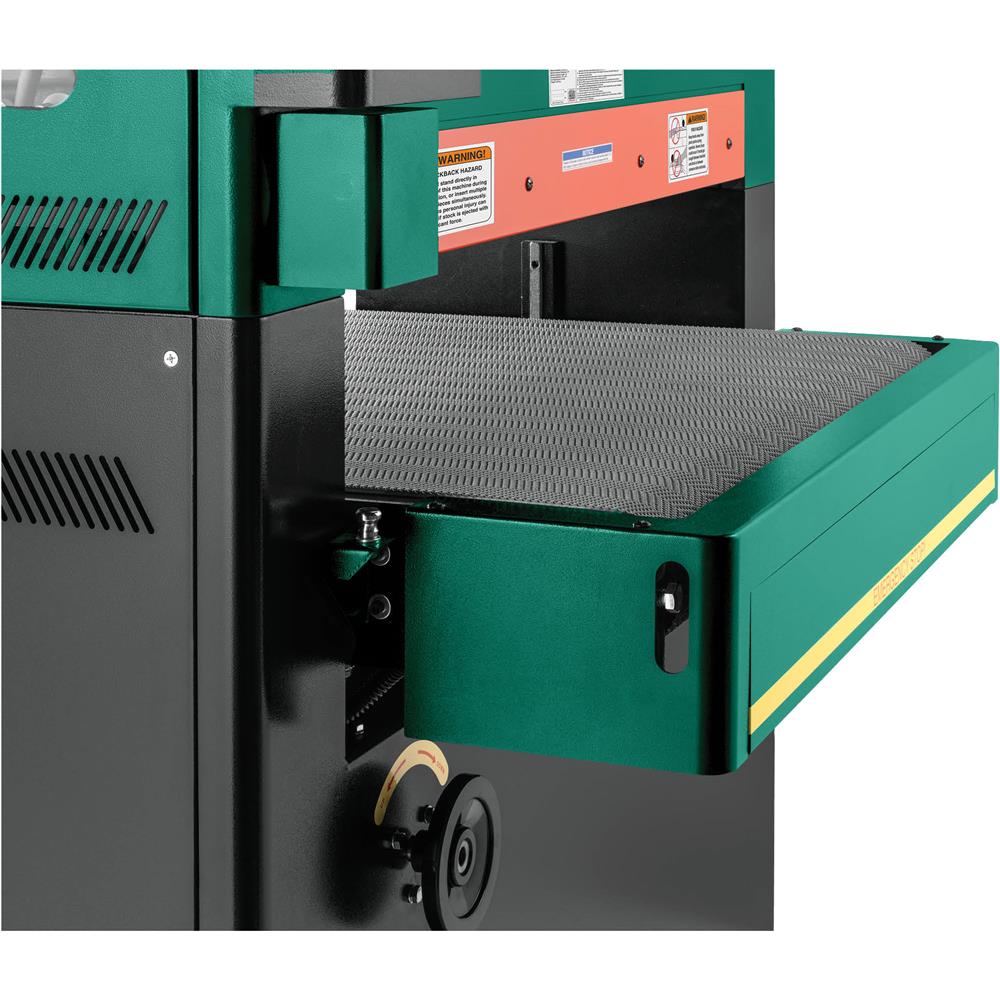

- Variable-speed feed conveyor for adaptability and optimal sanding results

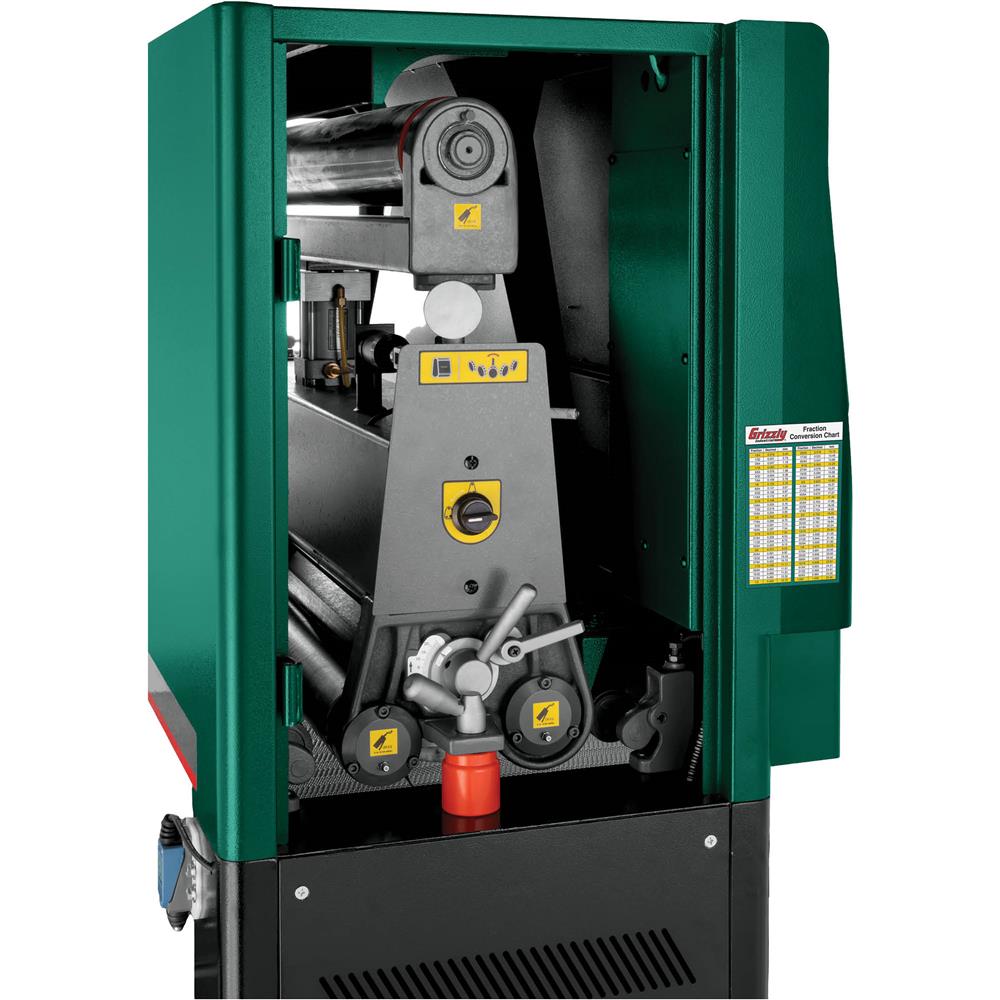

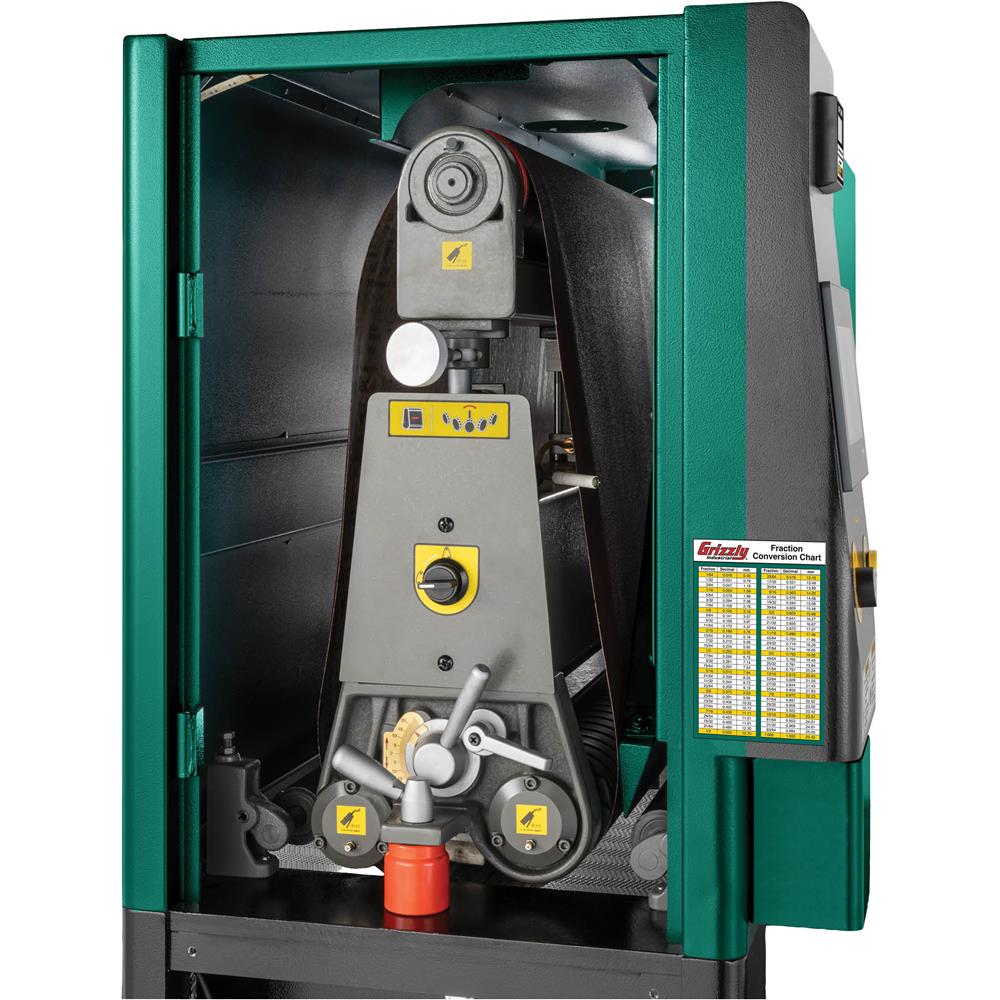

- Pneumatic belt tracking and tensioning to maintain the perfect pressure for accurate sanding
- Amp/load meter to prevent excessive loads while maximizing machine capacity
- Built-in air regulator/water separator to protect pneumatic components
- Rubber infeed and outfeed pressure rollers prevent uneven sanding and dampen vibration
- Disc brake, emergency stop bar, and stop switch for optimal safety
Specifications
| Main Motor | 10 HP, 220V, single-phase, 50A |
| Conveyor Feed Motor | 1 HP, 7A |
| Table Elevation Motor | 1/3 HP, 3A |
| Maximum Board Width | 36-1/2" |
| Maximum Board Thickness | 6" |
| Minimum Board Thickness | 1/8" |
| Minimum Board Length | 14" |
| Conveyor Speed | 15-49 FPM |
| Sanding Belt Speed | 2565 FPM |
| Sanding Belt Size | 37" x 60" |
| Sanding Belt Oscillations | 35-40 OPM |
| Platen Type | Adjustable graphite pad |
| Platen Dimensions | 37-3/4" x 2-1/4" |
| Air Requirement | 75 PSI |
| Product Dimensions | 53" x 50" x 66" |
| Footprint | 51" x 19" |
| Product Weight | 1533 lbs |
Package Contents
G0409 Wide-Belt Sander
100-grit sanding belt
180-grit sanding belt
Tool kit
Manual
Warranty
This item comes with a 1 year warranty.
