Grizzly G0406 Baghouse Dust Collector 7.5 HP 5000 CFM 231 Gal. Capacity New
Manufacturer: Grizzly Industrial
SKU: G0406
QTY
or
(888) 999-1522
C
$15,130.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

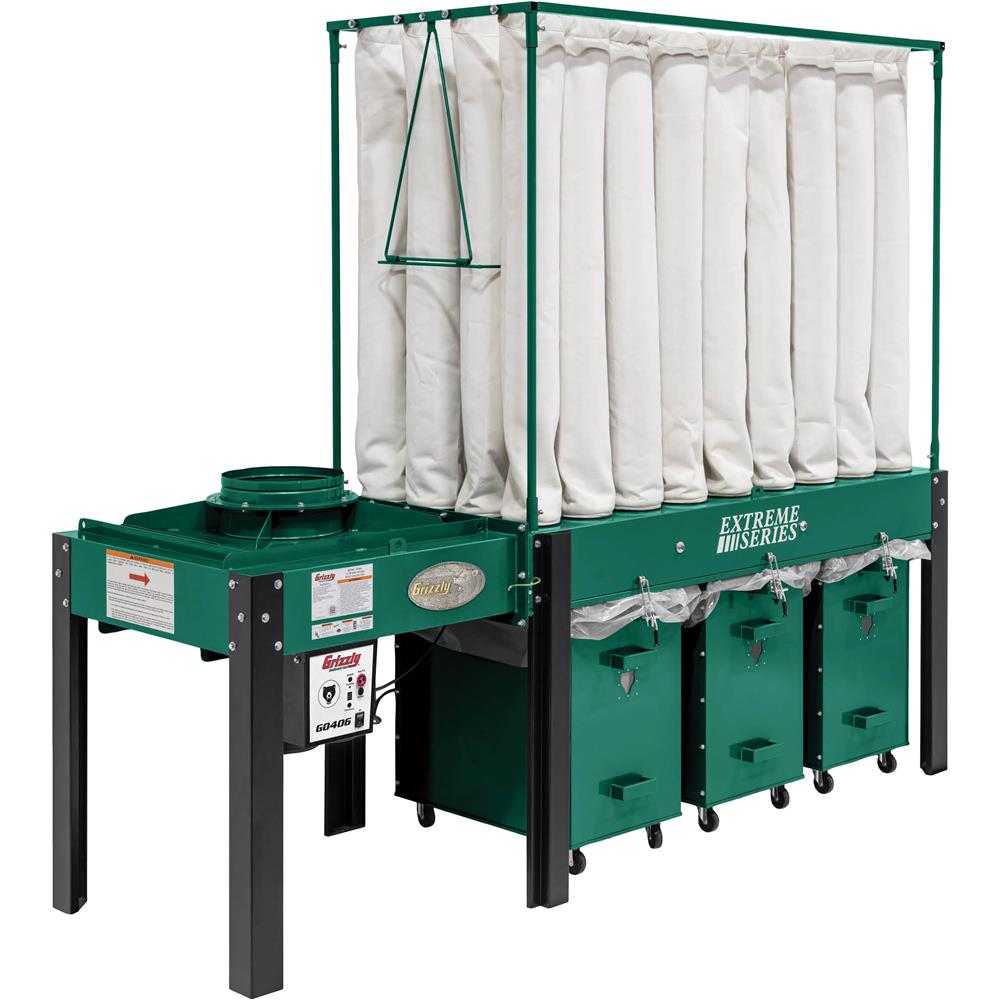

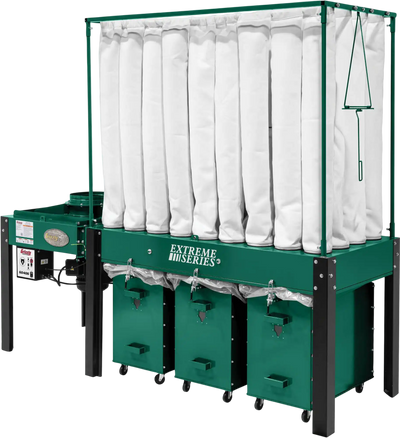

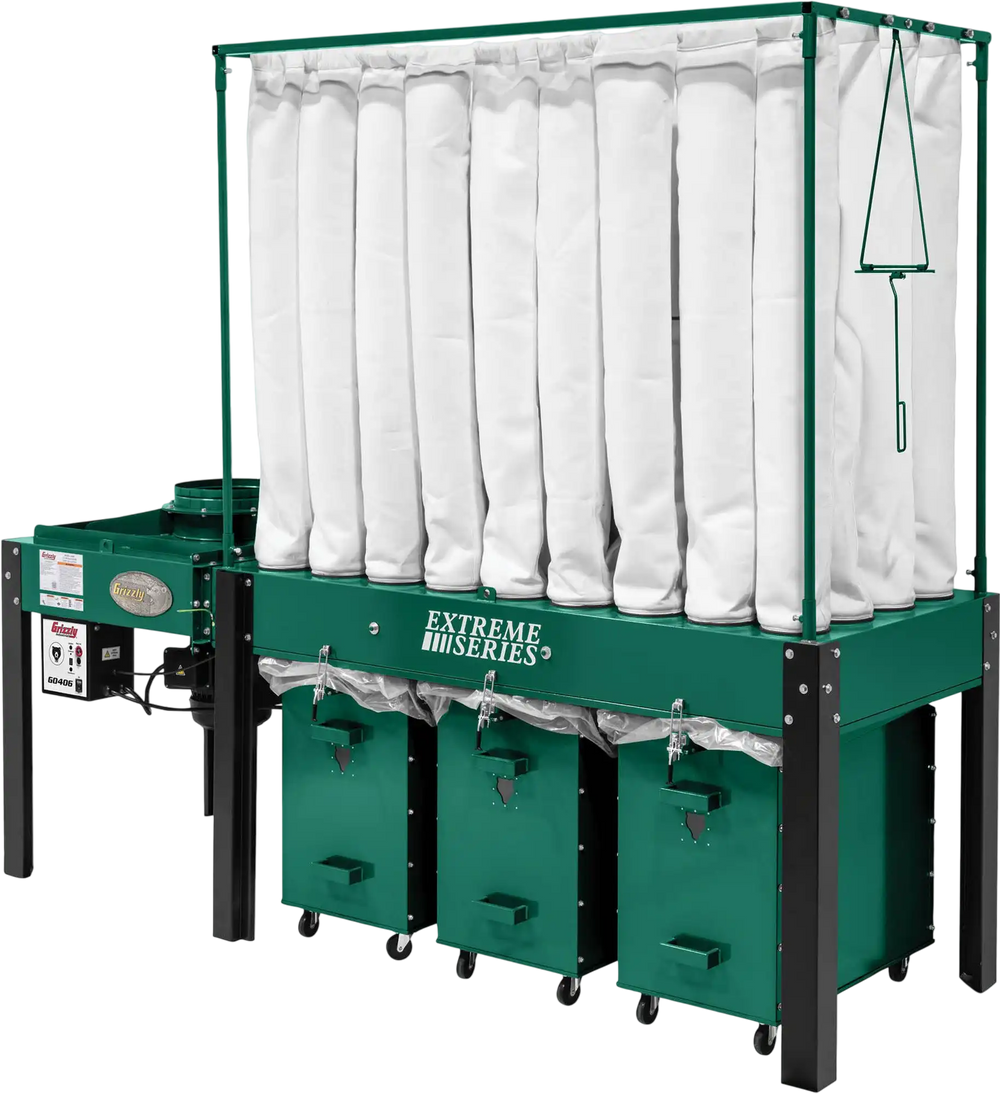

Grizzly G0406 Baghouse Dust Collector 7.5 HP 5000 CFM 231 Gal. Capacity New
Product Overview

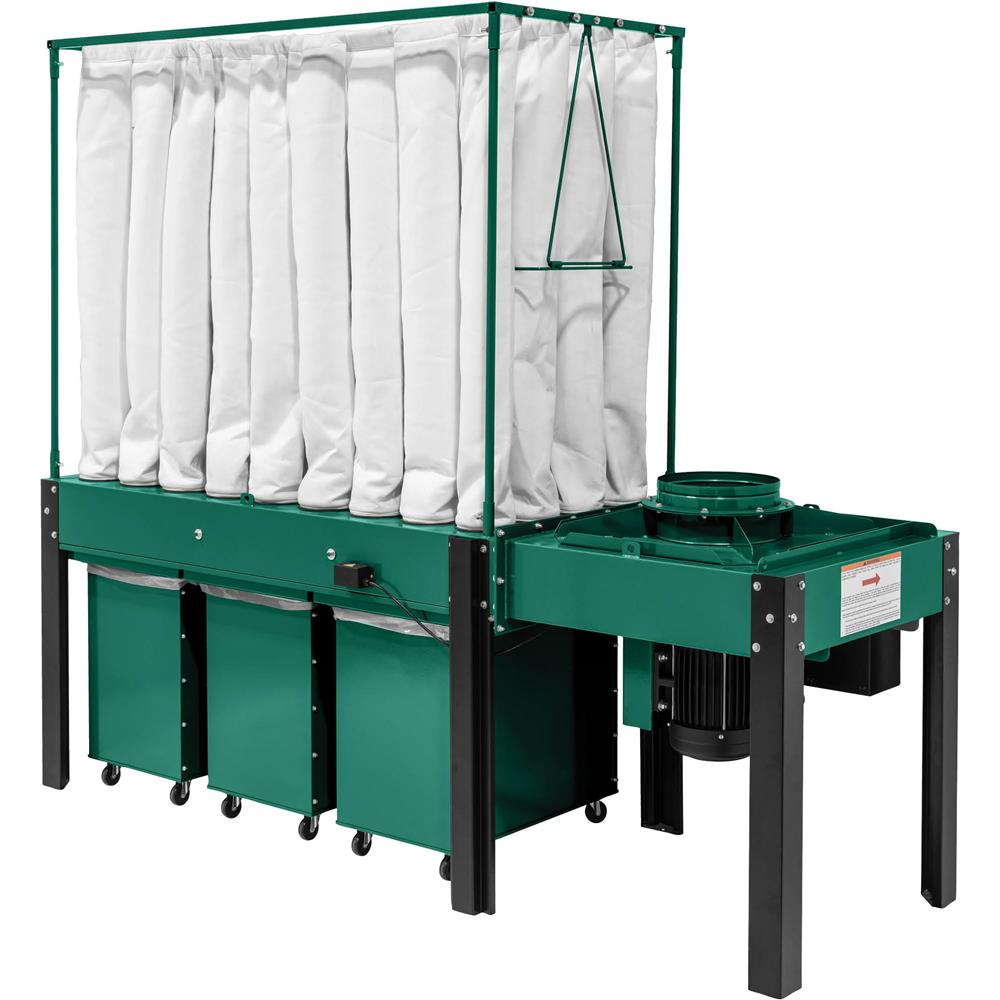

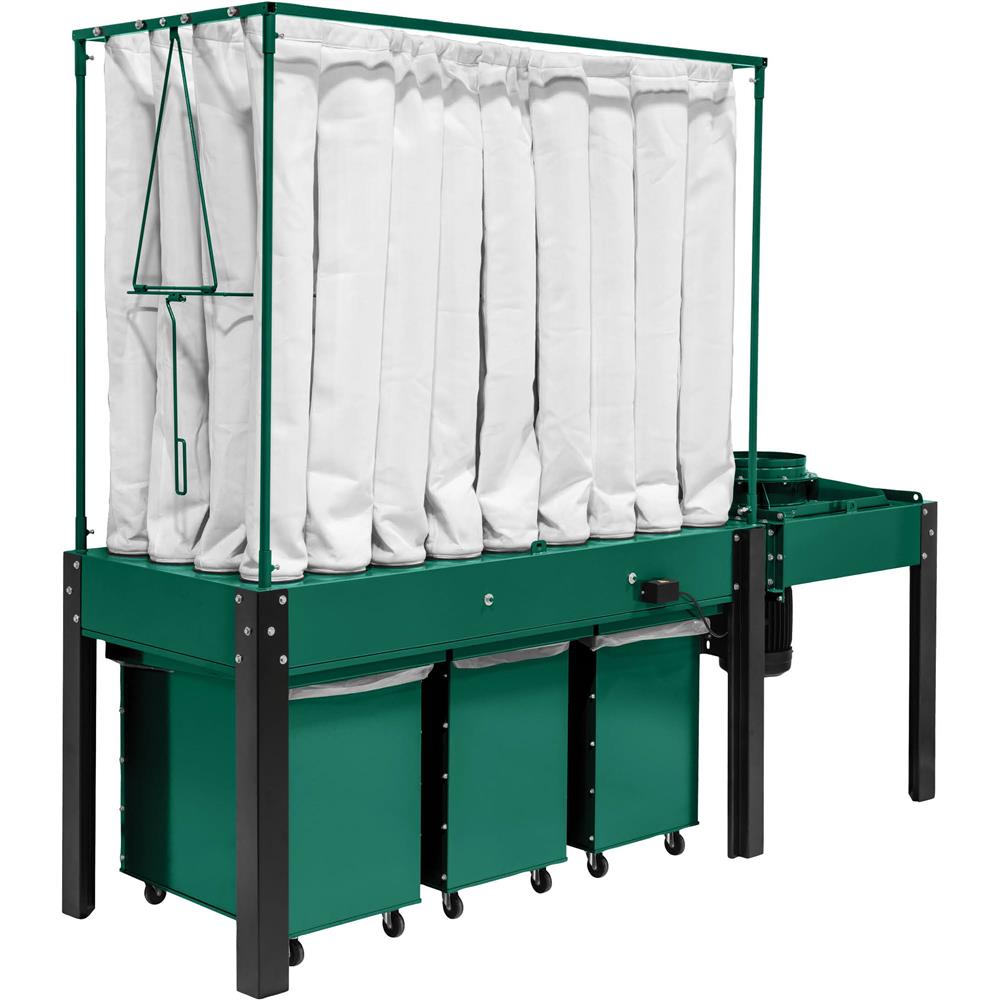

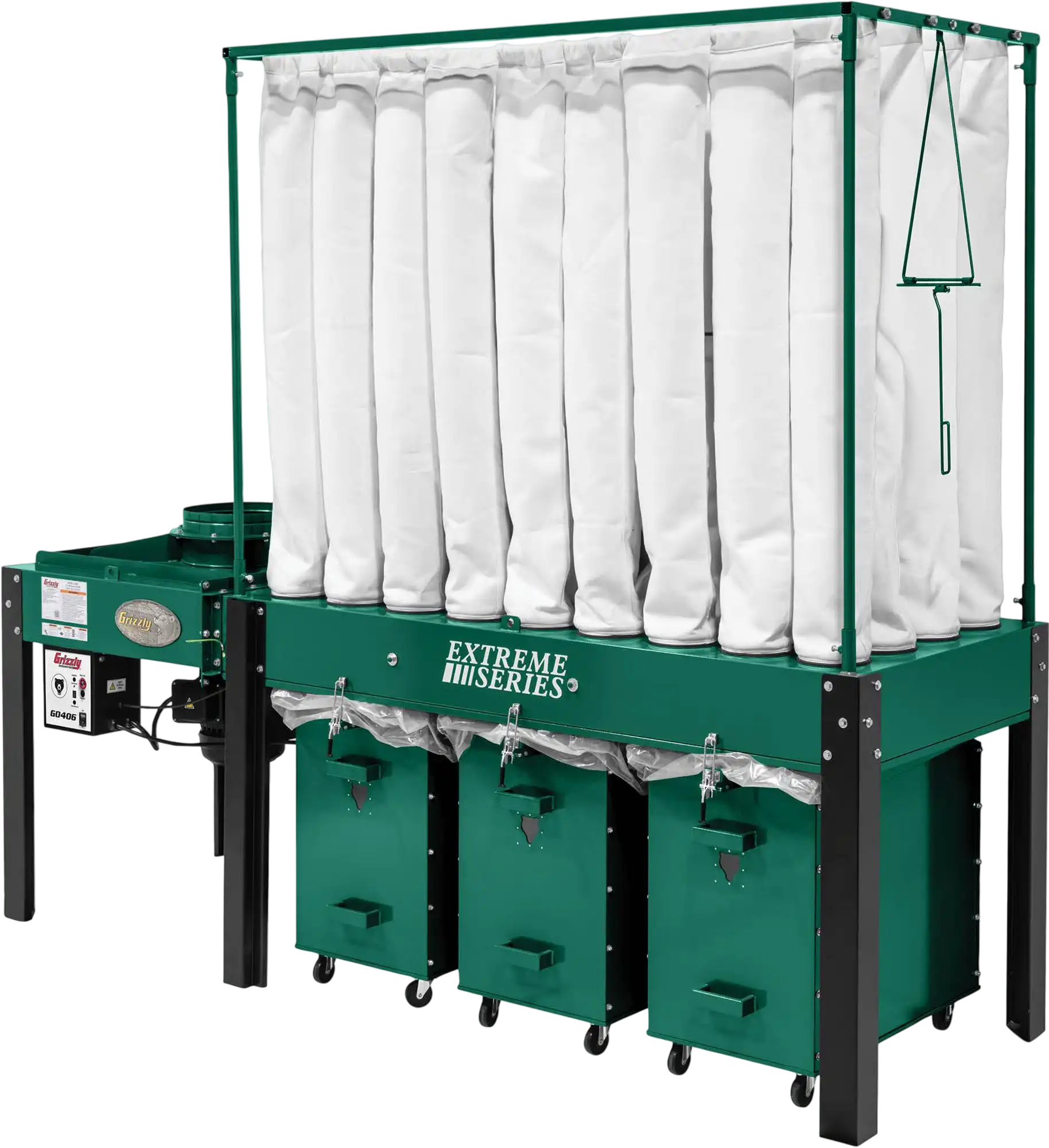

The Grizzly G0406 is a high-efficiency industrial dust collector built for high-volume woodworking production. Its 7-1/2 HP motor and 25" impeller deliver up to 5000 CFM of suction for handling multiple large machines at once. The system uses 36 fiber filter bags with 99.9% filtration at 0.2-2 microns and includes three 77-gallon rolling collection drums for a total 231-gallon capacity. Added conveniences like a full-drum indicator with buzzer, auto shutoff, and wireless remote control help simplify daily operation. This is a cost-effective heavy-duty solution for shops that need strong airflow and easy dust disposal.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Powerful Suction: Exceptional 5000 CFM of suction easily handles dust collection for multiple wide belt sanders or other large machines.

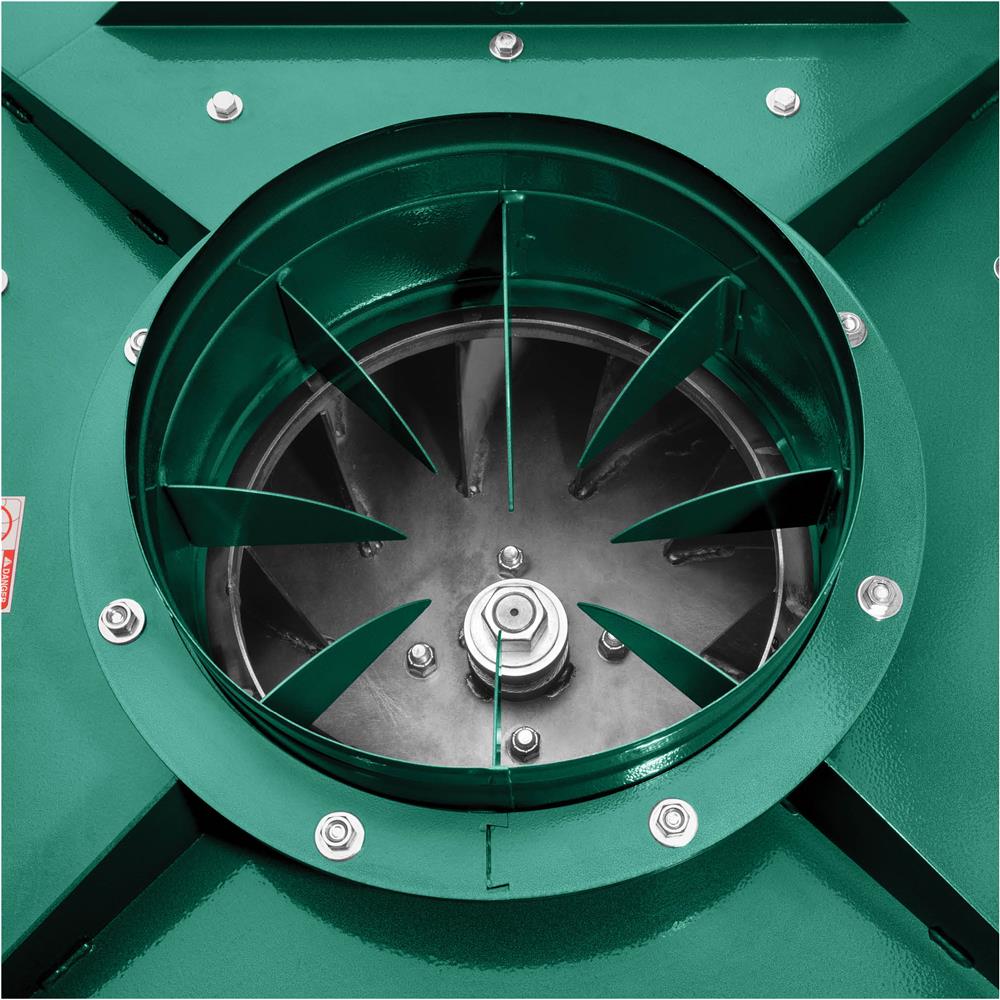

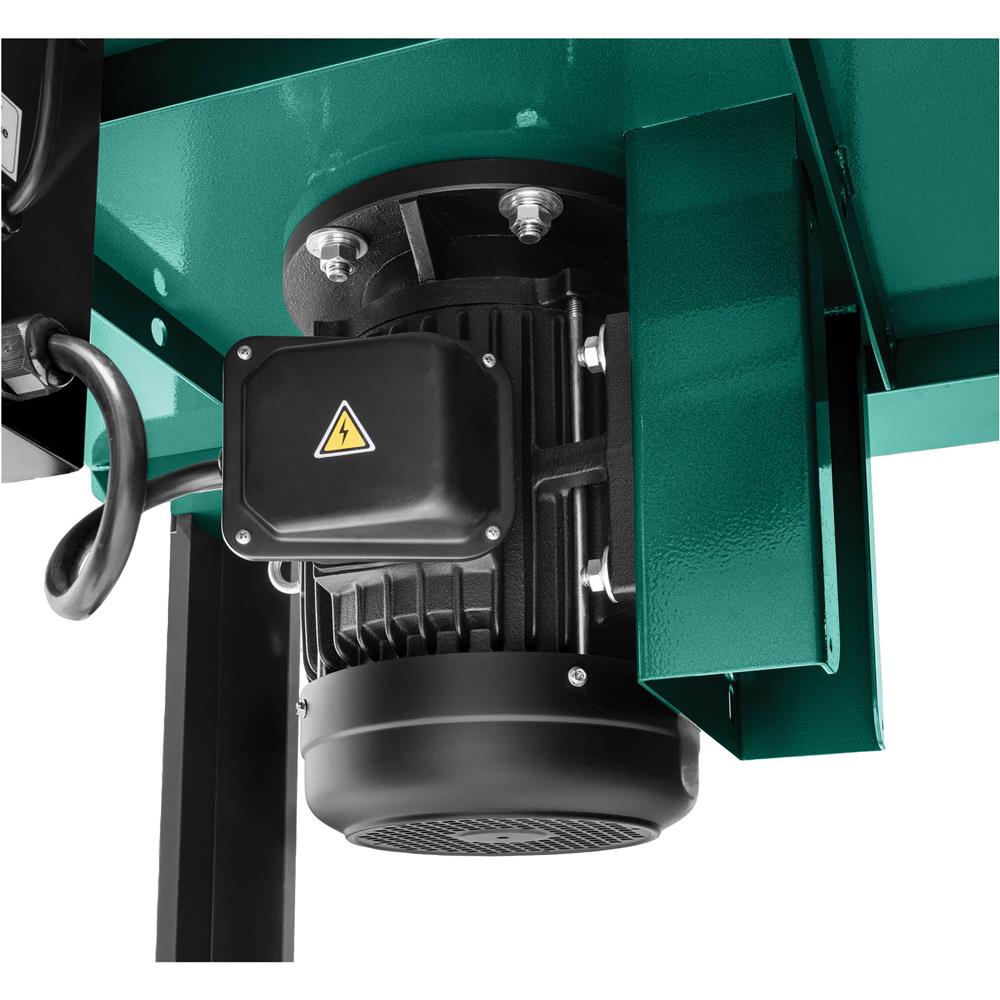

- 7-1/2 HP Motor: Generates the necessary power to drive the 25" impeller, creating strong suction for dust collection and enabling simultaneous machine operation.

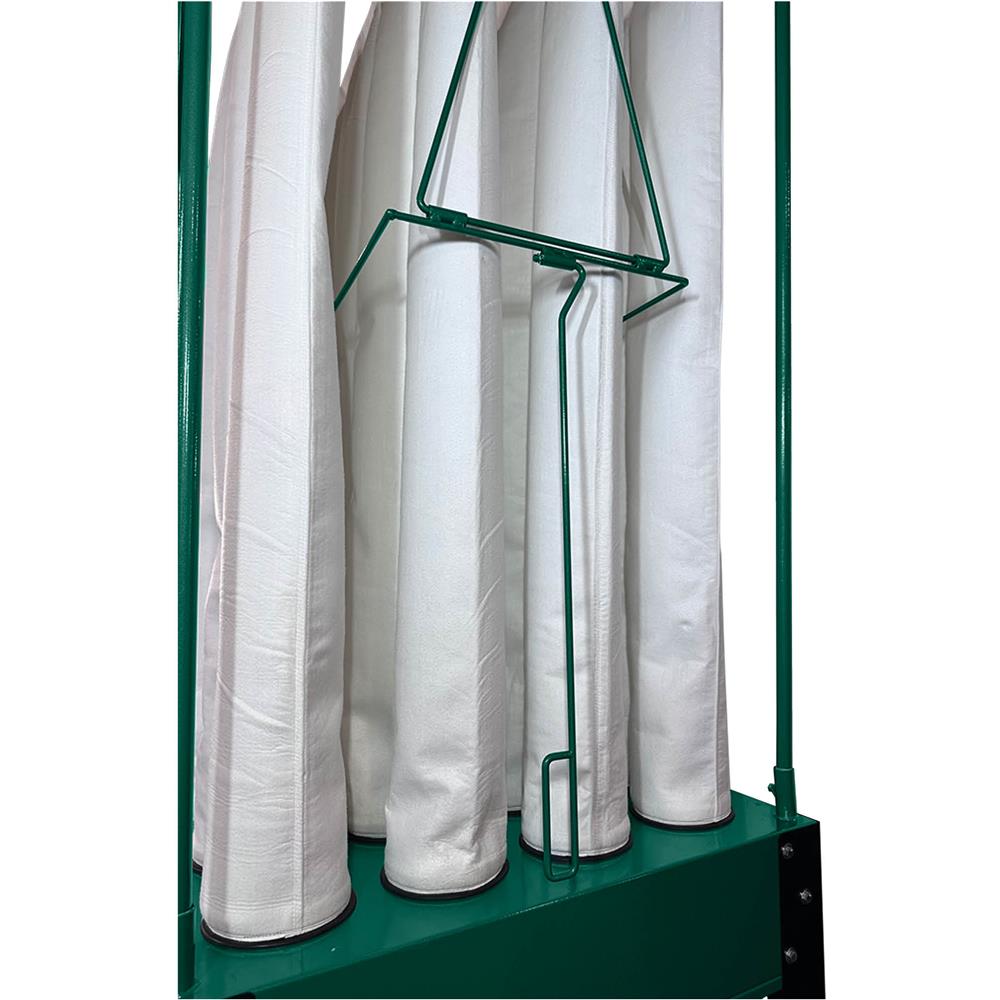

- Fiber Filter Bags: Includes 36 filter bags rated at 99.9% @ 0.2-2 microns filtration and a bag shaker to maximize efficiency.

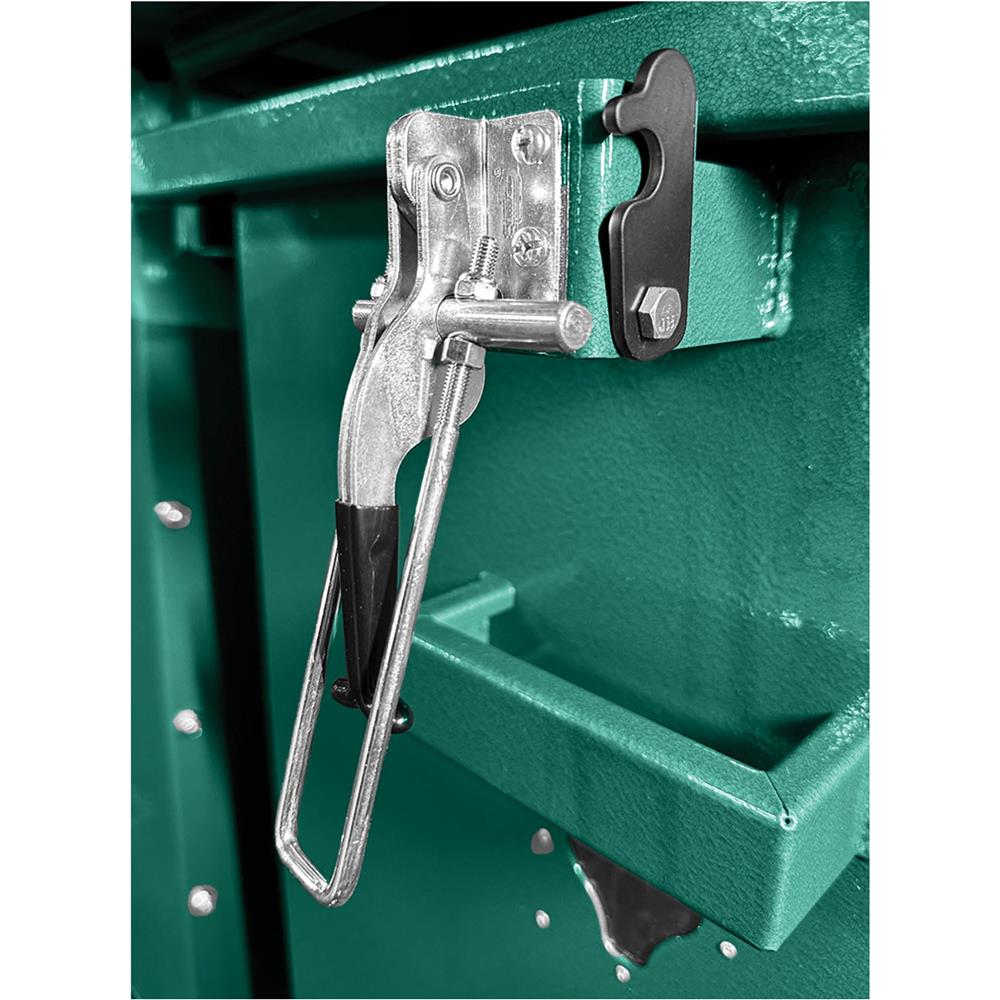

- 231 Gallon Collection Capacity: Three 77-gallon quick-release drums with casters offer industrial-level capacity and easy dust disposal.

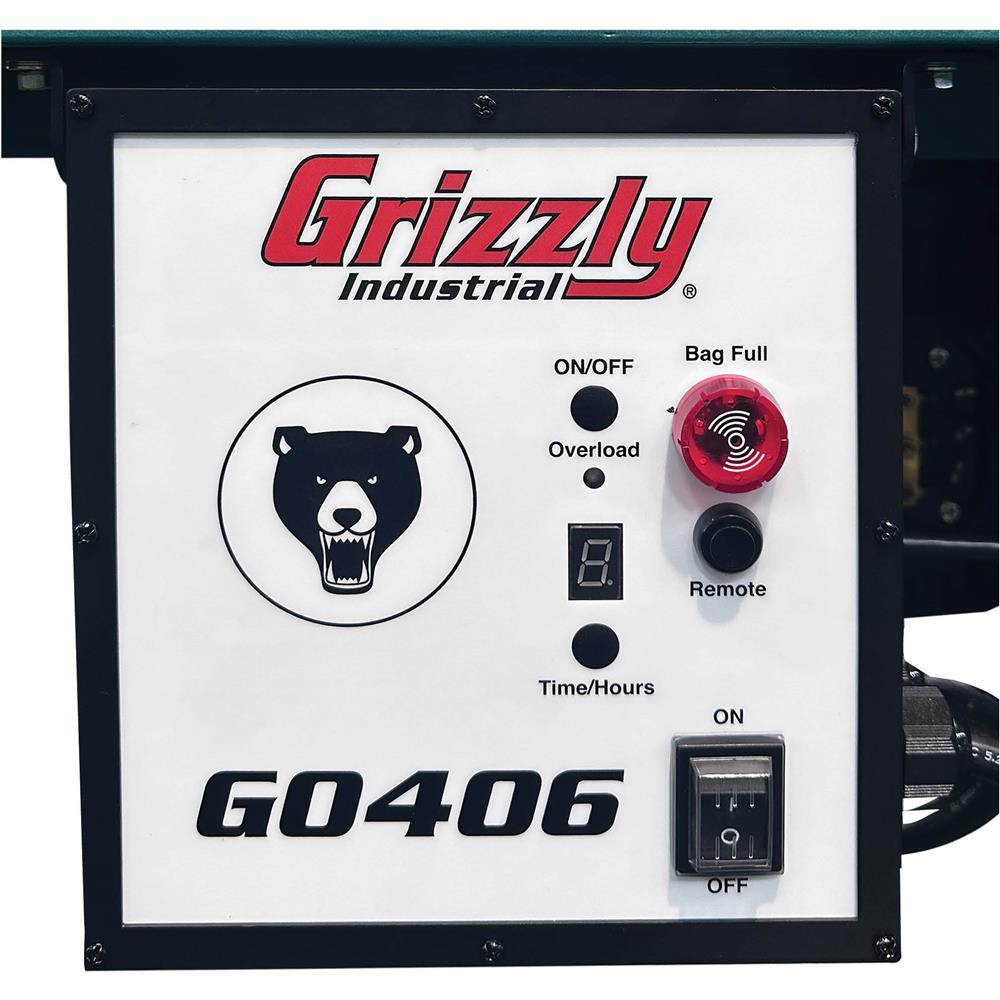

- Full-Drum Indicator with Buzzer: The machine automatically shuts off and an indicator light turns on when the collection drums are full.
- Wireless Remote Control: User-friendly, labor-saving operation from anywhere in your shop.
Specifications
| Motor | 7-1/2 HP, 220V, 3-phase, 22A |
| Minimum Circuit Size | 50A |
| Airflow Performance | 5000 CFM @ 4.2 in. SP |
| Main Inlet Size | 14" |
| Static Pressure | 10.6" |
| Filtration Rating | 99.9% @ 0.2-2 microns |
| Filter Surface Area | 311 sq. ft. |
| Sound Rating | 80 dB |
| Impeller | 25", steel, radial fin |
| Filter Bags | 36 |
| Filter Bag Dimensions | 6-5/8" D x 59-13/16" L |
| Collection Drum Bags | 3 |
| Collection Drum Bag Dimensions | 37-13/16" Dia. x 53-1/8" L |
| Collection Bag Capacity | 231 gallons (total from three separate collection drums) |
| Footprint | 120-1/2" x 42" |
| Overall Dimensions | 121" W x 42" D x 104" H |
| Product Weight | 1112 lbs |
| Shipping Weight | 1391 lbs |
Package Contents
G0406 Baghouse Dust Collector
Remote Control
Manual
Warranty
This item comes with a 1 year warranty.
