Grizzly G0403 Benchtop CNC Router 15.75" x 36" Table 118 IPM 110V New
Product Overview

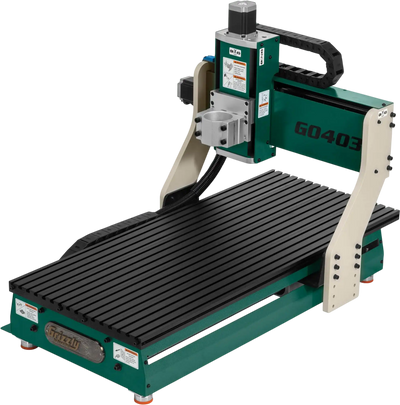

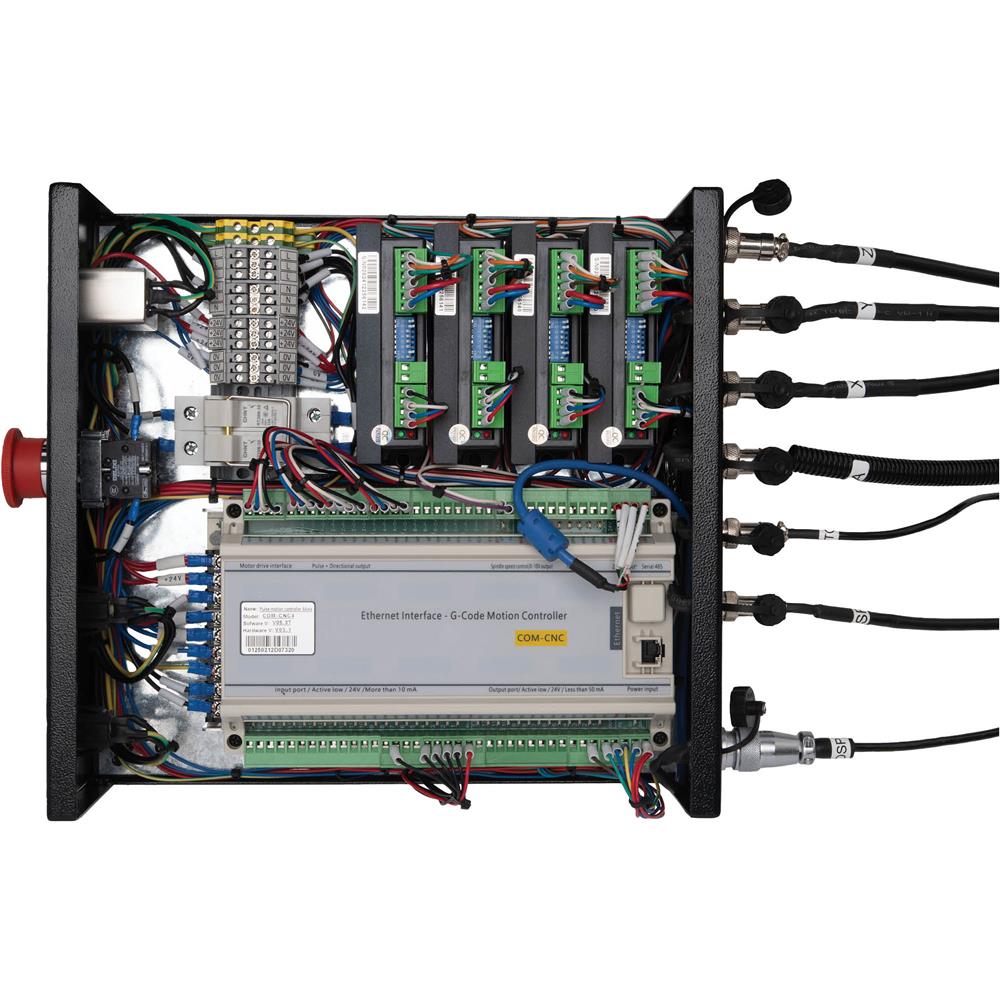

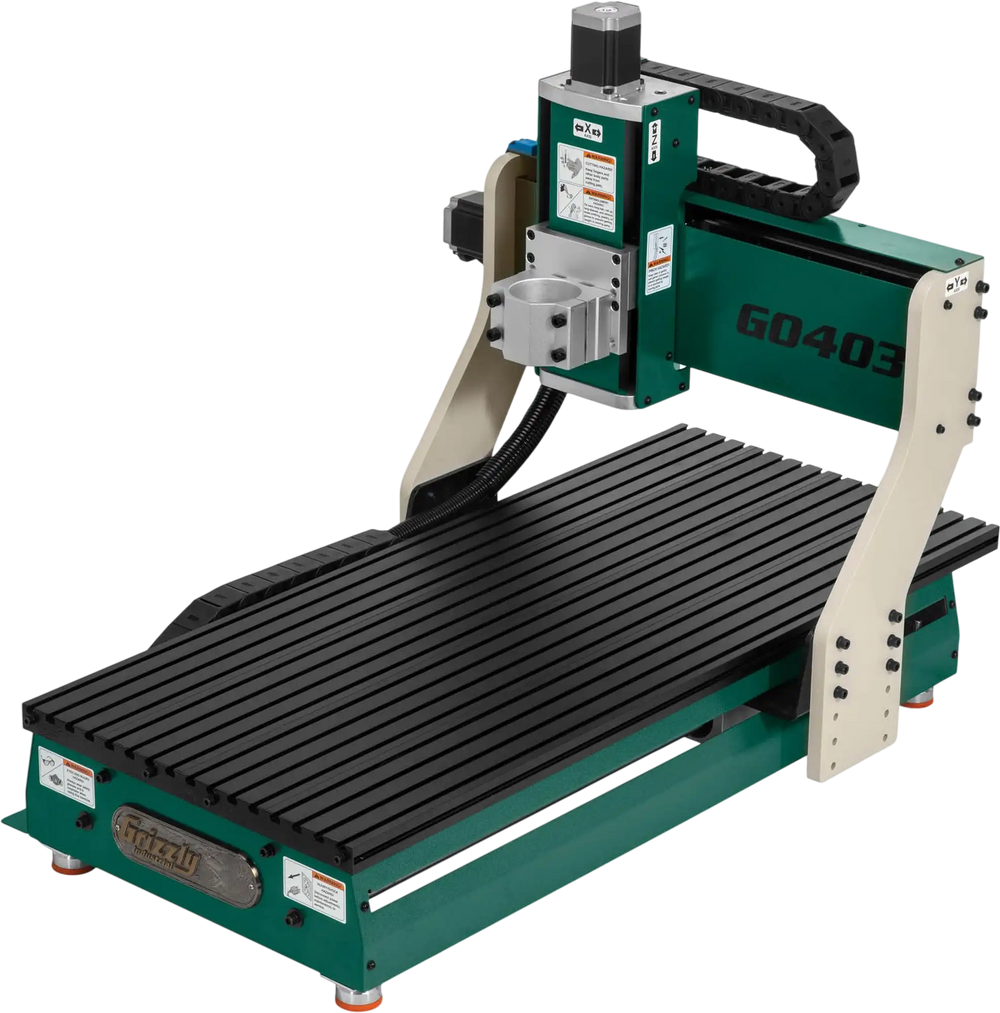

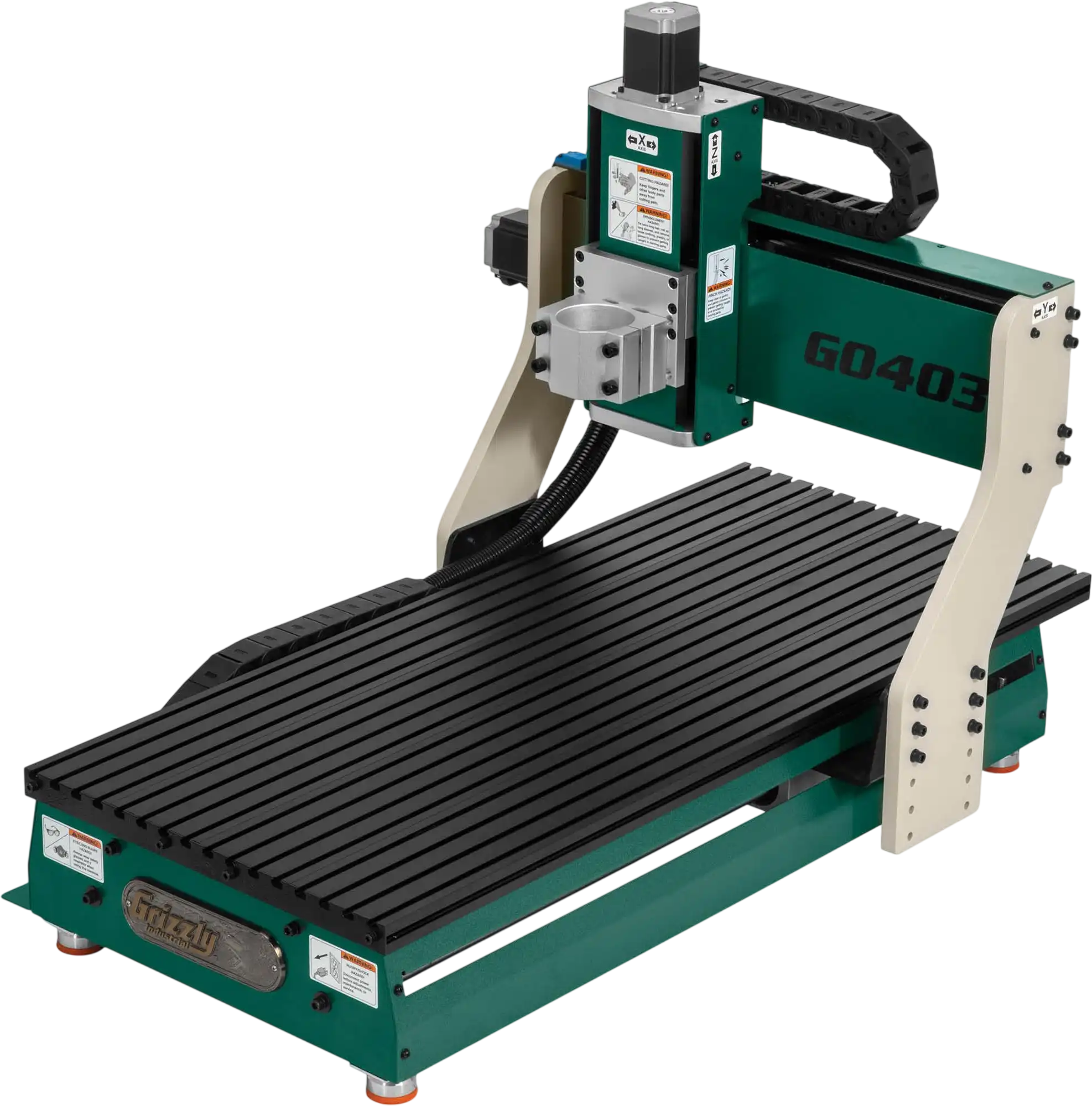

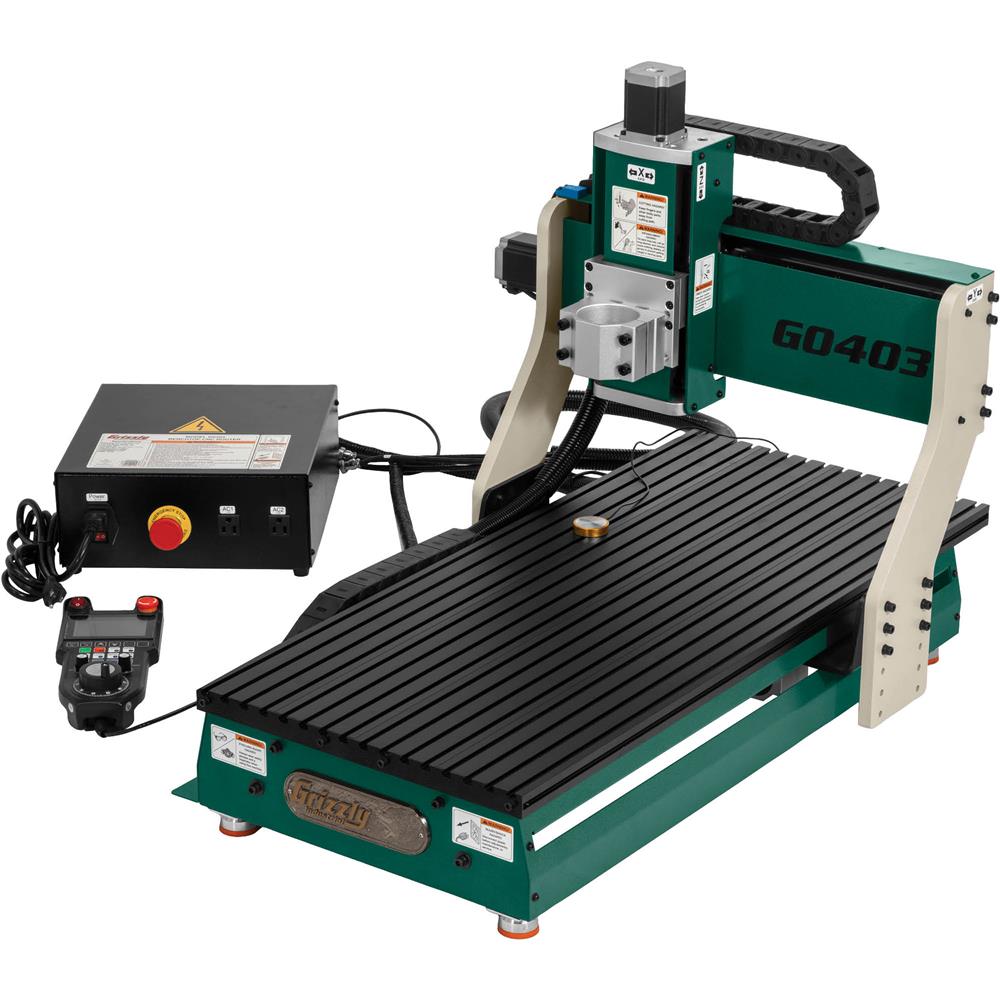

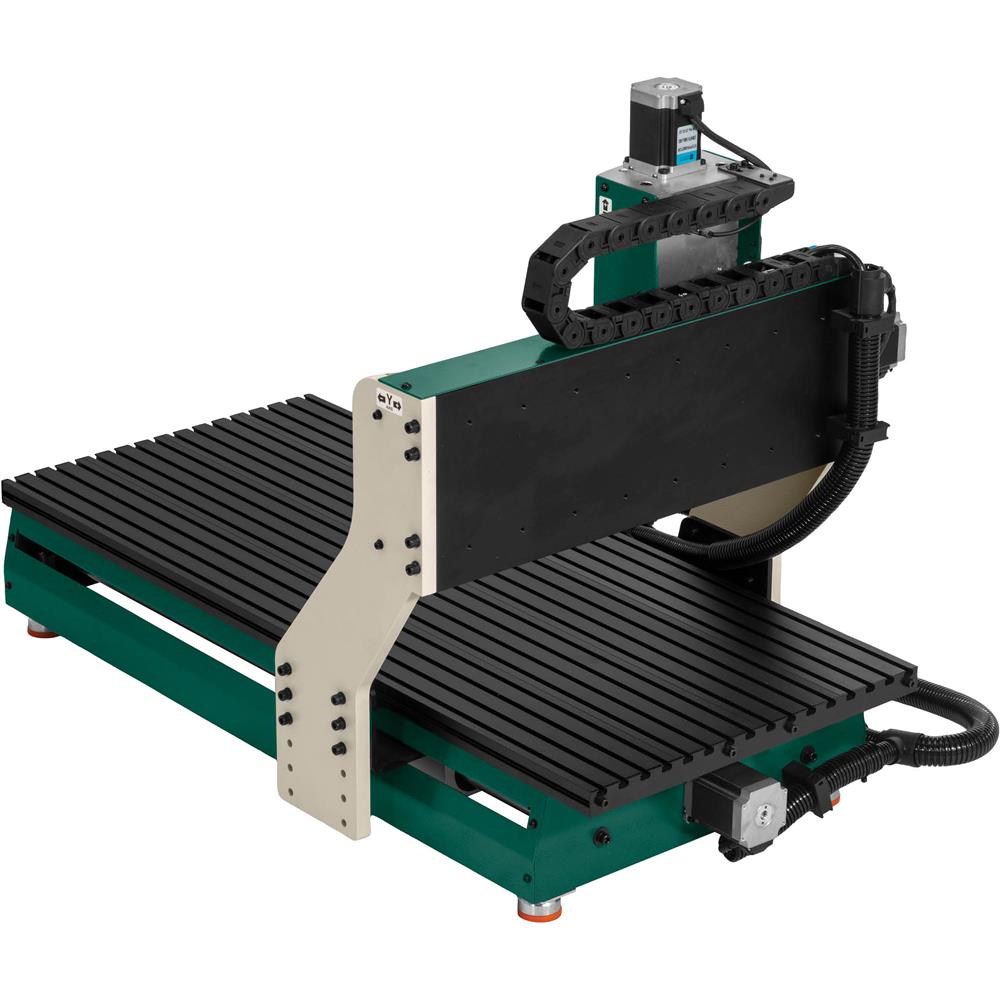

The Grizzly G0403 benchtop CNC router is a compact machine designed for hobbyists, educators, and small businesses who need precise and accessible CNC capability. It features a rigid steel and aluminum construction, an anodized aluminum table, and a DSP-J2 controller for streamlined operation. The machine supports .tap and .nc G-code files and includes useful setup aids like an automatic tool setter and handheld controller functionality. Its benchtop footprint makes it suitable for smaller workspaces while still providing a generous work envelope for detailed projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from MO & WA
Authorized Grizzly dealer
Features
- Maximize Productivity: The 15-3/4" x 36" table is designed to balance a useful work area with efficient benchtop use, minimizing setup changes.

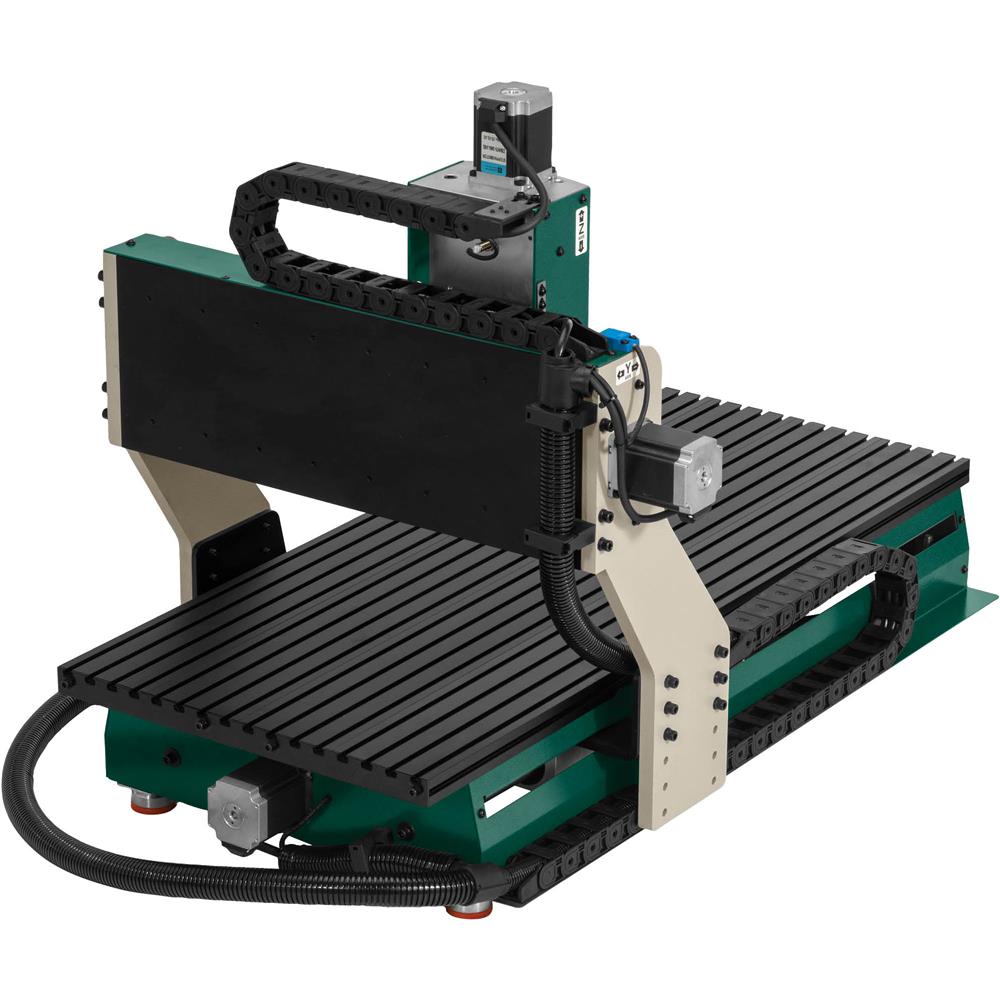

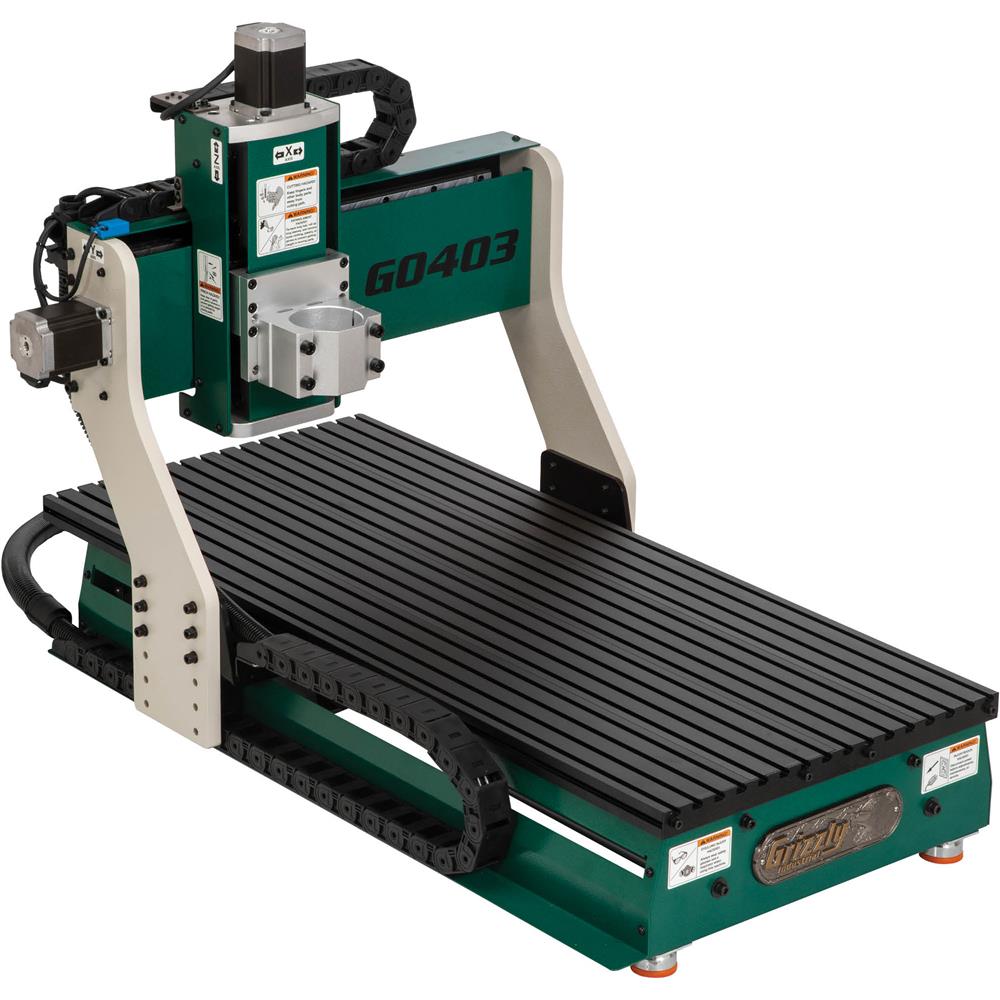

- Heavy-Duty Construction: Rigid steel gantry & frame, anodized aluminum table for cleaner, consistent cuts.

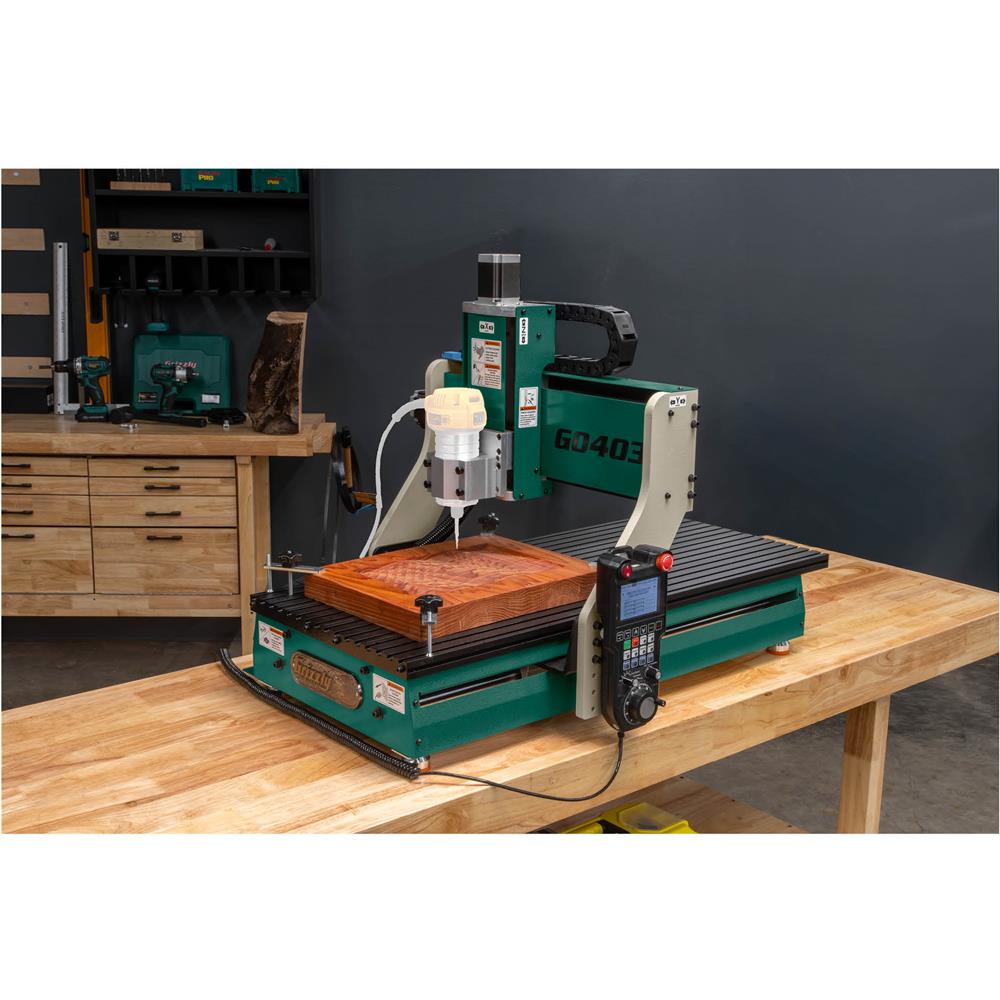

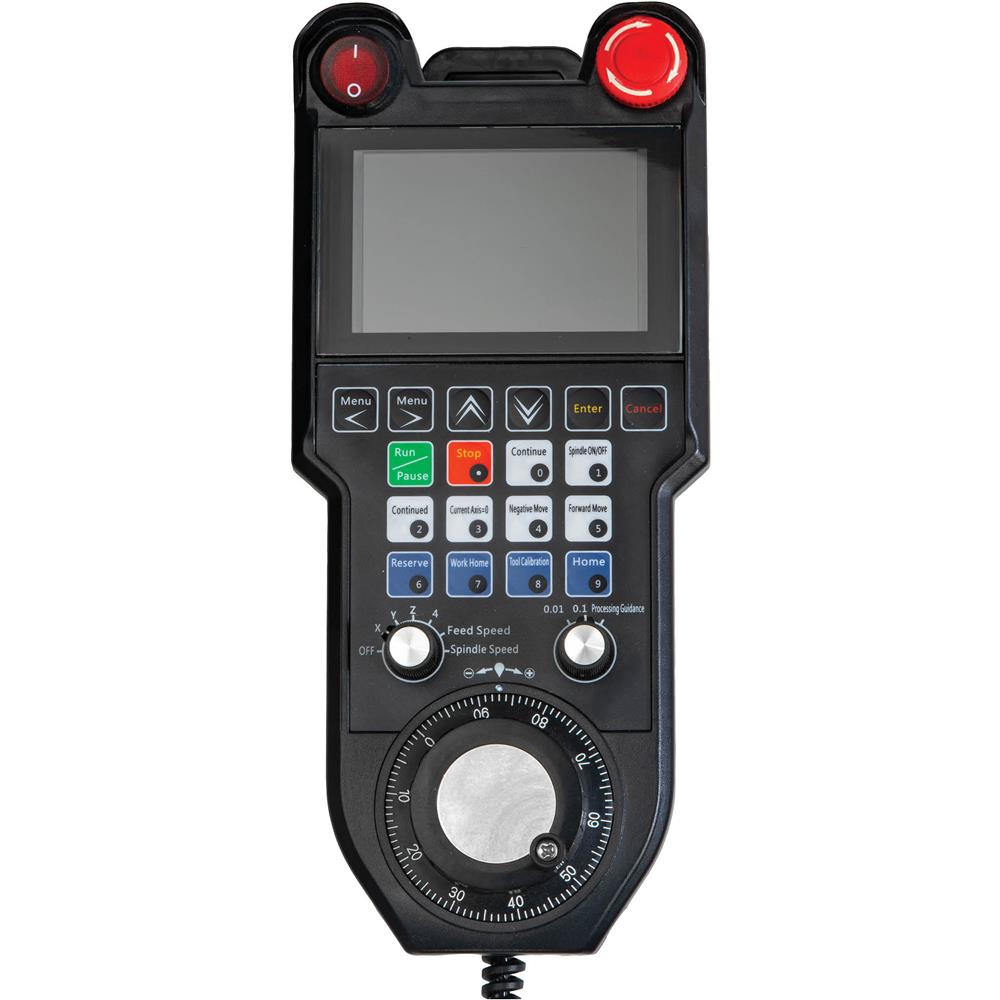

- Handheld Controller: Simplified operation with one-button tool touch-off, quick origin setting, G-code breakpoint function, file library, and 8 programmable work offsets.
- Automatic Tool Setter: Speed up setup time and minimize the risk of tool collisions with a one-button tool setting function.
- Ball Screw Drives: X, and Y-axes with linear guides ensure smooth and accurate axis movements.
Specifications
| Required Power Source | 110V, single-phase, minimum 15A circuit |
| X-, Y-, Z-, A-Axis Motors | NEMA 23, stepper, 5A |
| Axis Travel | 13" x 25-9/16" x 7-1/16" |
| Rapid Speed | 118 IPM |
| Supported G-Code File Extensions | .tap, .nc |
| Collet Size | 1/16", 1/8", 1/4" |
| Collet Type | ER11 |
| Table Dimensions | 15-3/4" x 36" |
| Footprint | 33-1/2" x 16-1/2" |
| Overall Dimensions | 24" W x 36-1/2" D x 27" H |
| Product Weight | 183 lbs |
Package Contents
G0403 Benchtop CNC Router
V-Carve desktop software
65mm spindle mount
Touch plate
M6 clamping kit
Manual
Warranty
This item comes with a 1 year warranty.
