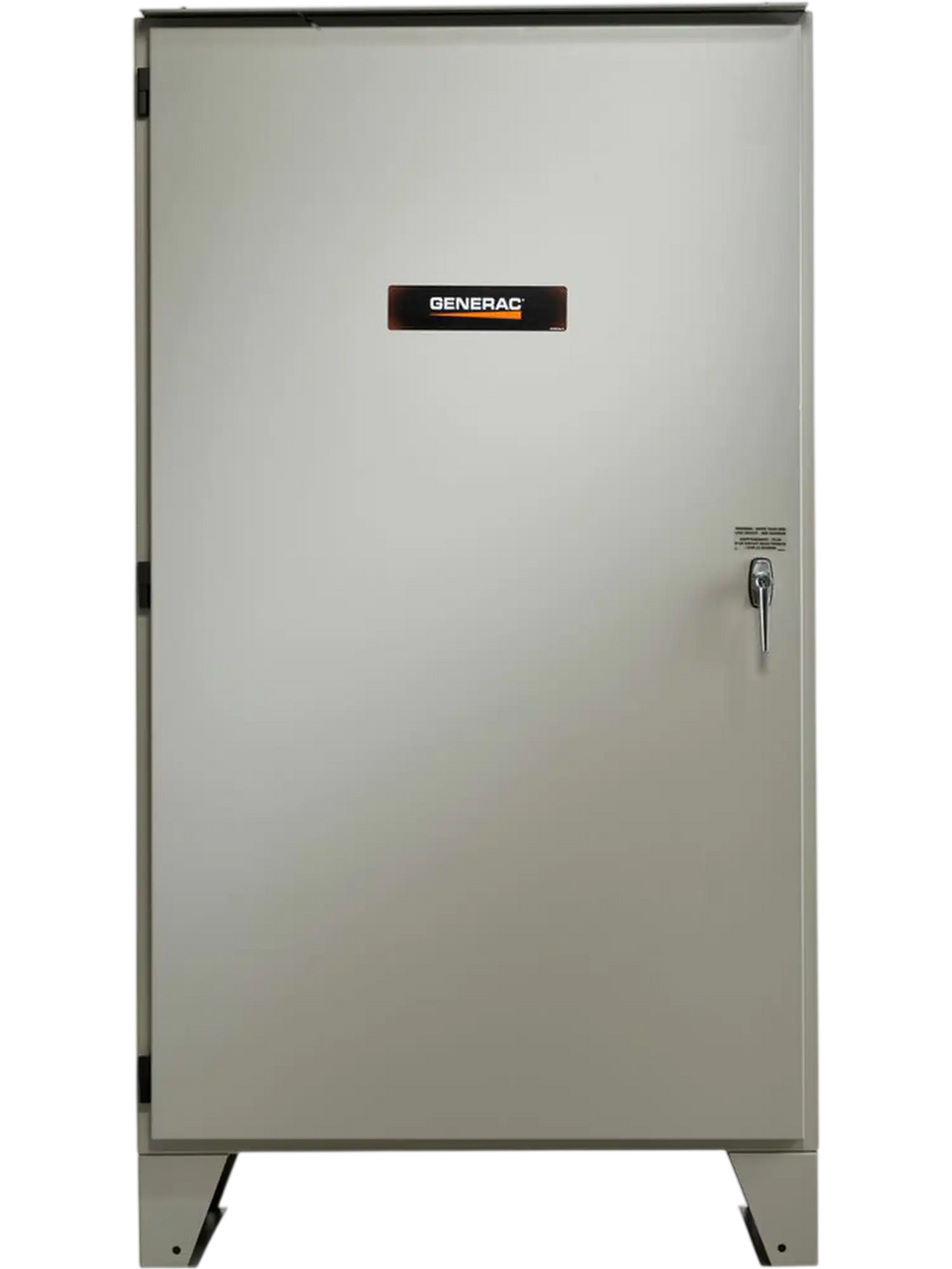

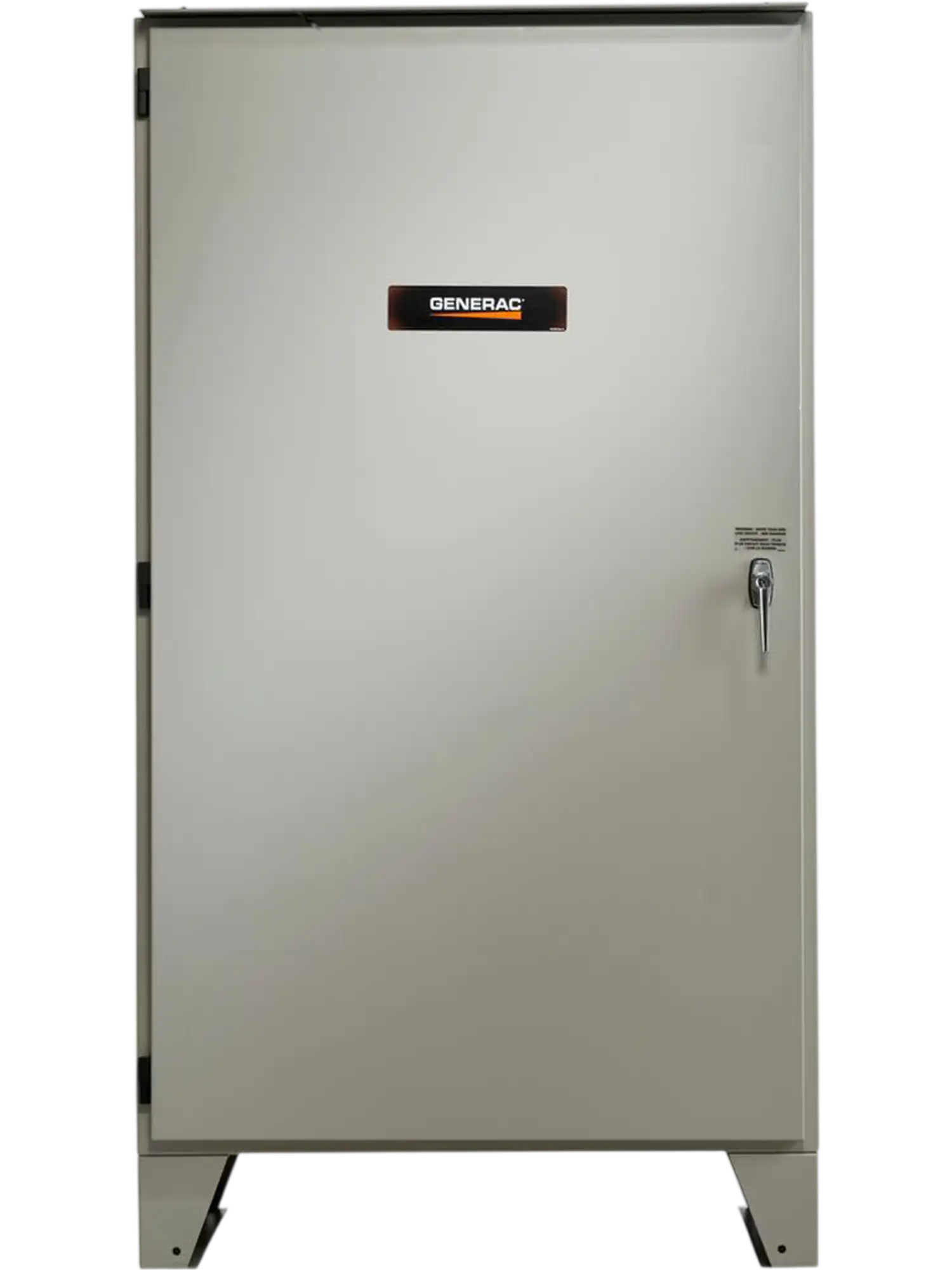

Generac RTSN800K3 Automatic Transfer Switch 800A 277/480V 3 Phase Non-Service Entrance Rated New
Manufacturer: Generac
SKU: RTSN800K3
QTY
or
(888) 999-1522
C
$9,143.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Estimated to ship in 1 week
Exceptional Customer Service
Authorized Dealer
Generac RTSN800K3 Automatic Transfer Switch 800A 277/480V 3 Phase Non-Service Entrance Rated New
Product Overview
The Generac RTSN800K3 is an 800A three phase automatic transfer switch designed for non-service entrance applications. It features an open transition design and a NEMA 3R outdoor rated steel enclosure for flexible indoor or outdoor installation. A heavy duty contactor is built for long service life, with timing and sensing functions handled through the generator controller. This model is compatible with Generac 22-150kW liquid-cooled generators.
2 year factory warranty
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Electrically operated, mechanically-held contacts for fast, positive connections.
- Rated for all classes of load, 100% equipment rated, both inductive and resistive.
- Main contacts are silver plated or silver alloy to resist welding and sticking.
- NEMA 3R (indoor/outdoor rated) steel enclosure is standard.
- 160 millisecond transfer time.
- Single coil design.
Specifications
| Rated Amperage | 800A |
|---|---|
| Transfer Method | Automatic |
| Phase | Three Phase |
| Service Entrance Rated | No |
| Load Transition Type | Open Transition |
| Voltage | 277/480 |
| Enclosure Type | NEMA 3R |
|---|---|
| Dimensions | 36 x 21 x 66 in |
| Weight | 439 lbs |
Warranty
This item comes with a 2 year limited warranty.
