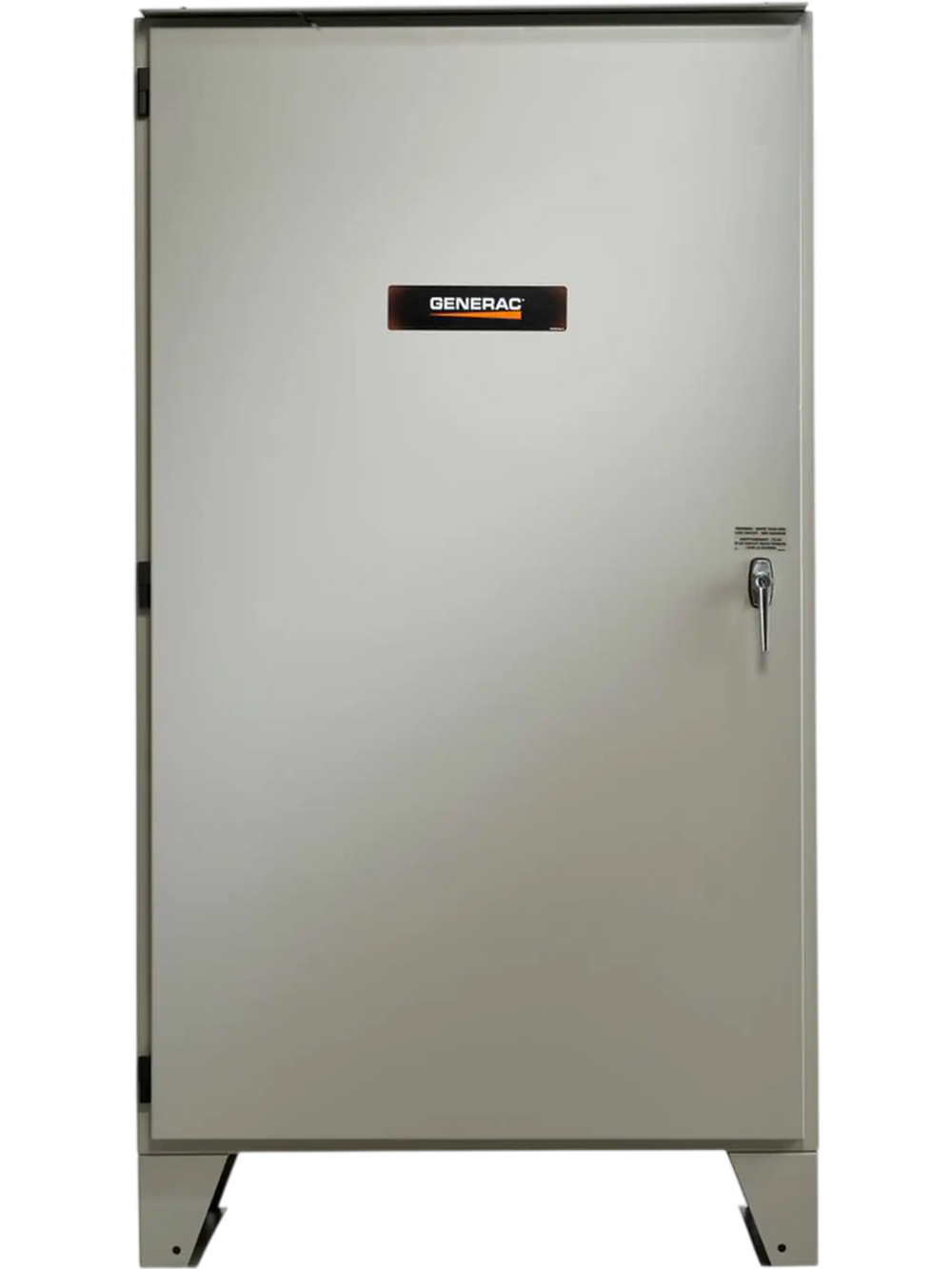

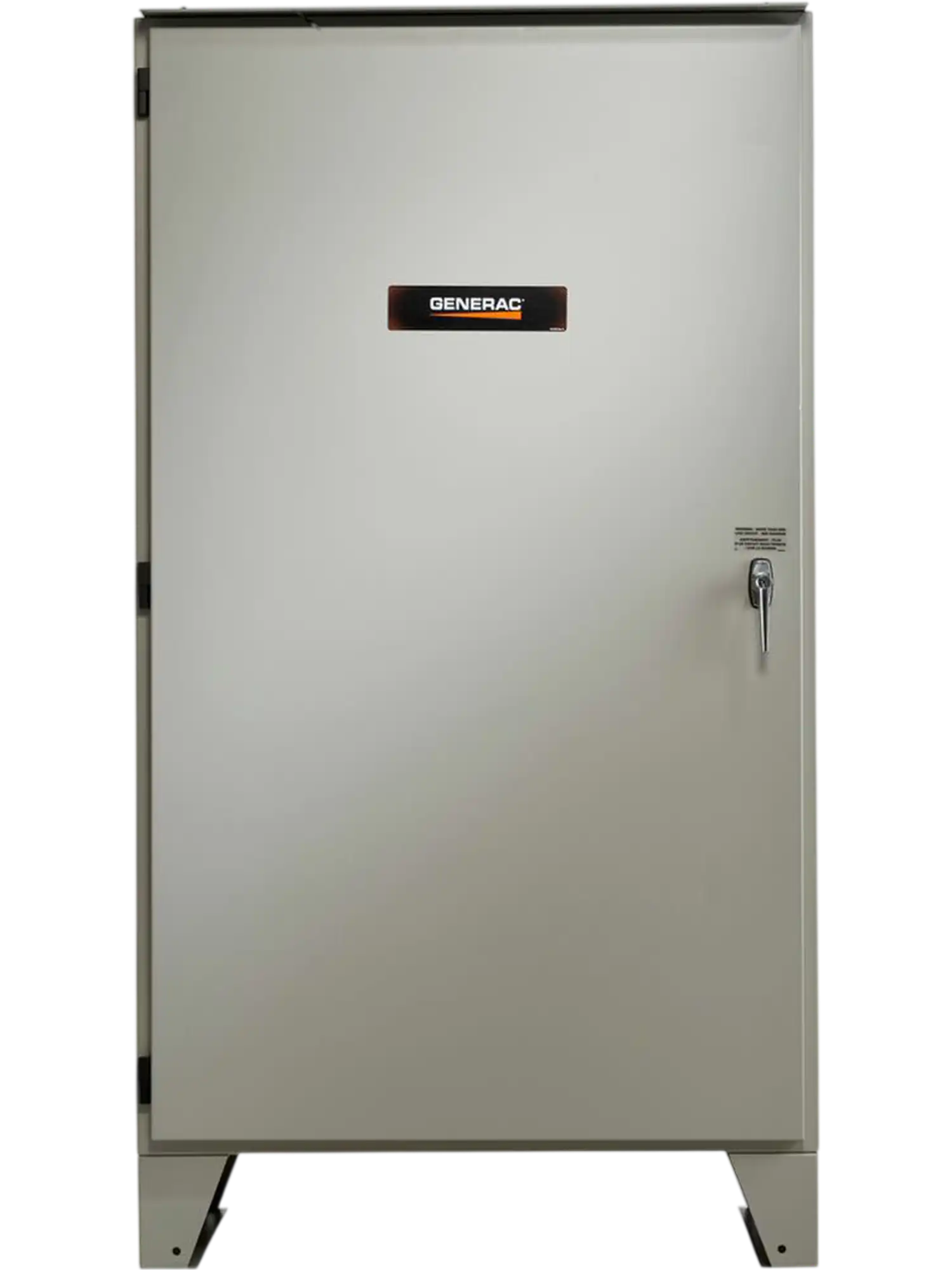

Generac RTSN800G3 Automatic Transfer Switch 800A 120/208V 3 Phase Non-Service Entrance Rated New
Manufacturer: Generac
SKU: RTSN800G3
QTY
or
(888) 999-1522
C
$8,995.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Estimated to ship in 4 weeks
Exceptional Customer Service
Authorized Dealer
Generac RTSN800G3 Automatic Transfer Switch 800A 120/208V 3 Phase Non-Service Entrance Rated New
Product Overview
The Generac RTSN800G3 is an 800A automatic transfer switch designed for 120/208V three-phase standby power applications. It features open-transition operation and a rugged NEMA 3R steel enclosure suitable for indoor or outdoor installation. The switch uses a heavy-duty Generac contactor built for long service life and fast, positive connections. Timing and sensing functions are handled through the connected generator controller for coordinated operation. This model is built for use with Generac liquid-cooled generators in the 22-150kW range.
2 year factory warranty
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Electrically operated, mechanically-held contacts for fast, positive connections.
- Rated for all classes of load, 100% equipment rated, both inductive and resistive.
- Main contacts are silver plated or silver alloy to resist welding and sticking.
- NEMA 3R indoor/outdoor rated steel enclosure is standard.
- 160 millisecond transfer time.
- Single coil design.
Specifications
| Model | RTSN800G3 |
|---|---|
| Amperage | 800A |
| Voltage | 120/208V |
| Phase | 3-Phase |
| Load Transition Type | Open Transition |
| Enclosure Type | NEMA 3R |
| Installation | Indoor/Outdoor |
| Service Entrance Rated | No |
|---|---|
| Dimensions | 36 x 21 x 66 in |
| Weight | 439 lbs |
Warranty
This item comes with a 2 year limited warranty.
