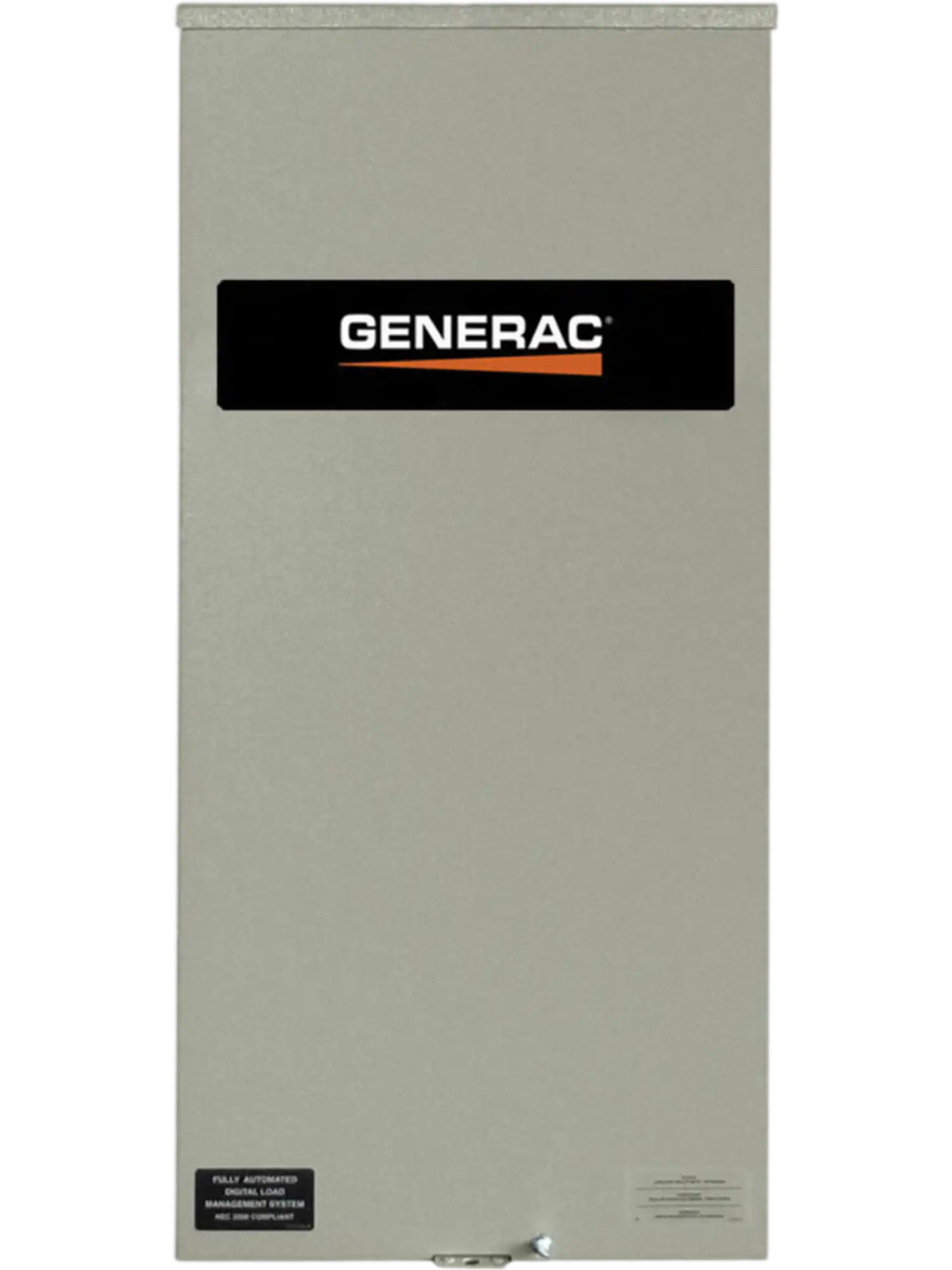

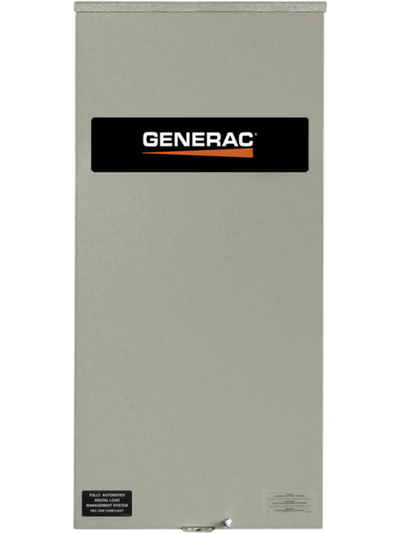

Generac RTSN400G3 Automatic Transfer Switch 400A 120/208V 3 Phase Non-Service Entrance Rated New
Manufacturer: Generac
SKU: RTSN400G3
QTY
or
(888) 999-1522
C
$3,349.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Estimated to ship in 7 weeks
Exceptional Customer Service
Authorized Dealer
Generac RTSN400G3 Automatic Transfer Switch 400A 120/208V 3 Phase Non-Service Entrance Rated New
Product Overview
The Generac RTSN400G3 is a 400A three-phase automatic transfer switch designed for reliable backup power operation. It features a NEMA 3R steel enclosure for indoor or outdoor installation and a heavy-duty contactor built for long service life. This non-service rated switch uses open transition transfer and is intended for 120/208V three-phase applications. Timing and sensing functions are handled through the generator controller for streamlined operation.
2 year factory warranty
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Rated amperage 400A
- Electrically operated, mechanically held contacts for fast, positive connections
- Main contacts are silver plated or silver alloy to resist welding and sticking
- 160 millisecond transfer time
- Rated for all classes of load, 100% equipment rated, both inductive and resistive
- NEMA 3R Outdoor Rated Enclosure – Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris
- Single coil design
Specifications
| Rated Amperage | 400 A |
|---|---|
| Transfer Method | Automatic |
| Voltage | 120/208V |
| Phase | 3-phase |
| Service Entrance Rated | No |
| Load Transition Type | Open transition |
| Enclosure Type | NEMA 3R |
|---|---|
| Dimensions | 24 x 10 x 36.1 in |
| Weight | 160 lbs |
Warranty
This item comes with a 2 year limited warranty.
