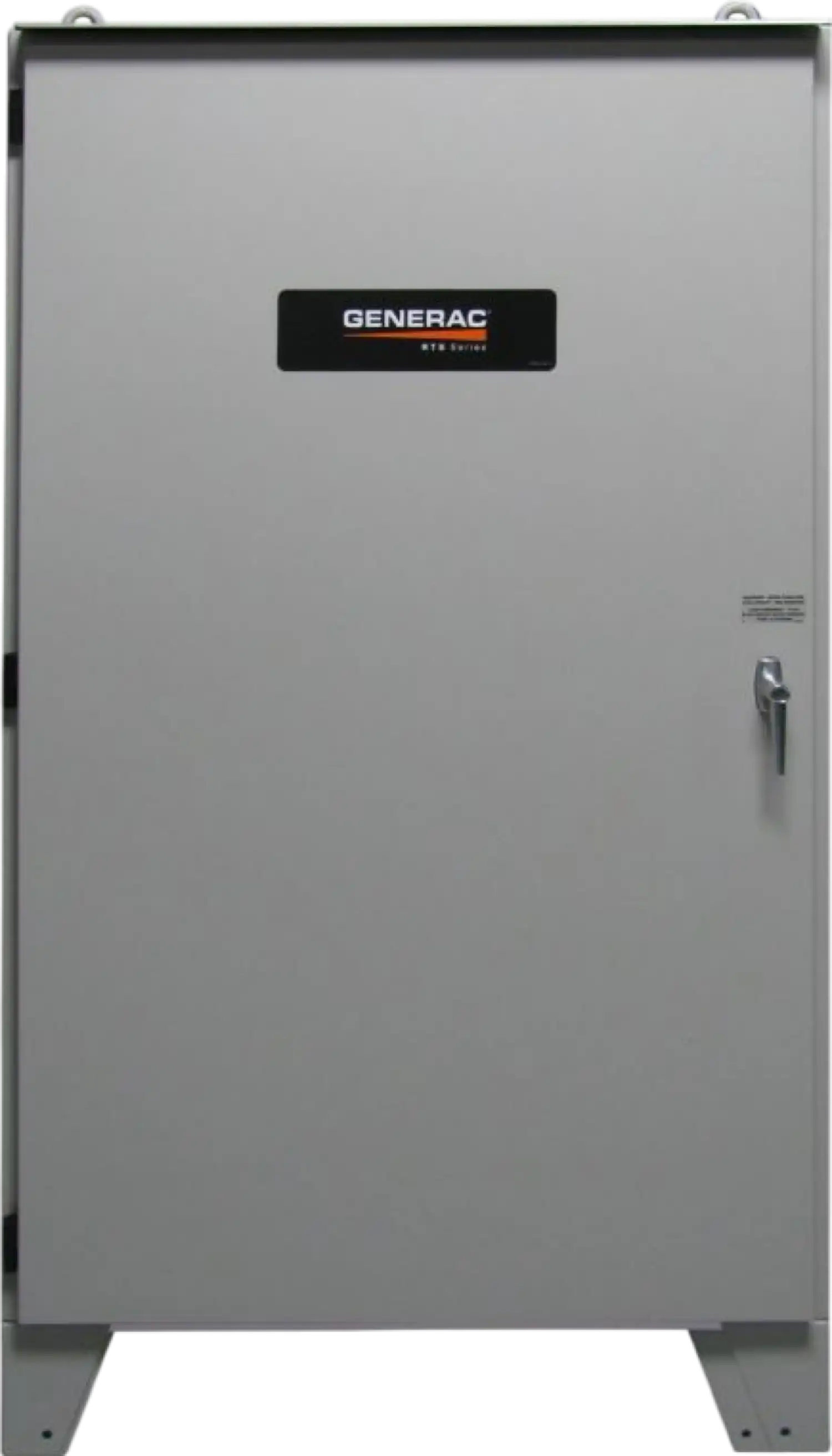

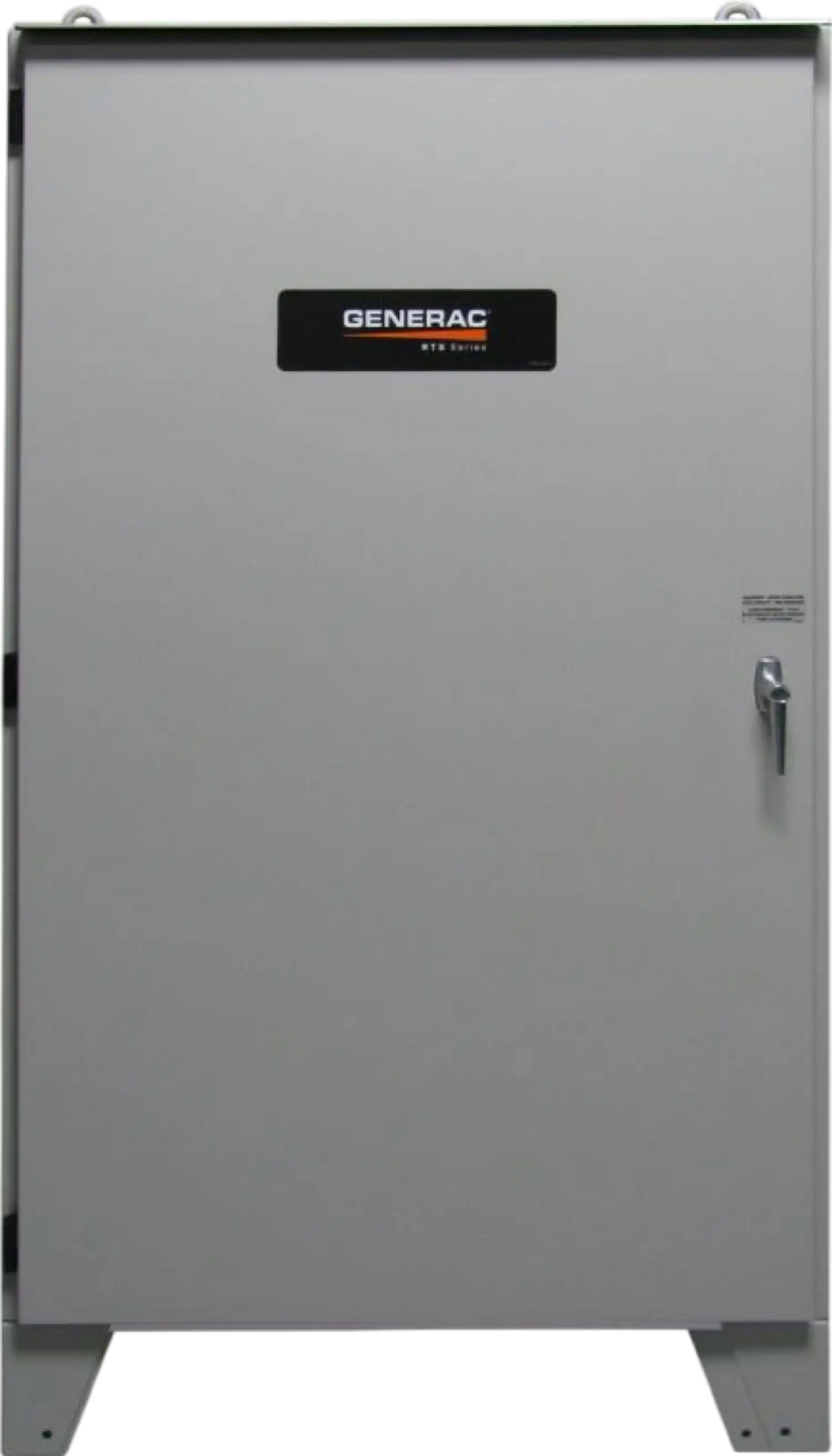

Generac RTSC600A3 600 Amp Non-Service Entrance Rated Automatic Transfer Switch 120/240V Single Phase New
Manufacturer: Generac
SKU: RTSC600A3
QTY
or
(888) 999-1522
C
$8,022.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Generac RTSC600A3 600 Amp Non-Service Entrance Rated Automatic Transfer Switch 120/240V Single Phase New
Product Overview
Featuring a NEMA 3R aluminum enclosure and Heavy Duty Generac Contactor, this 600 Amp Non-service Entrance switch is designed for use with single phase generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required. Compatible with Generac 22-150kW liquid-cooled generators.
5 year limited factory warranty
NEMA 600a Transfer Switch
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Electrically operated, mechanically-held contacts for fast, positive connections.
- Main contacts are silver plated or silver alloy to resist welding and sticking.
- 160 millisecond transfer time.
- Rated for all classes of load, 100% equipment rated, both inductive and resistive.
- NEMA 3R (indoor/outdoor rated) steel enclosure is standard.
- Single coil design.
Specifications
| Model | RTSC600A3 |
| Amps | 600 |
| Voltage | 120/240, Single Phase |
| Load Transition Type (Automatic) | Open Transition |
| Enclosure Type | NEMA 3R |
| Withstand Rating (Amps) | 42,000 |
| Lug Range | 1/0 - 500 MCM |
| UL Listed | Yes |
| Dimensions (W x D x H) | 36 x 21 x 66 in. (91.4 x 53.3 x 167.6 cm) |
| Weight | 337.5 lbs. (153.1 kg) |
Package Contents
Generac RTSC600A3 600 Amp Automatic Transfer Switch
User Manual
Warranty
This item comes with a 5 year limited factory warranty.
