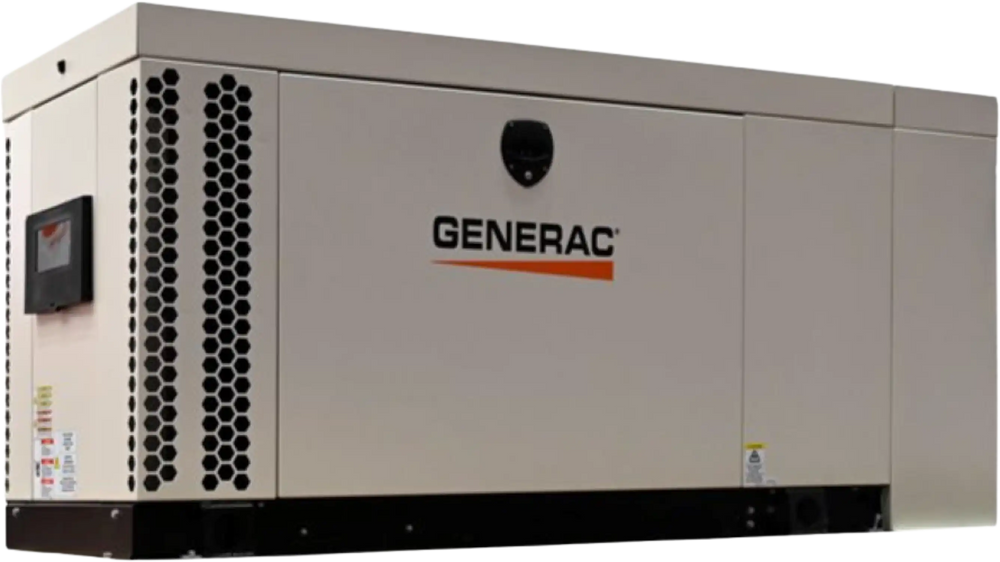

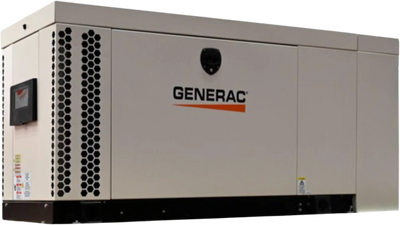

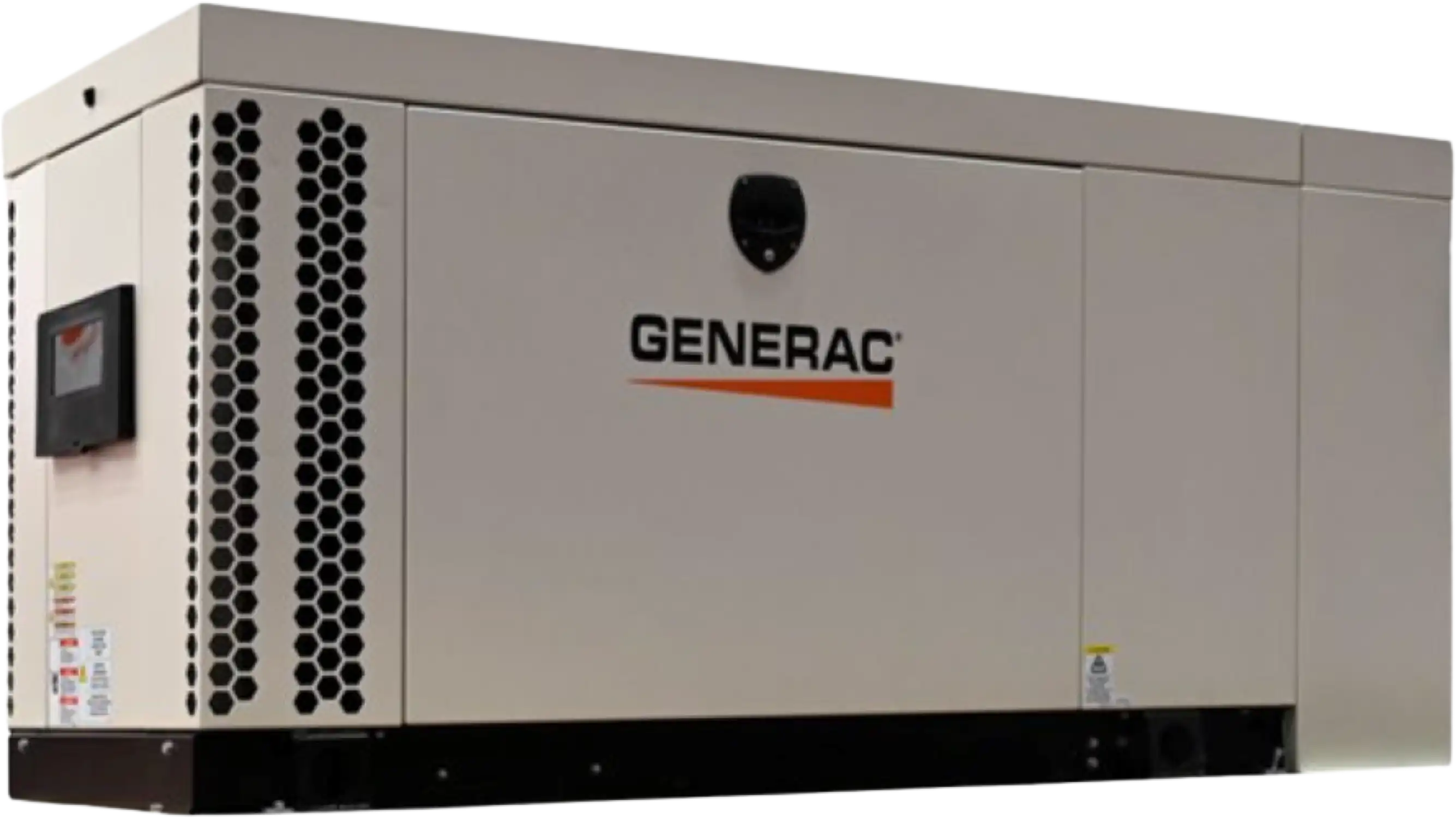

Generac RA03022KDAE Protector 30kW Standby Generator Liquid Cooled 3 Phase 277/480V Diesel New
Manufacturer: Generac
SKU: RA03022KDAE
QTY
(888) 999-1522
C
$26,717.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Generac 12V Battery For All Standby Models (8kw and larger - must be purchased with a generator)
-
Generac Extreme Cold Weather Kit Block Heater Liquid Cooled Standby Models
-
Generac Battery Heater Kit Liquid Cooled Standby Models
-
Generac RTSW200K3 200 Amp Automatic Transfer Switch 277/480V 3 Phase NEMA 3R New
Generac RA03022KDAE Protector 30kW Standby Generator Liquid Cooled 3 Phase 277/480V Diesel New
Product Overview
The 277/480-Volt Generac 30kW Generator Protector Diesel Series restores power during an outage for all the conveniences and necessities of modern living and work life. Seconds after an outage hits, the 30kW generator system starts and restores power to the home or business for refrigeration, heating and cooling, office equipment, pumps, and lighting. With a 30kW Generator, your home or business operates as usual through a power outage.
5 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Diesel Powered
Features
- Power Zone® 410 controller with external viewing window for easy indication of generator status and breaker position.
- Isochronous electronic governor
- Sound attenuated aluminum enclosure
- Smart battery charger
- UV / Ozone resistant hoses
- ±1% voltage regulation
- Integrated base tank options are available with run times over 90 hours without having to refuel (runtime calculated at 50% load)
- 5-year limited warranty
- UL 2200 / UL142 / ULC S601 certified
- Double wall fuel tank
- Meets code requirements for external vent and fill
Specifications
| Engine Type | 4 cylinder, in line 4 cycle |
| Phase | 3 Phase |
| Voltage | 277/480V |
| Fuel Type | Diesel |
| Fuel Filtering | 25 microns (maximum) |
| Bore and Stroke | 3.30 x 3.90 in. (84 x 100 mm) |
| Engine Displacement | 135.2 in³ (2.22 L) |
| Compression Ratio | 21.3:1 |
| Water Pump | Pre-lubed, self-sealing |
| Drive | Belt |
| System Coolant Capacity | 2.5 gal. (9.5 L) |
| Coolant Flow Rate | 14.8 gal. (56.2 L)/min at 1,800 RPM |
| Oil Pump Type | Gear |
| Oil Filter Type | Full flow spin-on canister |
| Oil Cooler | Installed |
| Crankcase Capacity | 11.2 qt. (10.6 L) |
| Lubricating Oil | 15W-40 |
| Intake Air System | Turbocahged/aftercooled |
| Engine Dimensions | 26.1 x 19.3 x 27.5 in. (66.2 x 48.9 x 69.8 cm) |
| Dry Weight | 507.1 lbs. (230 kg) |
Package Contents
Generac RA03022KDAE Protector 30kW Standby Generator
User Manual
Warranty
This item comes with a 5 year limited factory warranty.
