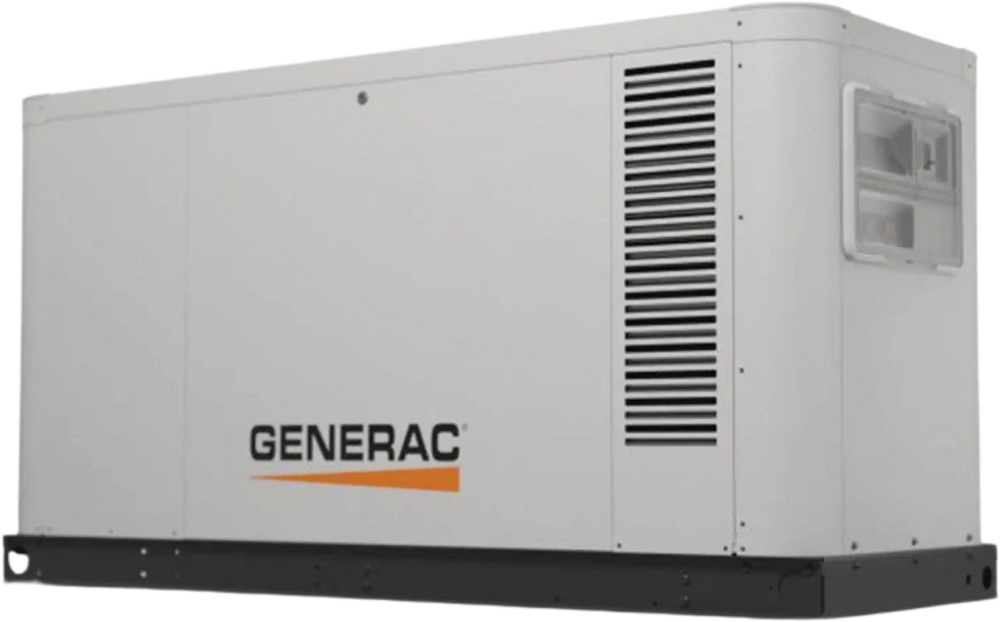

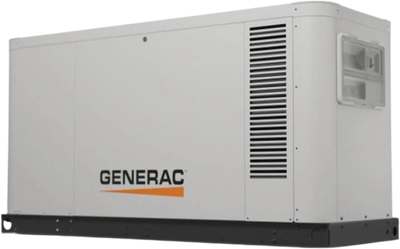

Generac Protector XG Series XG04045ANAX 40kW Liquid Cooled 1 Phase 120/240V Standby Generator New
Manufacturer: Generac
SKU: XG04045ANAX
Similar Products
Sort:
Filter:
Price
Brand
Running Wattage
Fuel
Type
Features
Condition
Includes Transfer Switch
Product Overview
The Generac 40 kW Generator adds well-known features to new improvements with the Protector XG series. The 40kW XG04045 has a 4.5 Liter engine that runs at 1800 RPM under load and 1200 RPM at idle or Quiet Test mode. The Power Zone 410 Controller brings the latest in technology with additional functionality and more features than ever before, including the ability to select the fuel type at the controller without any other modifications. This controller is NFPA 110 capable.
*Not for sale in California or Massachusetts*
5 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Natural Gas or Liquid Propane Powered
Features
- Generac Designed & Built, 4.5L Engine - Purpose-built exclusively for generator use & designed from the ground up by Generac and made in Wisconsin. Utilizes the first in class, dual-valve ultra-low pressure fuel delivery system and intelligent proprietary engine controls that manage over 100 performance functions to ensure peak efficiency. Generac is one of the only manufacturers to design & produce a complete generator which includes our own engine, alternator, fuel system, controller and enclosure in the U.S.
- Alternator Excellence - Excellent Motor Starting Capability - Motors start without issue upon initial startup. Key for homes and businesses with a large amount of motor load (e.g. air conditioning, process equipment, etc.).
- Less than 5% total harmonic distortion (THD) – safe for sensitive electronics.
- Generac designs its high-efficiency alternator ensuring industry-leading surge protection, performance, and longevity.
- Fuel Performance - New engine requires up to 25% less fuel at full load and makes power with lowest fuel pressure in the industry (3.5” of Natural Gas).
- Mobile Link™ Connectivity - Mobile Link™ Connectivity allows you to monitor the status of your generator from anywhere in the world using a smartphone, tablet or PC. Easily access information, such as the current operating status and the generator’s maintenance schedule. Connect your account to an authorized service dealer for fast, friendly and convenient assistance. With Mobile Link, your generator is taken care of before the next outage.
- 5-Year Limited Warranty - Consistent with the Protector Series lineup, 5-year limited warranty is standard through 80kW.
Specifications
| Generator | Standby |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 40000 Watts |
| Fuel Type | LP/Natural Gas |
| NG Power Capacity | 40000 Watts |
| LP Power Capacity | 40000 Watts |
| NG Fuel Consumption @ 50% Load | 289 ft³/hr |
| NG Fuel Consumption @ 100% Load | 494 ft³/hr |
| LP Fuel Consumption @ 50% Load | 3.8 gallons/hr |
| LP Fuel Consumption @ 100% Load | 5.7 gallons/hr |
| Rated Amps | 167 Amps |
| Decibel Rating @ 7m | 58 Test (64 Run) dbA |
| Transfer Switch | Automatic (Not Included) |
| Battery | 12-Volt Group 27R, 725 CCA |
| Enclosure | Aluminum |
| Circuit Breaker Size | 200 Amps |
| Mounting Pad | Concrete (Not Included) |
| Cooling System | Liquid Cooled |
| Grade Type | Emergency |
| Wi-Fi Remote Monitoring | Yes |
| Engine Brand | Generac |
| Starting System | 12V Auto Start |
| CC | 4500 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| CARB Compliant | No |
| Made in USA | Yes |
| UL Listed | Yes |
| Dimensions | 83.4 x 34 x 45.2 in. |
| Shipping Dimensions | 90 x 41 x 51 in. |
| Weight | 1781 lbs. |
| Consumer Warranty | 5 Years |
| Commercial Warranty | 5 Years |
Package Contents
Generac XG04045ANAX Standby Generator
User Manual
Warranty
This item comes with a 5 year factory warranty.
